PM1115P2
Parallel Print Server - 10/100Mbps

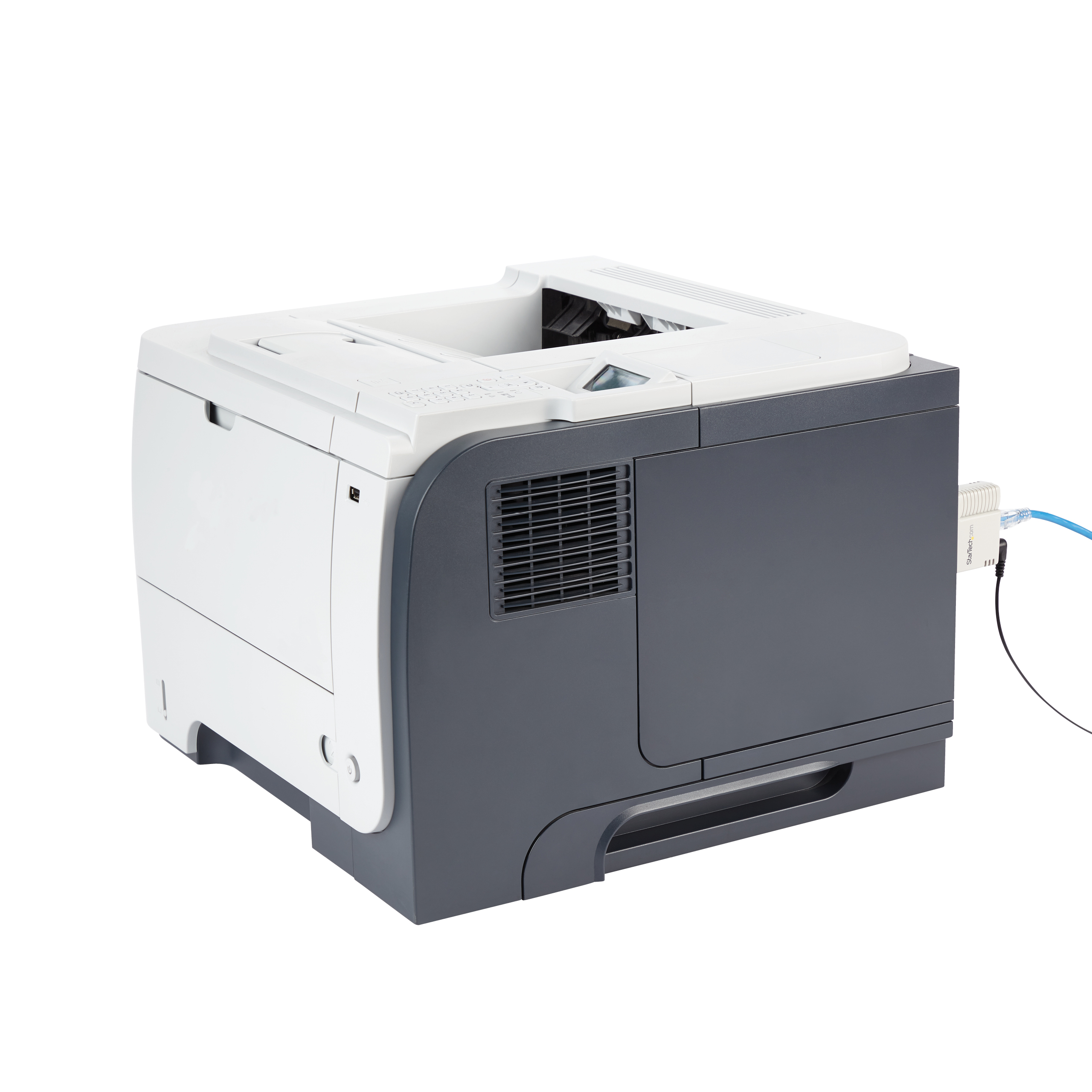

Convert a standard parallel printer into a shared network printer over a 10/100 Ethernet network
Main Image
Product Images
Product Images
Product Images
BOM Image
Quick-Start Guide
Video Link YouTube
Product Name Parallel Print Server - 10/100Mbps Product Number PM1115P2 UPC 065030854184 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Networking Category Level 2 Printer Servers Category Level 3 Printer Servers Group Family Print Server - Wired Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX065X Product Title (Ultra-Short) 10/100 Print Server Product Title (Short) Parallel Ethernet Network Print Server Product Title (Standard) 1 Port 10/100 Mbps Ethernet Parallel Network Print Server, TAA - Replaced by PM1115P3 Product Title (Long) 1 Port 10/100 Mbps Ethernet Parallel Network Print Server, TAA - Replaced by PM1115P3 Product Title (AMZ) 1 Port 10/100 Mbps Ethernet Parallel Network Print Server, Centronics Printer Server, TAA - Replaced by PM1115P3 Title Ingram (Part 1) Parallel Print Server - Fast Title Ingram (Part 2) Ethernet Network Print Server Website Product Headline Convert a standard parallel printer into a shared network printer over a 10/100 Ethernet network Bullet 1 BROAD COMPATIBILITY: This parallel print server works w/ Mac & Windows; The print adapter also supports Simple Network Management Protocol (SNMP) for remote monitoring Bullet 2 THE IT PRO’S CHOICE: Designed and built for IT Professionals, this parallel network print server is backed for 2 years, including free lifetime 24/5 multi-lingual technical assistance Bullet 3 DETAILED INSTALLATION STEPS: Perform initial setup following our online step-by-step instructional video or user manual; Access the online FAQs and IT Pro Community for additional helpful tips and instructions Bullet 4 PRINT FROM ANYWHERE: This compact, lightweight Ethernet print server connects directly to the Centronics port on your printer, for a discreet solution that doesn't require a cable; Simply connect the device to the network using an RJ45 cable Bullet 5 10BASE-T/100BASE-TX: The Ethernet to Parallel Network Print Server lets you convert a standard parallel printer into a shared network printer over a 10/100Mbps network Bullets (Consolidated) Convert a standard parallel printer into a shared network printer over a 10/100 Ethernet network - 1 Port Parallel Network Print Server - Parallel Print Server - 10/100 Mbps Fast Ethernet Print Server - Remote Print Server - Centronics Parallel Port Marketing Copy Marketing Copy (No HTML) Applications - A convenient network printing solution for education and government institutions
- Eliminate performance issues of an always-on dedicated PC acting as the printer server
- Convert a standard parallel printer into a standalone network printer and share a single printer among multiple network connected computers
Website Search Keyword PM1115P Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
Special Notes OS Compatibility refers to the included software only – the Print Server itself can be used without software on any platform that supports network printing System and Cable Requirements Ethernet network cable not included Accessory Products - RJ45PATCH75
- RJ45PATCH100
- RJ45PATCH10
- RJ45PATCH6
- RJ45PATCH25
- RJ45PATCH15
- RJ45PATCH50
- SVA5H2NEUA
Related Products PM1115U Replacement Product PM1115P3 Input Current 0.2 A Input Voltage 100 - 240 AC Output Current 1 A Output Voltage (V) 5 DC Power Source AC Adapter Included Plug Type H Center Tip Polarity Positive Color Beige Humidity 10~70% RH Material Plastic Operating Temperature 0°C to 50°C (32°F to 122°F) Primary Material Plastic Product Length (mm) 60.000 Product Width (mm) 62.000 Product Height (mm) 24.000 Product Weight (g) 52.000 Storage Temperature 0°C to 50°C (32°F to 122°F) TAA Compliant Yes Maximum Data Transfer Rate 100Mbps OS Compatibility - Windows 8
- Linux
- Windows 7
- Windows Server 2012
- Mac OS X Mavericks (10.9)
- Windows 10
- Windows Server 2016
- Windows Server 2019
- Windows 11

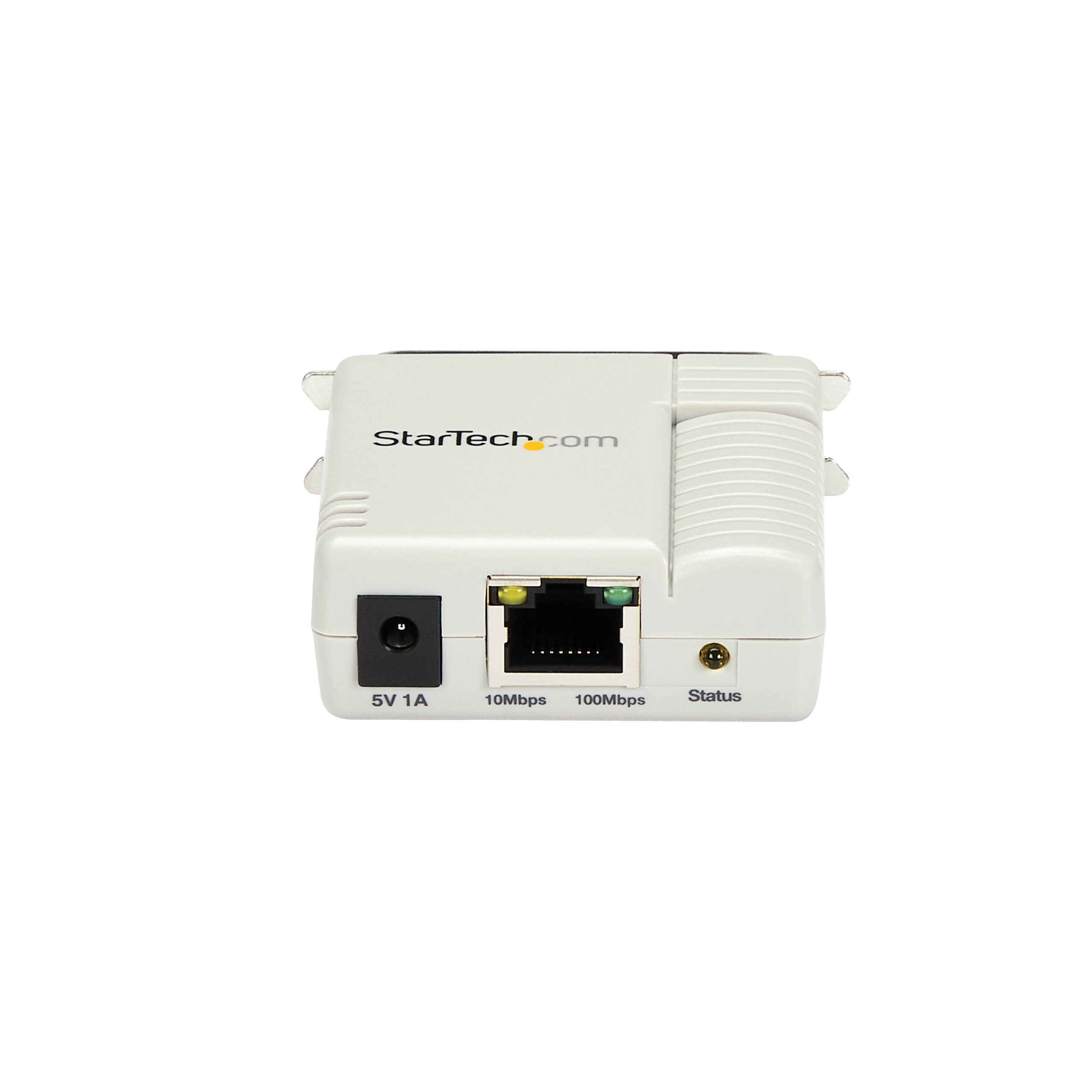

Remote Management Ability Yes Supported Protocols Industry Standards IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX Interface/Bridge - Parallel
- RJ45 (10/100 Ethernet)
LED Indicators - 1 - Power/Status: Yellow Solid
- 1 - 100Mbps Link/Activity: Green Solid/Flashing
- 1 - 10Mbps Link/Activity: Yellow Solid/Flashing

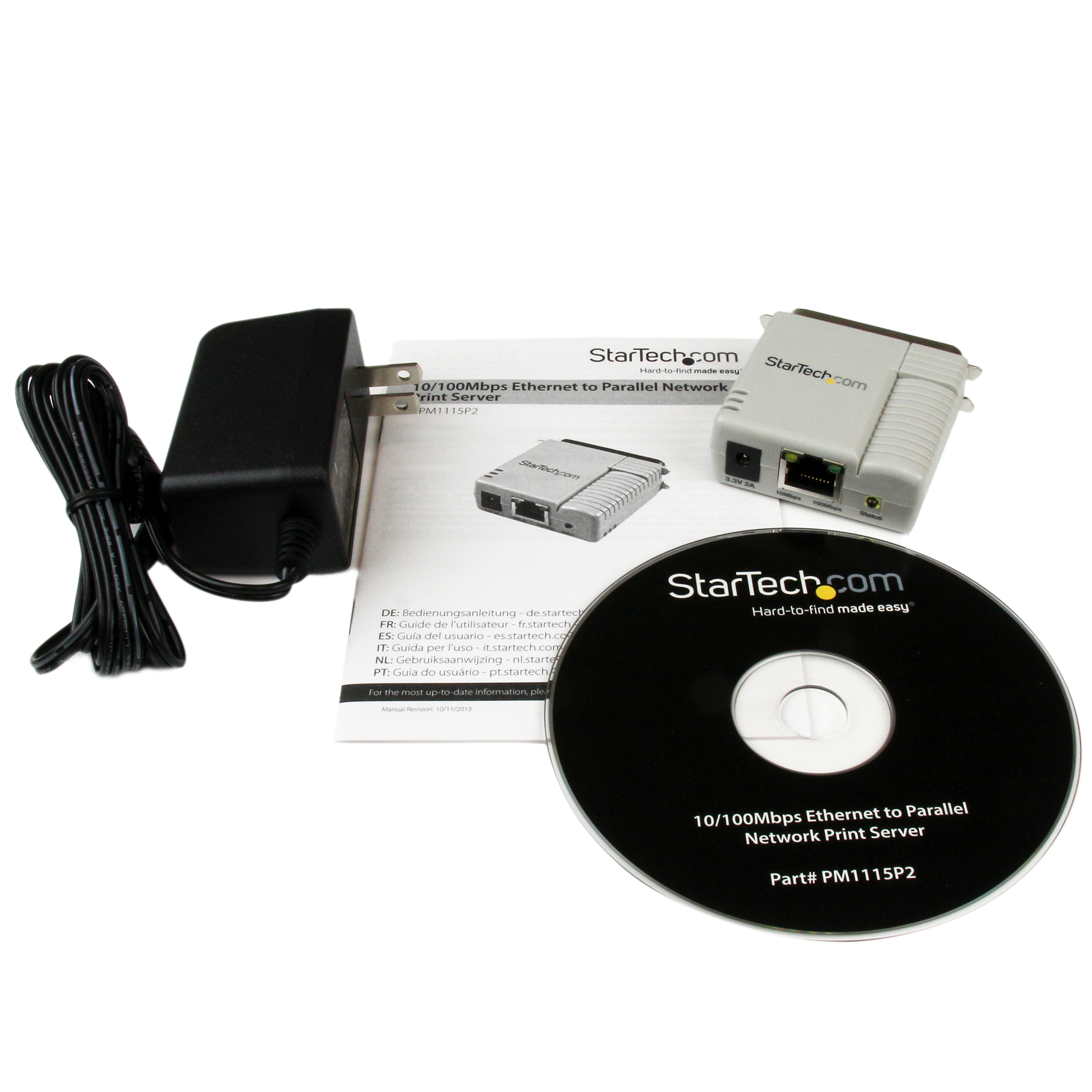

Carton Depth (mm) 374 Carton Height (mm) 350 Carton Quantity 20 Carton Weight Gross (g) 6714 Included in Package - 1 - Parallel Print Server
- 1 - Power Adapter
- 1 - Quick Start Guide
- 1 - Software CD
Package Depth (mm) 156 Package Height (mm) 68 Package Width (mm) 230 Package Weight (g) 282 Packaging Description 10/100Mbps Ethernet to Parallel Network Print Server Packaging Description India 10/100Mbps Ethernet to Parallel Network Print Server Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 RJ-45 Connector 1 (Quantity) 1 Connector 2 Centronics (36-Pin) Connector 2 (Quantity) 1 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2013-09-10 Buying Center - AV & Collaboration No Buying Center - End User Compute No Buying Center - Networking & Edge No Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) CA,CL,CO,JP,MX,PE,US Primary Technology None Product Development Specialist Ray Aoki Product Information Creation Specialist (PICS) Alex Garcia Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Stefan Tirolese Technical Writer Andrew Richardson Technology Lifecycle None
