PM1115P3
10 100 Ethernet to 1 Port Parallel Print Server
Add and share a parallel printer to an existing Ethernet network
Main Image
Product Images
Product Images
Product Images
BOM Image
Quick-Start Guide
Product Name 10 100 Ethernet to 1 Port Parallel Print Server Product Number PM1115P3 UPC 065030897716 Lifecycle status Active Warranty 2 Years Weighted Opportunity 159860 Taxonomy Product > Networking > Print Servers Category Level 1 Networking Category Level 2 Printer Servers Category Level 3 Printer Servers Group Family Print Server - Wired Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX065X Product Title (Ultra-Short) LAN Print Server Product Title (Short) Ethernet to Parallel Print Server Product Title (Medium) Ethernet to Parallel Network Print Server, Centronics Ethernet Printer Adapter Product Title (Standard) Ethernet to Parallel Network Print Server, 10/100 LAN, Windows/macOS/Linux, Centronics Ethernet Printer Server Adapter, TAA Product Title (Long) Ethernet to Parallel Network Print Server, 10/100Mbps LAN, WebUI Enabled, Centronics Ethernet Printer Server Adapter, Enhances Legacy Printer, TAA Product Title (AMZ) Ethernet to Parallel Network Print Server, 10/100Mbps LAN, WebUI, Centronics Ethernet Printer Server Adapter, TAA Title Ingram (Part 1) Ethernet to Parallel Print Title Ingram (Part 2) Server - Centronics to LAN Adapter Website Product Headline Add and share a parallel printer to an existing Ethernet network Bullet 1 NETWORK PRINTER: Ethernet to parallel network print server converts a parallel printer into a network printer, adding remote printing & printer sharing across a network; Supports 10/100Mbps LAN networks, IPP, TCP/IP, LPR, RAW, Apple Talk, NetWare, & SMB Bullet 2 REVITALIZE LEGACY PRINTERS: Upgrade the functionality of legacy printers by adding wired network connectivity; Supports HP LaserJet, Epson, Canon, Lexmark, Brother; Also use with vinyl cutters and label printers; Ideal for office/government/education Bullet 3 BROAD COMPATIBILITY: Parallel print server supports Windows, macOS, Linux; Setup through Windows software or Web interface for macOS/Linux; Windows Utility and WebUI for Network and protocol configuration, print status and queue, reset, firmware upgrade Bullet 4 DETAILED INSTALLATION STEPS: Perform initial setup following our user manual; Access the online FAQs and IT Pro Community for additional helpful tips and instructions. Compact Ethernet print server connects directly to Centronics (36-pin) port on a printer Bullet 5 THE IT PRO'S CHOICE: Designed and built for IT Professionals, this parallel network print server is backed for 2 years, including free lifetime 24/5 multi-lingual technical assistance Bullets (Compact) Ethernet to parallel server converts printer to network printer; Supports 10/100Mbps networks - Windows/macOS/Linux; WebUI from any OS - Ideal for SoHO/office/education; Enhances legacy printers; Compact server connects directly to Centronics port Bullets (Consolidated) Ethernet to parallel server converts a parallel printer into a network printer; Enable remote LAN printing/printer sharing across 10/100Mbps networks - Windows/macOS/Linux; Centralized control via Windows software; WebUI interface for any OS support - Ideal for SoHO/office/government and educational institutions - Enhance a legacy printer functionality w/network connectivity and support for IPX/TCP/IP (LPR, IPP, RAW 9100)/NetBEUI/AppleTalk/SNMP v1 and 2/SMB - Connects directly to Centronics port Marketing Copy Marketing Copy (No HTML) Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- Recycling - Waste - Japan - Paper Recycling Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories
- Triman/Info-Tri - Packaging - Waste - European Union - Paper Box + paper tray/divider
- Triman/Info-Tri - Manual - Waste - European Union - Print Paper
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
Special Notes OS compatibility refers to the included software only. The Print Server itself can be used without software on any platform that supports network printing System and Cable Requirements Ethernet network cable not included Accessory Products - RJ45PATCH6
- RJ45PATCH12
- RJ45PATCH15
- RJ45PATCH25
- RJ45PATCH50
- RJ45PATCH75
- RJ45PATCH100
- SVA5H2NEUA
Related Products - PM1115P2
- PM1115UW
- PM1115U2
Input Current 0.3 A Input Voltage 100 - 240 AC Output Current 1 A Output Voltage (V) 5 DC Power Source AC Adapter Included Plug Type H Center Tip Polarity Positive Color White Humidity 0% to 70% Non-condensing Material Plastic Operating Temperature 0°C to 50°C (32°F - 122°F) Primary Material Plastic Product Length (mm) 56.000 Product Width (mm) 52.300 Product Height (mm) 22.100 Product Weight (g) 46.000 Storage Temperature -5°C to 65°C (23°F - 149°F) TAA Compliant Yes Maximum Data Transfer Rate 100Mbps OS Compatibility - Windows 8.1
- Linux
- Windows 7
- Windows 10
- Windows 11
- Windows Server 2016
- Windows Server 2019
- Mac OS X El Capitan (10.11)
- macOS Sierra (10.12)
- macOS High Sierra (10.13)
- macOS Mojave (10.14)
- macOS Catalina (10.15)
- macOS Big Sur (11.0)
- macOS Monterey (12.0)
- macOS Ventura (13.0)
- macOS Sonoma (14.0)
- macOS Sequoia (15.0)
- macOS Tahoe (26.0)
Remote Management Ability Yes Supported Protocols Industry Standards IEEE 802.3 10BASE-T </br> IEEE 802.3u 100BASE-TX Interface/Bridge - RJ45 (10/100 Ethernet)
- Parallel
LED Indicators - 1 - Status: Yellow Solid </br> When Powering On: Blinking
- 1 - 100Mbps Link: Green Solid </br> Activity: Blinking
- 1 - 10Mbps Link: Yellow Solid </br> Activity: Blinking

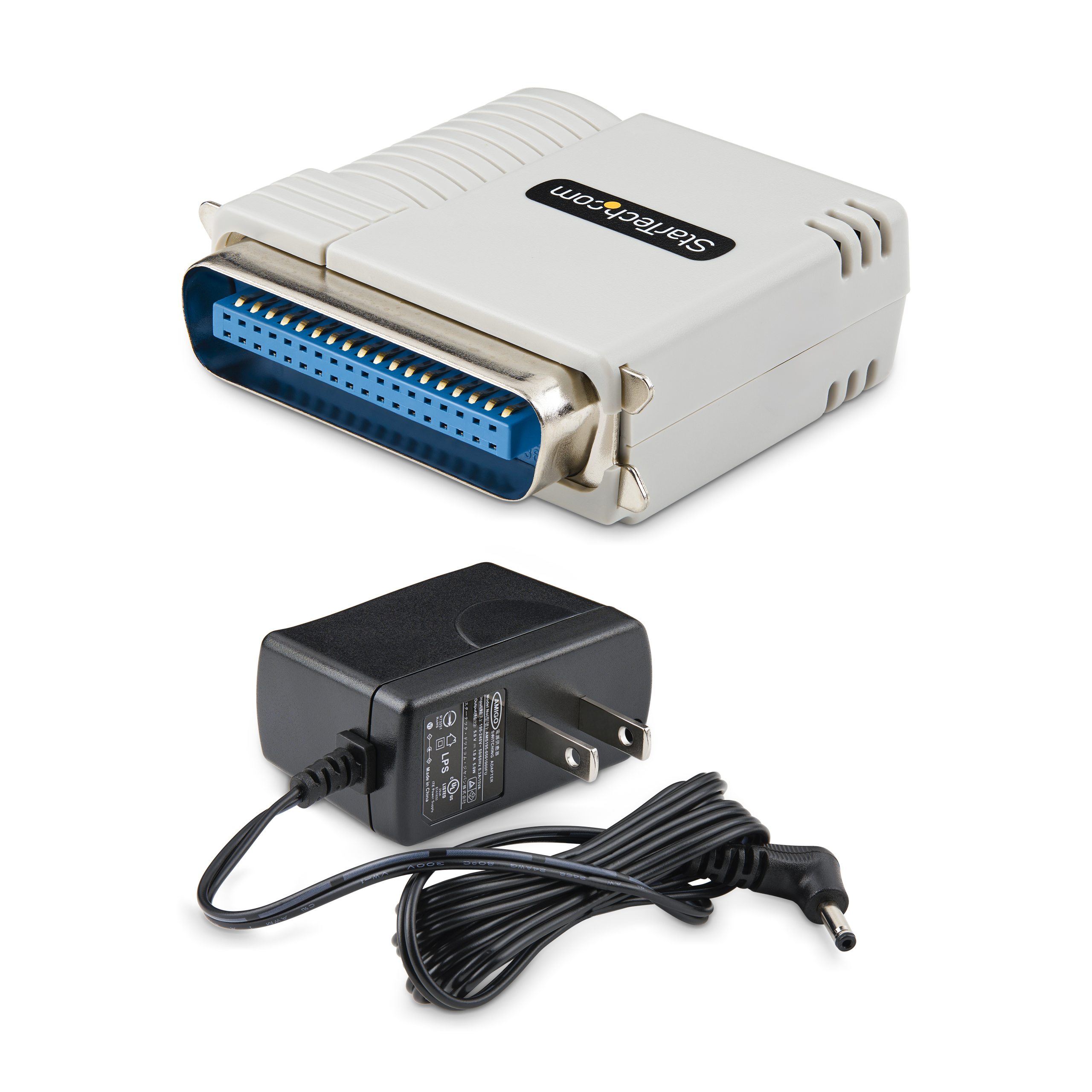

Carton Depth (mm) 489 Carton Height (mm) 355 Carton Quantity 20 Carton Weight Gross (g) 5998 Included in Package - 1 - Parallel Print Server
- 1 - Power Adapter
- 1 - Quick-Start Guide
Package Depth (mm) 230 Package Height (mm) 68 Package Width (mm) 152 Package Quantity 1 Package Weight (g) 248 Packaging Description 10/100Mbps Ethernet to Parallel Network Print Server Packaging Description India 10/100Mbps Ethernet to Parallel Network Print Server Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 RJ-45 Connector 1 (Quantity) 1 Connector 2 Centronics (36-Pin) Connector 2 (Quantity) 1 A+ Not Required Actual Inbox Documents Created QSG in the box Amazon Merchandising Manager Kathleen Marshall Application Photos Required Artwork Due Date 2024-03-31 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute Yes Buying Center - Networking & Edge Yes Digital Content Due Date 2024-05-27 Enhanced Gallery Required Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett ID Label Silkscreened or a Label Sticker label - 50x25mm Launch Markets (concatenated) CA,MX,US Product Development Specialist Ray Aoki Product Information Creation Specialist (PICS) Alex Garcia Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Shane Arnett Target Production Release 2024-03-31 Tech Lead Stefan Tirolese Technical Writer Alex Garcia Technology Lifecycle None Video Required
