Main Image
PM1115U2
USB 2 0 Network Print Server

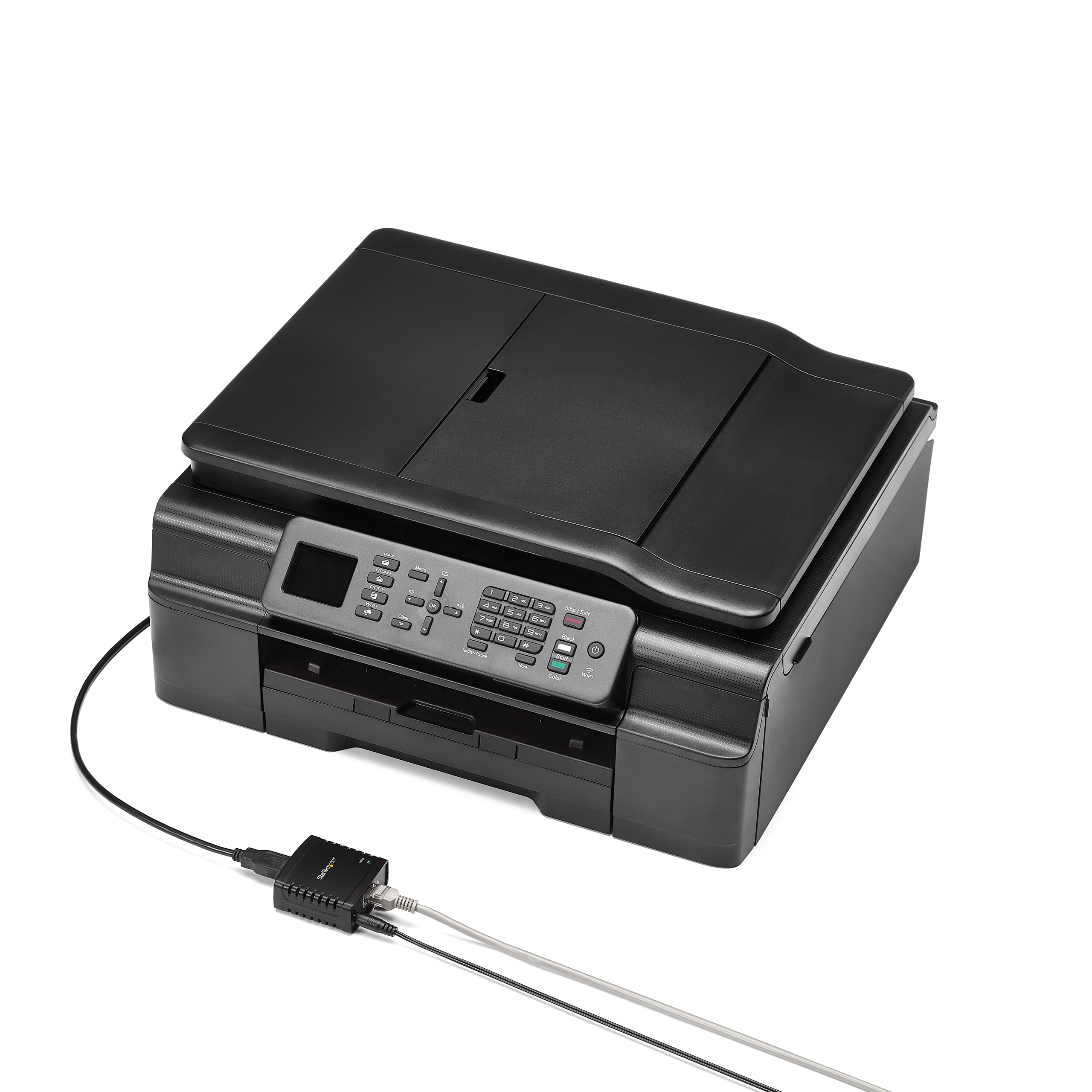

Share a standard USB printer with multiple users over an Ethernet network
Main Image
Product Images
Product Images
Product Images
Product Images
Product Images
Quick-Start Guide
Video Link YouTube
Product Name USB 2 0 Network Print Server Product Number PM1115U2 UPC 065030855174 Lifecycle status Active Warranty 2 Years Taxonomy Product > Networking > Print Servers Category Level 1 Networking Category Level 2 Printer Servers Category Level 3 Printer Servers Group Family Print Server - Wired Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX089X Product Title (Ultra-Short) USB LPR Print Server Product Title (Short) 10/100Mbps USB LPR Print Server Product Title (Medium) 10/100Mbps Ethernet to USB 2.0 Network LPR Print Server Product Title (Standard) 10/100Mbps Ethernet to USB 2.0 Network LPR Print Server - USB Print Server with 10Base-T/100Base-TX Auto-sensing Product Title (Long) 10/100Mbps Ethernet to USB 2.0 Network LPR Print Server Product Title (AMZ) 1-Port USB 2.0 Network Print Server, 10/100 Mbps Auto-sensing, Wired Ethernet LAN USB Printer Server Adapter, TAA Compliant Title Ingram (Part 1) USB Network LPR Print Server w/ Title Ingram (Part 2) 10Base-T/100Base-TX Auto-sensing Website Product Headline Share a standard USB printer with multiple users over an Ethernet network Bullet 1 Bullet 2 Bullet 3 Bullet 4 Bullet 5 Bullets (Compact) Share a standard USB printer with multiple users over an Ethernet network - 10/100Mbps Ethernet to USB 2.0 network LPR print server - USB 10/100 Mbps print server - Print server adapter with 10Base-T/100Base-TX Auto-sensing Bullets (Consolidated) Share a standard USB printer with multiple users over an Ethernet network - 10/100Mbps Ethernet to USB 2.0 network LPR print server - USB 10/100 Mbps print server/network print server/print server adapter - 10/100 Mbps USB print server with 10Base-T/100Base-TX Auto-sensing - Supports LPR network printing - Converts a USB printer into a standalone network printer over a 10/100 Ethernet network - Windows based set-up program and web-management Marketing Copy Marketing Copy (No HTML) Applications - Allows multiple users on an Ethernet network to share one USB printer
- Provides a reliable network printing solution for home, small office, educational and government institutions and any other environments that require printer sharing
Website Product Alert Website Search Keyword - Print Server
- 10/100 Mbps
- USB
- usb print server
- network print server
- print server adapter
- network printer adapter
- usb printer adapter
- USB 10/100 Mbps print server
- Bonjour services
- Windows print server
- Ethernet to USB Network Print Server
- Ethernet to USB Print Server
- PM1115U
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories + cords
Special Notes OS Compatibility refers to the included software only - the Print Server itself can be used without software on most platforms that support network printing System and Cable Requirements - USB printer cable not included
- Printer with USB connection
Accessory Products - RJ45PATCH10
- 45PATCH10BK
- 45PATCH10GR
- 45PATCH3BK
- RJ45PATCH3
- 45PATCH15BK
- RJ45PATCH15
- 45PATCH15GR
- SVA5H2NEUA
Related Products - PM1115U
- PM1115P
Input Current 0.25 Input Voltage 100 - 240 AC Output Current 1A Output Voltage (V) 5 DC Power Consumption (In Watts) 2 Power Source AC Adapter Included Plug Type H Center Tip Polarity Positive Color Black Humidity 10% ~ 90% RH Material Plastic Operating Temperature 0°C to 40°C (32°F to 104°F) Primary Material Plastic Product Length (mm) 53 Product Width (mm) 54 Product Height (mm) 23 Product Weight (g) 62 Storage Temperature -10°C to 70°C (14°F to 158°F) TAA Compliant No Auto MDIX Yes Full Duplex Support Yes Jumbo Frame Support 9K max. Max Distance 100m [328ft] Maximum Data Transfer Rate 100 Mbps OS Compatibility - Windows 7
- Windows 8
- Mac OS X Yosemite (10.10)
- Windows Server 2003
- Windows Server 2012
- Windows 10
- Windows 11
Remote Management Ability Yes Supported Protocols LPR Chipset ID EST - EST2862B Industry Standards Compliant with IEEE 802.3 10BASE-T and IEEE 802.3u 100BASE-TX LED Indicators - 1 - Power
- 1 - Link
- 1 - Activity

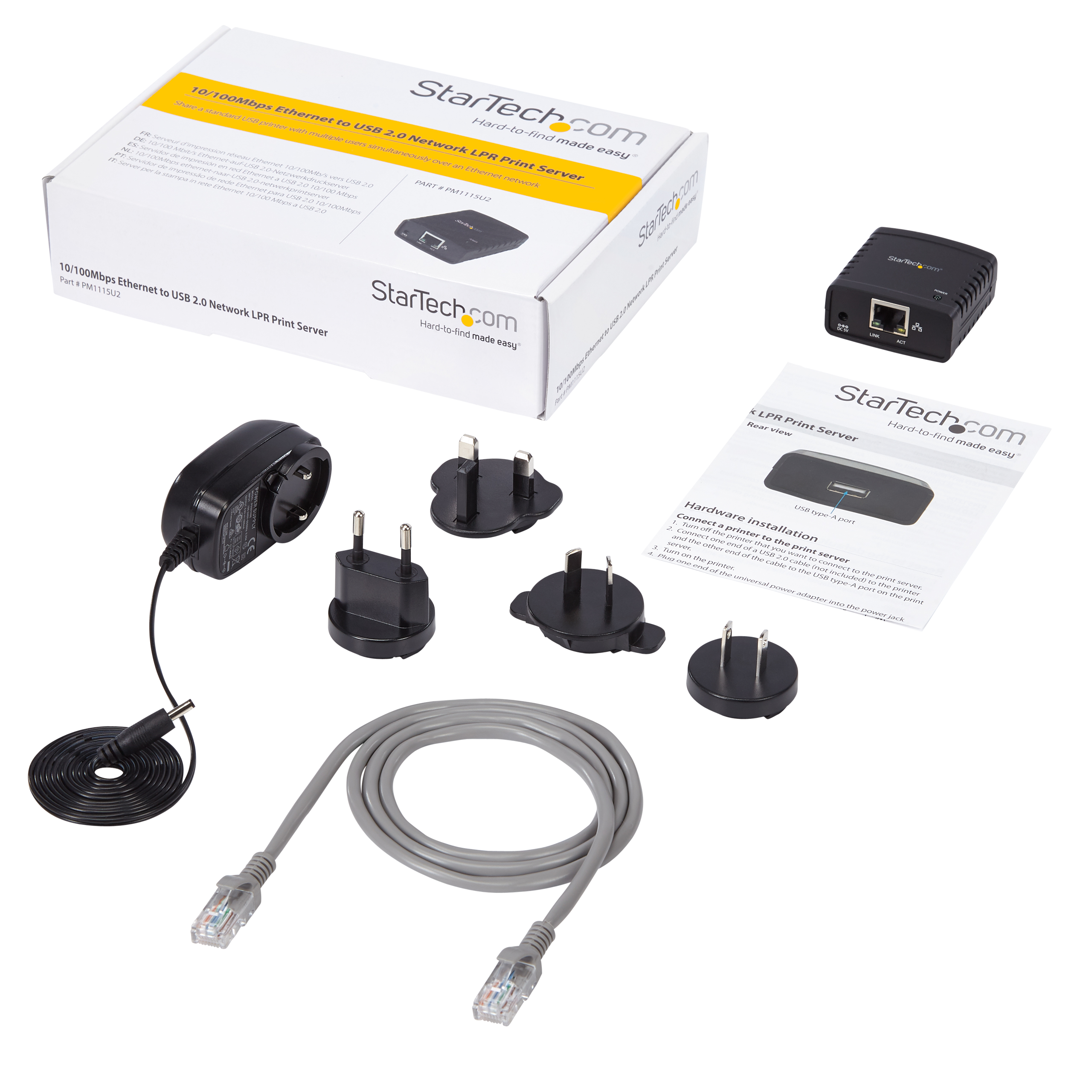

Carton Depth (mm) 456 Carton Height (mm) 288 Carton Quantity 20 Carton Weight Gross (g) 6630 Included in Package - 1 - USB 2.0 network LPR print server
- 1 - universal power adapter (NA/JP, UK, EU, ANZ)
- 1 - quick start guide
- 1 - RJ45 network cable
- 1 - software CD
Package Depth (mm) 151 Package Height (mm) 54 Package Width (mm) 218 Package Quantity 1 Package Weight (g) 306 Packaging Description 10/100Mbps Ethernet to USB 2.0 Network Print Server Packaging Description India 10/100Mbps Ethernet to USB 2.0 Network Print Server Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 RJ-45 Connector 1 (Quantity) 1 Connector 2 USB-A (480Mbps, 2.5W) Connector 2 (Quantity) 1 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2015-06-11 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute Yes Buying Center - Networking & Edge Yes Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,DE,DK,ES,EU,FR,IE,IT,NL,NZ,SE,UK,US Primary Technology None Product Development Specialist Ray Aoki Product Information Creation Specialist (PICS) Alex Garcia Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Target Production Release 2015-11-27 Tech Lead Stefan Tirolese Technical Writer Alex Garcia Technology Lifecycle None
