PM1115UA
Wireless-N 150Mbps USB 2.0 AirPrint Server
Print directly from your iPhone® / iPod touch® / iPad® devices to a standard USB printer
Main Image
Product Images
Product Images
BOM Image
Product Name Wireless-N 150Mbps USB 2.0 AirPrint Server Product Number PM1115UA UPC 065030855143 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Networking Category Level 2 Printer Servers Category Level 3 Printer Servers Group Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Product Title (Ultra-Short) AirPrint Server Product Title (Short) USB Wireless-N 150Mbps AirPrint Server Product Title (Medium) 1 Port USB Wireless-N 150Mbps AirPrint Server - 802.11b/g/n Product Title (Standard) 1 Port USB Wireless-N 150Mbps AirPrint Server - 802.11b/g/n Product Title (Long) 1 Port USB Wireless-N 150Mbps AirPrint Server - 802.11b/g/n Product Title (AMZ) 1 Port USB Wireless-N 150Mbps AirPrint Server - 802.11b/g/n WiFi iOS Printing - Wireless iPad Printing - Network Print Server (PM1115UA) Title Ingram (Part 1) 802.11n AirPrint Print Server Title Ingram (Part 2) - iOS / iPad Printing Website Product Headline Print directly from your iPhone® / iPod touch® / iPad® devices to a standard USB printer Bullet 1 Supports Apple AirPrint on iPad (all models), iPhone (3GS or later) and iPod touch (3rd generation or later) Bullet 2 Compliant with 802.11b/g/n wireless networks, with data rates up to 150 Mbps Bullet 3 USB 2.0 support Bullet 4 Optional 10/100 Mbps RJ45 LAN Port Bullet 5 Compact footprint Bullets (Consolidated) Print directly from your iPhone/iPod touch/iPad devices to a standard USB printer - 1 Port USB Wireless-N 150Mbps AirPrint Server - 802.11b/g/n WiFi iOS Printing - Wireless iPad Printing - Network Print Server - AirPrint Print Server - Supports Apple AirPrint on iPad (all models) iPhone (3GS or later) and iPod touch (3rd generation or later) Marketing Copy Applications - Print directly from your iOS-based devices over the wireless network
- Convert a standard USB printer into a standalone, wireless printer and share between multiple networked computers
- Place your printer in a convenient, central location without requiring a network cable
Website Search Keyword - AirPrint
- iOS Printing
- iPad Printing
- iOS Print Server
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ISED - IR - Wireless - Canada - Industry Canada (IC) Wireless ID
Special Notes - OS Compatibility refers to the included software only – the Print Server itself can be used without software on any platform that supports network printing
- AirPrint is an Apple® technology that is supported on the iPad (all models), iPhone (3GS or later) and iPod touch (3rd generation or later)
- Supports most standard USB printers (For a list of compatible printers, see support documentation)
Accessory Products - M45PATCH25WH
- M45PATCH15WH
- M45PATCH6WH
- RJ45PATCH25
- RJ45PATCH15
- RJ45PATCH6
- USB2HAB15
- USB2HAB10
- USB2HAB6
- SVA5M3NEUA
Related Products - PM1115UW
- PM1115U
Input Current 0.2 A Input Voltage 100 - 240 AC Output Current 1 A Output Voltage (V) 5 DC Power Source AC Adapter Included Plug Type M Center Tip Polarity Positive Color Black Humidity 0~70% RH Material Plastic Operating Temperature 0°C to 40°C (32°F to 104°F) Product Length (mm) 85 Product Width (mm) 57 Product Height (mm) 24 Product Weight (g) 56 Storage Temperature -10°C to 60°C (14°F to 140°F) TAA Compliant No Frequency 2.4 GHz Maximum Data Transfer Rate 150 Mbps OS Compatibility - Windows 8
- Windows 7
- Mac OS X Mavericks (10.9)
- Windows Server 2012
- Windows 10
- Windows 11
Security Features - WEP Data Encryption
- WPA Data Encryption
- TKIP/AES
- WPA and WPA2-PSK Data Encryption

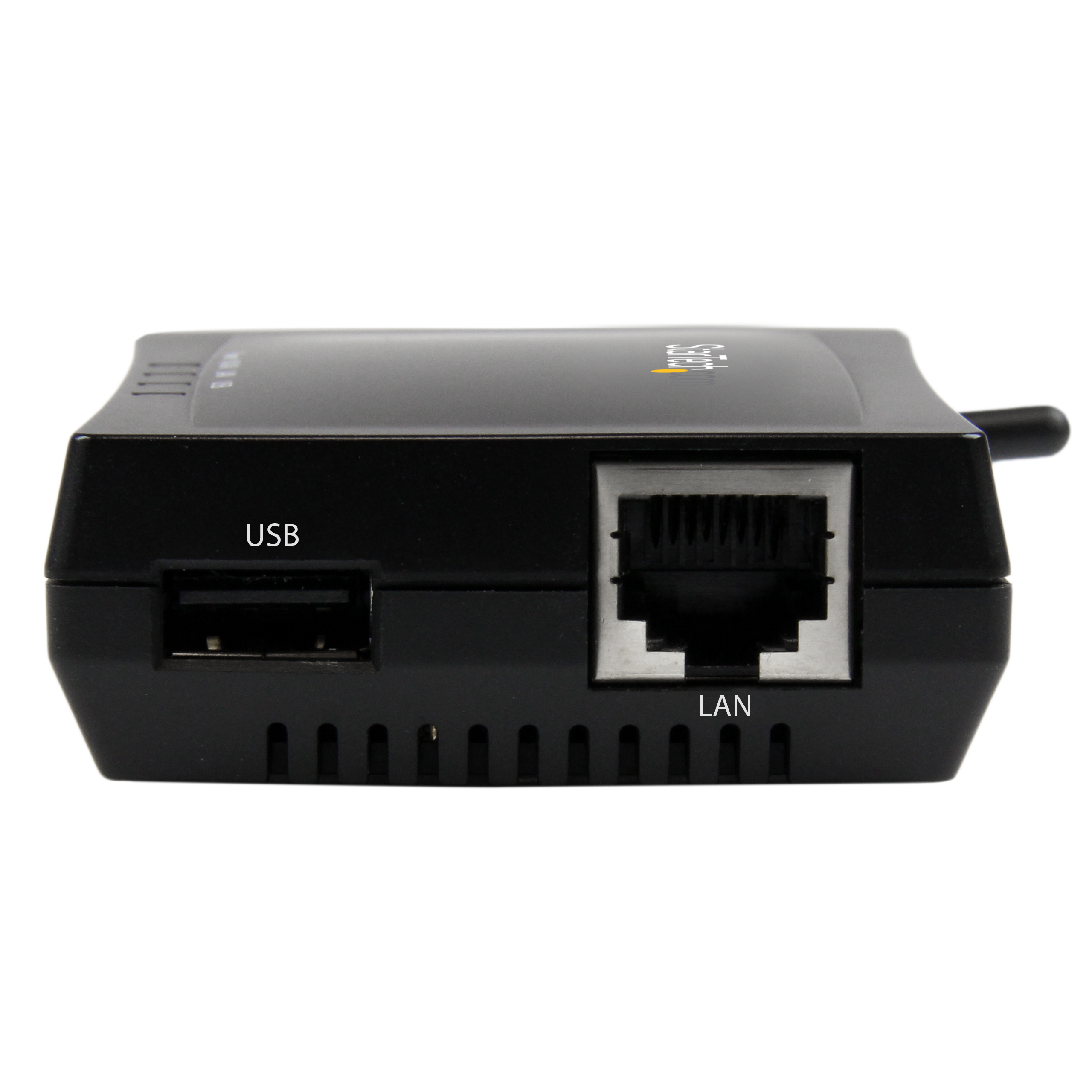

Supported Protocols TCP/IP Industry Standards IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-T, IEEE 802.11b/g/n Wireless Interface/Bridge - USB 2.0
- RJ45 (10/100 Ethernet)
- Wireless Ethernet
LED Indicators - 1 - Power
- 1 - WLAN
- 1 - LAN
- 1 - USB

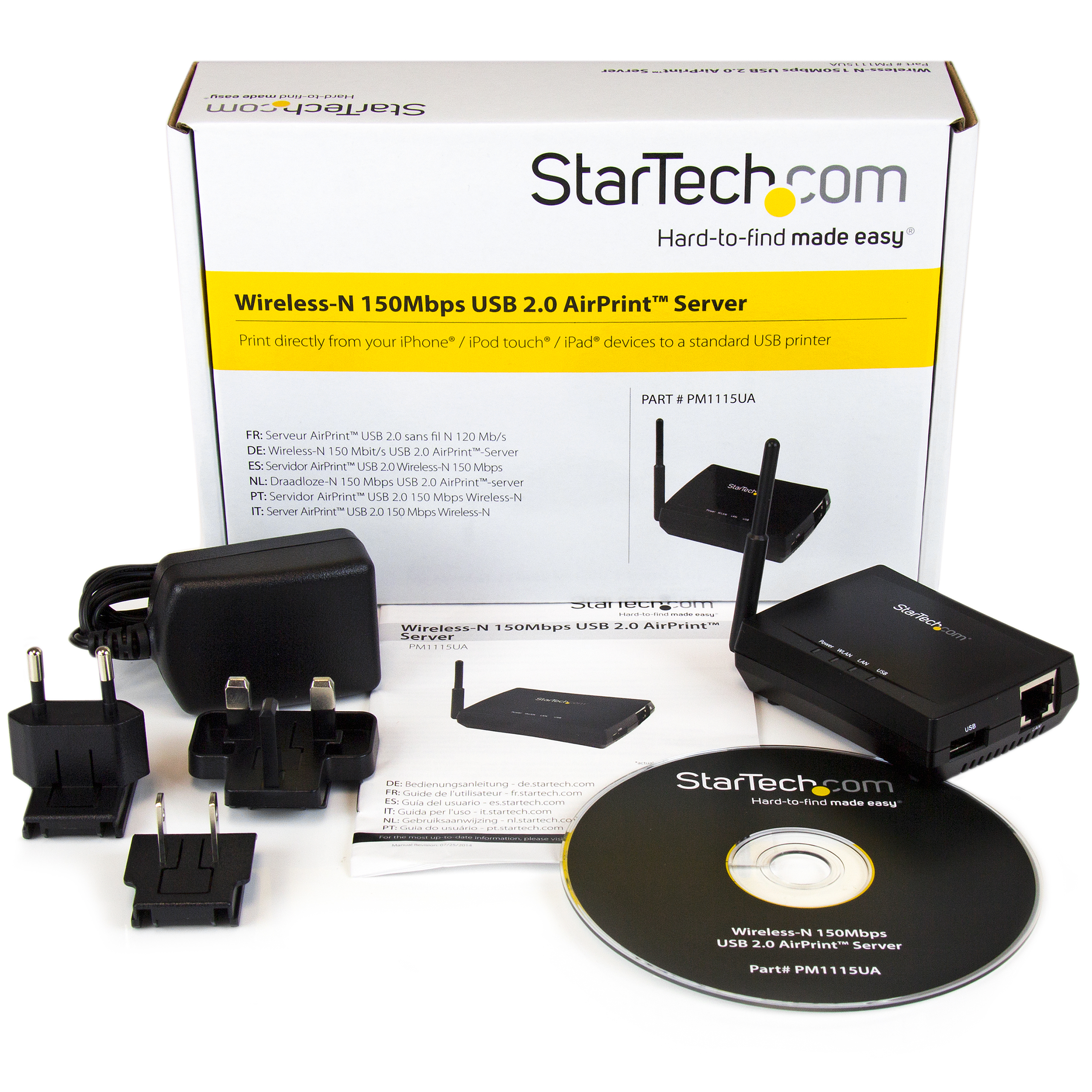

Carton Depth (mm) 270 Carton Height (mm) 320 Carton Quantity 20 Carton Weight Gross (g) 7212 Included in Package - 1 - Wireless-N USB 2.0 AirPrint™ Server
- 1 - Instruction Manual
- 1 - Universal Power Adapter (NA/UK/EU)
- 1 - Driver CD
Package Depth (mm) 150 Package Height (mm) 50 Package Width (mm) 220 Package Quantity 1 Package Weight (g) 324 Packaging Description Wireless-N 150Mbps USB 2.0 AirPrint™ Server Packaging Description India Wireless-N 150Mbps USB 2.0 AirPrint™ Server Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 USB-A (480Mbps, 2.5W) Connector 1 (Quantity) 1 Connector 2 RJ-45 Connector 2 (Quantity) 1 Connector 3 Wi-Fi 4 (802.11n, 600Mbps) Connector 3 (Quantity) 1 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2013-09-27 Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) BE,CA,DE,ES,EU,FR,IT,NL,SE,UK,US Primary Technology None Product Development Specialist Ray Aoki Product Information Creation Specialist (PICS) Alex Garcia Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Stefan Tirolese Technical Writer Andrew Richardson Technology Lifecycle Legacy
