PM1115UWEU
USB 2 0 Wireless Network Print Server EU
Share a standard USB printer with multiple users simultaneously over a wireless network
Main Image
Product Images
Product Images
Product Images
Product Images
BOM Image
Quick-Start Guide
Video Link YouTube
Video Link YouTube
Product Name USB 2 0 Wireless Network Print Server EU Product Number PM1115UWEU UPC 065030855877 Lifecycle status Active Warranty 2 Years Taxonomy Product > Networking > Print Servers Category Level 1 Networking Category Level 2 Printer Servers Category Level 3 Printer Servers Group Family Print Server - Wireless Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX065X Product Title (Ultra-Short) WiFi Print Server Product Title (Short) 1 Port USB Wireless N Print Server Product Title (Medium) 1 Port USB Wireless N Print Server w/ 10/100 Mbps Ethernet Port - 802.11 b/g/n Product Title (Standard) 1 Port USB Wireless N Network Print Server with 10/100 Mbps Ethernet Port , 802.11 b/g/n, TAA Product Title (Long) 1 Port USB Wireless N Network Print Server with 10/100 Mbps Ethernet Port - 802.11 b/g/n - TAA Product Title (AMZ) 1 Port USB Wireless N Network Print Server with 10/100 Mbps Ethernet Port - 802.11 b/g/n - Wireless USB 2.0 Print Server , TAA (PM1115UWEU) Title Ingram (Part 1) 1Port USB WiFi Network Print Title Ingram (Part 2) Server with Ethernet Port Website Product Headline Share a standard USB printer with multiple users simultaneously over a wireless network Bullet 1 Compliant with 802.11b/g/n wireless networks, with data rates up to 150 Mbps Bullet 2 USB 2.0 support Bullet 3 Optional 10/100 Mbps RJ-45 LAN Port Bullet 4 Compact, lightweight design with an internal antenna Bullet 5 Supports SNMP for remote printer management - works with most SNMP based applications Bullets (Consolidated) Share a standard USB printer with multiple users simultaneously over a wireless network - 1 Port USB Wireless N Network Print Server with 10/100 Mbps Ethernet Port - 802.11 b/g/n - Wireless USB 2.0 Print Server - WiFi Network Print Server - USB Print Server Adapter - Compact design with an internal antenna - Web or Windows-based configuration Marketing Copy Applications - Convert a standard USB printer into a standalone, wireless printer and share between multiple networked computers
- A convenient network printing solution for education and government institutions
- Eliminate the performance issues of an always-on, dedicated PC acting as the printer server
Website Product Alert Website Search Keyword - print server adapter
- wifi print server
- wireless printer server
- wireless print
- USB Print Server
- usb network print server
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- UKCA - EMC/EMI - United Kingdom - UK Electromagnetic Compatibility Regulations 2016
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + cords
- Triman/Info-Tri - Packaging - Waste - European Union - Paper Box + paper tray/divider
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - IR - Wireless - European Union - EU Radio Equipment Directive (RED) Short-Form DoC
- ISED - IR - Wireless - Canada - Industry Canada (IC) Wireless ID
- FCC - IR - Wireless - United States - FCC Part 15, Subpart C
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
Special Notes OS Compatibility refers to the included software only – the Print Server itself can be used without software on any platform that supports network printing System and Cable Requirements USB printer cable not included Accessory Products - M45PATCH25WH
- M45PATCH15WH
- M45PATCH6WH
- RJ45PATCH25
- RJ45PATCH15
- RJ45PATCH6
- USB2HAB15
- USB2HAB10
- USB2HAB6
- SVA5H2NEUA
Input Current 0.3 A Input Voltage 100 - 240 AC Output Current 1 A Output Voltage (V) 5 DC Power Consumption (In Watts) 5 Power Source AC Adapter Included Plug Type H Center Tip Polarity Positive Color White Humidity 0~70% RH (Non-Condensing) Material Plastic Operating Temperature 0°C to 50°C (32°F to 122°F) Primary Material Plastic Product Length (mm) 72.000 Product Width (mm) 58.000 Product Height (mm) 25.000 Product Weight (g) 65.000 Storage Temperature -5°C to 65°C (23°F to 149°F) TAA Compliant Yes Compatible Networks 10/100 Mbps Frequency 2.4 GHz OS Compatibility - Windows 8
- Windows Server 2012
- Windows 7
- Mac OS X Mavericks (10.9)
- Linux
- Windows 10
- Windows Server 2016
- Windows Server 2019
- Windows 11
- Windows Server 2022
Security Features - WEP Data Encryption
- WPA and WPA2-PSK Data Encryption
Supported Protocols - TCP/IP (LDP / LPR Printer Port)
- IPX
- NetBEUI
- AppleTalk
- SNMP
- SMB over IP
Industry Standards IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-T, IEEE 802.11b/g/n Wireless Interface/Bridge - USB 2.0
- RJ45 (10/100 Ethernet)
- Wireless Ethernet
LED Indicators - 1 - Status
- 1 - USB
- 1 - WLAN

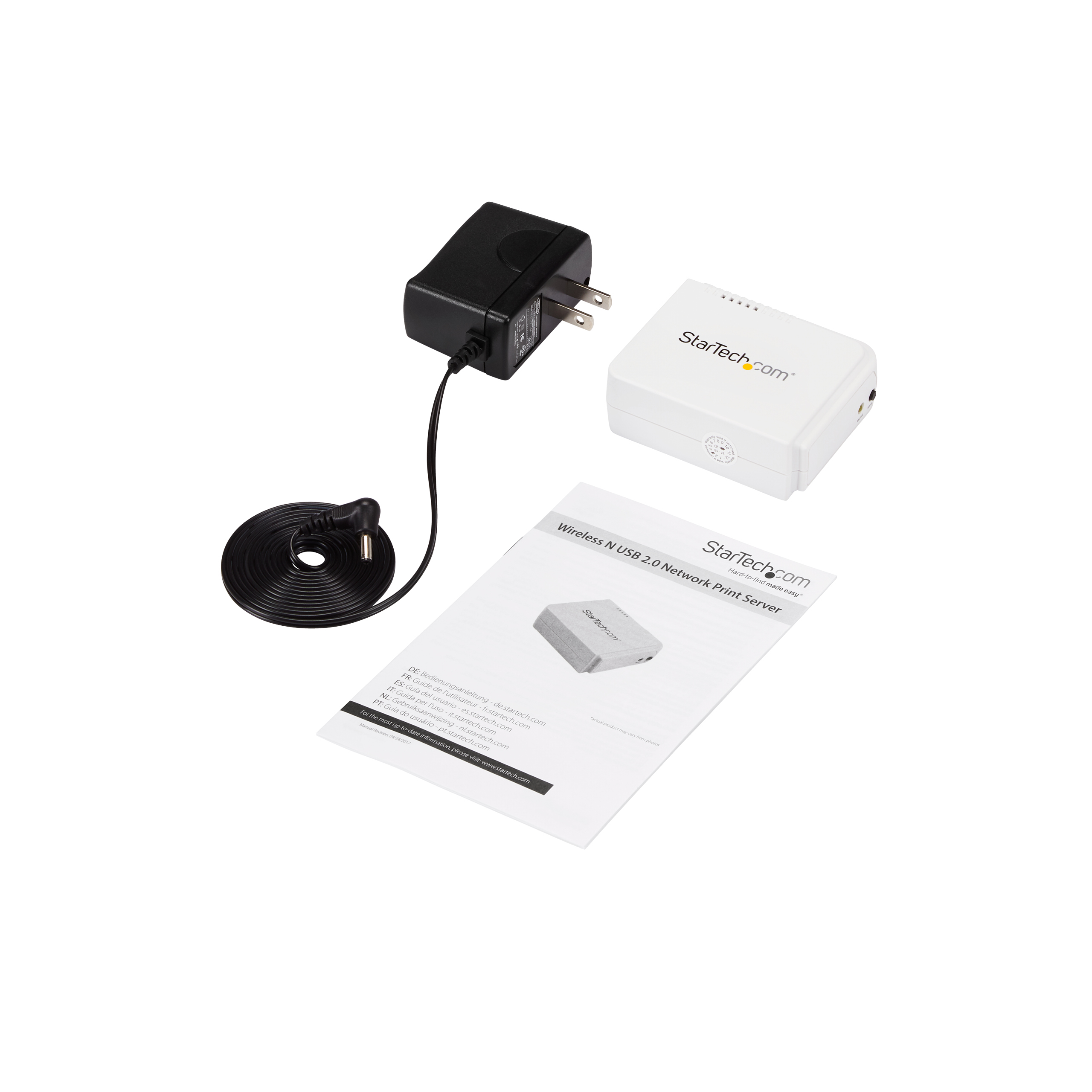

Carton Depth (mm) 374 Carton Height (mm) 340 Carton Quantity 20 Carton Weight Gross (g) 7565 Included in Package - 1 - Wireless Print Server
- 1 - Power Adapter
- 1 - Software CD
- 1 - Quick Install Guide
Package Depth (mm) 151 Package Height (mm) 70 Package Width (mm) 230 Package Quantity 1 Package Weight (g) 319 Packaging Description Wireless N USB 2.0 Network Print Server Packaging Description India Wireless N USB 2.0 Network Print Server Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 USB-A (480Mbps, 2.5W) Connector 1 (Quantity) 1 Connector 2 RJ-45 Connector 2 (Quantity) 1 Connector 3 Wi-Fi 4 (802.11n, 600Mbps) Connector 3 (Quantity) 1 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2014-01-06 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute Yes Buying Center - Networking & Edge No Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,BE,CH,DK,ES,EU,FI,FR,IE,IT,NL,PL,SE Primary Technology None Product Development Specialist Ray Aoki Product Information Creation Specialist (PICS) Alex Garcia Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Stefan Tirolese Technical Writer Andrew Richardson Technology Lifecycle None
