1 Port Parallel 802.11b 11Mbps Wireless

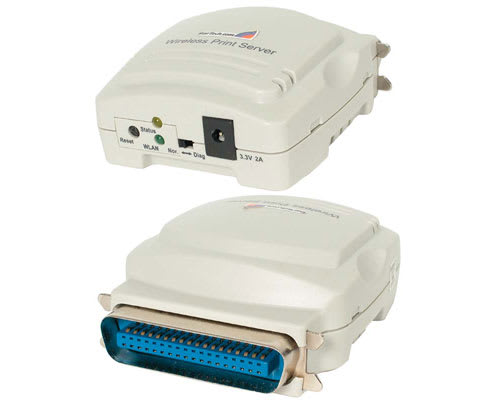

Main Image

Product Name	1 Port Parallel 802.11b 11Mbps Wireless
Product Number	PM111PW
UPC	065030803717
Lifecycle status	Discontinued
Warranty	2 Years
Taxonomy	Product > Legacy Discontinued
Category Level 1	Legacy Category
Category Level 2	Legacy Sub-Category
Category Level 3	Legacy Group
Country of Origin Europe & Japan	Taiwan
Country of Origin North America	Taiwan

Manual	https://images.salsify.com/image/upload/s--19vyBCt0--/250e2fa6ec4aec351a4cb113d2cb487609408ac7.pdf
Driver	https://images.salsify.com/raw/upload/s--R3cMKK1O--/caeccf535dd4e67e9adfbd2be6d0b805918451e7.zip

Product Title (Long)	1 Port Parallel 802.11b 11Mbps Wireless Print Server
Bullet 1	Compact and light weight wireless Parallel print server only weighs 2.4 ounces
Bullet 2	Enhanced 64/128 bit WEP Data Encryption for high level of security
Bullet 3	Support DHCP client and SNMP for remote printer management and works with any SNMP based application to access and manage
Bullet 4	Creates wireless peer-to-peer network in Ad-Hoc mode or connects to Ethernet LAN in Infrastructure mode using wireless Access Point
Bullet 5	Share 1 Parallel printer with computers connected to a home or small office network
Marketing Copy
Applications	PM111PW offers wireless network printing solution for home, small office, educational & government institutions and any other environments that require printer sharing Connects your wireless network to one Parallel printer

General Specifications	Ports: Parallel: 1 x 36-pin Centronics (male) Standards: IEEE 802.11b & IEEE 1284 Radio Technology: Direct Sequence Spread Spectrum (DSSS) Radio Frequency: 2.4 GHz ISM Band Modes: Ad-Hoc and Infrastructure Data transfer rate: Up to 11 Mbits/sec Management: SNMP LED’s: Status: Yellow for Power/POST Process : WLAN: Green/Yellow indicates the strength of radio signal and transmission Output Power: +13 ~ +17 dBm Encryption: 64/128-bit WEP Encryption Communication Range: Indoor: 35~50 M @ 11Mbps : 80 M @ 5.5 Mbps : 120 M @ 2 Mbps : 150 M @ 1 Mbps Outdoor: 250 M @ 11 Mbps : 350 M @ 5.5 Mbps : 400 M @ 2 Mbps : 500 M @ 1 Mbps Network Protocols: TCP/IP, IPX, NetBEUI, LPR and Apple Talk Software Drivers: „X Novell NetWare 3.12, 4.x, 5.x (Bindery, NDS and NDPS) : Microsoft Windows 95/98/Me : Microsoft Windows NT/2000/XP/2003 Weight: .15 Lbs (67 grams) Dimensions: 60 x 80 x 30 mm Safety Standards: FCC & CE
Remote Management Ability	Yes
Supported Protocols	IPX TCP/IP NetBEUI LPR

Connector 1	Centronics (36-Pin)
Connector 1 (Quantity)	1
