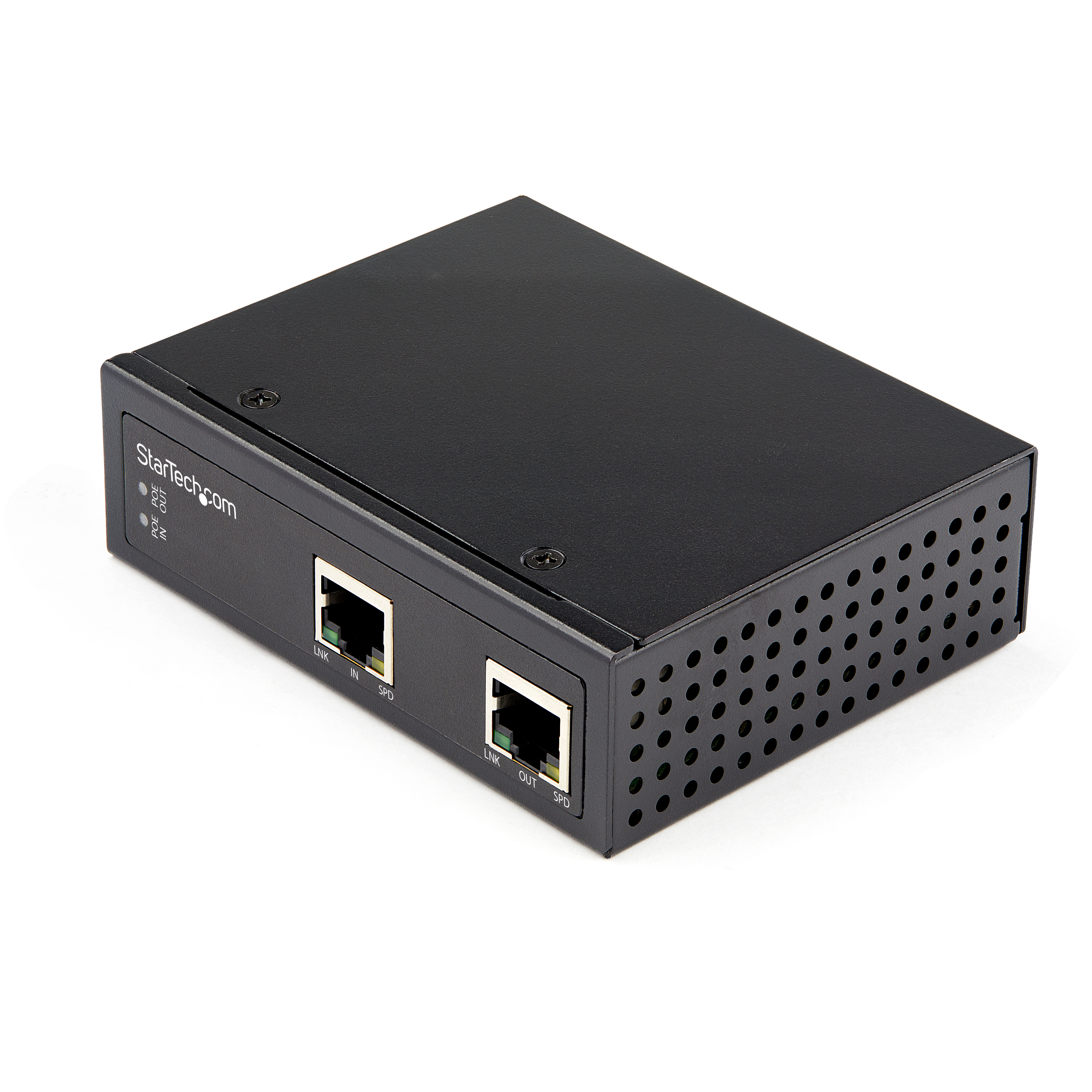

POEEXT1G60W
Industrial Grade Hardened 802 3af at PoE Extender 10 100 100
Rugged PoE Extender | 60 Watts | IP-30 Aluminum Housing | 100m (330ft)
Main Image
Product Images
Product Images
Product Images
BOM Image
Quick-Start Guide
Product Name Industrial Grade Hardened 802 3af at PoE Extender 10 100 100 Product Number POEEXT1G60W UPC 065030889650 Lifecycle status Active Warranty 2 Years Taxonomy Product > Extenders > Ethernet Extenders Category Level 1 Networking Category Level 2 POE Injectors and Extenders Category Level 3 POE Extenders Family No family Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX106X Product Title (Ultra-Short) Gigabit PoE Extender Product Title (Short) Industrial Gigabit PoE Extender 60W 100m Product Title (Medium) Industrial Gigabit PoE Extender 60W 802.3bt PoE+ 330' Hardened Product Title (Standard) Industrial Gigabit PoE Extender, 60W 802.3bt PoE++ 100m/330ft, Power Over Ethernet Network Range Extender, IP30 Hardened, TAA Product Title (Long) Industrial Single Port Gigabit PoE Extender - 60W 802.3bt PoE /PoE+/ PoE++ - 100m/ 330ft - Power Over Ethernet Network Range Extender - IP-30 - -40C to +75C - TAA Product Title (AMZ) Industrial Single Port Gigabit PoE Extender - 60W 802.3bt PoE /PoE+/ PoE++ - 100m/ 330ft - Power Over Ethernet Network Range Extender - IP-30 - -40C to +75C , TAA Title Ingram (Part 1) Industrial Gigabit PoE Extender Title Ingram (Part 2) 60W 802.3bt PoE+ 330' Hardened Website Product Headline Rugged PoE Extender | 60 Watts | IP-30 Aluminum Housing | 100m (330ft) Bullet 1 100M EXTENSION: Extend a PSE source (up to 95W) by 100m using this Gigabit PoE Extender; power PoE devices like cameras & access points; 4 extenders can be cascaded to extend up to 400m using CAT 5e/6 Bullet 2 60W PoE IEEE 802.3bt: Powered by the PSE source, this Power over Ethernet range extender provides up to 15W/30W/60W of auto-negotiated power output to target PD device | Low 2.7W power consumption Bullet 3 TECH SPECS: 1 Gbps | 1 x RJ45 PD In | 1 x RJ45 PSE Out | IEEE 802.3af / IEEE 802.3at / IEEE 802.3bt (60W) | 10/100/1000 Mbps | 9K Jumbo Frames | DIN or Wall Mount Bullet 4 ROBUST DESIGN: Industrial Power over Ethernet Network Extender w/MTBF of 500,000+hrs @ 50C | Vibration, shock & free fall rated | Rugged IP-30 aluminum housing | Hardened operating temp of -40C to 75C Bullet 5 STARTECH.COM ADVANTAGE: IT professionals' choice for over 30 years | This Gigabit PoE Extender is backed for 2-years by StarTech.com, including free 24/5 North America based multi-lingual tech support Bullets (Compact) Gigabit PoE Extender extends up to 95W source power by 100m to PD devices; Cascade 4 Power over Ethernet/PoE+ network extenders to extend range by 400m - 15W/30W/60W power output auto selected - 802.3bt - IP-30 industrial hardened/ -40C to 75C temp Bullets (Consolidated) Gigabit PoE Extender extends a PSE source (up to 95W) by 100m to power PoE+ devices; 4 extenders can be cascaded to extend by 400m using Cat 5e/6 - Power Over Ethernet Network Range Extender: 15W/30W/60W power output auto selected to target device| Low 2.7W power consumption - 1 Gbps | RJ45 PD In | RJ45 PSE Out | 48V-56VDC | IEEE 802.3af/IEEE 802.3at /IEEE 802.3bt (60W) | 10/100/1000 Mbps | 9K Jumbo Frames | IP-30 Aluminum Housing - Industrial -40C to 75C temp - w/DIN/ Mounting hardware Marketing Copy Marketing Copy (No HTML) Website Search Keyword - 802.3 af poe
- 802.3 at poe
- gigabit poe extender
- hardened poe extender
- industrial power over ethernet
- microsemi pd poe extender
- network ethernet extender
- PD PoE extender
- poe extender outdoor
- poe range extender
- poe+ extender
- Power over ethernet extender
- trendnet poe extender
- uniquiti poe extender
Patents and Licenses United States Patent No. 5,406,260 (expired) </br> United States Patent No. 6,650,622</br> United States Patent No. 7,457,250</br> United States Patent No. 8,155,012</br> United States Patent No. 8,902,760</br> United States Patent No. 8,942,107</br> United States Patent No. 9,019,838</br> United States Patent No. 9,049,019</br> United States Patent Application No. 14/695,456</br> United States Patent Application No. 14/726,940</br> Required Regulatory Compliance Marks - WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories
- FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU

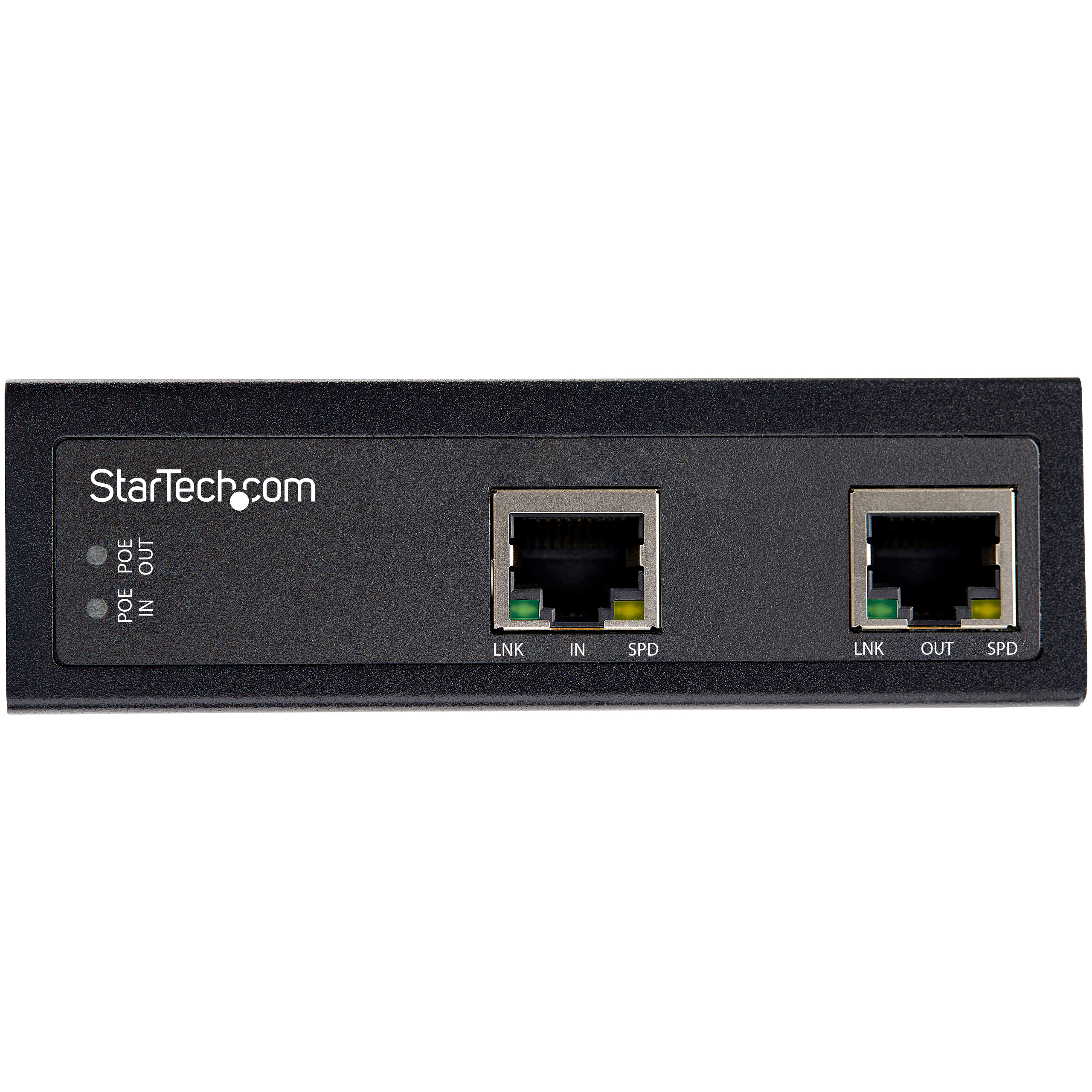

Power Consumption (In Watts) 2.7W Power Source Not Included (not required for standard applications) Color Black Humidity 5 to 95% (non-condensing) Material Aluminum Operating Temperature -40°C to 75°C Primary Material Aluminum Product Length (mm) 103.500 Product Width (mm) 81.500 Product Height (mm) 32.000 Product Weight (g) 148.000 Storage Temperature -40°C to 85°C TAA Compliant Yes Auto MDIX Yes Compatible Networks 10/100/1000 Mbps Flow Control IEEE 802.3x Flow Control and Back Pressure Full Duplex Support Yes General Specifications ESD Standard: IEC 61000-4-2: Contact: 6KV; Air: 8KV</br> EFT Standard: IEC 61000-4-4: Power: 2KV; Signal: 2KV</br> Surge Standard: IEC 61000-4-5: Power: 2KV; Signal: 2KV</br> Vibration Standard: EN 60068-2-6</br> Shock Standard: EN 60068-2-27</br> Free-Fall Standard: EN 60068-2-32</br> Housing Standard: IP-30</br> Jumbo Frame Support 9K max. Maximum Cable Length (mm) 100000 MTBF (hours) 551, 848 hours Supported Protocols CSMA/CD</br> IEEE 802.3</br> IEEE 802.3at</br> IEEE 802.3af</br> IEEE 802.3bt Surge Protection 2kV Chipset ID Realtek RTL8367</br> Microsemi PD69101 Industry Standards LED Indicators - 2 - PoE IN, PoE OUT
- 2 - RJ45 Link/ACT
- 2 - RJ45 Link Speed

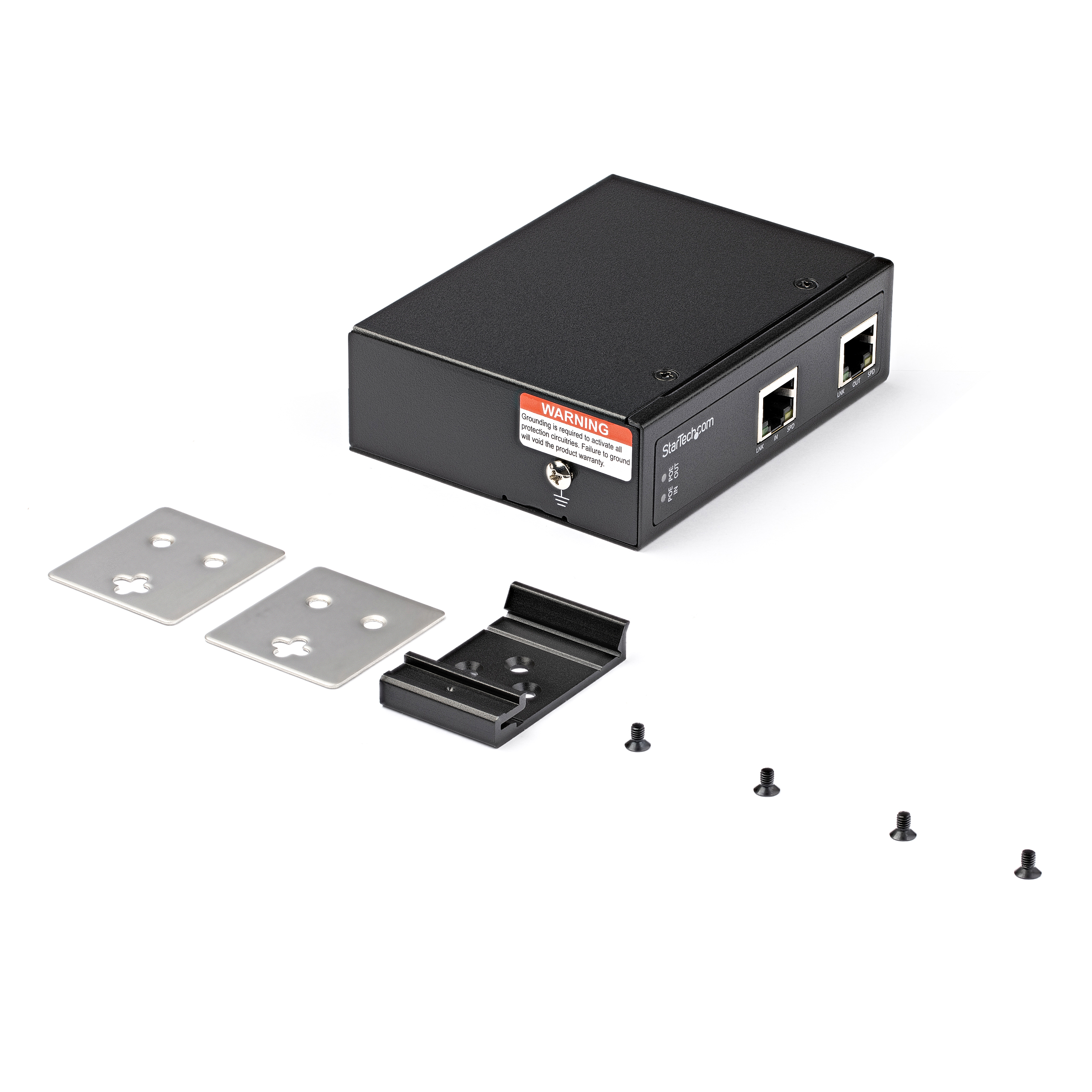

Power over Ethernet Yes Carton Depth (mm) 364 Carton Height (mm) 254 Carton Quantity 10 Carton Weight Gross (g) 4396 Included in Package - 1 - Industrial-Grade PoE Extender
- 1 - Mounting Hardware Kit
- 1 - Quick-Start Guide
Included In Package for Label - 1 - Industrial-Grade PoE Extender
- 1 - Mounting Hardware Kit
- 1 - Quick-Start Guide
Package Depth (mm) 166 Package Height (mm) 66 Package Width (mm) 214 Package Quantity 1 Package Weight (g) 348 Packaging Description 60W Industrial-Grade Hardened PoE Extender Packaging Description India 60W Industrial-Grade Hardened PoE Extender Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 RJ-45 Connector 1 (Quantity) 2 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2020-02-07 Buying Center - AV & Collaboration Yes Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge Yes Digital Content Due Date 2020-10-01 Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett ID Label Silkscreened or a Label No ID label Launch Markets (concatenated) AT,BE,CA,CH,DE,DK,ES,FI,FR,IE,IN,IT,JP,NL,SE,SG,UK,US Primary Technology None Priority New Product N/A Product Development Specialist Ray Aoki Product Information Creation Specialist (PICS) Alex Garcia Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Target Development Completion Date 2020-01-17 Target Production Release 2020-01-30 Tech Lead Stefan Tirolese Technical Writer Alex Garcia Technology Lifecycle None
