POEEXT1GAT

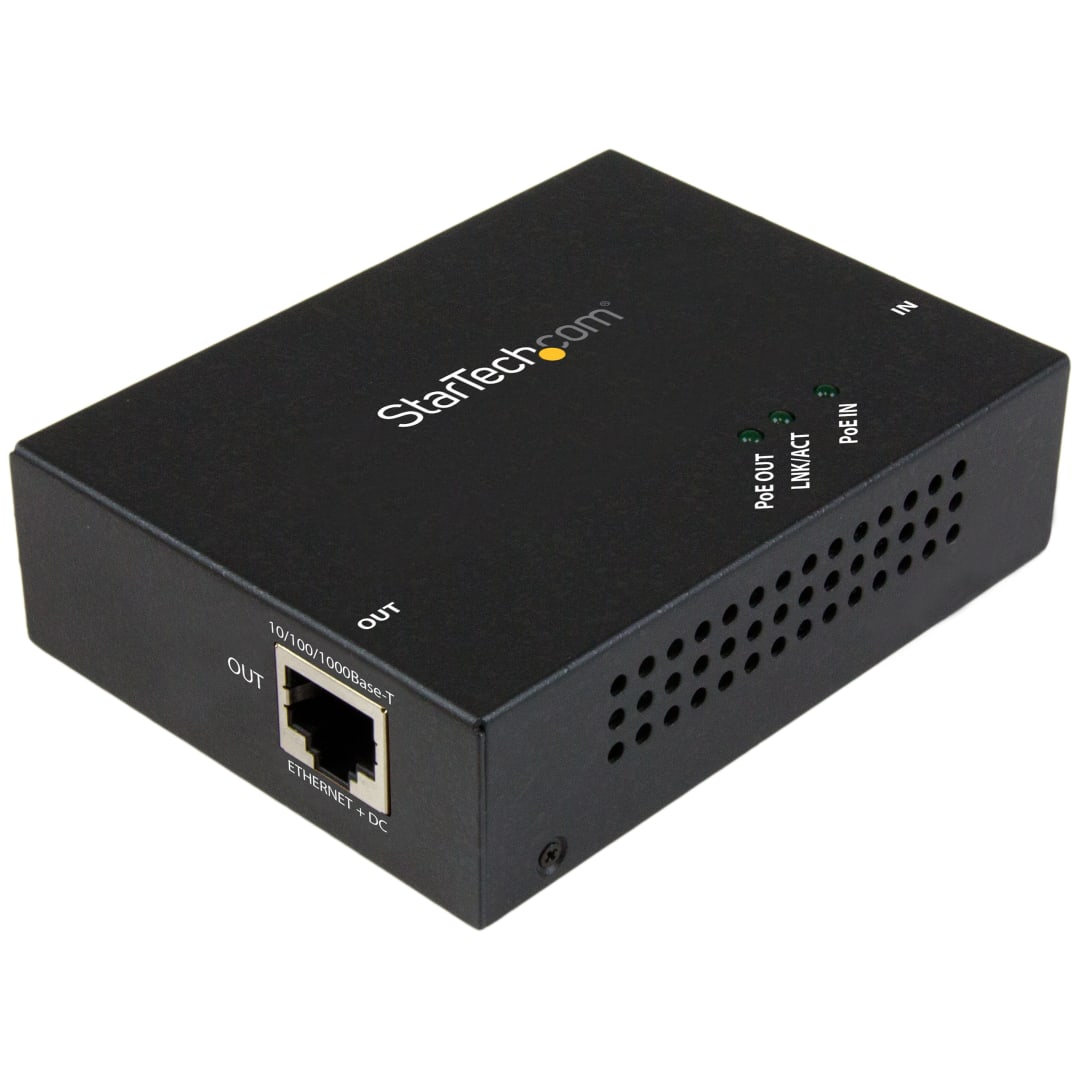

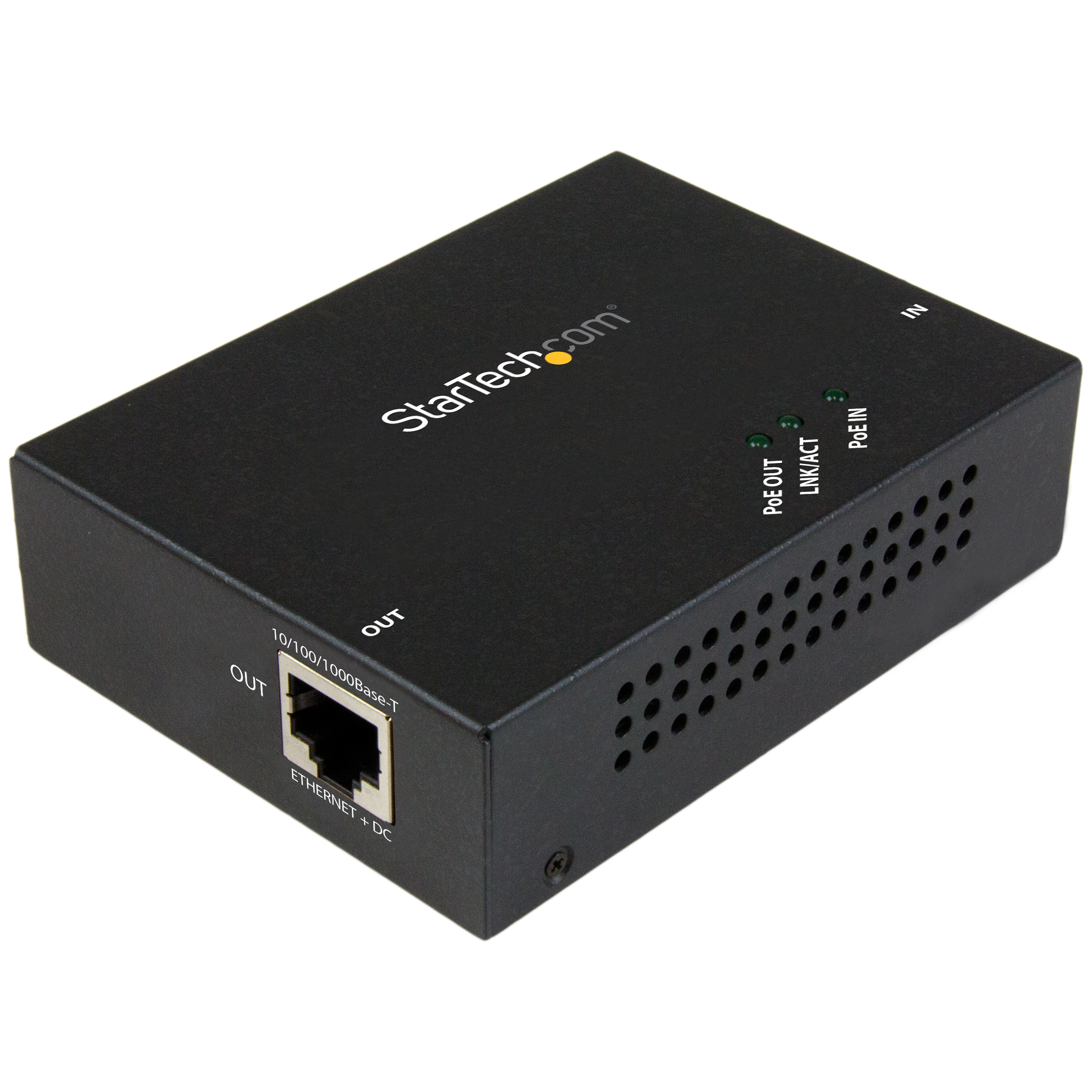

PoE Range Extender Gigabit PoE Repeater

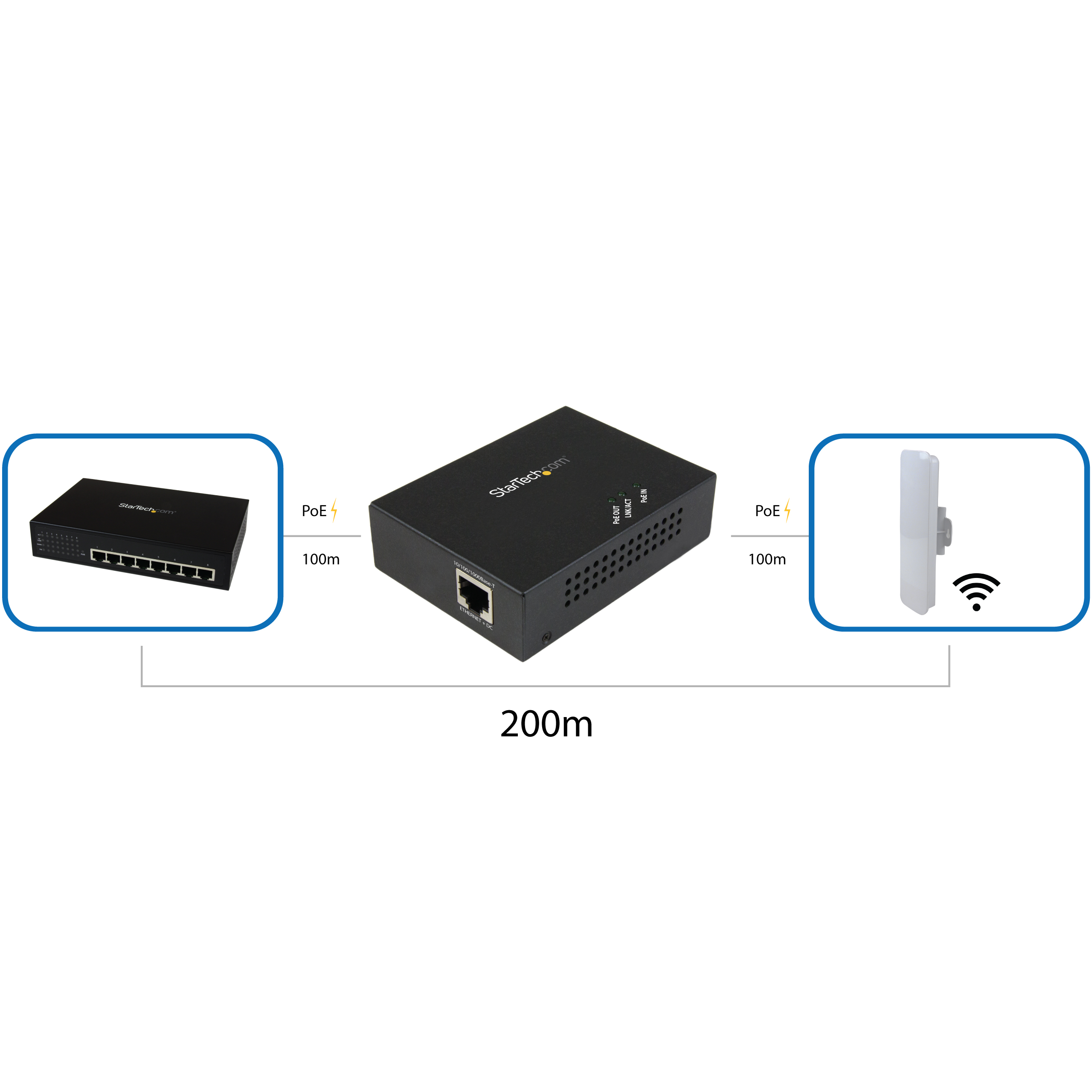

Scale your Power over Ethernet connection by 100m, or daisy chain up to four extenders for longer distance
Main Image
Product Images
Product Images
Product Images
Product Images
BOM Image
Product Name PoE Range Extender Gigabit PoE Repeater Product Number POEEXT1GAT UPC 065030860895 Lifecycle status Active Warranty 2 Years Taxonomy Product > Extenders > Ethernet Extenders Category Level 1 Networking Category Level 2 POE Injectors and Extenders Category Level 3 POE Extenders Family No family Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX060X Product Title (Ultra-Short) Gigabit PoE Extender Product Title (Short) 1 Port Gigabit PoE+ Extender 802.3at/af Product Title (Medium) 1 Port Gigabit PoE+ Extender - 802.3at & 802.3af - Power over Ethernet Extender Product Title (Standard) 1 Port Gigabit PoE+ Extender, 802.3at and 802.3af, 100 m (330 ft), Power over Ethernet Extender, PoE Network Repeater, TAA Product Title (Long) 1-Port Gigabit PoE+ Extender - 802.3at and 802.3af - 100 m (330 ft) - TAA Product Title (AMZ) 1 Port Gigabit PoE+ Extender 802.3at & 802.3af - 100m (330ft) - Power over Ethernet Extender - PoE Repeater Network Extender , TAA (POEEXT1GAT) Title Ingram (Part 1) PoE+ Range Extender - Gigabit Title Ingram (Part 2) Power over Ethernet Repeater Website Product Headline Scale your Power over Ethernet connection by 100m, or daisy chain up to four extenders for longer distance Bullet 1 Automatically detects your connected PD to prevent damage if incorrectly installed Bullet 2 Compact, wall-mountable, and rugged metal housing for convenience and reliability Bullet 3 2kV ESD and surge protection Bullet 4 Plug-and-play setup with no power adapter required Bullet 5 Extend your PoE PDs over longer distances by daisy-chaining four extenders up to 500m (1640ft) total range (reduced power output at each connection) Bullets (Compact) Scale your PoE connection 100m or daisy chain up to four extenders for longer distance - Gigabit Power over Ethernet Extender 330ft - PoE Repeater Network Extender - 802.3at and 802.3af compliant / 24W power output - Daisy chain capable up to 500m Bullets (Consolidated) Extend your PoE connection 100m or daisy chain up to four extenders for longer distance - 1 Port Gigabit PoE+ Extender 802.3at and 802.3af - 330ft - Power over Ethernet Extender/PoE Repeater Network Extender - Compact and Mountable/24W power output - Daisy chain capable up to 500m - Surface-mountable range extender/Rugged metal housing for convenience and reliability - 2kV ESD and surge protection delivers durable performance with little worry/No power adapter required Marketing Copy Applications - Perfect for SOHO, SMB, system integrators, and IT administrators
- Ideal for Wi-Fi® access points, IP phones, surveillance cameras, and kiosks where a power connection is not available
- Enable remote installation of PoE+ devices over longer distance than conventional PoE range capabilities
Website Search Keyword - poe extender
- poe repeater
- power over Ethernet extender
- power over Ethernet repeater
- poe network extender
- 802.3af extender
- 802.3at extender
- in-line poe extender
- power over ethernet network extender
- network extender
- range extender
- poe range extender
- power over ethernet range extender
- extend poe range
- extend range of poe
- extend range of security camera
- ethernet with power
- gigabit extender
- gigabit poe extender
- Gigabit PoE+ extender
- Gigabit power over ethernet extender
- PoE Repeater Network Extender
- gigabit network extender
- NPOE-EXT-1G30
Patents and Licenses Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class A Digital Device Interference Full Statement
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class A Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device
Special Notes - Total extension distances can often be shorter due to power delivery voltage-drop on the connected cables. Maximum distances can vary based on the quality of the UTP cables and the environment.

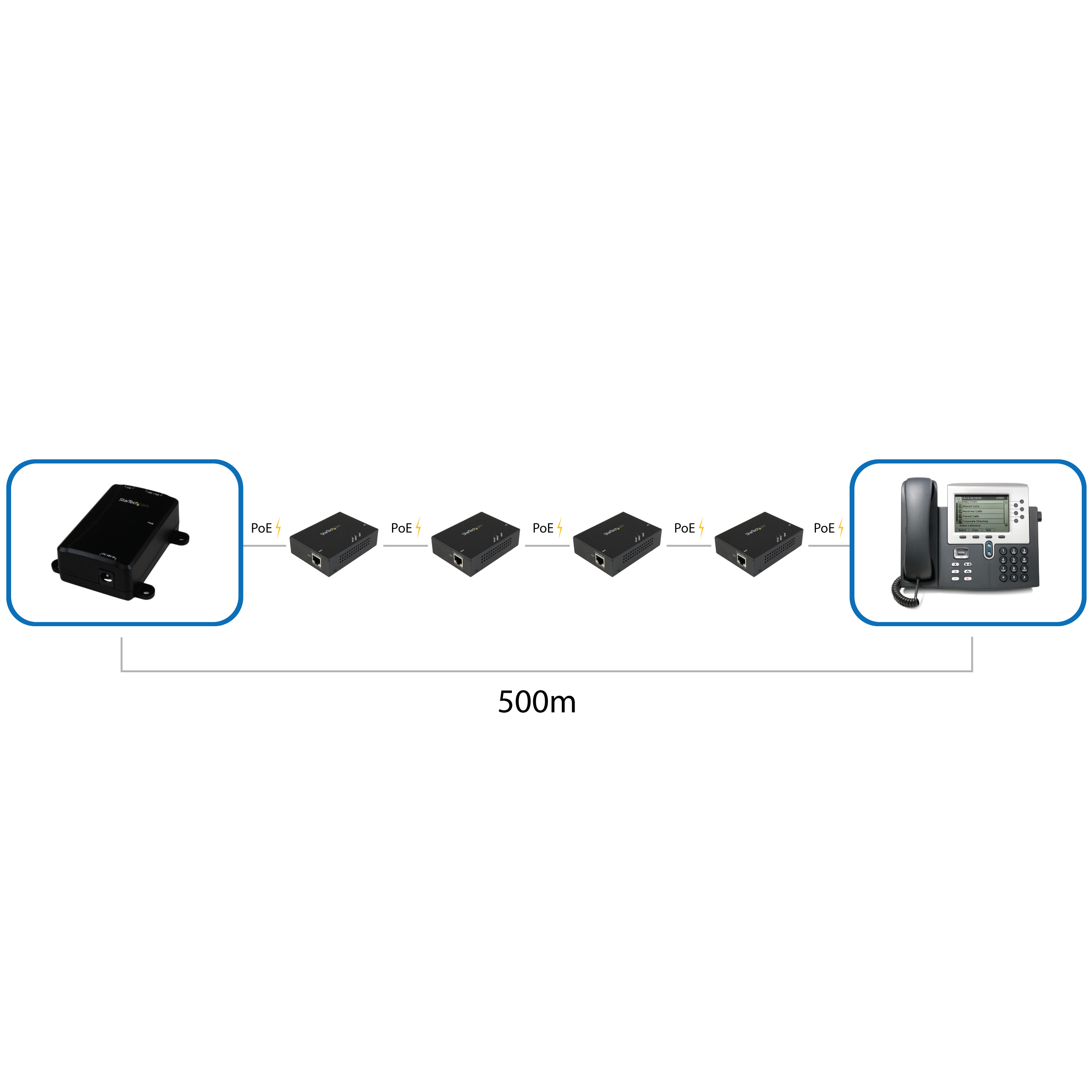

- You may daisy chain up to 4 POEEXT1GAT units total, for a maximum of 500m. The 4th unit will supply IEEE 802.3af up to 12W output.
System and Cable Requirements If your connected device does not meet the IEEE 802.3af or IEEE 802.3at PoE standard, then the POEEXT1GAT will not pass-through power to the connected device / Ethernet cable. Accessory Products - POEINJ4G
- POEINJ1GI
- POEINJ1G
- IES61002POE
- IES81000POE
- POESPLT100
- N6PATCH100BL
- N6PATCH100RD
- 45PATCH100BK
- 45PATCH75GN
- WIRC5ECMR
Related Products - 410VDSLEXT2
- 110VDSLEXT2
- EOC1110K
- 110VDSLEXT
Output Voltage (V) 52 ~ 56 DC Power Consumption (In Watts) 3.2 W Max Power Source PoE-Powered Color Black Humidity 5~95% RH (Non-Condensing) Material Steel Operating Temperature 0°C to 50°C (32°F to 122°F) Primary Material Steel Product Length (mm) 94.000 Product Width (mm) 69.000 Product Height (mm) 25.000 Product Weight (g) 193.000 Storage Temperature -10°C to 85°C (14°F to 185°F) TAA Compliant Yes Auto MDIX Yes Auto-Negotiation Yes Compatible Networks 10/100/1000 Mbps Flow Control Full Duplex Support Yes General Specifications Jumbo Frame Support No Maximum Cable Length (mm) 100000 Maximum Data Transfer Rate 2 Gbps (Full-Duplex) MTBF (hours) 50,000 Hours Surge Protection Switching Architecture Store-and-Forward Industry Standards - IEEE 802.3af PoE, IEEE 802.3at PoE+
- IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX, IEEE 802.3ab 1000BASE-T

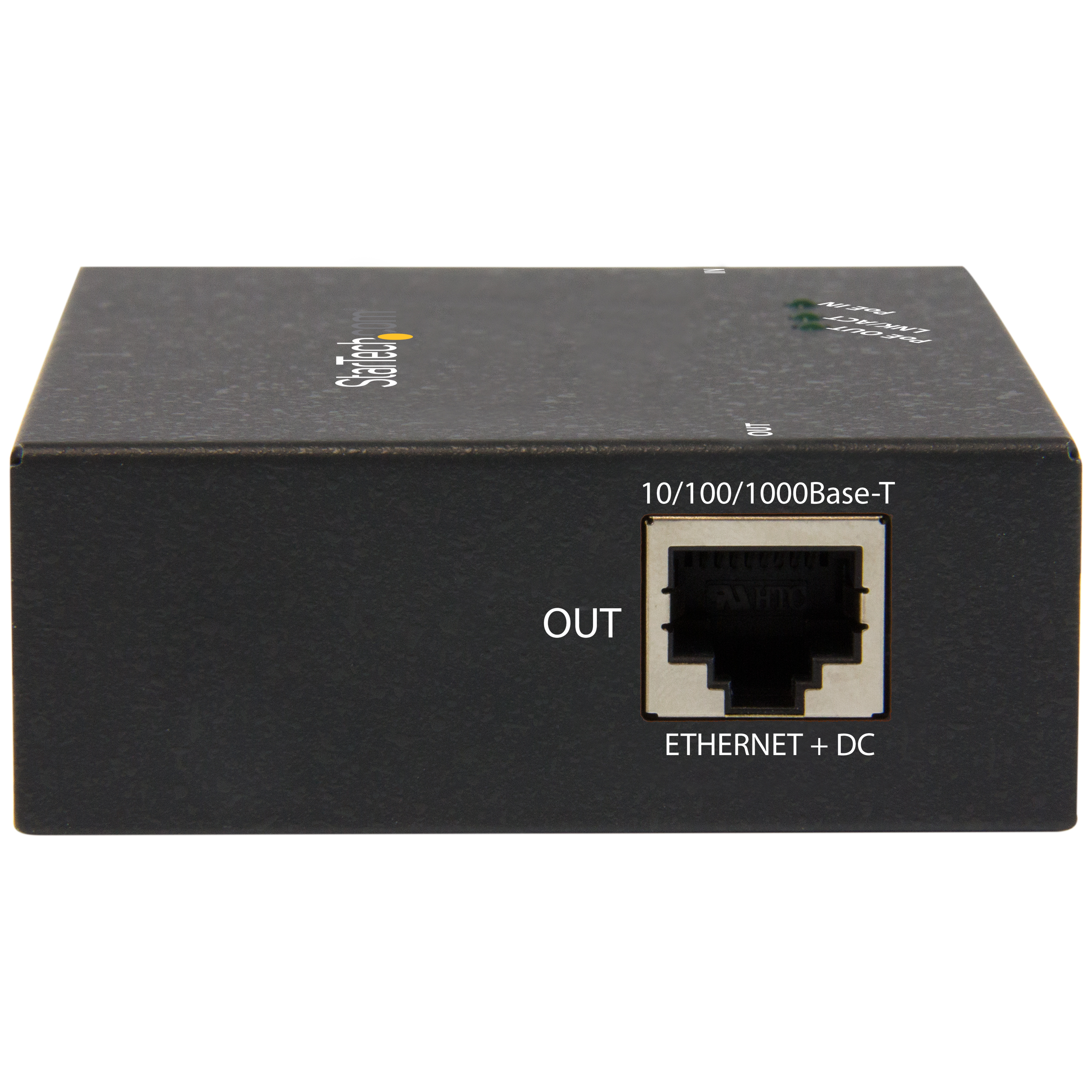

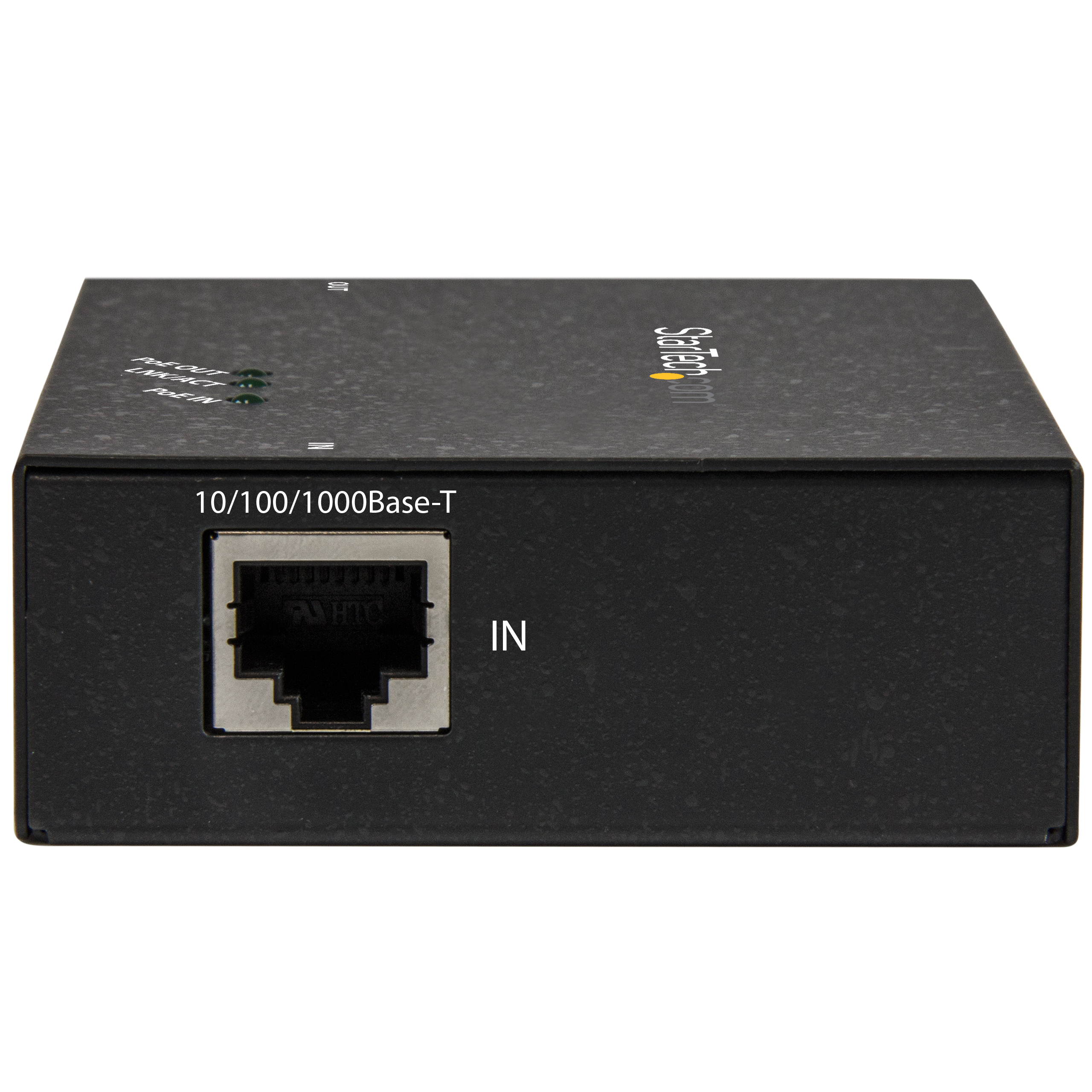

LED Indicators - 1 - PoE IN
- 1 - LNK/ACT
- 1 - PoE OUT

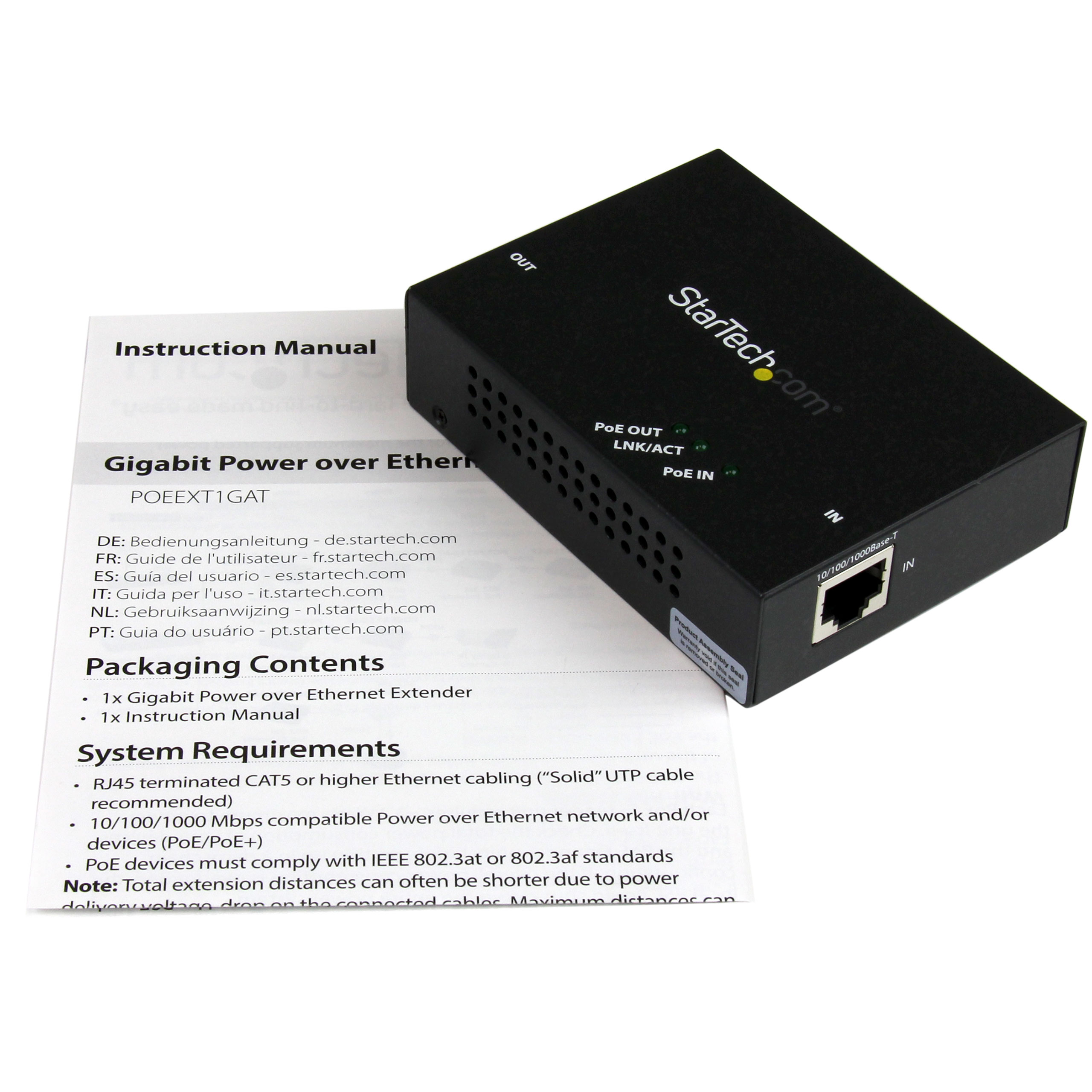

Carton Depth (mm) 368 Carton Height (mm) 300 Carton Quantity 26 Carton Weight Gross (g) 9954 Included in Package - 1 - Gigabit Power over Ethernet extender
- 1 - instruction manual
Included In Package for Label - 1 - Instruction Manual
- 1 - Gigabit PoE Extender
Package Depth (mm) 138 Package Height (mm) 72 Package Width (mm) 205 Package Quantity 1 Package Weight (g) 338 Packaging Description Gigabit PoE+ extender 802.3at / 802.3af Packaging Description India Gigabit PoE+ extender 802.3at / 802.3af Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 RJ-45 Connector 1 (Quantity) 2 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2015-01-01 Buying Center - AV & Collaboration Yes Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge Yes Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CO,DE,DK,ES,EU,FR,HK,IE,IN,IT,JP,MX,NL,NZ,SE,UK,US Primary Technology None Product Development Specialist Ray Aoki Product Information Creation Specialist (PICS) Alex Garcia Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Target Production Release 2015-03-20 Tech Lead Stefan Tirolese Technical Writer Andrew Richardson Technology Lifecycle None
