POEINJ100
10/100 PoE Injector - Power over Ethernet
Power your individual PoE-capable devices with this multi-voltage injector
Main Image
Product Images
Product Images
BOM Image
Product Name 10/100 PoE Injector - Power over Ethernet Product Number POEINJ100 UPC 065030841801 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Networking Category Level 2 POE Injectors and Extenders Category Level 3 POE Injectors Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Product Title (Short) 10/100 PoE Power over Ethernet Injector Product Title (Standard) 10/100 PoE Power over Ethernet Injector 48V/30W Product Title (Long) 10/100 PoE Power over Ethernet Injector 48V/30W Product Title (AMZ) 10/100 PoE Power over Ethernet Injector 48V/30W (POEINJ100) Title Ingram (Part 1) 10/100 PoE Power over Ethernet I Title Ingram (Part 2) njector 48V/30W Website Product Headline Power your individual PoE-capable devices with this multi-voltage injector Bullet 1 Steel enclosure for durability in harsh environments Bullet 2 Uses existing/standard Cat5, 5e, 6, or better cabling Bullet 3 48V/DC at Full 30W Output Supported Bullet 4 1 Ethernet Input(data only) port compliant with IEEE 802.3 10BaseT, IEEE 802.3u 100BaseTX Bullet 5 1 PoE/PSE(Power + Data) output ports compliant with IEEE 802.3af PoE and IEEE 802.3at PoE Marketing Copy Applications - Perfect for powering a Wireless Access Point (WAP) in a business environment
- Power a security camera/ network webcam situated in a remote area where power connection is not possible
- Retail applications such as RFID readers
- Great for IT administrators implementing PoE supported VoIP phones
- Power your intercom, paging or hallway speaker amplifier
- Enable remote installation of touchscreens or information kiosks
Website Search Keyword - PSE
- 802.3af
- 802.3at
- IEEE802.3af
- IEEE802.3at
- Powered Ethernet
- IP telephony
- power management
- Data with power
- Network power
- Power via ethernet
- Cat5 power
- Cat5e power
- Cat6 power
- 100mbit power
- 10mbit power
Patents and Licenses Required Regulatory Compliance Marks FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference Accessory Products - POESPLT100
- MCM110SC2P
- MCM110ST2P
- NETRS2321POE
- C6PATCH100BL
- C6PATCH100WH
- RJ45PATCH100
- RJ45PATCH75
- C6PATCH50BL
- WIRC6CMRBL
- WIRC6PATBKRL
- WIRC6PATBLRL
- WIRC5E350GR
- WIRC5E350CMR
Related Products POEKIT100 Input Current 0.8 Input Voltage 110V-240V AC Output Current 0.88A Output Voltage (V) 48 DC Power Consumption (In Watts) 35W Max Power Source AC Adapter Included Color Silver Humidity 10~90% RH (non-condensing) Operating Temperature 0°C to 40°C (32°F to 104°F) Product Length (mm) 102 Product Width (mm) 75 Product Height (mm) 23 Product Weight (g) 192 Storage Temperature -20°C to 85°C (-4°F to 185°F) TAA Compliant No General Specifications Power Output: 48V/DC at Full 30W Output Supported Maximum Data Transfer Rate 100Mbps Industry Standards LED Indicators - 1 - Device power indicator
- 1 - Per port: Activity/status indicator

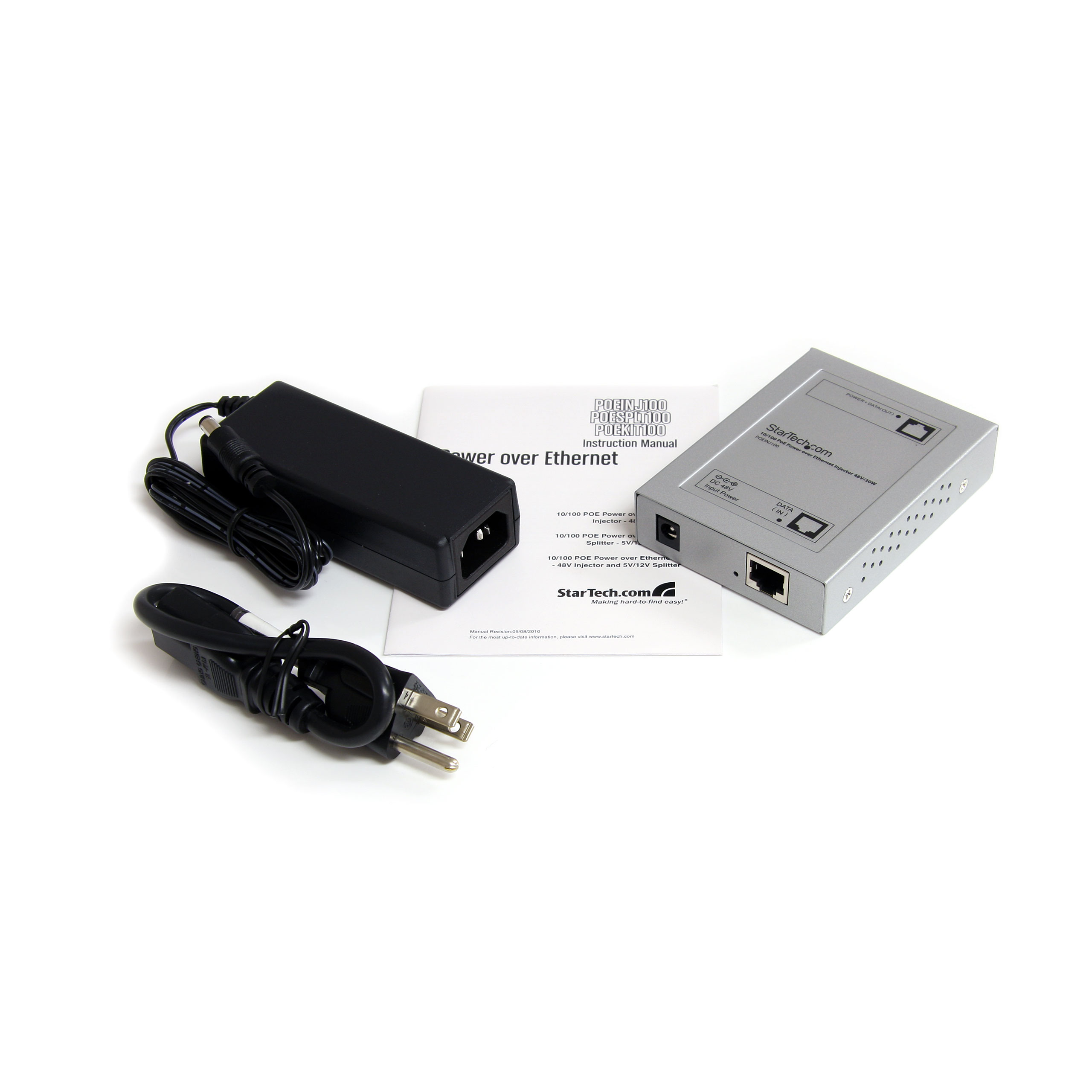

Carton Depth (mm) 340 Carton Height (mm) 360 Carton Quantity 30 Carton Weight Gross (g) 13300 Included in Package - 1 - POEINJ100 PoE Injector
- 1 - Power Adapter
- 1 - User Manual
Package Depth (mm) 130 Package Height (mm) 65 Package Width (mm) 160 Package Quantity 1 Package Weight (g) 420 Packaging Description 10/100 PoE Power over Ethernet Injector Packaging Description India 10/100 PoE Power over Ethernet Injector Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 RJ-45 Connector 1 (Quantity) 2 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2014-06-18 Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) CA,US Primary Technology None Product Development Specialist Ray Aoki Product Information Creation Specialist (PICS) Alex Garcia Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Stefan Tirolese Technical Writer Andrew Richardson Technology Lifecycle Legacy
