POEINJ1G90W
Industrial Grade Hardened PoE Injector 1G 802 3bt 90W Max
Rugged PoE Injector | 90 Watts Max | IP-30 Aluminum Housing | 52V-56V DC

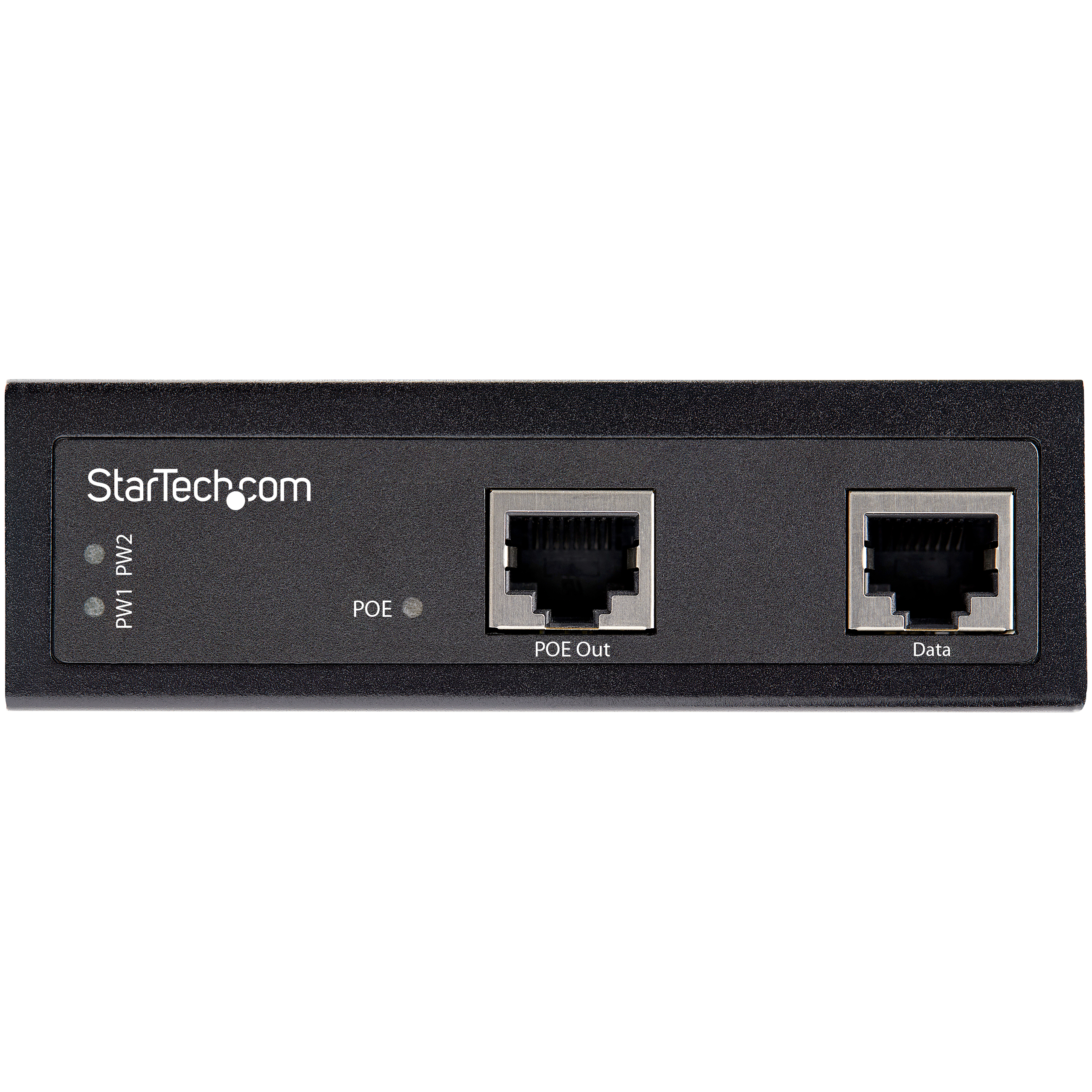

Main Image

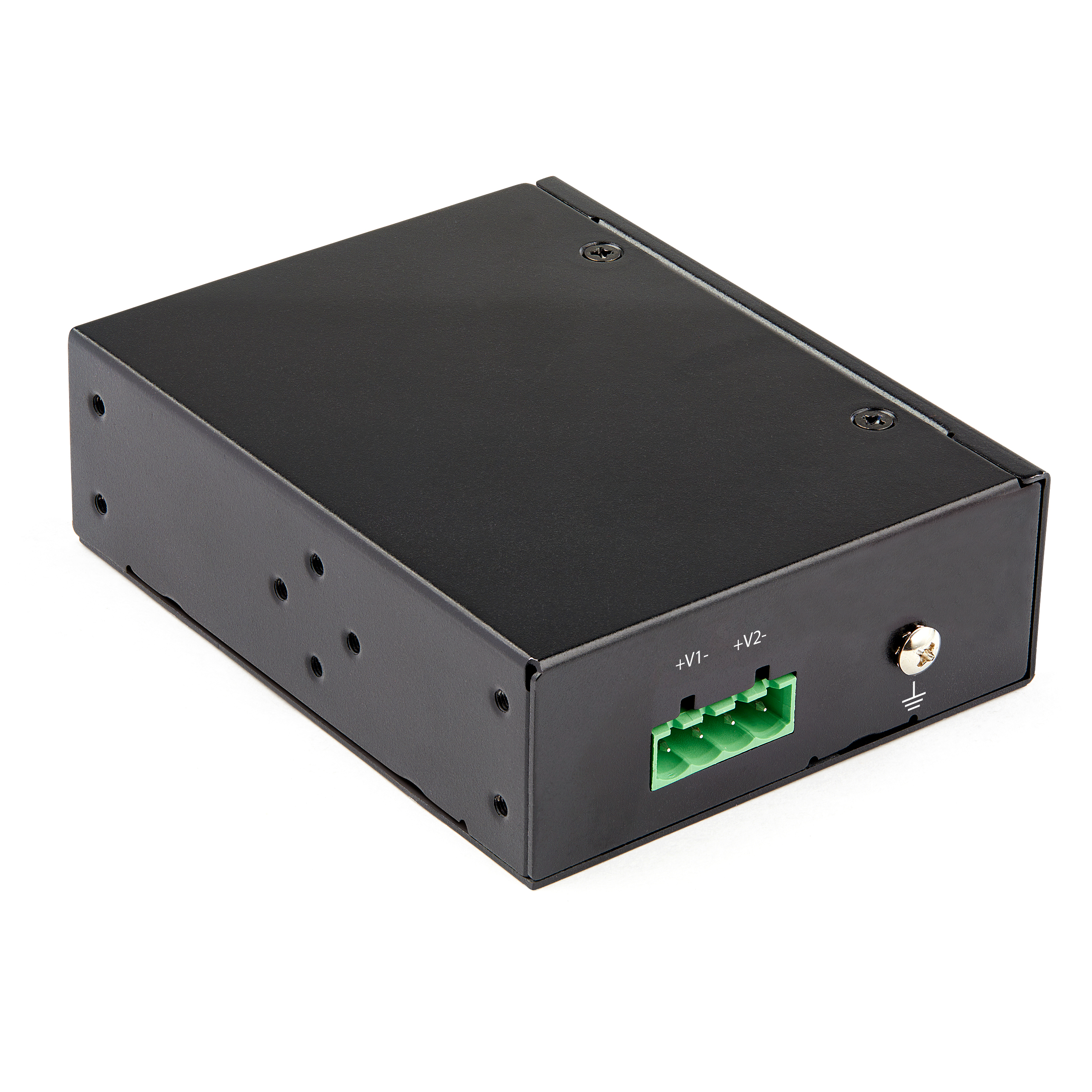

Product Images

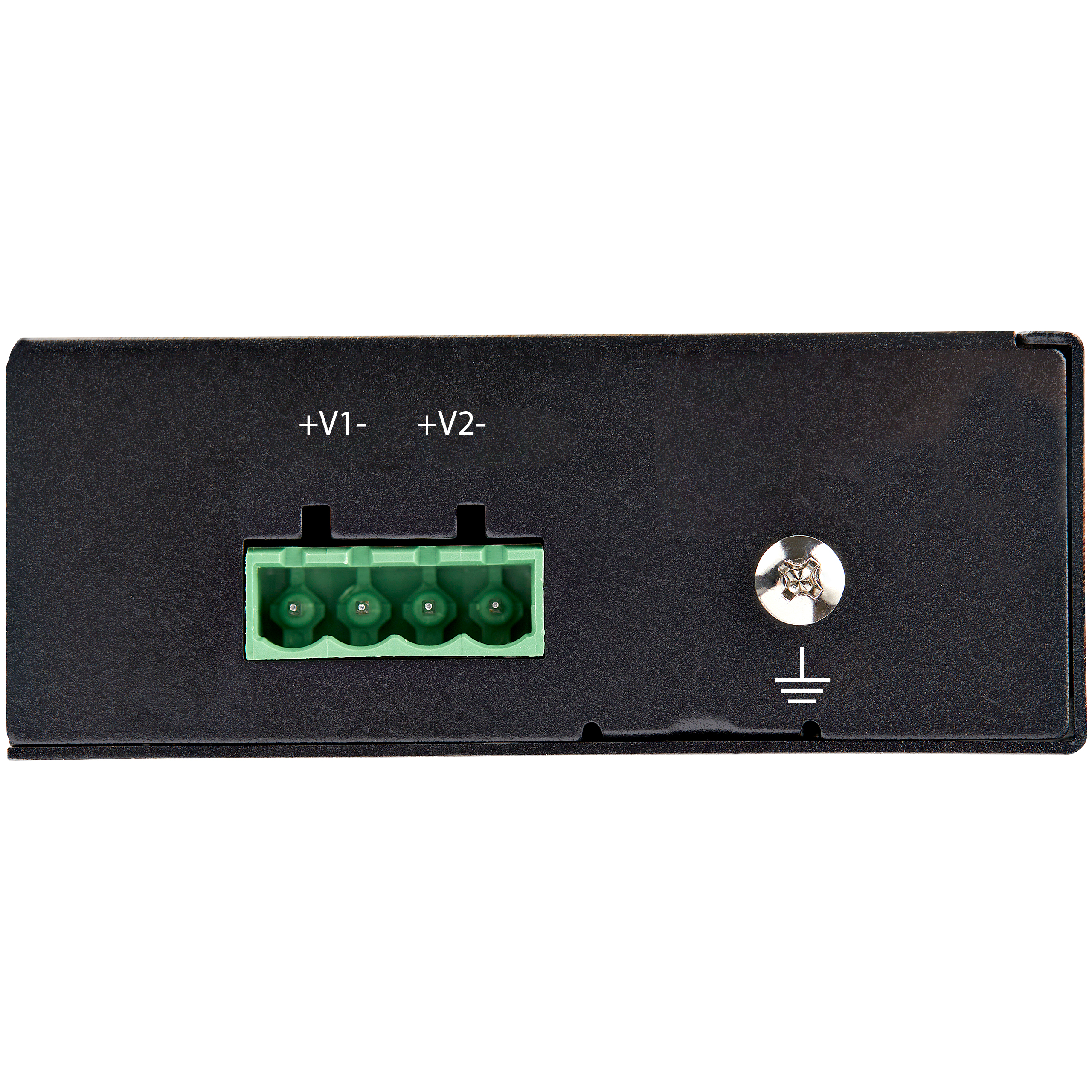

Product Images

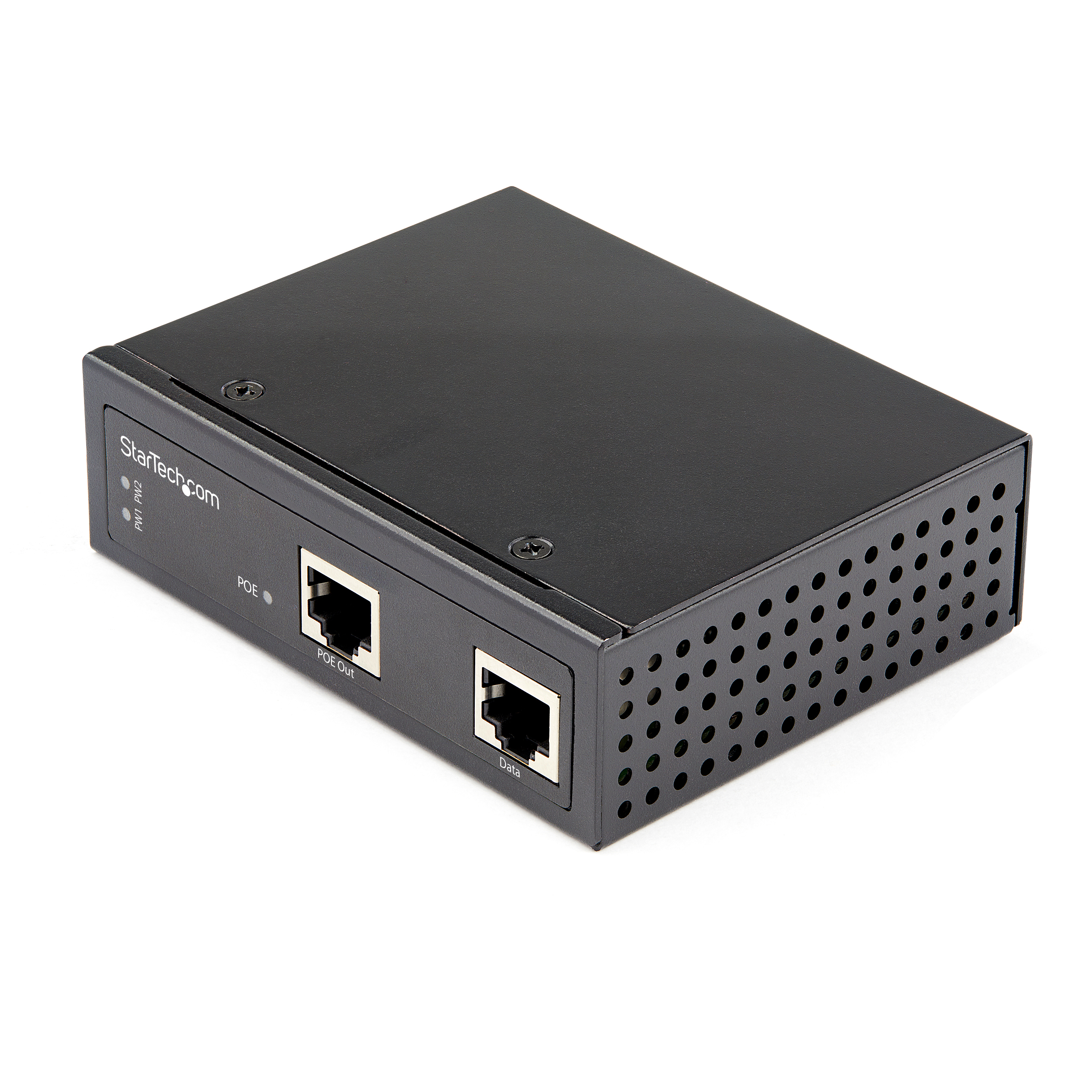

Product Images

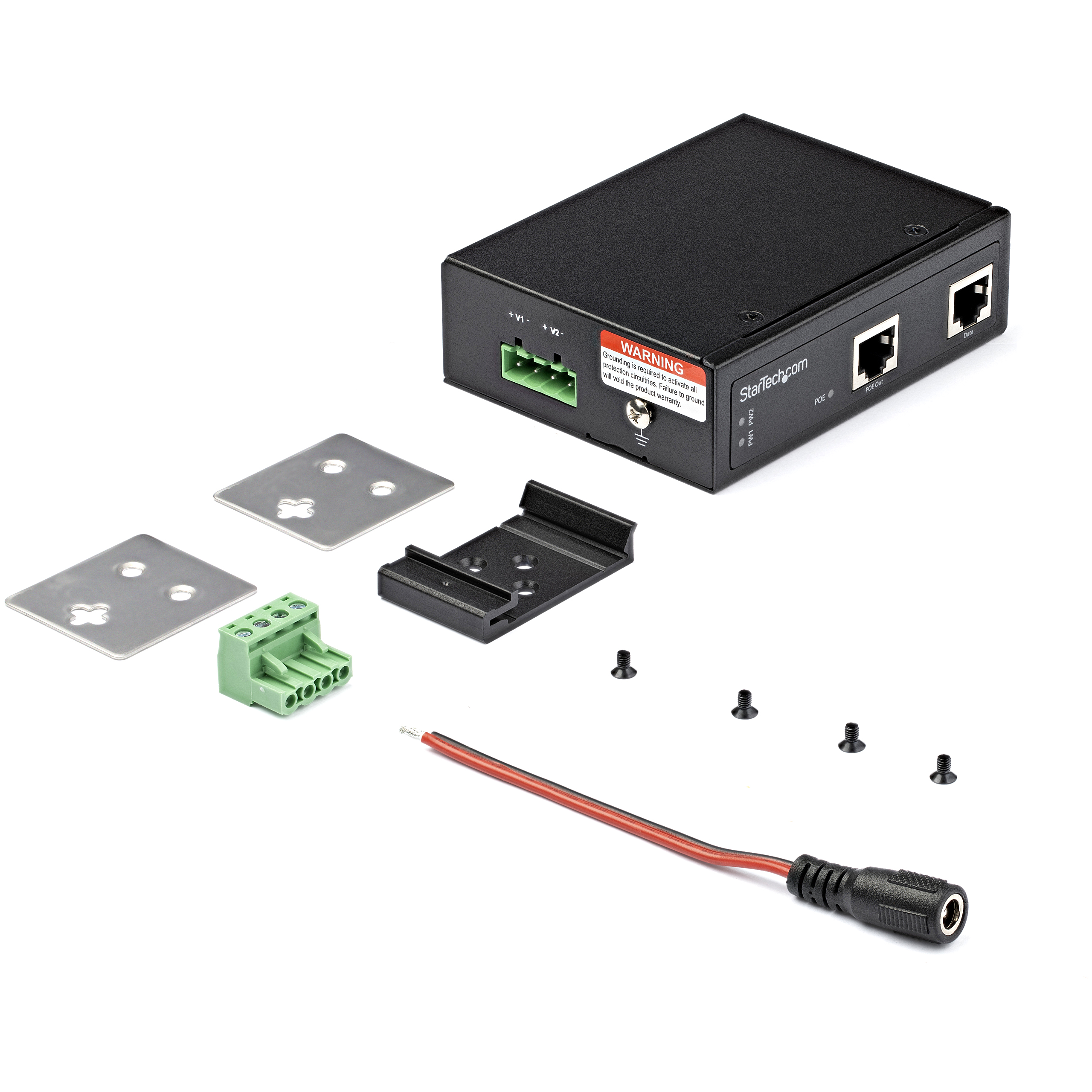

BOM Image
Quick-Start Guide
Product Name Industrial Grade Hardened PoE Injector 1G 802 3bt 90W Max Product Number POEINJ1G90W UPC 065030889568 Lifecycle status Active Warranty 2 Years Taxonomy Product > Networking > Network Switches Category Level 1 Networking Category Level 2 POE Injectors and Extenders Category Level 3 POE Injectors Family PoE Injectors - Industrial Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX106X Product Title (Ultra-Short) GB PoE Inj 90W Product Title (Short) Industrial Gigabit PoE++ Injector 90W Product Title (Medium) Industrial Gigabit PoE Injector 90W 802.3bt PoE++ UPoE Injector Product Title (Standard) Industrial Gigabit PoE Injector, 90W 802.3bt PoE++ 52V-56VDC Ultra Power Over Ethernet/UPoE Injector -40C to +75C, TAA Product Title (Long) Industrial Gigabit PoE Injector - High Speed/High Power 90W - 802.3bt PoE++ 52V-56VDC DIN Rail UPoE/Ultra Power Over Ethernet Injector Adapter -40C to +75C Rugged - TAA Product Title (AMZ) Industrial Gigabit PoE Injector - High Speed/High Power 90W - 802.3bt PoE++ 52V-56VDC DIN Rail UPoE/Ultra Power Over Ethernet Injector Adapter -40C to +75C Rugged , TAA (POEINJ1G90W) Title Ingram (Part 1) Industrial Gigabit PoE Injector Title Ingram (Part 2) High Speed 90W Website Product Headline Rugged PoE Injector | 90 Watts Max | IP-30 Aluminum Housing | 52V-56V DC Bullet 1 WIDE STANDARD COMPATIBILITY: High speed Industrial Gigabit PoE Injector compatible with IEEE 802.3bt (PoE++) and previous 90W proprietary POE standards including Cisco uPoE, Bosch & AXIS Bullet 2 90W POWER BUDGET: Provides up to 90W of auto-negotiated power output for Type 3 and Type 4 PoE/Ultra/UPoE applications like tilt and pan cameras and high power IEEE 802.11ax wireless access points Bullet 3 TECH SPECS: 1 Gbps; 52V-56VDC Power Input; IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt 90W max, uPoE, 10/100/1000 Mbps Auto Negotiation, DIN/Wall Mountable, Redundant Power Input Bullet 4 ROBUST DESIGN: Industrial Power over Ethernet Injector w/MTBF of 500,000+hrs @ 50C; Vibration, shock & free fall rated; Rugged IP-30 aluminum housing; Hardened operating temp of -40C to 75C Bullet 5 THE IT PRO'S CHOICE: Designed and built for IT Professionals, this TAA compliant PoE Injector is backed for 2-years, including free lifetime 24/5 multi-lingual technical assistance Bullets (Compact) High power industrial gigabit PoE injector 90W 1 Gbps Up to 90W max with IEEE 802.3bt Type 3/4 uPoE / Ultra power over Ethernet, MTBF 500k+hrs IP-30 housing, -40C to 75C - DIN/Wall mountable 52V-56VDC with redundant power inputs Bullets (Consolidated) - High speed Industrial gigabit PoE injector compatible with IEEE 802.3bt PoE++/ 90W POE standards incl Cisco uPoE / Bosch / AXIS - Auto-negotiated power up to 90W max for Type 3/4 PoE devices: IEEE 802.11ax wireless APs - 1 Gbps | 52V-56VDC pwr in|IEEE 802.3af |IEEE 802.3at |uPoE/Ultra power over Ethernet |10/100/1000 Mbps | DIN/wall mount|Redundant pwr input - MTBF 500k +hrs @ 50C | Vibration/shock/free fall rated | IP-30 housing | Rugged -40C to 75C Marketing Copy Website Search Keyword - 802.3bt poe
- 90w poe injector
- din rail mountable
- ethernet poe injector
- gigabit
- gigabit ethernet poe injector
- gigabit poe adapter
- gigabit poe injector
- gigabit poe injector adapter
- gigabit poe+ injector
- gigabit power over ethernet
- gigabit power over ethernet poe injector
- hardened poe injector
- high power gigabit poe injector
- industrial poe injector
- poe
- poe adapter
- poe injector
- poe injector adapter
- poe+ injector
- power over ethernet injector
- rugged poe injector
- trendnet ti ig90
- NPOEI-90W-1G
Patents and Licenses United States Patent No. 5,406,260 (expired) </br> United States Patent No. 6,650,622</br> United States Patent No. 7,457,250</br> United States Patent No. 8,155,012</br> United States Patent No. 8,902,760</br> United States Patent No. 8,942,107</br> United States Patent No. 9,019,838</br> United States Patent No. 9,049,019</br> United States Patent Application No. 14/695,456</br> United States Patent Application No. 14/726,940</br> Required Regulatory Compliance Marks - CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- MET - Safety - Electrical - Canada / United States - cMETus Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories + cords
- FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
Plug Type N Cable Length (mm) 100000 Color Black Humidity 5 to 95% (non-condensing) Material Aluminum Operating Temperature -40°C to 75°C Primary Material Aluminum Product Length (mm) 103.500 Product Width (mm) 81.500 Product Height (mm) 32.000 Product Weight (g) 148.000 Storage Temperature -40°C to 85°C TAA Compliant Yes Auto MDIX Yes Compatible Networks 10/100/1000 Mbps Full Duplex Support Yes General Specifications ESD Standard: IEC 61000-4-2: Contact: 6KV; Air: 8KV</br> EFT Standard: IEC 61000-4-4: Power: 2KV; Signal: 2KV</br> Surge Standard: IEC 61000-4-5: Power: 2KV; Signal: 2KV</br> Vibration Standard: EN 60068-2-6</br> Shock Standard: EN 60068-2-27</br> Free-Fall Standard: EN 60068-2-32</br> Housing Standard: IP-30</br> Safety Standard: EN60950-1 Jumbo Frame Support 9K max. Maximum Cable Length (mm) 100000 MTBF (hours) 540,891 hours Supported Protocols CSMA/CD</br> IEEE 802.3at</br> IEEE 802.3af</br> IEEE 802.3bt</br> Surge Protection 2kV</br> Total Available Power Output (In Watts) 90W Chipset ID - Analog - LTC9101
- Analog - LTC9103
Industry Standards IEEE 802.3 10BASE-T</br> IEEE 802.3u 100BASE-TX</br> IEEE 802.3ab 1000BASE-T</br> IEEE 802.3at PoE Plus</br> IEEE 802.3af Power over Ethernet</br> IEEE 802.3bt LED Indicators - 2 - Power
- 1 - PoE
Power over Ethernet Yes Carton Depth (mm) 364 Carton Height (mm) 248 Carton Quantity 10 Carton Weight Gross (g) 4564 Included in Package - 1 - Industrial-Grade PoE Injector
- 1 - Mounting Hardware Kit
- 1 - Quick-Start Guide
- 1 - Terminal Block
Included In Package for Label - 1 - Quick-Start Guide
- 1 - Mounting Hardware Kit
- 1 - Industrial-Grade PoE Injector
- 1 - Terminal Block
Package Depth (mm) 169 Package Height (mm) 67 Package Width (mm) 214 Package Quantity 1 Package Weight (g) 376 Packaging Description 90W Industrial-Grade Hardened PoE Injector Packaging Description India 90W Industrial-Grade Hardened PoE Injector Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 RJ-45 Connector 1 (Quantity) 1 Connector 2 RJ-45 Connector 2 (Quantity) 1 Connector 3 Terminal Block (4 Wire) Connector 3 (Quantity) 1 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2020-02-07 Buying Center - AV & Collaboration Yes Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge Yes Digital Content Due Date 2020-10-01 Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett ID Label Silkscreened or a Label No ID label Launch Markets (concatenated) AT,BE,CA,CH,DE,DK,ES,FI,FR,IE,IN,IT,JP,NL,SE,UK,US Primary Technology None Priority New Product N/A Product Development Specialist Ray Aoki Product Information Creation Specialist (PICS) Alex Garcia Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Target Development Completion Date 2020-01-17 Target Production Release 2020-01-30 Tech Lead Stefan Tirolese Technical Writer Evan Hanbidge Technology Lifecycle None
