POEINJ30W
PoE Injector - 3OW
Rugged PoE Injector | 30 Watts | IP-30 Aluminum Housing | 48V-56V DC | DIN Rails
Main Image
Product Images
Product Images
Product Images
BOM Image
Quick-Start Guide
Product Name PoE Injector - 3OW Product Number POEINJ30W UPC 065030891363 Lifecycle status Active Warranty 2 Years Taxonomy Product > Networking > Network Switches Category Level 1 Networking Category Level 2 POE Injectors and Extenders Category Level 3 POE Injectors Family PoE Injectors - Industrial Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX106X Product Title (Ultra-Short) Gigabit Ethernet Product Title (Short) Industrial Gigabit PoE/PoE+ Injector 30W Product Title (Medium) Industrial Gigabit Ethernet PoE Injector 30W 802.3at PoE+ Midspan 48V-56VDC Product Title (Standard) Industrial Gigabit Ethernet PoE Injector, 30W 802.3at PoE+ Midspan Power Over Ethernet Injector,48V-56VDC, -40C to +75C, TAA Product Title (Long) Industrial Gigabit Ethernet PoE Injector - 30W 802.3at PoE+ Midspan 48V-56VDC DIN Rail Power Over Ethernet Injector Adapter - -40C to +75C Cameras/Sensors/WiFi Access - TAA Product Title (AMZ) Industrial Gigabit Ethernet PoE Injector - 30W 802.3at PoE+ Midspan 48V-56VDC DIN Rail Power Over Ethernet Injector Adapter - -40C to +75C Cameras/Sensors/WiFi Access , TAA (POEINJ30W) Title Ingram (Part 1) Industrial Gigabit Ethernet Title Ingram (Part 2) PoE Injector 30W Website Product Headline Rugged PoE Injector | 30 Watts | IP-30 Aluminum Housing | 48V-56V DC | DIN Rails Bullet 1 30 WATT GIGABIT ETHERNET PoE INJECTOR: Provides up to 30W of power (midspan) to IEEE 802.3af (PoE / Type 1) and IEEE 802.3at (PoE+ / Type 2) PD devices like cameras, sensors, and wi-fi access points Bullet 2 TECH SPECS: 1 Gbps | 48V-56VDC input | IEEE 802.3af / IEEE 802.3at (30W) | 10/100/1000 Mbps auto negotiation | Link fault passthrough (LFP) | 16K Jumbo frames | IP-30 housing | DIN rail/wall mountable Bullet 3 DUAL POWER INPUTS: Includes a barrel plug adapter for terminal block power, allowing the product to be hardwired or power powered using a standard AC/DC wall adapter Bullet 4 ROBUST DESIGN: Industrial Power over Ethernet Injector w/MTBF of 600,000+ hrs @ 50C | Vibration, shock & free fall rated | Rugged IP-30 aluminum housing | Hardened operating temp of -40C to 75C Bullet 5 STARTECH.COM ADVANTAGE: IT professionals' choice for over 30 years | This PoE Injector is backed for 2-years by StarTech.com, including free 24/5 North America based multi-lingual tech support Bullets (Compact) Industrial Gigabit Ethernet PoE Injector - Power over Ethernet Injector - Up to 30W of pwr (midspan) to IEEE 802.3af (PoE) & IEEE 802.3at (PoE+) MTBF 600k+hrs IP-30 housing -40C to 75C temp DIN/Wall mount 48V-56VDC input w/terminal block pwr 2yr warr Bullets (Consolidated) Industrial Gigabit Ethernet PoE Injector w/up to 30W of power (midspan) to IEEE 802.3af (PoE )and IEEE 802.3at (PoE+) PD devices like cameras/sensors - 1 Gbps | 48V-56V DC power input | IEEE 802.3af/IEEE 802.3at (30W) | Link fault passthrough | 16K Jumbo frames | DIN Rail/wall mountable | Include barrel adapter for terminal block pwr/hardwire/use standard AC/DC wall adapter MTBF 600k+hrs @ 50C | Vibration/shock/free fall rated | IP-30 housing | Hardened -40C to 75C - StarTech.com 2-year warranty Marketing Copy Patents and Licenses United States Patent No. 5,406,260 (expired) </br> United States Patent No. 6,650,622</br> United States Patent No. 7,457,250</br> United States Patent No. 8,155,012</br> United States Patent No. 8,902,760</br> United States Patent No. 8,942,107</br> United States Patent No. 9,019,838</br> United States Patent No. 9,049,019</br> United States Patent Application No. 14/695,456</br> United States Patent Application No. 14/726,940</br> Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- MET - Safety - Electrical - Canada / United States - cMETus Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories + cords
Input Voltage 48 ~ 56V DC Power Consumption (In Watts) Max 37W Plug Type N Color Black Humidity 5 to 95% (non-condensing) Material Aluminum Operating Temperature -40°C to 75°C Primary Material Aluminum Product Length (mm) 103.500 Product Width (mm) 81.500 Product Height (mm) 32.000 Product Weight (g) 143.000 Storage Temperature -40°C to 85°C TAA Compliant Yes Auto MDIX Yes Compatible Networks 10/100/1000 Mbps Full Duplex Support Yes General Specifications ESD: IEC 61000-4-2: Contact: 6KV; Air: 8KV</br> EFT: IEC 61000-4-4: Power: 2KV; Signal: 2KV</br> Surge: IEC 61000-4-5: Power: 2KV; Signal: 2KV</br> Vibration: EN 60068-2-6</br> Shock: EN 60068-2-27</br> Free-fall: EN 60068-2-32</br> Housing: IP-30</br> Safety: MET (UL) 60950-1</br> Safety: EN60950-1</br> Reverse polarity protection</br> Overload current protection Jumbo Frame Support 9K max. Maximum Cable Length (mm) 100000 MTBF (hours) 630,899 hours Supported Protocols - CSMA/CD</br> IEEE 802.3
- IEEE 802.3at PoE+
- IEEE 802.3af PoE

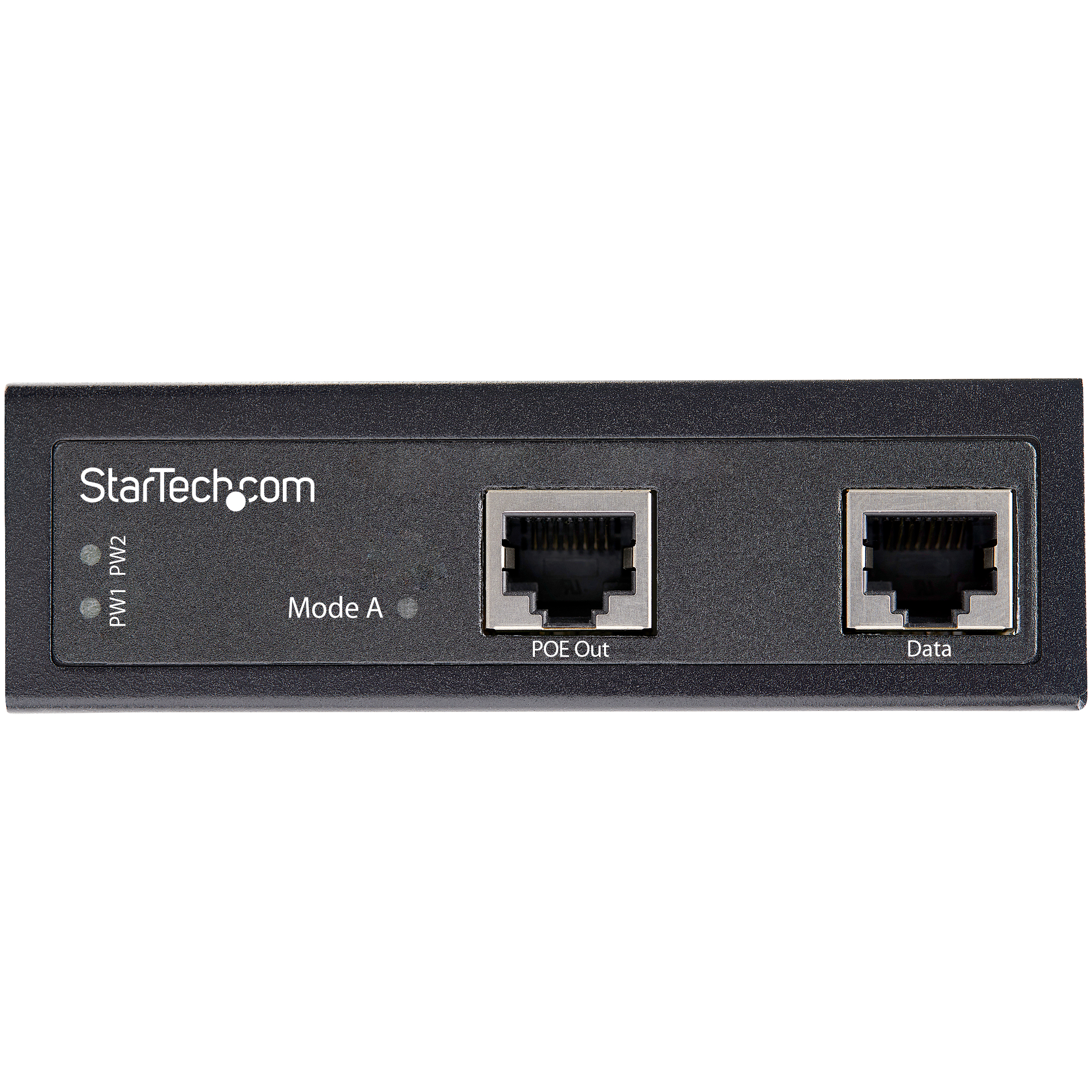

Chipset ID Microsemi PD69101 Industry Standards LED Indicators - 2 - PW1, PW2
- 1 - Mode A

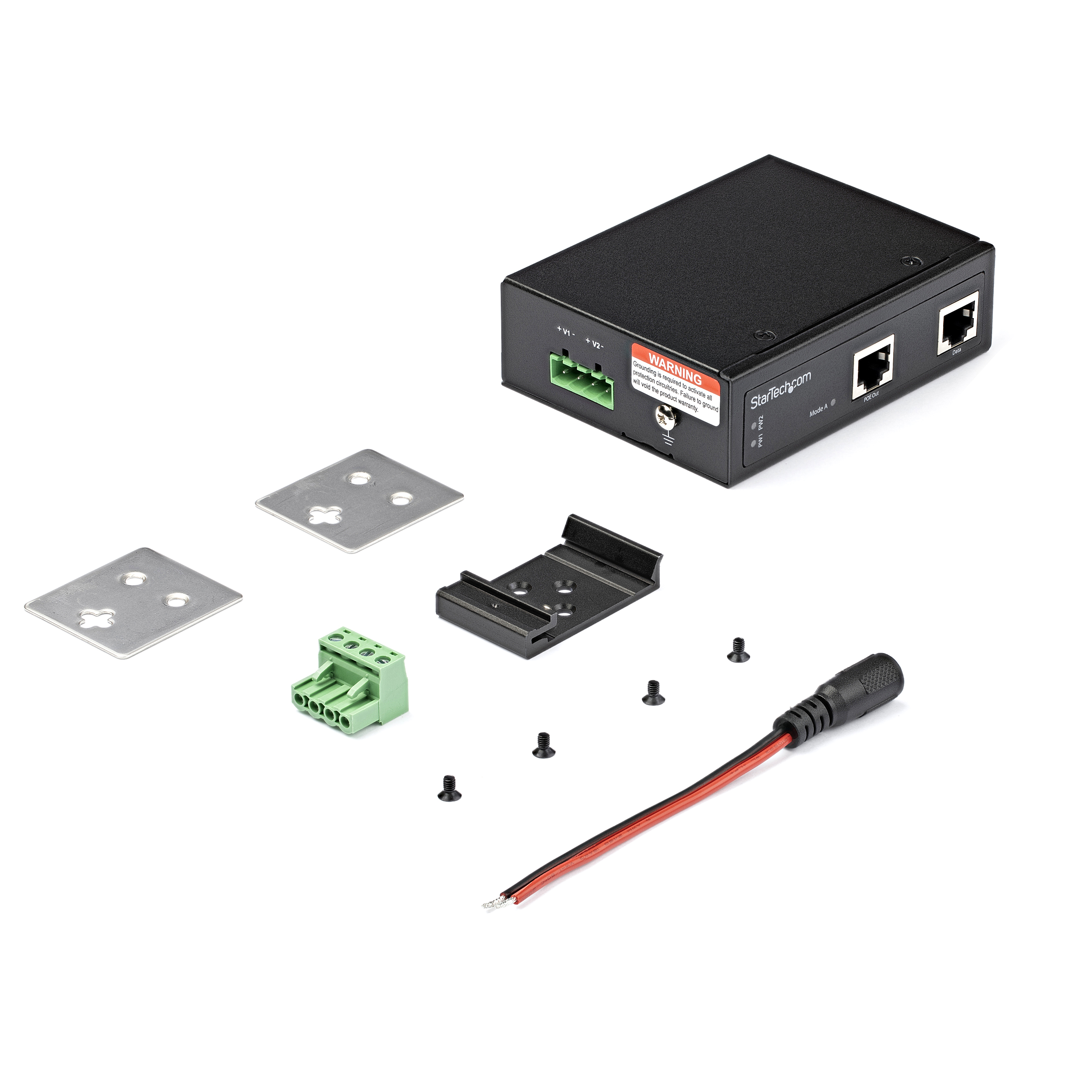

Power over Ethernet Yes Carton Depth (mm) 364 Carton Height (mm) 250 Carton Quantity 10 Carton Weight Gross (g) 4492 Included in Package - 1 - Mounting Hardware Kit
- 1 - PoE Injector
- 1 - Quick-Start Guide
- 1 - Terminal Block to Barrel Power Connector Adapter
- 1 - Terminal Block
Package Depth (mm) 166 Package Height (mm) 69 Package Width (mm) 214 Package Quantity 1 Package Weight (g) 370 Packaging Description 30W Industrial-Grade Hardened PoE Injector Packaging Description India 30W Industrial-Grade Hardened PoE Injector Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 RJ-45 Connector 1 (Quantity) 1 Connector 2 RJ-45 Connector 2 (Quantity) 1 Connector 3 RJ-45 Connector 3 (Quantity) 1 Connector 4 RJ-45 Connector 4 (Quantity) 1 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2020-02-06 Buying Center - AV & Collaboration Yes Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge Yes Digital Content Due Date 2020-10-08 Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett ID Label Silkscreened or a Label No ID label Launch Markets (concatenated) AT,BE,CA,CH,DE,DK,ES,FI,FR,IE,IN,IT,NL,SE,UK,US Primary Technology None Product Development Specialist Ray Aoki Product Information Creation Specialist (PICS) Alex Garcia Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Target Development Completion Date 2020-01-17 Target Production Release 2020-02-06 Tech Lead Stefan Tirolese Technical Writer Evan Hanbidge Technology Lifecycle None
