POEINJ4G-US
US only sku for POEINJ4G
Deliver power and data to four Power over Ethernet devices using this wall-mountable PoE+ midspan hub
Main Image
Product Images
Product Images
Product Images
BOM Image
Quick-Start Guide
Product Name US only sku for POEINJ4G Product Number POEINJ4G-US UPC 065030922562 Lifecycle status Active Warranty 2 Years Taxonomy Product > Networking > Network Switches Category Level 1 Networking Category Level 2 POE Injectors and Extenders Category Level 3 POE Injectors Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX060X Product Title (Ultra-Short) 4pt GbE PoE Injector Product Title (Short) 4-Port Gigabit Midspan, PoE+ Injector Product Title (Medium) 4-Port Gigabit Midspan, PoE+ Injector, 802.3at & 802.3af, Wall-Mountable, TAA Product Title (Standard) 4-Port Gigabit Midspan, PoE+ Injector, 802.3at & 802.3af, Wall-Mountable Power over Ethernet Midspan, TAA Compliant Product Title (Long) 4-Port Gigabit Midspan, PoE+ Injector, 802.3at and 802.3af, Wall-Mountable Power over Ethernet Midspan, Up to 30.8 Watts per port, Plug-and-Play, TAA Product Title (AMZ) 4-Port Gigabit Midspan, PoE+ Injector, 802.3at and 802.3af, Wall-Mountable Power over Ethernet Midspan, TAA Title Ingram (Part 1) 4-Port Gigabit PoE+ Midspan - Title Ingram (Part 2) Power over Ethernet Injector Website Product Headline Deliver power and data to four Power over Ethernet devices using this wall-mountable PoE+ midspan hub Bullet 1 4-PORT GIGABIT PoE+ INJECTOR: Provides power and data to up to four PoE-enabled devices over an Ethernet connection; Supports Gigabit speeds with up to 30.8W (802.3at) or 15.4W (802.3af) per port, ensuring reliable performance for demanding applications Bullet 2 AUTOMATIC SPEED & POWER NEGOTIATION: Supports auto-sensing between 10/100/1000Mbps, ensuring compatibility with a wide range of Powered Devices (PDs); Delivers power and data up to 328ft (100m) over existing Cat5e/6/6a cabling for flexible deployments Bullet 3 PLUG-AND-PLAY: No software or configuration required; Connect to a network switch or router and power remote devices like IP cameras, access points (APs), and VoIP phones; Automatically detects and delivers the correct PoE level for each connected device Bullet 4 FLEXIBLE & SPACE-SAVING DESIGN: Ideal for remote device installations where power outlets are limited; Wall-mountable for convenient access and clean cable management Bullet 5 THE IT PRO'S CHOICE: Designed for reliability in edge and on-prem deployments, our solutions are lab-tested and field-proven for seamless integration and maximum uptime; Backed by free lifetime 24/5 multi-lingual technical assistance Bullets (Compact) Deliver power and data to four PoE-powered devices (PD) using this wall-mountable PoE+ midspan hub; 4-Port Gigabit Power over Ethernet Midspan; 802.3at & 802.3af; Wall-mountable Power over Ethernet Injector; Up to 30.8 Watts per port; Easy setup; TAA Bullets (Consolidated) - Deliver power and data to four PoE-powered devices(PD)using this wall-mountable PoE+ midspan hub - 4-Port Gigabit Power over Ethernet Midspan - 802.3at and 802.3af - Wall-mountable Power over Ethernet Injector - Delivers more power with up to 30w per port - Eliminate the cost and hassle of upgrading your existing ethernet switch to a PoE-capable model - Desktop-sized housing with flexible and easy plug-and-play operation - Detects your PoE PDs and provides the proper level of power - PoE Plus Marketing Copy Marketing Copy (No HTML) Applications - Ideal for high-power PoE+ devices requiring Gigabit speeds such as PTZ (Pan, Tilt, Zoom) cameras and Wi-Fi® access points (WAP)
- Enable remote installation of touchscreens, information kiosks, and phones in locations where a power connection is not available
- Perfect for SOHO, SMB, system integrators, and IT administrators
Website Search Keyword - PoE+ Injector
- PoE Injector
- PoE Midspan
- Power over Ethernet Injector
- Power over Ethernet Midspan
- gigabit poe+ injector
- 4 port poe injector
- 30w poe injector
- power over gigabit ethernet
- pse
- power sourcing equipment
- wall mount poe injector
- 802.3af
- 802.3at
- poe midspan injector
- power over ethernet midspan injector
- poe+
- poe plus
- power over ethernet +
- power over ethernet plus
- gigabit midspan
- gigabit midspan injector
Patents and Licenses Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- UKCA - EMC/EMI - United Kingdom - UK Electromagnetic Compatibility Regulations 2016
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- Triman/Info-Tri - Packaging - Waste - European Union - Paper Box + paper tray/divider
- EU RIC + Italian Sorting - Packaging - Waste - European Union - Corrugated Fiberboard
- Triman/Info-Tri - Manual - Waste - European Union - Print Paper
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories + cords
- Recycling - Waste - Japan - Paper Recycling Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
System and Cable Requirements If your connected devices do not meet the IEEE 802.3af or IEEE 802.3at PoE standard, then the POEINJ4G-US will not inject power to the connected device(s) / Ethernet cable(s) Accessory Products - POESPLT100
- MCM110SC2P
- NETRS42348PD
- NETRS2321POE
- AP300WN2X2W
- N6PATCH100BL
- N6PATCH50BL
- N6PATCH25BK
- N6PATCH10OR
- WIRC6PATBLRL
- WIRC6PATBKRL
- WIRC6CMRBL
Related Products - POEINJ1GI
- POEINJ1G
- POEINJ2GI
- POEINJ100
- IES61002POE
- IES81000POE
- IES51000POE
- IES8100POE
- ET1110PSE
Input Current 2 A Input Voltage 100 - 240 AC Output Current 2.4 A Output Voltage (V) 54 DC Power Consumption (In Watts) 129.6 Power Source AC Adapter Included Plug Type M Center Tip Polarity Positive Color Black Humidity 5~95% RH (Non-Condensing) Material Steel Operating Temperature 0°C to 50°C (32°F to 122°F) Primary Material Steel Product Length (mm) 94.000 Product Width (mm) 70.300 Product Height (mm) 26.200 Product Weight (g) 202.000 Storage Temperature -10°C to 70°C (14°F to 158°F) TAA Compliant Yes General Specifications Power Output: 54V DC at 30.8W (PoE+) Maximum Cable Length (mm) 100000 Maximum Data Transfer Rate 2 Gbps (Full-Duplex) MTBF (hours) 50,000 Hours OS Compatibility OS Independent Industry Standards - IEEE 802.3af PoE, IEEE 802.3at PoE+
- IEEE 802.3 (10BASE-T), IEEE 802.3u (100BASE-TX), IEEE 802.3ab (1000BASE-T)
LED Indicators - 1 - Power
- 4 - PoE In-Use

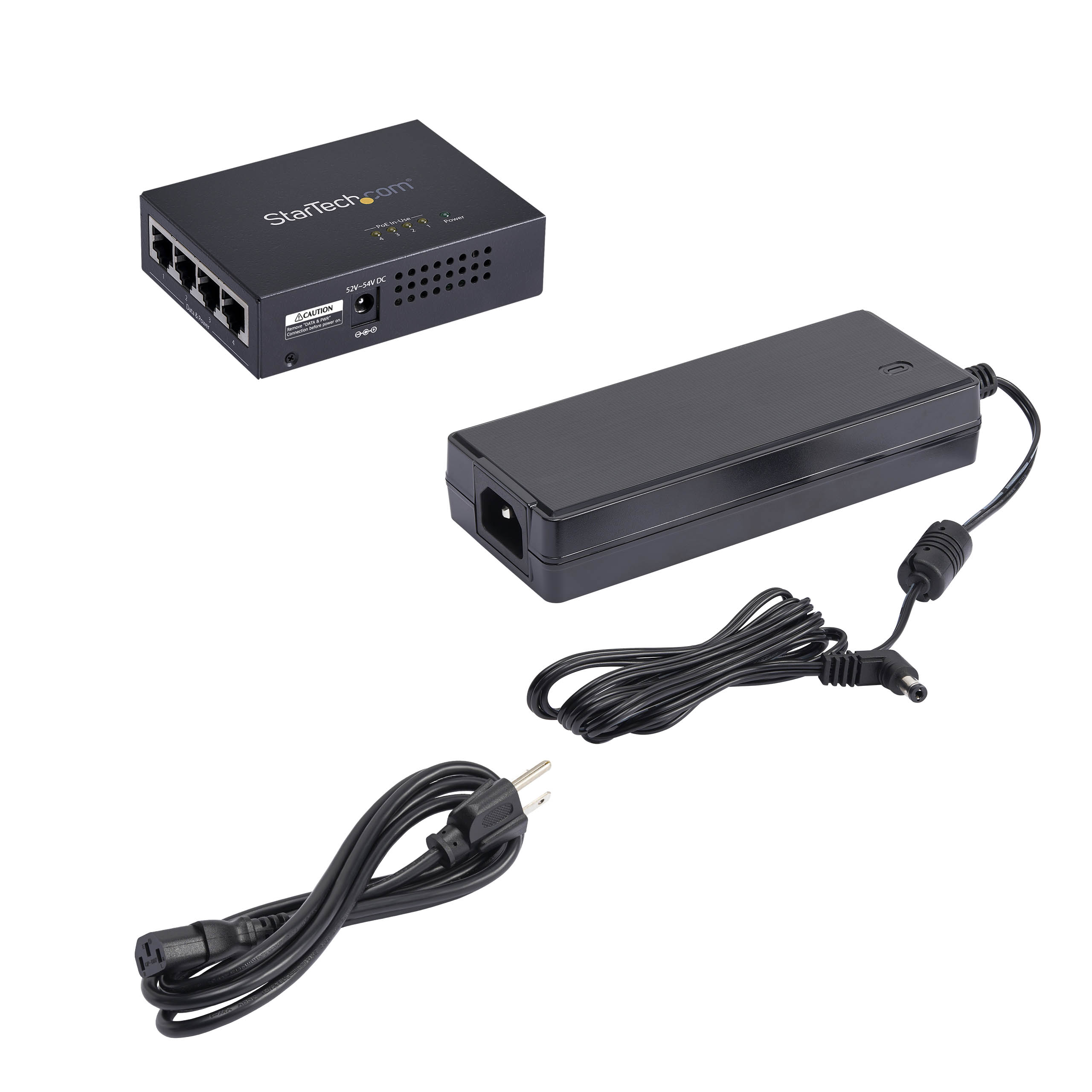

Carton Depth (mm) 370 Carton Height (mm) 470 Carton Quantity 10 Carton Weight Gross (g) 16900 Included in Package - 1 - PoE Injector
- 1 - Power Adapter
- 1 - Power Cord
- 1 - Product Documentation
Package Depth (mm) 300 Package Height (mm) 90 Package Width (mm) 170 Package Quantity 1 Package Weight (g) 1400 Packaging Description 4-Port Gigabit PoE+ Injector, Midspan Hub, 54V/30W - 802.3at/802.3af Packaging Description India 4-Port Gigabit PoE+ Injector, Midspan Hub, 54V/30W - 802.3at/802.3af Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 RJ-45 Connector 1 (Quantity) 8 Actual Inbox Documents Created Compliance Insert & EN QSG Amazon Merchandising Manager Kathleen Marshall Application Photos Uploaded Artwork Due Date 2025-04-04 Buying Center - AV & Collaboration Yes Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge Yes Comparable SKU Comment Regionalize the BOM and digital content to represent US version Comparable SKU 2 Comment This is a competitor SKU at $111.99 Digital Content Due Date 2025-04-30 Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level - 2 Graphic Designer Shane Arnett ID Label Silkscreened or a Label Silkscreened label - requires dieline showing location Launch Markets (concatenated) US Priority New Product High Product Development Specialist Abhinav Pathak Product Information Creation Specialist (PICS) Maria Powell Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Target Development Completion Date 2025-03-07 Target Production Release 2025-04-30 Tech Lead Stefan Tirolese Technical Writer Maria Powell Technology Lifecycle Mainstream Vending Machine Not Compatible with Vending Machine
