POEINJ4G

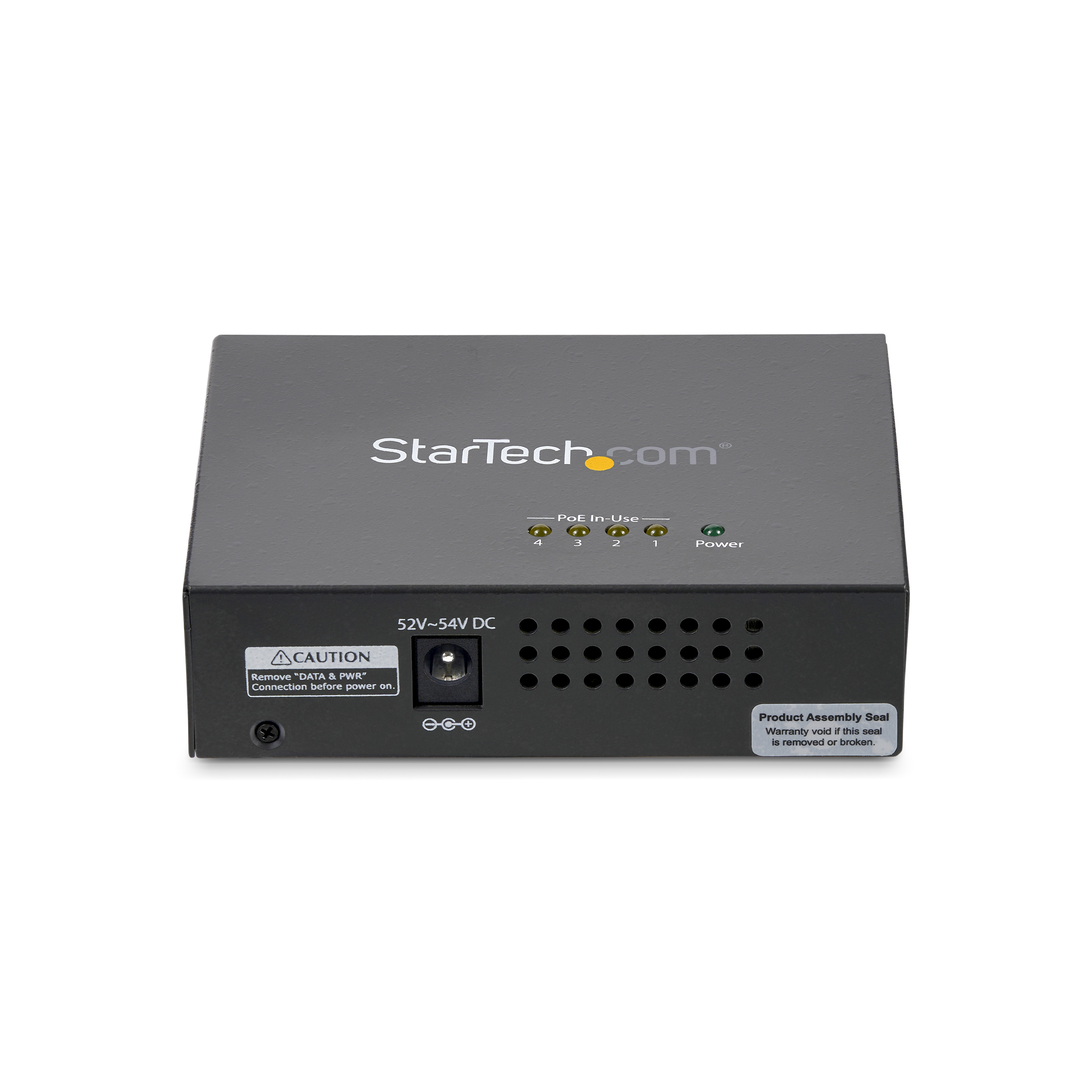

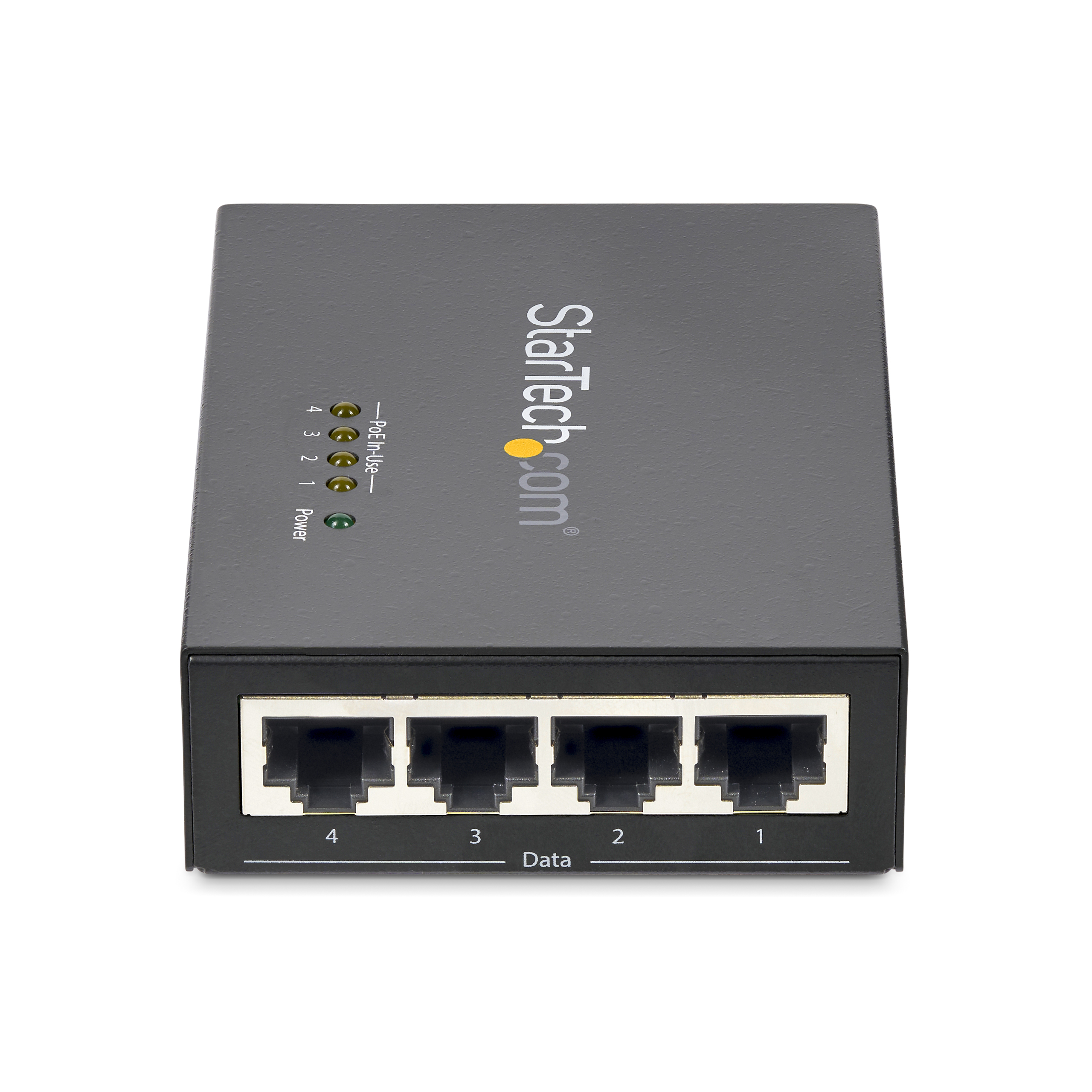

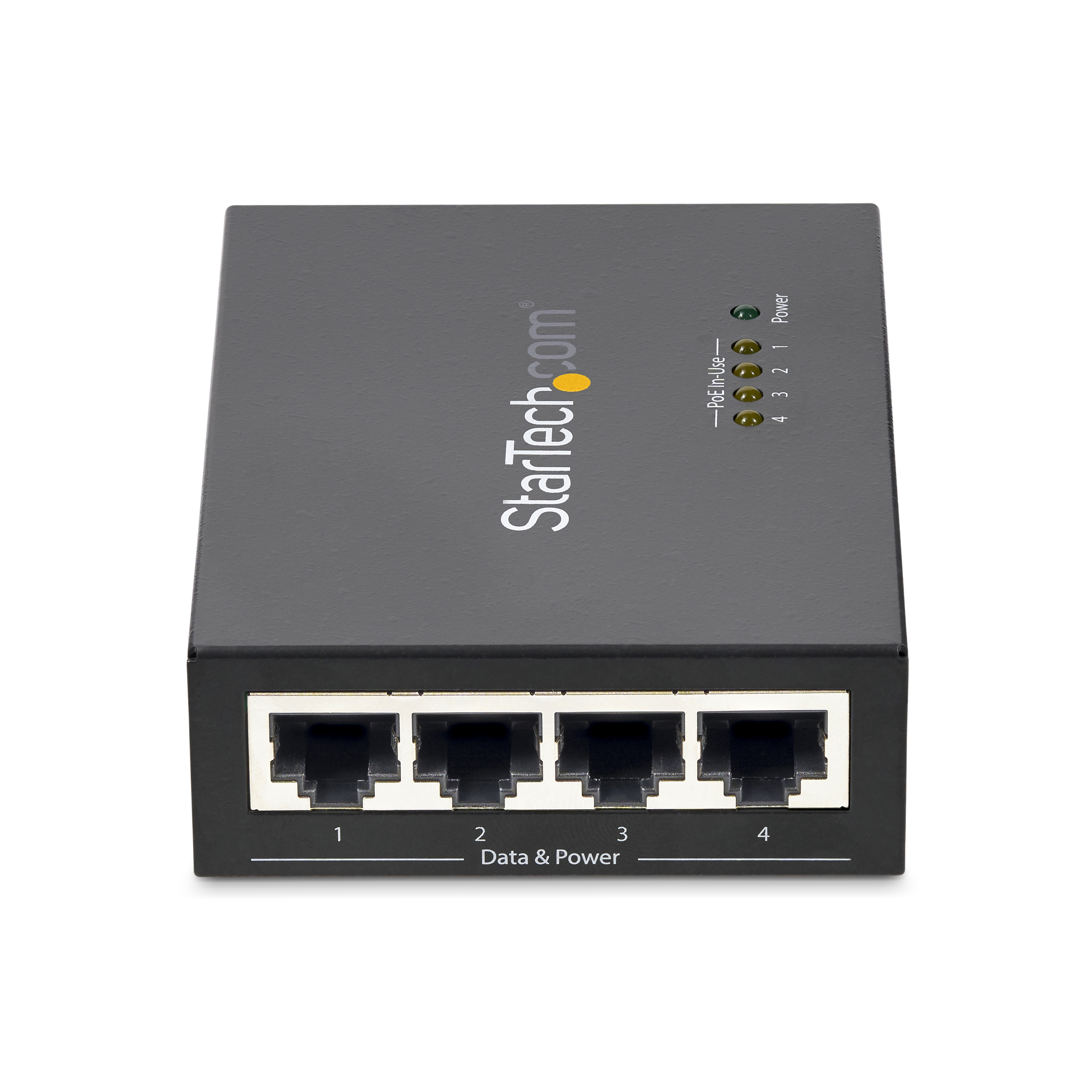

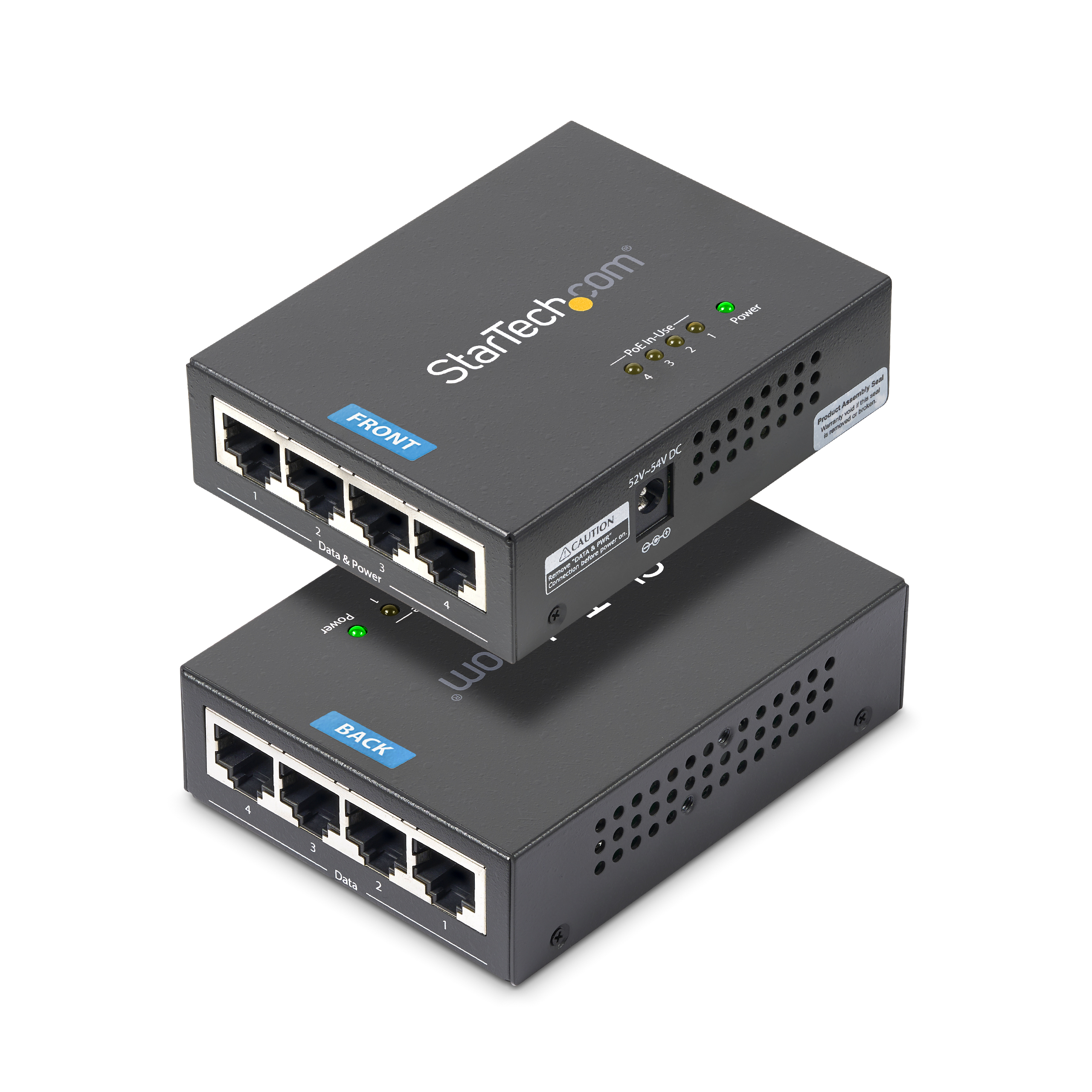

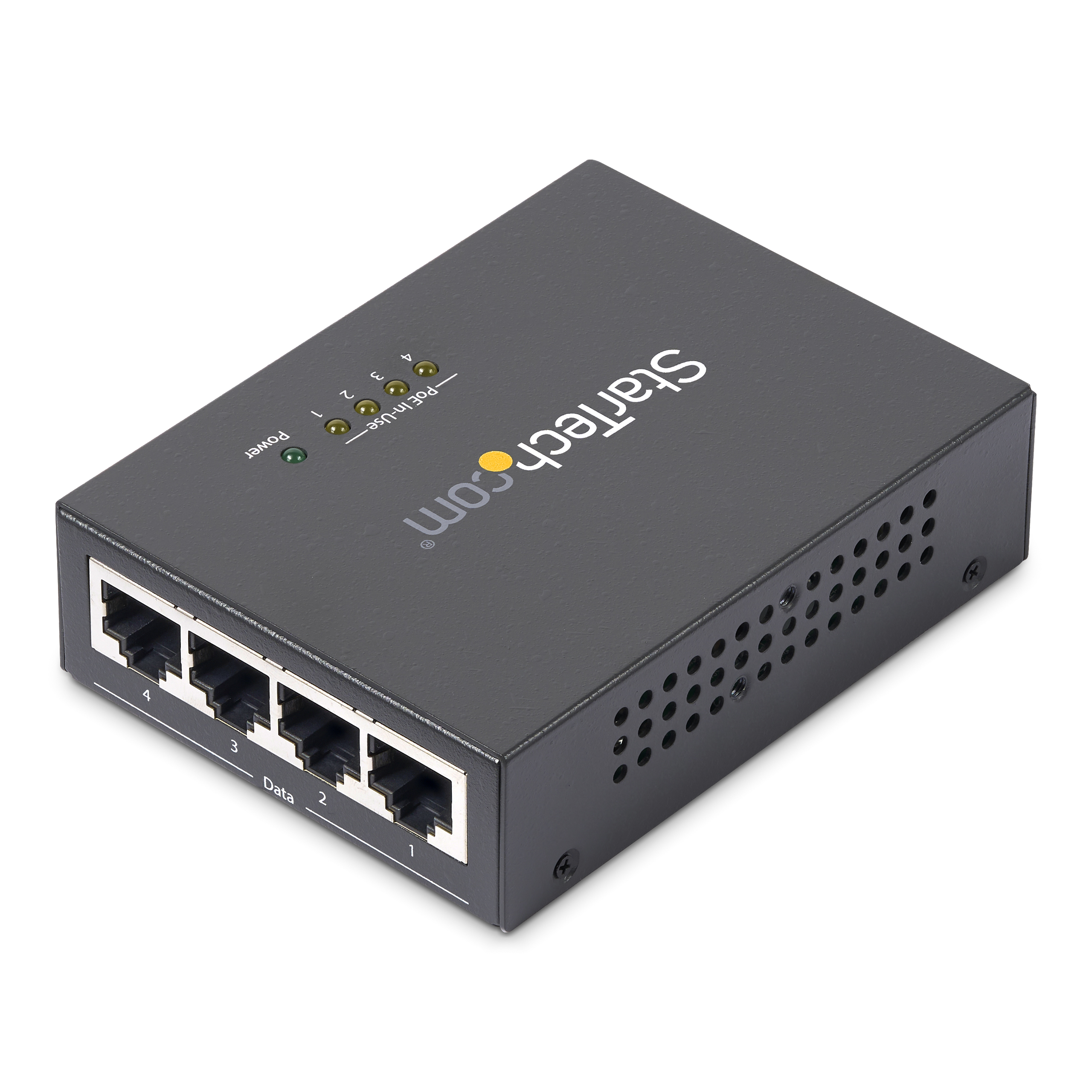

4Pt GbE PoE Midspan - Power over Ethernet Injector
Deliver power and data to four Power over Ethernet devices using this wall-mountable PoE+ midspan hub
Main Image
Product Images
Product Images
Product Images
Product Images
BOM Image
Product Name 4Pt GbE PoE Midspan - Power over Ethernet Injector Product Number POEINJ4G UPC 065030859752 Lifecycle status Active Warranty 2 Years Taxonomy Product > Networking > Network Switches Category Level 1 Networking Category Level 2 POE Injectors and Extenders Category Level 3 POE Injectors Family PoE Injector - Commercial Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX060X Product Title (Ultra-Short) 4Pt GbE PoE Injector Product Title (Short) 4 Port Gigabit Midspan - PoE+ Injector Product Title (Medium) 4 Port Gigabit Midspan - PoE+ Injector - 802.3at & 802.3af - Wall-mountable Product Title (Standard) 4 Port Gigabit Midspan, PoE+ Injector, 802.3at and 802.3af, TAA Product Title (Long) 4-Port Gigabit Midspan - PoE+ Injector - 802.3at/af - TAA Product Title (AMZ) 4 Port Gigabit Midspan - PoE+ Injector - 802.3at and 802.3af - Wall-mountable Power over Ethernet Midspan , TAA (POEINJ4G) Title Ingram (Part 1) 4Port Gigabit PoE+ Midspan - Title Ingram (Part 2) Power over Ethernet Injector Website Product Headline Deliver power and data to four Power over Ethernet devices using this wall-mountable PoE+ midspan hub Bullet 1 Flexible setup, with a desktop-sized, or wall-mountable metal housing Bullet 2 Circuit protection prevents power interference between each port Bullet 3 Automatically detects the powered device to provide the appropriate level of power output Bullet 4 Delivers full power to each port — up to 30.8 watts (802.3at) or 15.4 watts (802.3af) to each connected device Bullet 5 Easily connect, power, and operate up to four Gigabit PoE-powered devices (PD) Bullets (Consolidated) Deliver power and data to four PoE-powered devices(PD)using this wall-mountable PoE+ midspan hub - 4 Port Gigabit Power over Ethernet Midspan - 802.3at and 802.3af - Wall-mountable Power over Ethernet Injector - Delivers more power with up to 30w per port - Eliminate the cost and hassle of upgrading your existing ethernet switch to a PoE-capable model - Desktop-sized housing with flexible and easy plug-and-play operation - Detects your PoE PDs and provides the proper level of power - PoE Plus Marketing Copy Applications - Ideal for high-power PoE+ devices requiring Gigabit speeds such as PTZ (Pan, Tilt, Zoom) cameras and Wi-Fi® access points (WAP)
- Perfect for SOHO, SMB, system integrators, and IT administrators
- Enable remote installation of touchscreens, information kiosks, and phones in locations where a power connection is not available
Website Search Keyword - PoE+ Injector
- PoE Injector
- PoE Midspan
- Power over Ethernet Injector
- Power over Ethernet Midspan
- gigabit poe+ injector
- 4 port poe injector
- 30w poe injector
- power over gigabit ethernet
- pse
- power sourcing equipment
- wall mount poe injector
- 802.3af
- 802.3at
- poe midspan injector
- power over ethernet midspan injector
- poe+
- poe plus
- power over ethernet +
- power over ethernet plus
- gigabit midspan
- gigabit midspan injector
Patents and Licenses Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- Recycling - Waste - Japan - Paper Recycling Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- EU RIC + Italian Sorting - Packaging - Waste - European Union - Corrugated Fiberboard
- Triman/Info-Tri - Packaging - Waste - European Union - Paper Box + plastic bag + Paper/foam divider/tray
- UKCA - EMC/EMI - United Kingdom - UK Electromagnetic Compatibility Regulations 2016
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories + cords
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
System and Cable Requirements If your connected devices do not meet the IEEE 802.3af or IEEE 802.3at PoE standard, then the POEINJ4G will not inject power to the connected device(s) / Ethernet cable(s) Accessory Products - POESPLT100
- MCM110SC2P
- NETRS42348PD
- NETRS2321POE
- AP300WN2X2W
- N6PATCH100BL
- N6PATCH50BL
- N6PATCH25BK
- N6PATCH10OR
- WIRC6PATBLRL
- WIRC6PATBKRL
- WIRC6CMRBL
Related Products - POEINJ1GI
- POEINJ1G
- POEINJ2GI
- POEINJ100
- IES61002POE
- IES81000POE
- IES51000POE
- IES8100POE
- ET1110PSE
Input Current 2 A Input Voltage 100 - 240 AC Output Current 2.4 A Output Voltage (V) 54 DC Power Consumption (In Watts) 129.6 Power Source AC Adapter Included Plug Type M Center Tip Polarity Positive Color Black Humidity 5~95% RH (Non-Condensing) Material Steel Operating Temperature 0°C to 50°C (32°F to 122°F) Primary Material Steel Product Length (mm) 94.000 Product Width (mm) 70.300 Product Height (mm) 26.200 Product Weight (g) 202.000 Storage Temperature -10°C to 70°C (14°F to 158°F) TAA Compliant Yes General Specifications Power Output: 54V DC at 30.8W (PoE+) Maximum Cable Length (mm) 100000 Maximum Data Transfer Rate 2 Gbps (Full-Duplex) MTBF (hours) 50,000 Hours Industry Standards - IEEE 802.3 (10BASE-T), IEEE 802.3u (100BASE-TX), IEEE 802.3ab (1000BASE-T)
- IEEE 802.3af PoE, IEEE 802.3at PoE+
LED Indicators - 1 - Power
- 4 - PoE In-Use

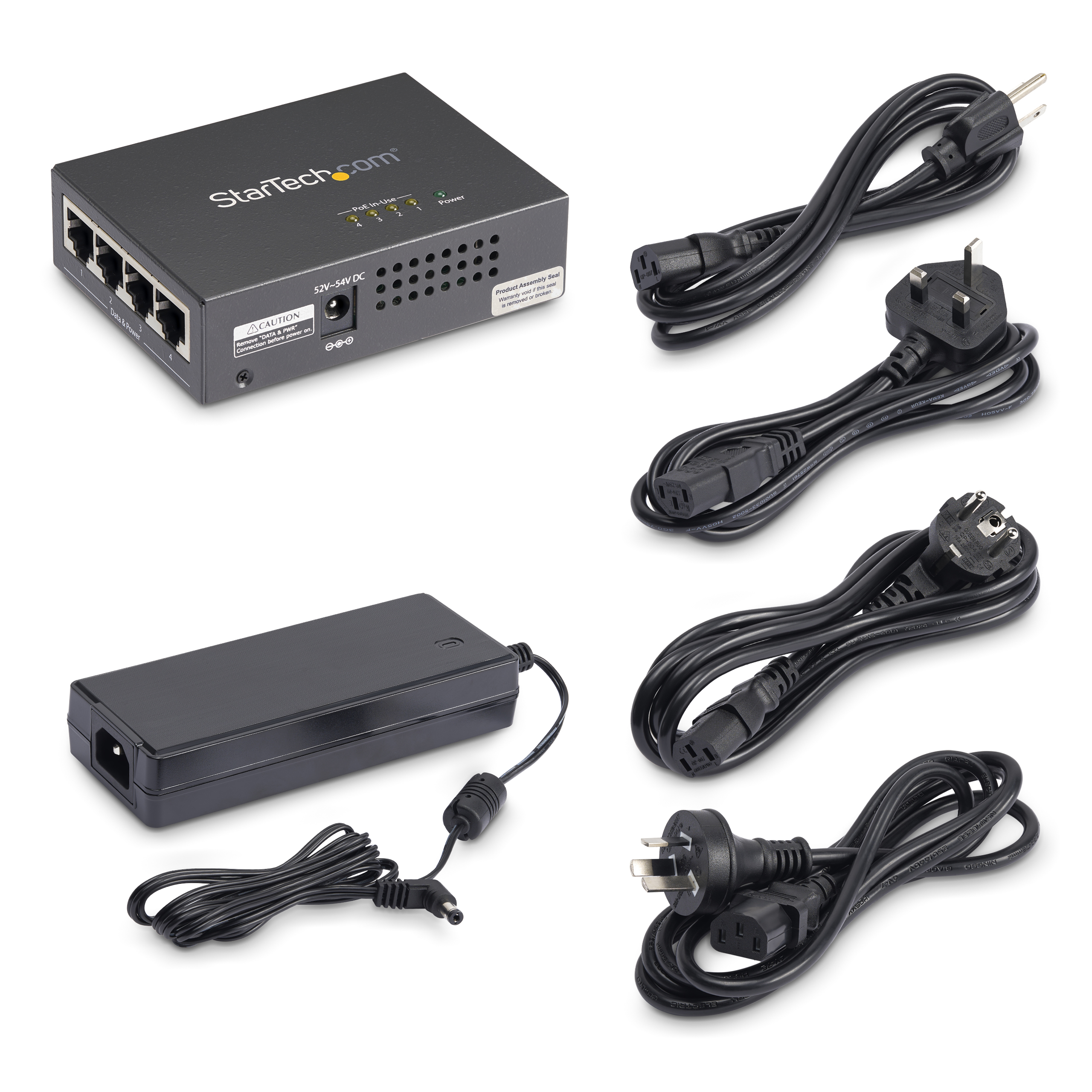

Carton Depth (mm) 334 Carton Height (mm) 483 Carton Quantity 10 Carton Weight Gross (g) 16908 Included in Package - 1 - 4 Port Gigabit PoE+ Injector
- 1 - Universal Power Adapter
- 4 - Power Cords (NA/JP, EU, UK, ANZ)
- 1 - Instruction Manual
Package Depth (mm) 179 Package Height (mm) 93 Package Width (mm) 308 Package Quantity 1 Package Weight (g) 1642 Packaging Description 4 Port Gigabit PoE+ Injector Midspan 54V / 30W Packaging Description India 4 Port Gigabit PoE+ Injector Midspan 54V / 30W Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 RJ-45 Connector 1 (Quantity) 8 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2014-10-01 Buying Center - AV & Collaboration Yes Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge Yes Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,DE,DK,ES,EU,FR,HK,IE,IT,JP,NL,NZ,SE,UK,US Primary Technology None Product Development Specialist Ray Aoki Product Information Creation Specialist (PICS) Alex Garcia Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Target Production Release 2014-10-24 Tech Lead Stefan Tirolese Technical Writer Andrew Richardson Technology Lifecycle None Vending Machine Not Compatible with Vending Machine
