POEKIT100

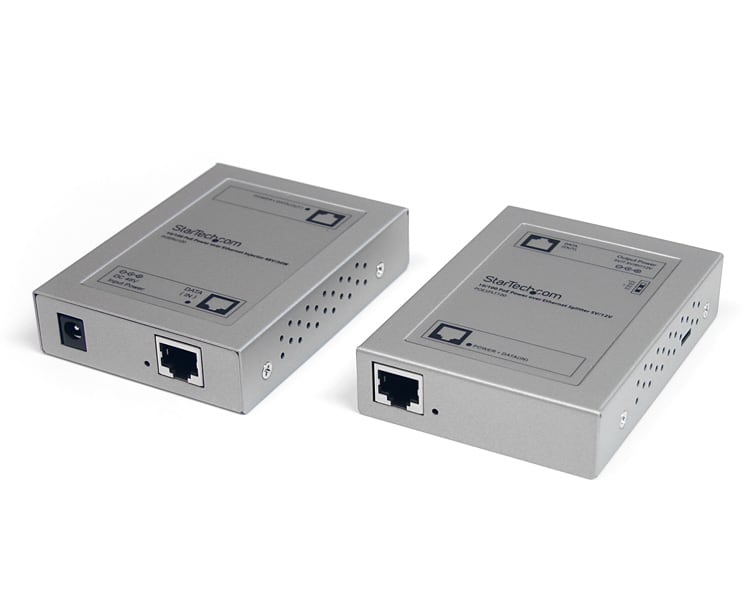

10/100 PoE Power over Ethernet Kit – 48V Injector and 5V/12V Splitter
Create an end-to-end Power over Ethernet connection for a standard non-PoE device
Main Image
Product Images
Product Images
Product Images
Product Images
Product Name 10/100 PoE Power over Ethernet Kit – 48V Injector and 5V/12V Splitter Product Number POEKIT100 UPC 065030841795 Warranty 2 Years Taxonomy Product > Legacy Discontinued Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) 1 Country of Origin History (2) Taiwan Product Title (Short) 10/100 PoE Power over Ethernet Kit Product Title (Standard) 10/100 PoE Power over Ethernet Kit – 48V Injector and 5V/12V Splitter Product Title (Long) 10/100 PoE Power over Ethernet Kit – 48V Injector and 5V/12V Splitter Title Ingram (Part 1) 10/100 PoE Power over Ethernet K Title Ingram (Part 2) it – Injector and Splitter Website Product Headline Create an end-to-end Power over Ethernet connection for a standard non-PoE device Bullet 1 Selectable 5, 7.5, 9 or 12V power output; up to 19.2W peak Bullet 2 Steel construction for durability in harsh environments Bullet 3 Complies with IEEE802.3u 10Base-T/100Base-TX, IEEE-802.3af PoE Standards Bullet 4 Supports Auto-MDIX & Auto-negotiation Bullet 5 Includes an 18" power output cable for connection to your device Marketing Copy Applications - Perfect for powering a Wireless Access Point(WAP) in a business environment
- Power a security camera/ network webcam situated in a remote area where power connection is not possible
- Retail applications such as RFID readers
- Great for IT administrators implementing PoE supported VoIP phones
- Power your intercom, paging or hallway speaker amplifier
- Enable remote installation of touchscreens or information kiosks
- Expand your technology infrastructure without the hassle or expense of running new electrical wiring
Website Search Keyword - PSE
- 802.3af
- 802.3at
- IEEE802.3af
- IEEE802.3at
- Powered Ethernet
- IP telephony
- power management
- Data with power
- Network power
- Power via ethernet
- Cat5 power
- Cat5e power
- Cat6 power
- 100mbit power
- 10mbit power
Accessory Products - C6PATCH100BL
- C6PATCH100WH
- RJ45PATCH100
- RJ45PATCH75
- C6PATCH50BL
- WIRC6CMRBL
- WIRC6PATBKRL
- WIRC6PATBLRL
- WIRC5E350GR
- WIRC5E350CMR
Related Products - POEINJ100
- POESPLT100
Input Current 0.8 Input Voltage 110V-240V AC Output Current 0.88A Output Voltage (V) 48 DC Power Source AC Adapter Included Color Silver Humidity 10~90% RH (non-condensing) Operating Temperature 0°C to 40°C (32°F to 104°F) Storage Temperature -20°C to 85°C (-4°F to 185°F) TAA Compliant No General Specifications Power Output: Selectable 5, 7.5, 9 or 12V up to 19.2W peak at remote end Maximum Data Transfer Rate 100Mbps Industry Standards IEEE 802.3u 10Base-T/100Base-TX, IEEE 802.3af PoE, IEEE 802.3at LED Indicators - 1 - Injector - Device power indicator
- 1 - Injector - Per port: Activity/status indicator
- 1 - Splitter - PSE Connection indicator

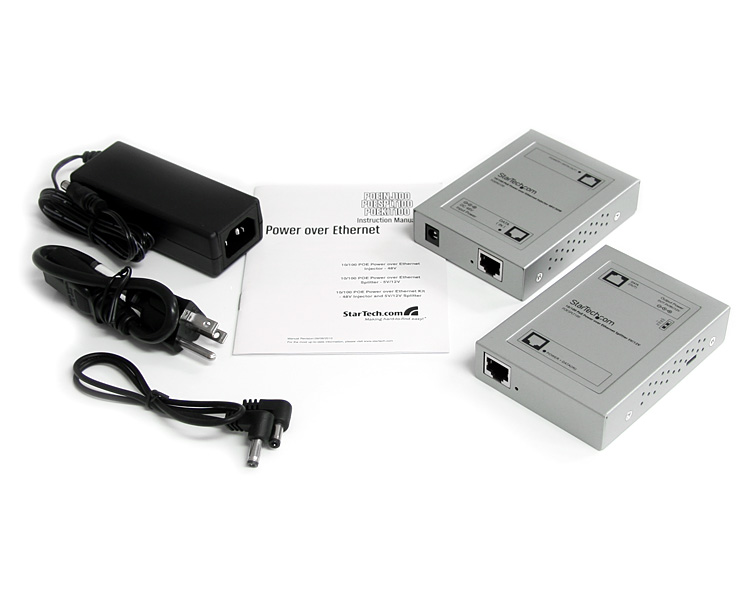

Included in Package - 1 - POESPLT100 PoE Splitter
- 1 - 18" Power output cable
- 1 - User Manual
- 1 - POEINJ100 PoE Injector
- 1 - Power Adapter
Packaging Description 10/100 PoE Power over Ethernet Kit Packaging Description India 10/100 PoE Power over Ethernet Kit en-US Content Approved Yes
