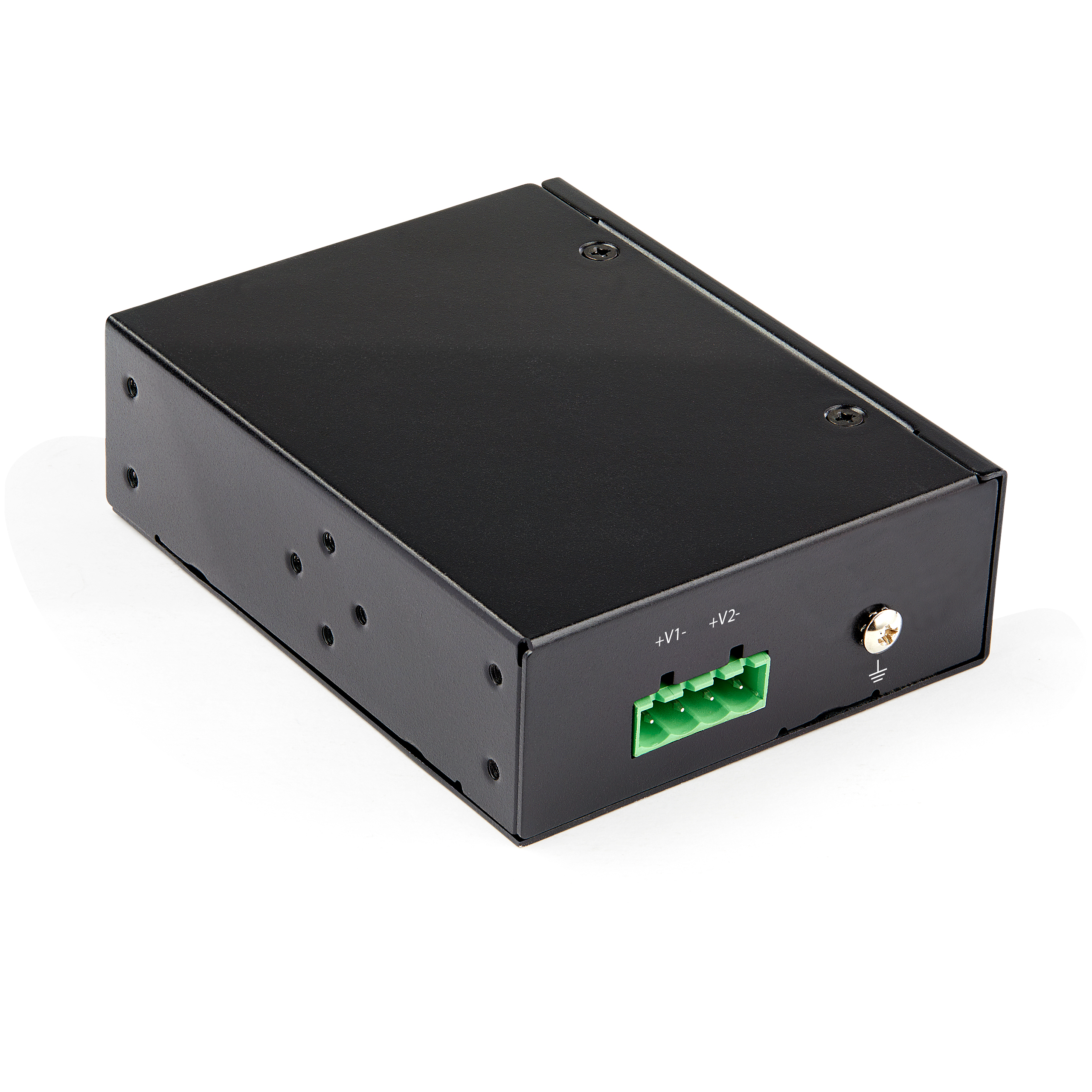

Main Image
POESLT1G48V
Industrial Grade Hardened PoE Splitter 10 100 1000 Mbps 802
Rugged PoE Splitter | 12-48V DC | IP-30 Aluminum Housing | 1.5A Power Output
Main Image

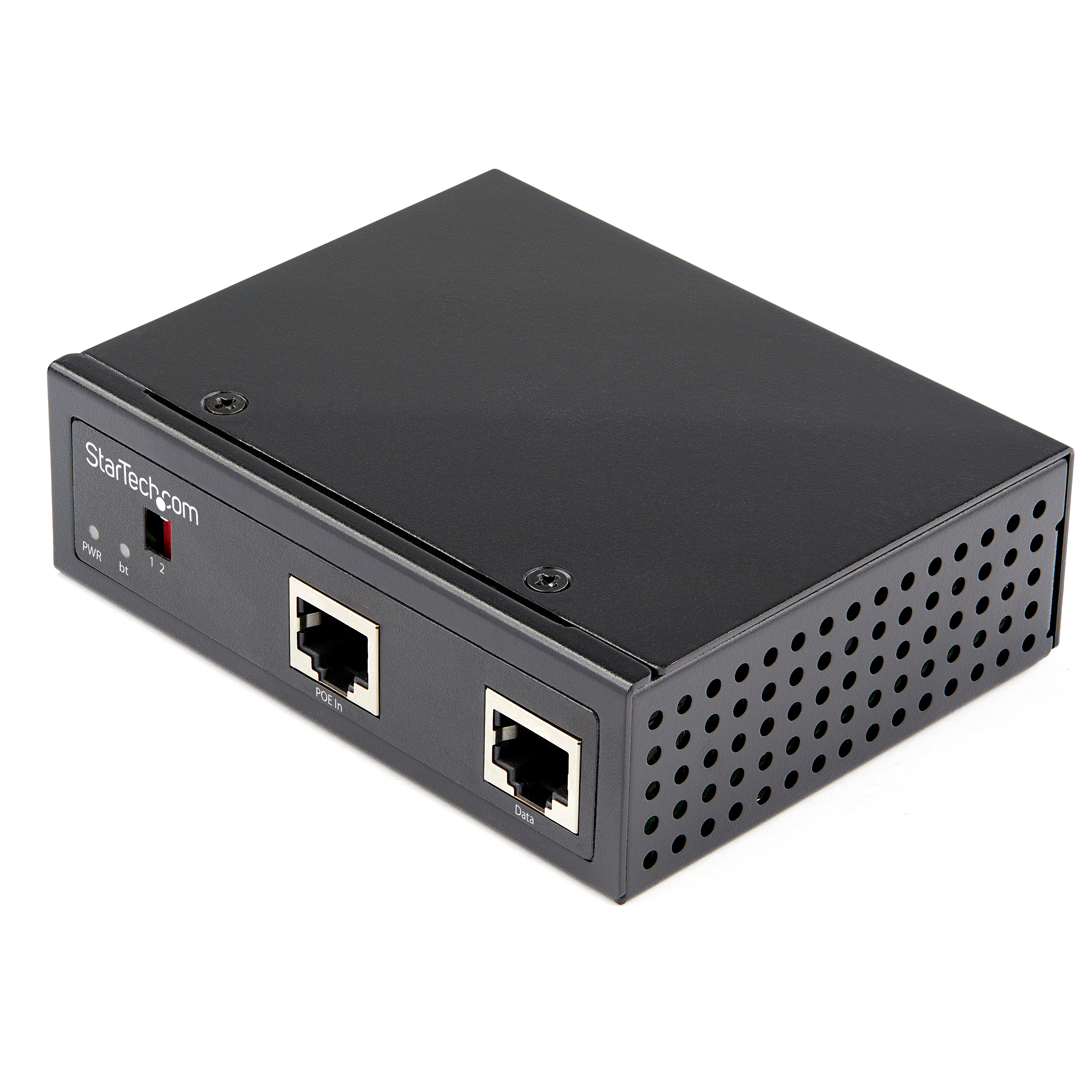

Product Images

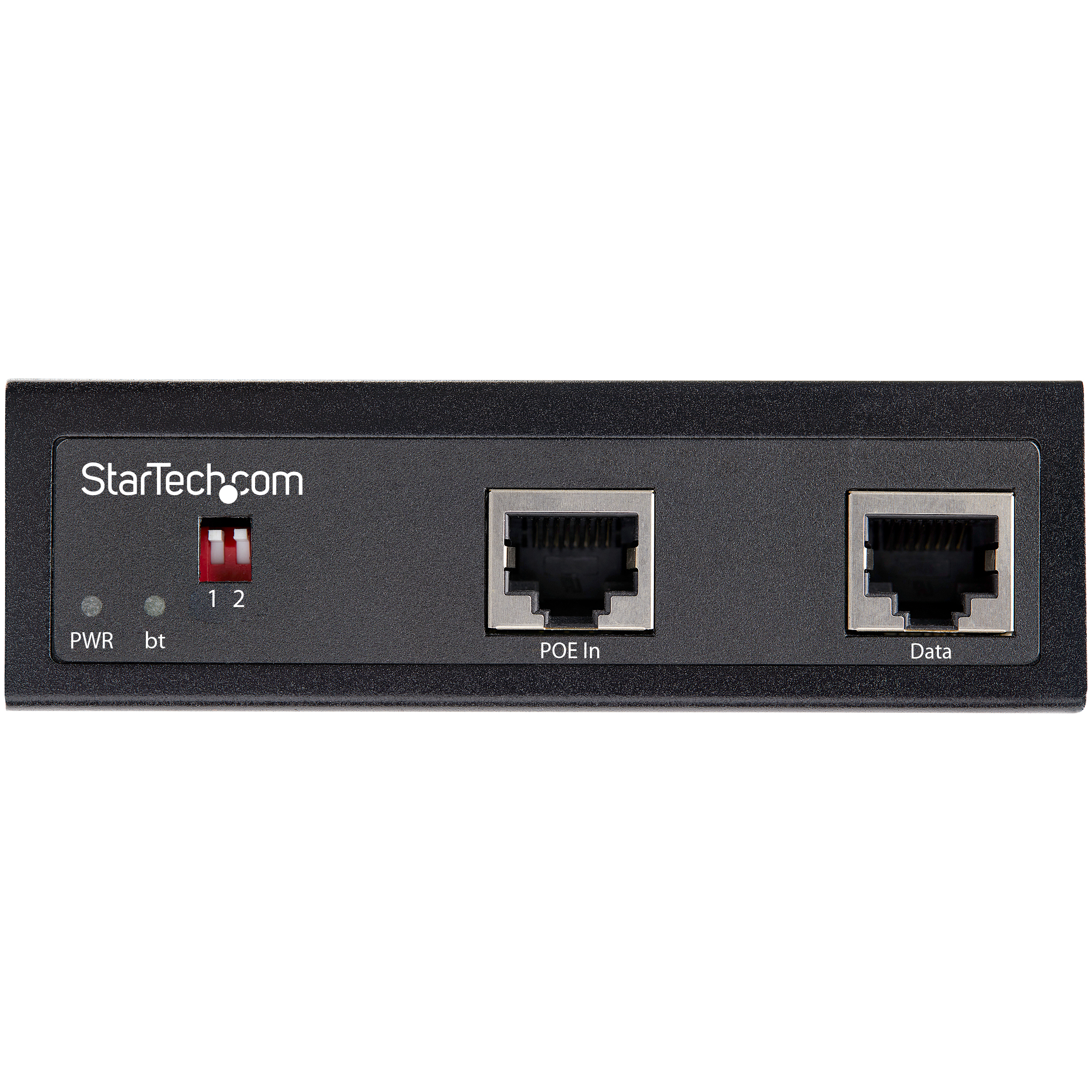

Product Images

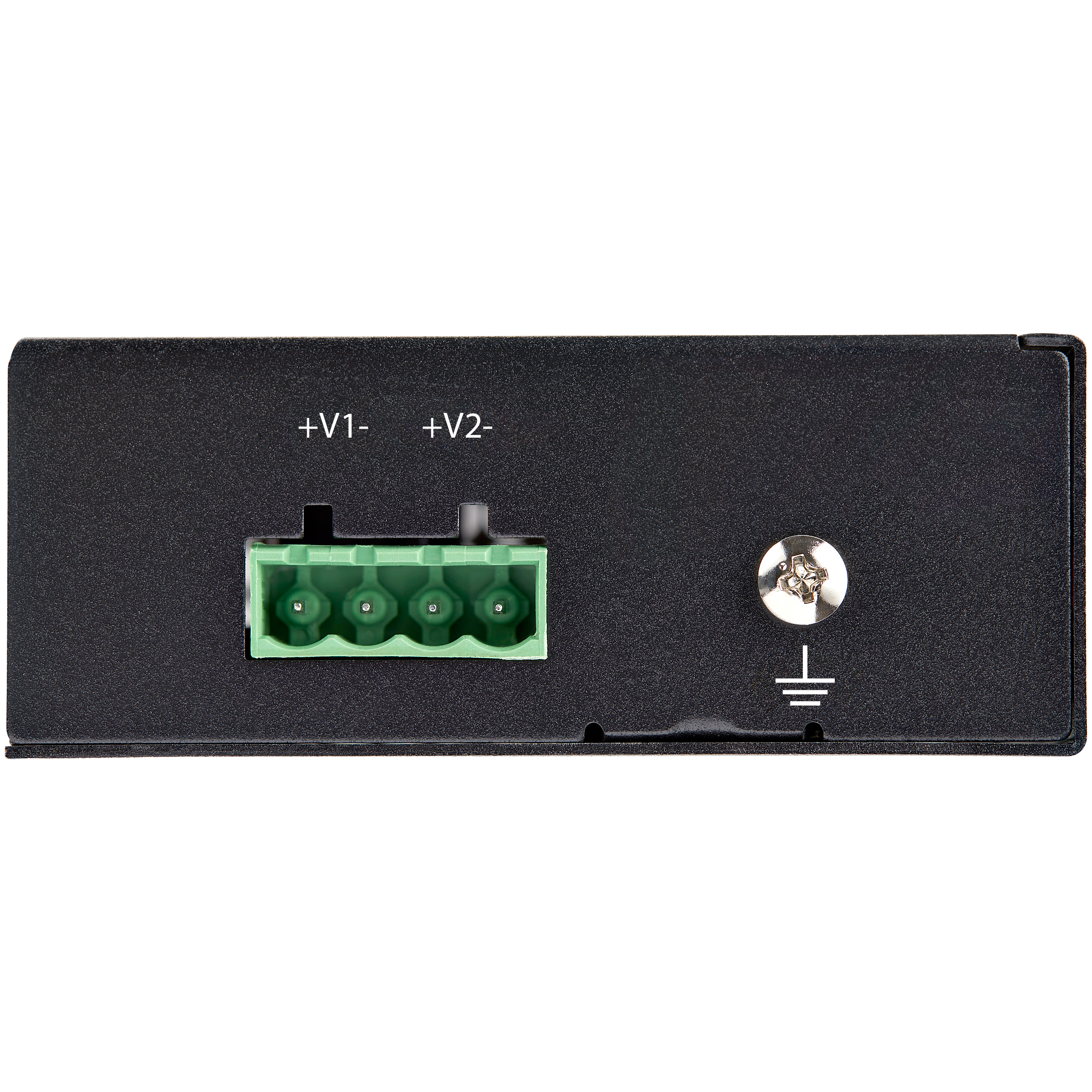

Product Images

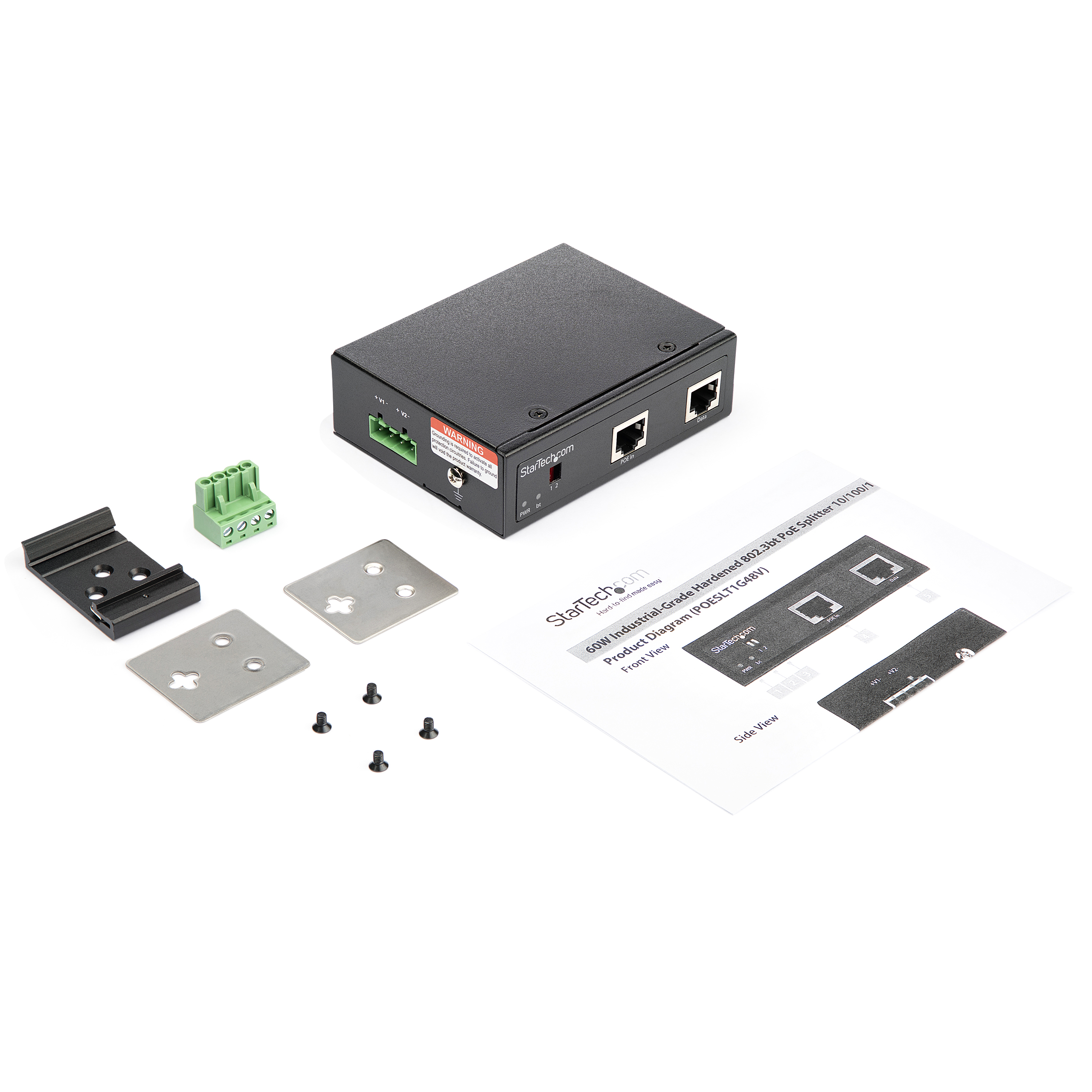

BOM Image
Quick-Start Guide
Product Name Industrial Grade Hardened PoE Splitter 10 100 1000 Mbps 802 Product Number POESLT1G48V UPC 065030889735 Lifecycle status Active Warranty 2 Years Taxonomy Product > Networking > Network Switches Category Level 1 Networking Category Level 2 POE Injectors and Extenders Category Level 3 POE Splitters Family PoE Injectors / Splitters Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX106X Product Title (Ultra-Short) Gigabit PoE Splitter Product Title (Short) Industrial Gigabit PoE Splitter 90W 48V Product Title (Medium) Industrial Gigabit PoE Splitter 90W Ultra Power Over Ethernet 802.3bt -40C-+75C Product Title (Standard) Industrial Gigabit PoE Splitter, 90W Power over Ethernet PoE++ Splitter, 12-48VDC Splitter 802.3bt Ultra PoE -40 to +75C, TAA Product Title (Long) Industrial Gigabit PoE Splitter - 90W High Speed Power over Ethernet PoE+++ Splitter - 12-48V DC Splitter 802.3bt - LAN/RJ45 Ultra PoE to DC Adapter - -40C to +75C - TAA Product Title (AMZ) Industrial Gigabit PoE Splitter - 90W High Speed Power over Ethernet PoE+++ Splitter - 12-48V DC Splitter 802.3bt - LAN/RJ45 Ultra PoE to DC Adapter - -40C to +75C , TAA (POESLT1G48V) Title Ingram (Part 1) Industrial Gigabit PoE Splitter Title Ingram (Part 2) 12-48VDC Splitter 802.3bt Ultra PoE Website Product Headline Rugged PoE Splitter | 12-48V DC | IP-30 Aluminum Housing | 1.5A Power Output Bullet 1 HIGH POWER GIGABIT PoE SPLITTER: Power non-PoE devices using network infrastructure where power isn't available | Splits PoE connection (max 90W) into RJ45 data & DC power (terminal block) Bullet 2 90W POE IEEE802.3bt: Supports IEEE 802.3af (PoE / Type 1), IEEE 802.3at (PoE+ / Type 2), IEEE 802.3bt (PoE++ / Type 3); power out configured w/ DIP switch for 12/16/24/48V DC (1.5A) via terminal block Bullet 3 TECH SPECS: High Speed 1 Gbps | 1 x RJ45 PoE In | 1 x RJ45 Data Out | 12V-48VDC 1.5A power output | 4 pin Terminal Block Power Out | 10/100/1000 Mbps Auto Negotiation | DIN or Wall Mountable Bullet 4 ROBUST DESIGN: Industrial Power over Ethernet Splitter w/MTBF of 600,000+ hrs @ 50C | Vibration, shock & free fall rated | Rugged IP-30 aluminum housing | Hardened operating temp of -40C to 75C Bullet 5 STARTECH.COM ADVANTAGE: IT professionals' choice for over 30 years | This PoE Splitter is backed for 2-years by StarTech.com, including free 24/5 North America based multi-lingual tech support Bullets (Compact) Industrial gigabit PoE Splitter Power over Ethernet splitter up to 90W power with IEEE 802.3af/at/bt for PoE/PoE+/PoE++ MTBF 600k +hrs IP-30 housing -40C to +75C DIN/Wall mountable 12/16/24/48V DC (1.5A) termnial block power out 2-year warranty Bullets (Consolidated) Power non-PoE devices using network infrastructure by splitting a PoE connection into RJ45 data and DC power - Power over Ethernet splitter supports IEEE 802.3af/at/bt allows PoE/PoE+/PoE++ ; 12/16/24/48V DC (1.5A) pwr out on terminal block configured w/DIP switch - 1Gbps |1x RJ45 PoE In |1x RJ45 Data Out |10/100/1000 Mbps Auto |4 pin terminal block pwr out |DIN/wall mountable - MTBF 600k +hrs @ 50C |Vibration/shock/free fall rated |IP-30 housing |Hardened temp -40 to 75C - 2-year warr Marketing Copy Marketing Copy (No HTML) Website Search Keyword - 60w poe splitter
- 802.3 bt splitter
- gigabit poe splitter
- high power poe splitter
- high speed ethernet splitter
- industrial poe ++ splitter
- industrial poe splitter
- poe splitter 24vdc
- poe splitter 48v
- POE to 12V DC converter
- poe to dc adapter
- poe to dc splitter
- poe+ splitter
- power over ethernet splitter
- tp link poe splitter
Patents and Licenses United States Patent No. 5,406,260 (expired) </br> United States Patent No. 6,650,622</br> United States Patent No. 7,457,250</br> United States Patent No. 8,155,012</br> United States Patent No. 8,902,760</br> United States Patent No. 8,942,107</br> United States Patent No. 9,019,838</br> United States Patent No. 9,049,019</br> United States Patent Application No. 14/695,456</br> United States Patent Application No. 14/726,940</br> Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- CE - Safety - Electrical - European Union - Low Voltage Directive (LVD) 2014/35/EU
- MET - Safety - Electrical - Canada / United States - cMETus Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories
Color Black Humidity 5 to 95% (non-condensing) Material Steel Operating Temperature -40°C to 75°C Primary Material Steel Product Length (mm) 103.500 Product Width (mm) 81.500 Product Height (mm) 32.000 Product Weight (g) 150.000 Storage Temperature -40°C to 85°C TAA Compliant Yes Auto MDIX Yes Compatible Networks 10/100/1000 Mbps Full Duplex Support Yes General Specifications ESD Standard: IEC 61000-4-2: Contact: 6KV; Air: 8KV</br> EFT Standard: IEC 61000-4-4: Power: 2KV; Signal: 2KV</br> Surge Standard: IEC 61000-4-5: Power: 2KV; Signal: 2KV</br> Vibration Standard: EN 60068-2-6</br> Shock Standard: EN 60068-2-27</br> Free-Fall Standard: EN 60068-2-32</br> Housing Standard: IP-30</br> Safety Standard: EN60950-1 Jumbo Frame Support 9K max. Maximum Cable Length (mm) 100000 MTBF (hours) 622,154 hours Supported Protocols - IEEE 802.3bt PoE</br> CSMA/CD
- IEEE 802.3at PoE+
- IEEE 802.3af PoE
Chipset ID Texas Instruments TPS2372-4 Industry Standards IEEE 802.3 10BASE-T</br> IEEE 802.3u 100BASE-TX</br> IEEE 802.3ab 1000BASE-T</br> IEEE 802.3at PoE+</br> IEEE 802.3af PoE LED Indicators - 1 - Power
- 1 - bt
Power over Ethernet Yes Carton Depth (mm) 360 Carton Height (mm) 248 Carton Quantity 10 Carton Weight Gross (g) 4446 Included in Package - 1 - Industrial-Grade Hardened PoE Splitter
- 1 - Hardware Mounting Kit
- 1 - Terminal Block
Included In Package for Label - 1 - Industrial-Grade Hardened PoE Splitter
- 1 - Hardware Mounting Kit
- 1 - Terminal Block
Package Depth (mm) 168 Package Height (mm) 66 Package Width (mm) 214 Package Quantity 1 Package Weight (g) 378 Packaging Description 60W Industrial-Grade Hardened PoE Splitter Packaging Description India 60W Industrial-Grade Hardened PoE Splitter Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 RJ-45 Connector 1 (Quantity) 1 Connector 2 RJ-45 Connector 2 (Quantity) 1 Connector 3 Terminal Block (4 Wire) Connector 3 (Quantity) 1 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2020-02-07 Buying Center - AV & Collaboration Yes Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge Yes Digital Content Due Date 2020-10-01 Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett ID Label Silkscreened or a Label No ID label Launch Markets (concatenated) AT,AU,BE,CA,CH,DE,DK,ES,FI,FR,IE,IN,IT,JP,NL,SE,SG,UK,US Primary Technology None Priority New Product N/A Product Development Specialist Ray Aoki Product Information Creation Specialist (PICS) Alex Garcia Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Target Development Completion Date 2020-01-17 Target Production Release 2020-01-30 Tech Lead Stefan Tirolese Technical Writer Alex Garcia Technology Lifecycle None
