Main Image
POESPLT100

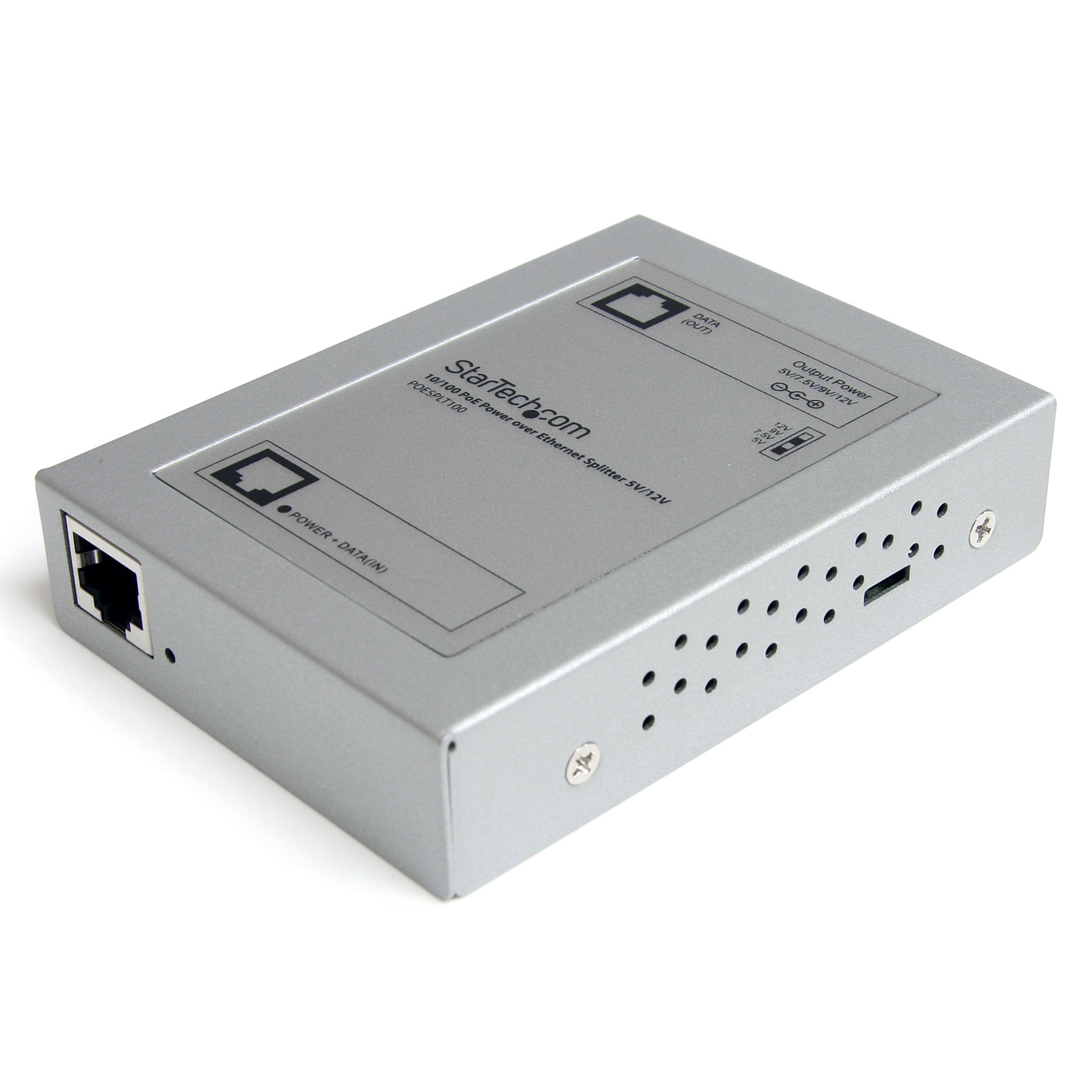

10/100 PoE Splitter - Power over Ethernet
Connect and power standard, non-PoE peripherals over a Power over Ethernet cable
Main Image
Product Images
Product Images
Product Images
BOM Image
Product Name 10/100 PoE Splitter - Power over Ethernet Product Number POESPLT100 UPC 065030841818 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Networking Category Level 2 POE Injectors and Extenders Category Level 3 POE Injectors Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Product Title (Short) 10/100 PoE Power over Ethernet Splitter Product Title (Standard) 10/100 PoE Power over Ethernet Splitter 5V/12V Product Title (Long) 10/100 PoE Power over Ethernet Splitter 5V/12V Product Title (AMZ) 10/100 PoE Power over Ethernet-Splitter 5 V/12 V (POESPLT100) Title Ingram (Part 1) 10/100 PoE Power over Ethernet S Title Ingram (Part 2) plitter 5V/12V Website Product Headline Connect and power standard, non-PoE peripherals over a Power over Ethernet cable Bullet 1 Selectable 5, 7.5, 9 or 12V power output, up to 19.2W peak Bullet 2 Steel enclosure for durability in harsh environments Bullet 3 Complies with IEEE802.3u 10Base-T/100Base-TX, IEEE-802.3af PoE Standards Bullet 4 Supports Auto-MDIX & Auto-negotiation Bullet 5 10BASE-T/100BASE-TX EIA/TIA 568 Cat3, 4, 5, 5e or 6 UTP/STP supported Marketing Copy Applications - Perfect for powering a Wireless Access Point(WAP) in a business environment
- Power a security camera/ network webcam situated in a remote area where power connection is not possible
- Retail applications such as RFID readers
- Power your intercom, paging or hallway speaker amplifier
- Enable remote installation of touchscreens or information kiosks
- Power nearly any type of standard non-PoE peripheral over PoE (power over ethernet) cabling
- Expand your technology infrastructure without the hassle or expense of running new electrical wiring
Website Search Keyword - PSE
- 802.3af
- 802.3at
- IEEE802.3af
- IEEE802.3at
- Powered Ethernet
- IP telephony
- power management
- Data with power
- Network power
- Power via ethernet
- Cat5 power
- Cat5e power
- Cat6 power
- 100mbit power
- 10mbit power
Patents and Licenses Required Regulatory Compliance Marks - WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- FCC - EMC/EMI - United States - FCC Part 15 Class A Digital Device Interference Full Statement
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class A Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
Accessory Products - POEINJ100
- C6PATCH100BL
- C6PATCH100WH
- RJ45PATCH100
- RJ45PATCH75
- C6PATCH50BL
- WIRC6CMRBL
- WIRC6PATBKRL
- WIRC6PATBLRL
- WIRC5E350GR
- WIRC5E350CMR
Related Products POEKIT100 Color Silver Humidity 10~90% RH (non-condensing) Operating Temperature 0°C to 45°C (32°F to 113°F) Product Length (mm) 102 Product Width (mm) 75 Product Height (mm) 22 Product Weight (g) 240 Storage Temperature -20°C to 90°C (-4°F to 194°F) TAA Compliant Yes General Specifications Power Output: Selectable 5, 7.5, 9 or 12V up to 19.2W peak Maximum Data Transfer Rate 100Mbps Industry Standards IEEE 802.3u 10Base-T/100Base-TX, IEEE 802.3af PoE, IEEE 802.3at LED Indicators 1 - PSE Connection indicator Carton Depth (mm) 340 Carton Height (mm) 360 Carton Quantity 30 Carton Weight Gross (g) 11000 Included in Package - 1 - POEPSLT100

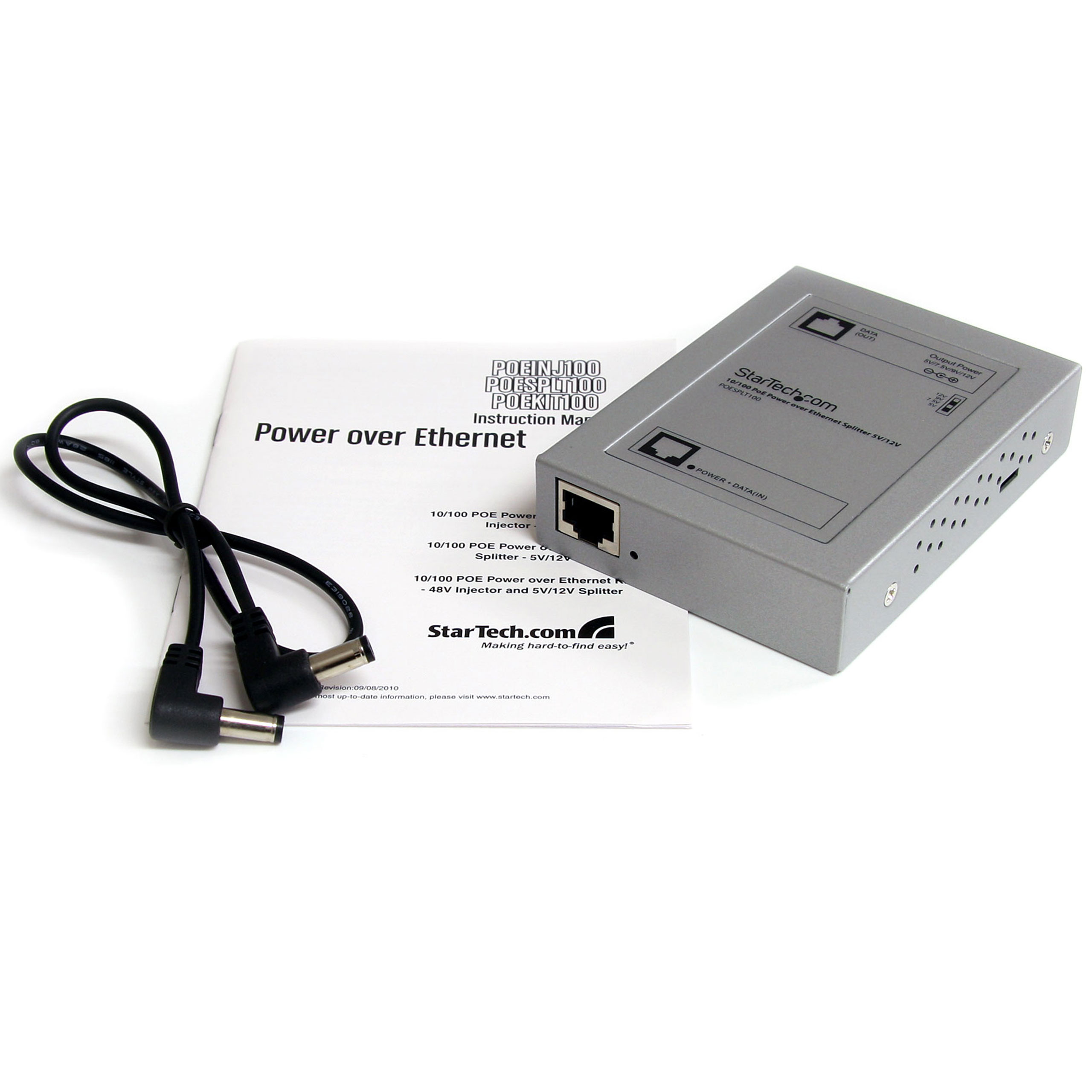

- 1 - 18" Power output cable
- 1 - User Manual
Package Depth (mm) 160 Package Height (mm) 65 Package Width (mm) 130 Package Quantity 1 Package Weight (g) 300 Packaging Description 10/100 PoE Power over Ethernet Splitter (19W) Packaging Description India 10/100 PoE Power over Ethernet Splitter (19W) Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 RJ-45 Connector 1 (Quantity) 2 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2014-06-18 Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) CA,EU,UK,US Primary Technology None Product Development Specialist Ray Aoki Product Information Creation Specialist (PICS) Alex Garcia Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Stefan Tirolese Technical Writer Andrew Richardson Technology Lifecycle Legacy
