PORACK12U

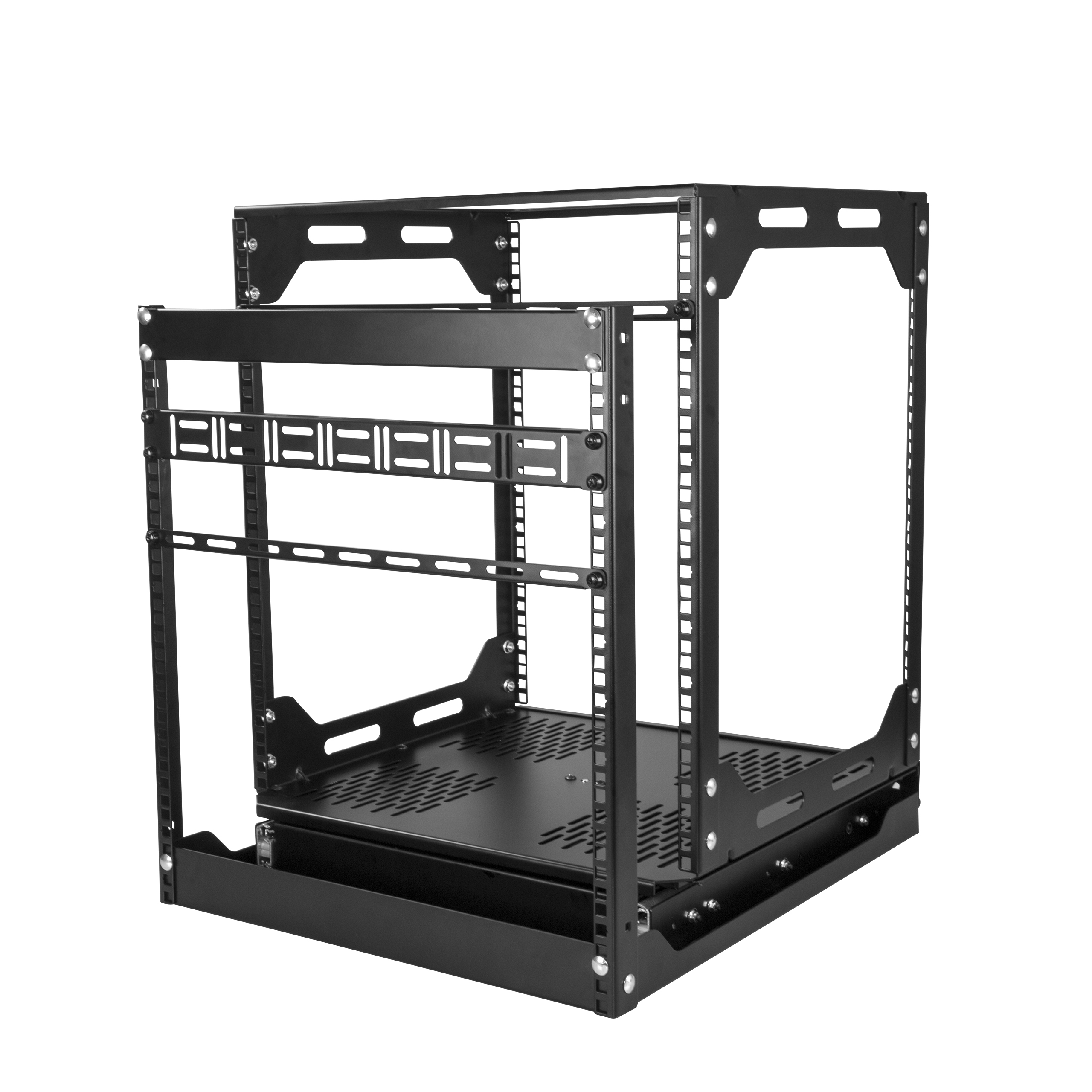

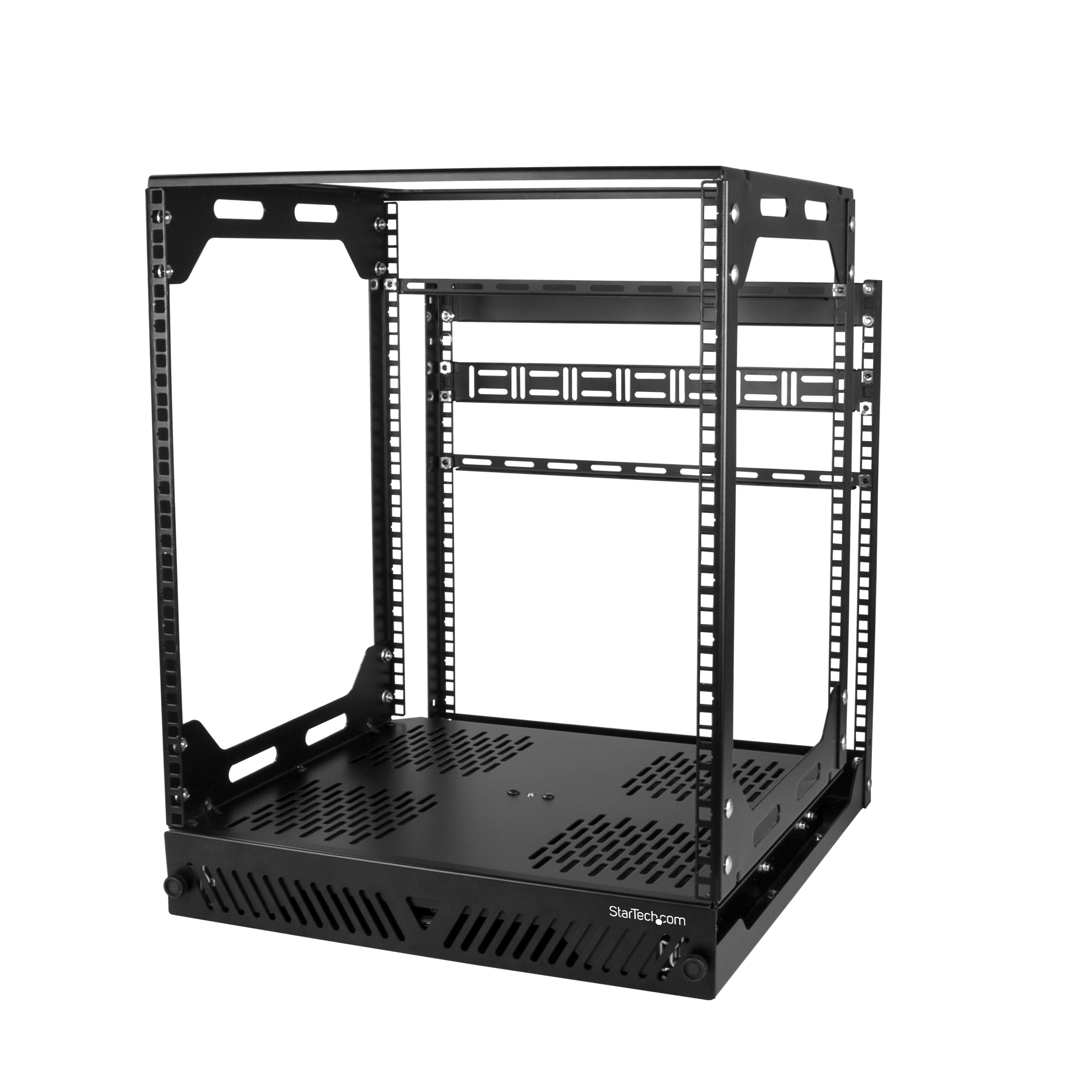

12U Pull-out rotating rack

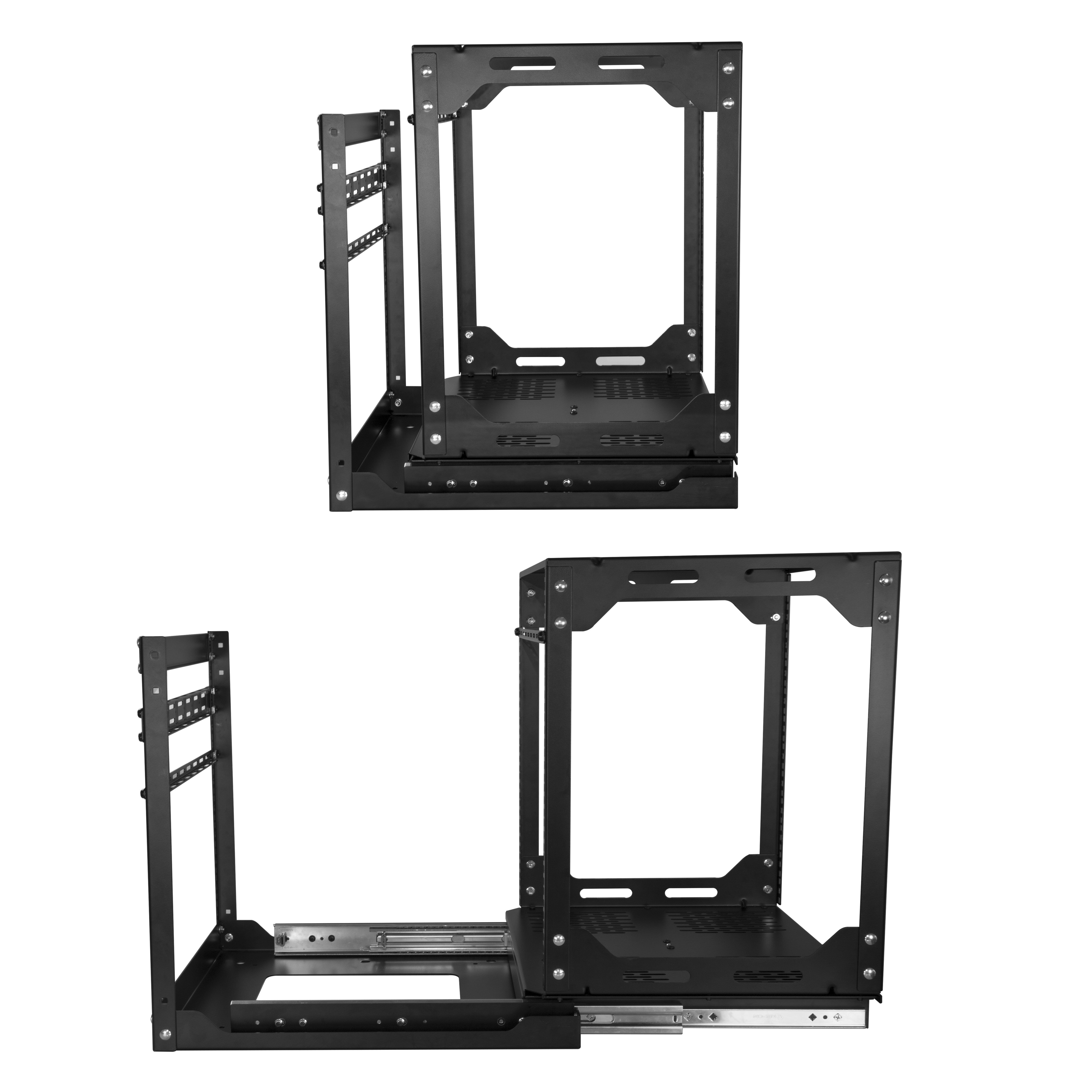

Store your servers and network equipment in an open-frame, pull-out rack that you can rotate for easy access
Main Image
Product Images
Product Images
Product Images
BOM Image
Product Name 12U Pull-out rotating rack Product Number PORACK12U UPC 065030873949 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Racks and Enclosures Category Level 2 Open Frame Racks Category Level 3 Small Racks - Less than 12U Family No Family Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX094X Product Title (Ultra-Short) 12U Slide-Out Rack Product Title (Short) 19in 12U Slide Out Open Frame Data Rack Product Title (Medium) 19in 12U Slide Out Server Rack - Rotating - 12U Server Rack - 4 Post Rack Product Title (Standard) 12U 19" Open Frame Network Rack - Slide Out 4 Post 17" Deep Data/AV/IT/Computer Equipment Rack - Rotating/Pull Out/Pivoting Product Title (Long) 19in 12U Sliding Rotating Open Frame Network Rack - 4 Post AV/Data Rack - 16.7" Deep Slide-Out IT Equipment Rack w/Cable Management Pull Out/Pivoting Computer/Communications Rack Product Title (AMZ) 19in 12U Sliding Rotating Open Frame Network Rack - 4 Post AV/Data Rack - 16.7" Deep Slide-Out IT Equipment Rack w/Cable Management/Pivoting Computer/Communications Rack (PORACK12U) Title Ingram (Part 1) 12U Slide Out Server Rack - Title Ingram (Part 2) Rotating - 19in 4 Post Rack Website Product Headline Store your servers and network equipment in an open-frame, pull-out rack that you can rotate for easy access Bullet 1 UNIQUE SLIDE OUT & ROTATE DESIGN: 19" 4 post open frame network rack ideal for installation in built-in cabinet & easily slides out up to 18.7in. rotating up to 90 degrees for easy access to equipment Bullet 2 INTEGRATED CABLE MANAGEMENT: Keeps cables organized in this AV/Data/IT/Communications rack, and helps make pull-out access easy and tangle-free; cables can be routed down and under the rack if needed Bullet 3 TECH SPECS: Max. Mounting Depth 16.7 in. | Max. Extension Depth 40.5 in.| EIA/ECA-310-E Compliant | 125lb (56.7kg) Capacity | Cage Nuts & Screws incl. Bullet 4 EASY SHIPPING & ASSEMBLY: Pivoting Computer Equipment rack comes in a convenient flat-pack shipping form factor with an easy to assemble design that includes cage nuts & screws to mount your equipment Bullet 5 THE STARTECH.COM ADVANTAGE: StarTech.com offers a 2-year warranty and free lifetime technical support on this 12U rack and has been the choice of IT professionals and businesses for over 30 years Bullets (Compact) 12U 19in 4 post open frame network rack installs in built-in cabinet slide/pull out up to 18.7in rotating up to 90 degrees - AV/IT/Data Rack w/Cable mgmt /16.7in Mounting Depth/Extension Depth 40.5in EIA/ECA-310-E/ 125lb Capacity /Cage nuts & screws Bullets (Consolidated) 12U 19" 4 post open frame network rack is ideal for installation in built-in cabinet and easily slides out up to 18.7" rotating up to 90 degrees for easy access to equipment - Integrated cable management - Max. Mounting Depth 16.7"|Max. Extension Depth 40.5"|EIA/ECA-310-E Compliant|125lb (56.7kg) Capacity - Pivoting/Pull-Out AV/Communications/Data/Computer Equipment Rack has an easy to assemble design that ships flat-packed and includes cage nuts and screws - StarTech.com 2-year warranty Marketing Copy Marketing Copy (No HTML) This 12U sliding-rotating open-frame network rack helps you save space while keeping your rack-mount equipment organized and accessible. The compact open-frame rack is easy to pull out and rotate, which makes it easy to install and access your equipment or perform maintenance when needed. This 12U sliding rotating rack designed for installation in small areas such as below a table or in a cabinet or cupboard and can support a total load capacity of 125lb. (56.7kg). Its versatility makes this the perfect network rack for storing your servers in a boardroom, small office/home office, restaurant or any place where space is at a premium. For easy equipment installation and maintenance, the 12U server rack's base is on sliding rails, which means it's easier to access the back of your equipment. Durable storage for rackmount servers, KVM switches, and networking equipment. With its open-frame design, the rack not only maximizes accessibility but also offers unobstructed airflow to your equipment, providing passive cooling to keep your rack-mounted equipment running at optimal temperatures. The 4 post rack comes in a flat-packed box, which reduces shipping volume and significantly lowers cost when compared to racks that ship fully assembled. This open-frame network rack is backed by a StarTech.com 2-year warranty and free lifetime technical support. Applications - Durable storage for rackmount servers, KVM switches, and networking equipment
- Suitable for rackmount equipment where security at the rack level is not required
- Rack-mounting A/V equipment in a radio or television studio
Website Search Keyword - AV rack
- Computer rack
- Equipment rack
- Server rack cabinet
- 12U rack
- 4 post rack
- 12U server rack
- Pull-out rack
- Slide out rack
- Slide out server rack
- Pull out server rack
- Pivoting rack
- 12U open frame rack
- In-cabinet rack
- Adjustable server rack
- Articulating rack
- Maneuverable rack
- Easy access rack
- Easy access server rack
- 12U pull out rack
- 12U pull out server rack
- Adjustable equipment rack
- Adjustable network rack
- 12U slide out rack
- 12U slide out server rack
- Pull and rotate rack
- Pull and rotate server rack
- Pull and turn rack
- Pull turn rack
- Rotating rack
- Rotating server rack
- Swivel server rack
- 12U computer server rack
- Server rack on rails
- Slide and rotate rack
- Slide and turn rack
Required Regulatory Compliance Marks - REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
Color Black Construction Material Steel Depth Capacity (Filter) 12.1 - 24 in. (306 - 609mm) Material Steel Maximum Mounting Depth (mm) 425 Primary Material Steel Product Length (mm) 568.400 Product Width (mm) 487.000 Product Height (mm) 615.000 Product Weight (g) 23350.000 TAA Compliant Yes Rack Weight Capacity Range 90 - 150 lbs. (40 - 68 kg.) Weight Capacity for Racks with No Casters (g) 56690 Frame Type Open Frame Industry Standards EIA/ECA-310-E Mounting Hole Types Square (For Cage Nut) Mounting Rail Profile L-Shape Rack Special Features - Built-in Cable Management
- U-Markings
- Easy Assembly

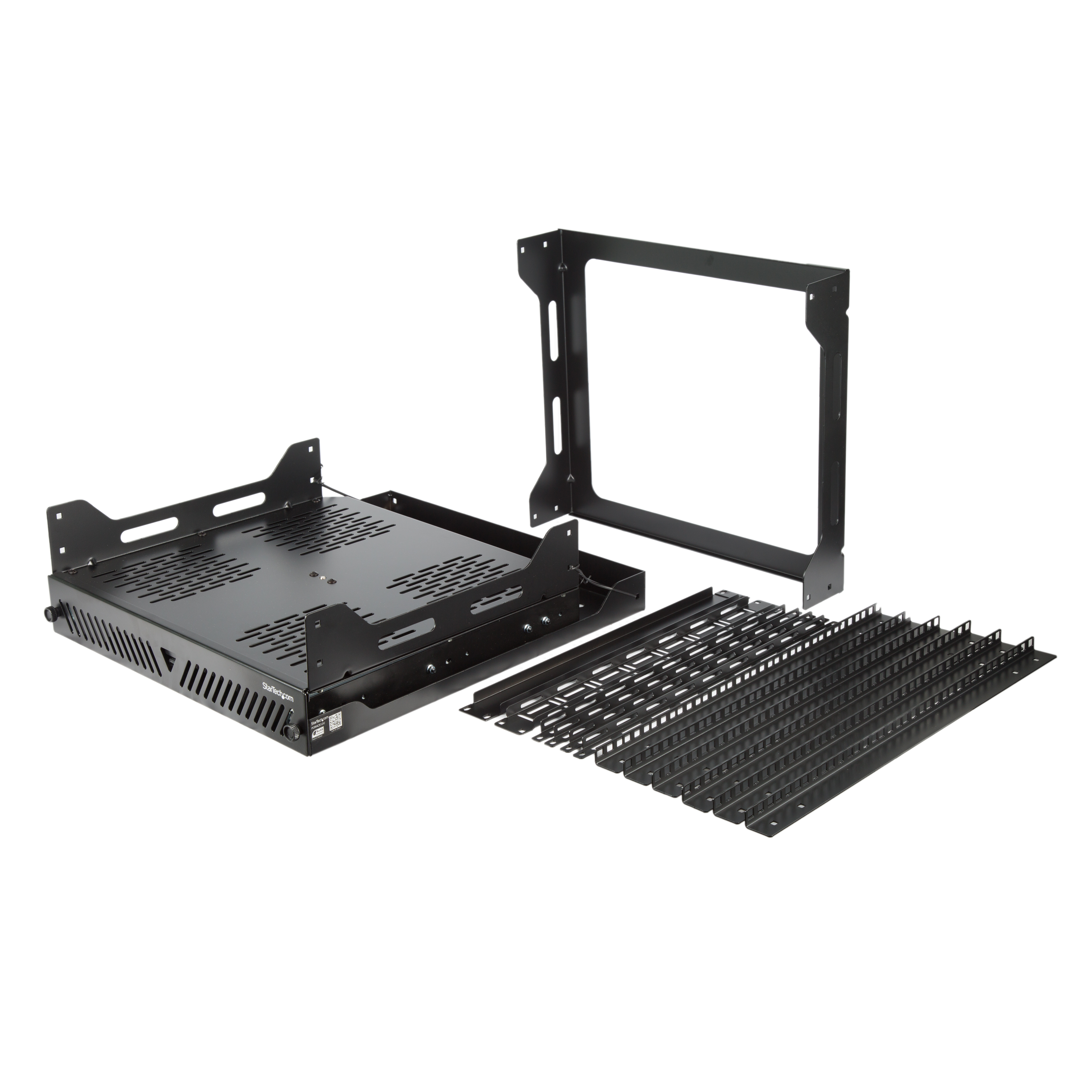

Rack Type 4-Post Rack U Height Ranges 12-26U U Height 12U Wallmountable No Carton Depth (mm) 550 Carton Height (mm) 220 Carton Quantity 1 Carton Weight Gross (g) 26550 Included in Package - 1 - Sliding Tray
- 1 - Top Bracket
- 6 - Vertical Rails
- 1 - Stabilizing Plate
- 1 - Security Plate
- 4 - Narrow Cable Managers
- 1 - Cable Manager
- 2 - Thumbscrews

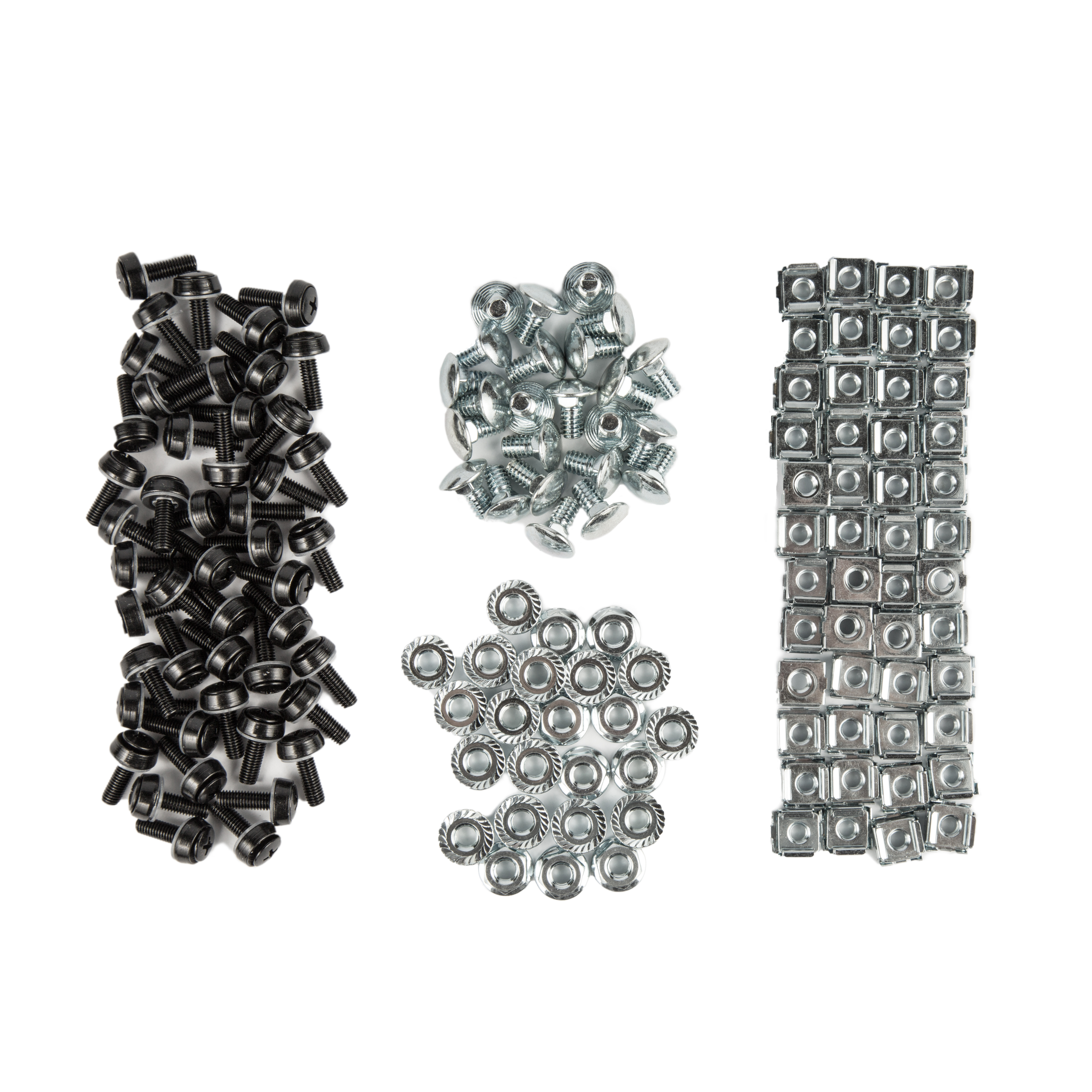

- 24 - Assembly Screws
- 24 - Assembly Nuts
- 48 - M5 Cage Nuts
- 48 - M5 Screws
- 1 - User Manual
Package Depth (mm) 545 Package Height (mm) 220 Package Width (mm) 630 Package Quantity 1 Package Weight (g) 26500 Packaging Description 12U Slide-Out Rotating Server Rack - 4-Post Packaging Description India 12U Slide-Out Rotating Server Rack - 4-Post Rack Flatpack Yes Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2017-08-10 Buying Center - AV & Collaboration No Buying Center - End User Compute No Buying Center - Networking & Edge Yes Digital Content Due Date 2017-10-03 Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,DE,DK,ES,EU,FI,FR,HK,IE,IT,JP,NL,NZ,SE,UK,US Primary Technology None Product Development Specialist Anthony Slater Product Information Creation Specialist (PICS) Alex Garcia Product Manager Bhuvan Uppal Product Performance Specialist Aaron Bens Product Photographer Alejandra Valencia Target Development Completion Date 2017-07-07 Target Production Release 2017-08-11 Tech Lead Stefan Tirolese Technical Writer Andrew Richardson Technology Lifecycle None Vending Machine Not Compatible with Vending Machine
