PR15GR-NETWORK-CARD

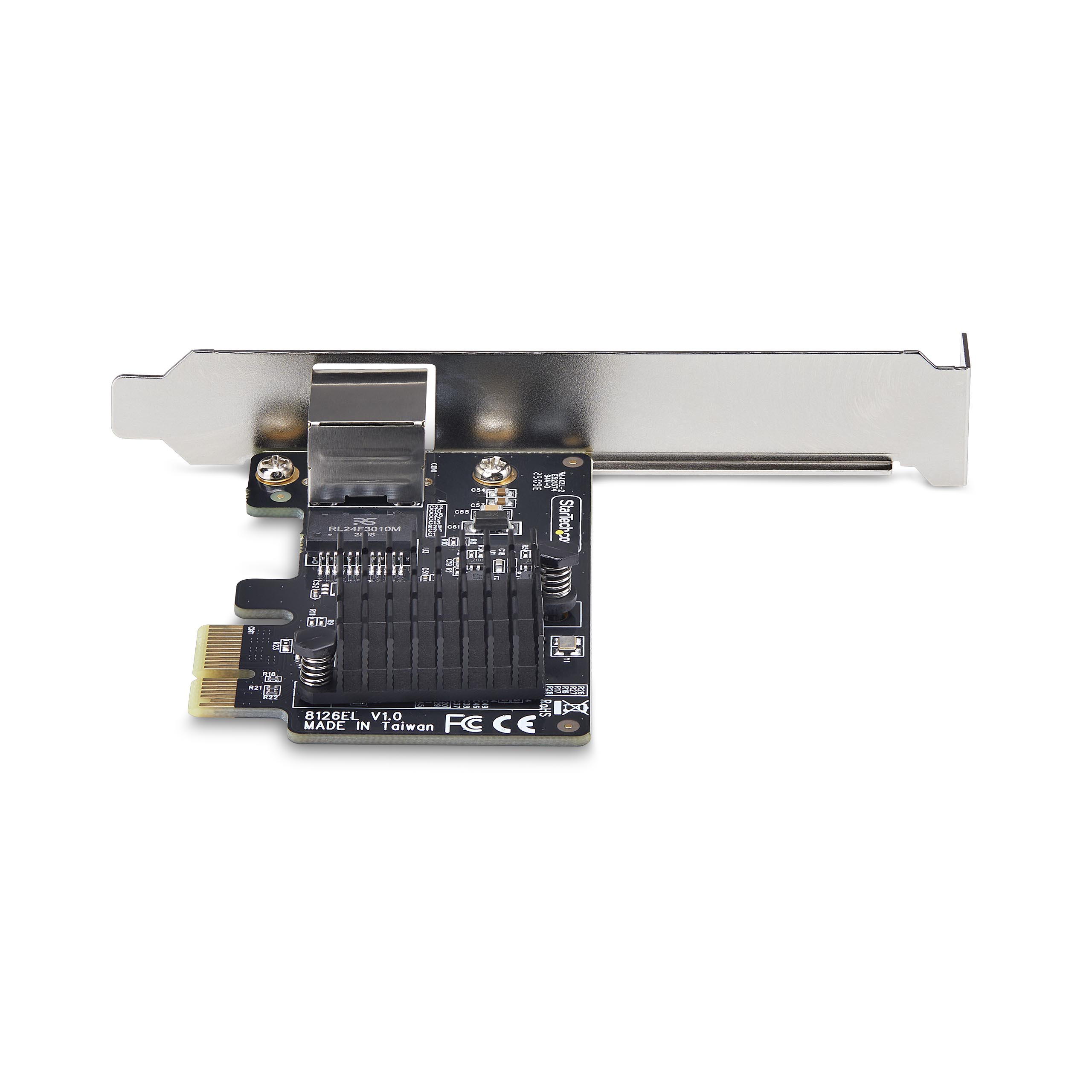

1-Port 5G PCIe Ethernet Network Card - Realtek
Add a 5 Gbps Ethernet Port to a PCI Express-enabled computer
Main Image
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
BOM Image
Quick-Start Guide
Product Name 1-Port 5G PCIe Ethernet Network Card - Realtek Product Number PR15GR-NETWORK-CARD UPC 065030911337 Lifecycle status Active Warranty 2 Years Weighted Opportunity 0 Taxonomy Product > Cards & Adapters > Network Cards & Adapters Category Level 1 Networking Category Level 2 Desktop and Server Network Cards Category Level 3 Ethernet Cards Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX054X Product Title (Ultra-Short) 1-Port Network Card Product Title (Short) 1-Port Gigabit PCIe Network Card, TAA Product Title (Medium) 1-Port 5G Gigabit PCIe Network Adapter Card, Realtek RTL8126, TAA Compliant Product Title (Standard) 1-Port 5G Gigabit PCIe Network Adapter Card, 5G/2.5G/1G/100M/10M, PCI Express NIC, Realtek RTL8126, Windows & Linux, TAA Product Title (Long) 1-Port 5G Gigabit PCIe Network Adapter Card, 5G/2.5G/1G/100M/10M PCI Express LAN Card, Realtek RTL8126, Windows and Linux, TAA Compliant Product Title (AMZ) 1-Port 5G Gigabit PCIe Network Adapter Card, PCI Express LAN Card, Realtek RTL8126, Windows and Linux, TAA Title Ingram (Part 1) 1-Port Gigabit Network Card - Title Ingram (Part 2) 10/100M/1G/2.5G/5G, TAA-Compliant Website Product Headline Add a 5 Gbps Ethernet Port to a PCI Express-enabled computer Bullet 1 TAA-COMPLIANT MULTI-GIGABIT ETHERNET CARD: Add a high-speed Ethernet port to a desktop/server with this Network Card featuring a Realtek RTL8126 chip; 2.5G/5G speeds maximize Cat5e infrastructure, providing multi-Gig performance without cabling upgrades Bullet 2 PLUG AND PLAY INSTALLATION: Network Interface Card auto-installs drivers in most major OS, including Windows 10/11; Linux Ubuntu 20.04/above and WinServer 22/19; Compatible with Intel and AMD systems via PCI Express x1, x2, x4, x8, or x16 slot Bullet 3 HIGH-SPEED AND EFFICIENT: PCIe Network Adapter Card supports auto-negotiation between 5G/2.5G/1G/100M/10M; Futureproof your devices by ensuring your system is ready as more devices become 5G compatible; 9K jumbo frames, VLAN tagging and Wake-on-LAN (WoL) Bullet 4 UNIVERSAL FIT: PCI Express NIC includes both full-height (pre-installed) and low-profile (accessory in the box) brackets for installation in compact and standard desktops or servers; Supports PCI Express 3.1 Bullet 5 THE IT PRO'S CHOICE: Designed and built for IT Professionals, this 1-port low-profile network card is backed for 2-years, including free lifetime 24/5 multi-lingual technical assistance Bullets (Compact) TAA-Compliant Gigabit Network Card with Realtek RTL8126 chip adds a 5G ethernet interface to a desktop/server; Features link speed/activity LED indicators; Supports auto-negotiation between 5G/2.5G/1G/100M/10M; WoL/VLAN/9K Jumbo Frame support Bullets (Consolidated) - Add a high-speed Ethernet port to a desktop/server with this Network Card featuring a Realtek RTL8126 chip; 2.5G/5G speeds maximize Cat5e infrastructure; Multi-Gig performance without cabling upgrades - Auto-installs drivers in most major OS incl. Windows/Windows Server and Linux; Compatible with Intel and AMD systems via a PCI Express x1 x2 x4 x8 x16 slot - Supports auto-negotiation between 5G/2.5G/1G/100M/10M - 9K jumbo frames for reduced packet overhead; VLAN tagging and Wake-on-LAN (WoL) Marketing Copy Marketing Copy (No HTML) Website Search Keyword - PCIe Network Card
- PCIe Network Adapter Card
- Network Adapter Card
- LAN
- NIC
- LAN Card
- PCIe NIC
- Ethernet Card
- PCIe Ethernet Card
- PCI Express Network Card
- PCI Express Network Adapter
- PCI Express LAN Card
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- UKCA - EMC/EMI - United Kingdom - UK Electromagnetic Compatibility Regulations 2016
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - Environmental - European Union - DO NOT USE EU Restriction of Hazardous Substances (RoHS) Short-Form DoC
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device
- Triman/Info-Tri - Packaging - Waste - European Union - Paper Box + plastic bag
- EU RIC + Italian Sorting - Packaging - Waste - European Union - Corrugated Fiberboard
- EU RIC + Italian Sorting - Packaging - Waste - European Union - Plastic - Low-Density Polyethylene
- Triman/Info-Tri - Manual - Waste - European Union - Print Paper
- Recycling - Waste - Japan - Paper Recycling Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
Accessory Products - C6PATCH6BK
- C6PATCH10BL
- M45PATCH6BK
- M45PATCH6BL
- WIRC5ECMR
Related Products - ST1000SPEX2LT
- ST1000SPEX2T
- ST1000SPEXD4T
Power Source Bus Powered Color Black Humidity 10% ~ 80% (non-condensing) Operating Temperature 5°C to 65°C (41°F to 149°F) Product Length (mm) 71.670 Product Width (mm) 120.000 Product Height (mm) 18.000 Product Weight (g) 40.500 Storage Temperature -30°C to 90°C (-22°F to 194°F) TAA Compliant Yes Auto MDIX Yes Jumbo Frame Support 9K max. Maximum Data Transfer Rate 5 Gbps OS Compatibility - Windows 10
- Windows 11
- Windows Server 2019
- Windows Server 2022
- Linux
Promiscuous Mode Yes PXE Yes Wake-On-LAN (WOL) Yes Bus Type PCI Express Card Type Standard Profile (LP bracket incl.) Chipset ID Realtek - RTL8126 Industry Standards - IEEE 802.3
- IEEE 802.3u
- IEEE 802.3x
- IEEE 802.3ab
- IEEE 802.3az
- IEEE 802.3bz
- IEEE 802.1Qav
- IEEE 802.1P
- IEEE 802.1Q
- IEEE 802.1ad
IO Card Port Style Integrated on Card LED Indicators Carton Depth (mm) 685 Carton Height (mm) 306 Carton Quantity 75 Carton Weight Gross (g) 8793 Included in Package - 1 - PCIe Card

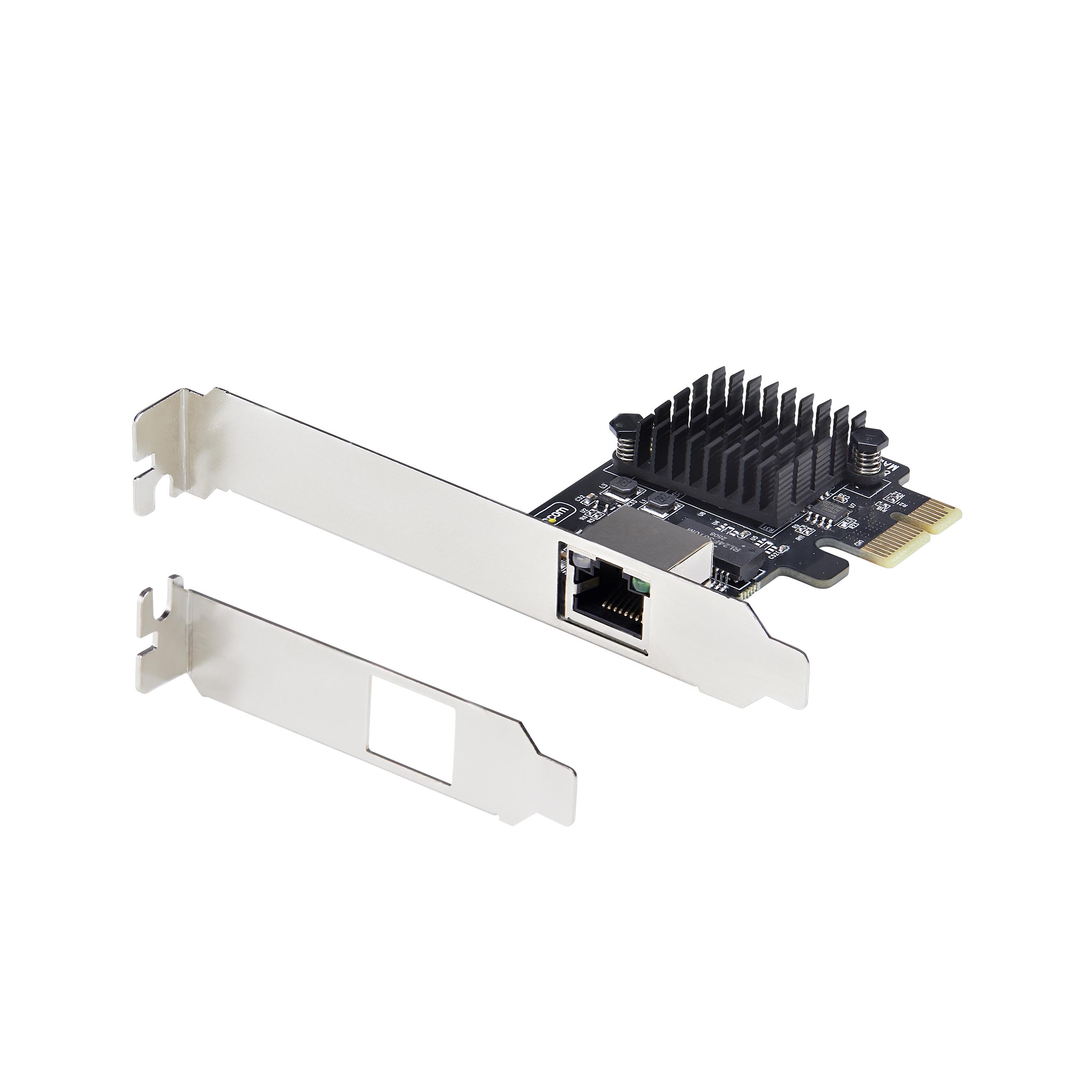

- 1 - Low Profile Bracket
- 1 - Quick-Start Guide
Package Depth (mm) 142 Package Height (mm) 30 Package Width (mm) 170 Package Weight (g) 103.9 Packaging Description 1-Port Single RJ45 5G Ethernet Network Adapter Card - PCIe Ver 3.0 x1 Packaging Description India 1-Port Single RJ45 5G Ethernet Network Converter Card - PCIe Ver 3.0 x1 Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 RJ-45 Connector 1 (Quantity) 1 Host Connector 1 PCI Express x1 Host Connector 1 (Quantity) 1 A+ Not Required Actual Inbox Documents Created QSG in the box Amazon Merchandising Manager Kathleen Marshall Application Photos Uploaded Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute Yes Buying Center - Networking & Edge Yes Comparable SKU Comment 1-Port 10Gbps PCIe Network Adapter Card, Network Card for PC/Server, Six-Speed PCIe Ethernet Card with Jumbo Frame Support, NIC/LAN Interface Card, 10GBASE-T and NBASE-T Comparable SKU 2 Comment 2.5Gbps 2.5GBASE-T PCIe Network Card Digital Content Due Date 2025-03-12 Enhanced Gallery Not Required Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett ID Label Silkscreened or a Label Sticker label - 37x20mm Launch Markets (concatenated) AT,BE,CA,CH,DE,DK,ES,FI,FR,IE,IN,IT,JP,NL,SE,UK,US Product Development Specialist Abhinav Pathak Product Information Creation Specialist (PICS) Maria Powell Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Target Development Completion Date 2024-11-15 Target Production Release 2024-12-15 Tech Lead Stefan Tirolese Technical Writer Maria Powell Technology Lifecycle None Video Not Required
