PR42GI-NETWORK-CARD

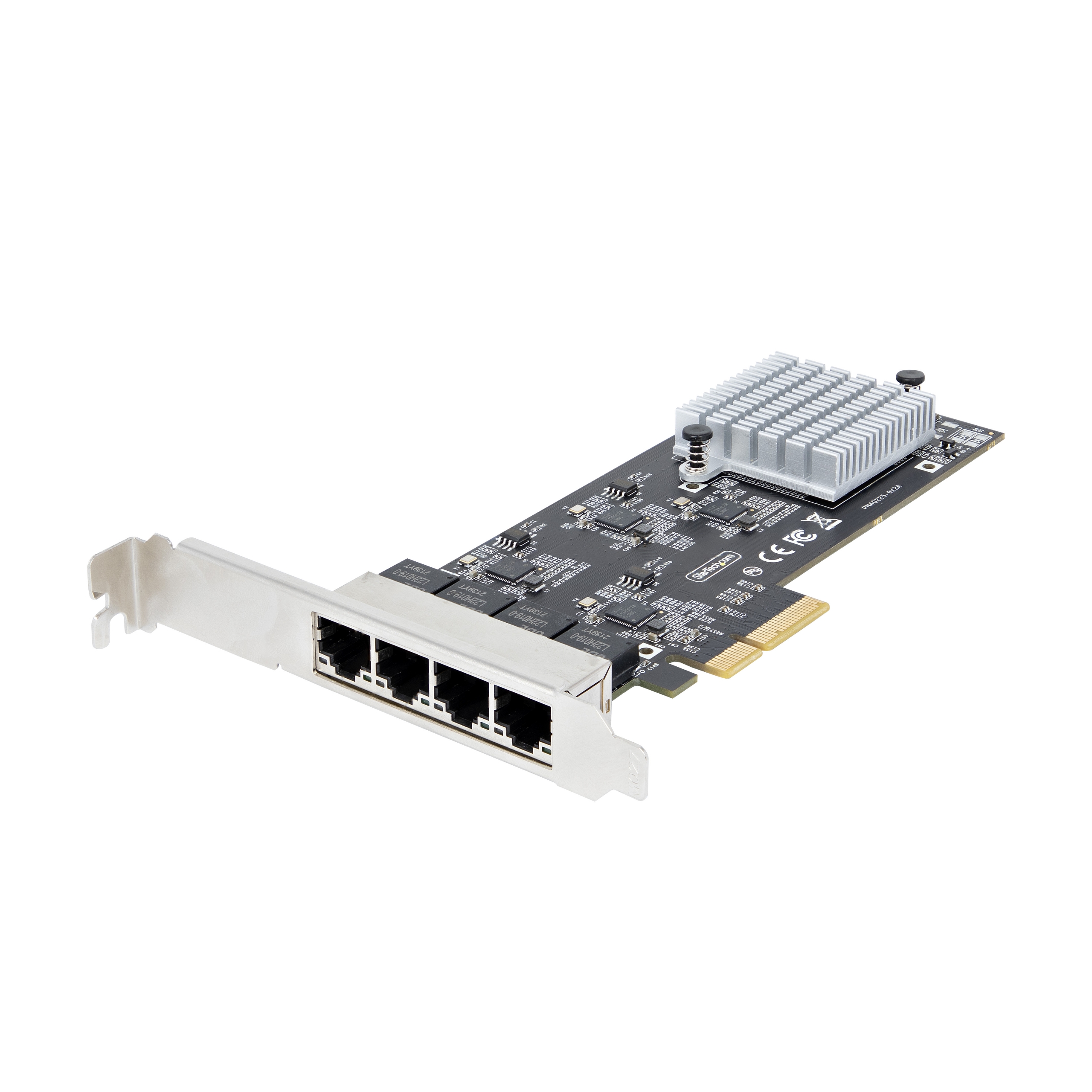

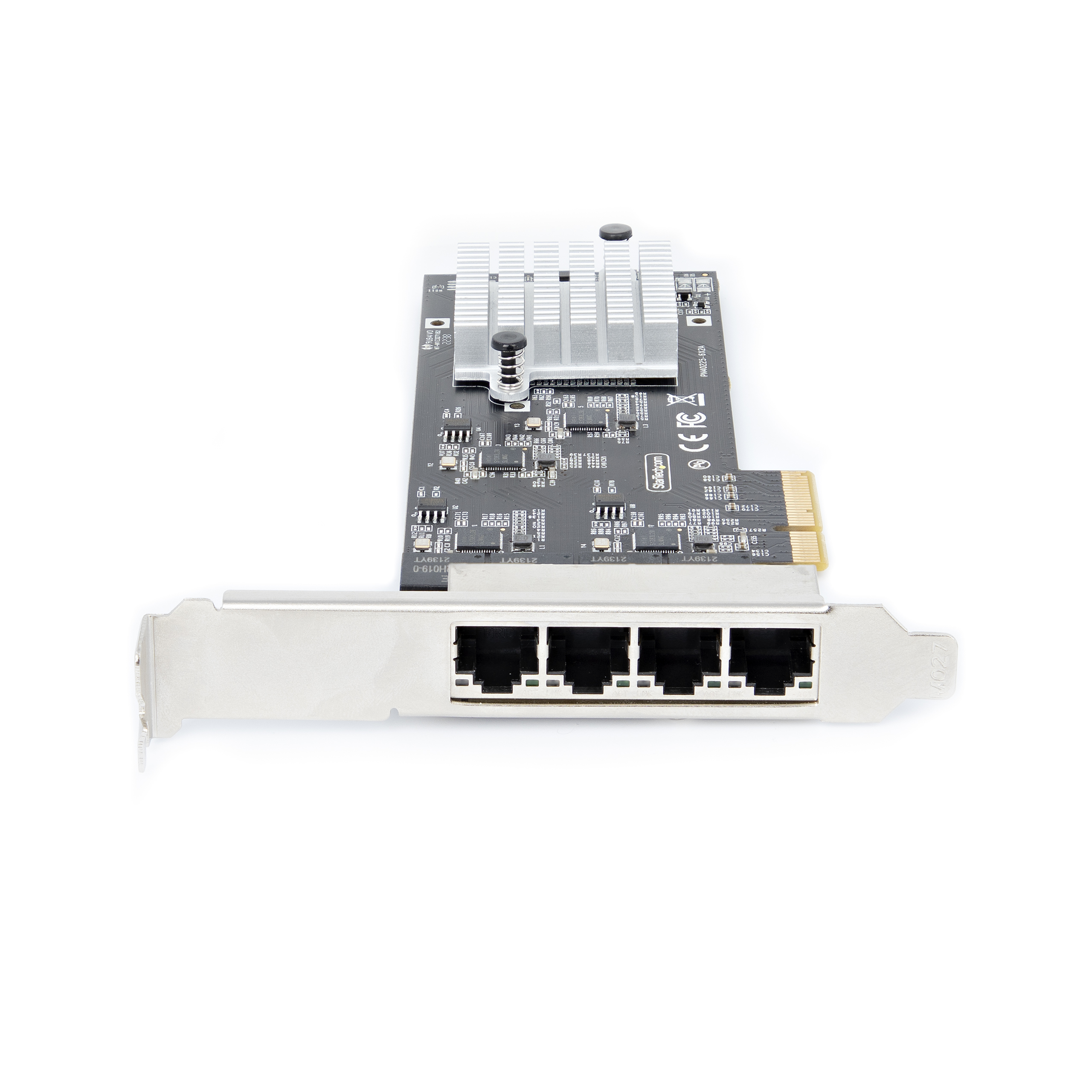

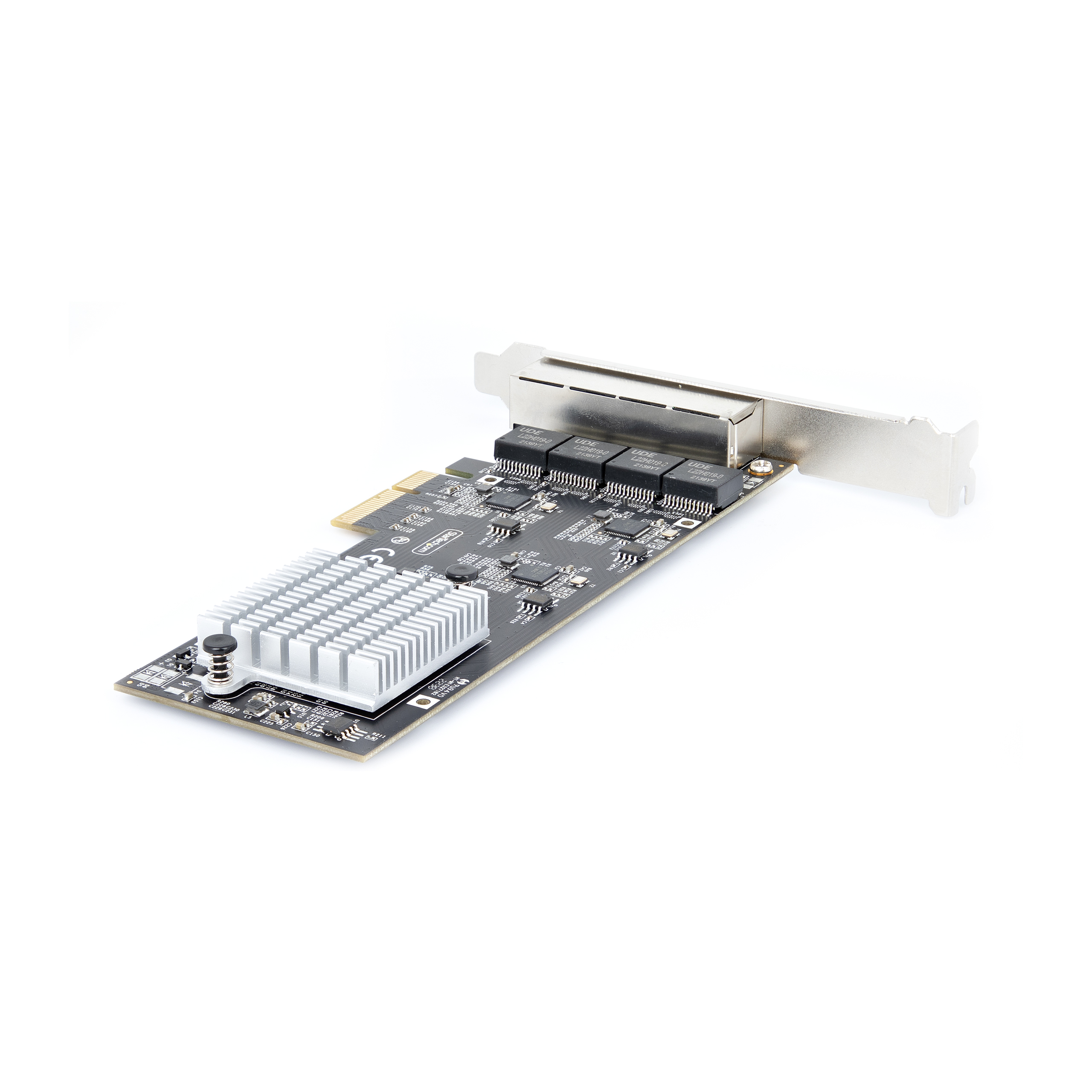

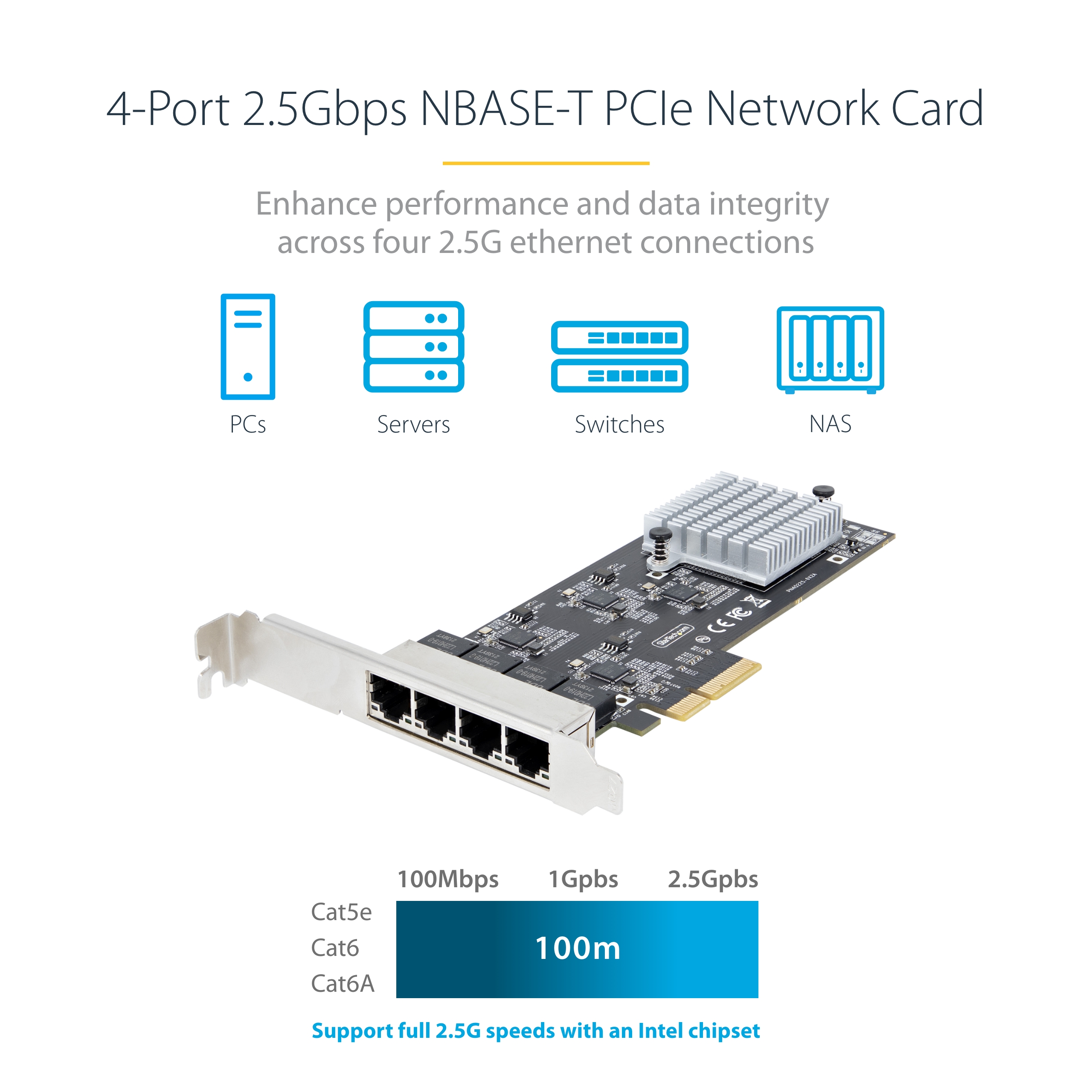

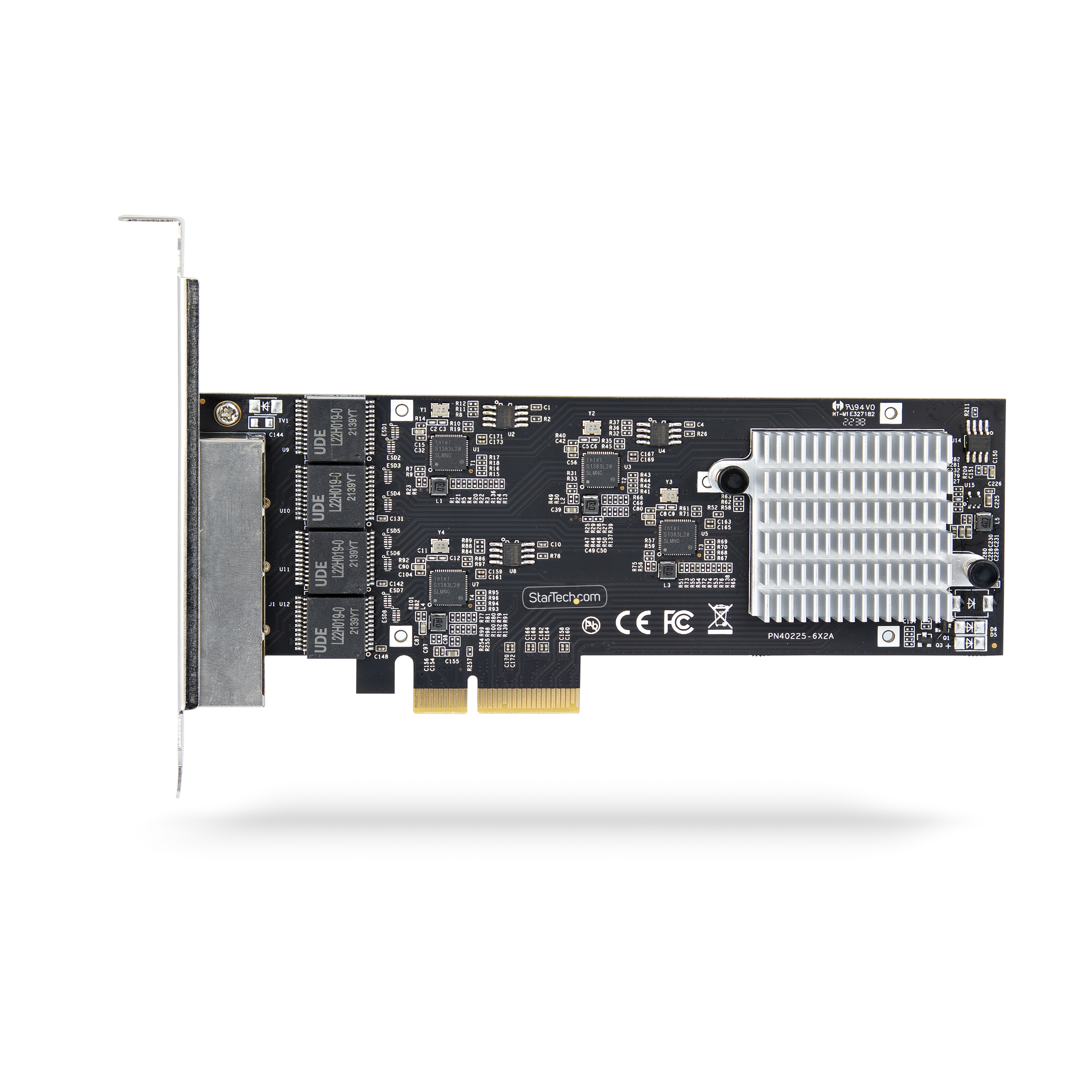

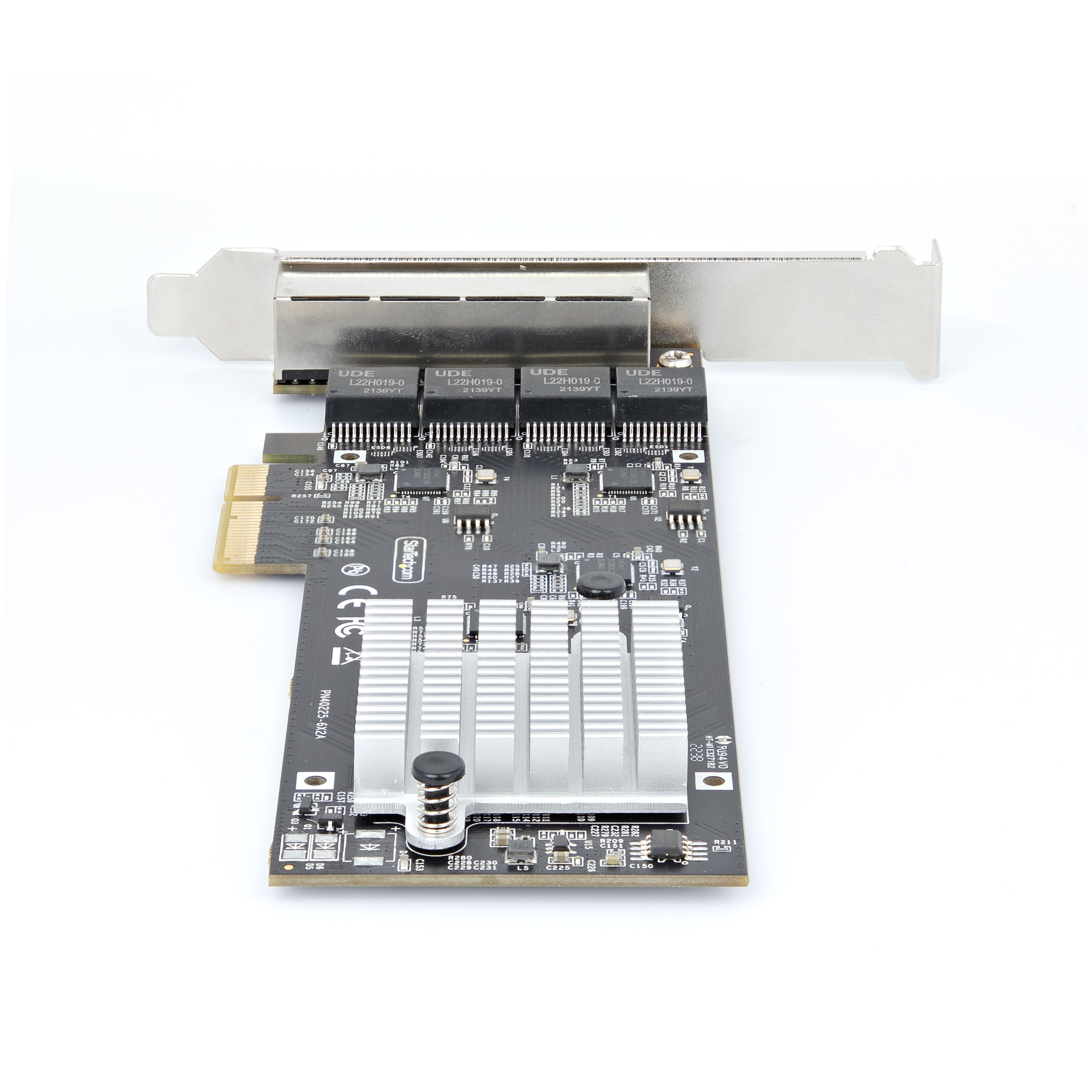

4 Port PCI Express 2 5Gbps Ethernet RJ45 Adapter Card

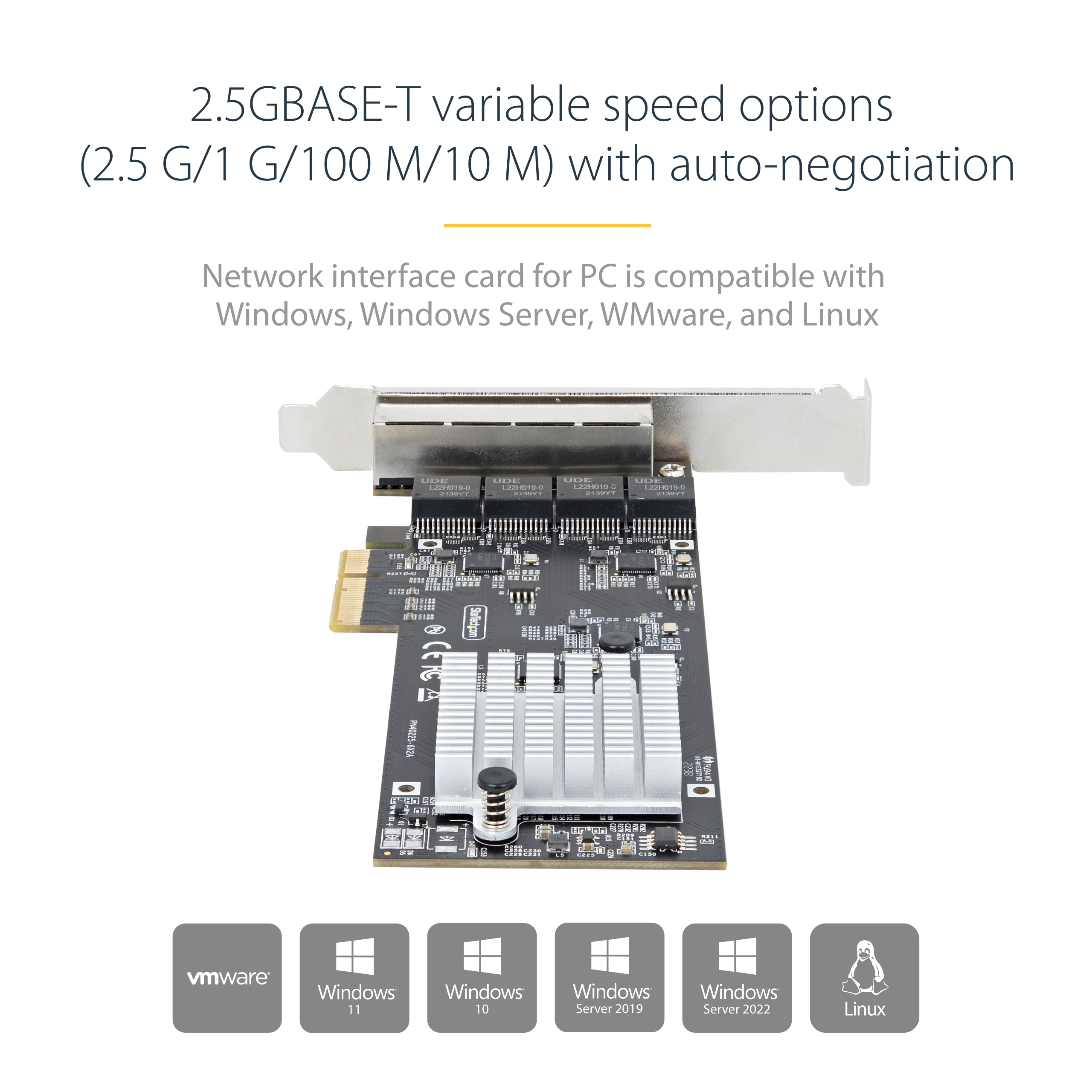

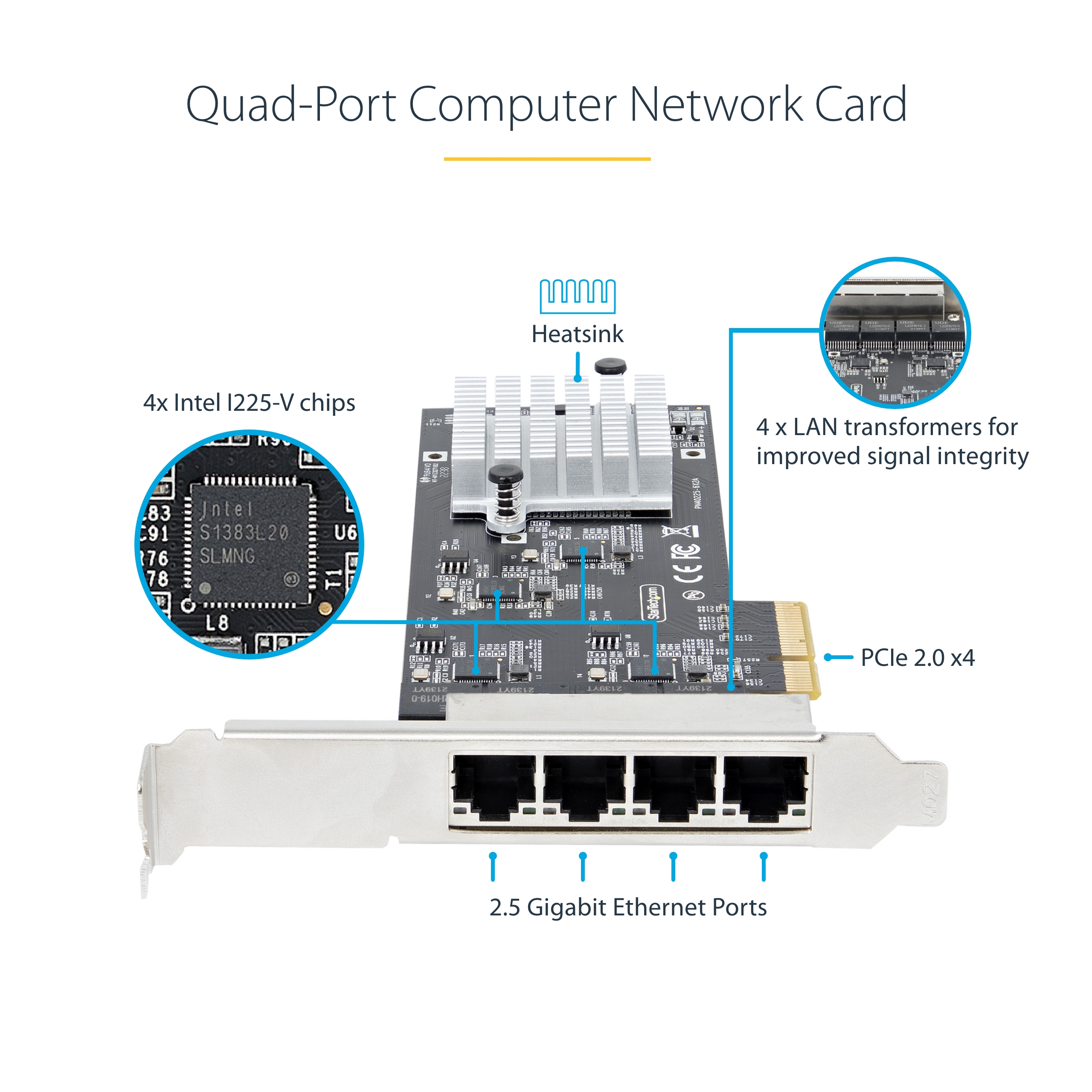

Quad-port PCIe network card with Intel® I225-V chip features multi-Gigabit speeds with NBASE-T support
Main Image
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Product Images
Product Images
Product Images
Product Images
BOM Image
Quick-Start Guide
Product Name 4 Port PCI Express 2 5Gbps Ethernet RJ45 Adapter Card Product Number PR42GI-NETWORK-CARD UPC 065030898157 Lifecycle status Active Warranty 2 Years Taxonomy Product > Cards & Adapters > Network Cards & Adapters Category Level 1 Networking Category Level 2 Desktop and Server Network Cards Category Level 3 Ethernet Cards Family 2.5G PCIe Ethernet NICs - Copper Intel Country of Origin Europe & Japan Malaysia Country of Origin North America Malaysia Country of Origin History (1) Malaysia Country of Origin Revision (1) XXXXXX156X Product Title (Ultra-Short) PCIe Network Card Product Title (Short) 4-Port NBASE-T 2.5Gbps PCIe Network Card Product Title (Medium) 4-Port 2.5Gbps NBASE-T PCIe Network Card, Computer Network Card, Intel® I225 NIC Product Title (Standard) 4-Port 2.5G NBASE-T PCIe Network Card, Computer Network Card Interface, Intel® I225-V, Quad-Port Ethernet, Multi-Gigabit NIC Product Title (Long) 4-Port 2.5Gbps NBASE-T PCIe Network Card, Intel I225-V, Quad-Port Computer Network Card, Multi-Gigabit NIC, PCI Express Server LAN Card, Desktop Ethernet Interface Product Title (AMZ) 4-Port 2.5Gbps NBASE-T PCIe Network Card, Intel I225-V, Quad-Port Computer Network Card, Multi-Gigabit NIC, PCI Express Server LAN Card, Desktop Ethernet Interface (PR42GI-NETWORK-CARD) Title Ingram (Part 1) 4-Port 2.5G PCIe Network Card - Title Ingram (Part 2) Quad NBASE-T Ethernet Card Website Product Headline Quad-port PCIe network card with Intel® I225-V chip features multi-Gigabit speeds with NBASE-T support Bullet 1 2.5G ETHERNET CARD: High-performance PCIe 2.5Gbps quad-port network card with Intel I225-V chip; Leverage existing Cat5e/Cat6 cabling (or better); NBASE-T compatible (802.3bz); PCI Express 2.0 x4; Independent Ethernet controllers for reliable performance Bullet 2 IT MANAGEABILITY: Intel vPro for remote management and troubleshooting; PXE boot enabled to deployment speeds/updates; 9K jumbo frame for reduced packet overhead; Remotely boot a system using WoL; VLAN support for efficient network management Bullet 3 BUILD QUALITY: LAN card features: built-in heatsink to keep controller chips running cool and for optimal performance, LED indicators for link status/speed, LAN transformers maintain signal quality and reduced EMI for reliable communication Bullet 4 SPECIFICATIONS: 4x RJ45 Ports, 2.5/1Gbps and 100/10Mbps (Independent controllers) NIC, IEEE 802.3bz (2.5GBASE-T), Full Duplex, Auto MDIX, PCIe 2.0 x2, Intel I225-V, 9K Jumbo Frames, VLAN Tagging, WoL, PXE boot Bullet 5 COMPATIBILITY: 2.5GBASE-T variable speed options (2.5 G/1 G/100 M/10 M) with auto-negotiation; Multi-gigabit network interface card for PC is compatible w/ Windows, Windows Server, VMware, and Linux; Low profile bracket included for hardware compatibility Bullets (Compact) Quad-port 2.5Gbps interface NIC; PCIe network card w/ Intel® I225V - Supports NBASE-T, Multi-Gigabit speeds, Intel vPro®, PXE boot, 9K jumbo, WoL, PCI Express 2.0 - LAN adapter incl. low-profile bracket - Ethernet card compatible with major OSes Bullets (Consolidated) Quad-port 2.5Gbps PCIe network card w/ Intel® I225-V chip; Supports NBASE-T and multi-Gigabit speeds - 2.5GBASE-T Ethernet card with Intel vPro® support; PXE boot/9K jumbo/VLAN/WoL/QoS - LED indicators around NIC; LAN transformer for reliable communication and reduced EMI; Variable speed options (2.5G/1G/100M/10M) w/ auto-negotiation - Compatible with Windows®/Linux®; PCI Express 2.0 x4 network adapter card includes a low profile bracket Marketing Copy Marketing Copy (No HTML) Website Search Keyword - 2.5 gbps ethernet
- 2.5gbase t nic
- computer network card
- desktop ethernet card
- ethernet network interface card
- multi gigabit nic
- nbase t network card
- pci express 2.1
- pci express lan card
- pcie network card
- server nic card
Required Regulatory Compliance Marks - CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- UKCA - EMC/EMI - United Kingdom - UK Electromagnetic Compatibility Regulations 2016
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- Recycling - Waste - Japan - Paper Recycling Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- Triman/Info-Tri - Packaging - Waste - European Union - Paper Box + plastic bag
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
Special Notes - Ethernet Port 1 (P1) supports WoL (Wake-on-LAN) P2, P3, and P4 do not support the WoL feature.
- - Intel NIC Teaming is supported only on Windows Server OS (e.g., Server 2012, 2016) and not on desktop versions like Windows 10 or 11.
Accessory Products - N6PATCH3BK
- N6PATCH5BL
- N6PATCH5BK
- N6PATCH10BK
- N6PATCH15BL
- 45PATCH10BK
- 45PATCH3BK
- 45PATCH6BK
- RJ45PATCH15
Related Products - ST1000SPEXI
- PEX10000SFPI
- PEX1000SFP
- ST1000SPEX2
- ST10GSPEXNB
- ST10GSPEXNDP

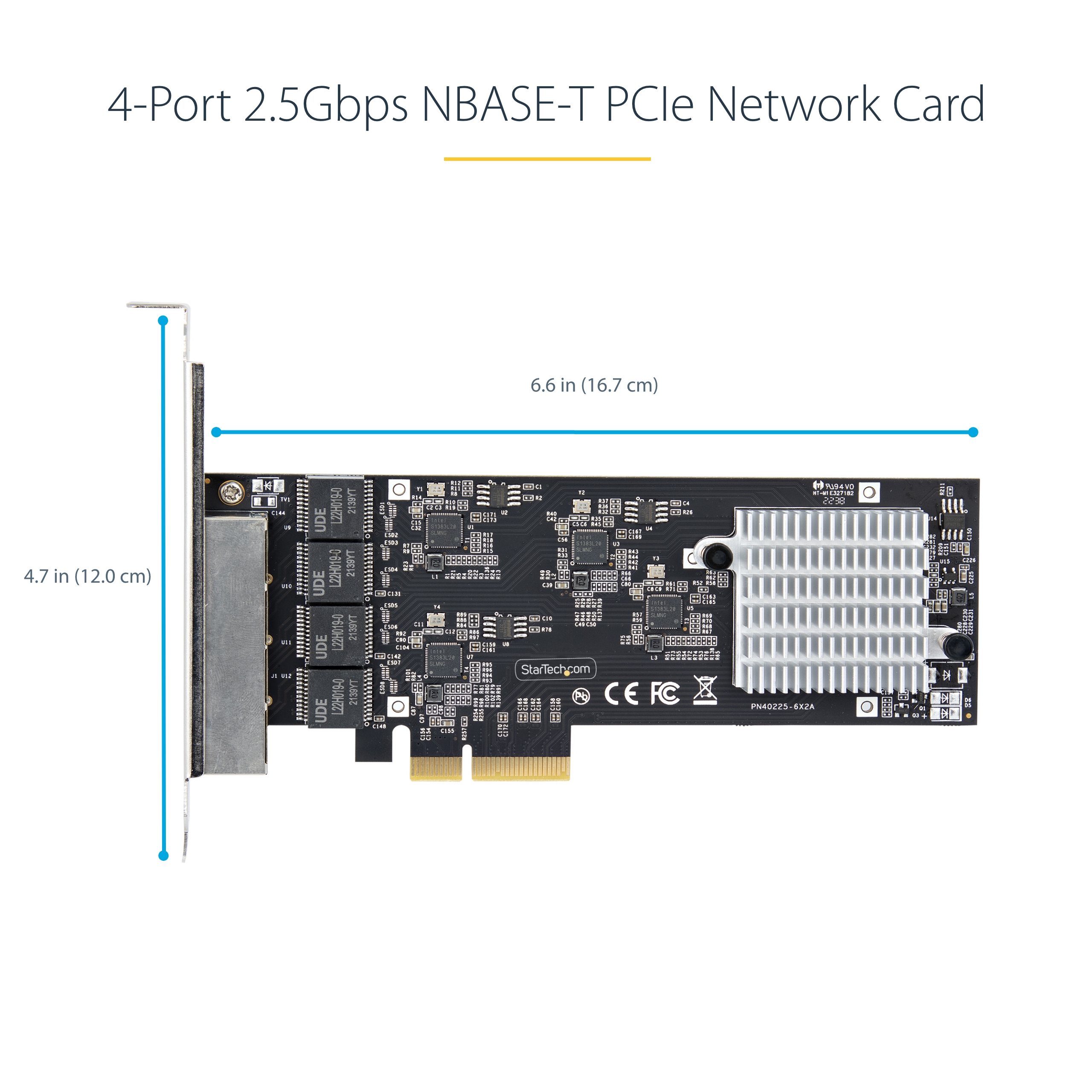

Power Source Bus Powered Color Black Humidity 5% - 90% RH Operating Temperature 0°C to 55°C (32°F to 131°F) Primary Material PCB Product Length (mm) 120.020 Product Width (mm) 167.000 Product Height (mm) 21.590 Product Weight (g) 100.000 Storage Temperature ‐10°C - 70°C (14°F - 158°F) TAA Compliant No Auto MDIX Yes Compatible Networks 2.5G/1G/100Mbps/10Mbps Full Duplex Support Yes Jumbo Frame Support 9K max. Maximum Data Transfer Rate 2.5 Gbps OS Compatibility - Windows 11
- Windows 10
- Windows Server 2019
- Windows Server 2022
- Linux

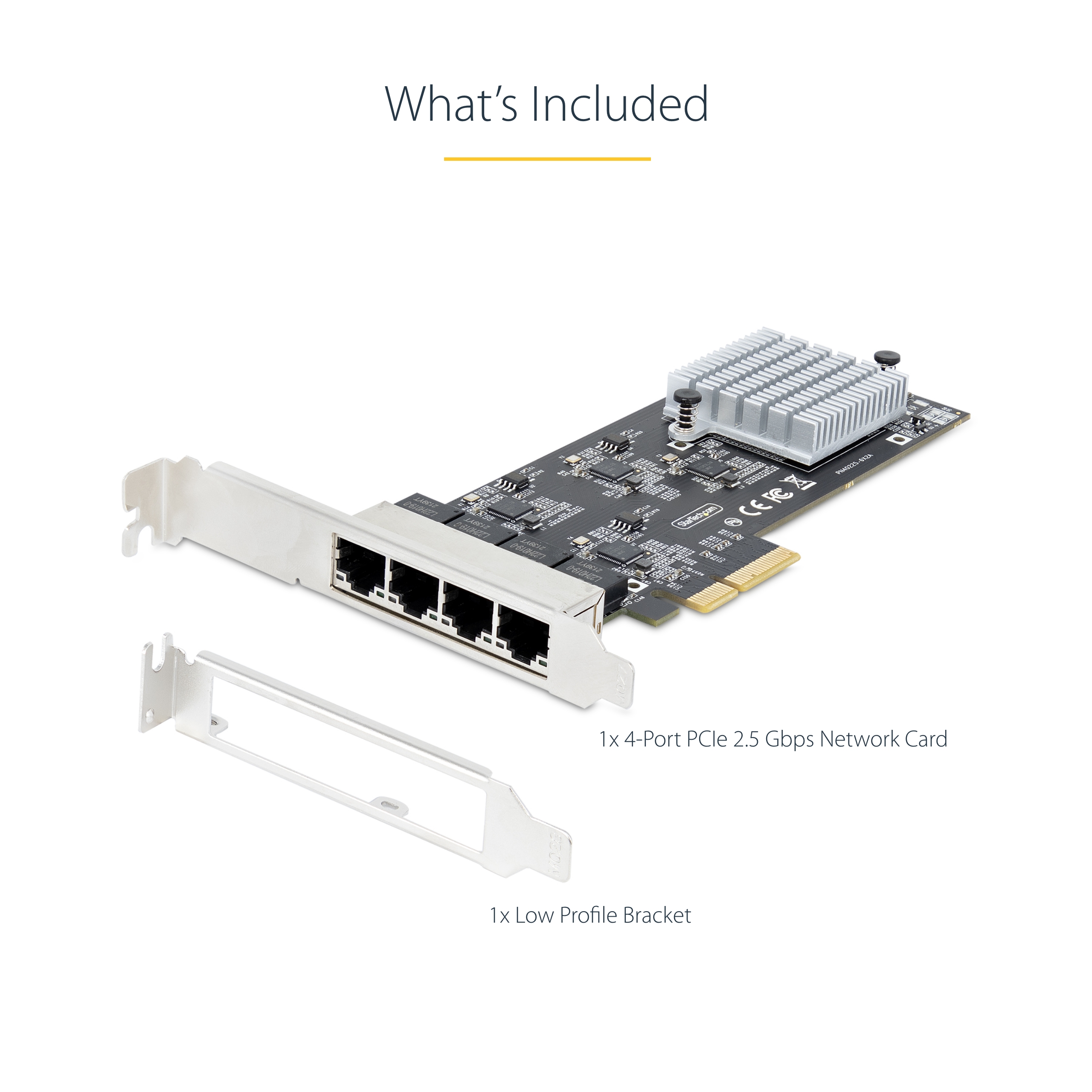

PXE Yes Wake-On-LAN (WOL) Yes Bus Type PCI Express Card Type Standard Profile (LP bracket incl.) Chipset ID Intel - I225-V Ethernet Port Yes Industry Standards Interface/Bridge RJ45 (2.5G Ethernet) IO Card Port Style Integrated on Card LED Indicators Carton Depth (mm) 451 Carton Height (mm) 326 Carton Quantity 40 Carton Weight Gross (g) 8370 Included in Package - 1 - 4-Port PCIe 2.5 Gbps Network Card
- 1 - Low Profile Bracket
- 1 - Quick-Start Guide
Included In Package for Label - 1 - Quick-Start Guide
- 1 - Low Profile Bracket
- 1 - 4-Port PCIe 2.5 Gbps Network Card
Package Depth (mm) 151 Package Height (mm) 36 Package Width (mm) 216 Package Quantity 1 Package Weight (g) 186 Packaging Description 4-Port 2.5GBase-T Ethernet Network Adapter Card - PCIe 2.0 x4 Packaging Description India 4-Port 2.5GBase-T Ethernet Network Converter Card - PCIe 2.0 x4 Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 PCI Express x4 Connector 1 (Quantity) 1 Connector 2 RJ-45 Connector 2 (Quantity) 4 A+ Not Required Actual Inbox Documents Created QSG in the box Amazon Merchandising Manager Kathleen Marshall Application Photos Not Required Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge Yes Comparable SKU Comment 4-port 1G PCIe Intel card Comparable SKU 2 Comment 1-port 2.5G PCIe Realtek card Digital Content Due Date 2023-05-04 Enhanced Gallery Uploaded Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level - 1 Graphic Designer Shane Arnett ID Label Silkscreened or a Label No ID label Launch Markets (concatenated) AT,BE,CA,CH,DE,DK,ES,FI,FR,IE,IN,IT,JP,NL,SE,UK,US Product Development Specialist Alex Sikora Product Information Creation Specialist (PICS) Alex Garcia Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Target Development Completion Date 2023-03-10 Target Production Release 2023-05-01 Tech Lead Stefan Tirolese Technical Writer Alex Garcia Technology Lifecycle None Video Not Required
