PROJCEILMNT2

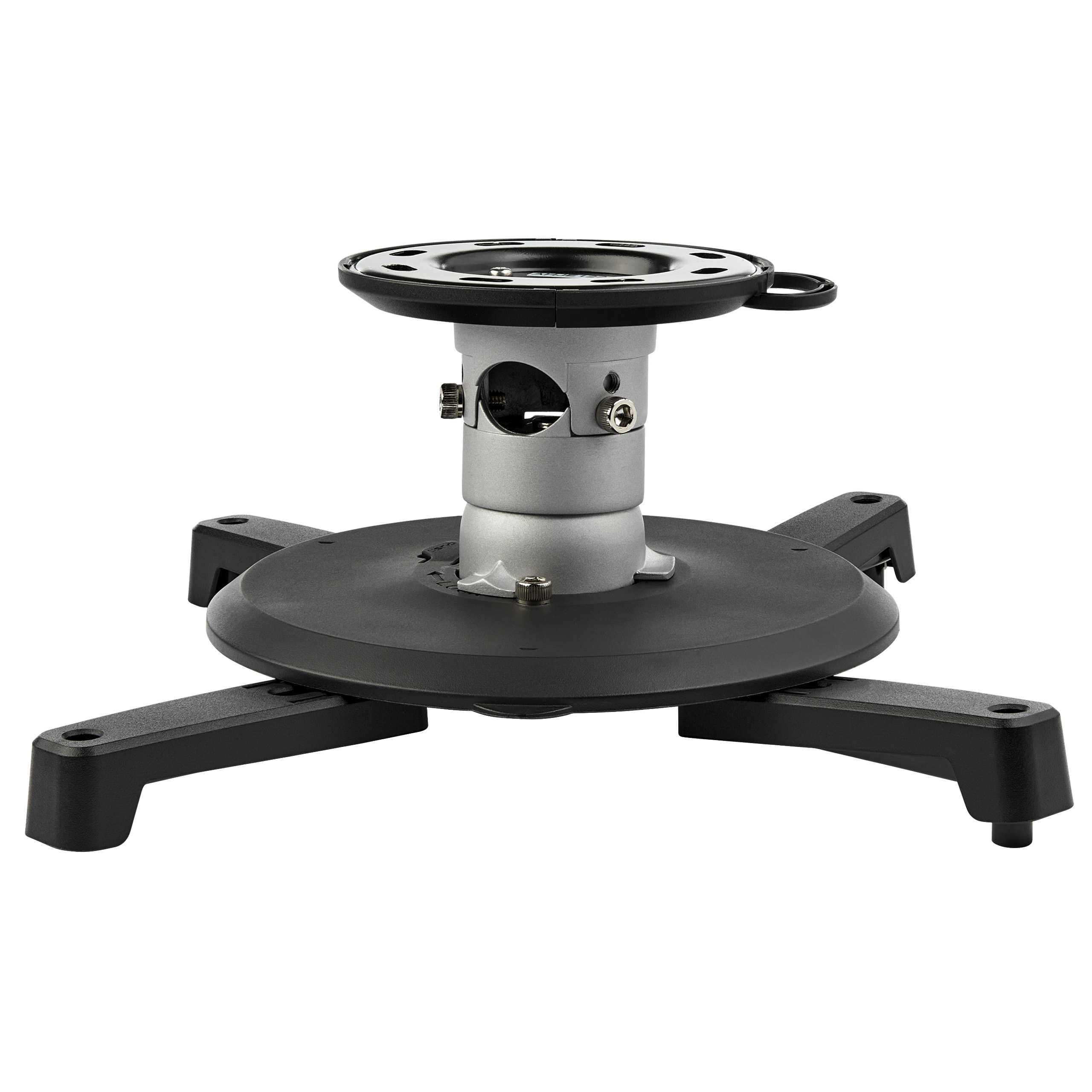

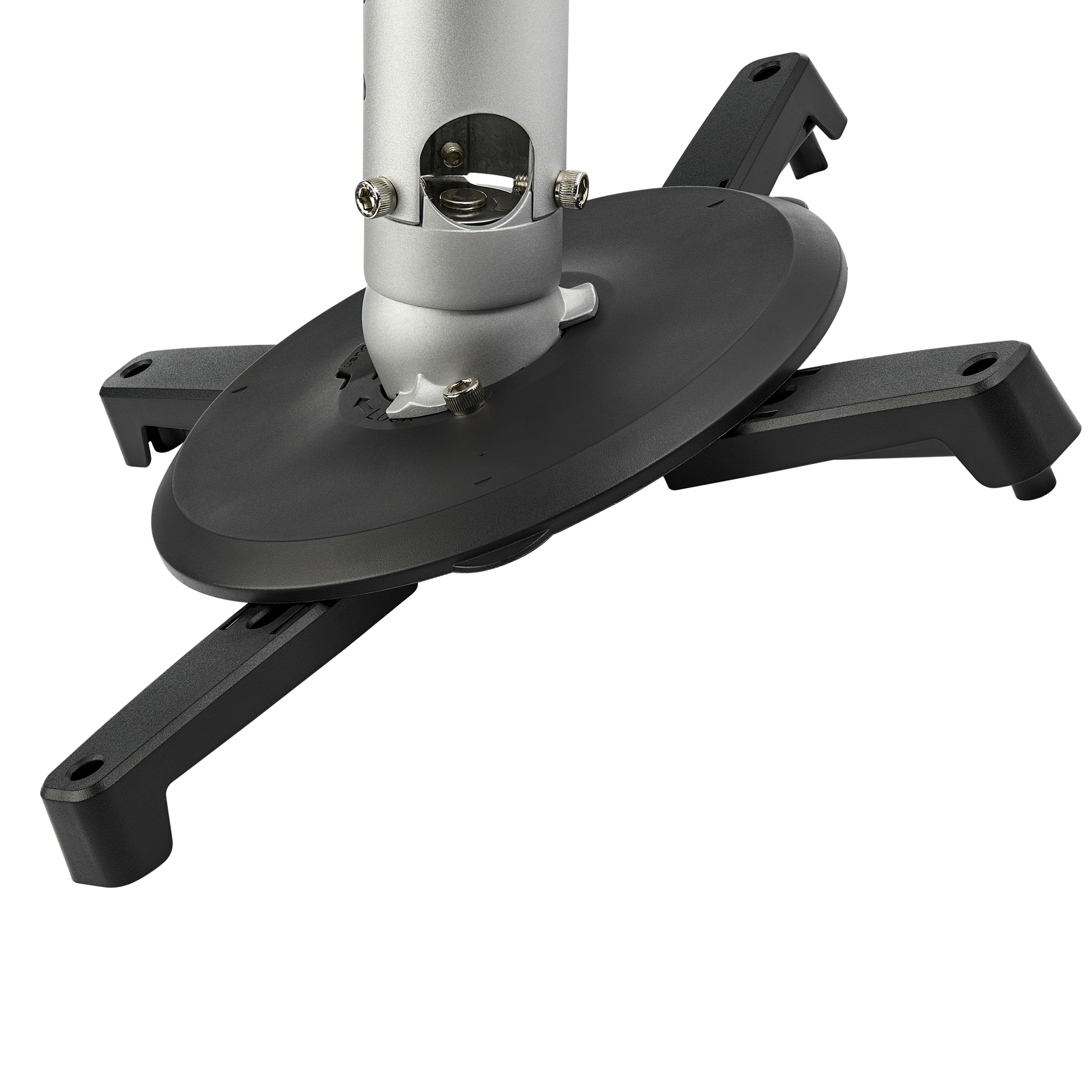

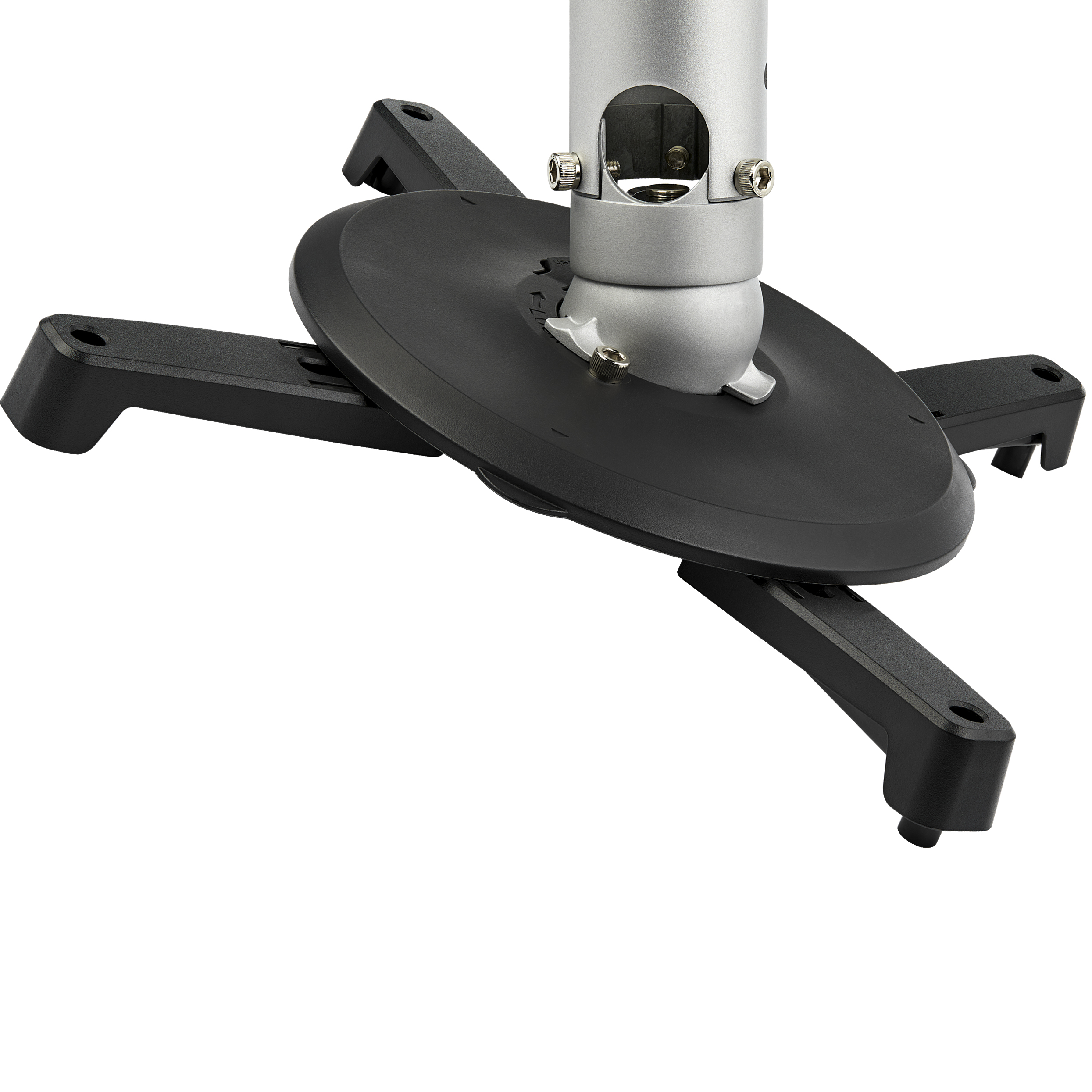

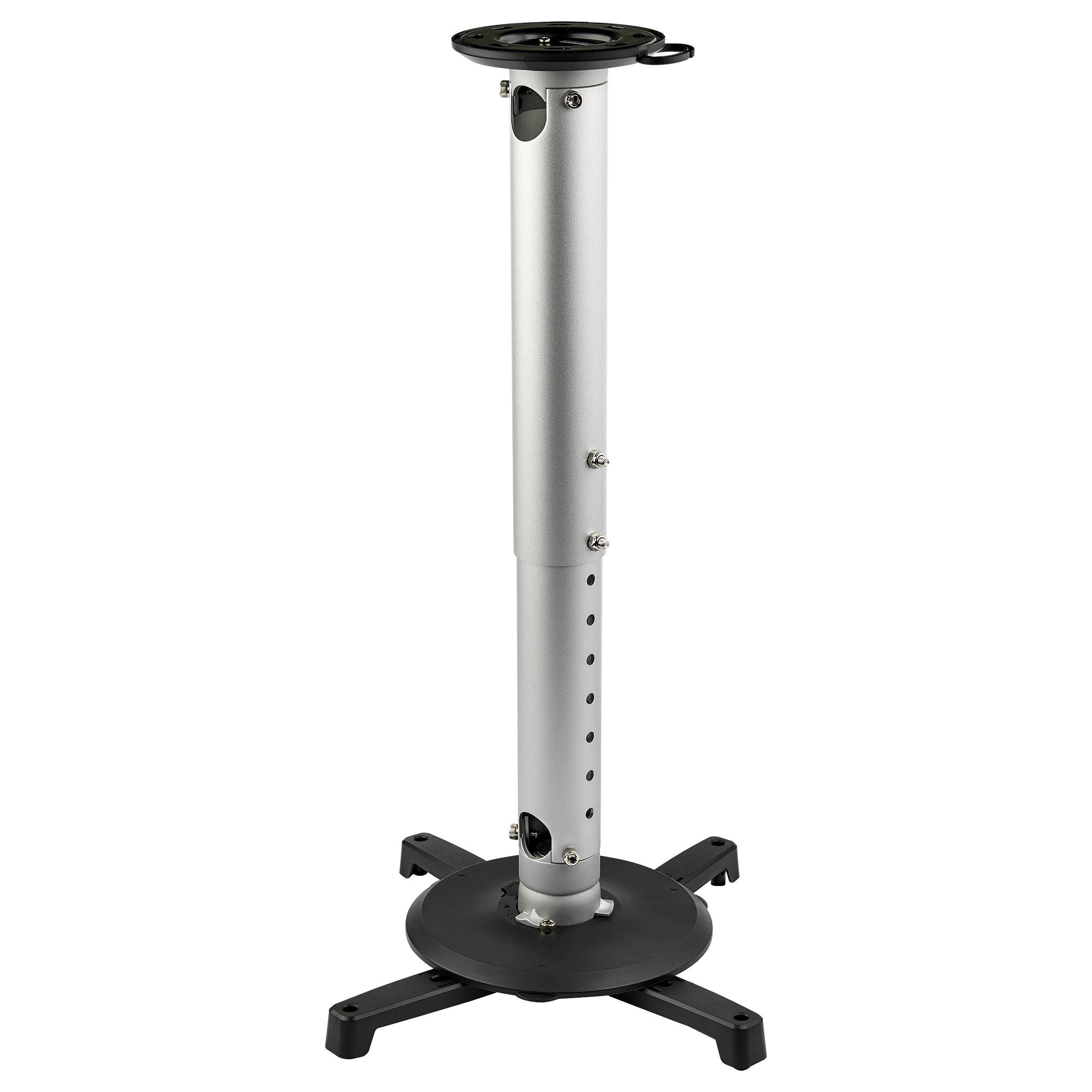

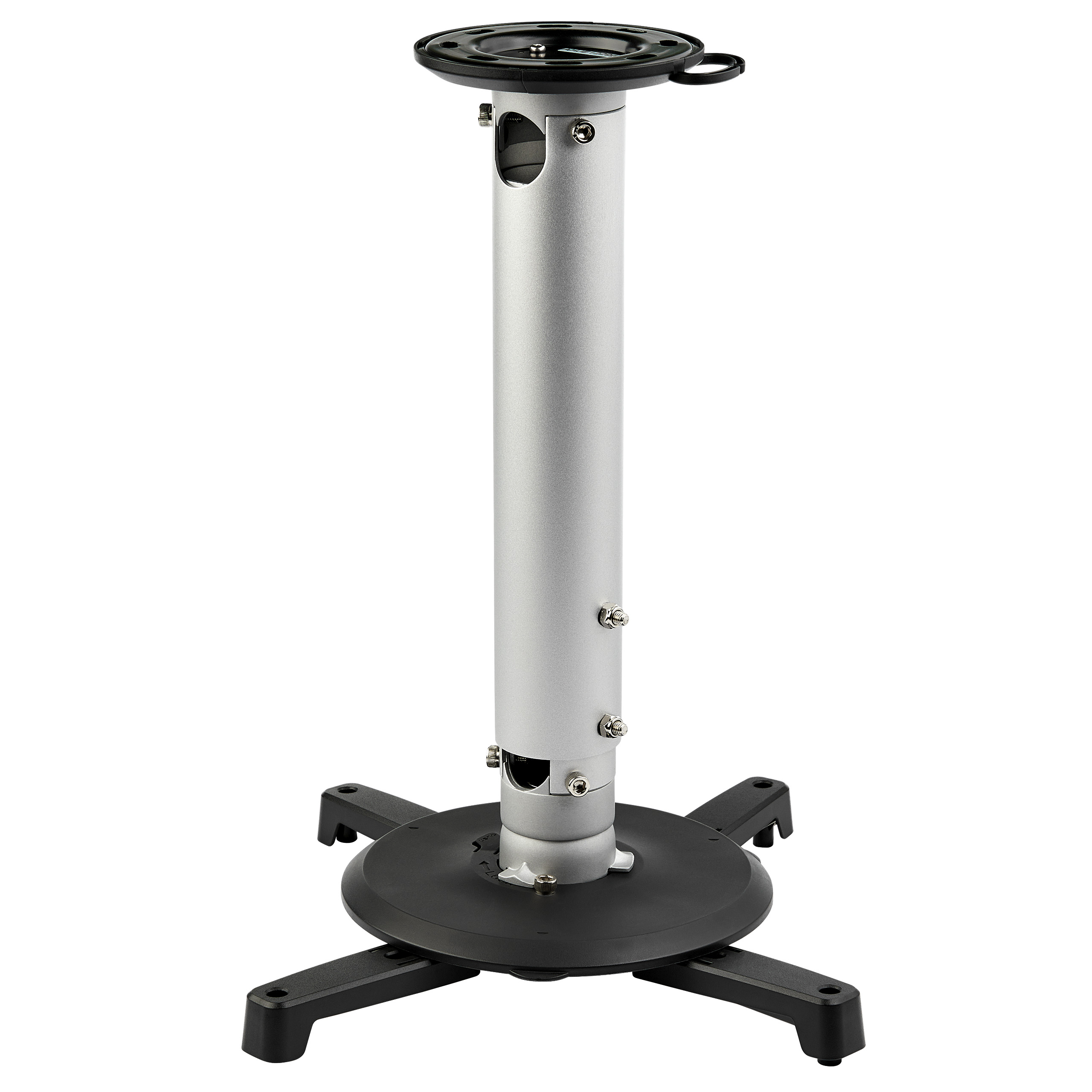

Universal Ceiling Projector Mount
Universal Projector Ceiling Mount | Up to 22.7” Extension from Ceiling | Steel / Aluminum
Main Image
Product Images
Product Images
Product Images
Product Images
BOM Image
Product Name Universal Ceiling Projector Mount Product Number PROJCEILMNT2 UPC 065030884136 Lifecycle status Active Warranty 2 Years Taxonomy Product > Mechanical Products > Projector Mounts Category Level 1 Display Mounts Category Level 2 TV Mounts Category Level 3 Display Ceiling Mounts Family Projector Ceiling Mount Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX036X Product Title (Ultra-Short) Projector Mount Product Title (Short) Universal Ceiling Projector Mount - 33lb Product Title (Medium) Universal Ceiling Projector Mount - Up to 22.7” Extension - 12.8" Mount Product Title (Standard) Universal Ceiling Projector Mount, Height Adjustable Hanging Pole Mount 5"-22.7" from Ceiling, 33lb (15kg), Tilt/Rotate, TAA Product Title (Long) Universal Ceiling Projector Mount - Heavy Duty Height Adjustable/Extendable Pole Mount 5-22.7" from Ceiling - 33lb (15kg) - Tilt/Rotate - Hanging Projector Mount w/ Bracket - TAA Product Title (AMZ) Universal Ceiling Projector Mount - Heavy Duty Height Adjustable/Extendable Pole Mount 5-22.7" from Ceiling - 33lb (15kg) - Tilt/Rotate - Hanging Projector Mount w/ Bracket , TAA Title Ingram (Part 1) Ceiling Projector Mount Title Ingram (Part 2) 576.6mm Extension - 325.12mm Mount Website Product Headline Universal Projector Ceiling Mount | Up to 22.7” Extension from Ceiling | Steel / Aluminum Bullet 1 HEIGHT ADJUSTABLE: Ceiling projector mount can be positioned at 5" from ceiling (low profile) or between 15.8" & 22.7" from ceiling (using extendable telescopic pole); Supports up to 33.3lb (15kg) Bullet 2 OPTIMUM VIEWING ANGLE: Projector ceiling mount with ball joint design offers 360° rotation & +/- 25° tilt in any direction; Accessible lock switch allows the user to single-handedly secure projector Bullet 3 THOUGHTFUL DESIGN: Projector plate/bracket has 4 arms with a universal mounting pattern of up to 12.8" (325mm) in dia. for projectors w/ 3 or 4 mounting holes; Heavy duty steel & aluminum construction Bullet 4 UNIVERSAL COMPATIBILITY: Hanging projector mount compatible w/ projectors from brands like BenQ, Acer, Optoma, Eiki, Hitachi, Sanyo, NEC, Epson, Sony, LG & Dell among others (several screw sizes incl) Bullet 5 TIDY AESTHETIC: Projector ceiling mount/hanger kit has cable management integrated into the adjustable pole | Decorative black Snap-on covers for the mounting arms keeps the projector holder organized Bullets (Compact) Heavy duty height adjustable ceiling projector mount up to 33lb/15kg - Ball joint design - Low profile mount at 5in or 15-22in from ceiling w/extendable pole - Universal projector mount kit for projectors w/3 or 4 mounting holes up to 12.8in diameter Bullets (Consolidated) Height adjustable projector mount can be positioned at 5" from ceiling (low profile) or between 15.8" and 22.7" from ceiling (using extendable pole) - Heavy duty steel and aluminum construction supports up to 33.3lb (15kg) - Ball joint design with 360DEG rotation|+/-25DEG tilt|Easy lock to secure position - Projector bracket has 4 arms up to 12.8" (325mm) in dia. for projectors w/ 3 or 4 mounting holes - Universal projector ceiling mount kit works w/ Epson/BenQ/Optoma/others - Cable management Marketing Copy Marketing Copy (No HTML) Applications - Mount a projector in classrooms, lecture halls, or hospitality venues
- Ideal for boardrooms, lobbies, meeting rooms or other business applications
Website Search Keyword - ceiling tile projector mount
- drop ceiling projector mount
- projector ceiling mount kit
- ceiling mount projector stand
- universal projector ceiling mount
- low profile projector ceiling mount
Required Regulatory Compliance Marks - Temp - N/A - Global - Used to replace duplicates or identify for removal
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - Furniture and Non-EEE
Accessory Products - MDBOXMNT
- HD2MM10MA
- HDMM2MP
- HDMM15
- HDMIMM10HS
- HDPMM25
- HDMIMM15HS
- HDMIPLATE
- ST121HDWP
- HDMI2-CABLE-4K60-6F
- HDMI2-CABLE-4K60-25F
- HDMI2-CABLE-4K60-2M
- HDMI2-CABLE-4K60-7M
Color Black & Silver Material Steel Primary Material Steel Product Length (mm) 352.200 Product Width (mm) 577.700 Product Height (mm) 352.500 Product Weight (g) 2200.000 TAA Compliant Yes General Specifications - Universal Mounting Pattern: 325 mm Diameter (12.8")
- Weight Capacity: 15kg (33.1 lb.)
- Wall Mount Arm Tilt: +/- 5°
- Lockable Ball Joint: 360° Swivel, +/- 25° Horizontal & Vertical Tilt

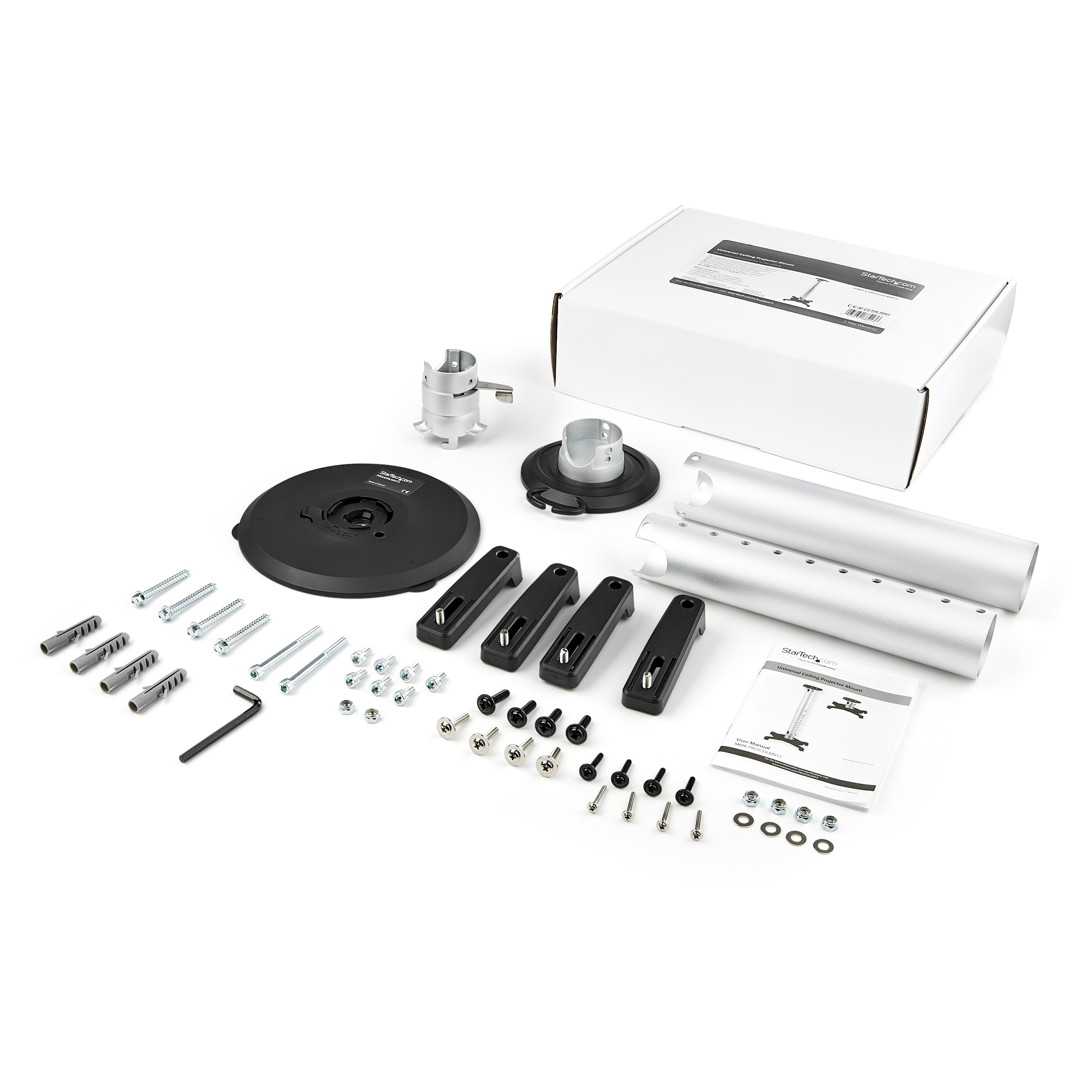

Maximum Arm Extension 705 Minimum Arm Extension 127.7 Premium Monitor Mount No Projector Mount Yes TV Weight Capacity Range up to 15 kg (33.1 lb.) Mounting Options Ceiling Mount Carton Depth (mm) 565 Carton Height (mm) 423 Carton Quantity 8 Carton Weight Gross (g) 19774 Included in Package - 1 - Ceiling Bracket
- 1 - Projector Plate
- 1 - Projector Plate Cover
- 1 - Upper Pole
- 1 - Lower Pole
- 1 - Ball Joint Mechanism
- 4 - Wall Anchors
- 4 - Mounting Screws
- 4 - Mounting Arms
- 4 - Mounting Arm Covers
- 1 - 5mm Hex Key
- 7 - M6 X 12 mm Screws
- 4 - M3 x 24 mm Screws
- 4 - M4 x 24 mm Screws
- 4 - M5 x 24 mm Screws
- 4 - Washers
- 6 - Nuts
- 2 - M6 x 65 mm Screws
- 4 - M6 x 24 Screws
- 1 - User Manual
Included In Package for Label - 1 - Ceiling Bracket
- 1 - Projector Plate
- 1 - Projector Plate Cover
- 1 - Poles
- 1 - Ball Joint Mechanism
- 1 - Hardware Kit
- 1 - Manual
Package Depth (mm) 351 Package Height (mm) 100 Package Width (mm) 272 Package Quantity 1 Package Weight (g) 2336 Packaging Description Universal Ceiling Projector Mount Packaging Description India Universal Ceiling Projector Mount Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Amazon Merchandising Manager Kristian Haighton Artwork Due Date 2019-10-17 Buying Center - AV & Collaboration Yes Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge No Digital Content Due Date 2019-11-01 Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,CO,DE,DK,ES,EU,FI,FR,IE,IN,IT,JP,MX,NL,NZ,PE,SE,SG,UK,US Primary Technology None Priority New Product N/A Product Development Specialist Anthony Slater Product Information Creation Specialist (PICS) Alex Garcia Product Manager Tony Parackal Product Performance Specialist Aaron Bens Product Photographer Alejandra Valencia Target Development Completion Date 2019-09-27 Target Production Release 2019-10-17 Tech Lead Justin Weaver Technical Writer Evan Hanbidge Technology Lifecycle Mainstream Vending Machine Not Compatible with Vending Machine
