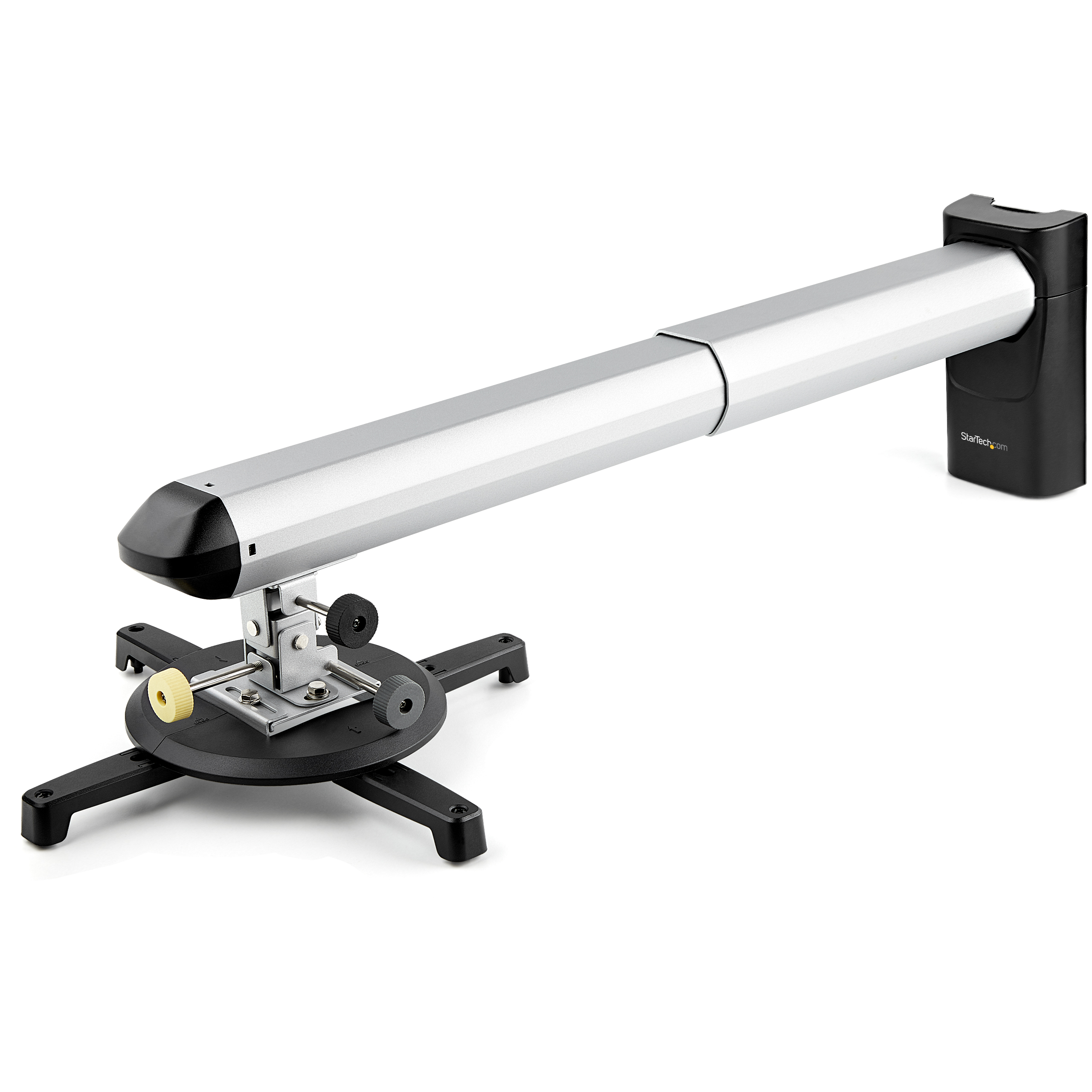

Main Image
PROJWALLMNT
Universal Projector Wall Mount
Adjustable Projector Mount | Up to 27.7” Extension from Wall | Steel / Aluminum
Main Image

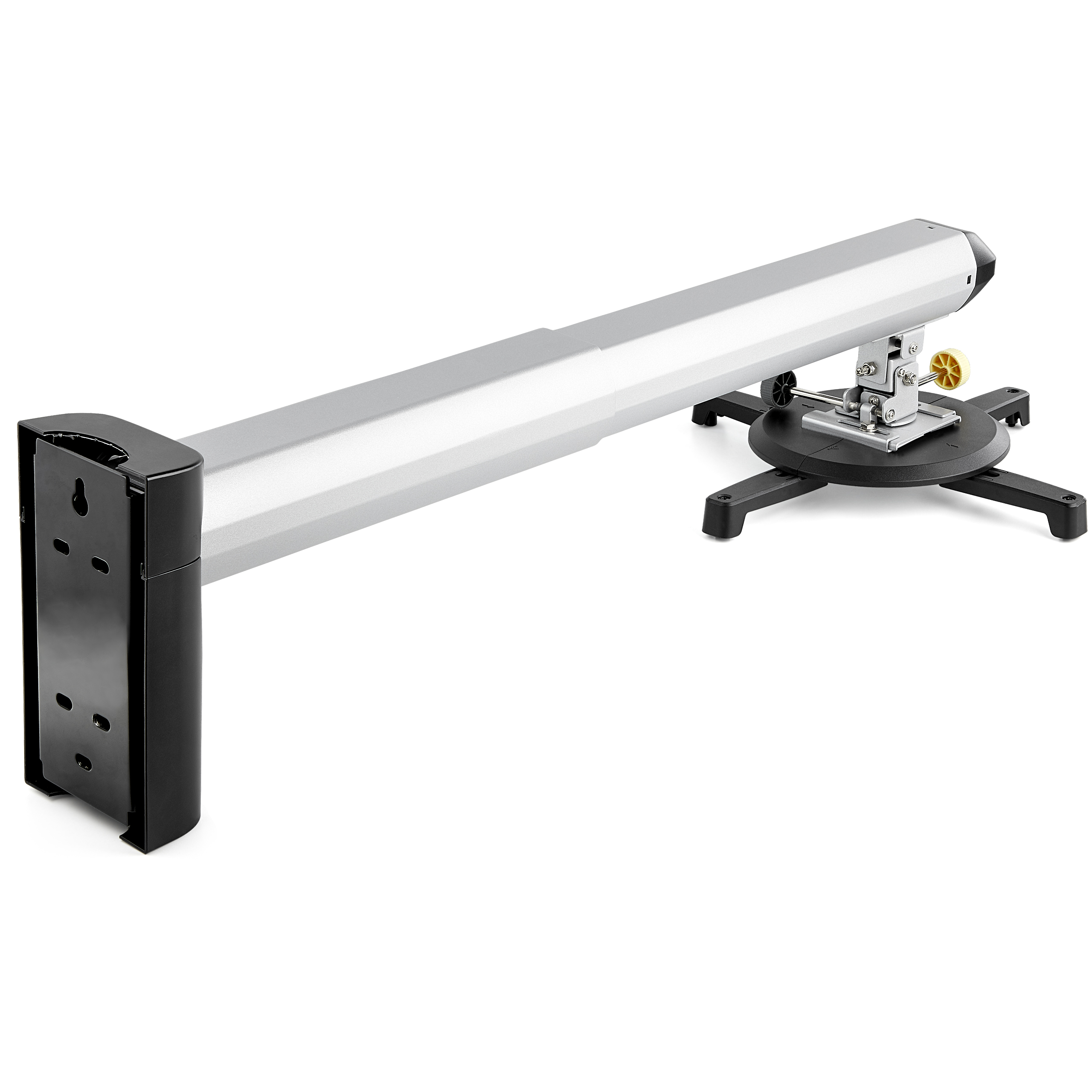

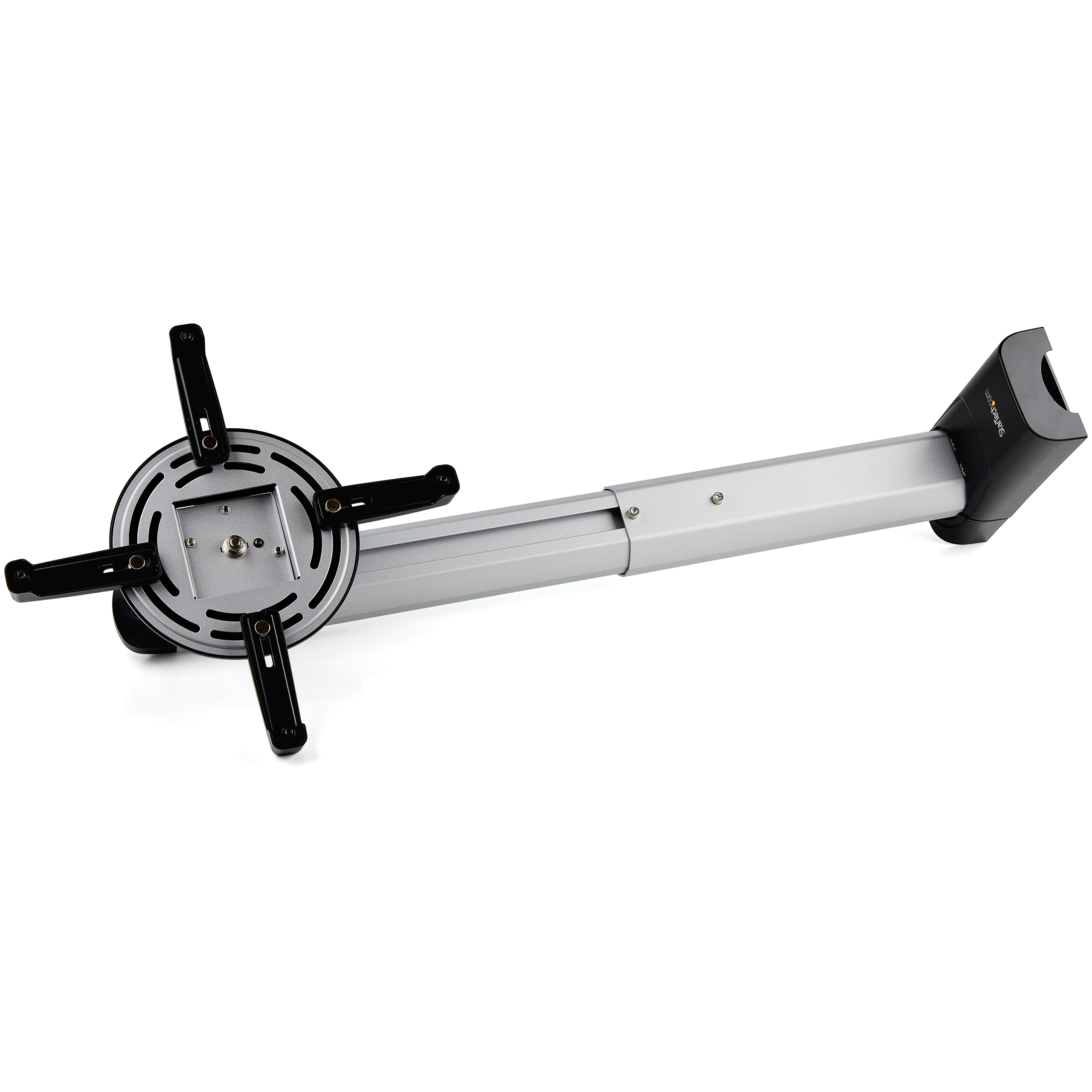

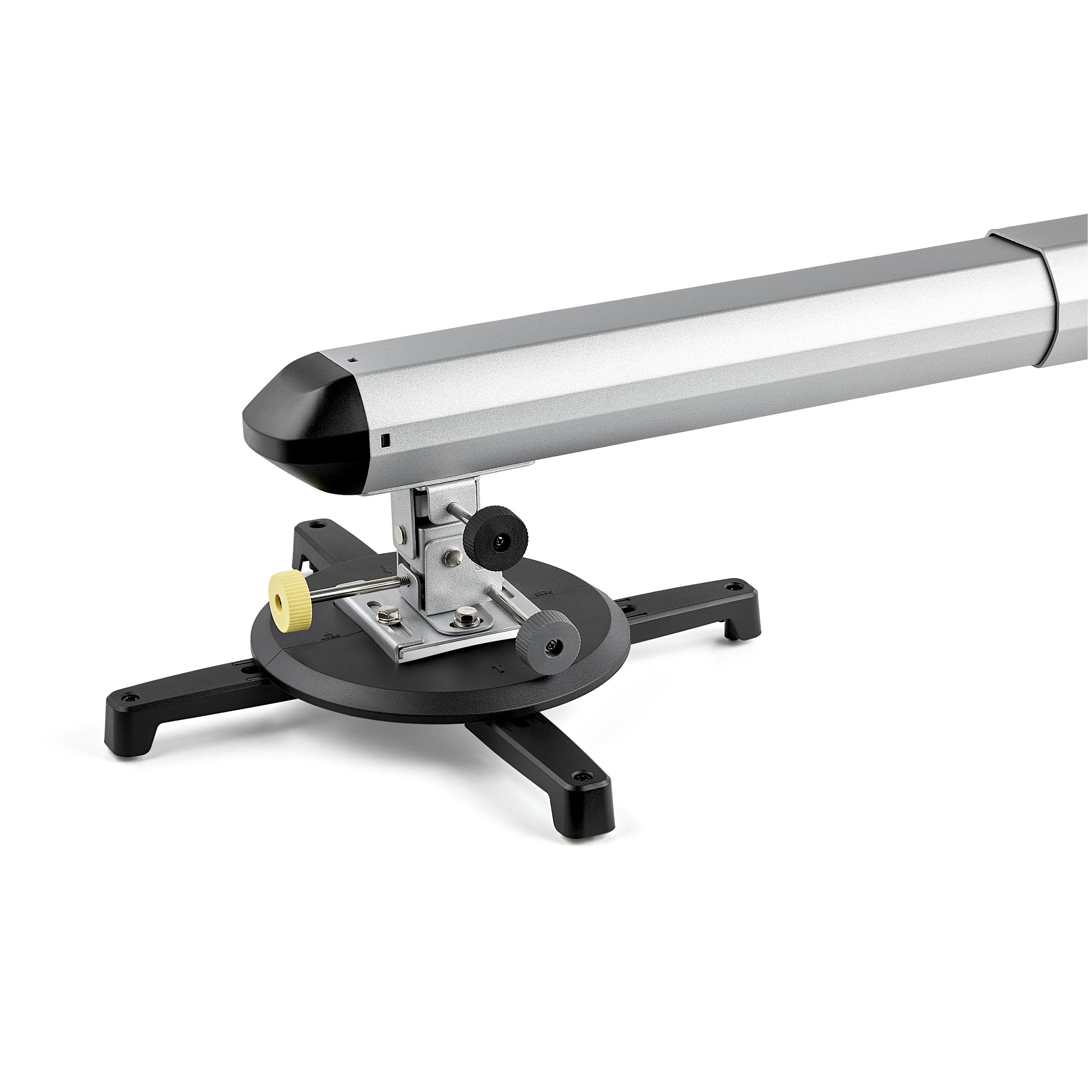

Product Images
Product Images
Product Images

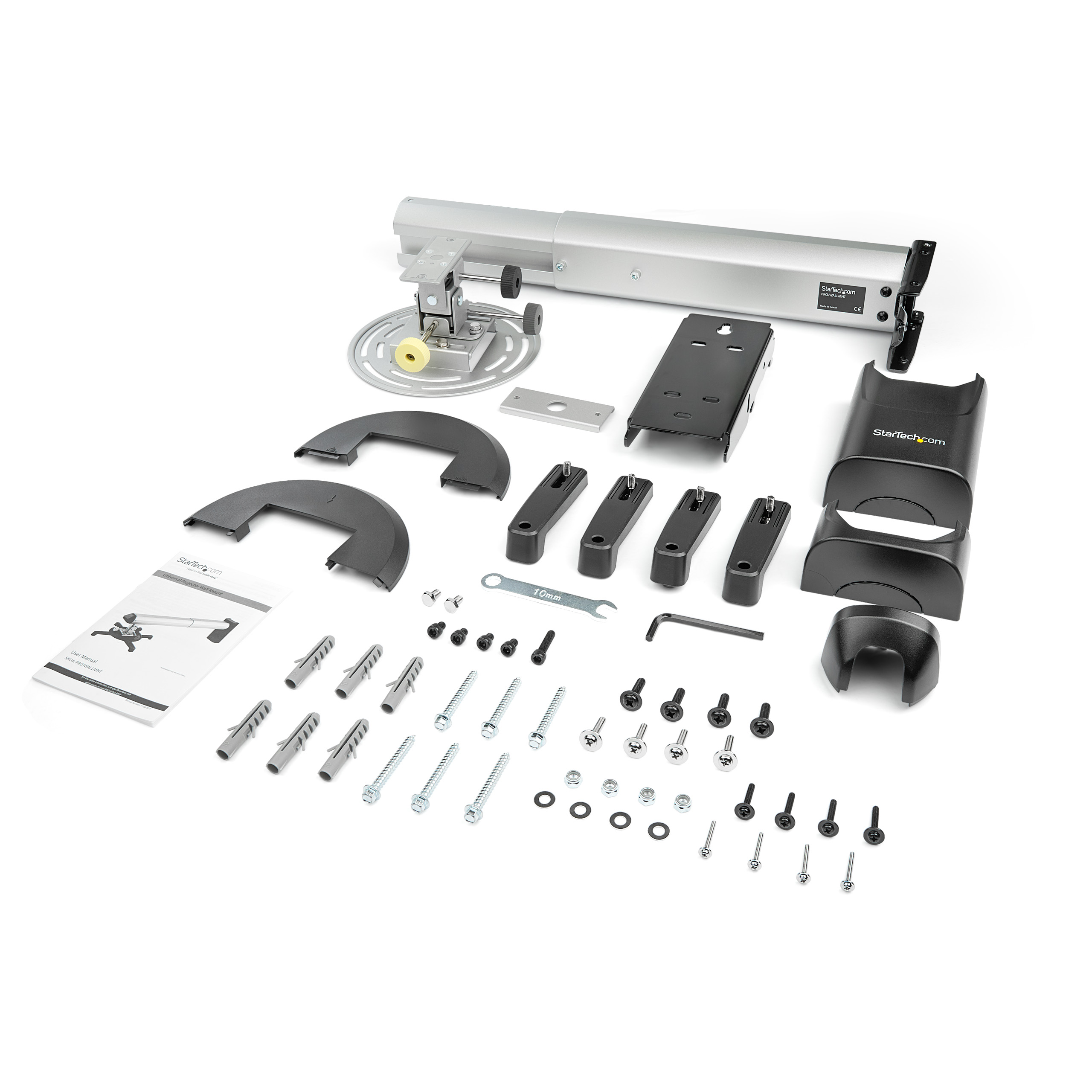

BOM Image
Product Name Universal Projector Wall Mount Product Number PROJWALLMNT UPC 065030884143 Lifecycle status Active Warranty 2 Years Taxonomy Product > Mechanical Products > Projector Mounts Category Level 1 Display Mounts Category Level 2 TV Mounts Category Level 3 Display Wall Mounts Family Projector Wall Mount Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX036X Product Title (Ultra-Short) Projector Wall Mount Product Title (Short) Adjustable Projector Wall Mount - 33lb Product Title (Medium) Projector Wall Mount - Universal - Short Throw - Up to 27.7in. Extension Product Title (Standard) Universal Projector Wall Mount, Short/Ultra Short Throw, Adjustable 16.5-27.7" From Wall, 33lb/15kg, Tilt/Swivel/Rotate, TAA Product Title (Long) Universal Projector Wall Mount - Projector Mount supports Short & Ultra Short Throw Projectors up to 33lb (15kg) - Tilt/Swivel/Rotate - Adjustable 16.5" to 27.7" from Wall - TAA Product Title (AMZ) Universal Projector Wall Mount - Projector Mount supports Short & Ultra Short Throw Projectors up to 33lb (15kg) - Tilt/Swivel/Rotate - Adjustable 16.5" to 27.7" from Wall , TAA Title Ingram (Part 1) Projector Wall Mount Title Ingram (Part 2) - Universal - Short Throw Website Product Headline Adjustable Projector Mount | Up to 27.7” Extension from Wall | Steel / Aluminum Bullet 1 UNIVERSAL PROJECTOR WALL MOUNT: Supports short throw & ultra-short throw projectors w/ mounting hole pattern ranging up to 12.8" (325mm) in diameter; supports projectors up to 33.1lb (15kg) Bullet 2 ADJUSTABLE PROJECTOR MOUNT: Supports both short and ultra short throw projectors; The arm allows you to position a projector between 16.5" & 27.7" from the wall (w/ incl tools) to adjust throw ratio Bullet 3 PRECISE ADJUSTABILITY: Easily optimize projector placement with 3 color coded dials for +/-10° swivel, +/-5° tilt (pitch), +/-10° rotate (roll); +/-20mm lateral shift; Secure adjustment w/ incl wrench Bullet 4 BRAND COMPATIBILITY: Projector wall mount compatible w/ projectors from brands like BenQ, Acer, Optoma, Eiki, Hitachi, Sanyo, NEC, Epson, Sony, LG & Dell among others (several screw sizes incl) Bullet 5 THOUGHTFUL DESIGN: Heavy duty steel & aluminum construction, this wall projector mount/holder kit supports in-wall cable routing & integrated cable management; Includes decorative snap-on covers Bullets (Compact) Universal projector wall mount kit (short/ultra-short throw) supports up to 33lb - Dials for precise adjustability | Projector mount with extendable arm (16.5 to 27.7in from wall) - For projectors w/ 3 or 4 mounting hole patterns (up to 12.8in dia.) Bullets (Consolidated) Universal short/ultra short throw projector wall mount for up to 33.1lb | For mounting hole patterns up to 12.8" (325mm) in dia. - Dials for +/-10DEG swivel +/-5DEG tilt (pitch) +/-10DEG rotate (roll) | +/-20mm lateral shift | Secure position w/ incl wrench - Adjust throw ratio with extendable arm | Adjustable 16.5" to 27.7" from the wall - Universal projector mount kit works w/ Epson/BenQ/Optoma/etc. | Supports 3-4 mounting holes - Cable management | Decorative covers | Steel and aluminum build Marketing Copy Marketing Copy (No HTML) Applications - Mount a short throw projector in classrooms, lecture halls, or hospitality venues
- Ideal for boardrooms, lobbies, meeting rooms or other business applications
Website Search Keyword - Projector wall mount kit
- Projector arm mount
- Universal short throw projector wall mount
- Adjustable projector wall mount
- Universal projector wall mount
- Low profile wall mount
- Swing arm projector mount
- Projector wall mount arm
Required Regulatory Compliance Marks - Temp - N/A - Global - Used to replace duplicates or identify for removal
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - Furniture and Non-EEE
Accessory Products - MDBOXMNT
- HD2MM10MA
- HDMM2MP
- HDMM15
- HDMIMM10HS
- HDPMM25
- HDMIMM15HS
- HDMIPLATE
- ST121HDWP
- HDMI2-CABLE-4K60-6F
- HDMI2-CABLE-4K60-25F
- HDMI2-CABLE-4K60-2M
- HDMI2-CABLE-4K60-7M
Color Black & Silver Humidity 40~60% RH Material Steel Operating Temperature 0°C to 40°C (32°F to 104°F) Primary Material Steel Product Length (mm) 735.000 Product Width (mm) 180.000 Product Height (mm) 195.000 Product Weight (g) 3414.000 Storage Temperature -20°C to 60°C (-4°F to 140°F) TAA Compliant Yes General Specifications - Supports Short-Throw Ratio: 0.4:1
- Universal Mounting Pattern: 325 mm Diameter (12.8")
- Weight Capacity: 15kg (33.1 lb.)
- Wall Mount Arm Tilt: +/- 5°
Maximum Arm Extension 705 Minimum Arm Extension 420 Premium Monitor Mount No Projector Mount Yes TV Weight Capacity Range up to 15 kg (33.1 lb.) Mounting Options Wall-Mount Carton Depth (mm) 285 Carton Height (mm) 145 Carton Quantity 1 Carton Weight Gross (g) 4386 Included in Package - 1 - Wall Bracket
- 1 - Projector Pole
- 1 - Upper, Decorative Wall Cover
- 1 - Lower, Decorative Wall Cover
- 1 - Adjustment Module
- 1 - Right, Adjustment Module Cover
- 1 - Left, Adjustment Module Cover
- 1 - Pole End Cap
- 6 - Wall Anchors
- 4 - M3 x 24 mm Screws
- 4 - M4 x 24 mm Screws
- 4 - M5 x 24 mm Screws
- 1 - M6 x 24 mm Screws
- 4 - M6 x 8 mm Hex Screws
- 1 - M6 x 25 mm Hex Screw
- 4 - M6 Nylon Insert Hex Lock Nuts
- 1 - User Manual
- 2 - M6 x 10 mm Screws
- 1 - Wrench (10mm)
- 6 - Mounting Screws
- 4 - Washers
- 4 - Mounting Arm Covers
- 1 - Hinge Connector
- 1 - 5 mm Hex Key
- 4 - Mounting Arms
Included In Package for Label - 1 - Wall Bracket
- 1 - Projector Pole
- 1 - Pole End Cap
- 1 - Covers
- 1 - Adjustment Module
- 4 - Mounting Arms
- 1 - Hardware Kit
- 1 - Manual
Package Depth (mm) 575 Package Height (mm) 150 Package Width (mm) 290 Package Quantity 1 Package Weight (g) 4372 Packaging Description Universal Projector Wall Mount Packaging Description India Universal Projector Wall Mount Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Amazon Merchandising Manager Kristian Haighton Artwork Due Date 2019-10-24 Buying Center - AV & Collaboration Yes Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge No Digital Content Due Date 2019-11-01 Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett ID Label Silkscreened or a Label Silkscreened label - requires dieline showing location Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,CO,DE,DK,ES,EU,FI,FR,IE,IN,IT,JP,NL,NZ,PE,SE,SG,UK,US Primary Technology None Priority New Product N/A Product Development Specialist Anthony Slater Product Information Creation Specialist (PICS) Alex Garcia Product Manager Tony Parackal Product Performance Specialist Aaron Bens Product Photographer Alejandra Valencia Target Development Completion Date 2019-09-27 Target Production Release 2019-10-24 Tech Lead Justin Weaver Technical Writer Evan Hanbidge Technology Lifecycle Mainstream Vending Machine Not Compatible with Vending Machine
