Main Image
PS2POWER230

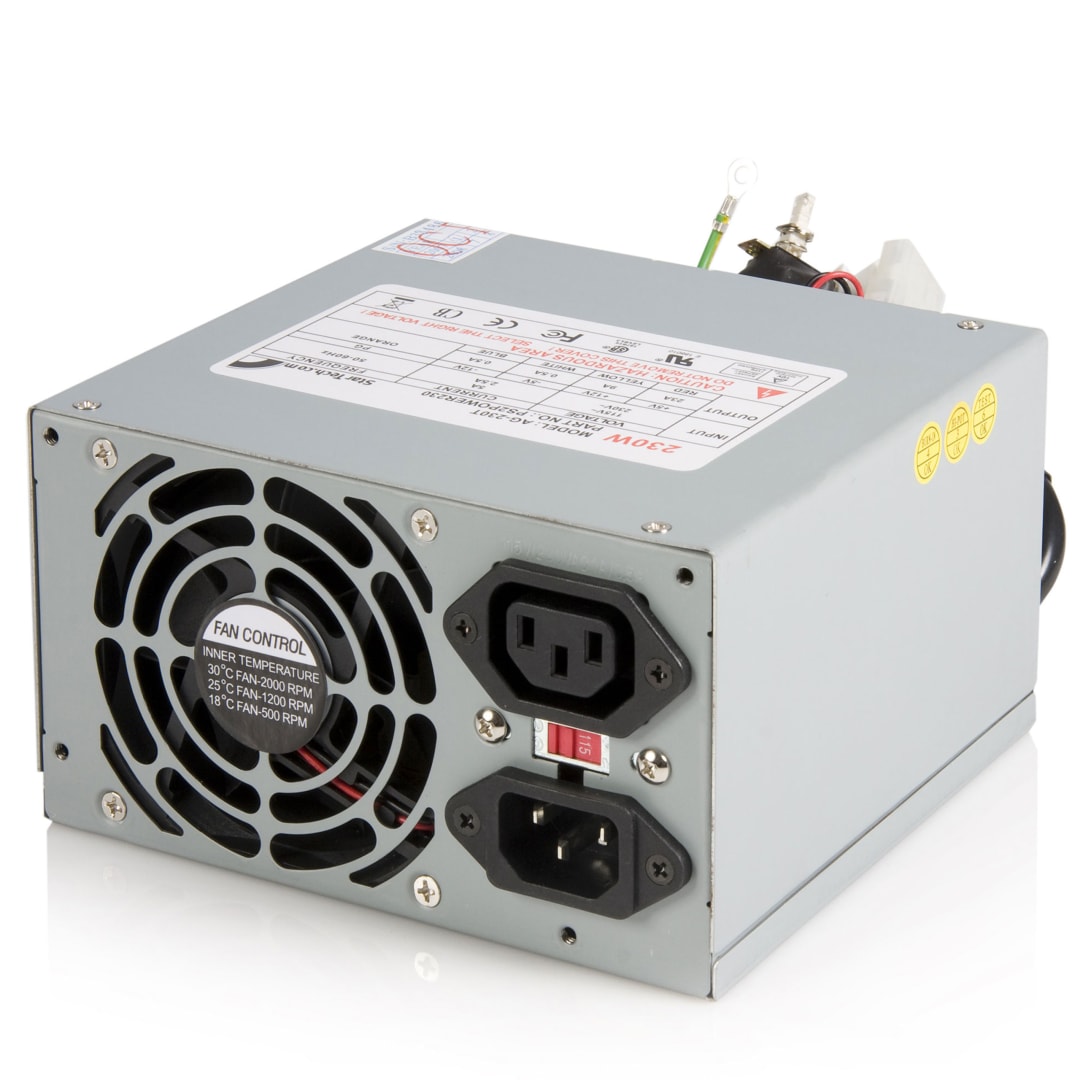

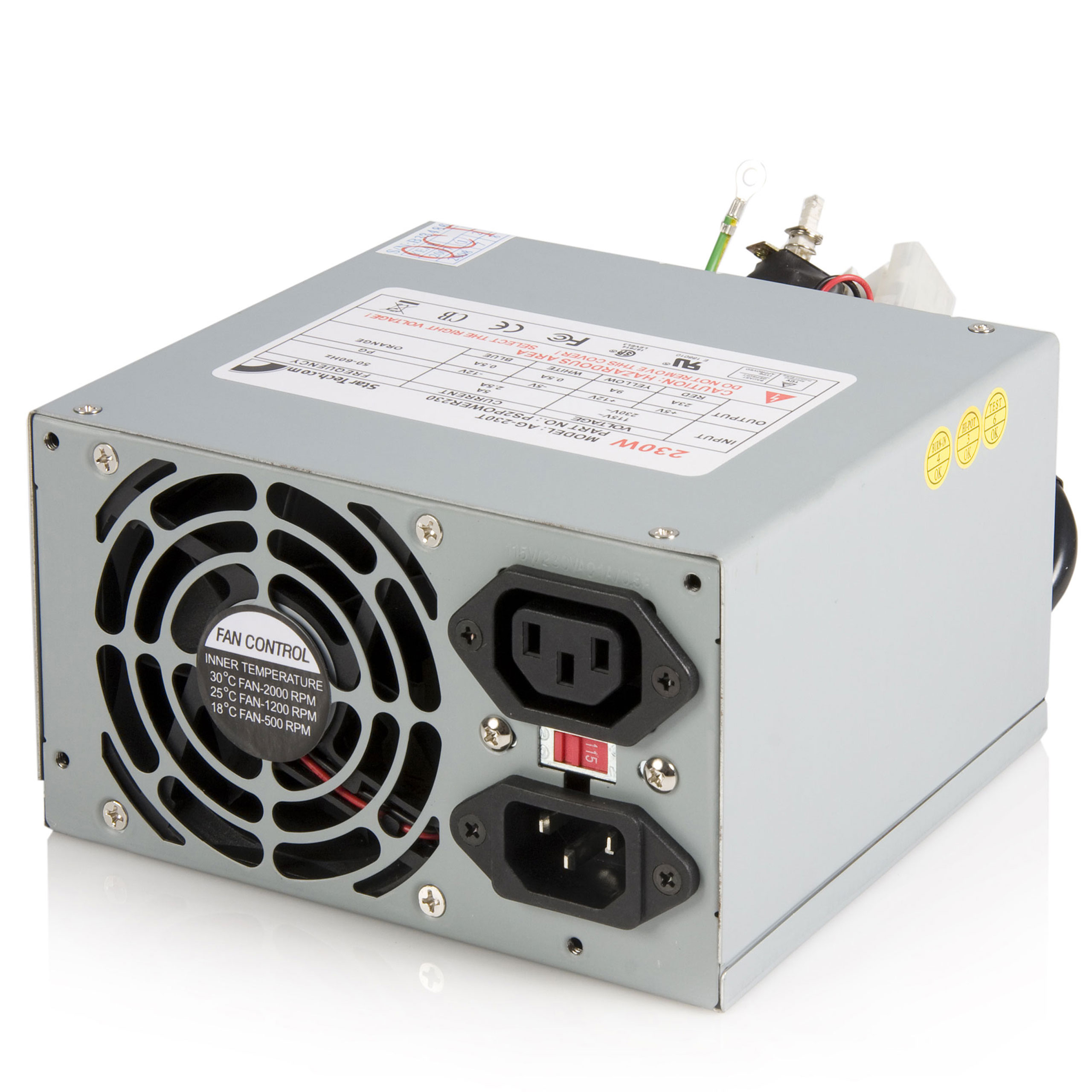

230 Watt Replacement AT Power Supply
Replace or upgrade to a 230W power supply for a standard AT computer
Main Image
Product Images
Product Images
BOM Image
Product Name 230 Watt Replacement AT Power Supply Product Number PS2POWER230 UPC 065030786218 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Computer Cards and Adapters Category Level 2 Components, Tools and Accessories Category Level 3 Power Supplies Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX097X Product Title (Short) 230W PS2 AT Computer Power Supply Product Title (Standard) StarTech.com Computer Power supply ( internal ) - PS/2 - AT - AC 115/230 V - 230 Watt - 7 output connector(s) Product Title (Long) 230 Watt Replacement PC Computer PS2 AT Power Supply Product Title (AMZ) 230 Watt Replacement PC Computer PS2 AT Power Supply (PS2POWER230) Title Ingram (Part 1) 230 Watt PS2 AT Replacement Computer Title Ingram (Part 2) PC Power Supply Website Product Headline Replace or upgrade to a 230W power supply for a standard AT computer Bullet 1 Provides a maximum output power of 230 watts Bullet 2 High-Flow fan provides efficient cooling for the system and power supply Bullet 3 High quality connectors provide minimal resistance and enhanced electric conductivity Bullet 4 Premium EMI/RFI power filtration system provides low noise/ripple for super clean and stable power to all system components Bullet 5 2 years warranty Bullets (Consolidated) Replace or upgrade to a 230W power supply for a standard AT computer - Works with standard ATX computers to power your motherboard and peripherals such as Blu-ray, DVD or CD ROM drives, hard drives (HDD) and solid state drives (SSDs) - Compatibility with Intel Pentium and AMD K6 processors - ATX power supply/230W power supply/ATX 230 Watt - Designed and built with high performance components and power connectors to maximize system performance and durability - StarTech.com 2-year warranty Marketing Copy Applications Essential power module for replacing your older or non-functional power supply Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- UL Recognized - Safety - Electrical - Canada / United States - cURus Recognised Component Mark
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
Accessory Products - IPLEXT
- PYO2L
- PYO2S
- PYO2SL
- PXT101
- PAC100
- PXT100

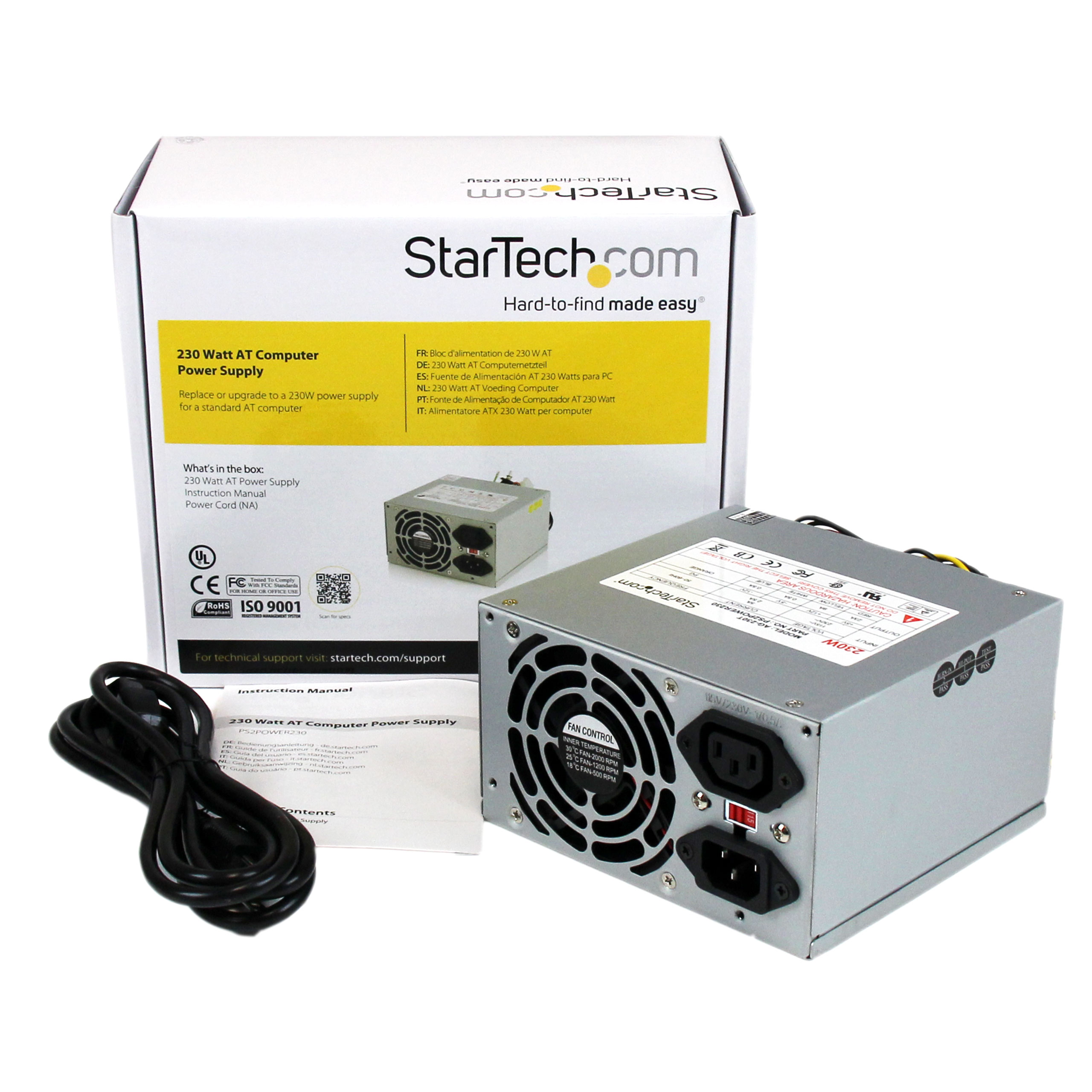

Input Current 5-2 Input Voltage 115~230 Power Source Standard 120V Power Cords Product Length (mm) 150 Product Width (mm) 149 Product Height (mm) 85 Product Weight (g) 1560 TAA Compliant No Air Flow Rate 32.3 CFM General Specifications : 1 pair of LED display power connectors MTBF (hours) 40,000 Hrs Noise Level 27.4 dBa RPM 2000 RPM +/-10% Fan Bearing Type Sleeve Bearing Fans 1 - 80 mm Carton Depth (mm) 262 Carton Height (mm) 352 Carton Quantity 10 Carton Weight Gross (g) 17700 Included in Package - 1 - 230 Watt AT Power Supply
- 1 - Power Cord (NA)
- 1 - Instruction Manual
Package Depth (mm) 95 Package Height (mm) 164 Package Width (mm) 237 Package Quantity 1 Package Weight (g) 1650 Packaging Description 230 Watt AT Computer Power Supply Packaging Description India 230 Watt AT Computer Power Supply Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 LP4 / Molex Power (4-Pin, 5V / 12V) Connector 1 (Quantity) 4 Connector 2 SP4 / Floppy Power (4-Pin, 5V / 12V) Connector 2 (Quantity) 2 Connector 3 AT Power (6-Pin+ 6-Pin, 5V / 12V / -5V / -12V) Connector 3 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2014-06-18 Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) CA,US Primary Technology None Product Information Creation Specialist (PICS) Alex Garcia Product Manager Natalie Goodale Product Performance Specialist Aaron Bens Product Photographer Alejandra Valencia Tech Lead Brian Linseman Technical Writer Andrew Richardson Technology Lifecycle Legacy
