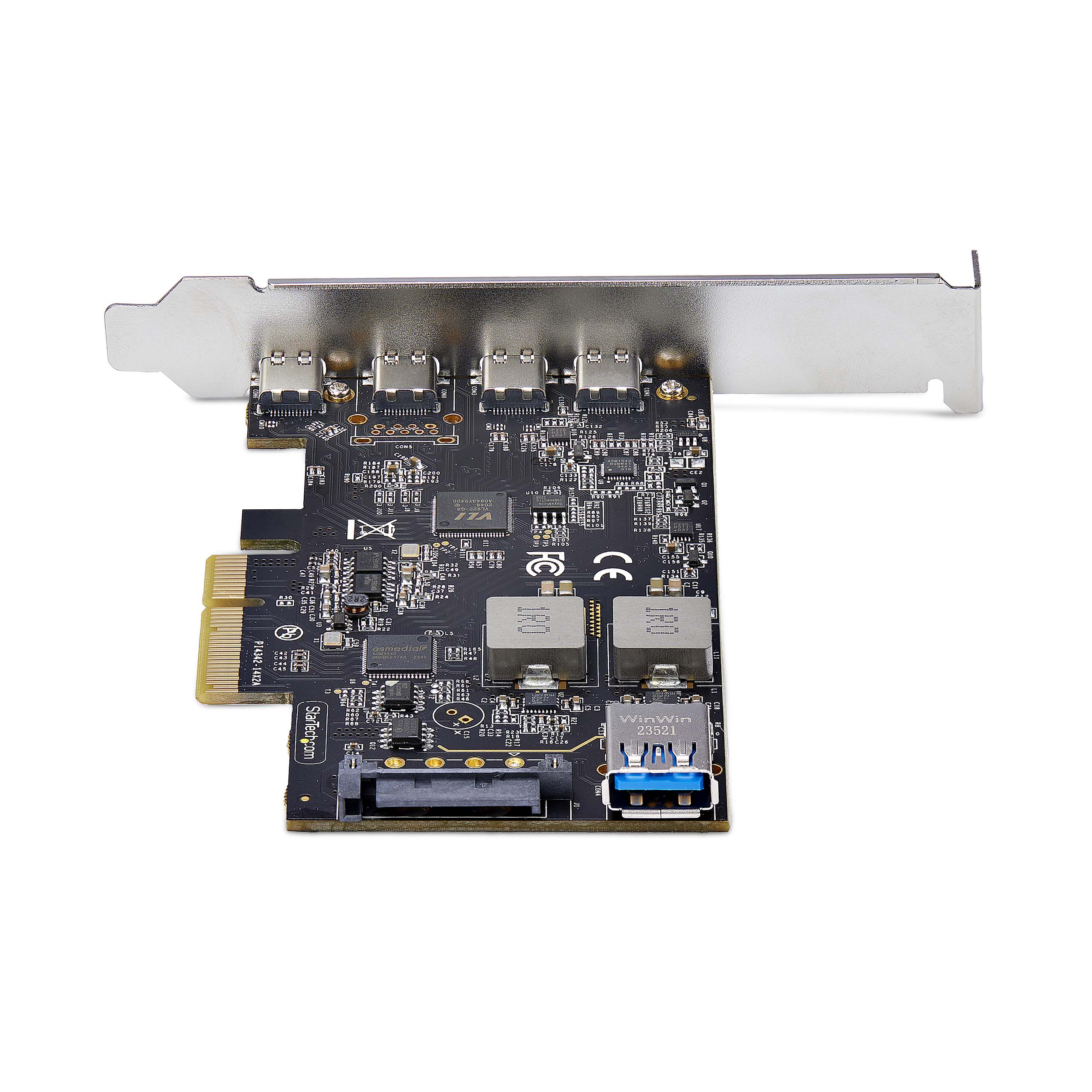

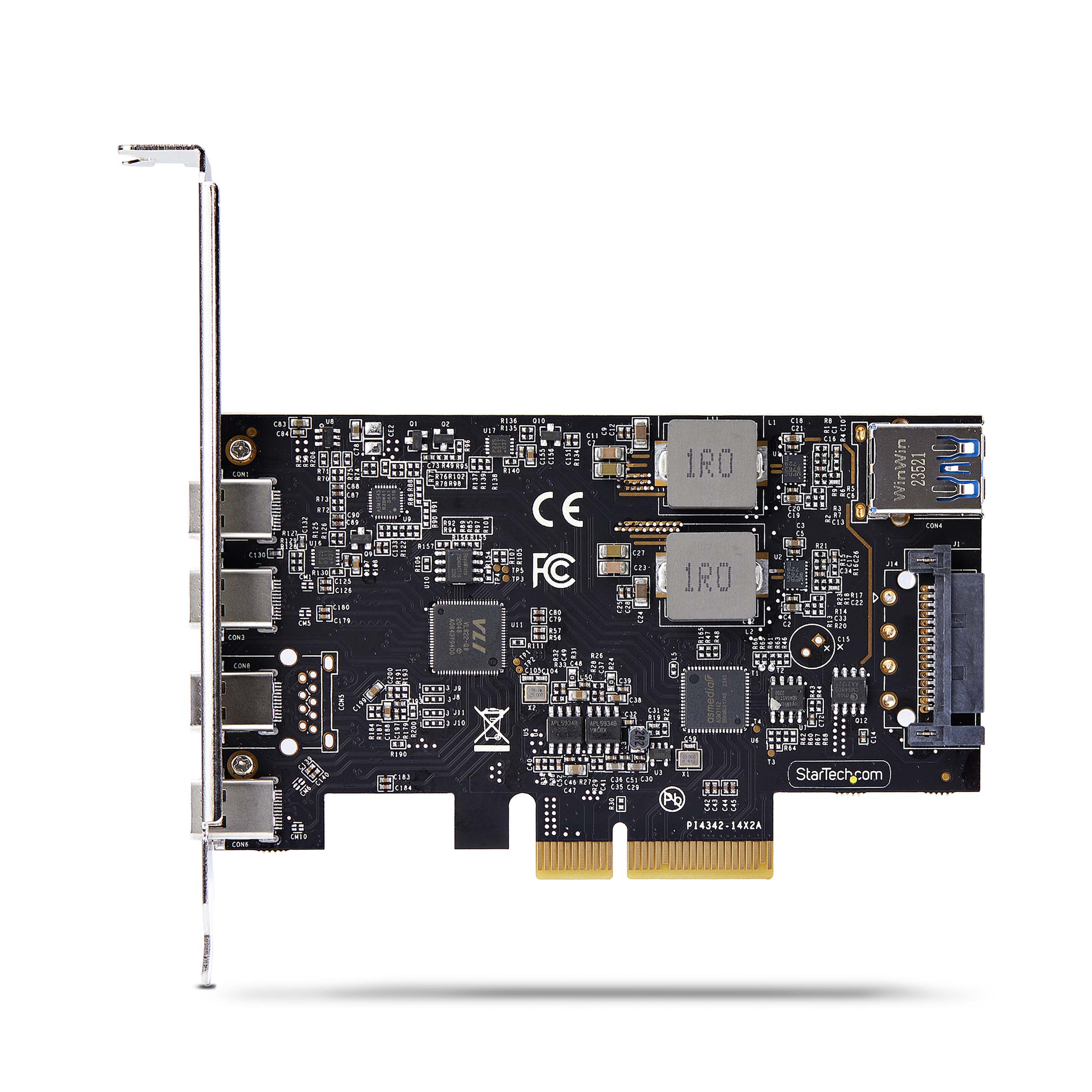

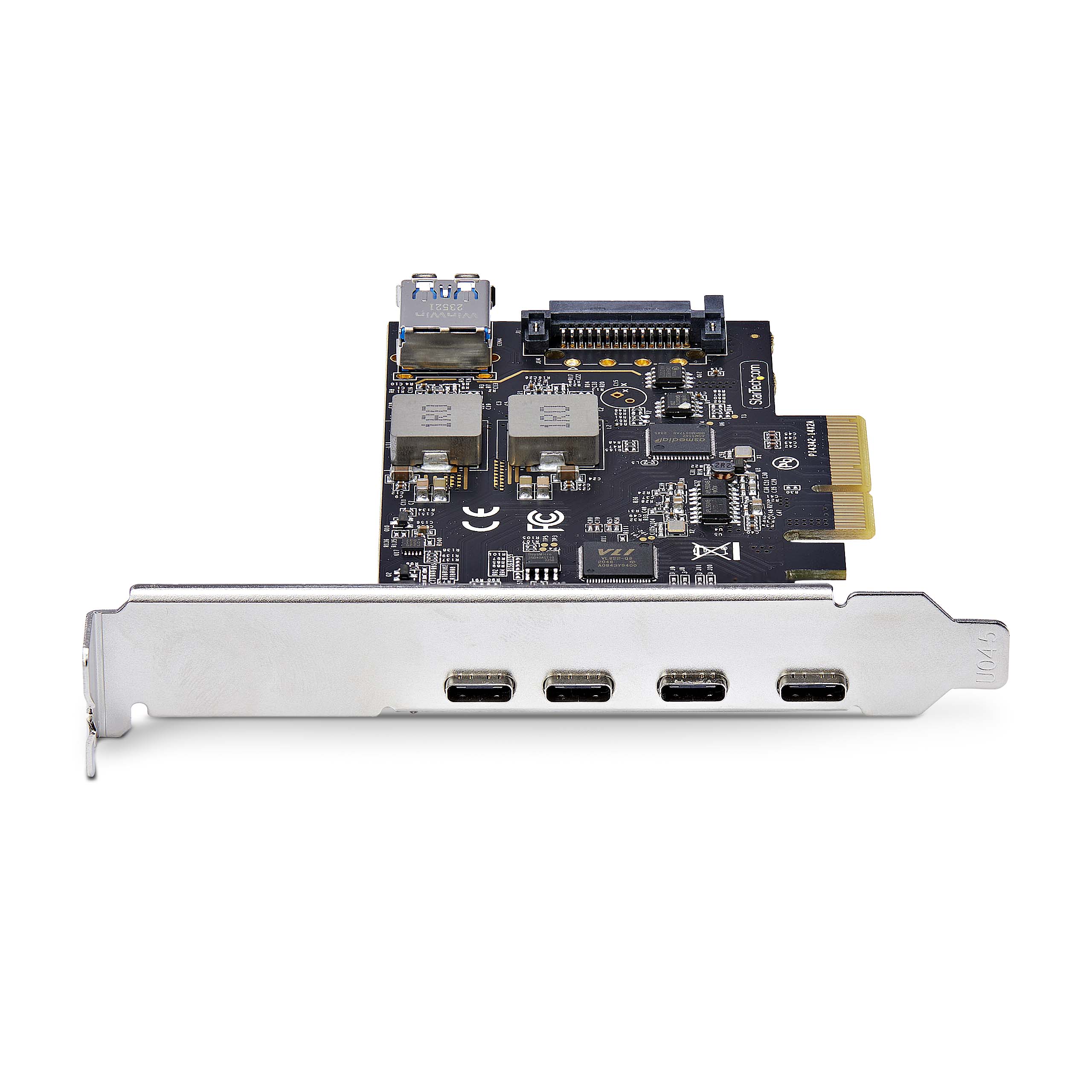

PS4C3IA3-USB-C-CARD

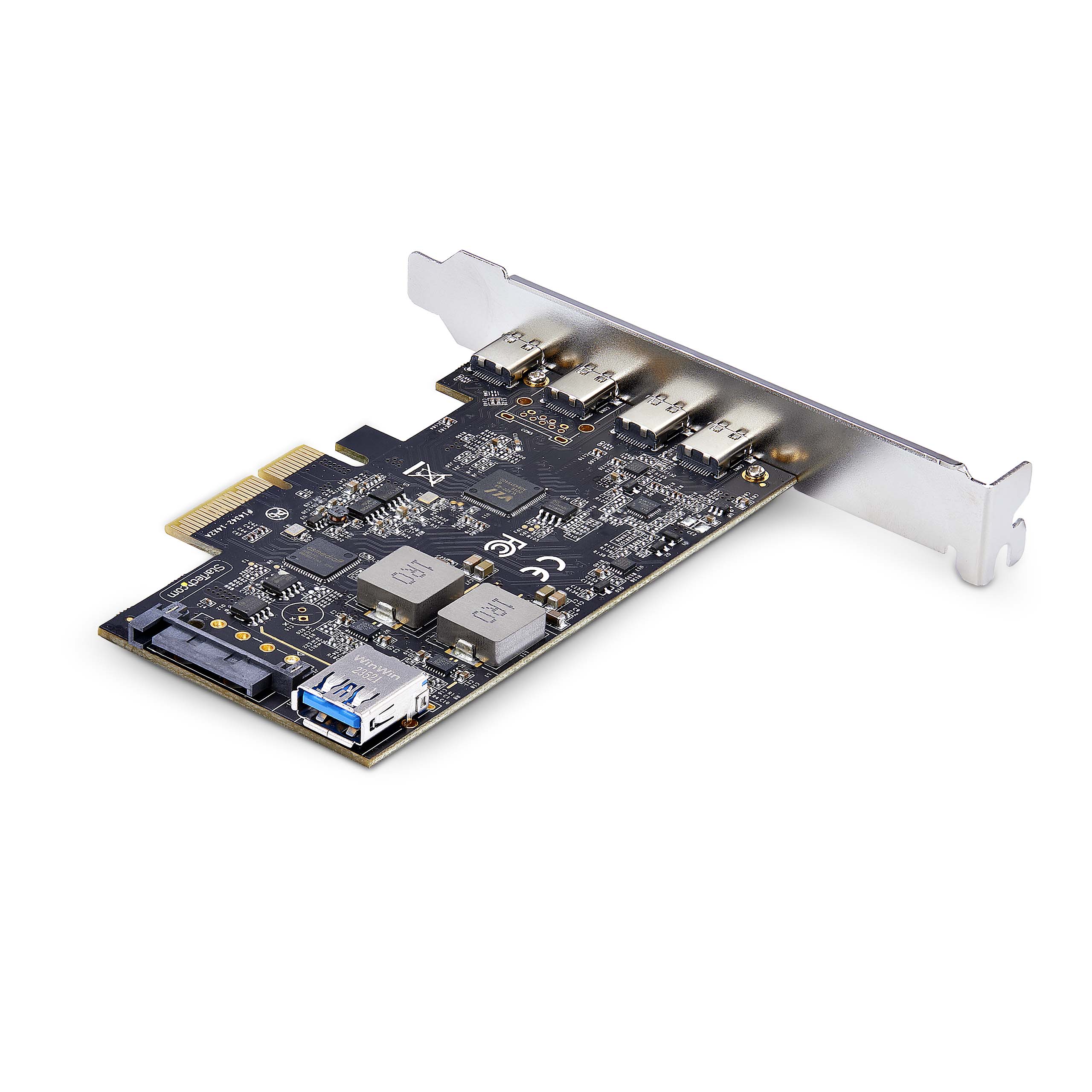

5-Port 4x USB-C and 1x Internal USB-A 10Gbps PCIe USB Card

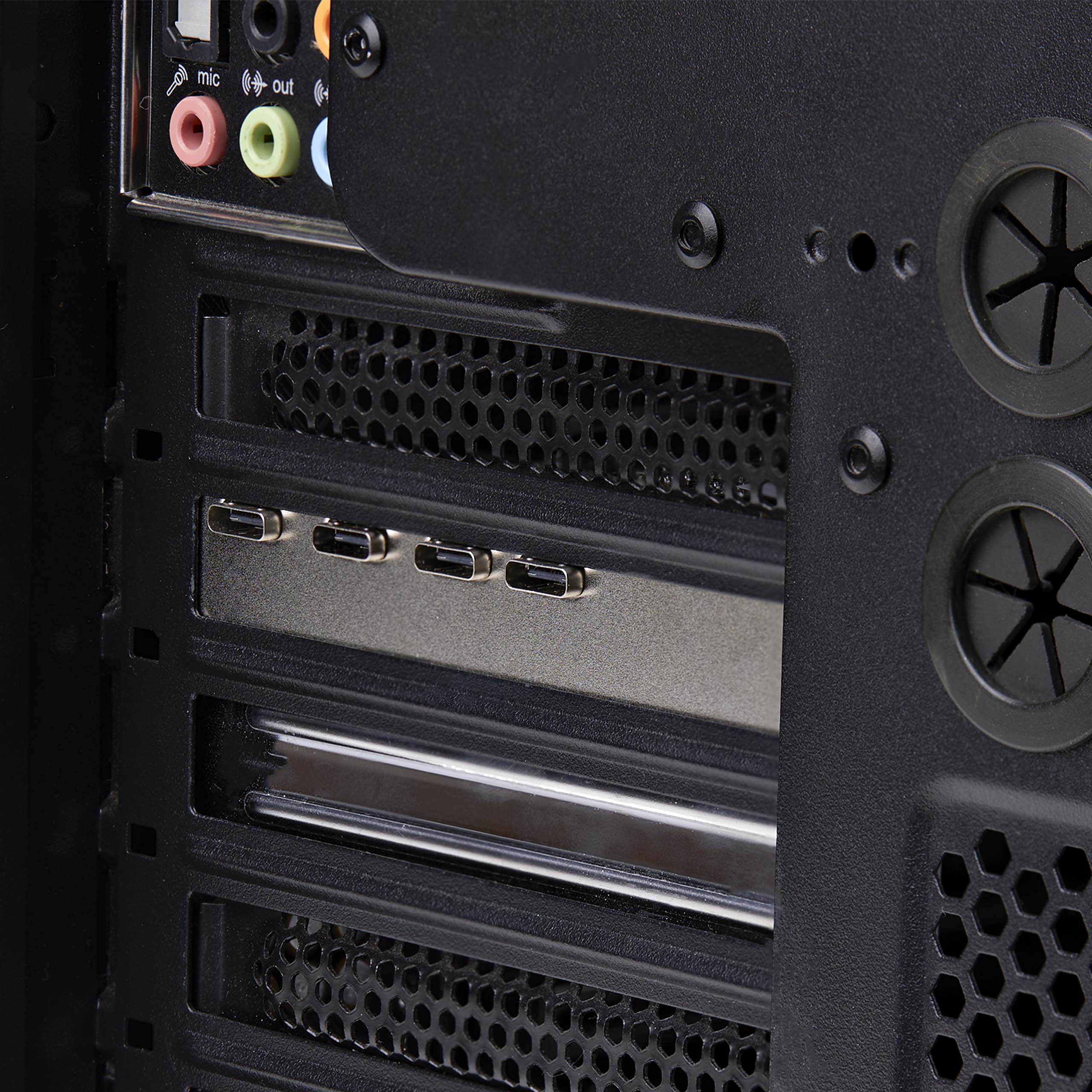

Add four USB Type-C (USB 3.2 Gen 2 10Gbps) ports to a PCIe host computer, plus an internal USB Type-A (10Gbps) port
Main Image
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Quick-Start Guide
Product Name 5-Port 4x USB-C and 1x Internal USB-A 10Gbps PCIe USB Card Product Number PS4C3IA3-USB-C-CARD UPC 065030909174 Lifecycle status Active Warranty 2 Years Weighted Opportunity 77110 Taxonomy Product > Cards & Adapters > USB Cards Category Level 1 Computer Cards and Adapters Category Level 2 USB Cards and Extenders Category Level 3 USB-C Cards - 10Gbps Family USB-C Cards - 10Gbps - PCIe Country of Origin Europe & Japan Malaysia Country of Origin North America Malaysia Country of Origin History (1) Malaysia Country of Origin Revision (1) XXXXXX156X Product Title (Ultra-Short) 5-Port USB PCIe Card Product Title (Short) 5-Port USB PCIe Card, 10Gbps Product Title (Medium) 5-Port USB PCIe Card, USB 3.2 10Gbps, PCI Express Card with 4x USB-C/1x USB-A Product Title (Standard) 5-Port USB PCIe Card, USB 3.2 10Gbps, PCI Express Card with 4x USB-C Ports, 1x USB-A Internal Port Product Title (Long) 5-Port USB PCIe Card, USB 3.2 10Gbps, PCI Express Card with 4x USB-C Ports, 1x USB-A Internal Port, USB PCIe Controller Card, Windows/macOS/Linux Product Title (AMZ) 5-Port USB PCIe Card, USB 3.2 10Gbps, PCI Express Card with 4x USB-C Ports, 1x USB-A Internal Port Title Ingram (Part 1) 5-Port USB PCIe Card, 10Gbps - Title Ingram (Part 2) 4x USB-C/1x USB-A Expansion Card Website Product Headline Add four USB Type-C (USB 3.2 Gen 2 10Gbps) ports to a PCIe host computer, plus an internal USB Type-A (10Gbps) port Bullet 1 HIGH-PERFORMANCE USB CARD: Upgrade or expand a desktop/server's USB connectivity by adding four external USB Type-C 10Gbps ports and one internal USB Type-A 10Gbps port via a single PCI Express x4 connection Bullet 2 FAST DATA TRANSFER: ASM3142 controller supports USB 3.2 transfer speeds of up to 10Gbps; Ideal for transferring large files or editing high-resolution photos/videos on external storage devices Bullet 3 OPTIONAL POWER: USB PCIe expansion card with SATA power supplies additional power to the USB ports (when motherboard power is insufficient), providing up to 5V 3A (15W) per USB Type-C port and 5V 1.5A (7.5W) on the USB Type-A port Bullet 4 COMPATIBILITY: Drivers auto-install in most OS's including Windows 8 & up, macOS, and Linux; Works with all hardware platforms such as Intel, AMD, and Apple Silicon that have a PCI Express x4/x8/x16 slot; Does not support DP-Alt Mode/USB Power Delivery Bullet 5 STANDARD & LOW PROFILE BRACKET: PCI Express USB Expansion Card comes with a pre-installed standard profile bracket and includes a low-profile bracket for compatibility with small form factor (SFF) desktops and servers Bullets (Compact) Upgrade or expand a desktop/server's USB connectivity by adding 4x external USB-C ports and 1x internal USB-A port; ASM3142 controller supports up to 10Gbps across all 5 ports; PCIe 3.0 x4; Works with Windows/macOS/Linux and Intel/AMD/Apple Silicon Bullets (Consolidated) - Upgrade or expand a desktop/server's USB connectivity by adding 4x external USB Type-C 10Gbps ports and 1x internal USB Type-A port - ASM3142 controller supports up to 10Gbps across all 5 ports - Up to 5V 3A (15W) per USB Type-C port and 5V 1.5A (7.5W) on the USB Type-A port - USB Expansion Card works with Windows/macOS/Linux; Compatible with all hardware platforms such as Intel/AMD/Apple Silicon - PCI Express 3.0 x4; Standard profile bracket pre-installed; Low-profile bracket included Marketing Copy Marketing Copy (No HTML) Applications - Upgrade an older PCIe-equipped desktop to USB 10Gbps with 4x USB Type-C and 1x USB Type-A

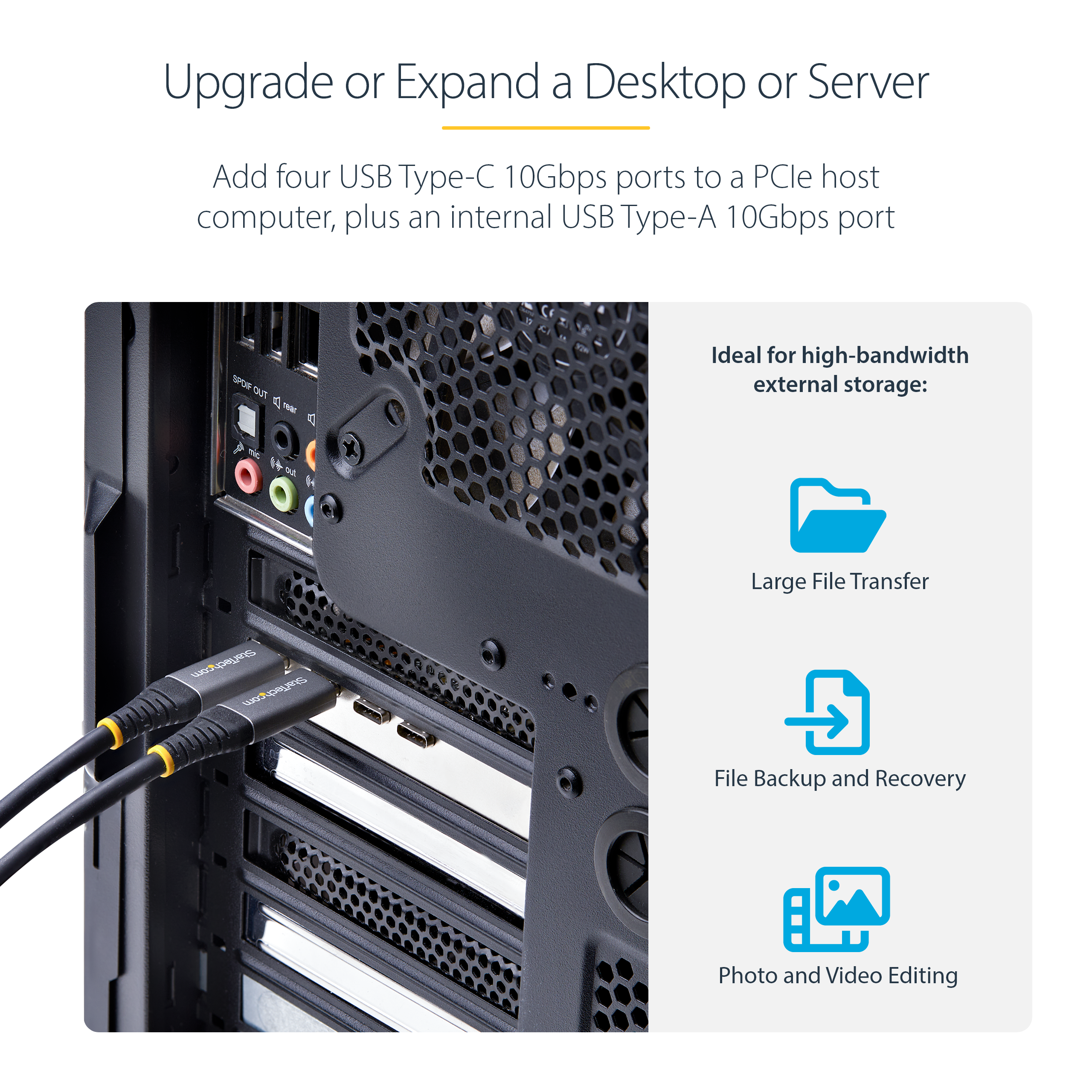

- Ideal for file backups, video editing, and data recovery, using high-bandwidth USB 10Gbps external storage solutions
Website Search Keyword - 5 port usb card
- pci express to usb 3.1 gen 2
- pci express type c
- pci express usb 3.1
- pci express usb 3.1 card
- pci express usb c
- pci express usb c card
- pcie to usb 3.1
- pcie to usb c
- pcie to usb c adapter
- pcie to usb type c
- pcie usb 3.1
- pci-e usb 3.1
- pcie usb 3.1 card
- pcie usb 3.1 gen 2
- pcie usb 3.2 card
- pcie usb 3.2 gen 2 card
Required Regulatory Compliance Marks - CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- Recycling - Waste - Japan - Paper Recycling Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- Triman/Info-Tri - Packaging - Waste - European Union - Paper Box + plastic bag
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
Special Notes - This USB card is equipped with a physical PCI Express x4 connector, but only utilizes 2 PCI Express lanes
- This USB Card does not support DP-Alt Mode over USB-C
- This USB Card does not support USB Power Delivery
Accessory Products - USB31CC50CM
- USB31CUB50CM
- USB31CB1M
- USB31CCV50CM
- USB31CCV1M
Related Products - PEXUSB312A1C1H
- PEXUSB312A2C2V
- PEXUSB314A2V2
- PEXUSB312A3
- PEXUSB311AC3
- PEXUSB312C3

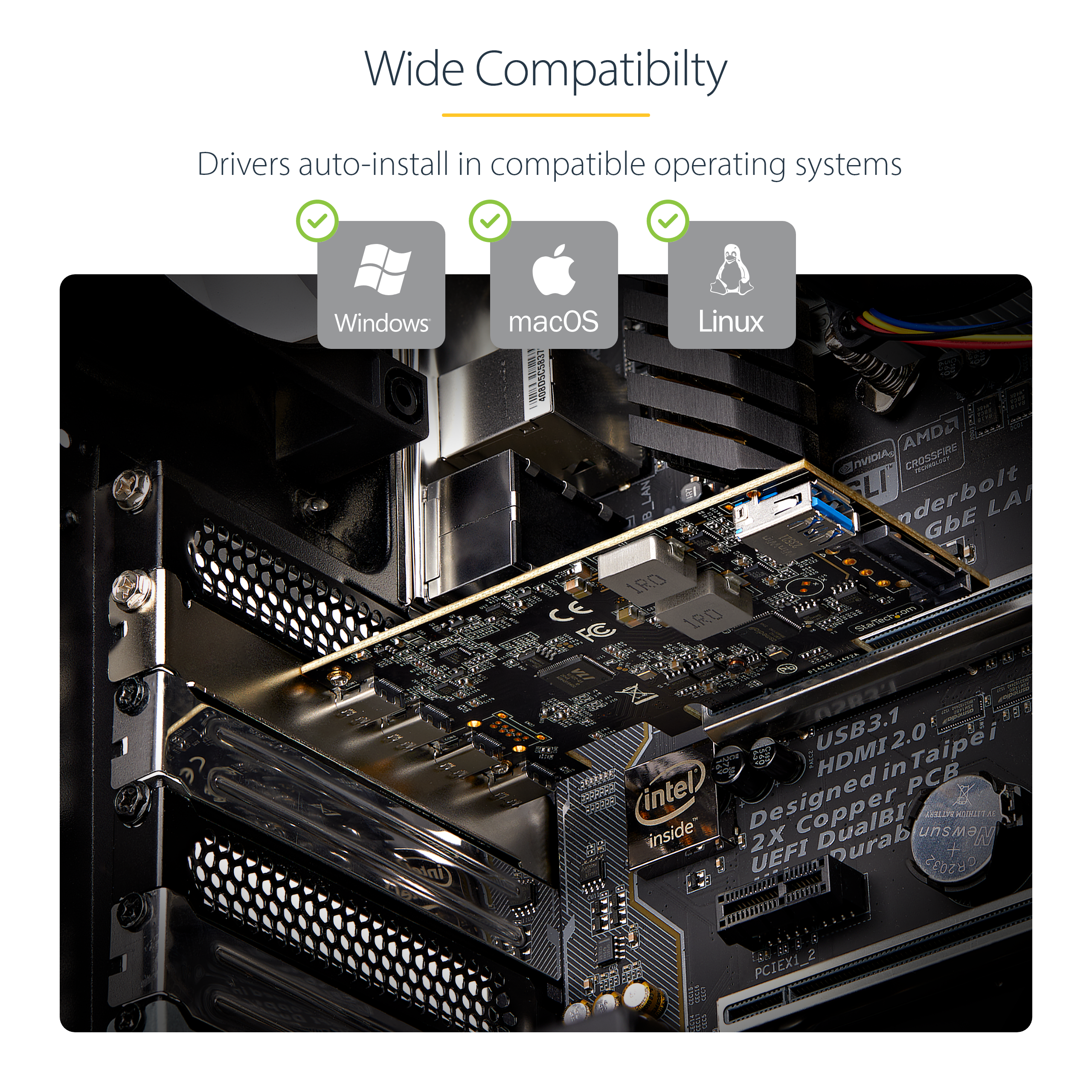

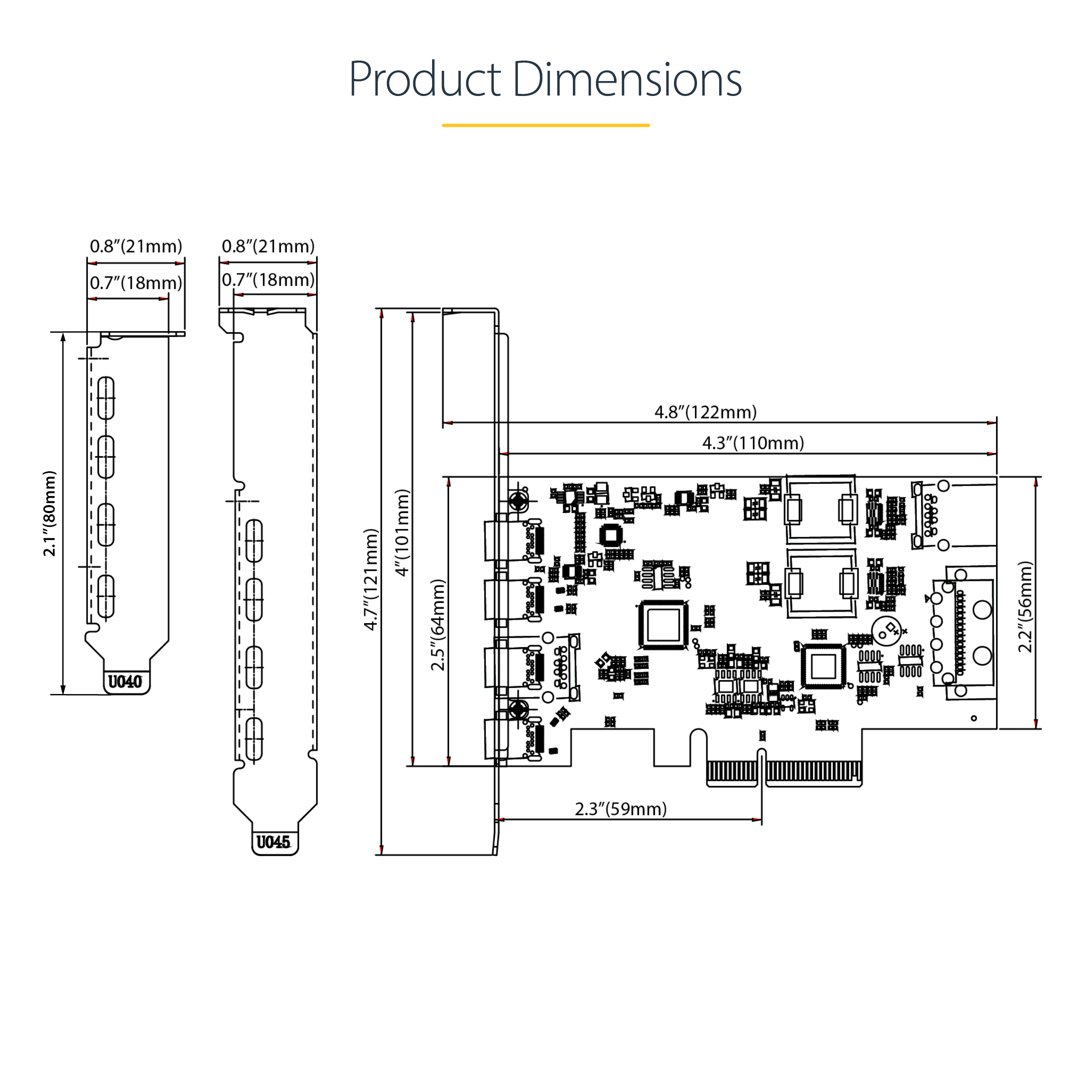

Power Source Bus Powered Color Black Humidity 5% ~ 90% RH Operating Temperature 0°C to 50°C (32°F to 122°F) Product Length (mm) 122.000 Product Width (mm) 121.000 Product Height (mm) 22.000 Product Weight (g) 60.000 Storage Temperature -10°C to 70°C (14°F to 158°F) TAA Compliant No Downstream Maximum Data Transfer Rate USB 3.2 Gen 2 (10Gbps) Maximum Data Transfer Rate 10Gbps OS Compatibility - Windows 11
- Windows 10
- Windows 8
- Windows 7
- Windows Server 2022
- Windows Server 2019
- Windows Server 2016
- Windows Server 2012 R2
- Windows Server 2012
- macOS Sonoma (14.0)
- macOS Ventura (13.0)
- macOS Monterey (12.0)
- macOS Big Sur (11.0)
- macOS Catalina (10.15)
- macOS Mojave (10.14)
- macOS High Sierra (10.13)
- Linux
- Windows 8.1
- macOS Sequoia (15.0)
- macOS Tahoe (26.0)

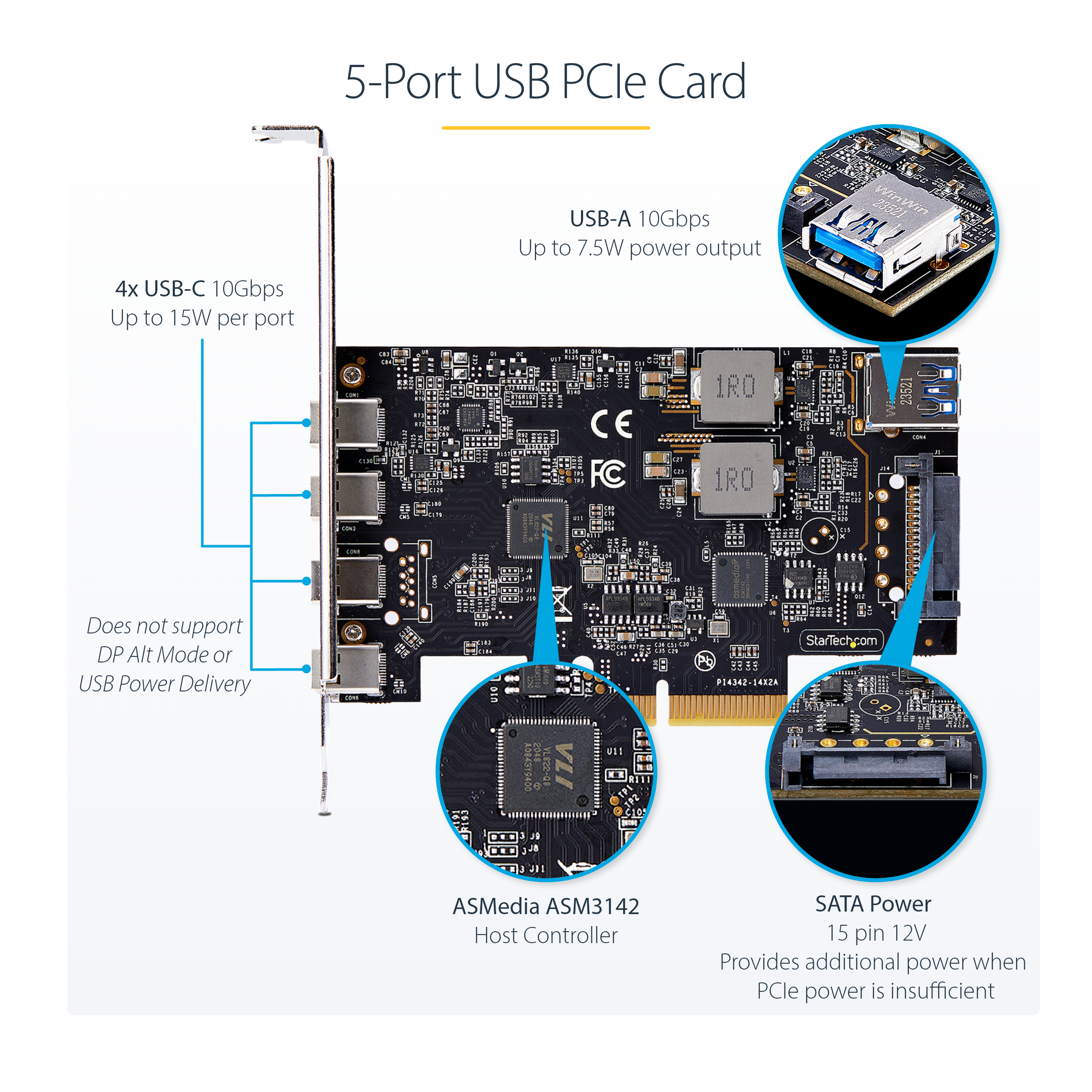

Total USB Power Output UASP Support Yes USB Type and Rate USB 10Gbps Bus Type PCI Express Card Type Standard Profile (LP bracket incl.) Chipset ID - ASMEDIA - ASM3142
- VIA LABS - VL822

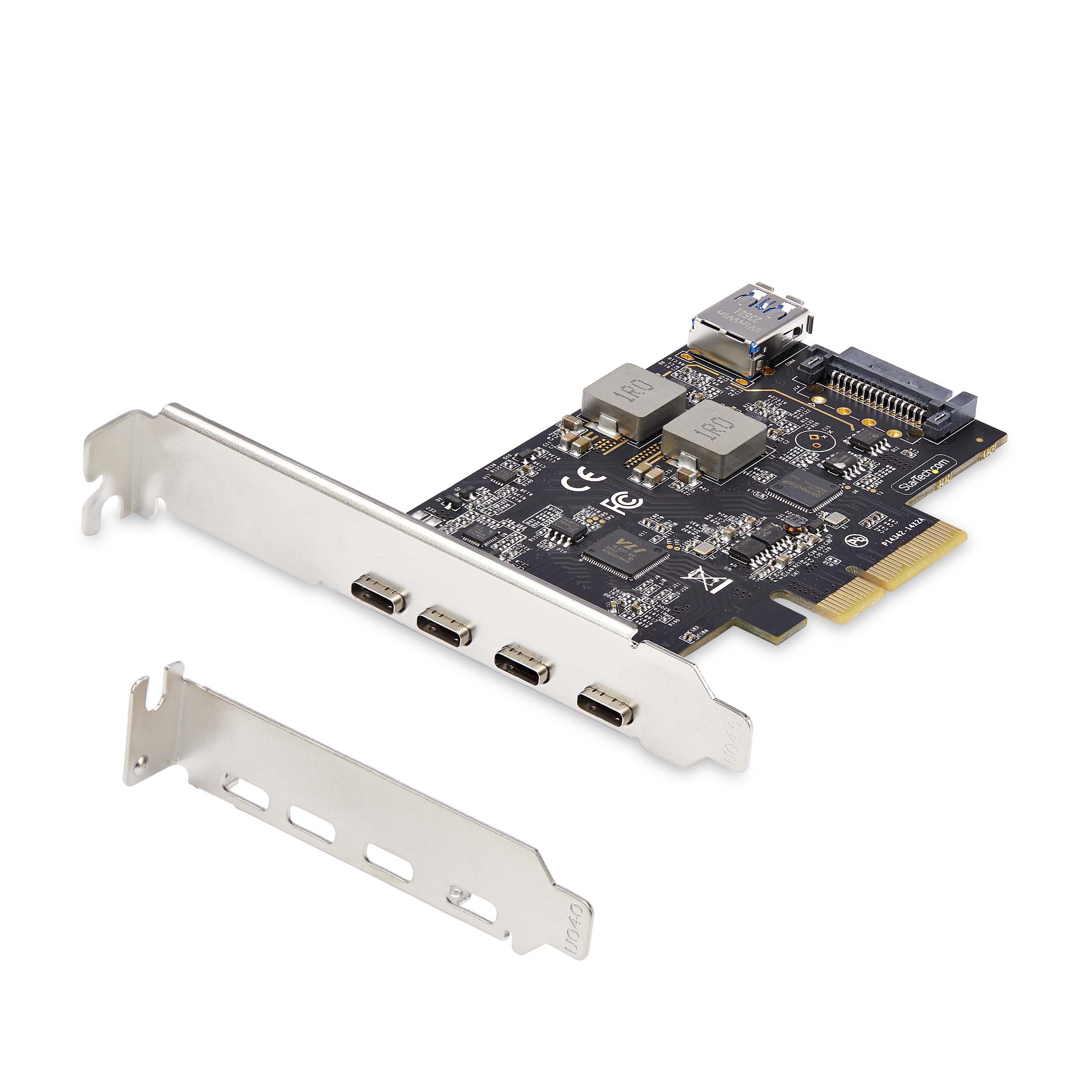

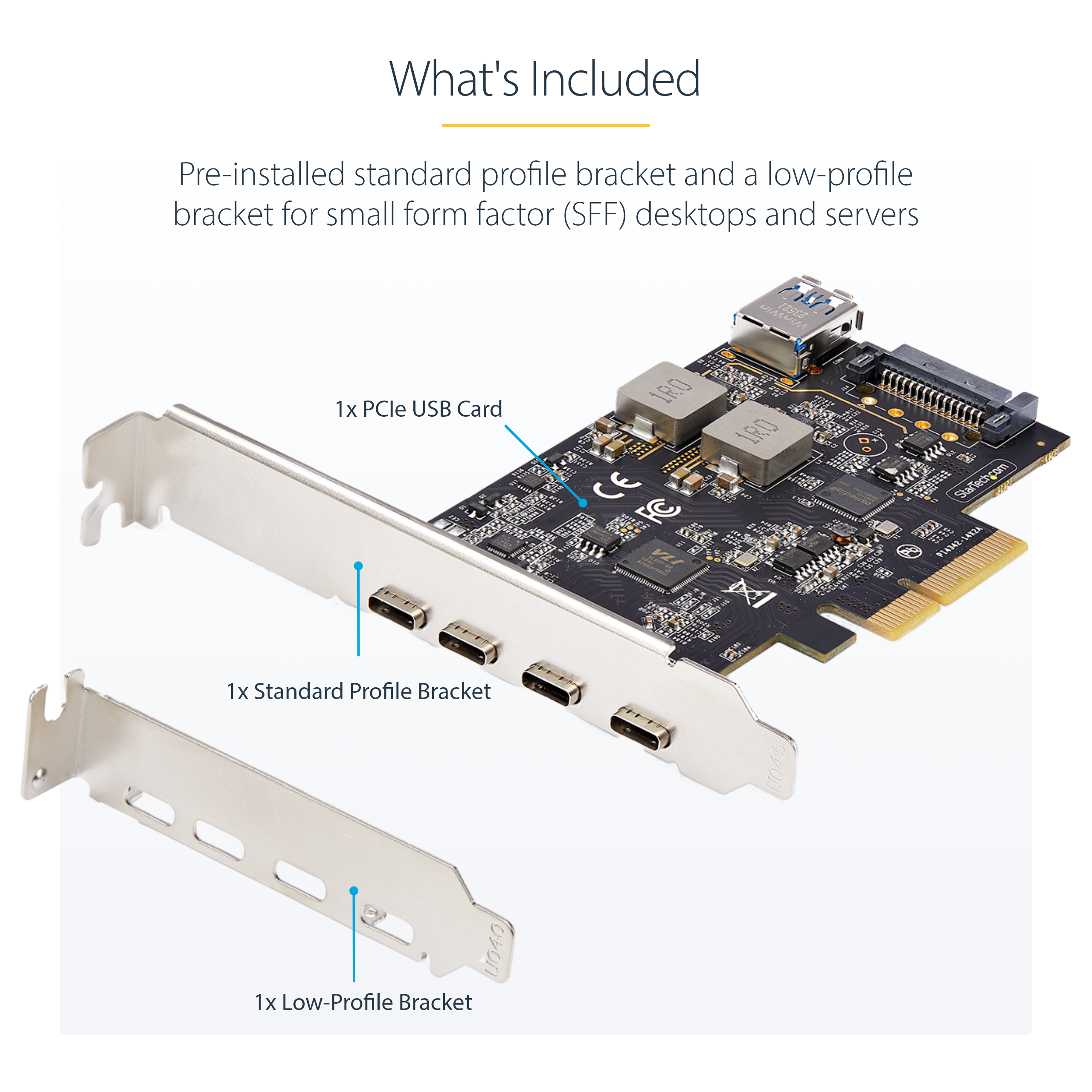

Industry Standards PCI Express 3.0 Interface/Bridge PCI Express IO Card Port Style Integrated on Card USB Port Type USB-A, USB-C Carton Depth (mm) 451 Carton Height (mm) 324 Carton Quantity 40 Carton Weight Gross (g) 6792 Included in Package - 1 - PCIe USB Card
- 1 - Full-Profile Bracket (Installed)
- 1 - Low-Profile Bracket
- 1 - Quick-Start Guide
Included In Package for Label - 1 - PCIe USB Card
- 1 - Full-Profile Bracket (Installed)
- 1 - Low-Profile Bracket
- 1 - Quick-Start Guide
Package Depth (mm) 216 Package Height (mm) 36 Package Width (mm) 152 Package Weight (g) 146 Packaging Description 5-Port USB 3.2 Gen 2 10Gbps Combo Card - 4x USB-C, 1x USB-A - PCI-Express Packaging Description India 5-Port USB 3.2 Gen 2 10Gbps Combo Card - 4x USB-C, 1x USB-A - PCI-Express Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 USB-C (10Gbps, 15W) Connector 1 (Quantity) 4 Connector 2 USB-A (10Gbps, 7.5W) Connector 2 (Quantity) 1 Connector 3 SATA (15-Pin) Connector 3 (Quantity) 1 Host Connector 1 PCI Express x4 Host Connector 1 (Quantity) 1 A+ Not Required Actual Inbox Documents Created QSG in the box Amazon Merchandising Manager Veronica Ye Application Photos Uploaded Artwork Due Date 2024-02-08 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge Yes Comparable SKU Comment 4-port 2x USB-A and 2x USB-C, 10 Gbps with dual controllers Comparable SKU 2 Comment 4-port USB-A 10Gbps with dual controllers Digital Content Due Date 2024-05-31 Enhanced Gallery Required Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level - 2 Graphic Designer Shane Arnett ID Label Silkscreened or a Label Sticker label - custom size - requires size population below Launch Markets (concatenated) AT,BE,CA,CH,DE,DK,ES,FI,FR,IE,IN,IT,JP,MX,NL,SE,UK,US Primary Technology USB 3.2 Gen 2 / 10Gbps Product Development Specialist Alex Sikora Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Natalie Goodale Product Performance Specialist Aaron Bens Product Photographer Alejandra Valencia Target Development Completion Date 2024-01-26 Target Production Release 2024-02-02 Tech Lead Stefan Tirolese Technical Writer Dan Dagenais Technology Lifecycle None Video Not Required
