PS74ADF-SERIAL-CARD

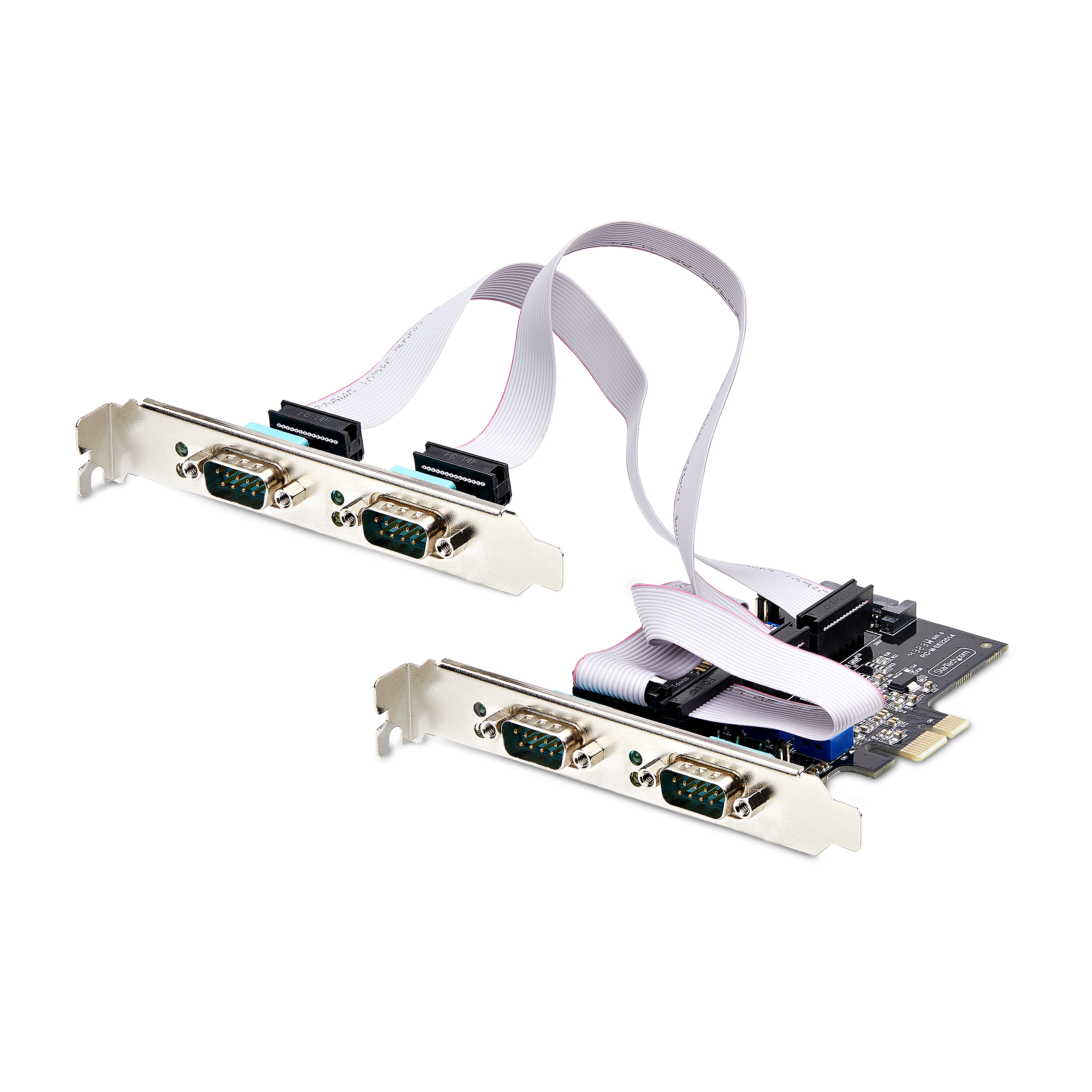

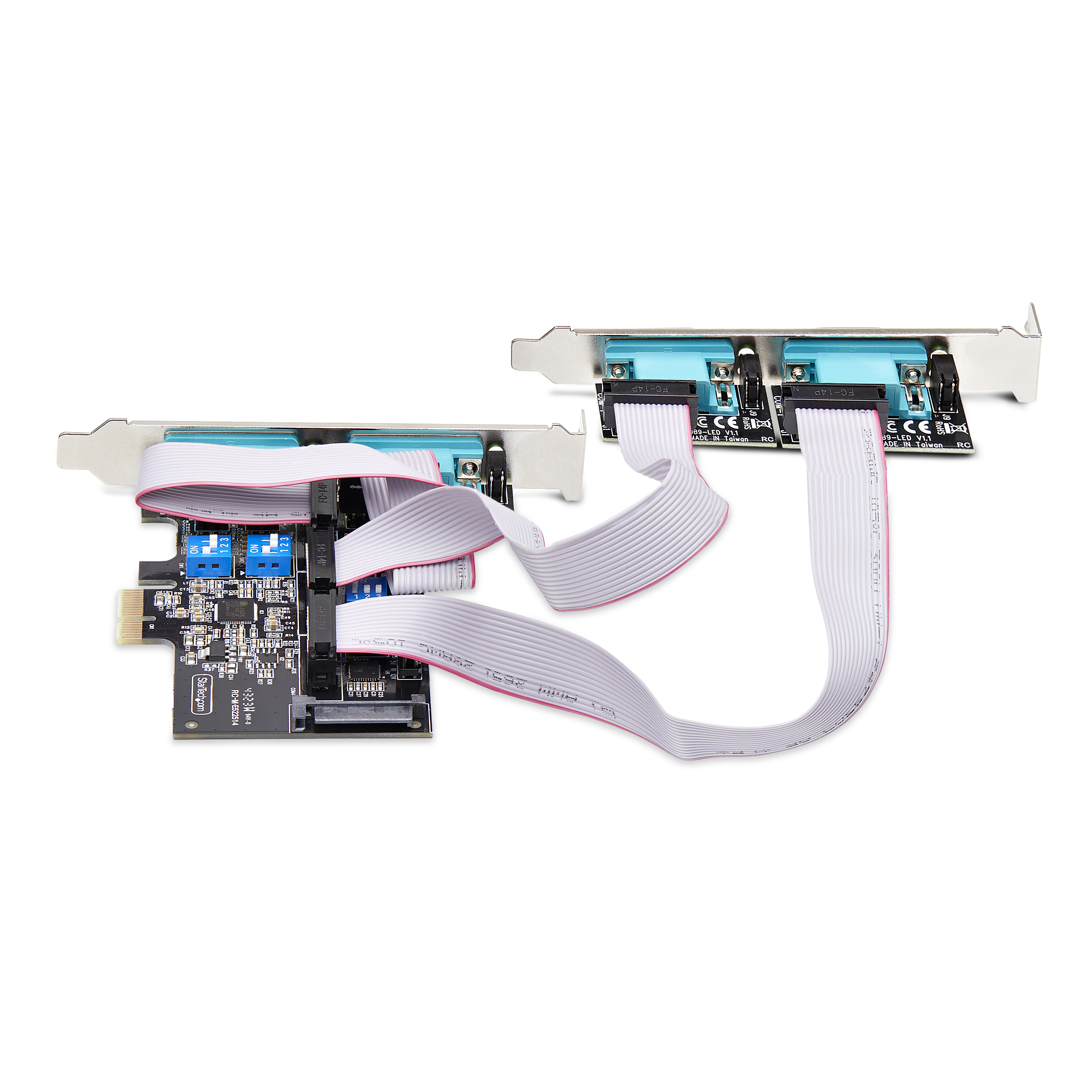

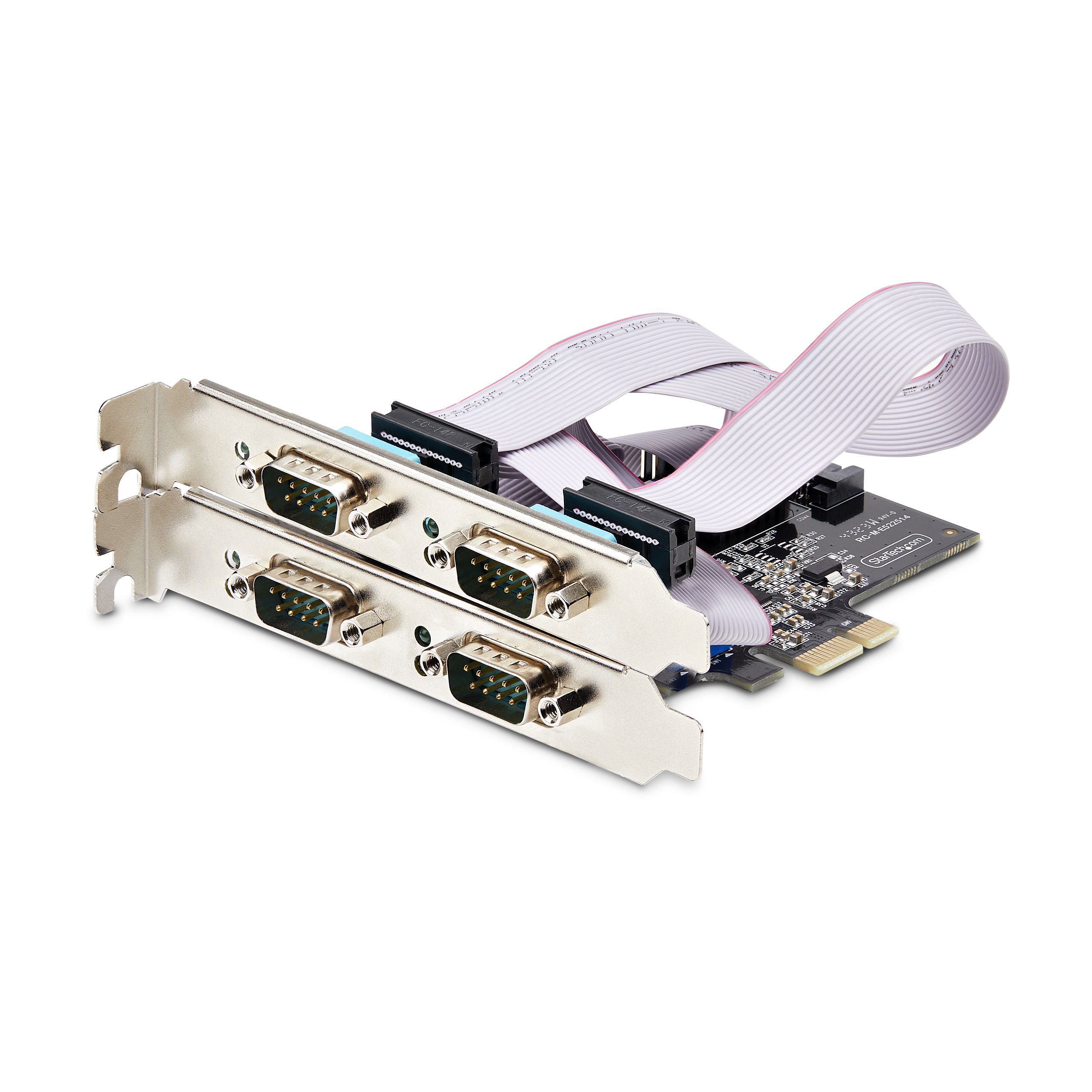

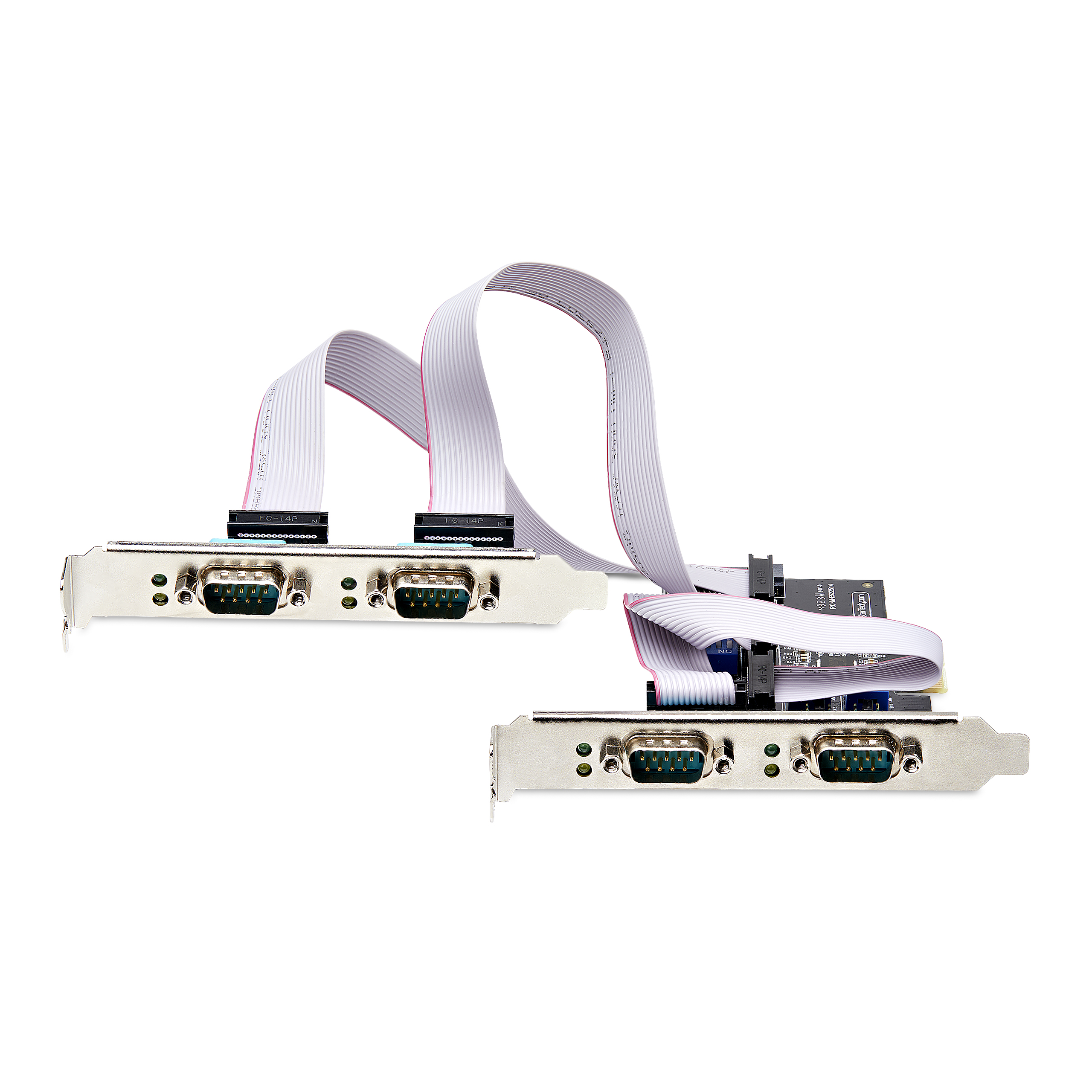

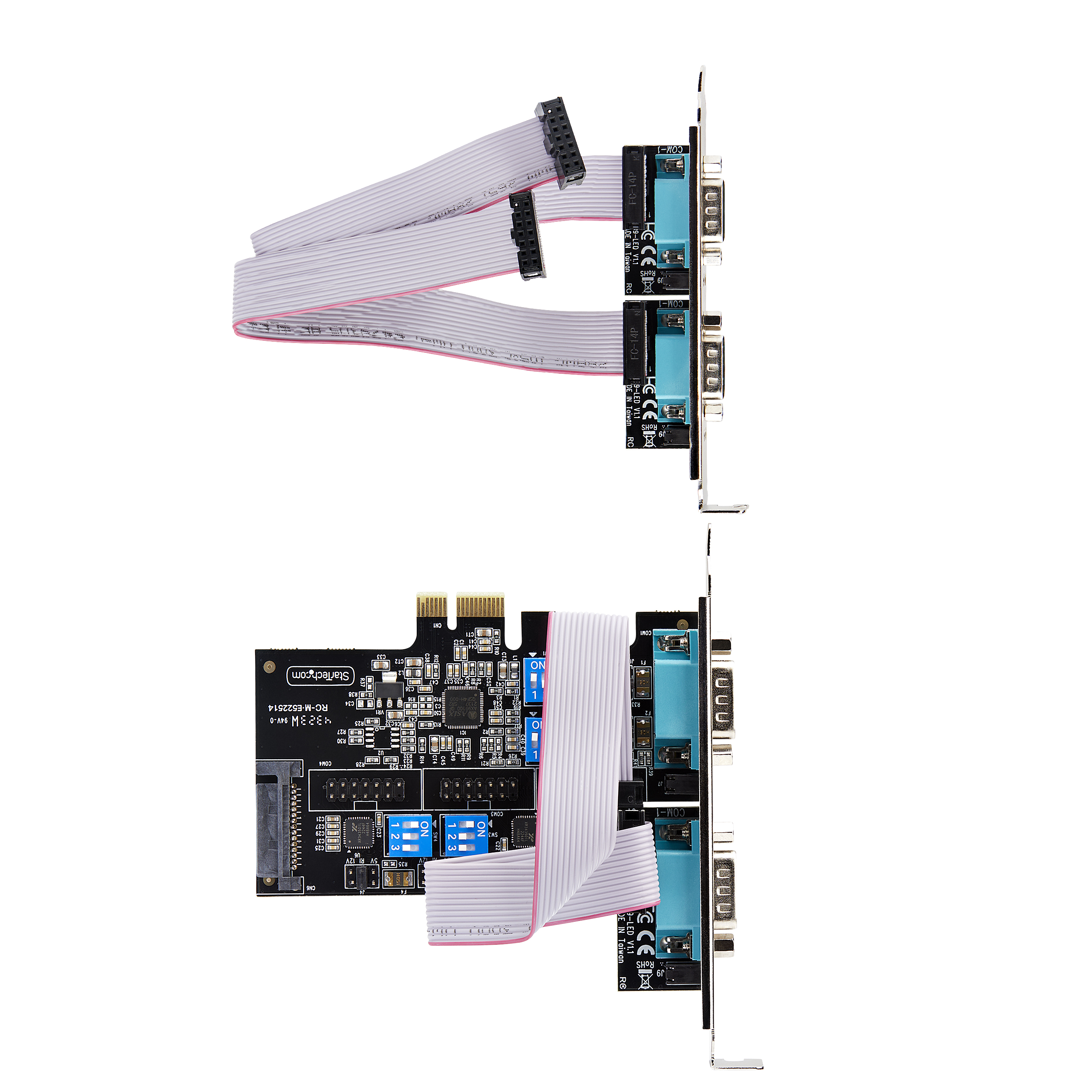

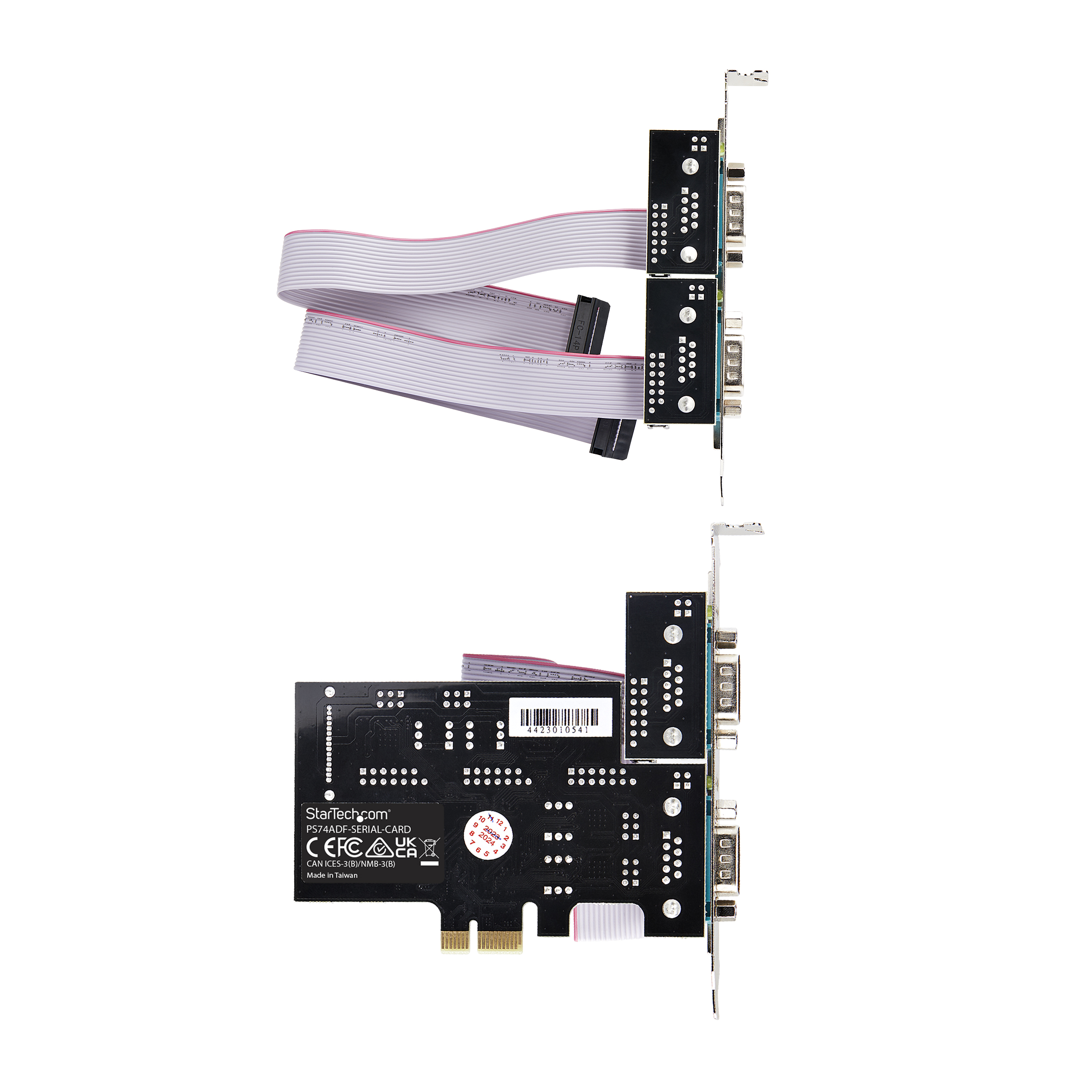

4 Port PCI Express RS232 422 485 Serial Card
Add four RS-232, RS-422, or RS-485-capable DB9 Serial Ports to a desktop computer via PCIe x1 Expansion Card
Main Image
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
BOM Image
Quick-Start Guide
Product Name 4 Port PCI Express RS232 422 485 Serial Card Product Number PS74ADF-SERIAL-CARD UPC 065030903141 Lifecycle status Active Warranty 2 Years Weighted Opportunity 60446 Taxonomy Product > Cards & Adapters > Serial and Parallel Cards & Adapters Category Level 1 Computer Cards and Adapters Category Level 2 Serial Cards, Adapters and Extenders Category Level 3 Serial Host Adapter Cards Family Serial Host Adapter Cards - PCIe - 161050 UART Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX054X Product Title (Ultra-Short) 4-Port Serial Card Product Title (Short) 4-Port Serial PCIe Card, RS232/422/485 Product Title (Medium) 4-Port Serial PCIe Card, Quad-Port RS232/RS422/RS485 (DB9) Card, TAA-Compliant Product Title (Standard) 4-Port Serial PCIe Card, Quad-Port RS232/RS422/RS485 Card, 16C1050 UART, ESD Protection, Windows/Linux, TAA-Compliant Product Title (Long) 4-Port Serial PCIe Card, Quad-Port PCI Express to RS232/RS422/RS485 (DB9) Serial Card, Low-Profile Bracket Incl., 16C1050 UART, Windows/Linux, TAA Compliant - Level-4 ESD Protection Product Title (AMZ) 4-Port Serial PCIe Card, Quad-Port PCI Express to RS232/RS422/RS485 DB9 Serial Card, Standard/Low-Profile Brackets, 16C1050 UART, ESD Protection, Windows/Linux , TAA Title Ingram (Part 1) 4-Port Serial PCIe Card - Title Ingram (Part 2) PCI Express RS232/RS422/RS485 Card Website Product Headline Add four RS-232, RS-422, or RS-485-capable DB9 Serial Ports to a desktop computer via PCIe x1 Expansion Card Bullet 1 4-PORT PCIE SERIAL CARD: On-board DIP switches allow each DB9 serial port to operate in its own independent mode, enabling the connection of RS-232, RS-422, and RS-485 devices; LED indicators to monitor data transmit/receive status Bullet 2 CONFIGURABLE POWER: Quad-Port PCI Express Serial Adapter Card features configurable power of 12V (1.5A per port), 5V (1.5A per port), or no power (RI) over pin 9 via auxiliary SATA power; Per-Port power modes are individually configurable via jumpers Bullet 3 APPLICATIONS: Ideal for desktops and servers, with a wide range of uses such as point-of-sale terminals, PLCs, factory control and automation, scientific sensors, medical equipment, scanners, and oscilloscopes; DB9 ports work with screw-locking cables Bullet 4 STANDARD & LOW PROFILE BRACKETS: TAA-Compliant Serial Card is equipped with two standard profile brackets (pre-installed), and includes four low-profile brackets for compatibility with small form factor desktops/servers Bullet 5 TECH SPECS: Asix AX99100 Chipset; 16C450 and 16C550 UART compatible; 4x 9-Pin D-Sub Ports; Max Baud 921.6Kbps per port; 256 Byte FIFO; COM Retention; Supports Windows and Linux; Odd/Even/Mark/Space/None Parity Modes; 5/6/7/8/9 Data Bits; PCIe 2.0 x1 Bullets (Compact) 4-Port PCIe Serial Card features on-board DIP switches allowing each DB9 port to operate in RS-232/RS-422/RS-485 independently; Jumpers provide the option of 12V/5V/RI @ 1.5A per port; Includes Low-Profile Brackets; Supports Windows/Linux Bullets (Consolidated) - 4-Port PCIe Serial Card features on-board DIP switches allowing each DB9 serial port to operate in RS-232/RS-422/RS-485 independently - On-board jumpers provide the option of 12V or 5V at 1.5A or the option for no power (RI); Each port can be configured individually - Two standard profile brackets pre-installed with four low-profile brackets included - 16C450/16C550/16C650/16C750/16C950 UART compatible - AX99100 Chipset - Supports Windows/Linux - Max Baud Rate: 921.6Kbps; 256 Byte FIFO Marketing Copy Marketing Copy (No HTML) Applications - Manufacturing (CNC machinery, process control equipment, bar code scanners, and serial printers)
- POS (credit/debit card readers, receipt printers, bar code scanners, cash registers, and scales)
- Security (UPS control, access key panels, video cameras, card readers, and modems)
- Healthcare (patient monitoring equipment, nurse stations, and modems)
Website Search Keyword - PCI Express serial card
- db9 card
- quad serial port card
- low profile serial card
- mini pcie rs232
- pc serial card
- pci express db9
- pcie to rs232
- rs 232 pcie
- rs232 pcie card
- serial interface card
- uart pcie
Required Regulatory Compliance Marks - CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- UKCA - EMC/EMI - United Kingdom - UK Electromagnetic Compatibility Regulations 2016
- Recycling - Waste - Japan - Paper Recycling Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories
- Triman/Info-Tri - Packaging - Waste - European Union - Paper Box + plastic bag
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement

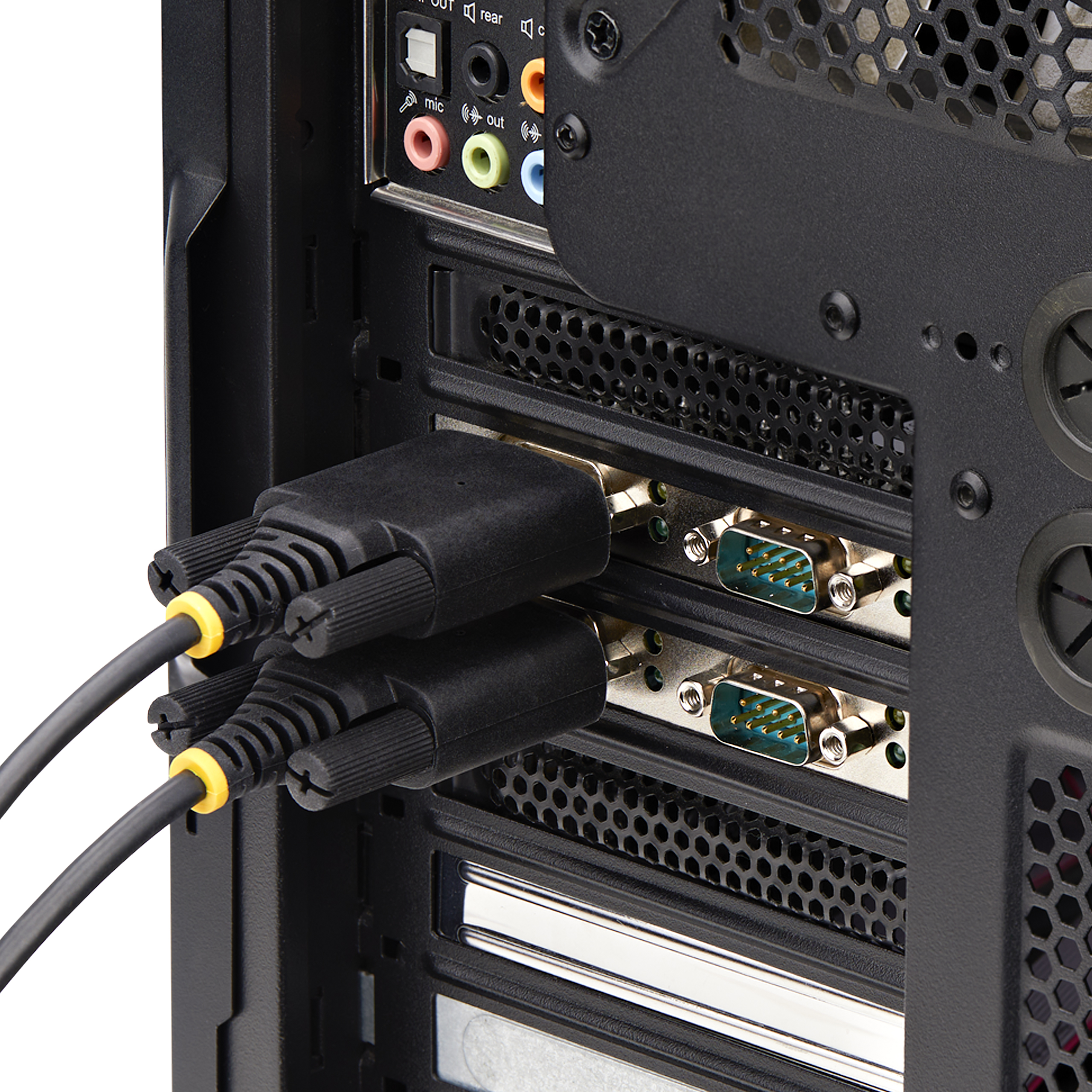

System and Cable Requirements Computer with an available PCI Express x1 (or greater) slot Accessory Products - MXT1001MBK
- MXT1002MBK
- MXT1003MBK
- SCNM9FM1MBK
- SCNM9FM2MBK
- 9FMNM-3M-RS232-CABLE
Related Products - 2S232422485-PC-CARD
- PEX4S232485
Cable Length (mm) 300 Color Black Humidity 20% ~ 80% RH Operating Temperature 0°C to 70°C (32°F to 158°F) Product Length (mm) 121.000 Product Width (mm) 109.000 Product Height (mm) 16.000 Product Weight (g) 60.000 Storage Temperature -20°C to 80°C (-4°F to 176°F) TAA Compliant Yes Data Bits 5, 6, 7, 8, 9 Device Power Consumption (In Watts) 2412.66mW ESD Protection - +/-8kV (Contact)
- +/-15kV (Air)
- +/-15kV (HBM)
FIFO 256 Bytes Flow Control Hardware and Software General Specifications UART Compatibility: 16C450, 16C550, 16C650, 16C750, and 16C950 Max Baud Rate 921.6 Kbps MTBF (hours) 6,548,788 Hours OS Compatibility - Windows 7
- Windows 8
- Windows 8.1
- Windows 10
- Windows 11
- Windows Server 2016
- Windows Server 2019
- Windows Server 2022
- Linux

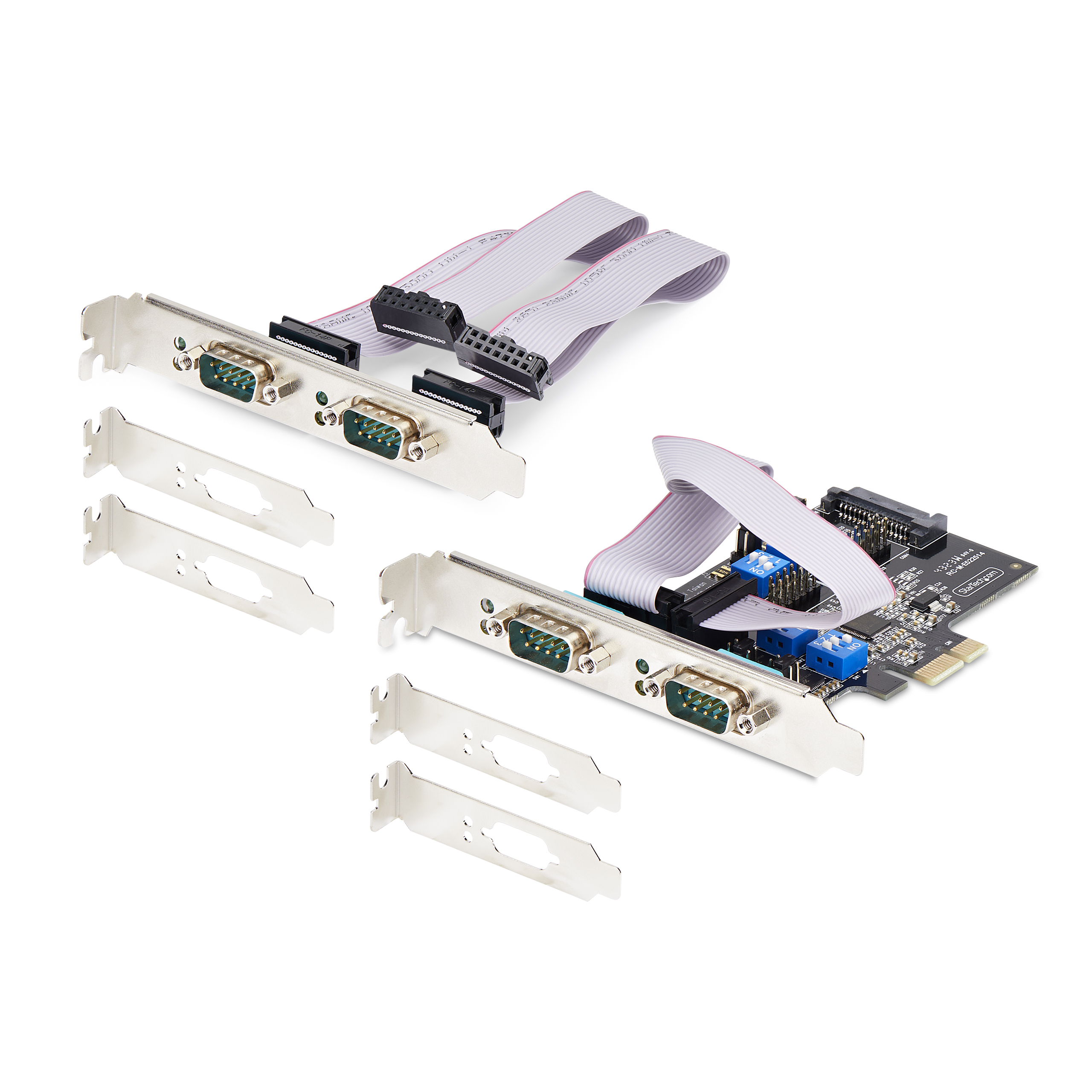

Parity Even, Odd, None, Space, and Mark Stop Bits 1, 1.5, 2 Supported Serial Protocol RS-232/422/485 Bus Type PCI Express Card Type Standard Profile (LP bracket incl.) Chipset ID ASIX - AX99100 Industry Standards PCI Express Version 2.0 x1 Interface/Bridge Serial IO Card Port Style Integrated on Card LED Indicators Carton Depth (mm) 685 Carton Height (mm) 306 Carton Quantity 50 Carton Weight Gross (g) 14660 Included in Package - 1 - 4-Port Serial Card
- 4 - Low-Profile Bracket
- 3 - Ribbon Cable
- 1 - Quick-Start Guide
Included In Package for Label - 1 - Quick-Start Guide
- 3 - Ribbon Cable
- 4 - Low-Profile Bracket
- 1 - 4-Port Serial Card
Package Depth (mm) 145 Package Height (mm) 40 Package Width (mm) 212 Package Quantity 1 Package Weight (g) 230 Packaging Description 4-Port PCIe x1 RS232/422/485 Serial Card - Low-Profile Bracket Included Packaging Description India 4-Port PCIe x1 RS232/422/485 Serial Card - Low-Profile Bracket Included Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 PCI Express x1 Connector 1 (Quantity) 1 Connector 2 DB-9 Serial Connector 2 (Quantity) 4 A+ Not Required Actual Inbox Documents Created QSG in the box Amazon Merchandising Manager Veronica Ye Application Photos Uploaded Artwork Due Date 2023-09-15 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge Yes Comparable SKU Comment includes 2 RS232 ports and 2 RS422/485 ports Comparable SKU 2 Comment 4 Port Serial Hub USB to RS232/RS485/RS422 Adapter - Industrial USB 2.0 to DB9 Serial Converter Hub Digital Content Due Date 2023-11-09 Enhanced Gallery Required Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett ID Label Silkscreened or a Label No ID label Launch Markets (concatenated) AT,AU,BE,CA,CH,DE,DK,ES,FI,FR,IE,IN,IT,JP,NL,NZ,SE,UK,US Primary Technology None Product Development Specialist Alex Sikora Product Information Creation Specialist (PICS) Alex Garcia Product Manager Natalie Goodale Product Performance Specialist Aaron Bens Product Photographer Alejandra Valencia Target Development Completion Date 2023-08-14 Target Production Release 2023-09-30 Tech Lead Stefan Tirolese Technical Writer Alex Garcia Technology Lifecycle None Video Not Required
