Main Image
PXT515C158RA

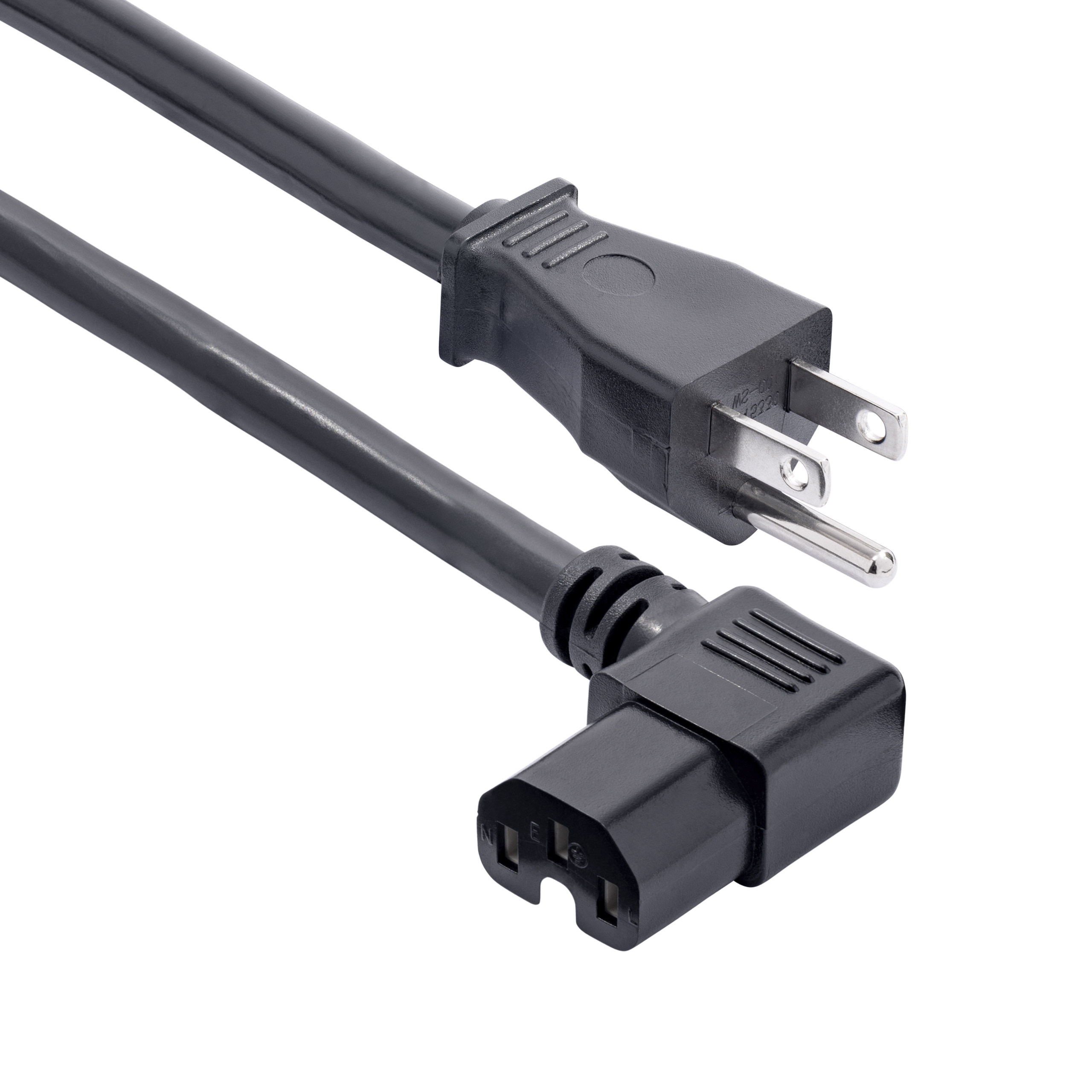

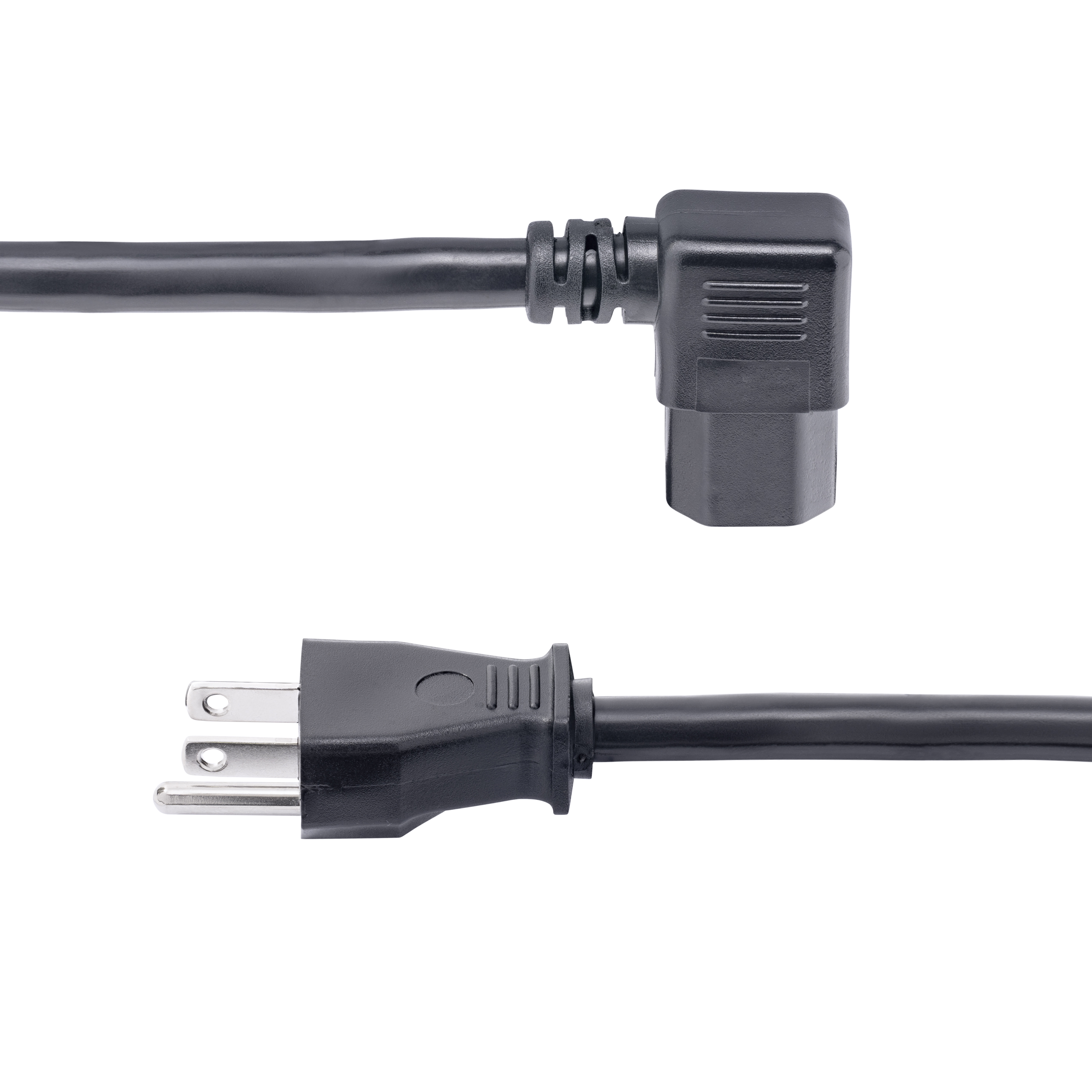

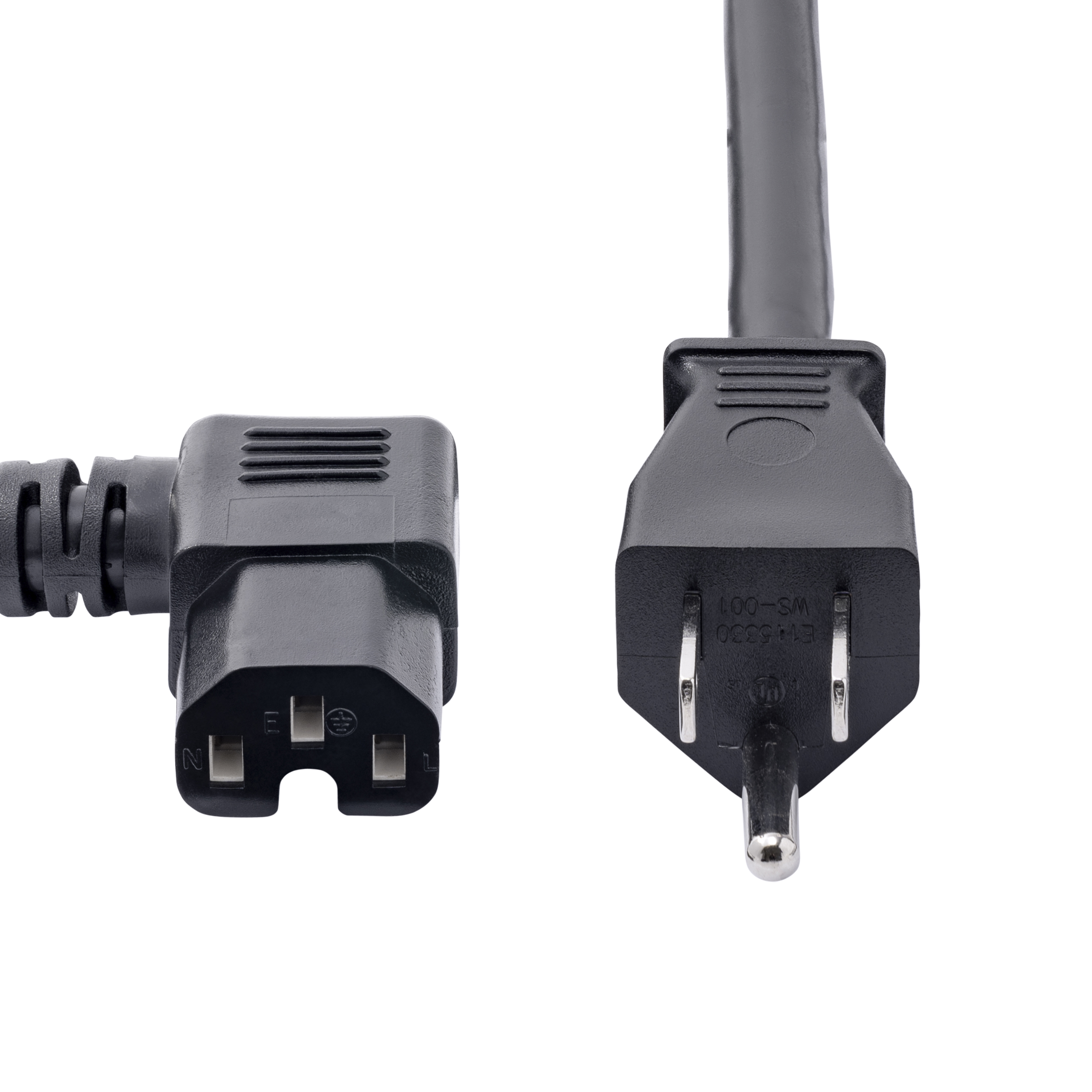

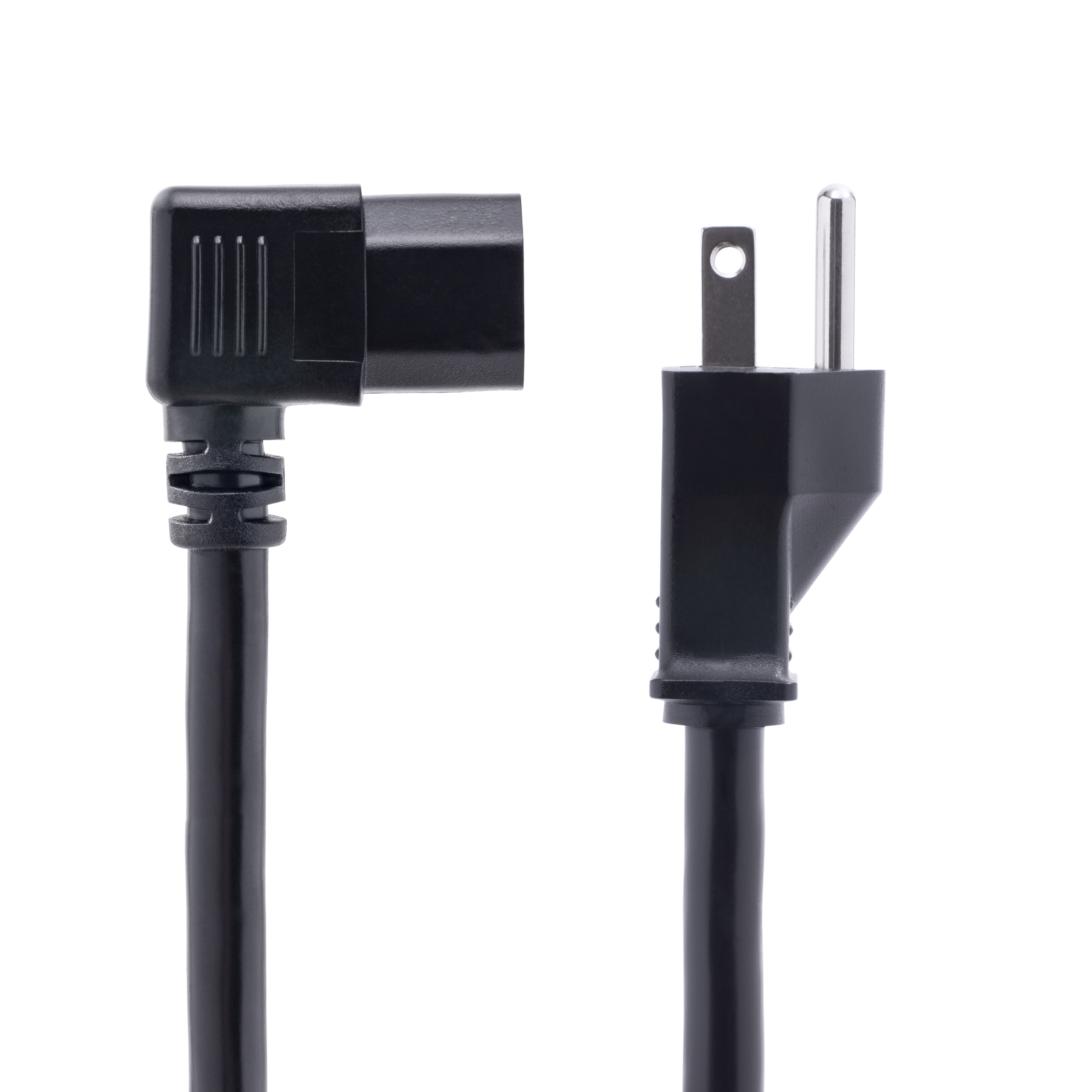

Power Extension Cord, NEMA 5-15P to Right-Angle C15 - Heavy-
Right Angle C15 connector for convenient access in confined spaces
Main Image
Product Images
Product Images
Product Images
Video Link YouTube
Product Name Power Extension Cord, NEMA 5-15P to Right-Angle C15 - Heavy- Product Number PXT515C158RA UPC 065030903219 Lifecycle status Active Warranty Lifetime Weighted Opportunity 38567 Taxonomy Product > Cables > Power Cables Category Level 1 Cables - Other Category Level 2 Power Cables Category Level 3 External Power Cords Family 5-15 to C15 Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX120X Product Title (Ultra-Short) 8ft Power Cord Product Title (Short) 8ft Heavy Duty Power Cord, 5-15P to C15 Product Title (Medium) 8ft Heavy Duty Power Cord, NEMA 5-15P to Right Angle IEC 60320 C15, 15A 125V Product Title (Standard) 8ft (2.4m) Heavy Duty Power Cord, NEMA 5-15P to Right Angle C15, 15A 125V, 14AWG, AC Power Cable, UL Listed, TAA Product Title (Long) 8ft (2.4m) Heavy Duty Power Cord, NEMA 5-15P to Right Angle C15, 15A 125V, 14AWG, Heavy Gauge PDU Power Cable, Replacement AC Power Cord, TAA Compliant, UL Listed Product Title (AMZ) 8ft (2.4m) Heavy Duty Power Cord, NEMA 5-15P to Right Angle C15, 15A 125V, 14AWG, AC Power Cable, UL Listed, TAA Title Ingram (Part 1) 2.4m Heavy Duty Power Cord Title Ingram (Part 2) 5-15P to Right Angle C15, 15A 125V Website Product Headline Right Angle C15 connector for convenient access in confined spaces Bullet 1 RIGHT ANGLE POWER CORD: 8ft (2.44m) Heavy Duty Power Cable with NEMA 5-15P to Right Angle IEC 60320 C15 connector is suitable for servers or high-powered equipment; 90-degree C15 connectors facilitates access in tight spaces; Indoor use; Rated for 125V at 15A Bullet 2 BUILT FOR PERFORMANCE AND SAFETY: Made with UL Listed components; VW-1 Fire Rated cable with fully-molded connector strain relief for durability; 3-conductor power cable made with 100% copper wire Bullet 3 SPECS: 8ft (2.44m); TAA Compliant; NEMA 5-15P to Right Angle IEC 60320 C15; 14AWG; 125V 15A (Max); Jacket Rating: SJT; Jacket Material: PVC; Color: Black; Temperature Range: -4°F to 221°F (-20℃ to 105℃); Cable O.D.: 0.36in (9.3mm) Bullet 4 COMPATIBILITY: NEMA 5-15P plug works with North American electrical outlets and PDUs; IEC C15 connector works with servers, switches, and high-power rackmount appliances; Replacement heavy gauge power cable Bullet 5 THE IT PRO'S CHOICE: Designed and built for IT Professionals, this computer power cord is backed for life, including free lifetime 24/5 multi-lingual technical assistance; This NEMA 5-15P to C15 power cord is available in other lengths Bullets (Compact) 8ft (2.4m) Heavy Duty Power Cord with NEMA 5-15P to Right Angle IEC 60320 C15 connector; 125V at 15A; UL Listed; Wire: 100% Copper; Fire Rating: VW-1; 14AWG; Jacket Rating: SJT; Temp Range: -4 to 221F; Cable O.D: 0.36in; TAA Compliant Bullets (Consolidated) 8ft (2.4m) Heavy Duty Power Cable with NEMA 5-15P to Right Angle IEC 60320 C15 connector; Rated to carry 125V at 15A (Max) - Made with UL Listed components; Durable molded connectors w/strain relief; 100% Copper wire; Fire Rating: VW-1 - 14AWG; Jacket Rating: SJT; Temperature Range: -4 to 221 DEGF; Cable O.D.: 0.36in - TAA Compliant; NEMA 5-15P plug works with North American outlets and PDUs; Right Angle C15 connector enables convenient access in tight spaces Marketing Copy Marketing Copy (No HTML) Applications Connect a server or high-power rackmount equipment to a wall outlet or PDU Website Search Keyword - NEMA 5-15P to C15
- Right Angle C15 Power Cable
- Heavy Duty Power Cord
- Server Power Cable
- Server Power Cord
- AC power cord
- Right Angle Power Cable
- Right Angle Power Cord
Required Regulatory Compliance Marks - UL - Safety - Electrical - Canada / United States - Enhanced UL Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- Triman/Info-Tri - Product - Waste - European Union - EEE Device
Input Current 15A Input Voltage 125V AC Cable Length (mm) 2440 Cable OD 9 Color Black Connector Style Straight to Right Angle Humidity 0% to 65% RH Operating Temperature -20° to 105°C (-4° to 221°F) Product Length (mm) 2440.000 Product Width (mm) 61.500 Product Height (mm) 41.500 Product Weight (g) 396.000 Storage Temperature -20° to 105°C (-4° to 221°F) TAA Compliant Yes Wire Gauge 14 AWG Features Flat / Angled Connector Voltage Rating 125V Cable Jacket Material PVC Cable Type SJT Connector Plating Nickel Female Connector C15 Fire Rating VW-1 Rated Male Connector / Plug 5-15P Number of Conductors 3 Type AC Power Cord Carton Depth (mm) 310 Carton Height (mm) 234 Carton Quantity 50 Carton Weight Gross (g) 15350 Included in Package 1 - 8ft (2.4m) 5-15P to Right Angle C15 Power Cord Number of Sub-Cartons 5 Package Depth (mm) 145 Package Height (mm) 40 Package Width (mm) 290 Package Weight (g) 404 Packaging Description 8ft (2.4m) NEMA 5-15P to Right Angle C15 Heavy Duty Power Cord - Black Packaging Description India 8ft (2.4m) NEMA 5-15P to Right Angle C15 Heavy Duty Power Cord - Black Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Quantity 10 Sub-Carton Weight (g) 0 Connector 1 NEMA 5-15 (125V AC, 15A) Connector 1 (Quantity) 1 Connector 2 IEC C15 (250V AC, 10A) Connector 2 (Quantity) 1 A+ Required Actual Inbox Documents Created None Amazon Merchandising Manager Veronica Ye Application Photos Not Required Artwork Due Date 2023-11-30 Buying Center - AV & Collaboration No Buying Center - Data Center Yes Buying Center - End User Compute No Buying Center - Networking & Edge Yes Comparable SKU Comment It is straight version. Comparable SKU 2 Comment NA Digital Content Due Date 2024-01-10 Enhanced Gallery Not Required Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett ID Label Silkscreened or a Label No ID label Launch Markets (concatenated) CA,US Product Development Specialist Chi Zhang Product Information Creation Specialist (PICS) Brian Chan Product Manager Tim North Product Performance Specialist Ray Aoki Product Photographer Shane Arnett Target Development Completion Date 2023-08-31 Target Production Release 2023-10-31 Tech Lead Justin Weaver Technical Writer Brian Chan Technology Lifecycle Mainstream Vending Machine Not Compatible with Vending Machine Video Not Required
