PXTC19C20146

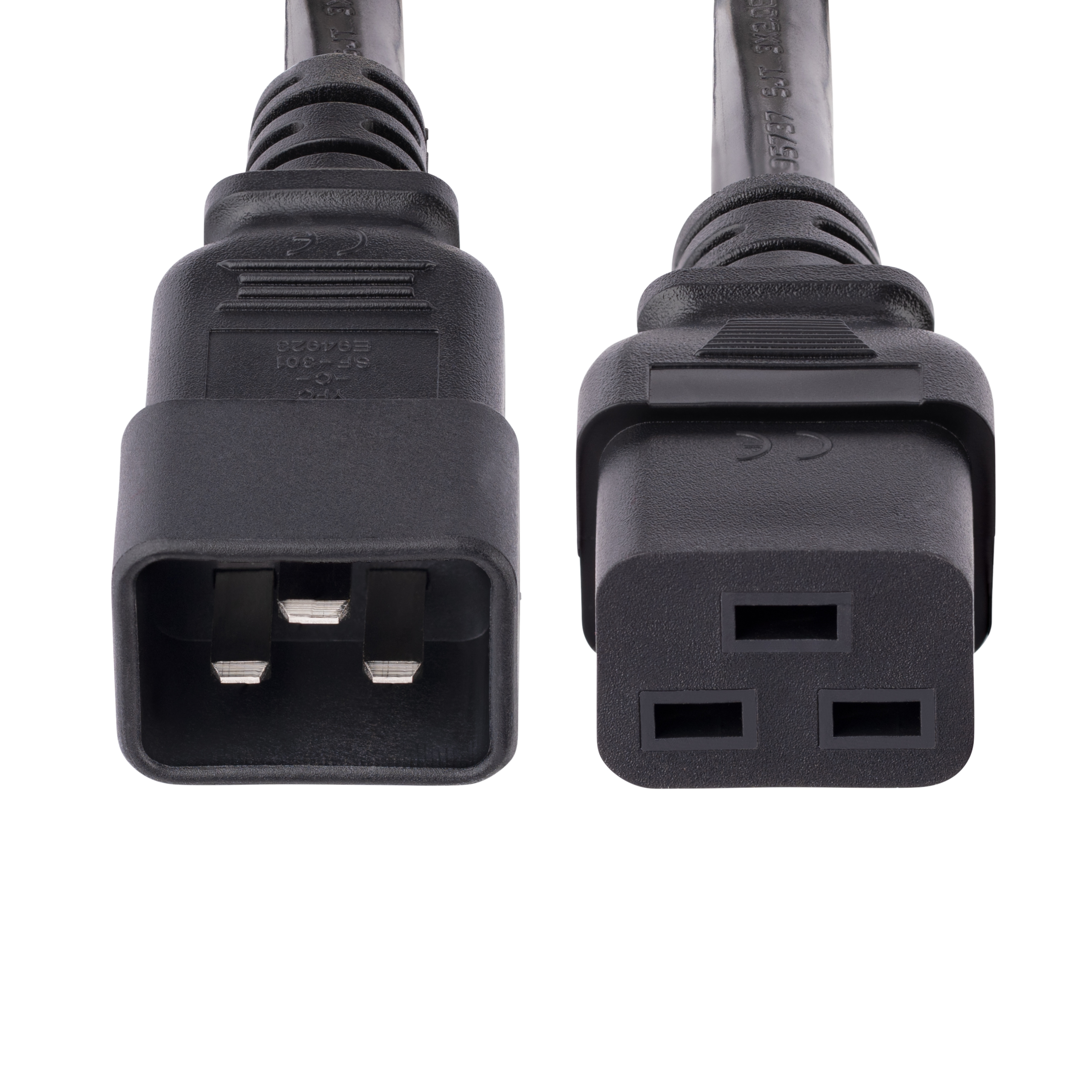

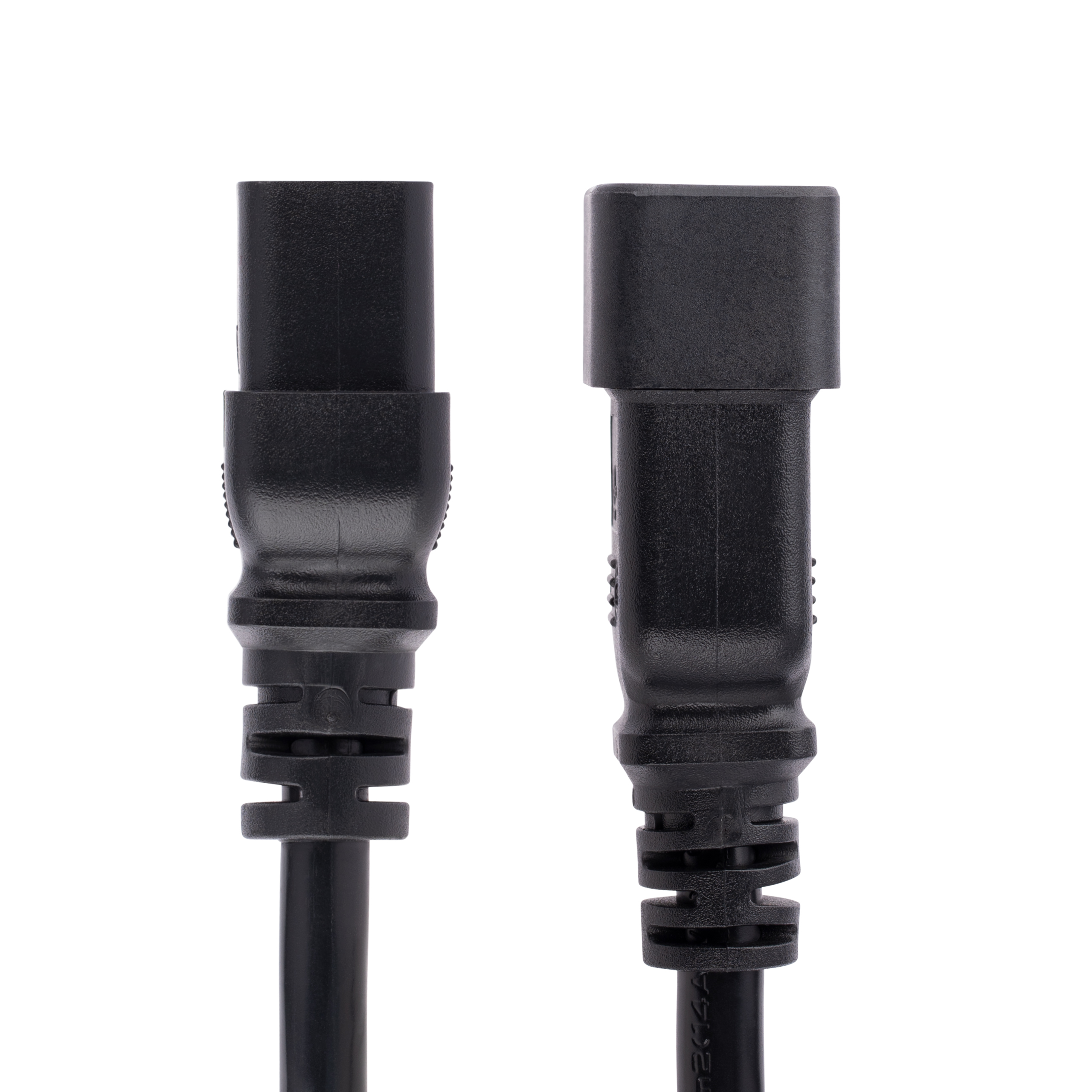

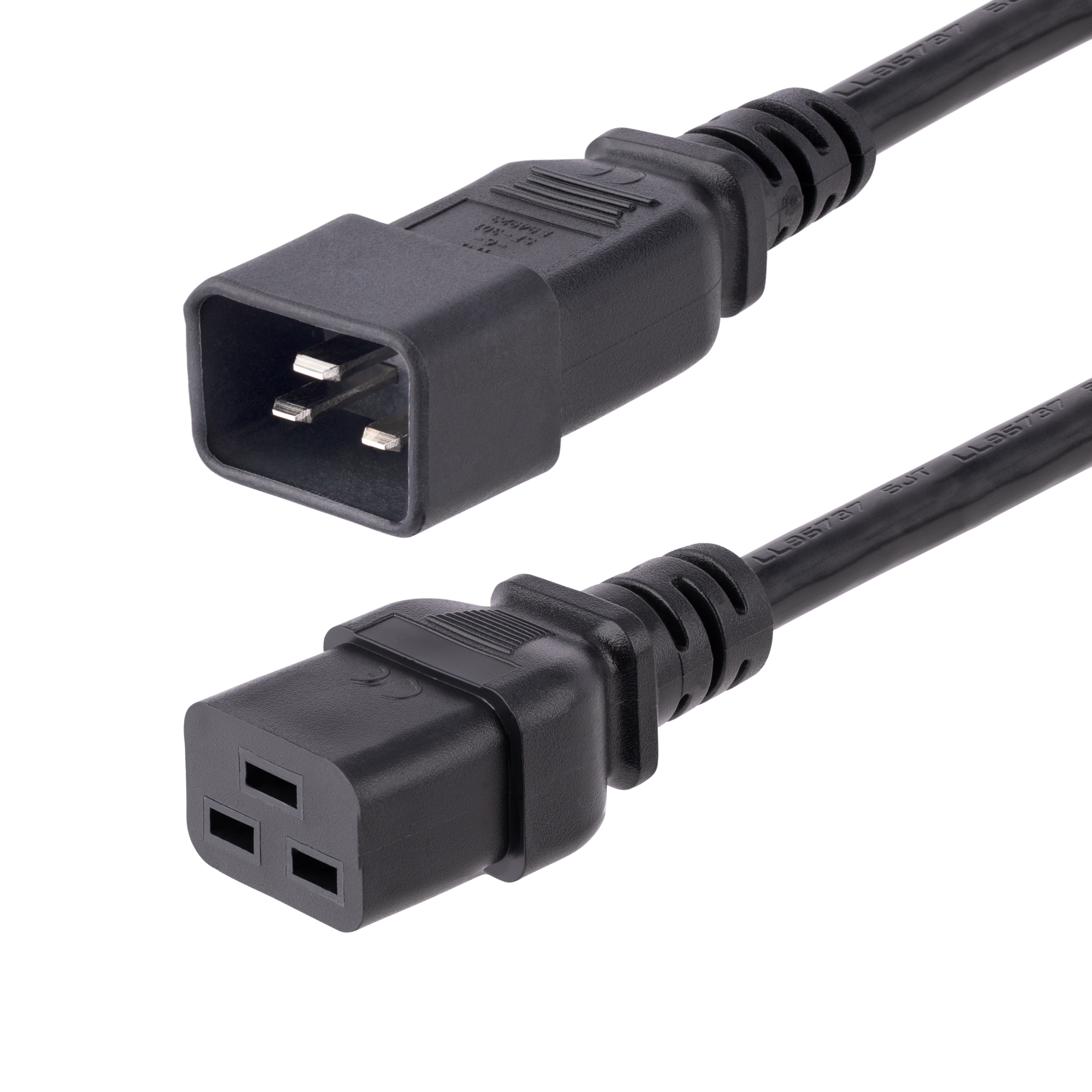

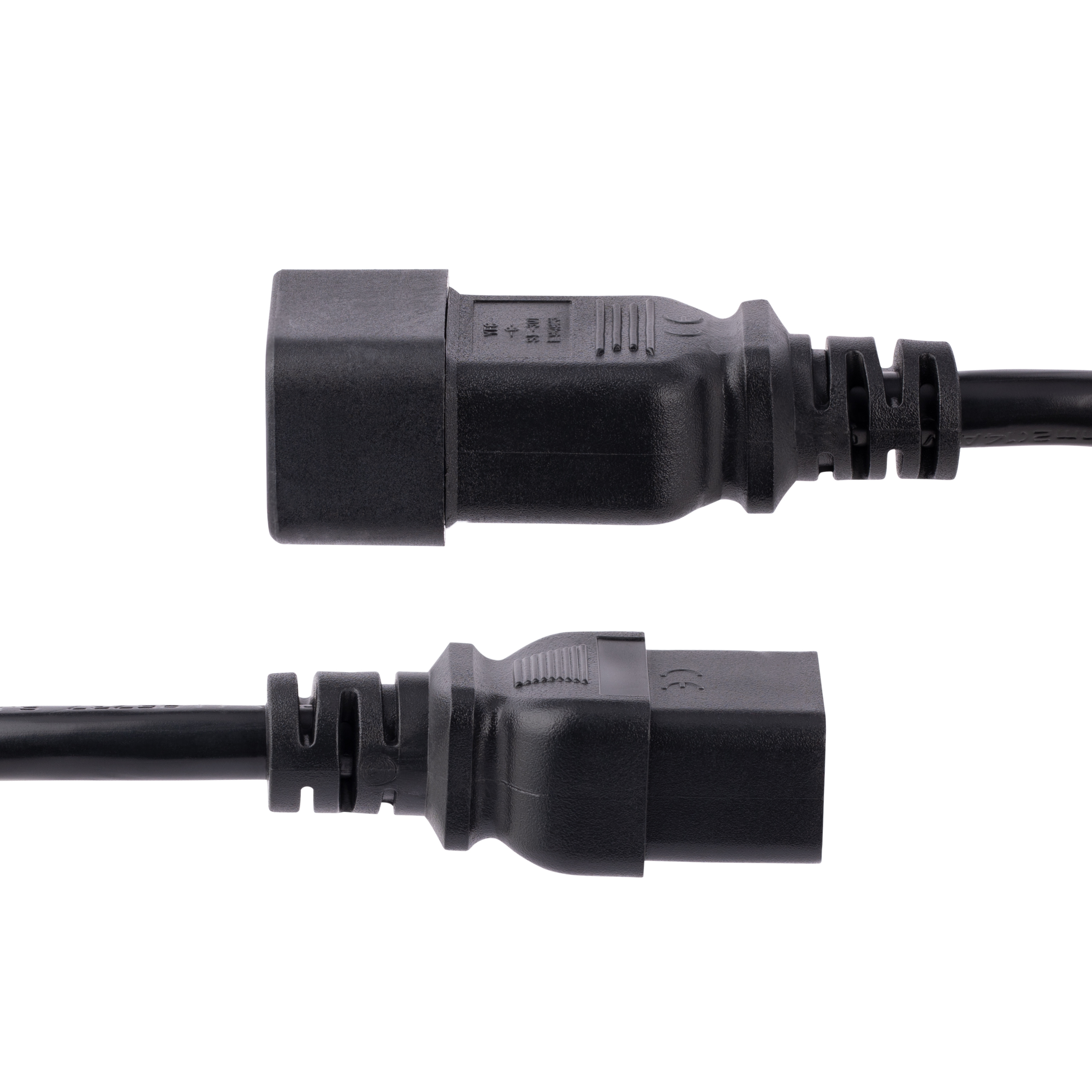

6ft 14AWG Computer Power Cord C19 to C20
6ft (1.8m) Heavy Duty Extension Cord, IEC C19 to IEC C20
Main Image
Product Images
Product Images
Product Images
Video Link YouTube
Product Name 6ft 14AWG Computer Power Cord C19 to C20 Product Number PXTC19C20146 UPC 065030860680 Lifecycle status Active Warranty Lifetime Taxonomy Product > Cables > Power Cables Category Level 1 Cables - Other Category Level 2 Power Cables Category Level 3 External Power Cords Family C19 to C20 Country of Origin Europe & Japan Philippines Country of Origin North America Philippines Country of Origin History (1) Philippines Country of Origin Revision (1) XXXXXX174X Country of Origin History (2) China Country of Origin Revision (2) XXXXXX093X Product Title (Ultra-Short) Heavy Duty Cord Product Title (Short) 6ft Power Extension Cord C19 to C20 Product Title (Medium) 6ft (1.8m) Heavy Duty Extension Cord, IEC C13 to IEC C20 Extension Power Cable Product Title (Standard) 6ft (1.8m) Heavy Duty Extension Cord, IEC C19 to IEC C20 Black Extension Cord, 15A 250V, 14AWG, Heavy Gauge Power Cable Product Title (Long) 6ft (1.8m) Heavy Duty Extension Cord, IEC 320 C19 to IEC 320 C20 Black Extension Cord, 15A 250V, 14AWG, Heavy Gauge Power Extension Cable, IEC 320 C19 to IEC 320 C20 AC Power Cord - UL Listed Product Title (AMZ) 6ft (1.8m) Heavy Duty Extension Cord, IEC 320 C19 to IEC 320 C20 Black Extension Cord, 15A 250V, 14AWG, Heavy Gauge Extension Cable, Heavy Duty AC Power Cord, UL Listed (PXTC19C20146) Title Ingram (Part 1) Heavy Duty Extension Cord - Title Ingram (Part 2) 1.8m (6ft) IEC C19 to IEC C20 Website Product Headline 6ft (1.8m) Heavy Duty Extension Cord, IEC C19 to IEC C20 Bullet 1 HEAVY DUTY EXTENSION CORD: This 6ft (1.8m) 14AWG universal power cord with IEC 60320 C19 to C20 connectors is suitable for servers or other high-powered equipment; Indoor use; Rated to carry 250V at 15A Bullet 2 PERFORMANCE AND SAFETY: UL listed (UL 62 & UL817); Fully molded strain relief on connectors for durability; Fire Rating: VW-1; 3 Conductor Power cable made with 100% copper wire; Available in other lengths Bullet 3 SPECS: 6ft (1.8m) AC Power Cord; IEC 60320 C19 to C20; 14AWG; 250V 15A (Max); Jacket Type: SJT; Jacket Material: PVC; Black; Temperature Range: 37°F to 140°F (3°C to 60°C); Cable Outer Diameter: 0.36in (9.14mm) Bullet 4 COMPATIBILITY: PC Power Cord C19 to C20 works with North American devices; Extend connections to servers, desktop computers, monitors, printers, and more; Replacement power extension cable/cord Bullet 5 THE IT PRO’S CHOICE: Designed and built for IT Professionals, this power extension cable is backed for life, including free lifetime 24/5 multilingual technical assistance Bullets (Compact) 6ft (1.8m) Heavy duty extension cord w/ IEC 60320 C19 to C20 connectors; 250V at 15A (Max); UL listed (UL62 & UL817); AC Power Cord w/ molded connectors; Fire Rating VW-1; 3 Conductor; 14AWG; Jacket Rating SJT; Jacket Material PVC; Outer Dia. 0.36in Bullets (Consolidated) eavy Duty Power Extension Cord 6ft (1.8m) | IEC 60320 C19 to IEC60320 C20 connectors | For workstations/home office | Indoor use | 250V at 15A (Max) - UL listed (UL62 & UL817) | Fully molded strain relief connectors for durability | Fire Rating VW-1 | 3 Conductor extension cord - 6ft (1.8m) AC power Cord | C19 to C20 | 14AWG | 250V 15A (Max) | Jacket Rating: SJT | Jacket Material PVC | Black | Temperature Range 37 DEGF to 140 DEGF (3 DEGC to 60 DEGC) | Cable Outer Diameter 0.36in (9.14mm) Marketing Copy Applications - Connect your server to a PDU
- Extend the connection between your server and PDU by up to 6 feet
Website Search Keyword - c19 to c20
- c19 to c20 cord
- c19 to c20 power cable
- 6 foot c19 to c20 power cord
- 6 ft c19 to c20 power cord
- 6ft c19 to c20
- c19 to c20 extension cord
- 14awg c19 to c20
- heavy duty power cord
- P036-006-15A
Required Regulatory Compliance Marks - WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- UL - Safety - Electrical - Canada / United States - Enhanced UL Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device
Special Notes UL Listed Related Products - PXTC14C156
- PXT101146
- PXT515C19146
- PXTC13C20146
- PXT100146
Input Current 15 A Input Voltage 250 AC Cable Length (mm) 1828 Color Black Primary Material Plastic Product Length (mm) 1828.000 Product Width (mm) 33.000 Product Height (mm) 25.000 Product Weight (g) 326.000 TAA Compliant No Wire Gauge 14 AWG Voltage Rating 250V Cable Jacket Material PVC - Polyvinyl Chloride Cable Type SJT Female Connector C19 Fire Rating VW-1 Rated Male Connector / Plug C20 Number of Conductors 3 Type AC Extension Cord Amount of recycled material in plastic packaging At Least 30% Carton Depth (mm) 509 Carton Height (mm) 207 Carton Quantity 40 Carton Weight Gross (g) 14454 Included in Package 1 - 6 ft 14 AWG Computer Power Cord - C19 to C20 Number of Sub-Cartons 4 Package Depth (mm) 84 Package Height (mm) 55 Package Width (mm) 243 Package Quantity 1 Package Weight (g) 342 Packaging Description 14 AWG Computer Power Cord - C19 to C20 Packaging Description India 14 AWG Computer Power Cord - C19 to C20 Sub-Carton Depth (mm) 262 Sub-Carton Height (mm) 127 Sub-Carton Width (mm) 331 Sub-Carton Quantity 10 Sub-Carton Weight (g) 3438 Connector 1 IEC C19 (250V AC, 16A) Connector 1 (Quantity) 1 Connector 2 IEC C20 (250V AC, 16A) Connector 2 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2014-12-30 Buying Center - AV & Collaboration No Buying Center - Data Center Yes Buying Center - End User Compute No Buying Center - Networking & Edge Yes Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) CA,CL,CO,MX,PE,US Primary Technology None Product Development Specialist Alex Sikora Product Information Creation Specialist (PICS) Brian Chan Product Manager Tim North Product Performance Specialist Ray Aoki Product Photographer Caleigh Le Grand Tech Lead Justin Weaver Technical Writer Brian Chan Technology Lifecycle Mainstream
