PXTMG1013

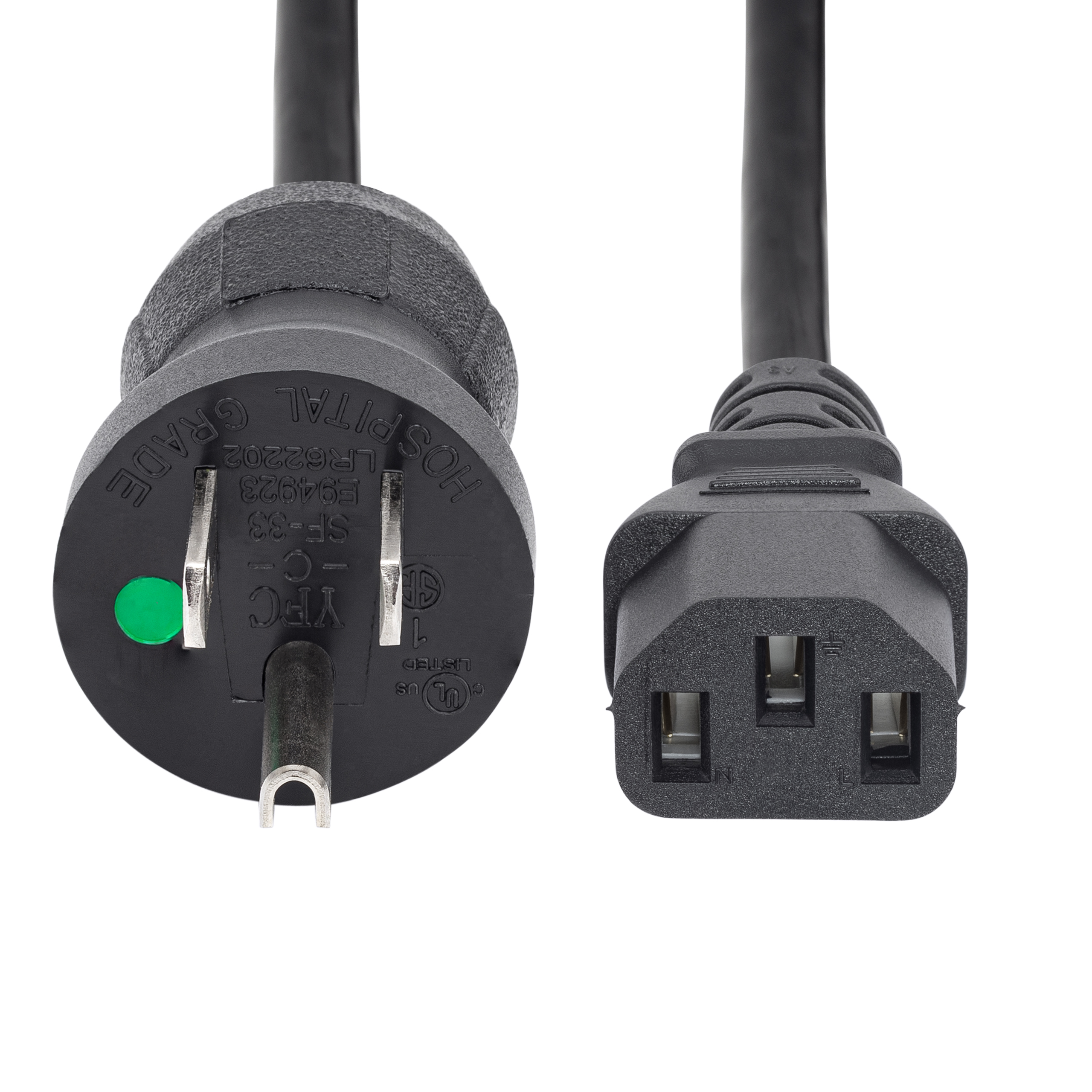

3ft NEMA-5-15P to C13 Medical Grade cable
3ft/1m Hospital Grade Power Cord, 18AWG, NEMA 5-15P - C13
Main Image
Enhanced Images
Enhanced Images
Enhanced Images
Product Images
Product Images
Product Images
Video Link YouTube
Product Name 3ft NEMA-5-15P to C13 Medical Grade cable Product Number PXTMG1013 UPC 065030878036 Lifecycle status Active Warranty Lifetime Taxonomy Product > Networking > SFP Transceivers Category Level 1 Cables - Other Category Level 2 Power Cables Category Level 3 Medical Grade Power Cables Family 5-15 to C13 Country of Origin Europe & Japan Philippines Country of Origin North America Philippines Country of Origin History (1) Philippines Country of Origin Revision (1) XXXXXX174X Country of Origin History (2) China Country of Origin Revision (2) XXXXXX093X Product Title (Ultra-Short) Hospital Grade Cord Product Title (Short) 3ft Hospital Power Cord, NEMA 5-15P/C13 Product Title (Medium) 3ft/1m Hospital Grade Power Cord, 18AWG, NEMA 5-15P - C13 Green Dot Power Cable Product Title (Standard) 3ft (1m) Hospital Grade Power Cord, 18AWG, NEMA 5-15P to C13, 10A 125V, Green Dot Medical Power Cable, Monitor Power Cable Product Title (Long) 3ft (1m) Hospital Grade Power Cord, 18AWG, NEMA 5-15P to C13, 10A 125V, Green Dot Medical Power Cable, PC Power Supply Power Cable, Printer / Monitor Power Cable - UL Listed Product Title (AMZ) 3ft (1m) Green Dot Power Cord, 18AWG, NEMA 5-15P to C13, 10A 125V, Green Dot PWR Cable, PC Power Supply Cable for Printer / Monitor - UL Listed (PXTMG1013) Title Ingram (Part 1) Hospital Grade Power Cord - Title Ingram (Part 2) 1m (3ft), 18AWG, NEMA 5-15P to C13 Website Product Headline 3ft/1m Hospital Grade Power Cord, 18AWG, NEMA 5-15P - C13 Bullet 1 HOSPITAL GRADE POWER CORD: This 3ft (0.9m) 18AWG hospital grade power cord with NEMA 5-15P and IEC 60320 C13 connectors is safe for hospital and medical environments. Rated to carry 125V at 10A Bullet 2 PERFORMANCE AND SAFETY: UL Listed | Tested to UL62, UL817 and CAN/CSA C22.2 no. 21-14 | Fully molded strain relief connectors for durability | 3 Conductor Power Cable made with 100% Copper Wire | Fire Rating: VW-1 Bullet 3 SPECS: 3ft (0.9m) Power Cable | NEMA 5-15P to IEC 60320 C13 | 18AWG | 125V 10A (Max) | Jacket Rating: SVT | Jacket Material: PVC | Color: Black | Temperature Range: 37°F to 140°F (3℃ to 60℃) | Cable Outer Diameter: 0.25in (6.4mm) Bullet 4 COMPATIBILITY: NEMA 5-15P hospital grade plug works with North American electrical outlets | IEC C13 connector works with most computers, monitors and TVs | Replacement PC power supply cable/cord Bullet 5 THE IT PRO’S CHOICE: Designed and built for IT Professionals, this computer power cord is backed for life, including free lifetime 24/5 multilingual technical assistance Bullets (Compact) 3ft (0.9m) 18AWG hospital grade power cord w/ NEMA 5-15P and IEC C13 connectors; Rated for 125V 10A; UL listed; Tested for CAN/CSA; Fully molded ends; hospital grade plug; 100% Copper Wire; Fire Rating: VW-1; Jacket Rating: SVT; Jacket Material: PVC Bullets (Consolidated) 3ft (0.9m) hospital grade power cord with NEMA 5-15P and IEC C13 connectors. Rated for 125V at 10A, up to 1250W - UL listed (UL62 & UL817) |CAN/CSA C22.2 no. 21-14 | Durable fully molded ends | 3 Conductor cable made with 100% copper wire | Fire Rating: VW-1 | Jacket Rating: SVT | Jacket Material: PVC | Temp. Range: 37 to 140DEG F (3 to 60DEG C) | Cable Dia. 0.25in (6.4mm) - IEC C13 works with most computers and many monitors scanners printers | Replacement hospital grade power supply cable Marketing Copy Marketing Copy (No HTML) Applications Plug your computer, monitor and other medical equipment with a C14 port to a hospital-grade AC power outlet Website Search Keyword - 5 15p to C13
- ac power cord
- c13 power cord
- computer power cord
- hospital grade power cable
- hospital grade power cord
- Medical Grade power cord
- medical grade power supply
- monitor power cable
- monitor power cord
- nema 5 15 power cord
- nema 5 15p to c13
- nema cable
- nema power cable
- NEMA power cord
- power cable
- power cord
- power cord connector
- power supply cord
- replacement power cord
- P006-003-HG10
Required Regulatory Compliance Marks - WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- UL - Safety - Electrical - Canada / United States - Enhanced UL Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device
Special Notes UL Listed Related Products - PXTMG1016
- PXTMG10110
- PXTMG10115

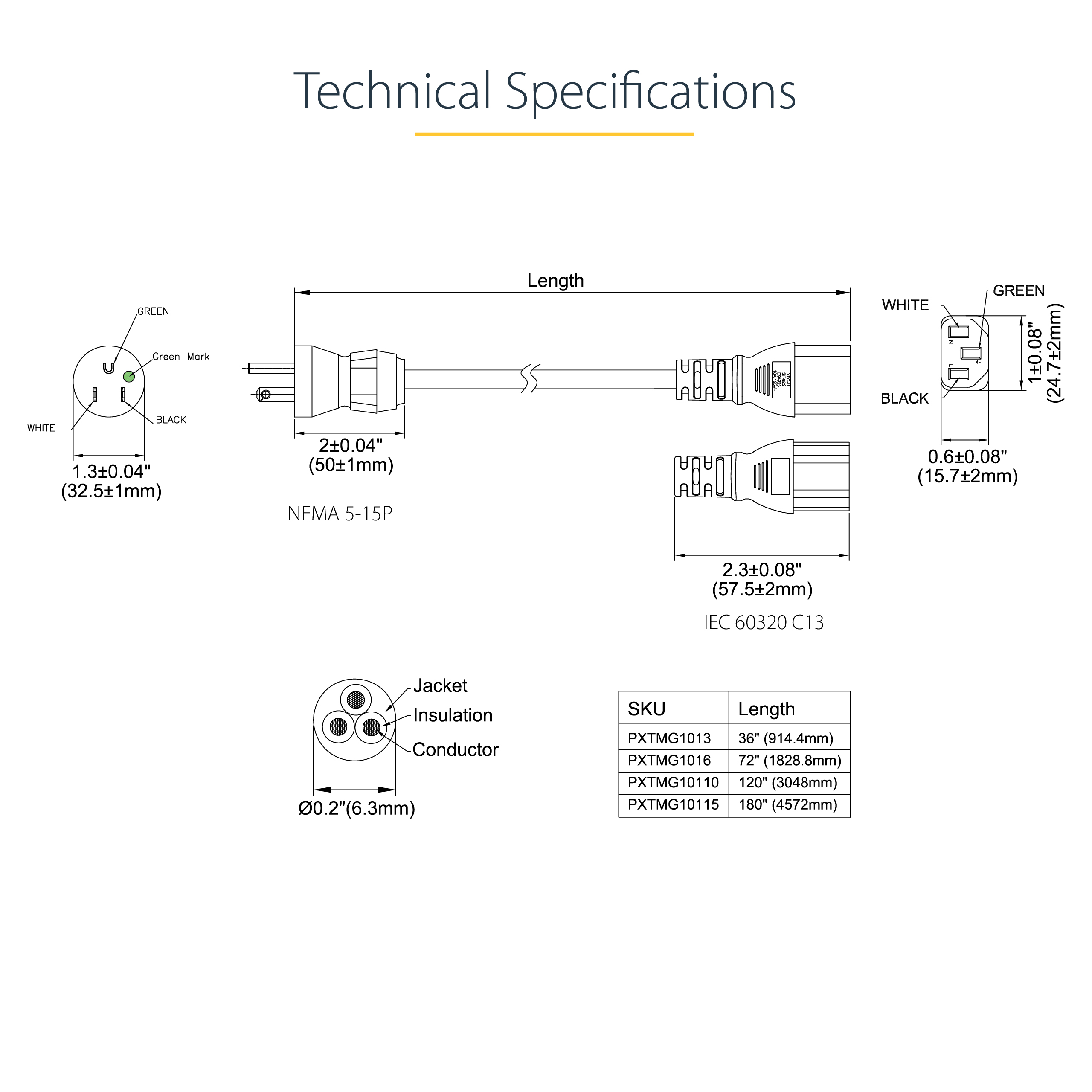

Input Current 10 A Input Voltage 125 AC Cable Length (mm) 914.4 Color Black Connector Style Straight Primary Material Plastic Product Length (mm) 914.400 Product Width (mm) 32.000 Product Height (mm) 32.000 Product Weight (g) 116.000 TAA Compliant No Wire Gauge 18 AWG Features Hospital Grade Voltage Rating 125V Cable Type SVT Female Connector C13 Fire Rating VW-1 Rated Male Connector / Plug 5-15P Number of Conductors 3 Type AC Power Cord Amount of recycled material in plastic packaging At Least 30% Carton Depth (mm) 330 Carton Height (mm) 274 Carton Quantity 170 Carton Weight Gross (g) 21580 Included in Package 1 - NEMA 5-15P to C13 power cord Number of Sub-Cartons 17 Package Depth (mm) 74 Package Height (mm) 41 Package Width (mm) 187 Package Quantity 1 Package Weight (g) 124 Packaging Description Computer Power Cord - Hospital Grade - 5-15P to C13 Packaging Description India Computer Power Cord - Hospital Grade - 5-15P to C13 Sub-Carton Depth (mm) 224 Sub-Carton Height (mm) 96 Sub-Carton Width (mm) 225 Sub-Carton Quantity 10 Sub-Carton Weight (g) 1250 Connector 1 NEMA 5-15 (125V AC, 15A) Connector 1 (Quantity) 1 Connector 2 IEC C13 (250V AC, 10A) Connector 2 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2017-11-03 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge Yes Digital Content Due Date 2018-01-05 Enhanced Gallery Uploaded Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) CA,MX,US Primary Technology None Product Development Specialist Alex Sikora Product Information Creation Specialist (PICS) Brian Chan Product Manager Tim North Product Performance Specialist Ray Aoki Product Photographer Caleigh Le Grand Target Development Completion Date 2017-12-29 Target Production Release 2018-01-26 Tech Lead Justin Weaver Technical Writer Brian Chan Technology Lifecycle Mainstream
