QFXQSFPDAC3M

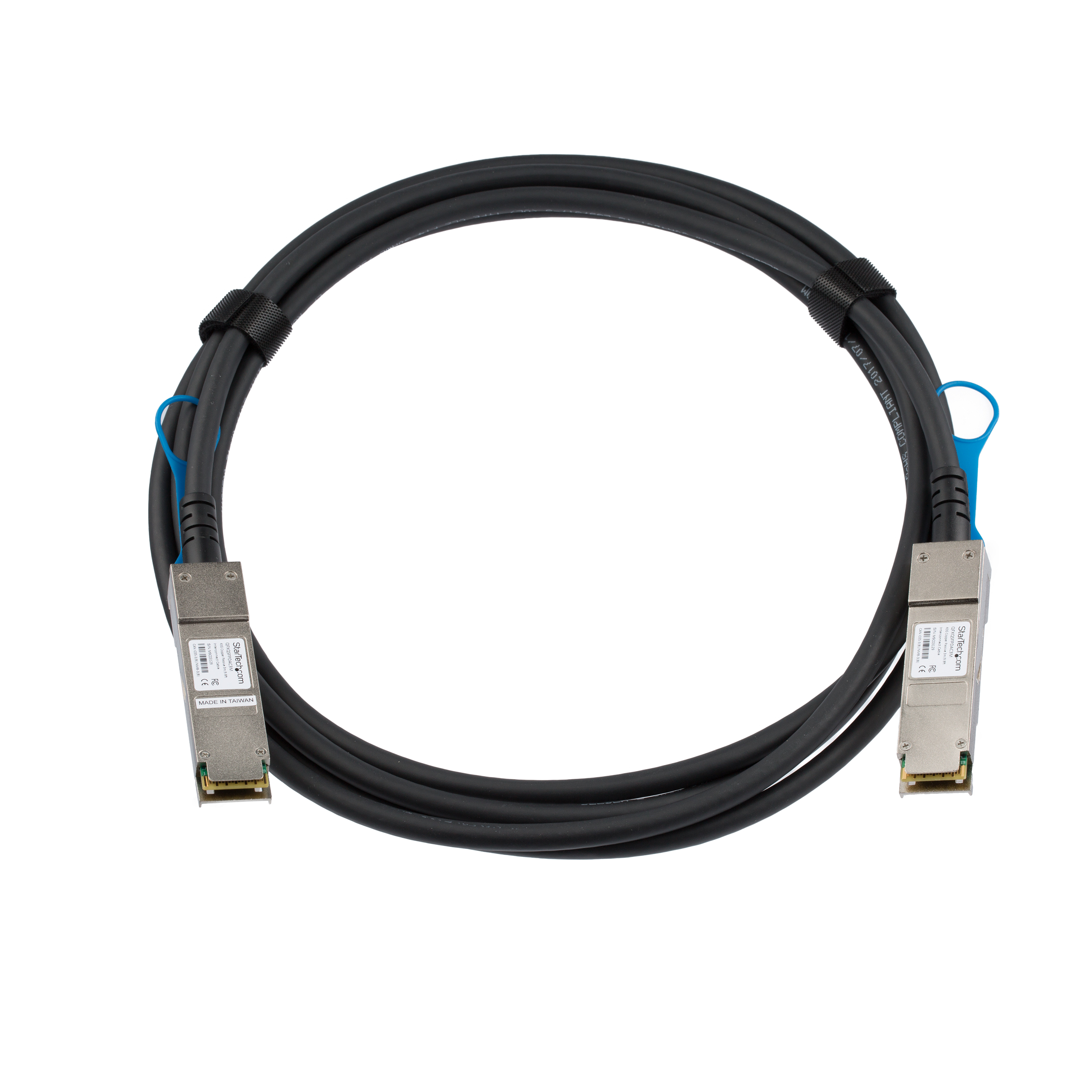

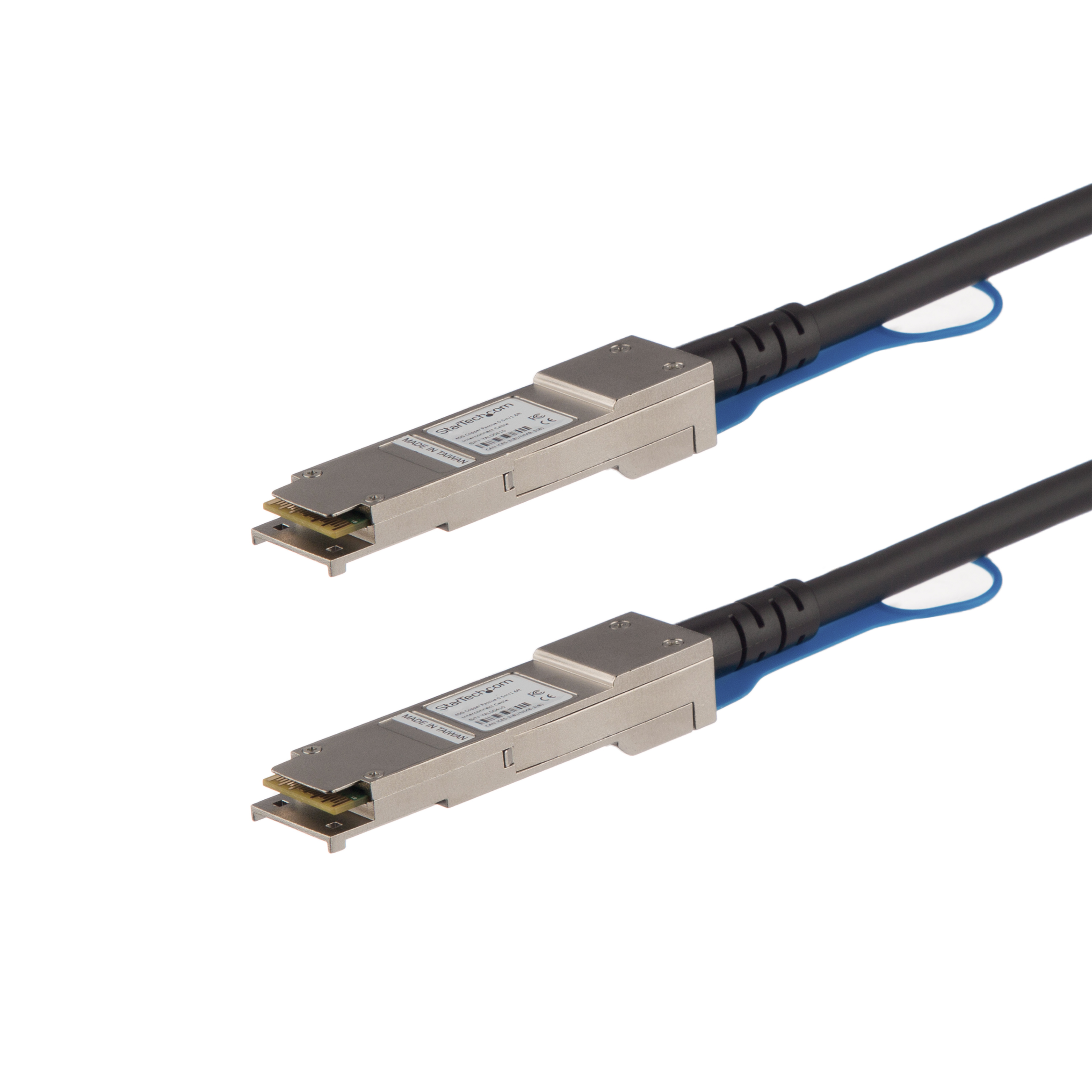

9 8ft QSFP Direct Attach Cable Juniper Compatible
Copper QSFP+ Cable | 40 Gbps | Passive DAC | Lifetime Warranty
Main Image
Product Images
Product Name 9 8ft QSFP Direct Attach Cable Juniper Compatible Product Number QFXQSFPDAC3M UPC 065030875134 Lifecycle status End of Life Warranty Lifetime Taxonomy Product > Networking > SFP Transceivers Category Level 1 Networking Category Level 2 SFP Transceivers Category Level 3 Juniper Compatible Cables Family Juniper Compatible - 40G QSFP+ to QSFP+ Cables - Twinax Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX169X Country of Origin History (2) China Country of Origin Revision (2) XXXXXX056X Product Title (Ultra-Short) 3m QSFP+ DAC Cable Product Title (Short) 3m 40G QSFP+ DAC Juniper QFX-QSFP-DAC-3M Product Title (Medium) Juniper QFX-QSFP-DAC-3M Comp QSFP+ DAC Twinax Cable - 3 m (9.8 ft) - RJ45 Copper Product Title (Standard) 3m QSFP+ to QSFP+ Direct Attach Cable for Juniper QFX-QSFP-DAC-3M 40GbE QSFP+ Copper DAC 40Gbps Passive Twinax Product Title (Long) Juniper QFX-QSFP-DAC-3M Compatible 3m 40G QSFP+ to QSFP+ Direct Attach Cable Twinax - 40GbE QSFP+ Copper DAC 40 Gbps Low Power Passive Transceiver Module DAC Product Title (AMZ) Juniper QFX-QSFP-DAC-3M Compatible 3m 40G QSFP+ to QSFP+ Direct Attach Cable Twinax - 40GbE QSFP+ Copper DAC 40 Gbps Low Power Passive Transceiver Module DAC (QFXQSFPDAC3M) Title Ingram (Part 1) Juniper QFX-QSFP-DAC-3M Comp Title Ingram (Part 2) Twinax Copper Cable - RJ45 Website Product Headline Copper QSFP+ Cable | 40 Gbps | Passive DAC | Lifetime Warranty Bullet 1 100% JUNIPER QFX-QSFP-DAC-3M COMPATIBLE DAC: 40G direct attach cable works with Juniper switches and is MSA compliant Bullet 2 TECHNICAL SPECS: 3m (9.8ft) | 40 Gbps | Passive Twinax (Copper) | 2 x QSFP+ Pluggable Connector | 100 Ohm Impedance | 30 AWG Wire Gauge | PVC Cable Jacket | Hot swappable | MSA Compliant Bullet 3 TESTED FOR OEM HOST COMPATIBILITY: Hot-swappable in Juniper routers and switches Bullet 4 LIFETIME WARRANTY: Backed by a lifetime warranty on the life of the module itself, not the life of your switch; our modules won't void your OEM warranty and supported by our Tech Advisors 5/24 Bullet 5 WORKS WITH MSA COMPLIANT SWITCHES: Low power 40GbE DAC also works with switch models from Ubiquiti, D-Link, Netgear, Supermicro, TP-Link and more that accept uncoded modules and transceivers Bullets (Compact) 100% Juniper QFX-QSFP-DAC-3M Compatible 3m direct attached cable - 40 Gbps Passive Twinax Copper Low Power 2x QSFP+ Pluggable Connector - 40GbE Transceiver Module DAC for Juniper switches - Hot-Swappable MSA Compliant Lifetime Warranty Bullets (Consolidated) 100% Juniper QFX-QSFP-DAC-3M Compatible 3m direct attached cable - 3m/9.8' Cable | 40 Gbps | Passive Twinax (Copper) | 2x QSFP+ Pluggable Connector | 100 Ohm Impedance | 30 AWG | PVC Jacket - 40GbE Low Power Transceiver Module DAC for edge networks/server rooms/data centers - For Juniper switches - Hot-Swappable and MSA Compliant - StarTech.com lifetime warranty and will not void your OEM warranty Marketing Copy Marketing Copy (No HTML) Applications - Use in 40Gb Ethernet network applications
- Point-to-point in-rack and across-rack server or network switch connections
Website Search Keyword - 40g cable
- 40G DAC Cable
- 40G Juniper Compatible Cable
- 40g qsfp+ cable
- 40g qsfp+ dac cable
- 40gb qsfp+ cable
- 40gbe cable
- DAC Cable
- direct attach cable
- Juniper DAC Cable
- Juniper direct attach cable
- Juniper passive twinax cable
- Juniper QFX-QSFP-DAC-3M
- Juniper QSFP Cable
- Juniper QSFP+ Cable
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- UKCA - EMC/EMI - United Kingdom - UK Electromagnetic Compatibility Regulations 2016
- Triman/Info-Tri - Product - Waste - European Union - EEE Device
- EU RIC + Italian Sorting - Packaging - Waste - European Union - Corrugated Fiberboard
- Triman/Info-Tri - Packaging - Waste - European Union - Paper Box + plastic bag + Paper/foam divider/tray
- Recycling - Waste - Japan - Paper Recycling Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
Related Products - EXQSFP4050CM
- QFXQSFPDAC1M
Power Consumption (In Watts) < 0.1 W (per end) Cable Length (mm) 3000 Color Black Material Steel Operating Temperature 0°C to 70°C (32°F to 158°F) Primary Material Steel Product Length (mm) 3000.000 Product Width (mm) 18.000 Product Height (mm) 13.000 Product Weight (g) 250.000 Storage Temperature -40°C to 80°C (-40°F to 158°F) TAA Compliant No Wire Gauge 30 AWG Compatible Networks 40 Gbps Impedance (Ohm) 100 Ohm Maximum Data Transfer Rate 40Gbps Cable Jacket Material PVC - Polyvinyl Chloride Cable Type Passive Copper Cable SFP Compatible Brand Juniper Carton Depth (mm) 255 Carton Height (mm) 295 Carton Quantity 10 Carton Weight Gross (g) 5150 Included in Package 1 - QSFP+ cable Package Depth (mm) 250 Package Height (mm) 26 Package Width (mm) 196 Package Quantity 1 Package Weight (g) 268 Packaging Description 3m (10ft) 40Gb Passive Twinax Cable - QFX-QSFP-DAC-3M Compatible QSFP+ Packaging Description India 3m (10ft) 40Gb Passive Twinax Cable - QFX-QSFP-DAC-3M Compatible QSFP+ Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 QSFP+ (40Gbps) Connector 1 (Quantity) 1 Connector 2 QSFP+ (40Gbps) Connector 2 (Quantity) 1 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2017-09-01 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge Yes Digital Content Due Date 2017-11-24 Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,DE,DK,ES,EU,FI,FR,IE,IN,IT,JP,NL,NZ,SE,UK,US Primary Technology None Product Development Specialist Ray Aoki Product Information Creation Specialist (PICS) Alex Garcia Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Target Development Completion Date 2017-10-13 Target Production Release 2017-11-24 Tech Lead Stefan Tirolese Technical Writer Alex Garcia Technology Lifecycle None
