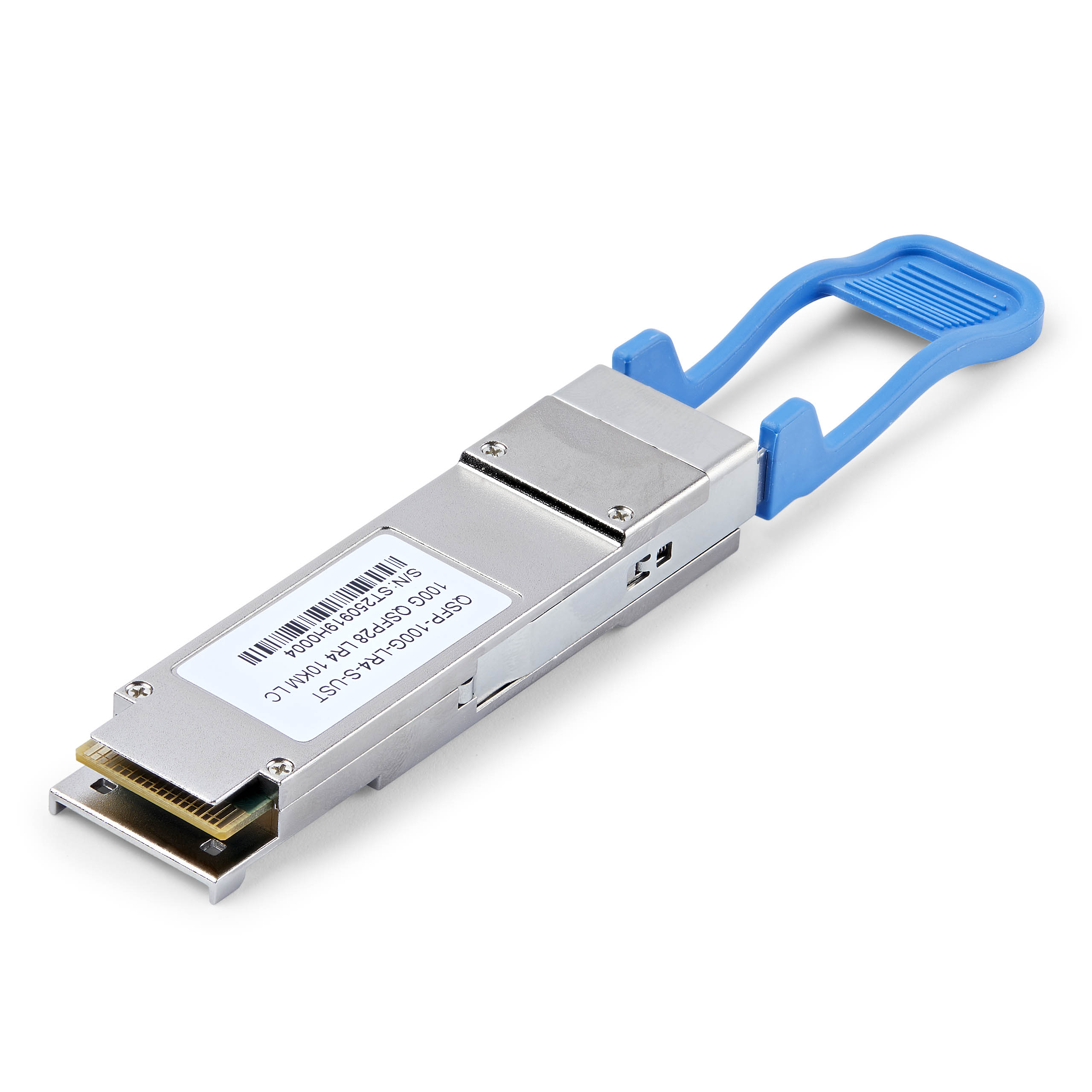

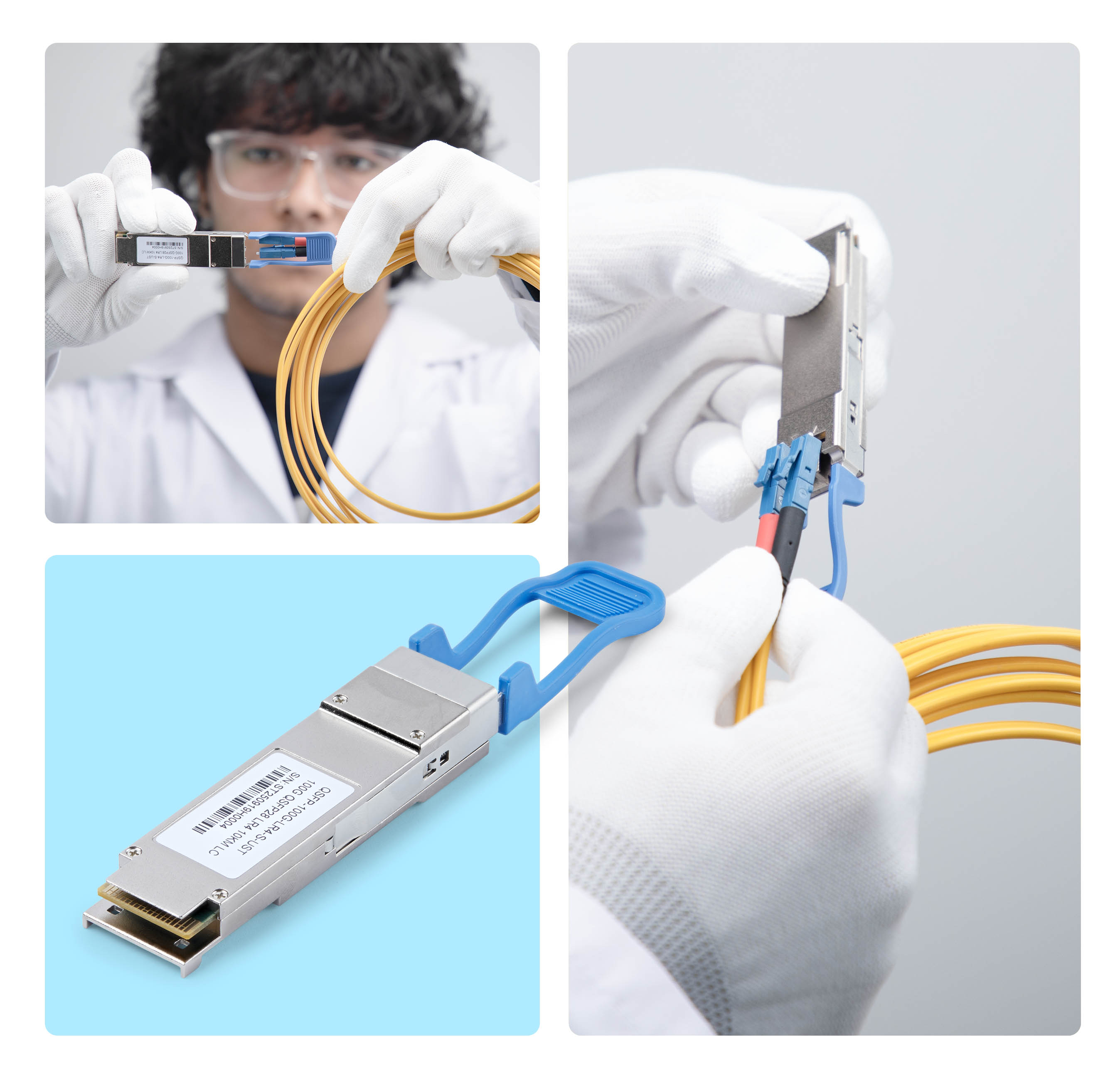

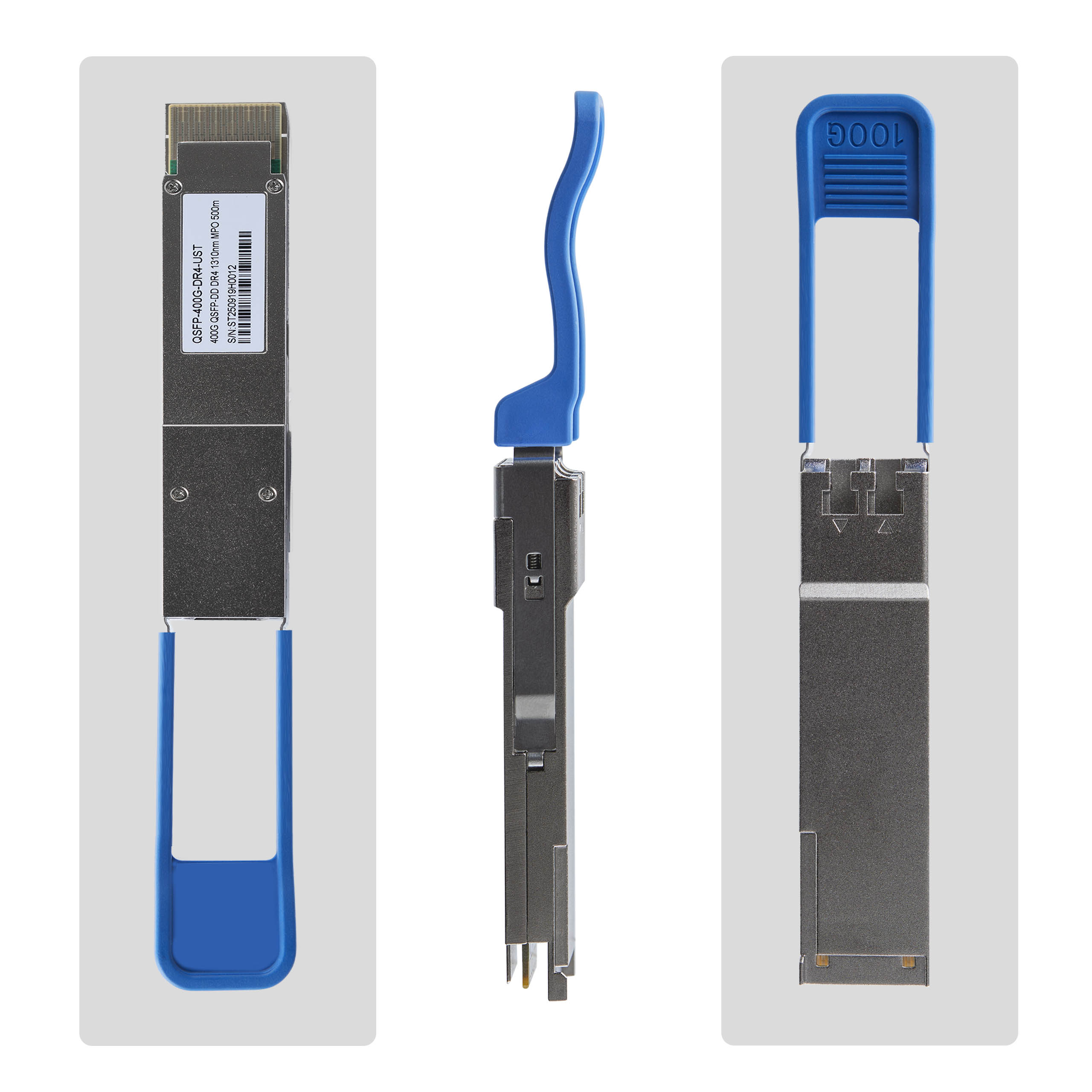

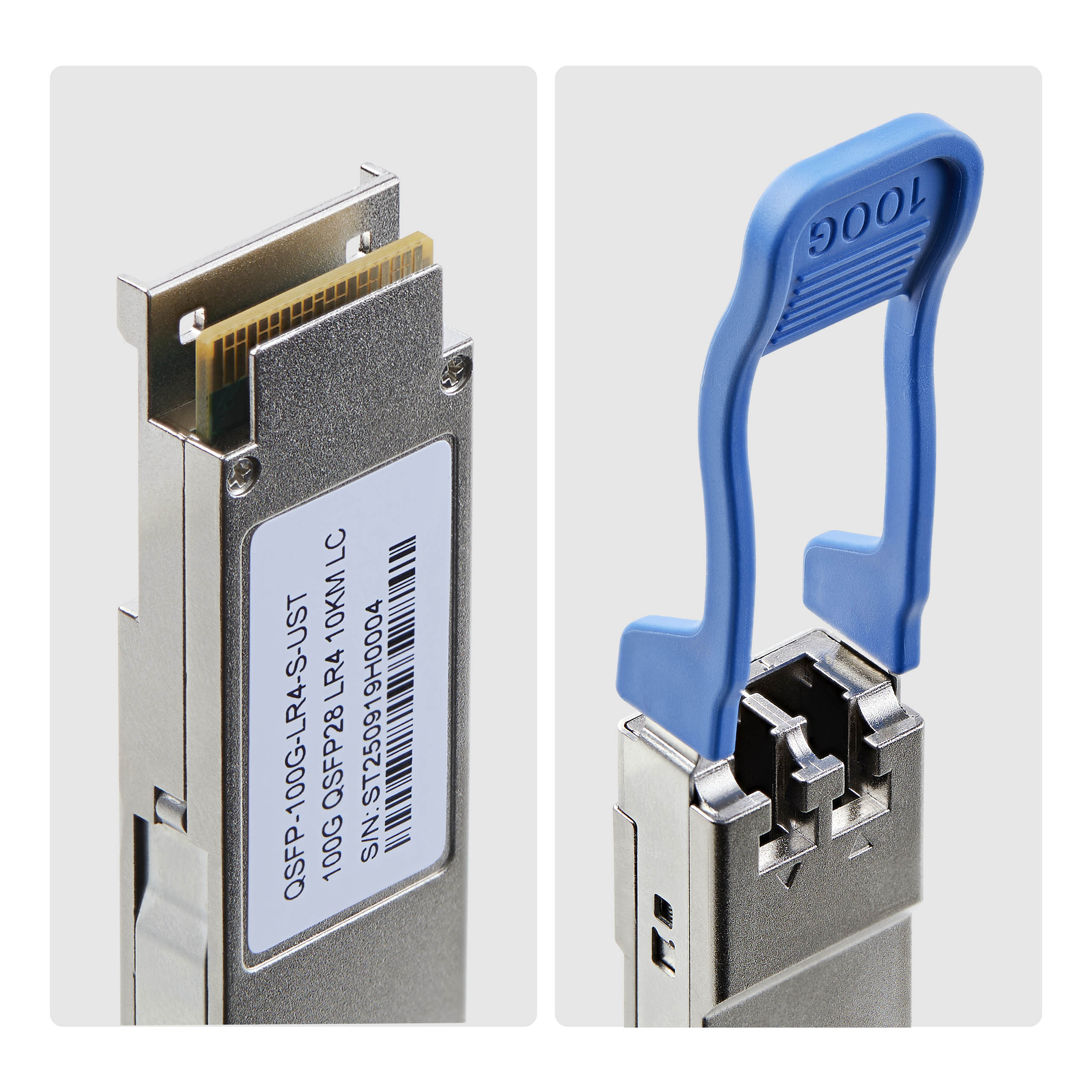

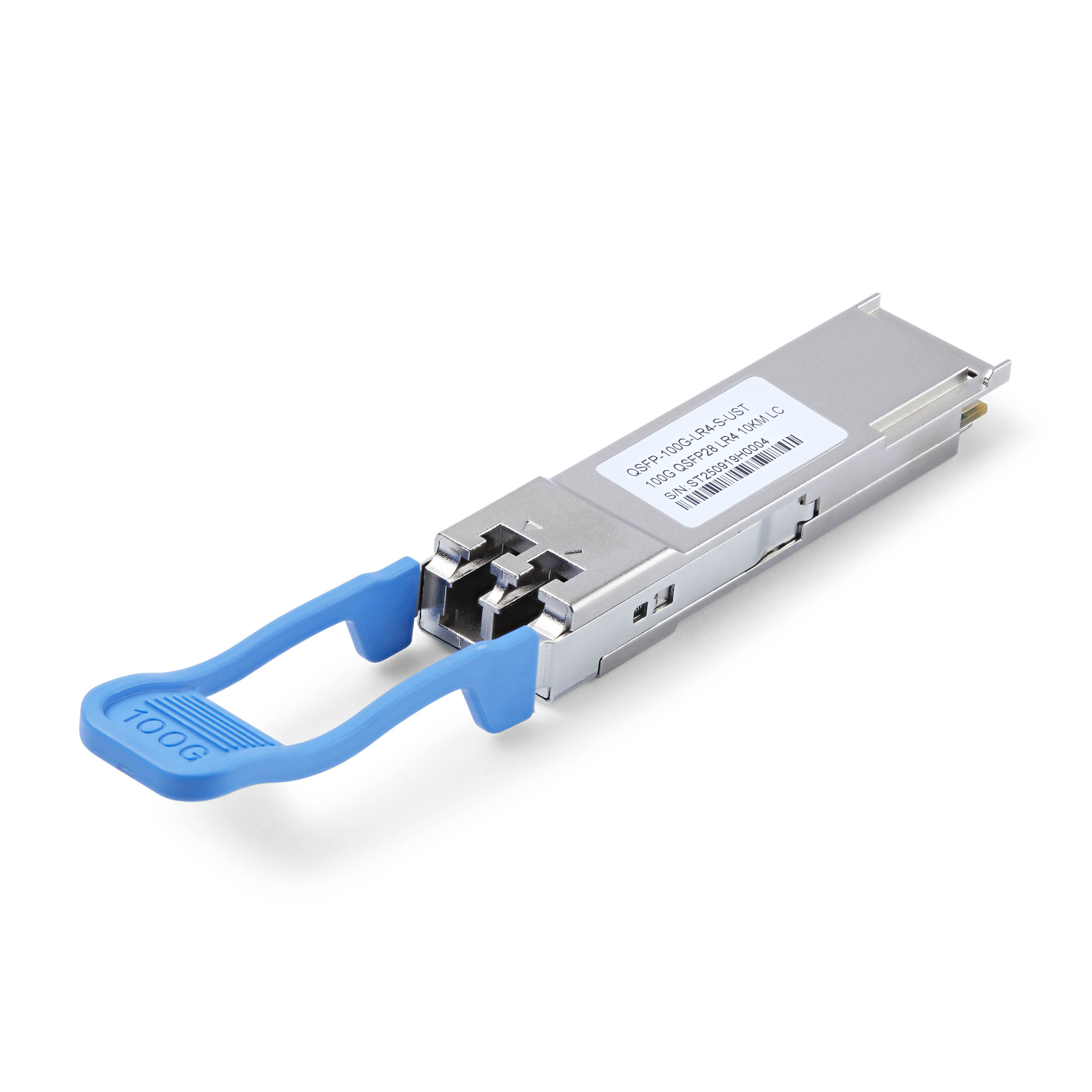

QSFP-100G-LR4-S-UST
100GbE, Uncoded, 1295-1310nm, LC, SMF
Add reliable and cost-effective network connectivity over fiber with this QSFP module
Main Image
Product Images
Product Images
Product Images
BOM Image
Product Name 100GbE, Uncoded, 1295-1310nm, LC, SMF Product Number QSFP-100G-LR4-S-UST UPC 065030925587 Lifecycle status Pending Taxonomy Product > Networking > SFP Transceivers Category Level 1 Networking Category Level 2 SFP Transceivers Category Level 3 Uncoded SFP Transceivers Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX091X Product Title (Ultra-Short) MSA Uncoded Module Product Title (Short) MSA Uncoded Compatible QSFP Module Product Title (Medium) MSA Uncoded QSFP Module, 100Gbps Single Mode Fiber Product Title (Standard) MSA Uncoded QSFP Module, 100Gbps Single Mode Fiber (SMF), 10km [6.2mi], LC Transceiver Product Title (Long) MSA Uncoded QSFP Module, 100Gbps Single Mode Fiber (SMF), 10km [6.2mi], LC Transceiver, 1310nm Product Title (AMZ) MSA Uncoded QSFP Module, 100Gbps Single Mode Fiber (SMF), 10km [6.2mi], LC Transceiver, 1310nm Title Ingram (Part 1) MSA Uncoded QSFP Module Title Ingram (Part 2) 100Gbps Single Mode Fiber Website Product Headline Add reliable and cost-effective network connectivity over fiber with this QSFP module Bullet 1 Bullet 2 Bullet 3 Bullet 4 Bullet 5 Bullets (Compact) MSA compliant QSFP LR4 module delivers stable 100G connectivity over single-mode fiber ideal for data center interconnects campus networks / long-distance core links - QSFP LR4 transceiver (1310nm) supports 10km (6.2mi) single-mode connectivity Bullets (Consolidated) MSA compliant QSFP LR4 module delivers stable 100G connectivity over single-mode fiber ideal for data center interconnects campus networks and long-distance core links - QSFP LR4 transceiver (1310nm) supports 10km single-mode connectivity and includes Digital Diagnostic Monitoring (DDM) to provide real-time visibility into optical power temperature and module health - Uncoded QSFP module that ensures predictable interoperability with MSA-compliant switches and routers Marketing Copy Marketing Copy (No HTML) Applications - Deploy high-speed fiber connectivity across industrial sites, outdoor enclosures, and edge locations where environmental conditions demand greater module stability
- Standardize deployments across MSA-compliant switches and routers to simplify multi-vendor networks and reduce spare part complexity
- Scale fiber connectivity in data center and edge compute environments supporting high-density switching and growing bandwidth demands
Required Marketing Compliance Marks FSC - Environmental - Global - FSC Mix Packaging (Global 7 Languages) Required Regulatory Compliance Marks - CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- UKCA - EMC/EMI - United Kingdom - UK Electromagnetic Compatibility Regulations 2016
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- Recycling - Waste - Japan - Paper Recycling Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device
- Triman/Info-Tri - Packaging - Waste - European Union - Paper Box + plastic bag + Paper/foam divider/tray
- EU RIC + Italian Sorting - Packaging - Waste - European Union - Corrugated Fiberboard
- Triman/Info-Tri - Manual - Waste - European Union - Print Paper
- UL Recognized - Safety - Electrical - Canada / United States - cURus Recognised Component Mark
- Laser Label - Safety - Laser - Australia/New Zealand - ANZ Laser Safety Label
- Laser Label - Safety - Laser - Canada - Canada Laser Safety Label
- Laser Label - Safety - Laser - European Union - EU Laser Safety Label
- Laser Label - Safety - Laser - Japan - JP Laser Safety Label
- Laser Label - Safety - Laser - United Kingdom - UK Laser Safety Label
- Laser Label - Safety - Laser - United States - FDA Class IIIa Laser Label
Power Consumption (In Watts) ＜4.5W Color Silver Operating Temperature 0°C to 70°C (32°F to 158°F) Product Length (mm) 117.8 Product Width (mm) 18.35 Product Height (mm) 12.6 Product Weight (g) 140 TAA Compliant No Compatible Networks 100 Gbps Digital Diagnostics Monitoring Support Yes Fiber Operating Mode Full-Duplex Fiber Type Single Mode Max Transfer Distance 10 km (6.2 mi) MTBF (hours) 3083849 hours Wavelength 1310nm Fiber Connector LC Industry Standards IEEE 802.3ba 100GBASE-LR4 SFP Compatible Brand MSA Compliant Included in Package - 1 - QSFP Transceiver
- 1 - Product Documentation
Packaging Description MSA Compatible 100GBASE-LR4 QSFP Transceiver (1310nm, 10km) Packaging Description India MSA Compatible 100GBASE-LR4 QSFP Transceiver (1310nm, 10km) A+ Not Required Actual Inbox Documents Created Compliance Insert Only Amazon Merchandising Manager Kathleen Marshall Amazon Only SKU No Amazon Visual Content Level Silver Application Photos Required Buying Center - AV & Collaboration No Buying Center - Data Center Yes Buying Center - End User Compute No Buying Center - Networking & Edge Yes Comparable SKU Comment This is a commodity optics category where meaningful differentiation is achieved through quality assurance, documentation, and customer experience rather than proprietary features or performance claims. Comparable SKU 2 Comment na Digital Content Due Date 2026-04-14 Enhanced Gallery Not Required Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level - 2 Graphic Designer Brooke Taylor ID Label Silkscreened or a Label Sticker label - 50x25mm Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,CO,DE,DK,ES,FI,FR,HK,IE,IN,IT,JP,MX,NL,NZ,PE,PL,SE,SG,UK,US Priority New Product High Product Development Specialist Yipeng Zhang Product Information Creation Specialist (PICS) Maria Powell Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Target Development Completion Date 2025-12-09 Target Production Release 2026-02-15 Tech Lead Stefan Tirolese Technical Writer Maria Powell Technology Lifecycle Mainstream Video Not Required
