Main Image
QSFP40GAC7M

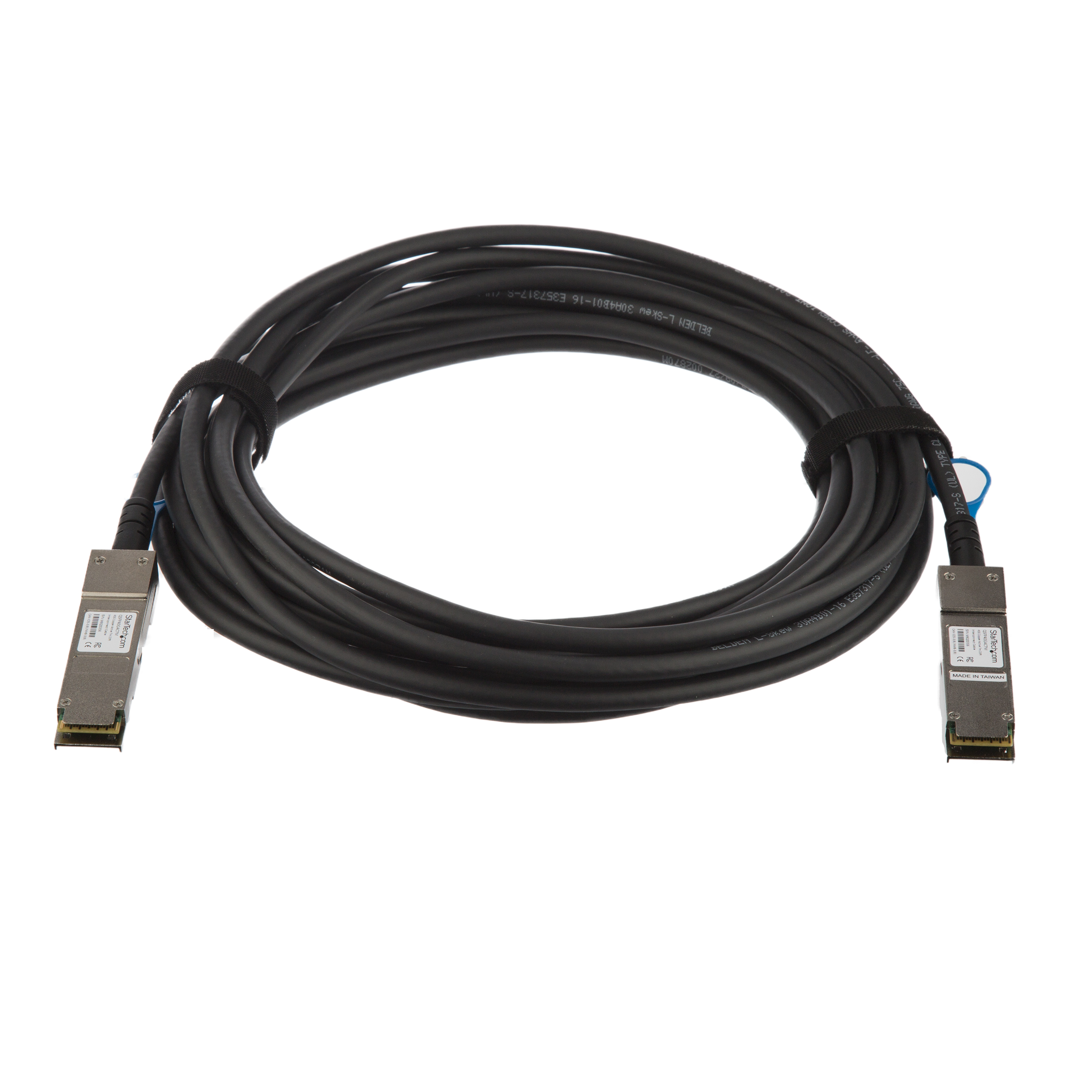

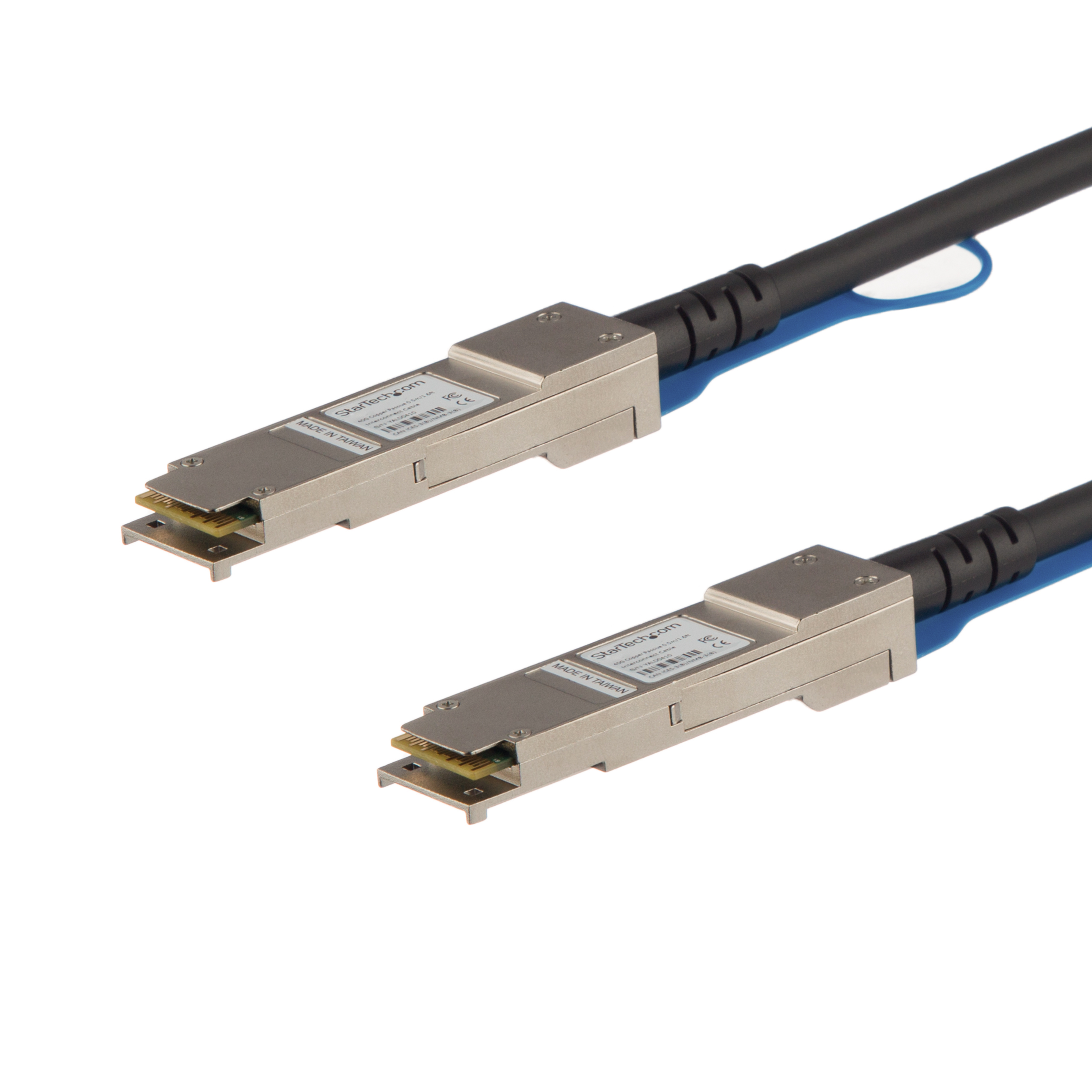

7m QSFP Direct Attach Cable MSA Compliant
Copper QSFP+ Cable | 40 Gbps | Active DAC | Lifetime Warranty
Main Image
Product Images
Product Name 7m QSFP Direct Attach Cable MSA Compliant Product Number QSFP40GAC7M UPC 065030874830 Lifecycle status End of Life Warranty Lifetime Taxonomy Product > Networking > SFP Transceivers Category Level 1 Networking Category Level 2 SFP Transceivers Category Level 3 Uncoded SFP Cables Family Uncoded 40G QSFP+ to QSFP+ Cables - Twinax Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX169X Country of Origin History (2) China Country of Origin Revision (2) XXXXXX056X Product Title (Ultra-Short) 7m QSFP+ DAC Cable Product Title (Short) 7m 40G QSFP+ DAC - MSA Uncoded Product Title (Medium) MSA Compliant QSFP+ DAC Twinax Cable - 7 m (23 ft.) - RJ45 Copper Product Title (Standard) MSA Uncoded Compatible 7m 40G QSFP+ to QSFP+ Direct Attach Cable - 40 GbE QSFP+ Copper DAC 40 Gbps Low Power Active Twinax Product Title (Long) MSA Uncoded Compatible 7m 40G QSFP+ to QSFP+ Direct Attach Breakout Cable Twinax - 40 GbE QSFP+ Copper DAC 40 Gbps Low Power Active Transceiver Module DAC Product Title (AMZ) MSA Uncoded Compatible 7m 40G QSFP+ to QSFP+ Direct Attach Breakout Cable Twinax - 40 GbE QSFP+ Copper DAC 40 Gbps Low Power Active Transceiver Module DAC (QSFP40GAC7M) Title Ingram (Part 1) MSA Compliant QSFP+ DAC - Title Ingram (Part 2) Twinax Copper Cable - 7 m Website Product Headline Copper QSFP+ Cable | 40 Gbps | Active DAC | Lifetime Warranty Bullet 1 MSA UNCODED QSFP+ CABLE (DAC): 40G direct attach cable works with MSA compliant switches the accept uncoded transceivers and modules Bullet 2 TECHNICAL SPECS: 7m (23ft) | 40 Gbps | Active Twinax (Copper) | 2x QSFP+ Pluggable Connector | 100 Ohm Impedance | 30 AWG Wire Gauge | PVC Cable Jacket | Hot swappable | MSA Compliant Bullet 3 DESIGNED FOR SERVER ROOMS: DAC is a cost-effective copper alternative to fiber cable inside & between racks. Factory termination means high performance & reliability with less maintenance. Bullet 4 OUTSTANDING SUPPORT: Backed by StarTech.com for the life of the cable itself, not your equipment; our cables won't void your OEM support and with access to our Tech Advisors 5/24 Bullet 5 Hot-swappable Bullets (Compact) MSA Uncoded Compatible 7m 40G direct attach cable - 40 Gbps Active Twinax Copper Low Power 2x QSFP+ Pluggable Connector - 10GbE Transceiver Module DAC for MSA uncoded switches - Hot-Swappable MSA Compliant Lifetime Warranty Bullets (Consolidated) 100% MSA Uncoded compatible 40G direct attached cable - 7m/23' Cable | 40 Gbps | Active Twinax (Copper) | 2x QSFP+ Pluggable Connector | 100 Ohm Impedance | 30 AWG | PVC Jacket - 40 GbE Low Power Transceiver Module DAC for edge networks/server rooms/data centers - For switches that accept MSA uncoded modules and transceivers - Hot-Swappable and MSA Compliant - StarTech.com lifetime warranty and will not void your OEM warranty Marketing Copy Marketing Copy (No HTML) Applications - Use in 40Gb Ethernet network applications
- Point-to-point across-rack server or network switch connections
Website Search Keyword - 3rd Party QSFP Cable
- 40g cable
- 40G DAC Cable
- 40G MSA Compliant Cable
- 40g qsfp+ cable
- 40g qsfp+ dac cable
- 40gb qsfp+ cable
- 40gbe cable
- Active qsfp+ cable
- active twinax cable
- DAC Cable
- direct attach cable
- Generic QSFP+ Cable
- MSA Compliant DAC Cable
- MSA Compliant QSFP Cable
- MSA Compliant SFP Cable
- qsfp cable
- QSFP+ Active Cable
- QSFP+ Active Twinax Cable
- qsfp+ cable
- qsfp+ copper direct attach cable
- QSFP+ DAC Cable
- qsfp+ direct attach cable
- qsfp+ to qsfp+
- sfp cable
- SFP Cable MSA
- Third Party QSFP Cable
- Third Party QSFP+ Cable
- Third Party SFP Cable
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- UKCA - EMC/EMI - United Kingdom - UK Electromagnetic Compatibility Regulations 2016
- Triman/Info-Tri - Product - Waste - European Union - EEE Device
- EU RIC + Italian Sorting - Packaging - Waste - European Union - Corrugated Fiberboard
- Triman/Info-Tri - Packaging - Waste - European Union - Paper Box + plastic bag + Paper/foam divider/tray
- Recycling - Waste - Japan - Paper Recycling Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
Power Consumption (In Watts) < 0.7 W (per end) Cable Length (mm) 7000 Color Black Material Steel Operating Temperature 0°C to 70°C (32°F to 158°F) Primary Material Steel Product Length (mm) 6905.000 Product Width (mm) 14.000 Product Height (mm) 12.000 Product Weight (g) 490.000 Storage Temperature -40°C to 80°C (-40°F to 158°F) TAA Compliant No Wire Gauge 24 AWG Compatible Networks 40 Gbps Impedance (Ohm) 100 Ohm Maximum Data Transfer Rate 40Gbps Cable Jacket Material PVC - Polyvinyl Chloride Cable Type Active Copper Cable SFP Compatible Brand MSA Compliant Carton Depth (mm) 334 Carton Height (mm) 282 Carton Quantity 10 Carton Weight Gross (g) 8500 Included in Package 1 - QSFP+ cable Number of Sub-Cartons 3 Package Depth (mm) 280 Package Height (mm) 30 Package Width (mm) 335 Package Quantity 1 Package Weight (g) 504 Packaging Description 7m (23ft) 40Gb Active Twinax Cable - MSA Compliant QSFP+ Packaging Description India 7m (23ft) 40Gb Active Twinax Cable - MSA Compliant QSFP+ Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Quantity 3 Sub-Carton Weight (g) 0 Connector 1 QSFP+ (40Gbps) Connector 1 (Quantity) 1 Connector 2 QSFP+ (40Gbps) Connector 2 (Quantity) 1 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2017-09-01 Buying Center - AV & Collaboration No Buying Center - Data Center Yes Buying Center - End User Compute No Buying Center - Networking & Edge Yes Digital Content Due Date 2017-11-24 Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,DE,DK,ES,EU,FI,FR,IE,IN,IT,JP,NL,NZ,SE,UK,US Primary Technology None Product Development Specialist Ray Aoki Product Information Creation Specialist (PICS) Alex Garcia Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Target Development Completion Date 2017-10-13 Target Production Release 2017-11-24 Tech Lead Stefan Tirolese Technical Writer Alex Garcia Technology Lifecycle None Vending Machine Not Compatible with Vending Machine
