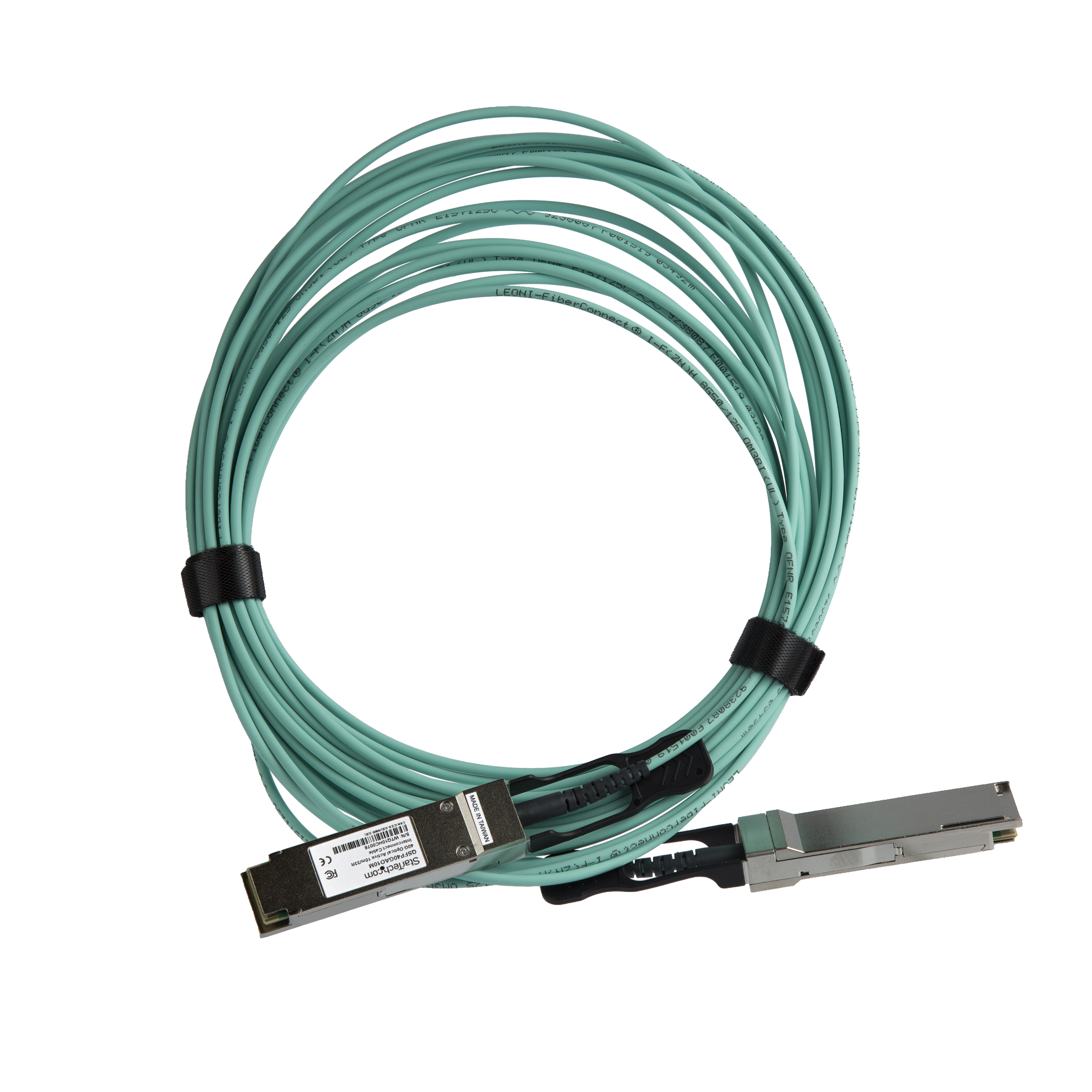

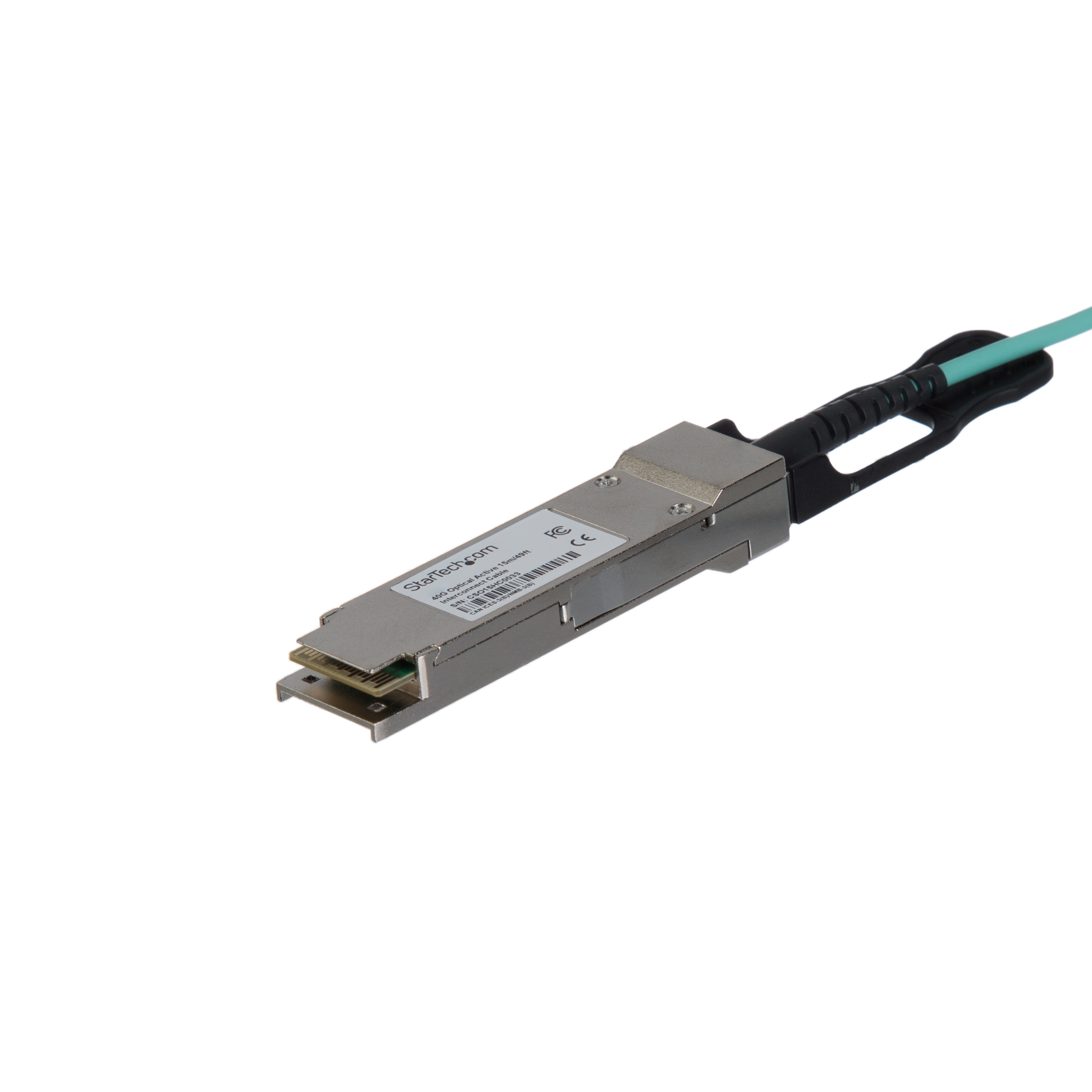

33ft QSFP Active Optical Cable MSA Compliant

Fiber QSFP+ Cable | 40 Gbps | AOC | Lifetime Warranty

Main Image

Product Images

Product Name	33ft QSFP Active Optical Cable MSA Compliant
Product Number	QSFP40GAO10M
UPC	065030875400
Lifecycle status	Active
Warranty	Lifetime
Taxonomy	Product > Networking > SFP Transceivers
Category Level 1	Networking
Category Level 2	SFP Transceivers
Category Level 3	Uncoded SFP Cables
Family	Uncoded 40G QSFP+ to QSFP+ Cables - Active Optical
Country of Origin Europe & Japan	China
Country of Origin North America	China
Country of Origin History (1)	Taiwan
Country of Origin Revision (1)	XXXXXX169X
Country of Origin History (2)	China
Country of Origin Revision (2)	XXXXXX056X

Product Title (Ultra-Short)	MSA Compliant QSFP+
Product Title (Short)	32.8' QSFP+ AOC - MSA Uncoded
Product Title (Medium)	MSA Compliant QSFP+ Active Optical Cable (AOC) - 10 meters (33 feet)
Product Title (Standard)	MSA Uncoded 10m 40G QSFP+ to SFP AOC Cable - 40 GbE QSFP+ Active Optical Fiber - 40 Gbps QSFP Plus Cable 32.8'
Product Title (Long)	MSA Uncoded 10m/32.8ft 40G QSFP+ to QSFP+ AOC Cable - 40 GbE QSFP+ Active Optical Fiber - 40 Gbps QSFP Plus/Transceiver Module Cable
Product Title (AMZ)	MSA Uncoded Compatible 10m/32.8ft 40G QSFP+ to QSFP+ AOC Cable - 40 GbE QSFP+ Active Optical Fiber - 40 Gbps QSFP Plus/Transceiver Module Cable (QSFP40GAO10M)
Title Ingram (Part 1)	MSA Compliant QSFP+ AOC -
Title Ingram (Part 2)	Fiber Cable - 10 m (33 ft.)
Website Product Headline	Fiber QSFP+ Cable \| 40 Gbps \| AOC \| Lifetime Warranty
Bullet 1	MSA UNCODED ACTIVE OPTICAL CABLE (AOC): Works with MSA compliant switches the accept uncoded transceivers and modules
Bullet 2	TECHNICAL SPECS: 10m Active Optical Cable \| 40 Gbps \| Active Optical Fiber \| 2x QSFP+ Pluggable Connector \| PVC Cable Jacket \| Hot swappable \| MSA Compliant
Bullet 3	DESIGNED FOR SERVER ROOMS: A convenient alternative to transceivers inside and between racks. Factory termination means high performance & reliability, with less maintenance
Bullet 4	OUTSTANDING SUPPORT: Backed for life by StarTech.com for the life of the module itself, not your equipment; our cables won't void your warranty and supported by our Tech Advisors 5/24
Bullet 5	WORKS WITH MSA COMPLIANT SWITCHES: Also works with switch models from Ubiquiti, D-Link, Netgear, Supermicro, TP-Link and more that accept uncoded modules
Bullets (Compact)	100% MSA Uncoded active optical cable (AOC) - 10m Cable, 40 Gbps, Active Optical Fiber, 2x QSFP+ Pluggable Connector - Works with MSA compliant switches that accept uncoded transceivers and modules - Hot-Swappable + MSA Compliant - Lifetime Warranty
Bullets (Consolidated)	100% MSA Uncoded active optical cable (AOC) - 10m Cable \| 40 Gbps \| Active Optical Fiber \| 2 x QSFP+ Pluggable Connector \| PVC Cable Jacket \| Hot swappable \| MSA Compliant - Works with MSA compliant switches that accept uncoded transceivers and modules - Designed for server rooms - Hot-Swappable and MSA Compliant - StarTech.com lifetime warranty and will not void your OEM warranty - Works with switch models from Ubiquiti D-Link Netgear Supermicro TP-Link
Marketing Copy
Marketing Copy (No HTML)	The QSFP40GAO10M is an MSA compliant optical quad small form-factor pluggable (QSFP+) cable that is designed, programmed and tested to work with 40 GbE compatible switches and routers. This AOC QSFP+ cable supports 40 Gigabit Ethernet applications (4 x 10GbE) connected through QSFP+ ports. It is a low-power, low-latency cable that is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions. The fiber QSFP+ cable is lighter and more flexible than QSFP+ direct-attach cables, making it ideal for installation in tight spaces and over longer distances. It is designed for high-speed interconnects and is great for point-to-point across-rack network switch or server connections. All StarTech.com SFP & SFP+ cables are backed by a STARTECH.COM LIFETIME WARRANTY and FREE LIFETIME MULTILINGUAL TECHNICAL SUPPORT. StarTech.com offers a wide variety of direct-attach SFP Cables and SFP modules, providing the convenience and reliability you need to ensure dependable network performance.
Applications	Use in 40Gb Ethernet network applications Point-to-point across-rack server or network switch connections
Website Search Keyword	QSFP+ Active Optical Cable sfp cable sfp fiber cable sfp fiber optic cable sfp optical cable sfp to sfp cable sfp twinax cable Third Party QSFP Cable Third Party QSFP+ Cable Third Party SFP Cable transceiver cable sfp dac cable sfp direct attach cable qsfp+ cable qsfp+ to qsfp+ mini gbic cable 3rd Party QSFP Cable 3rd Party QSFP+ Cable 40G AOC Cable 40g qsfp+ cable 40gb qsfp+ cable 40gbe cable active optical cable AddOn sfp cable AOC Cable c2g sfp cable MSA Compliant QSFP Cable MSA Compliant QSFP+ Cable MSA Compliant SFP Cable Proline sfp cable qsfp cable QSFP+ Active Cable dac cable direct attach cable Generic QSFP+ Cable Active qsfp+ cable 40g cable 40G MSA Compliant Cable MSA Compliant AOC Cable SFP Cable MSA sfp dac tripp lite sfp cable twinax cable 10gtek sfp cable N28F-10M-AQ

Required Regulatory Compliance Marks

FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
RCM - EMC/EMI - Australia/New Zealand - RCM Mark
WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
UKCA - EMC/EMI - United Kingdom - UK Electromagnetic Compatibility Regulations 2016
Triman/Info-Tri - Product - Waste - European Union - EEE Device
EU RIC + Italian Sorting - Packaging - Waste - European Union - Corrugated Fiberboard
Triman/Info-Tri - Packaging - Waste - European Union - Paper Box + plastic bag + Paper/foam divider/tray
Recycling - Waste - Japan - Paper Recycling Mark
Recycling - Waste - Japan - Plastic Recycling Mark
CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement

Related Products
QSFP40GAO15M
QSFP40GAO30M
QSFP40GAO7M
Output Voltage (V) 3.3V DC
Power Consumption (In Watts) < 1.5 W (per end)

Cable Length (mm)	10000
Color	Black
Material	Steel
Operating Temperature	0°C to 70°C (32°F to 158°F)
Primary Material	Steel
Product Length (mm)	10000.000
Product Width (mm)	18.000
Product Height (mm)	13.000
Product Weight (g)	168.000
Storage Temperature	-40°C to 80°C (-40°F to 158°F)
TAA Compliant	No

Compatible Networks 40 Gbps
Maximum Data Transfer Rate 40Gbps
Cable Jacket Material PVC - Polyvinyl Chloride
Cable Type Active Optical Cable
SFP Compatible Brand MSA Compliant

Carton Depth (mm)	255
Carton Height (mm)	295
Carton Quantity	10
Carton Weight Gross (g)	1900
Included in Package	1 - QSFP+ cable
Package Depth (mm)	251
Package Height (mm)	30
Package Width (mm)	200
Package Quantity	1
Package Weight (g)	190
Packaging Description	10m (33ft) 40Gb Active Twinax Cable - MSA Compliant QSFP+
Packaging Description India	10m (33ft) 40Gb Active Twinax Cable - MSA Compliant QSFP+
Sub-Carton Depth (mm)	0
Sub-Carton Height (mm)	0
Sub-Carton Width (mm)	0
Sub-Carton Weight (g)	0

Connector 1 QSFP+ (40Gbps)
Connector 1 (Quantity) 1
Connector 2 QSFP+ (40Gbps)
Connector 2 (Quantity) 1

Amazon Merchandising Manager	Kathleen Marshall
Artwork Due Date	2017-09-01
Buying Center - AV & Collaboration	No
Buying Center - Data Center	Yes
Buying Center - End User Compute	No
Buying Center - Networking & Edge	Yes
Digital Content Due Date	2017-11-24
Enhanced Gallery Designer	Catherine Almeida
en-US Content Approved	Yes
Focus Rank	Level 0 - Not Applicable
Graphic Designer	Shane Arnett
Launch Markets (concatenated)	AT,AU,BE,CA,CH,DE,DK,ES,EU,FI,FR,IE,IN,IT,JP,NL,NZ,SE,UK,US
Primary Technology	None
Product Development Specialist	Ray Aoki
Product Information Creation Specialist (PICS)	Alex Garcia
Product Manager	Rob Fleck
Product Performance Specialist	Ray Aoki
Product Photographer	Alejandra Valencia
Target Development Completion Date	2017-10-13
Target Production Release	2017-11-24
Tech Lead	Stefan Tirolese
Technical Writer	Alex Garcia
Technology Lifecycle	None
Vending Machine	Not Compatible with Vending Machine

Output Voltage (V)	3.3V DC
Power Consumption (In Watts)	< 1.5 W (per end)

Cable Jacket Material	PVC - Polyvinyl Chloride
Cable Type	Active Optical Cable
SFP Compatible Brand	MSA Compliant

Connector 1	QSFP+ (40Gbps)
Connector 1 (Quantity)	1
Connector 2	QSFP+ (40Gbps)
Connector 2 (Quantity)	1

Compatible Networks	40 Gbps
Maximum Data Transfer Rate	40Gbps
