QSFP40GSR4ST

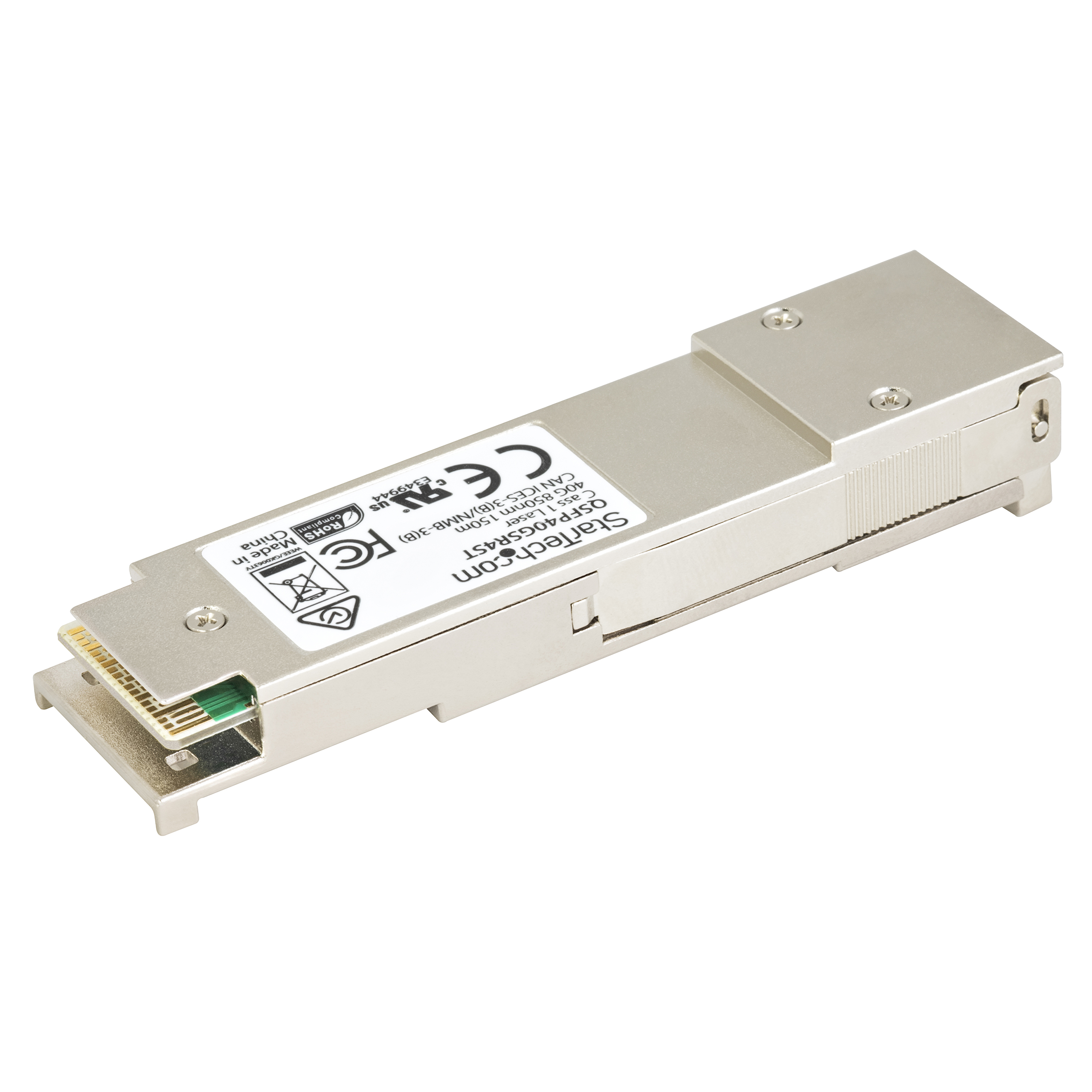

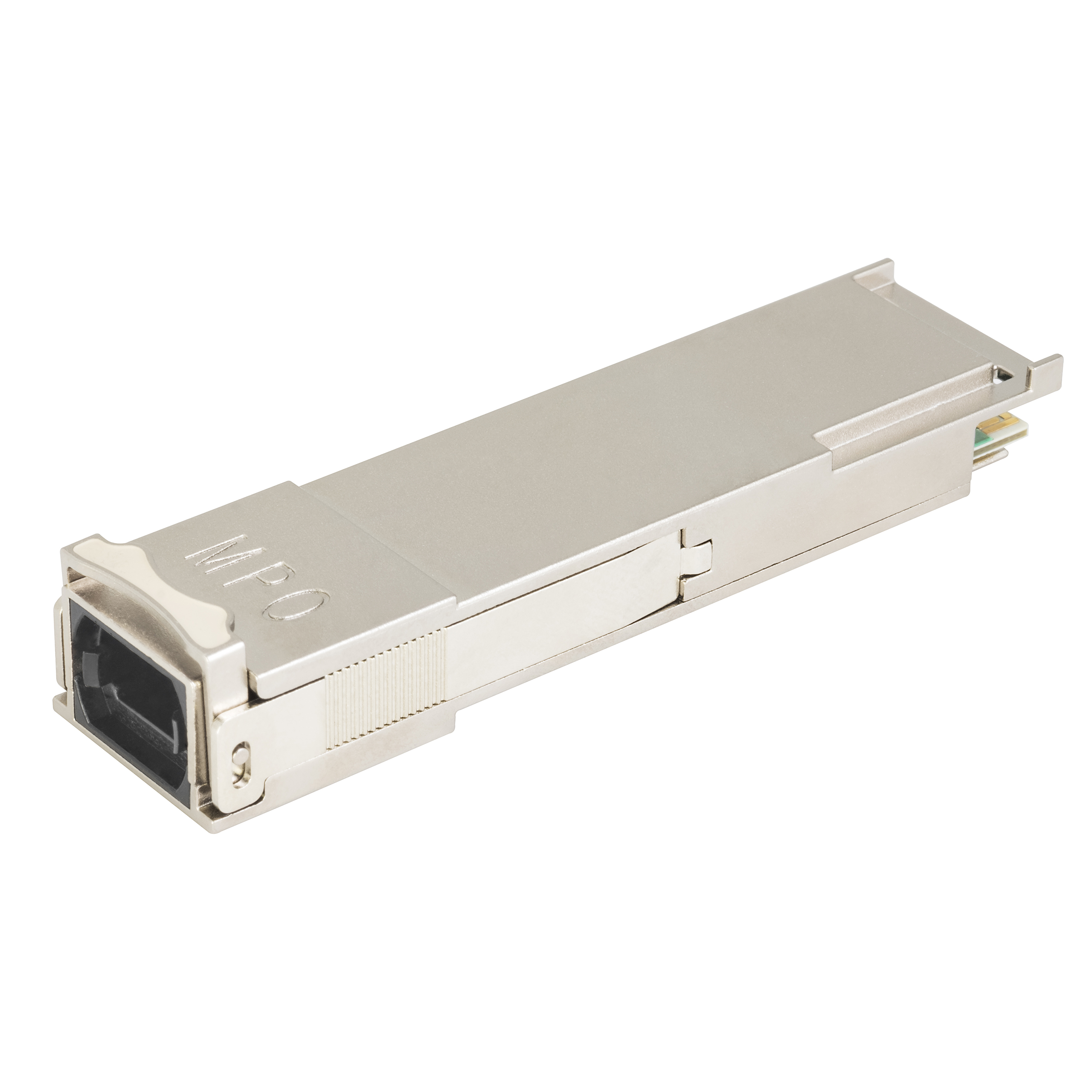

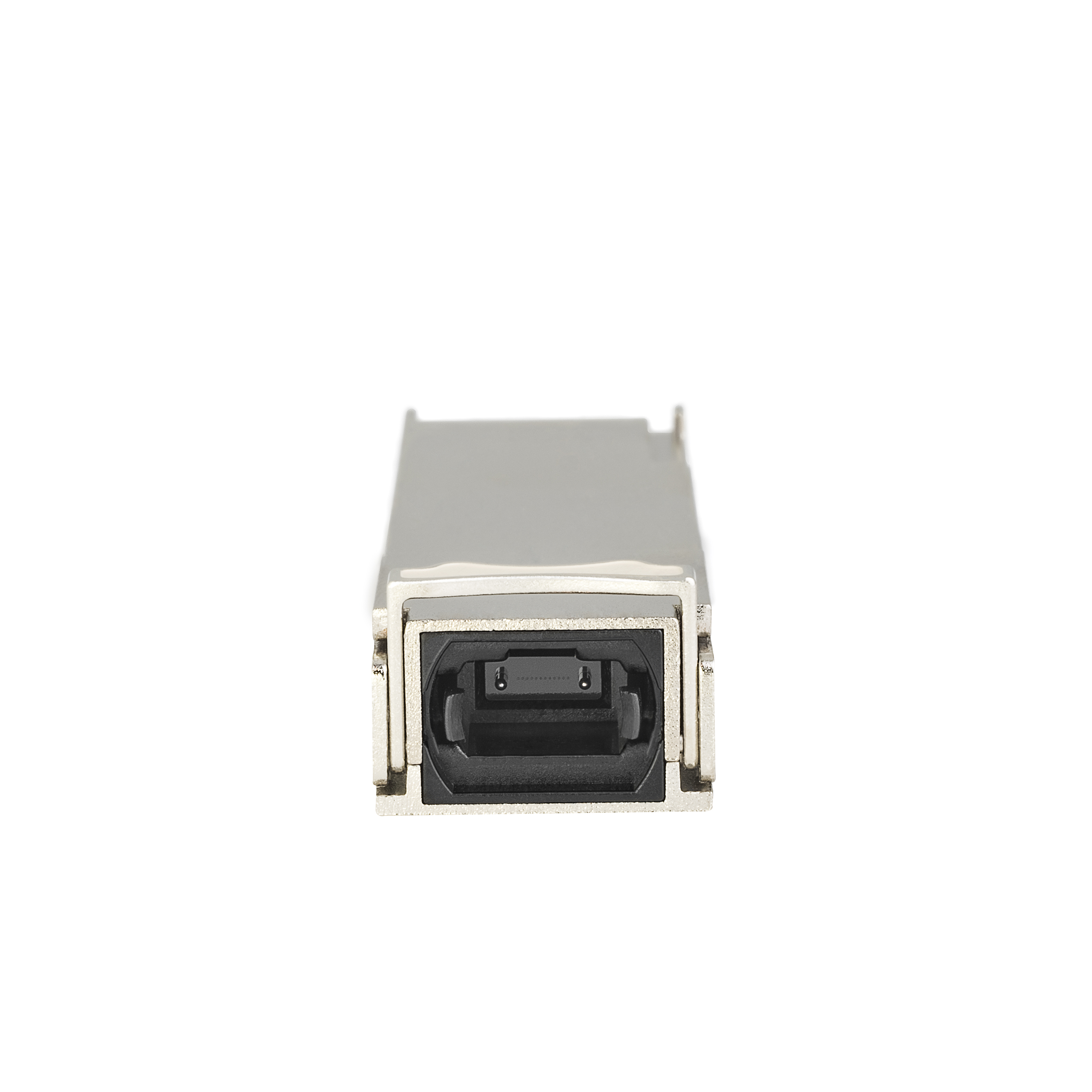

Cisco QSFP 40G SR4 compatible QSFP transceiver
40 Gbps | Multi Mode Fiber | MPO | 150 m (492 ft) | Lifetime Warranty
Main Image
Product Images
Product Images
Product Name Cisco QSFP 40G SR4 compatible QSFP transceiver Product Number QSFP40GSR4ST UPC 065030868617 Lifecycle status Active Warranty Lifetime Taxonomy Product > Networking > SFP Transceivers Category Level 1 Networking Category Level 2 SFP Transceivers Category Level 3 Cisco Compatible Family Cisco Compatible - 40G QSFP+ Modules Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX091X Product Title (Ultra-Short) QSFP-40G-SR4 QSFP+ Product Title (Short) Cisco QSFP-40G-SR4 Comp. QSFP+ 40GbE DDM Product Title (Medium) Cisco QSFP-40G-SR4 Compatible QSFP+ Fiber Module - 40GBASE-SR4 - Product Title (Standard) Cisco QSFP-40G-SR4 Compatible QSFP+ Module - 40GBASE-SR4 - 40GE Gigabit Ethernet 40GbE Multimode Fiber MMF Optic Transceiver Product Title (Long) Cisco QSFP-40G-SR4 Compatible QSFP+ Module - 40GBASE-SR4 - 40GbE Multimode Fiber MMF Optic Transceiver - 40GE Gigabit Ethernet QSFP+ - MPO 150m - 850nm - DDM Cisco Firepower, ASR1000, ASR9000 Product Title (AMZ) Cisco QSFP-40G-SR4 Compatible QSFP+ Module 40GBASE-SR4 - 40GbE Multimode Fiber MMF Optic Transceiver - 40GE Gigabit Ethernet MPO 150m - 850nm - DDM Cisco Firepower, ASR1000 (QSFP40GSR4ST) Title Ingram (Part 1) Cisco QSFP-40G-SR4 Comp. - Title Ingram (Part 2) QSFP+ Module - Fiber Transceiver Website Product Headline 40 Gbps | Multi Mode Fiber | MPO | 150 m (492 ft) | Lifetime Warranty Bullet 1 100% CISCO QSFP-40G-SR4 COMPATIBLE: Works with Cisco switches like Firepower, ASR1000, ASR9000, C9300, C3850 and others Bullet 2 TECHNICAL SPECS: 40GBASE-SR4 | 40 Gbps | Multi Mode (MMF) | MPO Connector | 850nm | Digital Diagnostic Monitoring (DDM) | Distances up to 150m (492ft) Bullet 3 TESTED FOR OEM HOST COMPATIBILITY: Hot-swappable in Cisco routers and switches; DDM support reports the transceiver's status to most SNMP network management tools Bullet 4 THE IT PRO’S CHOICE: Designed and built for IT Professionals, this SFP module is backed for life (lifetime of module, not network switch), including free lifetime 24/5 multi-lingual technical assistance. Bullet 5 WORKS WITH MSA COMPLIANT SWITCHES: Also works with switch models from Ubiquiti, D-Link, Netgear, Supermicro, TP-Link and more that accept uncoded modules Bullets (Compact) Cisco QSFP-40G-SR4 Compatible QSFP+ - 40GBASE-SR4 40 Gbps - 40GbE Module - 40GE Gigabit Ethernet QSFP+ 850nm - Multi Mode (MMF) Transceiver - 150m (492ft) - MPO Connector DDM - Hot-Swappable & MSA Compliant - Lifetime Warranty Bullets (Consolidated) Cisco QSFP-40G-SR4 Compatible QSFP+40GBASE-SR4 (40 Gbps) Gigabit Ethernet - 850nm | Multi Mode (MMF) - Up to 150m (492') - MPO Connector DDM - For Cisco switches like: Firepower ASR1000 ASR9000 C9300 C3850 NCS540 C9500 C9200 - Hot-Swappable and MSA Compliant - Backed by a StarTech.com lifetime warranty on the module itself not the life of the OEM switch/router and will not void your OEM warranty Marketing Copy Marketing Copy (No HTML) Applications - Replacing defective or damaged SFP+ modules in Cisco switches and routers
- Expand your network to remote segments
Website Search Keyword - Cisco QSFP-40G-SR4 Compatible QSFP+
- 40 G Fiber QSFP+
- 40G QSFP
- 40GBase-SR4 QSFP+
- 40GBase-SR4 SFP
- 40G SFP
- 40GBase-SR4
- MM QSFP
- MM SFP
- MPO
- optical transceiver
- fiber transceiver
- Cisco QSFP
- Cisco
- QSFP-40G-SR4 QSFP+
- N286-40GSR4-MTP
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- UL Recognized - Safety - Electrical - Canada / United States - cURus Recognised Component Mark
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device
Special Notes For use in 40 Gigabit fiber networking equipment and media converters System and Cable Requirements MSA or Cisco compliant QSFP port Power Consumption (In Watts) < 0.7 W Color Silver Humidity 5~95% RH Material Aluminum Operating Temperature 0°C to 70°C (32°F to 158°F) Primary Material Aluminum Product Length (mm) 72.000 Product Width (mm) 18.350 Product Height (mm) 13.000 Product Weight (g) 32.000 Storage Temperature -40°C to 85°C (-40°F to 185°F) TAA Compliant No Compatible Networks 40 Gbps Digital Diagnostics Monitoring Support Yes Fiber Operating Mode Full-Duplex Fiber Type Multi Mode Maximum Data Transfer Rate 40 Gbps Max Transfer Distance 150m [492ft] MTBF (hours) 1,649,326 hours Wavelength 850nm Fiber Connector MPO Industry Standards IEEE 802.3ba 40GBASE-SR4 OEM Part Number QSFP-40G-SR4 SFP Compatible Brand Cisco Carton Depth (mm) 204 Carton Height (mm) 258 Carton Quantity 36 Carton Weight Gross (g) 2572 Included in Package 1 - QSFP+ transceiver Package Depth (mm) 91 Package Height (mm) 34 Package Width (mm) 116 Package Quantity 1 Package Weight (g) 56 Packaging Description 40 Gb Fiber QSFP+ - QSFP-40G-SR4 Compatible - MM MPO Packaging Description India 40 Gb Fiber QSFP+ - QSFP-40G-SR4 Compatible - MM MPO Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Host Connector 1 MPO Fiber Host Connector 1 (Quantity) 1 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2016-12-06 Buying Center - AV & Collaboration No Buying Center - Data Center Yes Buying Center - End User Compute No Buying Center - Networking & Edge Yes Digital Content Due Date 2016-12-23 Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,DE,DK,ES,EU,FR,IE,IN,IT,JP,NL,NZ,SE,UK,US Primary Technology None Product Development Specialist Ray Aoki Product Information Creation Specialist (PICS) Alex Garcia Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Target Development Completion Date 2016-12-09 Target Production Release 2016-12-09 Tech Lead Stefan Tirolese Technical Writer Andrew Richardson Technology Lifecycle None
