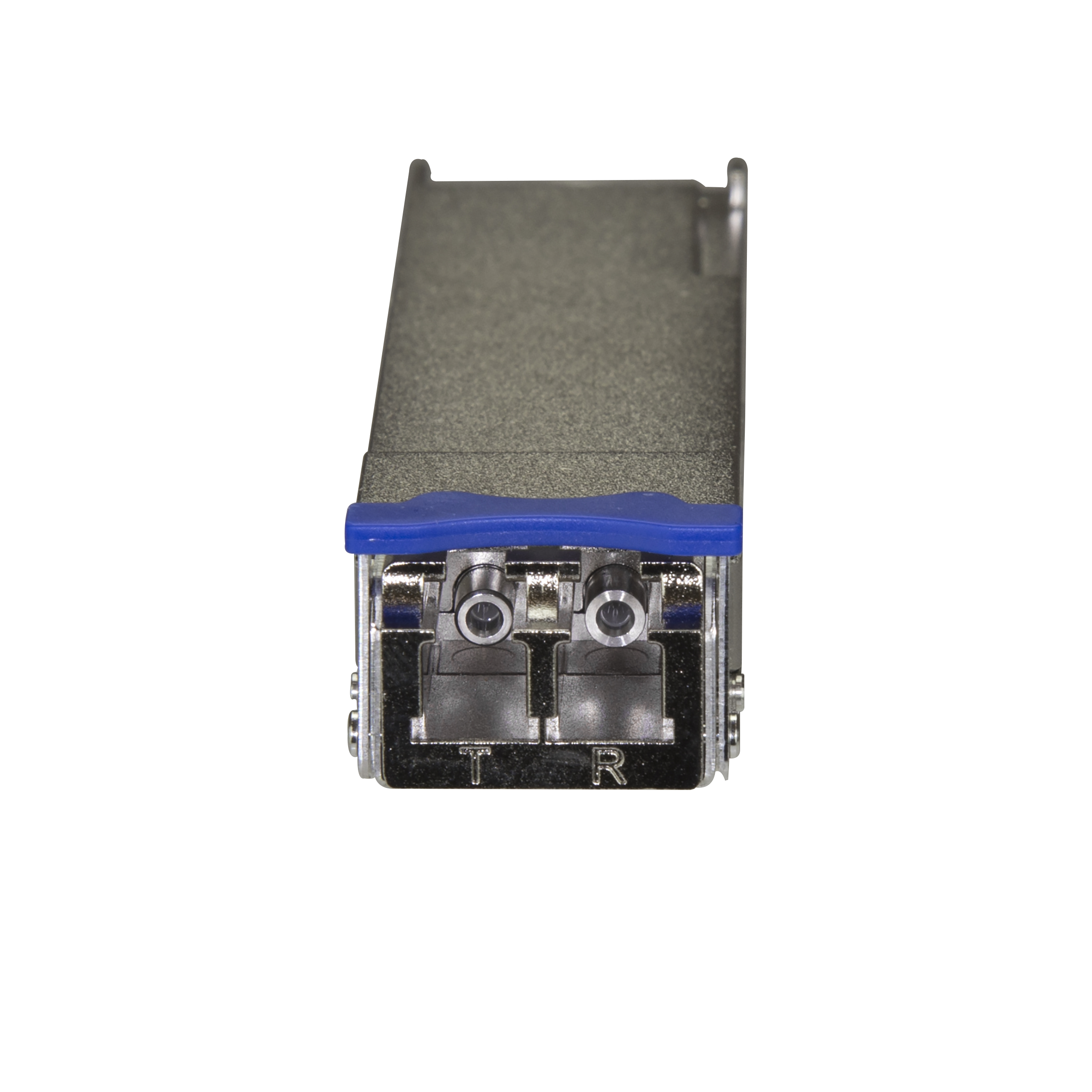

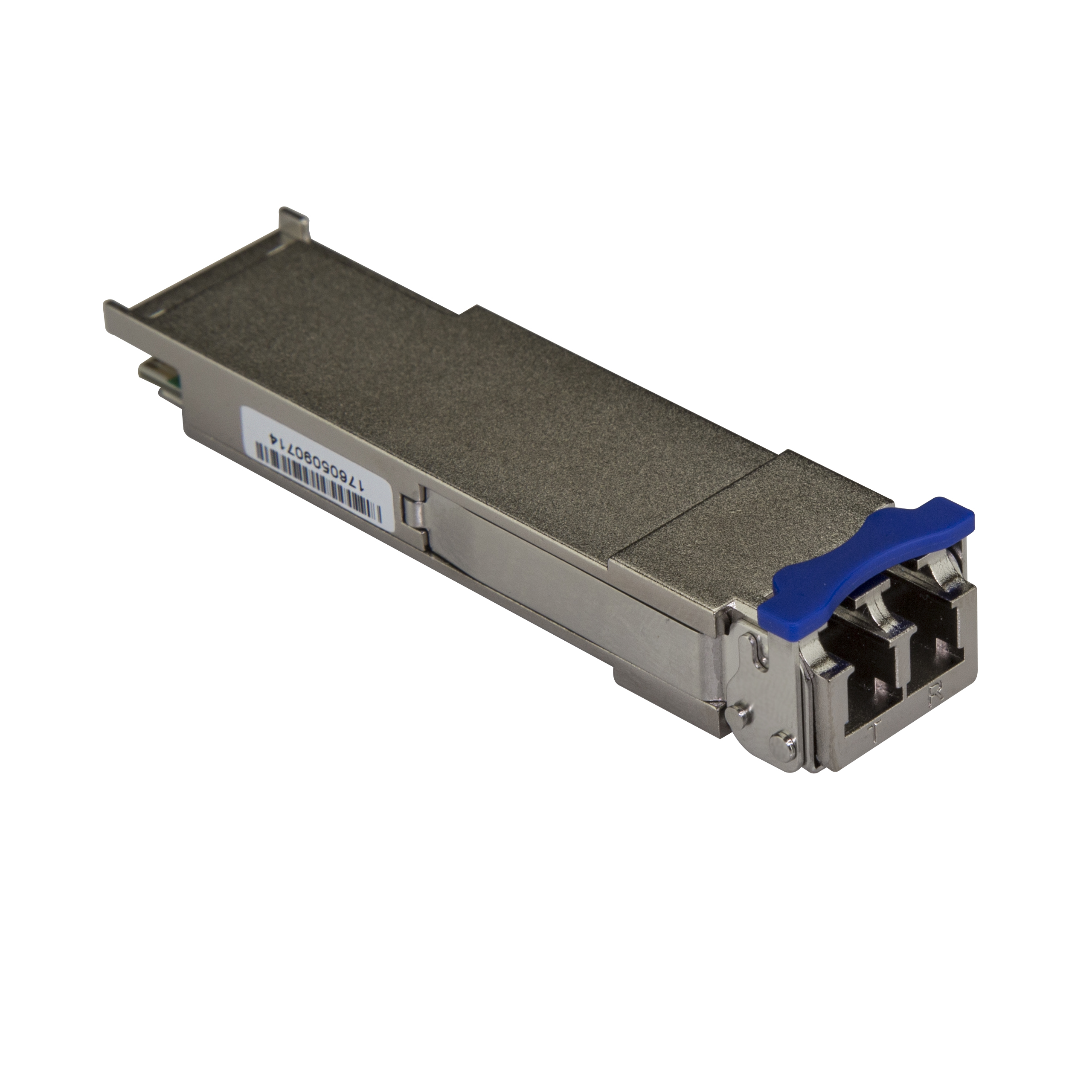

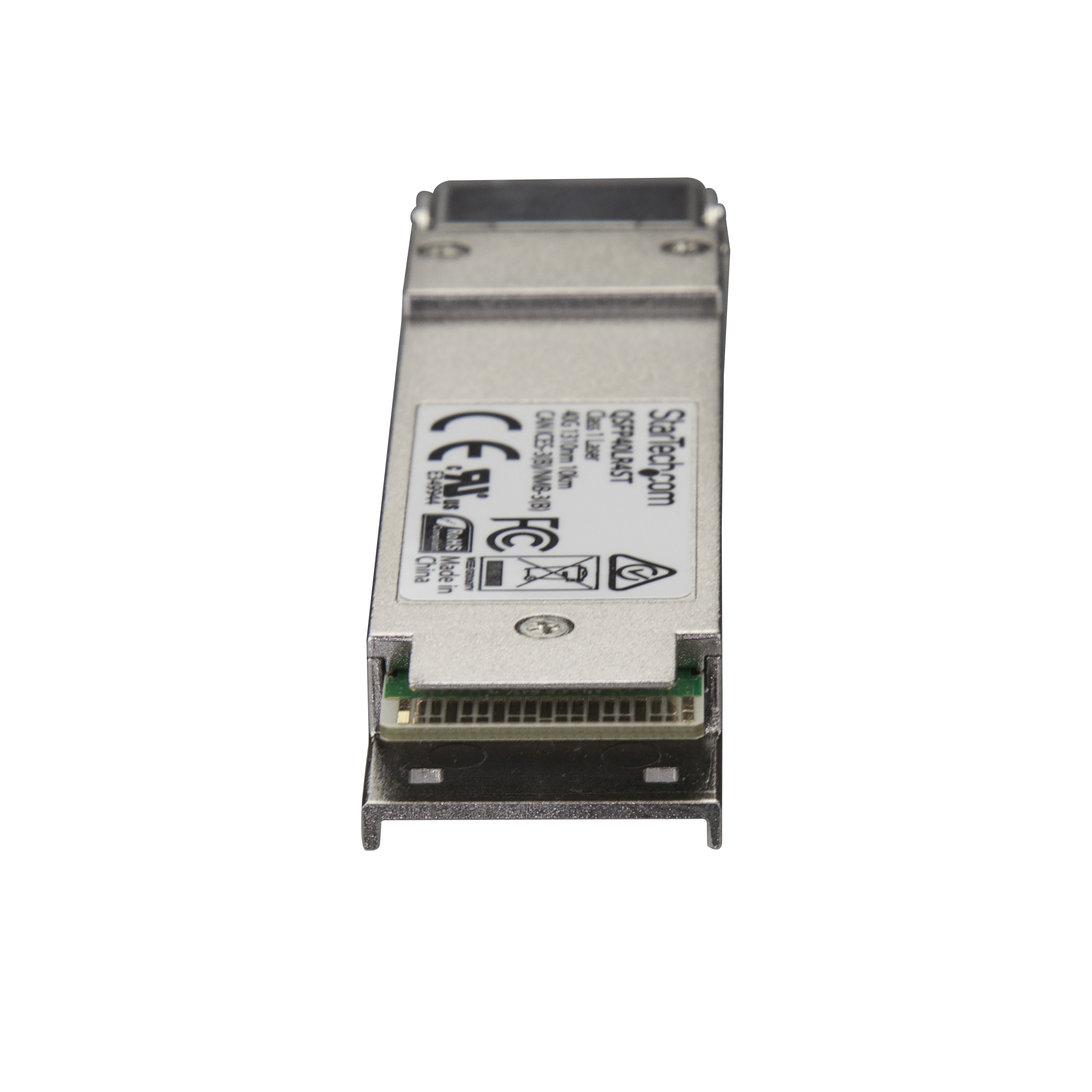

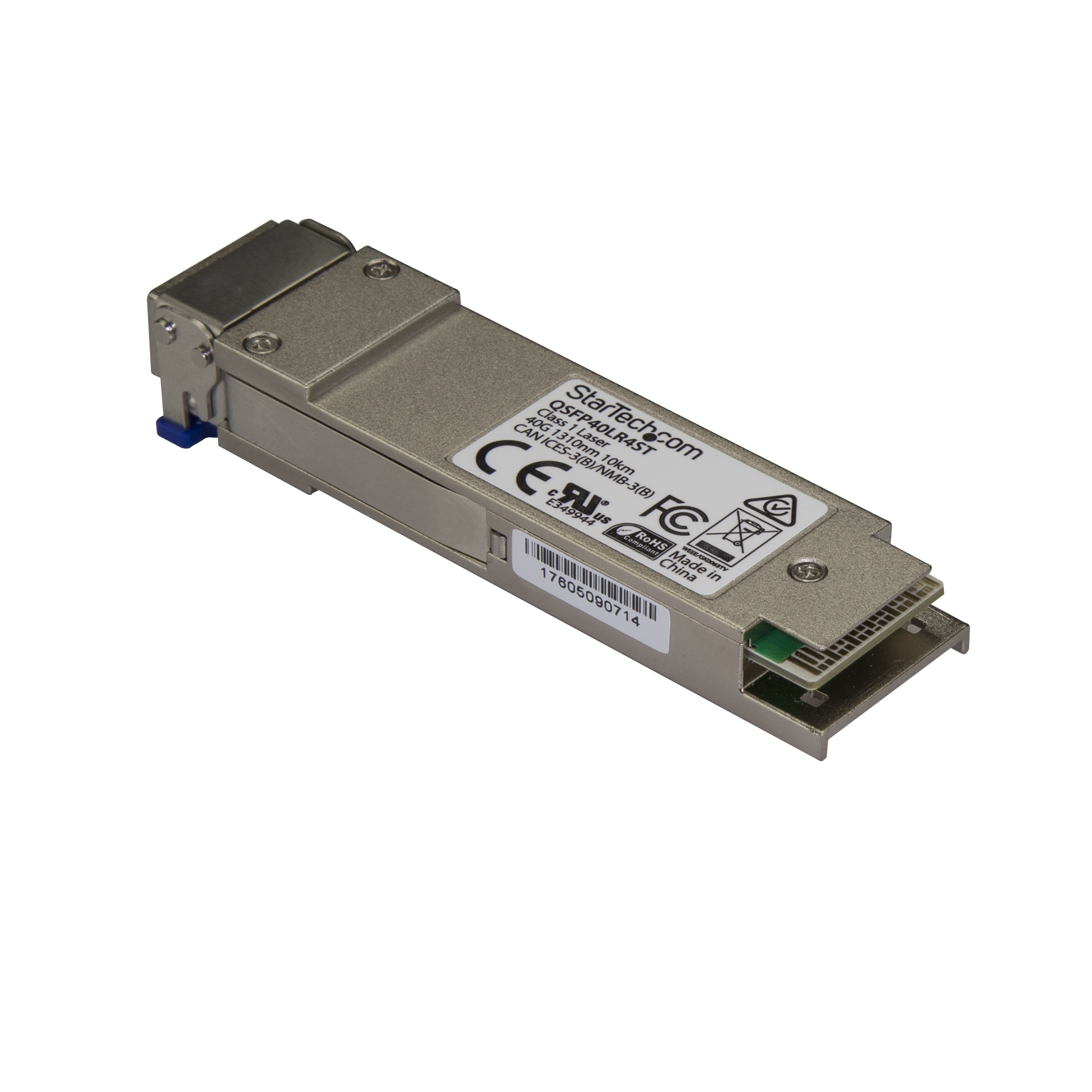

QSFP40LR4ST
MSA Compliant 40GBase LR4 QSFP 40G QSFP SM LC
40 Gbps | Single Mode Fiber | LC | 10 km (6.2 mi) | Lifetime Warranty
Main Image
Product Images
Product Images
Product Images
Product Name MSA Compliant 40GBase LR4 QSFP 40G QSFP SM LC Product Number QSFP40LR4ST UPC 065030873345 Lifecycle status Active Warranty Lifetime Taxonomy Product > Networking > SFP Transceivers Category Level 1 Networking Category Level 2 SFP Transceivers Category Level 3 Uncoded SFP Transceivers Family Uncoded 40G QSFP+ Modules Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX091X Product Title (Ultra-Short) 40GBase-LR4 QSFP+ SM Product Title (Short) MSA Uncoded QSFP+ Transceiver 40GbE DDM Product Title (Medium) 40GBASE-LR4 MSA Compliant QSFP+ Module - Lifetime Warranty - 40 Gbps - LC QSFP+ Product Title (Standard) MSA Uncoded QSFP+ Module - 40GBASE-LR4 - 40GE Gigabit Ethernet QSFP+ 40GbE Single Mode Fiber (SMF) Optic Transceiver 10km DDM Product Title (Long) MSA Uncoded QSFP+ Module - 40GBASE-LR4 - 40GbE Single Mode Fiber (SMF) Optic Transceiver - 40GE Gigabit Ethernet QSFP+ - LC 10km - 1270nm to 1330nm - DDM Product Title (AMZ) MSA Uncoded Compatible QSFP+ Module - 40GBASE-LR4 - 40GbE Single Mode Fiber (SMF) Optic Transceiver - 40GE Gigabit Ethernet QSFP+ - LC 10km - 1270nm to 1330nm - DDM (QSFP40LR4ST) Title Ingram (Part 1) 40GBASE-LR4 MSA Compliant Title Ingram (Part 2) LC Fiber QSFP+ Module Website Product Headline 40 Gbps | Single Mode Fiber | LC | 10 km (6.2 mi) | Lifetime Warranty Bullet 1 TESTED FOR COMPATIBILITY: Hot-swappable in MSA Compliant routers and switches; DDM support reports the transceiver's status to most SNMP network management tools. Bullet 2 WORKS WITH MSA COMPLIANT SWITCHES: Works with switch models from Ubiquiti, D-Link, Netgear, Supermicro, TP-Link and more that accept uncoded modules Bullet 3 100% MSA UNCODED QSFP+ TRANSCEIVER: Designed, programmed and tested to work with compatible MSA Compliant switches and routers to deliver reliable 40GbE connectivity Bullet 4 TECHNICAL SPECS: 40GBASE-LR4 | 40Gbps | Single Mode (SMF) | LC Connector | 1270nm to 1330nm | Digital Diagnostic Monitoring (DDM) | Distances up to 10km (6.2mi) Bullet 5 THE IT PRO’S CHOICE: Designed and built for IT Professionals, this SFP module is backed for life (lifetime of module, not network switch), including free lifetime 24/5 multi-lingual technical assistance Bullets (Compact) MSA Uncoded QSFP+ - 40GBASE-LR4 40Gbps - 40GbE Module - 40GE Gigabit Ethernet QSFP+ 1270nm to 1330nm Single Mode (SMF) Transceiver - 10km (6.2mi) - LC Connector DDM - Hot-Swappable & MSA Compliant - Lifetime Warranty Bullets (Consolidated) MSA Uncoded QSFP+ Module - 40GBASE-LR4 40Gbps Gigabit Ethernet - 1270nm to 1330nm Single Mode (SMF) - Up to 10km (6.2mi) - LC Connector DDM - Designed, programmed and tested to work with compatible MSA compliant switches and routers - Hot-Swappable and MSA Compliant - Backed by a StarTech.com lifetime warranty on the module itself not the life of the OEM switch/router and will not void your OEM warranty Marketing Copy Marketing Copy (No HTML) Applications - Expand your network to remote segments
- Replace defective or damaged QSFP+ modules
Website Search Keyword - 40GBase-LR4 QSFP+
- Single-mode QSFP+
- 40G QSFP+
- MSA Compliant QSFP+
- 40G SFP
- SM QSFP+
- Single-mode QSFP
- sfp transceiver
- 40 Gigabit SFP+
- fiber sfp+
- 40 Gigabit QSFP+ module
- DDM
- DOM
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- UL Recognized - Safety - Electrical - Canada / United States - cURus Recognised Component Mark
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device
Accessory Products - SMFIBLCLC4
- SMFIBLCLC7
- SMFIBLCLC10
- SMFIBLCLC1
Related Products QSFP40SR4ST Power Consumption (In Watts) < 2.5 W Color Silver Humidity 5~95% RH Material Aluminum Operating Temperature 0°C to 70°C (32°F to 158°F) Primary Material Aluminum Product Length (mm) 72.000 Product Width (mm) 18.350 Product Height (mm) 13.000 Product Weight (g) 40.000 Storage Temperature -40°C to 85°C (-40°F to 185°F) TAA Compliant No Compatible Networks 40 Gbps Digital Diagnostics Monitoring Support Yes Fiber Operating Mode Full-Duplex Fiber Type Single Mode Maximum Data Transfer Rate 40 Gbps Max Transfer Distance 10 km (6.2 mi) MTBF (hours) 1,489,426 hours Wavelength 1270nm to 1330nm Fiber Connector LC Industry Standards IEEE 802.3ba 40GBASE-LR4 SFP Compatible Brand MSA Compliant Carton Depth (mm) 250 Carton Height (mm) 200 Carton Quantity 36 Carton Weight Gross (g) 3500 Included in Package 1 - QSFP+ transceiver Package Depth (mm) 134 Package Height (mm) 48 Package Width (mm) 184 Package Quantity 1 Package Weight (g) 122 Packaging Description MSA Compliant 40 Gb Fiber QSFP+ - 40GBase-LR4 - SM Packaging Description India MSA Compliant 40 Gb Fiber QSFP+ - 40GBase-LR4 - SM Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Host Connector 1 LC Duplex Fiber Host Connector 1 (Quantity) 1 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2017-05-05 Buying Center - AV & Collaboration No Buying Center - Data Center Yes Buying Center - End User Compute No Buying Center - Networking & Edge Yes Digital Content Due Date 2017-05-09 Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,DE,DK,ES,EU,FR,HK,IE,IN,IT,JP,NL,NZ,SE,UK,US Primary Technology None Product Development Specialist Ray Aoki Product Information Creation Specialist (PICS) Alex Garcia Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Target Development Completion Date 2017-03-31 Target Production Release 2017-05-05 Tech Lead Stefan Tirolese Technical Writer Andrew Richardson Technology Lifecycle None
