QSFPH40GCU1M

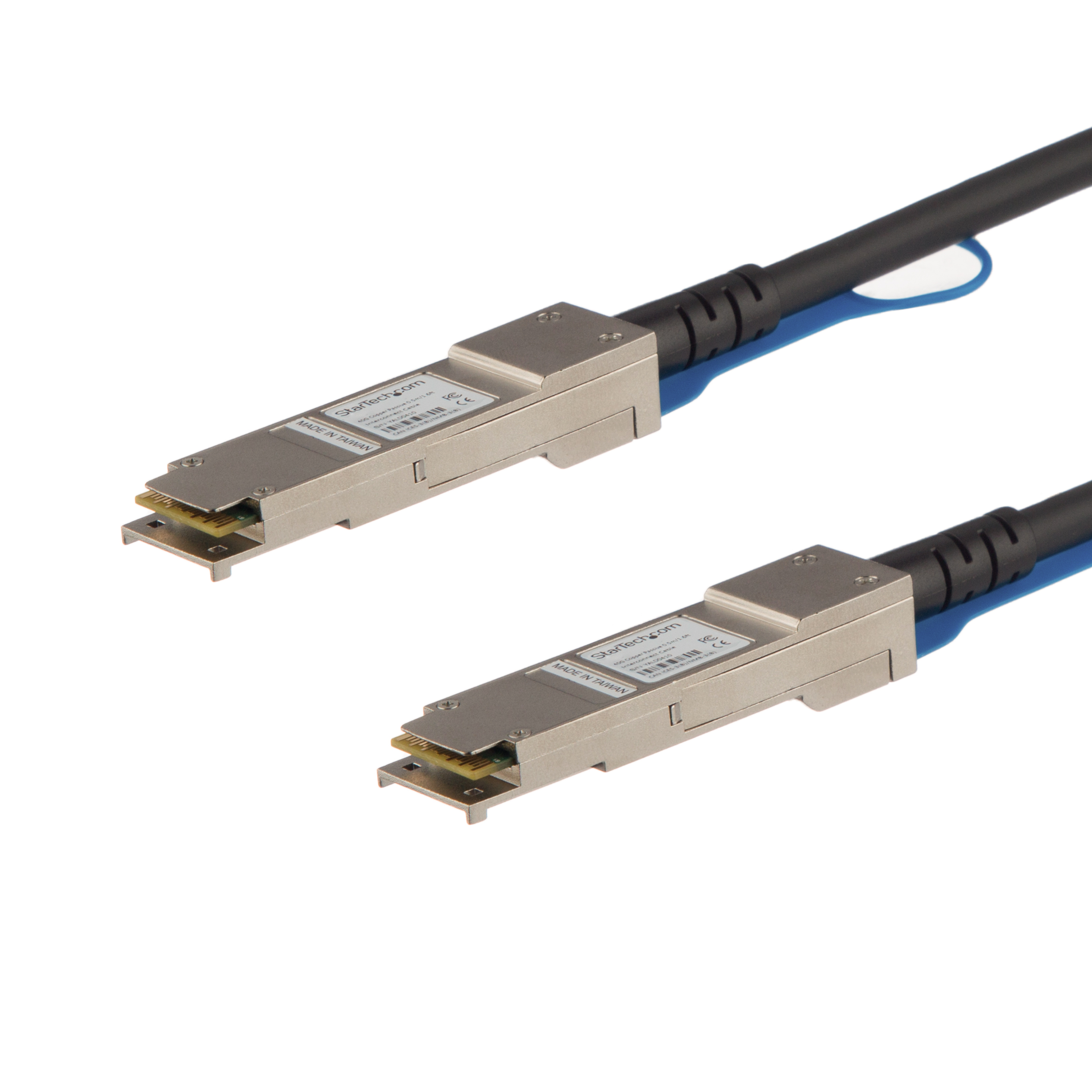

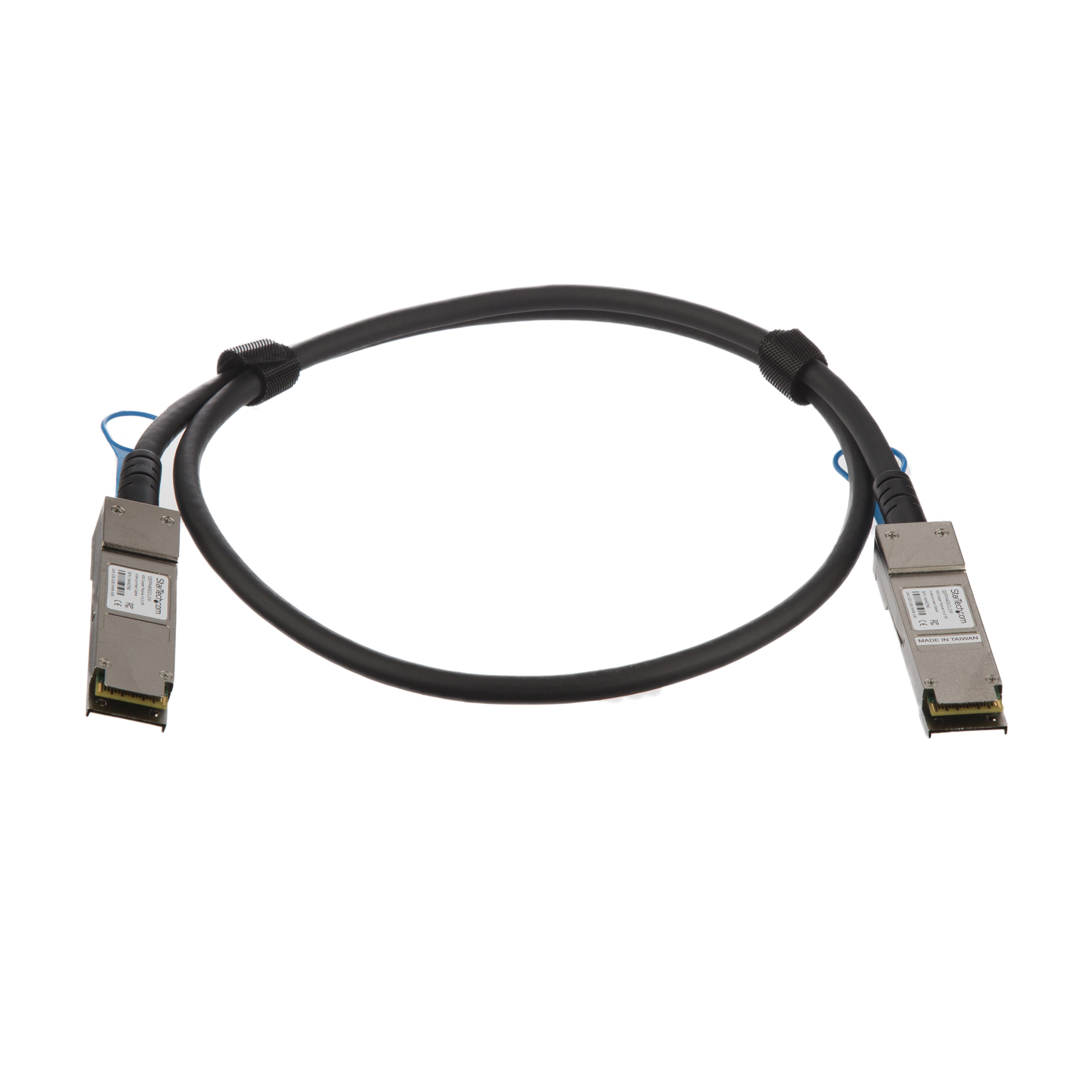

3 3ft QSFP Direct Attach Cable Cisco Compatible
Copper QSFP+ Cable | 40 Gbps | Passive DAC | Lifetime Warranty
Main Image
Product Images
Product Name 3 3ft QSFP Direct Attach Cable Cisco Compatible Product Number QSFPH40GCU1M UPC 065030874861 Lifecycle status Active Warranty Lifetime Taxonomy Product > Networking > SFP Transceivers Category Level 1 Networking Category Level 2 SFP Transceivers Category Level 3 Cisco Compatible Cables Family Cisco Compatible - 40G QSFP+ to QSFP+ Cables - Twinax Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX169X Country of Origin History (2) China Country of Origin Revision (2) XXXXXX056X Product Title (Ultra-Short) 1m QSFP+ DAC Cable Product Title (Short) 1m 40G QSFP+ DAC QSFP-H40G-CU1M Product Title (Medium) Cisco QSFP-H40G-CU1M Comp QSFP+ DAC Twinax Cable - 1 m (3.3 ft.) - RJ45 Copper Product Title (Standard) 1m 40G QSFP+ to QSFP+ Direct Attach Cable for Cisco QSFP-H40G-CU1M - 40GbE Copper DAC 40Gbps Passive Twinax Product Title (Long) Cisco QSFP-H40G-CU1M Compatible 1m 40G QSFP+ to QSFP+ Direct Attach Cable Twinax - 40GbE QSFP+ Copper DAC 40 Gbps Low Power Passive Transceiver Module DAC Firepower C9200 C9400 Product Title (AMZ) Cisco QSFP-H40G-CU1M Compatible 1m 40G QSFP+ to QSFP+ DAC Twinax - 40GbE QSFP+ Copper DAC 40 Gbps Low Power Passive Transceiver Module DAC Firepower C9200 (QSFPH40GCU1M) Title Ingram (Part 1) Cisco QSFP-H40G-CU1M Comp Title Ingram (Part 2) Twinax Copper Cable - RJ45 Website Product Headline Copper QSFP+ Cable | 40 Gbps | Passive DAC | Lifetime Warranty Bullet 1 TECHNICAL SPECS: 1m (3.3ft) | 40 Gbps | Passive Twinax (Copper) | 2x QSFP+ Pluggable Connector | 100 Ohm Impedance | 30 AWG Wire Gauge | PVC Cable Jacket | Hot swappable | MSA Compliant Bullet 2 TESTED FOR OEM HOST COMPATIBILITY: Hot-swappable in Cisco routers and switches Bullet 3 OUTSTANDING SUPPORT: Backed by StarTech.com for the life of the cable itself, not your equipment; our cables won't void your OEM support and with access to our Tech Advisors 5/24. Bullet 4 WORKS WITH MSA COMPLIANT SWITCHES: Low power 40GbE DAC also works with switch models from Ubiquiti, D-Link, Netgear, Supermicro, TP-Link and more that accept uncoded modules and transceivers Bullet 5 Hot-swappable Bullets (Compact) 100% Cisco QSFP-H40G-CU1M Compatible 1m 40G direct attach cable - 40 Gbps Passive Twinax Copper Low Power 2x QSFP+ Pluggable Connector - 10GbE Transceiver Module DAC for C9300 | C9200 | C9400 - Hot-Swappable MSA Compliant Lifetime Warranty Bullets (Consolidated) 100% Cisco QSFP-H40G-CU1M compatible 40G direct attached cable - 1m/3.3' Cable | 40 Gbps | Passive Twinax (Copper) | 2x QSFP+ Pluggable Connector | 100 Ohm Impedance | 30 AWG | PVC Jacket - 40GbE Low Power Transceiver Module DAC for edge networks/server rooms/data centers - For Cisco switches C9300 | C9200 | C9400 | C9500 | C9600 | C9300L - Hot-Swappable and MSA Compliant - StarTech.com lifetime warranty and will not void your OEM warranty Marketing Copy Marketing Copy (No HTML) Applications - Use in 40Gb Ethernet network applications
- Point-to-point in-rack server or network switch connections
Website Search Keyword - 40g cable
- 40G Cisco Compatible Cable
- 40G DAC Cable
- 40g qsfp+ cable
- 40g qsfp+ dac cable
- 40gb qsfp+ cable
- 40gbe cable
- Cisco DAC Cable
- cisco direct attach cable
- cisco passive twinax cable
- Cisco QSFP-H40G-CU1M
- cisco sfp cable
- DAC Cable
- direct attach cable
- Passive qsfp+ cable
- passive twinax cable
- qsfp cable
- qsfp+ cable
- qsfp+ copper direct attach cable
- QSFP+ DAC Cable
- qsfp+ direct attach cable
- QSFP+ Passive Cable
- QSFP+ passive twinax Cable
- qsfp+ to qsfp+
- sfp cable
- N282-01M-BK
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- UKCA - EMC/EMI - United Kingdom - UK Electromagnetic Compatibility Regulations 2016
- Triman/Info-Tri - Product - Waste - European Union - EEE Device
- EU RIC + Italian Sorting - Packaging - Waste - European Union - Corrugated Fiberboard
- Triman/Info-Tri - Packaging - Waste - European Union - Paper Box + plastic bag + Paper/foam divider/tray
- Recycling - Waste - Japan - Paper Recycling Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
Related Products - QSFPH40GCU05
- QSFPH40GCU3M
- QSFPH40GCU5M
Output Voltage (V) 3.3V DC Power Consumption (In Watts) < 0.1 W (per end) Cable Length (mm) 1000 Color Black Material Steel Operating Temperature 0°C to 70°C (32°F to 158°F) Primary Material Steel Product Length (mm) 1000.000 Product Width (mm) 18.000 Product Height (mm) 13.000 Product Weight (g) 128 Storage Temperature -40°C to 80°C (-40°F to 158°F) TAA Compliant No Wire Gauge 30 AWG Compatible Networks 40 Gbps Impedance (Ohm) 100 Ohm Maximum Data Transfer Rate 40Gbps Cable Jacket Material PVC - Polyvinyl Chloride Cable Type Passive Copper Cable SFP Compatible Brand Cisco Amount of recycled material in plastic packaging At Least 30% Carton Depth (mm) 255 Carton Height (mm) 295 Carton Quantity 10 Carton Weight Gross (g) 1740 Included in Package 1 - QSFP+ cable Number of Sub-Cartons 1 Package Depth (mm) 250 Package Height (mm) 24 Package Width (mm) 198 Package Quantity 1 Package Weight (g) 148 Packaging Description 1m (3.3ft) 40Gb Passive Twinax Cable - QSFP-H40G-CU1M Compatible QSFP+ Packaging Description India 1m (3.3ft) 40Gb Passive Twinax Cable - QSFP-H40G-CU1M Compatible QSFP+ Sub-Carton Depth (mm) 256 Sub-Carton Height (mm) 94 Sub-Carton Width (mm) 341 Sub-Carton Quantity 10 Sub-Carton Weight (g) 1494 Connector 1 QSFP+ (40Gbps) Connector 1 (Quantity) 1 Connector 2 QSFP+ (40Gbps) Connector 2 (Quantity) 1 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2017-09-01 Buying Center - AV & Collaboration No Buying Center - Data Center Yes Buying Center - End User Compute No Buying Center - Networking & Edge Yes Digital Content Due Date 2017-11-24 Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,DE,DK,ES,EU,FI,FR,IE,IN,IT,JP,NL,NZ,SE,UK,US Primary Technology None Product Development Specialist Ray Aoki Product Information Creation Specialist (PICS) Alex Garcia Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Target Development Completion Date 2017-10-13 Target Production Release 2017-11-24 Tech Lead Stefan Tirolese Technical Writer Alex Garcia Technology Lifecycle None
