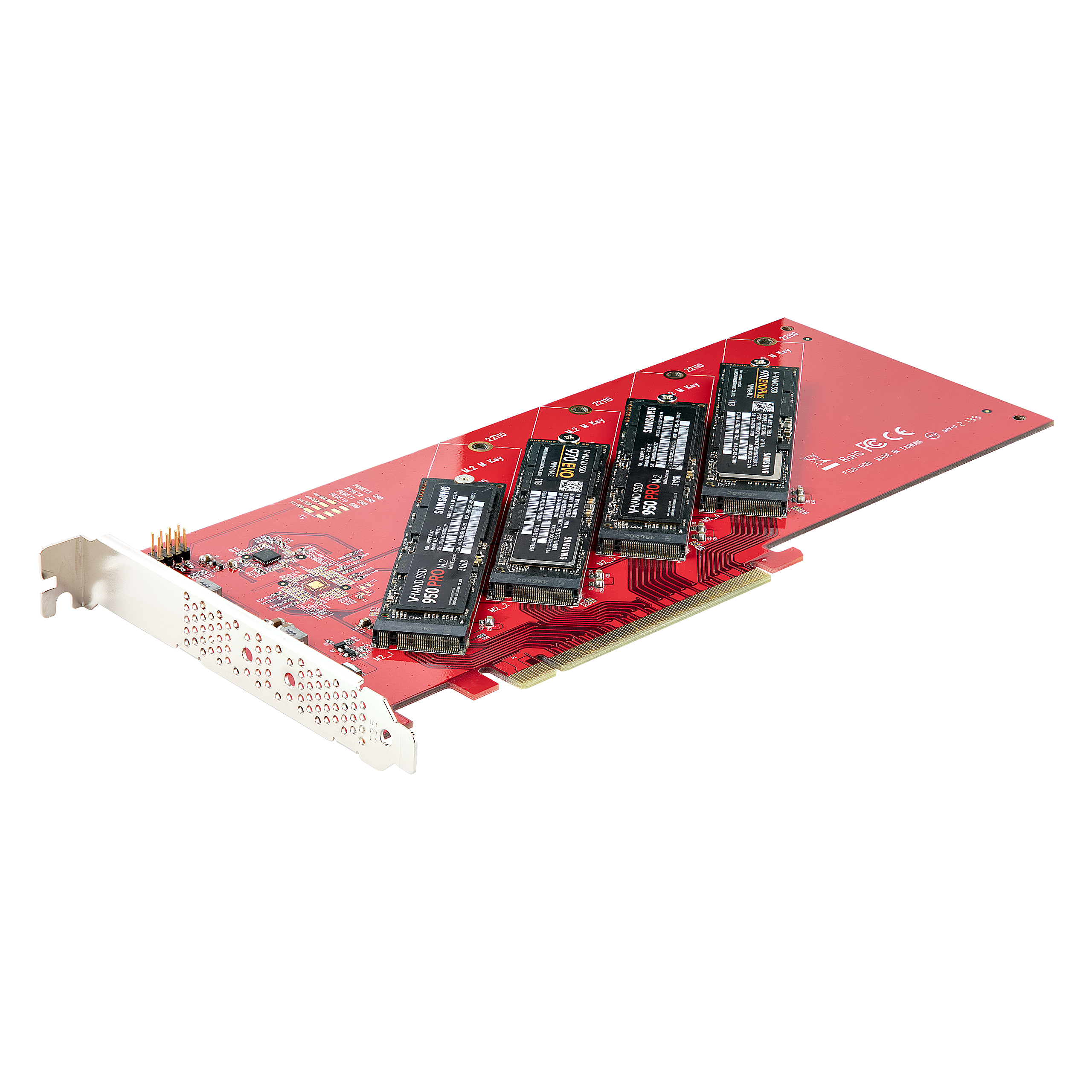

QUAD-M2-PCIE-CARD-B
x16 PCI Express Quad M 2 PCIe 110mm SSDs Adapter Card with B
Quad M.2 NVMe / AHCI | PCIe 4.0 x16 Slot | Bifurcation
Main Image
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Quick-Start Guide
Product Name x16 PCI Express Quad M 2 PCIe 110mm SSDs Adapter Card with B Product Number QUAD-M2-PCIE-CARD-B UPC 065030895606 Lifecycle status Active Warranty 2 Years Taxonomy Product > Cards & Adapters > Data Storage Cards & Adapters Category Level 1 Data Storage Category Level 2 Internal Storage Category Level 3 M.2 Drive Mounting Family M.2 NVME to PCIe Adapter Card Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX051X Product Title (Ultra-Short) M.2 PCIe SSD Adapter Product Title (Short) Quad M.2 PCIe Adapter for NVMe/AHCI SSD Product Title (Medium) Quad M.2 PCIe SSD Adapter Card, x16 to Quad NVMe/AHCI M.2 SSDs w/ Bifurcation Product Title (Standard) Quad M.2 PCIe Adapter Card, PCIe x16 to Quad NVMe or AHCI M2 SSDs, PCI Express 4.0, PC/Linux, Bifurcation Required, TAA Product Title (Long) Quad M.2 PCIe Adapter Card, PCIe x16 to Quad NVMe or AHCI M.2 SSDs, PCI Express 4.0, 7.8GBps/Drive, Bifurcation Required, Windows/Linux Compatible - TAA Product Title (AMZ) Quad M.2 PCIe Adapter Card, PCIe x16 to Quad NVMe or AHCI M.2 SSDs, PCI Express 4.0, 7.8GBps/Drive, Bifurcation Required, Windows/Linux Compatible , TAA (QUAD-M2-PCIE-CARD-B) Title Ingram (Part 1) Quad M.2 PCIe SSD Adapter Card Title Ingram (Part 2) with Bifurcation, PCIe 4.0 Website Product Headline Quad M.2 NVMe / AHCI | PCIe 4.0 x16 Slot | Bifurcation Bullet 1 HIGH PERFORMANCE: Install 4x PCIe M.2 SSDs (NVMe or AHCI) into a computer or server through an available x16 PCI Express 4.0 slot for ultra-fast data access, capable of reaching high performance read and write speeds up to 7.8GBps per drive Bullet 2 WIDE COMPATIBILITY: This Quad M.2 PCIe Adapter card was extensively tested to ensure compatibility with Samsung 980 Pro, 970 EVO, 950 EVO, SM951, and other 2242/2260/2280/22110mm PCIe M-Key M.2 SSDs | Not compatible with SATA based M.2 drives Bullet 3 BACKWARDS COMPATIBILITY: Compatible with PCIe 3.0 motherboards with PCIe bifurcation and an available x16 PCIe slot | PCIe bifurcation is required | This M.2 Adapter works with most workstation and server OS's such as Windows, Windows Server, and Linux Bullet 4 SOFTWARE RAID FUNCTIONALITY: The M.2 PCI Express adapter enables access to the M.2 PCIe SSDs individually | With OS or 3rd party RAID software, build an array to add redundancy, more capacity, or performance through RAID 0, RAID 1, RAID 5, RAID 10 or JBOD Bullet 5 VENTED BRACKETS: This PCIe M.2 NVMe Adapter Card comes with a pre-installed full profile bracket | The vented bracket allows for better air flow which helps maintain optimal and reliable performance while helping to avoid drive throttling Bullets (Compact) Quad M.2 PCIe Adapter Card enables installation of 4x PCIe M.2 SSDs (NVMe/AHCI) through an x16 PCI Express 4.0 slot; Read/write speeds up to 7.8GBps/drive; PCIe Bifurcation support is required; Windows/Linux; Vented full-profile bracket pre-installed Bullets (Consolidated) This Quad M.2 PCIe Adapter Card enables the installation of 4x PCIe M.2 SSDs (NVMe or AHCI) into a computer through an available x16 PCI Express 4.0 slot | Read and write speeds up to 7.8GBps per drive - PCIe Bifurcation support is required by the Computer/Motherboard | Compatible with PCIe 3.0 x16 slots | Windows/Linux - Access the M.2 PCIe SSDs individually | Software RAID support for RAID 0/RAID 1/RAID 5/RAID10 or JBOD - Vented full-profile bracket pre-installed Marketing Copy Marketing Copy (No HTML) Applications - Connect four PCIe M.2 SSDs to your desktop computer or server to boost system speed and increase internal data storage
- Get ultra-fast data access, ideal for high-performance workstations
Website Search Keyword - m 2 ssd adapter
- m.2 to pcie x16 adapter
- nvme pcie adapter
- pcie m.2 nvme adapter
- pcie m2 card
- quad m.2 pcie adapter
Required Regulatory Compliance Marks - ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories
Special Notes - NVMe SSDs require drivers provided by the manufacture of the drive or may be natively provided by the OS (Windows®️ 8 and later). Earlier OS versions do not feature native NVMe support.
- Consult the documentation that came with the Computer/Motherboard for details regarding how to enable and configure PCIe Bifurcation.
System and Cable Requirements For multiple drives to be detected by the host system, bifurcation support is required on the computer/motherboard. Related Products - DUAL-M2-PCIE-CARD-B
- PEX8M2E2
- PEX4M2E1
Color Red Humidity 15 ~ 90% RH Operating Temperature -40°C to 80°C (-40°F to 176°F) Product Length (mm) 128.000 Product Width (mm) 290.000 Product Height (mm) 23.000 Product Weight (g) 128.000 Storage Temperature -40°C to 85°C (-40°F to 185°F) TAA Compliant Yes Hot Swap Capability No MTBF (hours) 4,353,192 hrs OS Compatibility OS Independent RAID No SATA Type and Rate PCI Express 4.0 (16 Gbps per lane) Bus Type PCI Express Compatible Drive Types M.2 (PCIe, NVMe, M-Key, NGFF) Interface/Bridge M.2 PCIe LED Indicators 4 - Header pins, for drive activity Number of Drives 4 Supported Drive Height(s) - 2242
- 2260
- 2280
- 22110
Carton Depth (mm) 501 Carton Height (mm) 328 Carton Quantity 30 Carton Weight Gross (g) 7842 Included in Package - 1 - PCIe to M.2 Adapter Card
- 1 - Quick-Start Guide
- 1 - Set of Mounting Screws
Included In Package for Label - 1 - PCIe To M.2 Converter Card
- 1 - Quick-Start Guide
- 1 - Set Of Mounting Screws
Package Depth (mm) 174 Package Height (mm) 33 Package Width (mm) 292 Package Quantity 1 Package Weight (g) 276 Packaging Description PCI Express x16 to Quad M.2 PCIe SSD Adapter with Bifurcation Packaging Description India PCI Express x16 to Quad M.2 PCIe SSD Converter with Bifurcation Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 M.2 M-Key (PCIe, AHCI / NVMe) Connector 1 (Quantity) 4 Host Connector 1 PCI Express x16 Host Connector 1 (Quantity) 1 Actual Inbox Documents Created QSG in the box Amazon Merchandising Manager Veronica Ye Artwork Due Date 2021-11-19 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge Yes Digital Content Due Date 2022-05-04 Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett ID Label Silkscreened or a Label No ID label Launch Markets (concatenated) AT,BE,CA,CH,DE,DK,ES,FI,FR,IE,IN,IT,JP,NL,SE,SG,UK,US Primary Technology None Product Development Specialist Pierre Wheeler Product Information Creation Specialist (PICS) Brian Chan Product Manager Tony Parackal Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Target Development Completion Date 2021-11-12 Target Production Release 2022-03-15 Tech Lead Justin Weaver Technical Writer Maria Powell Technology Lifecycle Mainstream Vending Machine Not Compatible with Vending Machine
