R150WN1X1T
Wireless travel router for iPad
Create a wireless hot-spot from a wired network connection to share with any Wi-Fi enabled device
Main Image
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
BOM Image

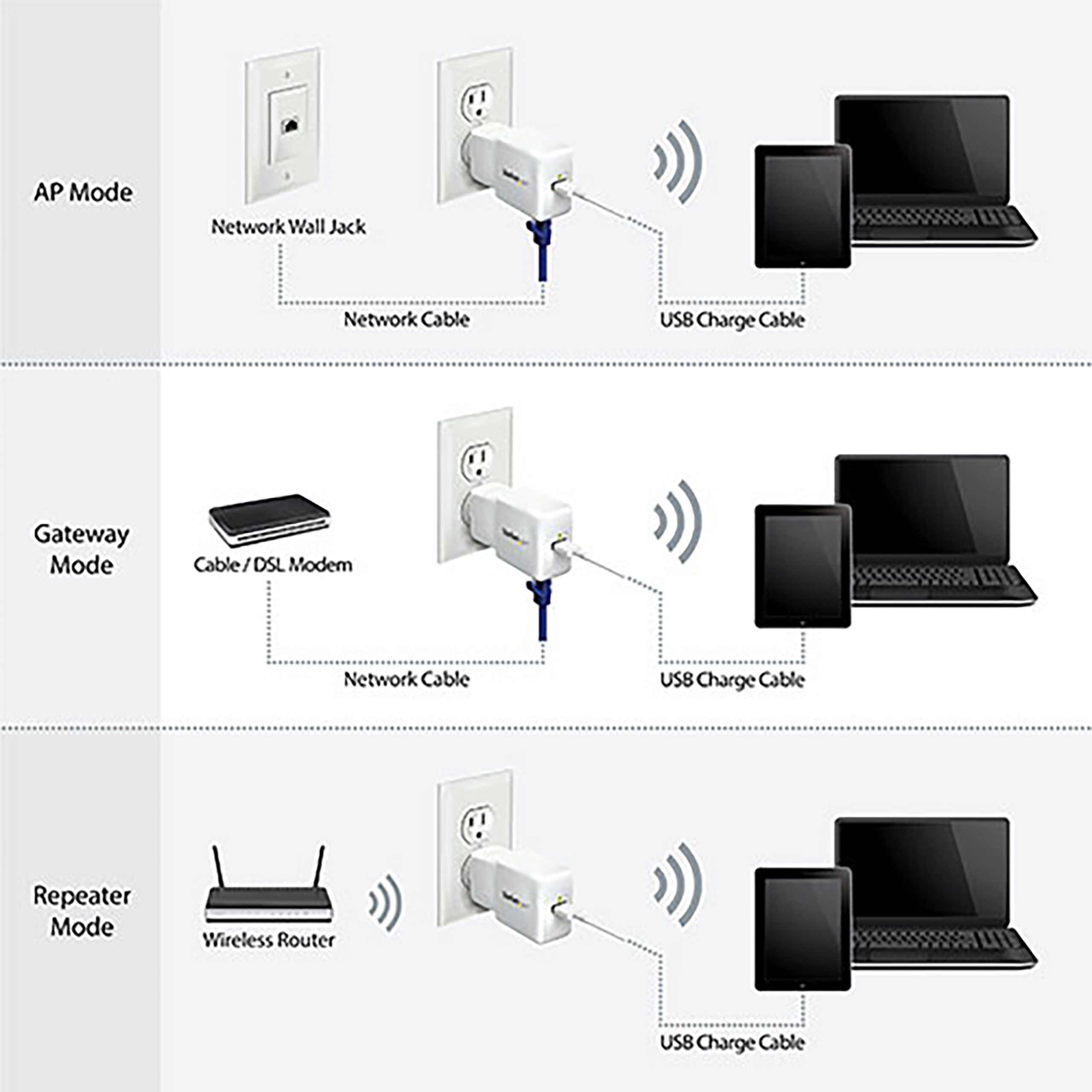

Product Name Wireless travel router for iPad Product Number R150WN1X1T UPC 065030852500 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Product Title (Ultra-Short) WiFi Travel Router Product Title (Short) 802.11n WiFi Travel Router for iPad Product Title (Medium) Portable Wireless N Travel Router for iPad / Tablet / Laptop - USB Powered Product Title (Standard) Portable Wireless N WiFi Travel Router for iPad / Tablet / Laptop - USB Powered w/ Charge Port Product Title (Long) Wi-Fi travel router for iPad and mobile devices Product Title (AMZ) Portable Wireless N WiFi Travel Router for iPad / Tablet / Laptop - USB Powered w/ Charge Port - 802.11n WISP Portable Router (R150WN1X1T) Title Ingram (Part 1) 802.11n USB Powered Portable Title Ingram (Part 2) Wireless Router for iPad Website Product Headline Create a wireless hot-spot from a wired network connection to share with any Wi-Fi enabled device Bullet 1 Supports several operating modes including: WiFi Access Point (AP), WISP (AP & Client) and WiFi Repeater functions Bullet 2 Backward compatible with IEEE 802.11g, and 802.11b WiFi networks Bullet 3 Supports WEP, WPA and WPA2 wireless authentication Bullet 4 Built-in configuration utility (web-based) Bullet 5 Integrated front USB charge port Bullets (Consolidated) Create a wireless hot-spot from a wired network connection to share with any Wifi-enabled device - Portable Wireless N WiFi Travel Router for iPad/Tablet/Laptop - USB Powered w/ Charge Port - 802.11n WISP Portable Router - Travel WiFi Router Marketing Copy Marketing Copy (No HTML) This Wireless N travel router lets you create a portable wireless hot-spot from a wired network connection or an existing wireless network, to share with all of your Wi-Fi enabled devices, including tablets, laptops, Ultrabooks™, or smartphones. Pocket-sized and portable Support for several operating modes helps you create, share or extend a wireless connection while traveling between hotel rooms, conference centers, or boardrooms. The travel Wi-Fi router offers a pocket-sized, USB-powered design with support for Wireless N data rates (backward compatible with 802.11b/g networks). Practical uses with painless setup Directly configurable using any wireless device with a web browser, the travel router supports several additional operation modes including WISP (Wireless Internet Service Provider - AP & Client), which lets you share an existing WiFi connection with multiple devices, or WiFi repeater mode, which extends the coverage area of an existing wireless network to avoid dead spots. Perfect for iPad and includes charge port The USB-powered wireless router is designed to fit directly over your iPad wall charger. For other USB wall chargers or an available USB port on a laptop, we've included a USB extension cable to power the device. The portable router also offers a front port for USB charging, allowing you to charge your devices as needed. R150WN1X1T is backed by a StarTech.com 2-year warranty and free lifetime technical support. Applications - Extend the coverage area or increase the signal strength in “dead spots” of an existing Wireless-N signal

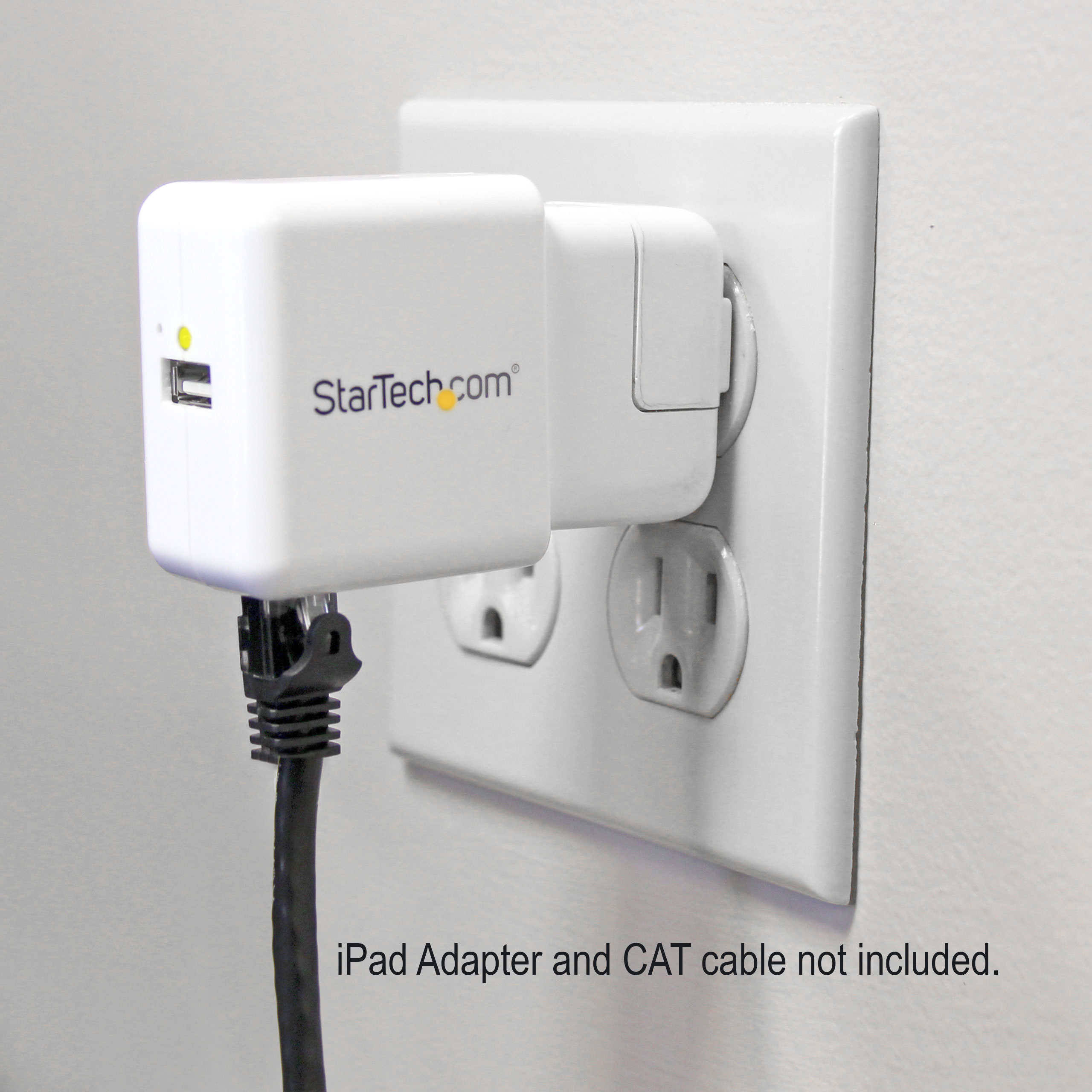

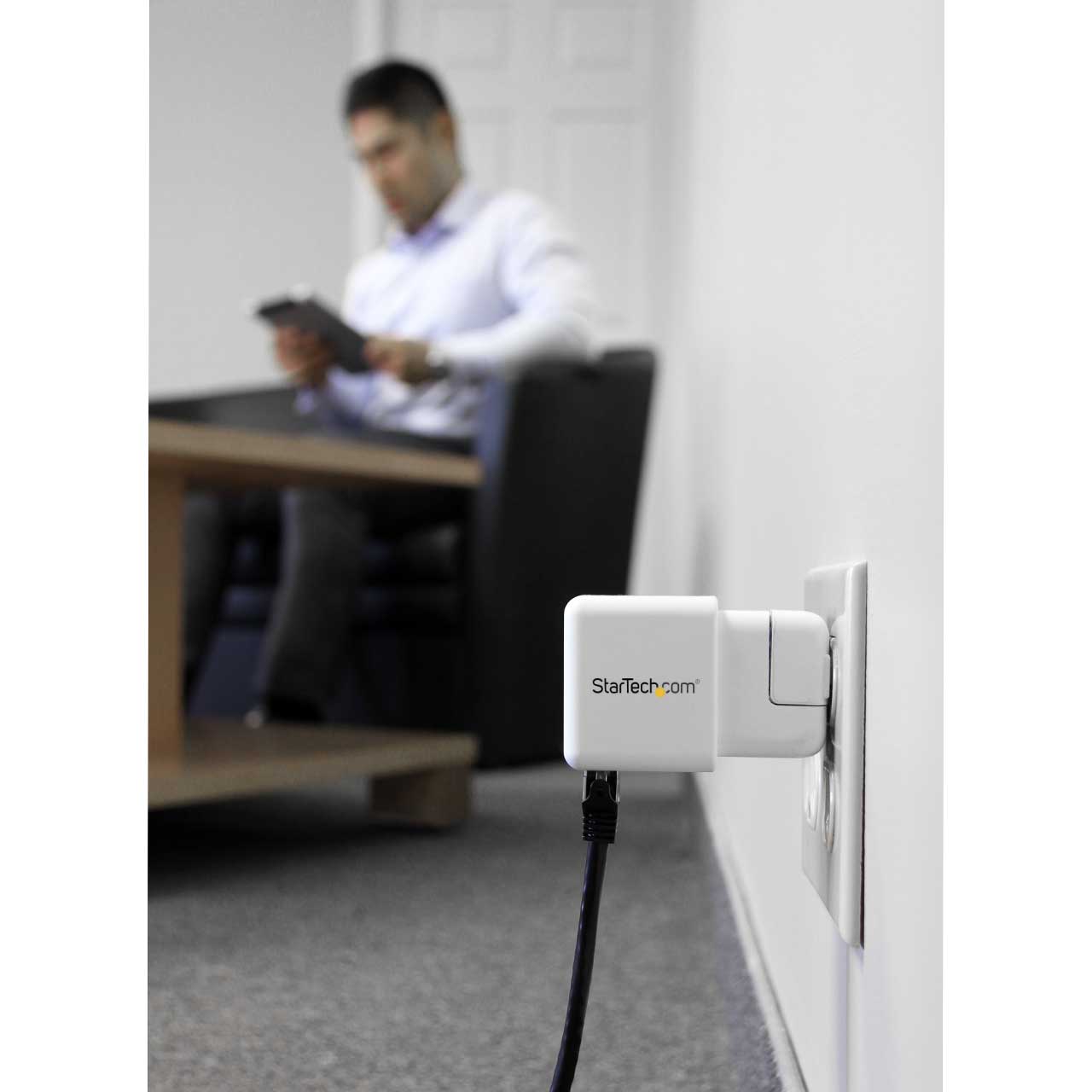

- Create a wireless access point for tablets, laptops and smartphones in a hotel room with only wired connections
- Share one paid wireless connection with multiple devices using WISP mode
- Add a wireless hotspot in a boardroom or conference center to share with your co-workers
Required Regulatory Compliance Marks - CE - Safety - Electrical - European Union - Low Voltage Directive (LVD) 2014/35/EU
- CE - IR - Wireless - European Union - EU Radio Equipment Directive (RED) Short-Form DoC
- ISED - IR - Wireless - Canada - Industry Canada (IC) Wireless ID
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark

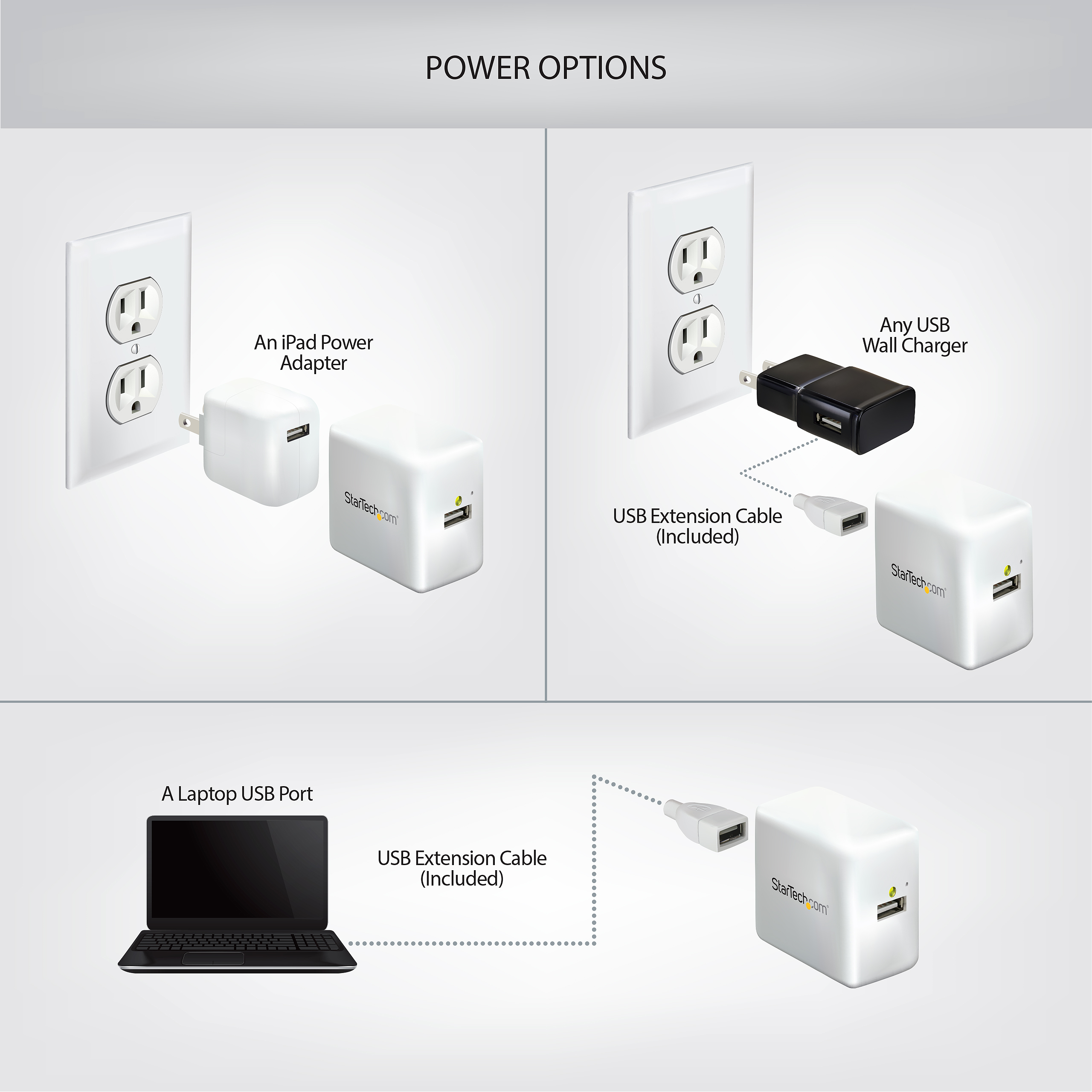

System and Cable Requirements - iPad charger, or other USB power adapter / charge port
- Wired network connection
Accessory Products - USB300WN2X2
- USB150WN1X1
- C6PATCH6BL
- USB300WN2X2D
- C6PATCH6BK
Related Products - WFREPEAT300N
- AP150WN1X1U
Power Source USB-Powered Color White Humidity 0~90% RH (Non-Condensing) Material Plastic Operating Temperature 0°C to 55°C (32°F to 131°F) Product Length (mm) 47.000 Product Width (mm) 55.000 Product Height (mm) 35.000 Product Weight (g) 120.000 Storage Temperature -20°C to 55°C (-4°F to 131°F) TAA Compliant Yes Compatible Networks 10/100 Mbps General Specifications Maximum Clients: 5 Max Distance 10m [33ft] Maximum Data Transfer Rate 150 Mbps Security Features - WEP Data Encryption
- WPA Data Encryption

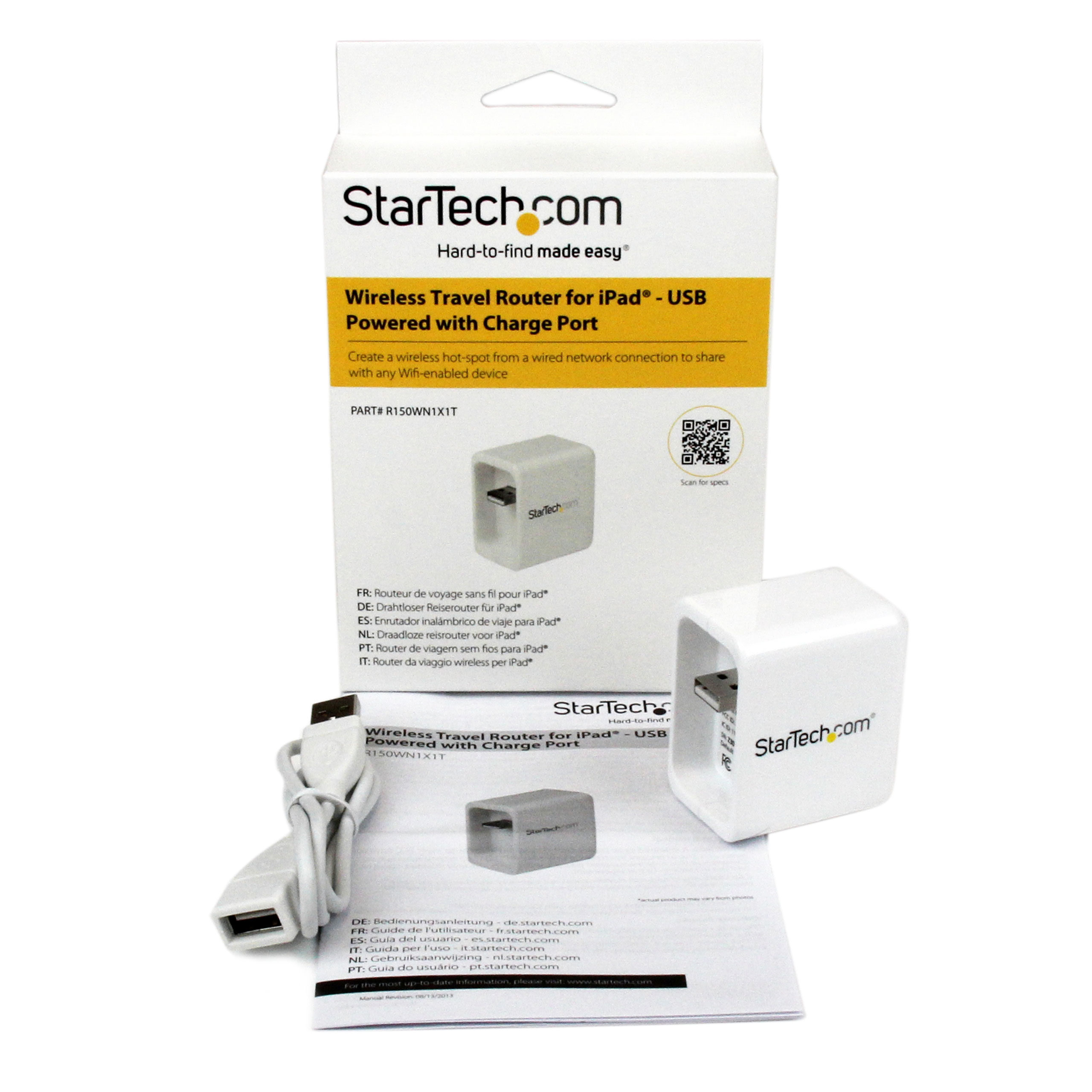

Antenna Configuration 1x1:1 (TxR:S) Industry Standards IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3u Interface/Bridge Wireless Ethernet LED Indicators 1 - Power / WiFi Status Carton Depth (mm) 282 Carton Height (mm) 265 Carton Quantity 20 Carton Weight Gross (g) 3270 Included in Package - 1 - Travel Router
- 1 - USB Extension Cable
- 1 - Instruction Manual
Package Depth (mm) 110 Package Height (mm) 40 Package Width (mm) 165 Package Quantity 1 Package Weight (g) 335 Packaging Description Wireless Travel Router for iPad® Packaging Description India Wireless Travel Router for iPad® Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 Wi-Fi 4 (802.11n, 600Mbps) Connector 1 (Quantity) 1 Connector 2 USB-A (480Mbps, 2.5W) Connector 2 (Quantity) 1 Connector 3 RJ-45 Connector 3 (Quantity) 1 Connector 4 USB-A (480Mbps, 2.5W) Connector 4 (Quantity) 1 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2013-07-24 en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) CA,US Primary Technology None Product Development Specialist Ray Aoki Product Information Creation Specialist (PICS) Alex Garcia Product Manager Rob Fleck Product Photographer Alejandra Valencia Tech Lead Stefan Tirolese Technical Writer Andrew Richardson Technology Lifecycle Legacy
