Main Image
R300WN22GAEU

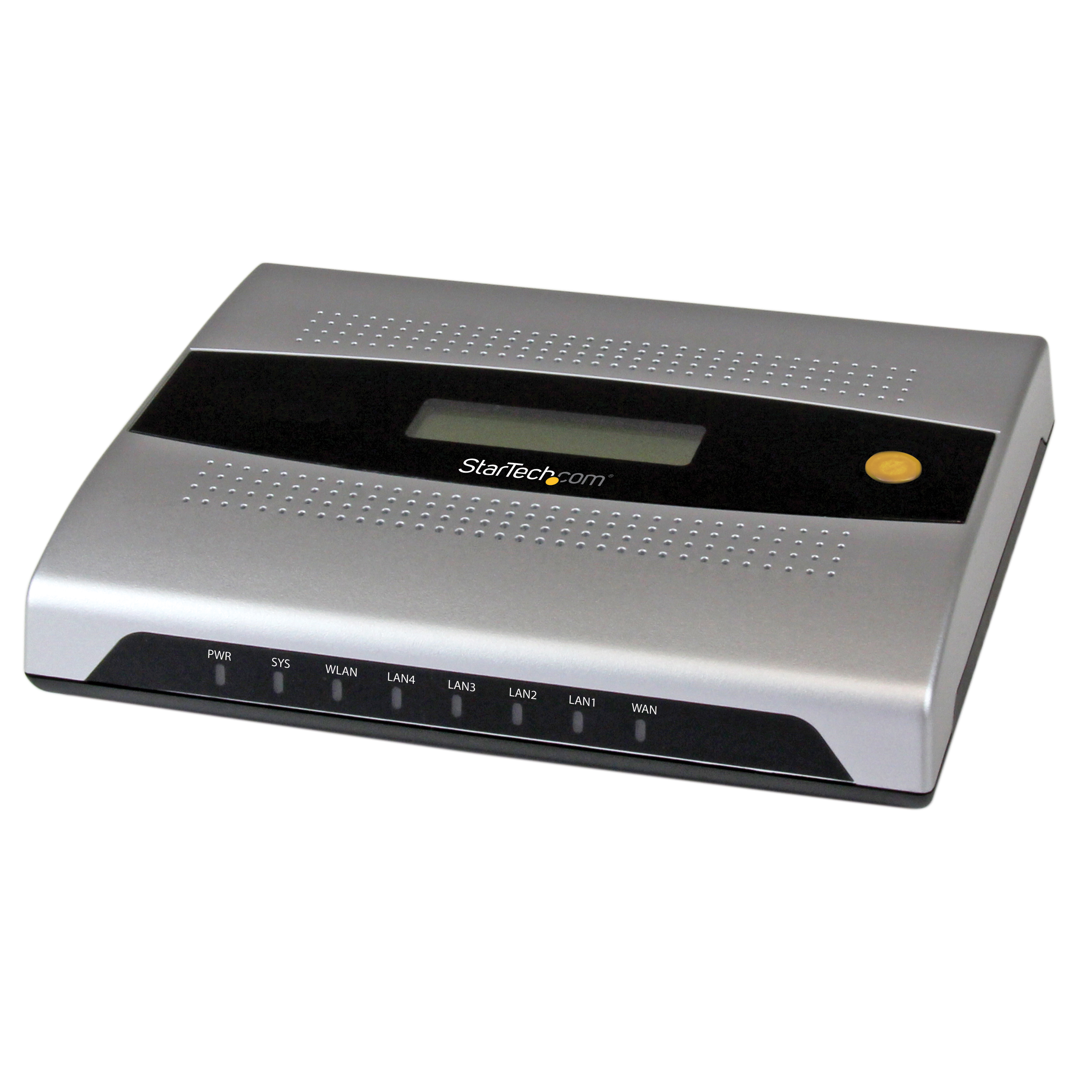

802.11b/g/n 2.4GHz Guest Wireless Access Point
Create multiple temporary guest WiFi accounts for secure wireless access with the touch of a button
Main Image
Product Images
Product Images
Product Images
BOM Image
Quick-Start Guide
Product Name 802.11b/g/n 2.4GHz Guest Wireless Access Point Product Number R300WN22GAEU UPC 065030857635 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Product Title (Ultra-Short) Guest WiFi AP Product Title (Short) Wireless-N Guest WiFi Access Point Product Title (Medium) 300Mbps 2T2R Wireless-N Guest WiFi Access Point - 2.4GHz 802.11b/g/n Product Title (Standard) 300Mbps 2T2R Wireless-N Guest WiFi Access Point / Account Generator - 2.4GHz 802.11b/g/n Product Title (Long) 300Mbps 2T2R Wireless-N Guest WiFi Access Point / Account Generator - 2.4GHz 802.11b/g/n Product Title (AMZ) 300Mbps 2T2R Wireless-N Guest WiFi Access Point / Account Generator - 2.4GHz 802.11b/g/n Guest Wireless AP (R300WN22GAEU) Title Ingram (Part 1) 802.11b/g/n 2.4GHz Guest Title Ingram (Part 2) Wireless Access Point Website Product Headline Create multiple temporary guest WiFi accounts for secure wireless access with the touch of a button Bullet 1 Integrated LCD display and “Get Key” button for guest users Bullet 2 IEEE 802.11b/g/n (Wireless-N) compliant, with speeds up to 300Mbps on 2.4GHz Bullet 3 5 rear RJ45 connectors for LAN / WAN connection Bullet 4 Supports multiple SSIDs Bullet 5 Supports 20 simultaneous users Bullets (Consolidated) Create multiple temporary guest WiFi accounts for secure wireless access with the touch of a button - 300Mbps 2T2R Wireless-N Guest WiFi Access Point/Account Generator - 2.4GHz 802.11b/g/n Guest Wireless AP - WiFi Guest Access - GuestWiFi - Integrated LCD display and "Get Key" button for guest users - Supports multiple SSIDs Marketing Copy Applications - Create secure WiFi access for visitors in an office building, with minimal IT maintenance
- Add a self-serve wireless hotspot to hospitality, restaurant or retail environments, allowing customers to connect
Website Search Keyword - Public WiFi
- guest wifi
- guestwifi
- guest wireless
- guest wireless network
- wifi guest access
- Wireless Guest Access
- guest wifi network
- guest wifi access
- wireless access point with guest network
- wifi code generator
- guest wifi router
- guest router
- customer wifi
- Visitor WiFi
- Visitor Wireless
- guest wireless router
- guest access point
- guest wireless access point
- wireless subscriber gateway
Required Regulatory Compliance Marks - WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- CE - IR - Wireless - European Union - EU Radio Equipment Directive (RED) Short-Form DoC
- ISED - IR - Wireless - Canada - Industry Canada (IC) Wireless ID
Accessory Products - N6PATC2MBL
- N6PATCH10BL
- N6PATC7MBL
- N6PATC15MBL
- N6PATCH75BL
- N6PATCH100BL
- SVA12M2NEUA
- SVA12M5NA
Related Products - R300WN22MO5E
- AP300WN22WUE
- R300WN22OP5E
- AP150WN1X1OE
- WFREPEAT300N
Equivalent Part Number in the UK R300WN22GAGB Input Current 0.4 A Input Voltage 100 - 240 AC Output Current 1.5 A Output Voltage (V) 12V DC Power Consumption (In Watts) 18 Power Source AC Adapter Included Plug Type M Center Tip Polarity Positive Color Black & Silver Humidity 20~90% RH (Non-Condensing) Material Plastic Operating Temperature 0°C to 50°C (32°F to 122°F) Product Length (mm) 180.000 Product Width (mm) 140.000 Product Height (mm) 36.000 Product Weight (g) 405.000 Storage Temperature -10°C to 60°C (14°F to 140°F) TAA Compliant Yes Max Distance 30m [98.4ft] Maximum Data Transfer Rate Security Features - WPA Data Encryption
- TKIP/AES
Supported Protocols CSMA/CA Antenna Configuration 2x2:2 (TxR:S) Chipset ID Ralink - RT3052 Industry Standards - IEEE 802.3, IEEE 802.3u
- IEEE 802.11b/g/n

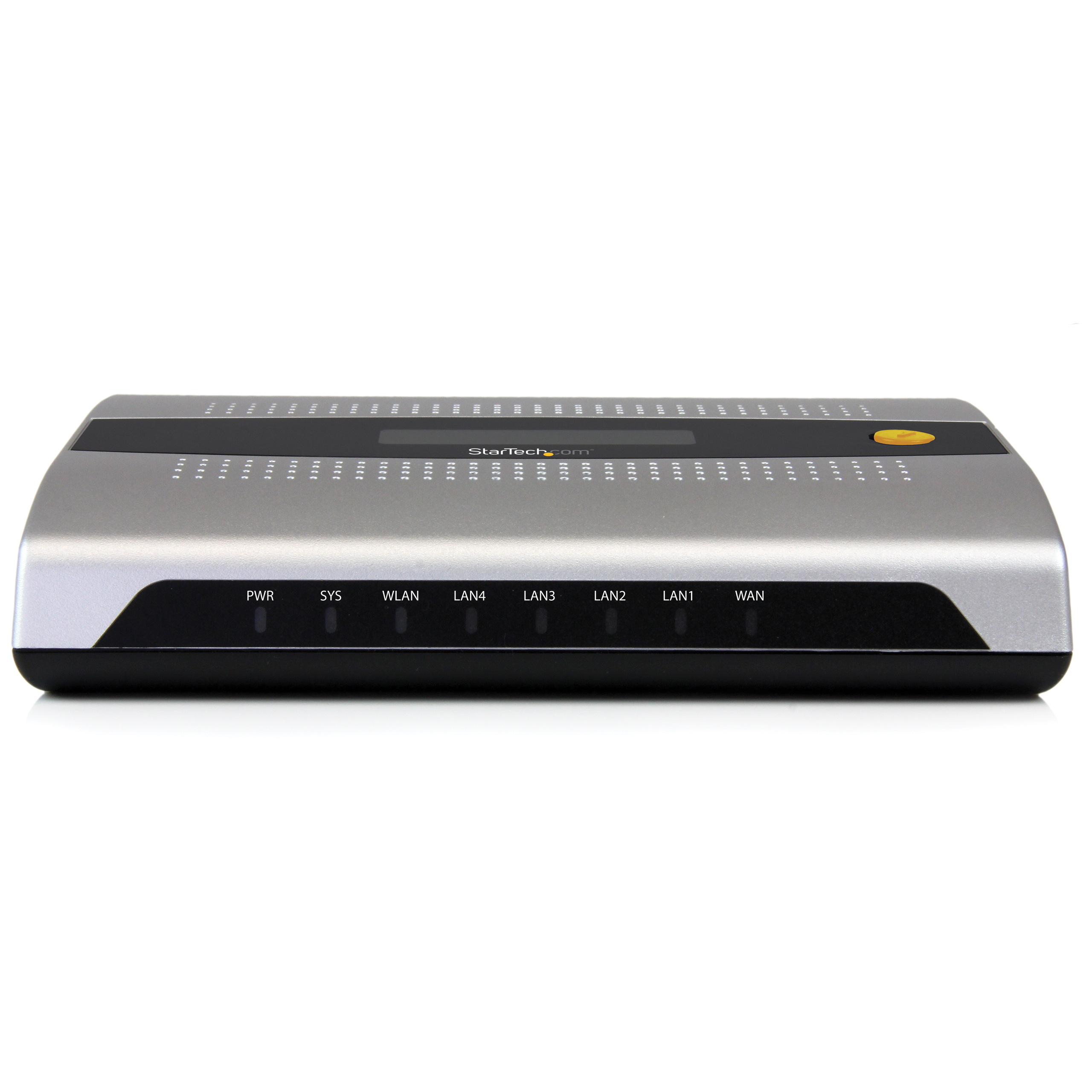

Interface/Bridge Wireless Ethernet LED Indicators - 1 - Power
- 1 - System Status
- 1 - WAN Link / Activity
- 4 - LAN Link / Activity
- 1 - WLAN Link / Activity

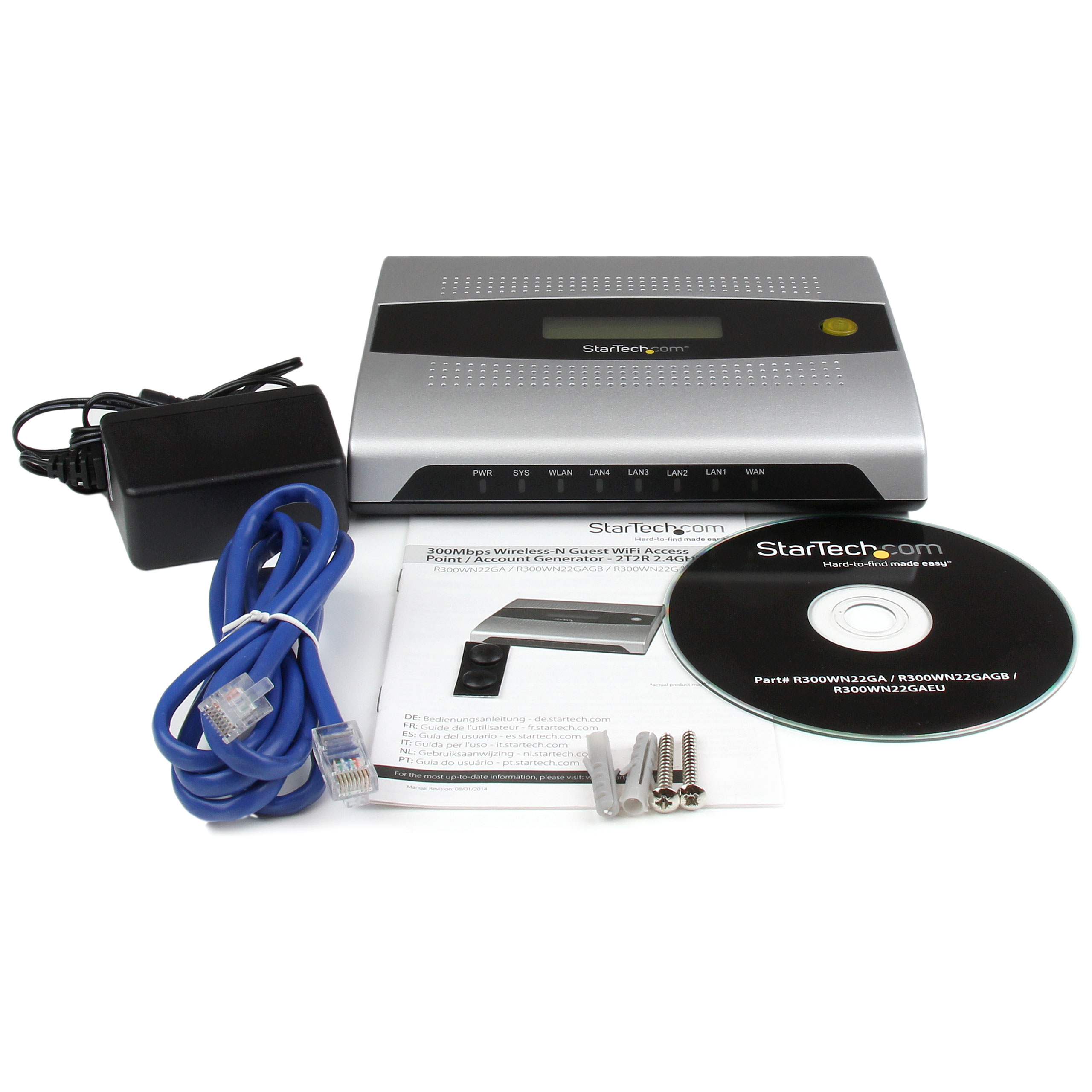

Carton Depth (mm) 515 Carton Height (mm) 320 Carton Quantity 10 Carton Weight Gross (g) 11735 Included in Package - 1 - Guest WiFi Access Point / Account Generator
- 1 - Ethernet Cable
- 2 - Screws for Wall Mounting
- 1 - Power Adapter
- 1 - Quick Start Guide
- 1 - Instruction Manual CD

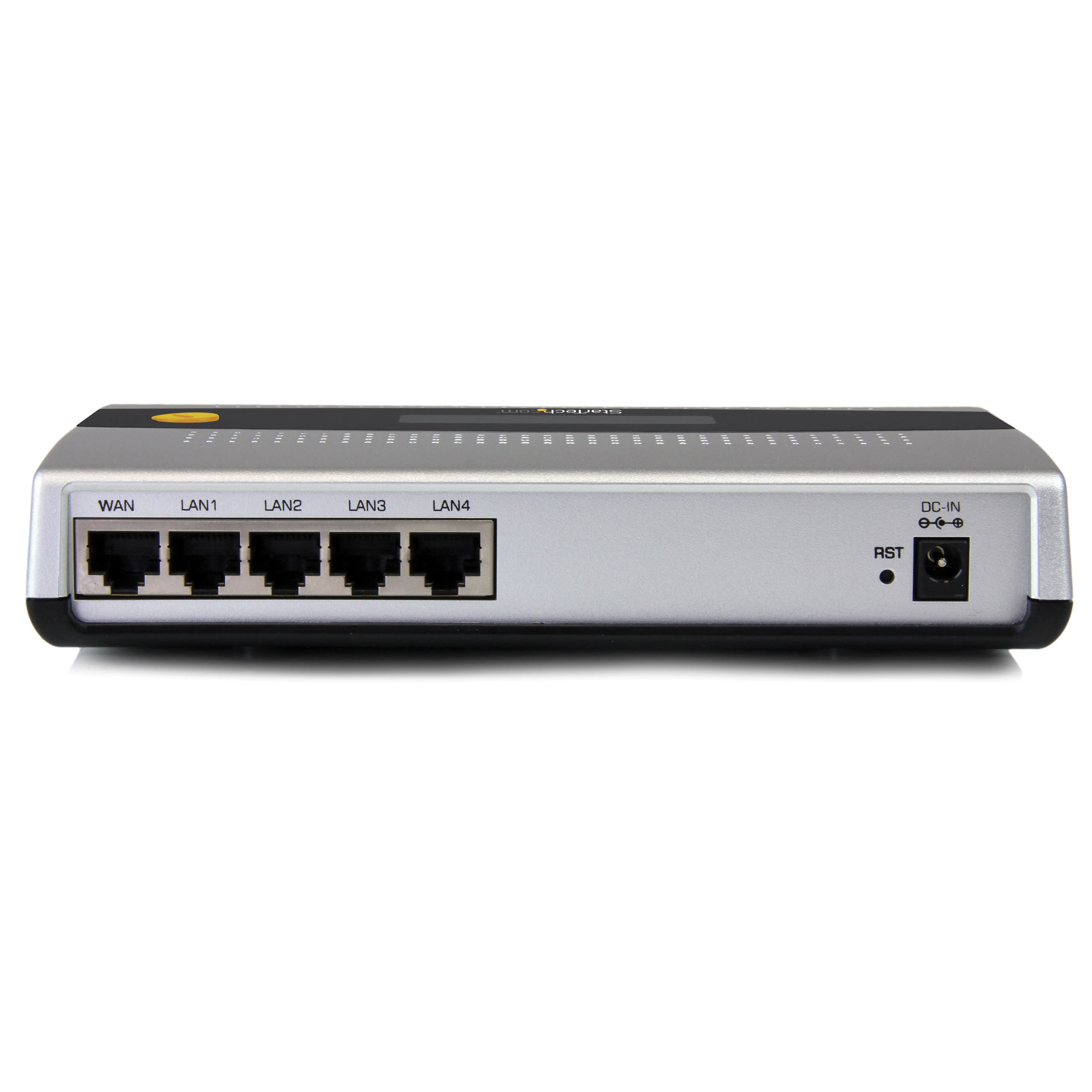

Package Depth (mm) 275 Package Height (mm) 95 Package Width (mm) 298 Package Quantity 1 Package Weight (g) 1016 Packaging Description 300Mbps Wireless-N Guest WiFi Access Point Packaging Description India 300Mbps Wireless-N Guest WiFi Access Point Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 Wi-Fi 4 (802.11n, 600Mbps) Connector 1 (Quantity) 1 Connector 2 RJ-45 Connector 2 (Quantity) 5 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2014-04-29 en-US Content Approved Yes Graphic Designer Shane Arnett Primary Technology None Product Development Specialist Ray Aoki Product Information Creation Specialist (PICS) Alex Garcia Product Manager Rob Fleck Product Photographer Alejandra Valencia Tech Lead Stefan Tirolese Technical Writer Andrew Richardson Technology Lifecycle Legacy Vending Machine Not Compatible with Vending Machine
