R300WN22MO5G
Metal IP67 5GHz 802.11n Wireless Access Point
Add 5GHz WiFi coverage to an outdoor area, with a ruggedized industrial access point - PoE Powered
Main Image
Product Images
Product Images
Product Images
Product Images
BOM Image
Quick-Start Guide
Product Name Metal IP67 5GHz 802.11n Wireless Access Point Product Number R300WN22MO5G UPC 065030858946 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX022X Quick-Start Guide https://images.salsify.com/image/upload/s--D-DOVWwW--/c927cd4da631c682d13315c532fdf916301ebbf0.pdf Firmware Product Title (Ultra-Short) 5GHz Wireless-N AP Product Title (Short) IP67 5GHz Wireless-N Access Point Product Title (Medium) IP67 Certified 2T2R 5GHz Outdoor Wireless-N Access Point - 300 Mbps WiFi AP Product Title (Standard) IP67 Certified 2T2R 5GHz Outdoor Wireless-N Access Point - PoE-Powered 300 Mbps 802.11a/n WiFi AP Product Title (Long) IP67 Certified 2T2R 5GHz Outdoor Wireless-N Access Point - PoE-Powered 300Mbps 802.11a/n WiFi AP Product Title (AMZ) IP67 Certified 2T2R 5GHz Outdoor Wireless-N Access Point - PoE-Powered 300Mbps 802.11a/n WiFi AP - Outdoor Wireless AP (R300WN22MO5G) Title Ingram (Part 1) Metal IP67 5GHz 802.11n Title Ingram (Part 2) 300Mbps Wireless Access Point Website Product Headline Add 5GHz WiFi coverage to an outdoor area, with a ruggedized industrial access point - PoE Powered Bullet 1 IEEE 802.11a/n (Wireless-N) compliant with speeds up to 300 Mbps @ 5GHz Bullet 2 Metal, IP67 certified pole and wall-mountable housing Bullet 3 PoE-powered access point with included PoE injector and PoE pass-through Bullet 4 Supports AP, WDS and WISP operating modes Bullet 5 800mW internal 10dBi 2T2R antenna Bullets (Consolidated) Add 5GHz WiFi coverage to an outdoor area with a ruggedized industrial access point - IP67 Certified 2T2R 5GHz Outdoor Wireless-N Access Point - PoE-Powered 300Mbps 802.11a/n WiFi Access Point - Wireless AP - Wireless Access Point - Supports AP, WDS and WISP operating modes - Pole and Wall-mountable housing - 800mW internal 10dBi 2T2R antenna Marketing Copy Applications - Create an outdoor Wireless-N access point from an existing wired or wireless connection to eliminate network dead spots and allow wireless devices to connect across large open spaces
- Use WDS (Wireless Distribution System) to mesh multiple Access Points together
- Connect your 5GHz capable smartphone or tablet to a Wireless A/N network for a stronger and more reliable WiFi connection
- Perfect for broadcasting a less congested 5GHz, 300Mbps Wireless-N network across industrial or educational environments
- Use the secondary LAN port to deploy remote PoE-Powered devices such as switches or IP cameras
Website Search Keyword - Outdoor Access Point
- Outdoor Wireless Access Point
- outdoor wireless router
- Outdoor AP
- Outdoor Wireless AP
- Outdoor Wireless N Access Point
- PoE Powered Access Point
- PoE Powered Wireless Access Point
- IP67
Required Regulatory Compliance Marks - ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- ISED - IR - Wireless - Canada - Industry Canada (IC) Wireless ID
- FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
System and Cable Requirements - Available indoor AC electrical outlet
- Cat 5 (or better) network cabling from PoE Injector to Wireless AP and PoE Injector to LAN Switch/router (no more than 100m total)
Accessory Products - WIRC6CMRBL
- WIRC6PATGRRL
- CRJ45C6STR50
Related Products - R300WN22ODG
- AP150WN1X1OG
- R300WN22OP5G
Equivalent Part Number in the EU R300WN22MO5E Input Current 1 A Input Voltage 100 - 240 AC Output Current 0.5 A Output Voltage (V) 48 DC Power Consumption (In Watts) 13.5 Power Source AC Adapter Included Plug Type N Center Tip Polarity Positive Color Gray Humidity 100% RH Non-Condensing Material Aluminum and Plastic Operating Temperature -30°C to 60°C (-22°F to 140°F) Product Length (mm) 161.000 Product Width (mm) 100.000 Product Height (mm) 58.000 Product Weight (g) 700.000 Storage Temperature -30°C to 85°C (-22°F to 185°F) TAA Compliant Yes Bandwidth 20/40 MHz Full Duplex Support Yes Max Distance 3.7 km (2.3 mi) Maximum Data Transfer Rate 300 Mbps Security Features - WEP Data Encryption
- TKIP/AES
- WPA and WPA2-PSK Data Encryption
- WPA and WPA2 Enterprise Data Encryption
Supported Protocols CSMA/CA Antenna Configuration 2x2:2 (TxR:S) Chipset ID Atheros - AR9342 Industry Standards - IEEE 802.3, IEEE 802.3u IEEE 802.11a/n
- IP67 certified
Interface/Bridge Wireless Ethernet LED Indicators - 3 - Wireless Signal Strength
- 1 - Power
- 2 - LAN Link / Activity

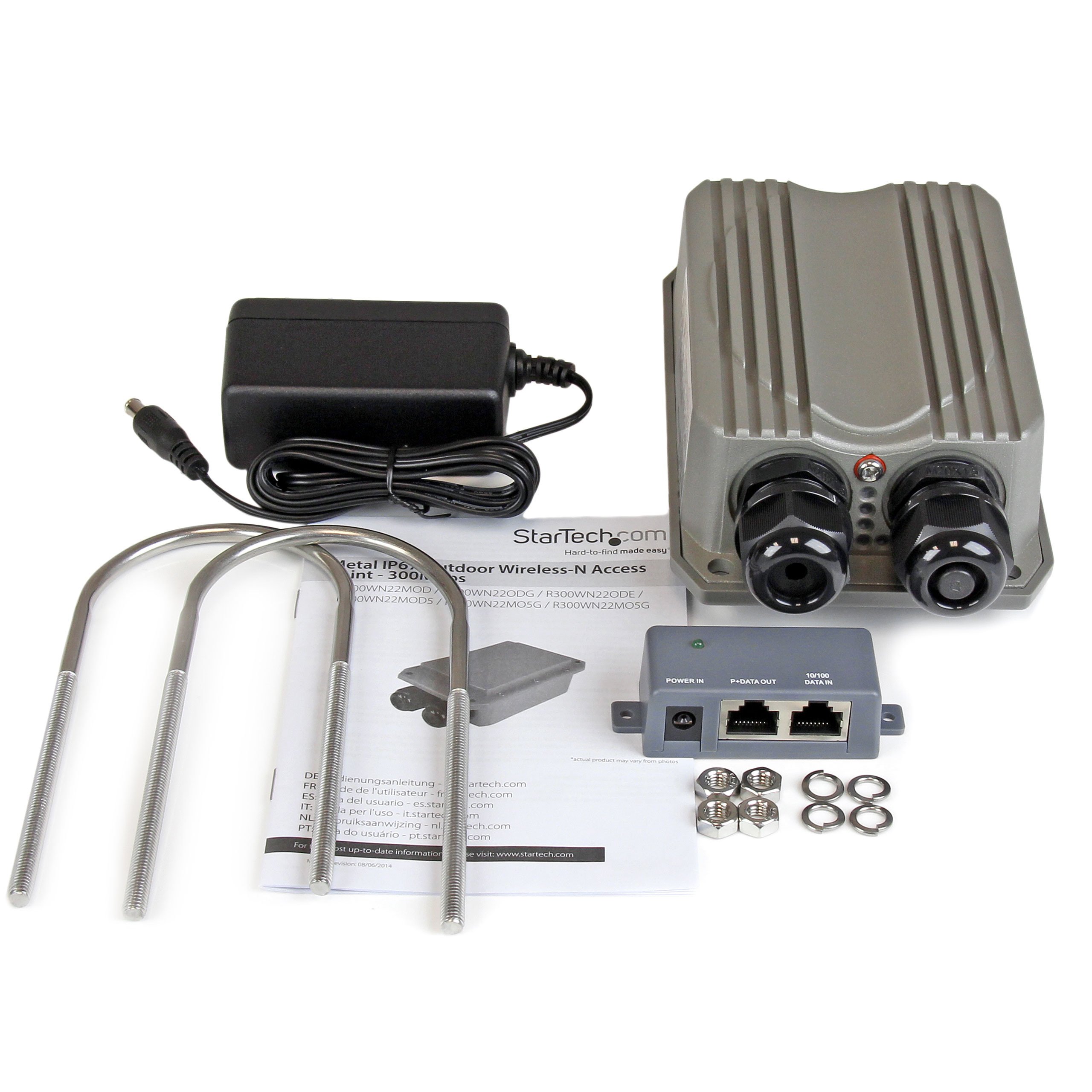

Carton Depth (mm) 460 Carton Height (mm) 390 Carton Quantity 10 Carton Weight Gross (g) 13886 Included in Package - 1 - Outdoor Wireless Access Point
- 1 - PoE Injector
- 1 - Pole Mounting Kit
- 1 - Power Adapter
- 1 - Quick Start Guide
Package Depth (mm) 212 Package Height (mm) 86 Package Width (mm) 355 Package Quantity 1 Package Weight (g) 1259 Packaging Description Metal Outdoor 802.11N Access Point - 300Mbps 5GHz Packaging Description India Metal Outdoor 802.11N Access Point - 300Mbps 5GHz Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 Wi-Fi 4 (802.11n, 600Mbps) Connector 1 (Quantity) 1 Connector 2 RJ-45 Connector 2 (Quantity) 2 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2014-04-23 en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) UK Primary Technology None Product Development Specialist Ray Aoki Product Information Creation Specialist (PICS) Alex Garcia Product Manager Rob Fleck Product Photographer Alejandra Valencia Tech Lead Stefan Tirolese Technical Writer Andrew Richardson Technology Lifecycle Legacy Vending Machine Not Compatible with Vending Machine
