R300WN22MOD5
Metal IP67 Wireless-N AP - 300Mbps 5GHz
Delivers reliable wireless throughput up to 3.7 kilometers / 2.3 miles - even through harsh weather conditions

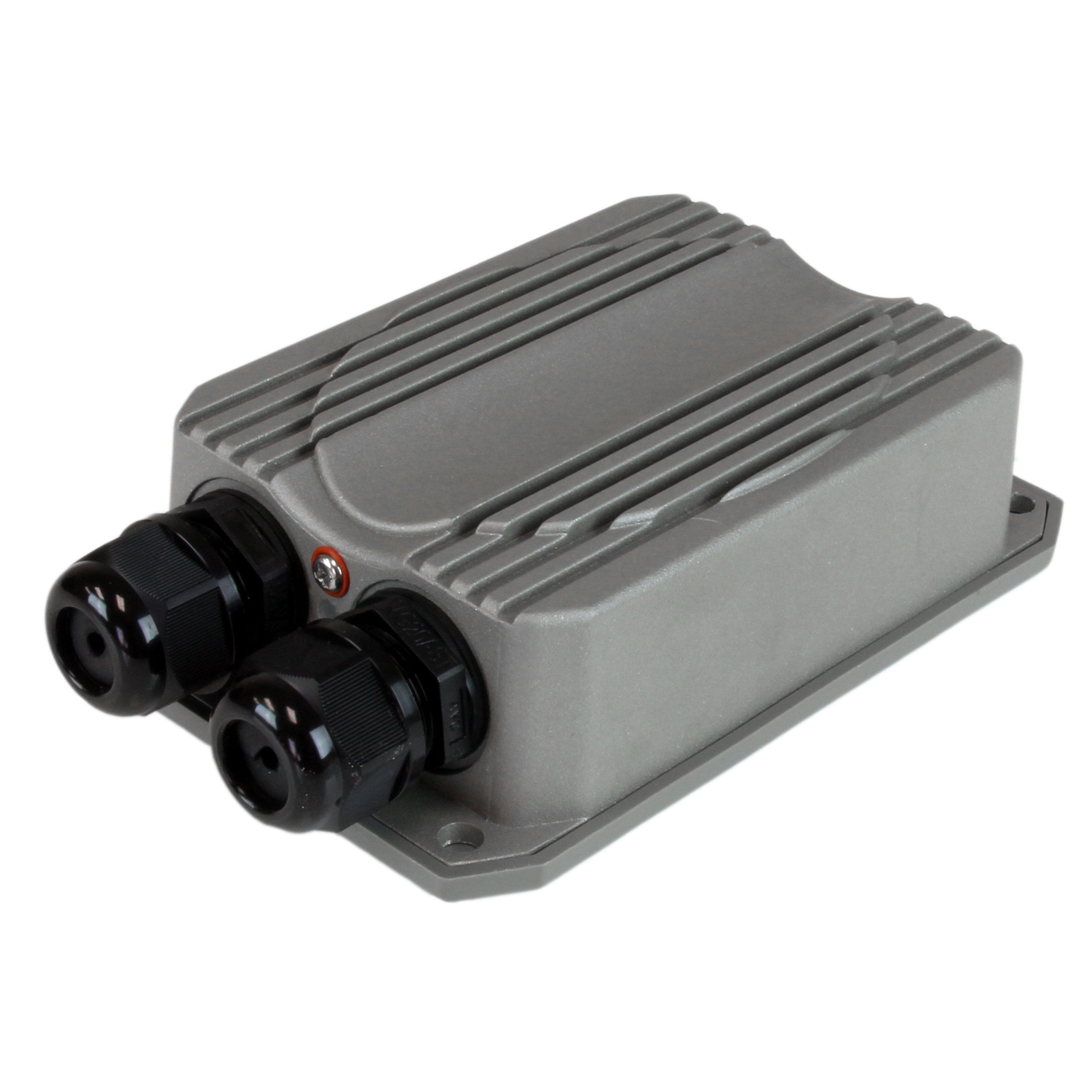

Main Image

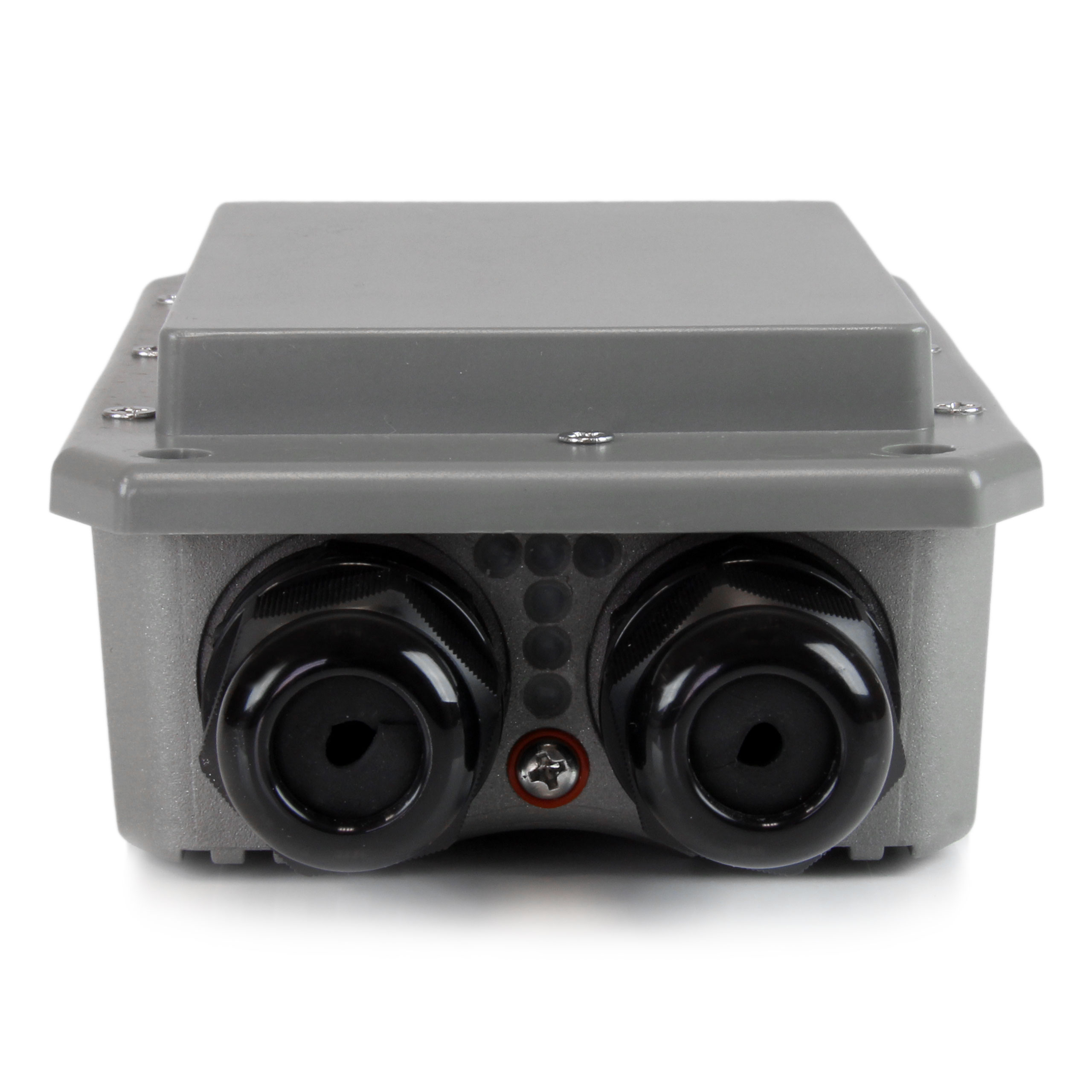

Product Images

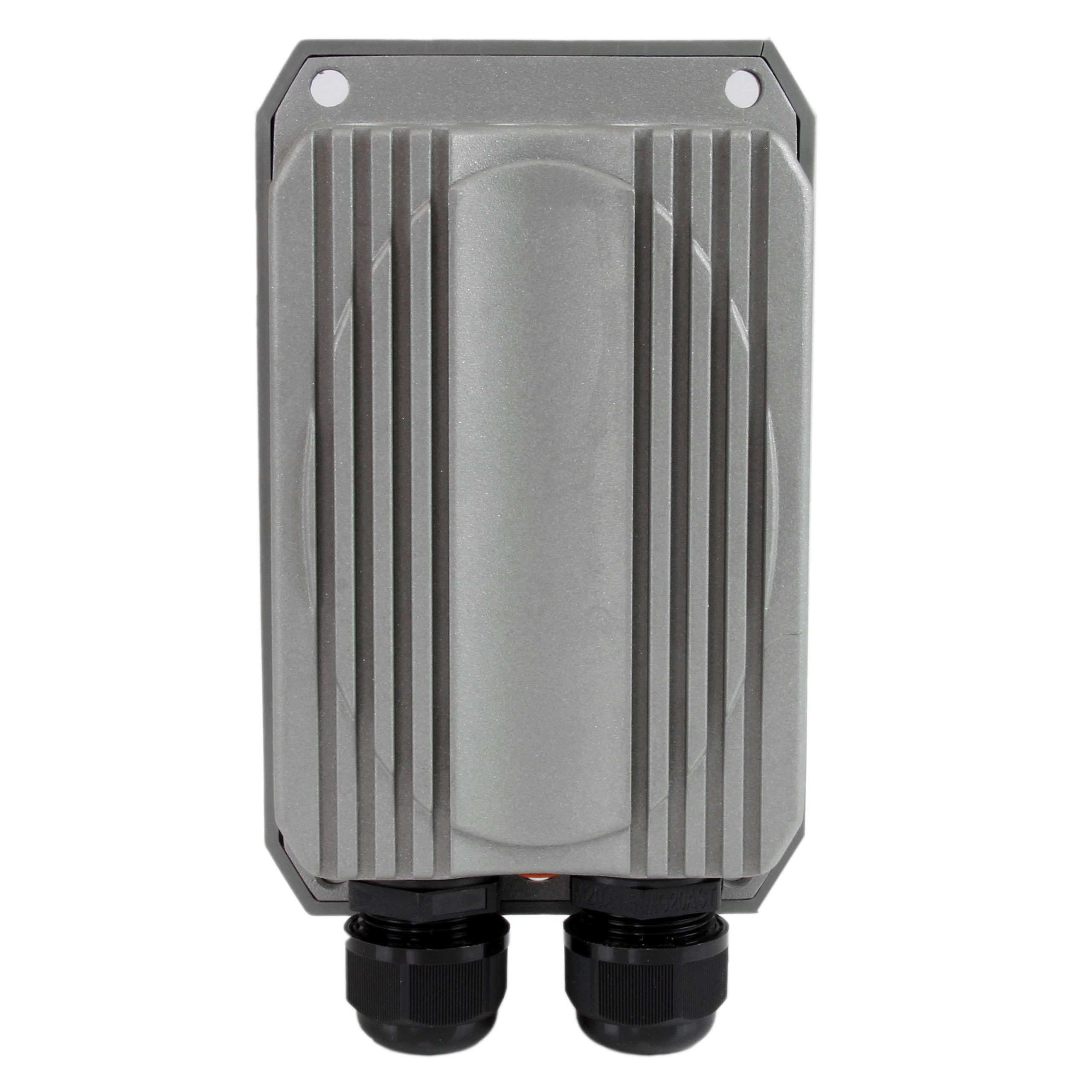

Product Images

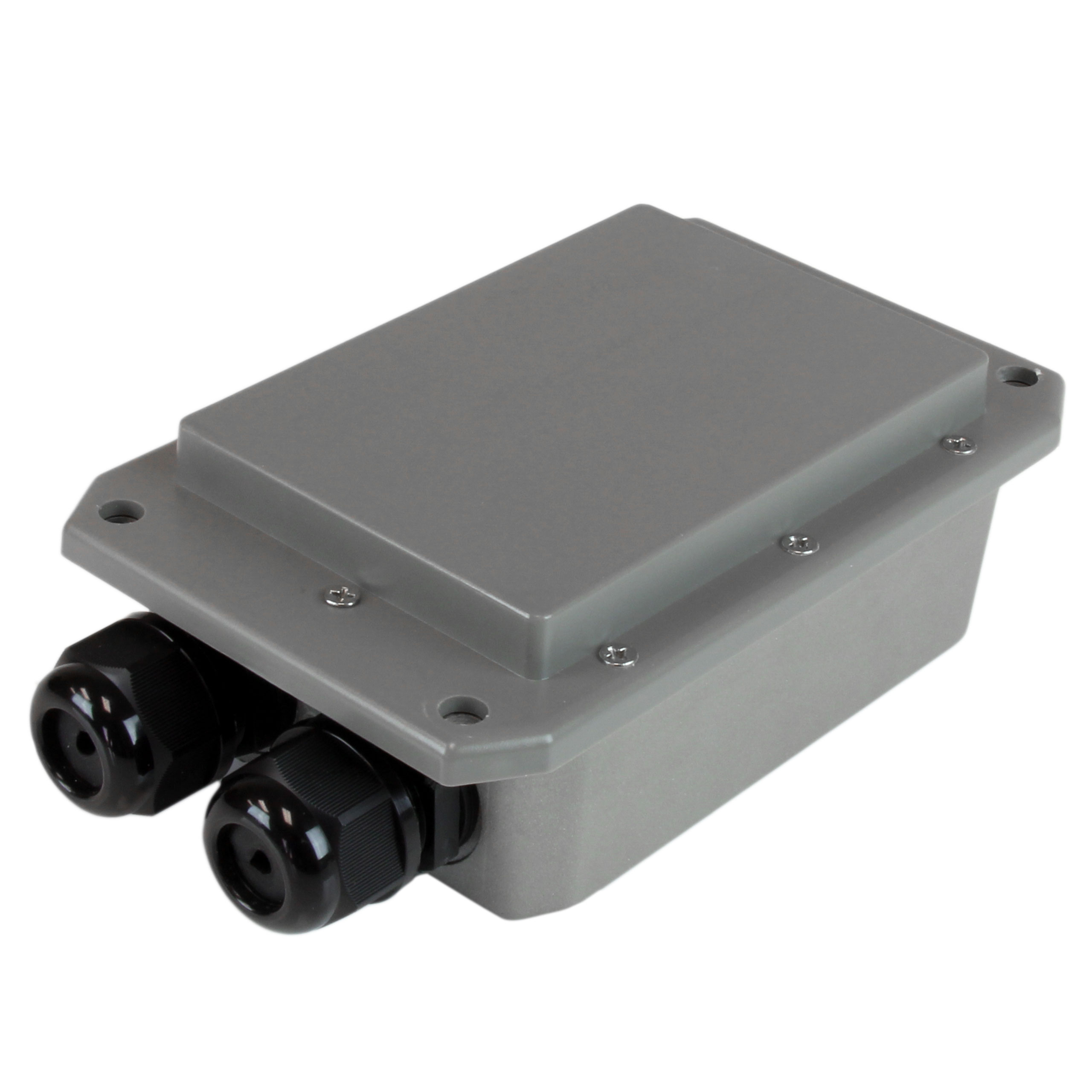

Product Images

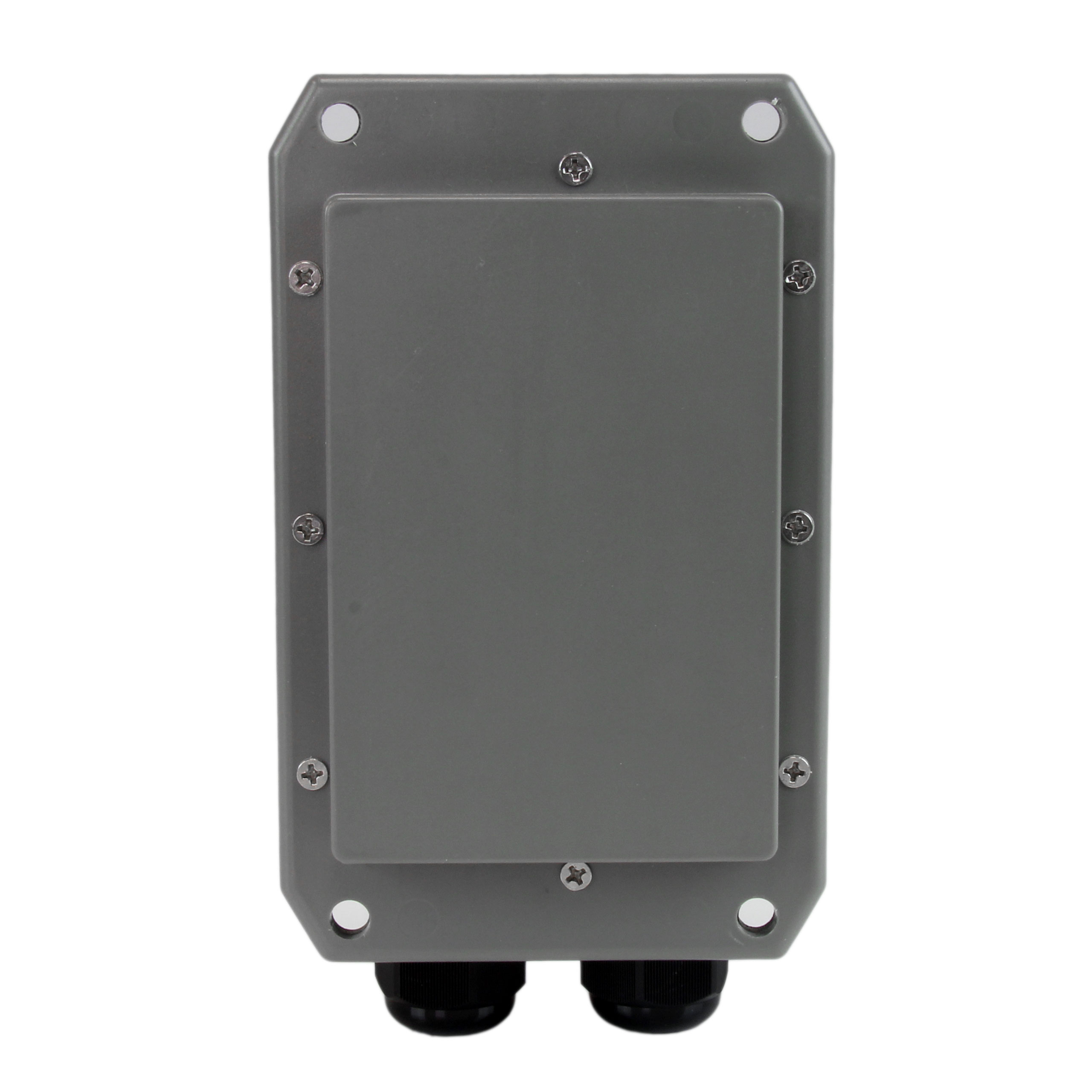

Product Images
BOM Image
Quick-Start Guide
Product Name Metal IP67 Wireless-N AP - 300Mbps 5GHz Product Number R300WN22MOD5 UPC 065030857765 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Family Outdoor antennas Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX022X Quick-Start Guide https://images.salsify.com/image/upload/s--D-DOVWwW--/c927cd4da631c682d13315c532fdf916301ebbf0.pdf Firmware Product Title (Ultra-Short) 5GHz Wireless-N AP Product Title (Short) IP67 5GHz Wireless-N Access Point Product Title (Medium) Rugged Outdoor Wireless-N Access Point - 5GHz - PoE Powered - Metal IP67 Product Title (Standard) Rugged Outdoor Wireless-N Access Point - 5GHz - PoE Powered - Metal IP67 - 300Mbps Wi-Fi AP @ 5GHz Product Title (Long) Rugged Outdoor Wireless-N Access Point - 5GHz - PoE Powered - Metal IP67 Product Title (AMZ) Rugged Outdoor Wireless-N Access Point - 5GHz - PoE Powered - Metal IP67 - 300Mbps Wi-Fi AP @ 5GHz (R300WN22MOD5) Title Ingram (Part 1) Certified IP67 Wireless-N AP - Title Ingram (Part 2) 300Mbps @ 5GHz - PoE Powered Website Product Headline Delivers reliable wireless throughput up to 3.7 kilometers / 2.3 miles - even through harsh weather conditions Bullet 1 IP67 die-cast metal enclosure ensures reliable Wi-Fi in harsh weather conditions Bullet 2 Wide operating range of -30°C to 60°C (-22°F to 140°F) and withstands 100% humidity Bullet 3 Add or extend your wireless network to outdoor areas with a range up to 3.7 kms / 2.3 mi. Bullet 4 Power over Ethernet for versatile installation with no need for a power outlet (PoE injector included) Bullet 5 Supports Wireless-N data rates up to 300Mbps @ 5GHz Bullets (Compact) Delivers reliable wireless throughput up to 3.7 kilometers or 2.3 miles even through harsh weather conditions - Rugged Outdoor Wireless-N Access Point - 5GHz - PoE Powered - Weather-tight IP67 certified metal housing - 300Mbps Wi-Fi AP @ 5GHz Bullets (Consolidated) Delivers reliable wireless throughput up to 3.7 kilometers or 2.3 miles even through harsh weather conditions - Rugged Outdoor Wireless-N Access Point - 5GHz - PoE powered for versatile installation with no power outlet required - Weather-tight IP67 certified metal housing - 300Mbps Wi-Fi AP @ 5GHz - Compliant with 802.11a/n wireless and IEEE 802.3, IEEE 802.3u networks - Wide operating range of -30 to 60DEG C (-22 to 140DEG F)and withstands 100% humidity - TKIP/AES and WEP/WPA Data Encryption Marketing Copy Marketing Copy (No HTML) Applications - Create an outdoor Wireless-N access point from an existing wired or wireless connection to connect across large open spaces and eliminate network dead spots
- Bridge multiple APs together in a secure wireless network using WDS (Wireless Distribution System)
- Extend the range of your existing wireless network to include outdoor patios, meeting spaces or buildings several kilometers away
- Connect 5GHz capable smartphones or tablets to a wireless a/n network for a stronger and more reliable Wi-Fi connection
- Use the secondary LAN port to deploy remote PoE-Powered devices such as switches or IP cameras
Website Search Keyword - Outdoor Access Point
- Outdoor Wireless Access Point
- outdoor wireless router
- Outdoor AP
- Outdoor Wireless AP
- Outdoor Wireless N Access Point
- PoE Powered Access Point
- PoE Powered Wireless Access Point
- IP67
- wireless ethernet
- 5GHz AP
- Rugged Access Point - 5GHz
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- ISED - IR - Wireless - Canada - Industry Canada (IC) Wireless ID
System and Cable Requirements - Available indoor AC electrical outlet
- Cat 5 (or better) network cabling from PoE Injector to Wireless AP and PoE Injector to LAN Switch/router (no more than 100m total)
Accessory Products - WIRC6CMRBL
- WIRC6PATGRRL
- CRJ45C6STR50
Related Products - R300WN22MOD
- AP150WN1X1OD
- R300WN22OP5
Equivalent Part Number in the EU R300WN22MO5E Equivalent Part Number in the UK R300WN22MO5G Input Current 1 A Input Voltage 100 - 240 AC Output Current 0.5 A Output Voltage (V) 48 DC Power Consumption (In Watts) 13.5 Power Source AC Adapter Included Plug Type N Center Tip Polarity Positive Color Gray Humidity 100% RH Non-Condensing Material Aluminum and Plastic Operating Temperature -30°C to 60°C (-22°F to 140°F) Primary Material Aluminum Product Length (mm) 161.000 Product Width (mm) 100.000 Product Height (mm) 58.000 Product Weight (g) 700.000 Storage Temperature -30°C to 85°C (-22°F to 185°F) TAA Compliant Yes Bandwidth 20/40 MHz Full Duplex Support Yes General Specifications Maximum Clients: 32 Max Distance 3.7 km (2.3 mi) Maximum Data Transfer Rate 300 Mbps Security Features - WEP Data Encryption
- TKIP/AES
- WPA and WPA2-PSK Data Encryption
- WPA and WPA2 Enterprise Data Encryption
Supported Protocols CSMA/CA Antenna Configuration 2x2:2 (TxR:S) Chipset ID Atheros - AR9342 Industry Standards - IEEE 802.3, IEEE 802.3u IEEE 802.11a/n
- IP67 certified
Interface/Bridge Wireless Ethernet LED Indicators - 3 - Wireless Signal Strength
- 1 - Power
- 2 - LAN Link / Activity
Carton Depth (mm) 453 Carton Height (mm) 390 Carton Quantity 10 Carton Weight Gross (g) 13700 Included in Package - 1 - Outdoor Wireless Access Point
- 1 - PoE Injector
- 1 - Pole Mounting Kit
- 1 - Power Adapter
- 1 - Quick Start Guide
Package Depth (mm) 214 Package Height (mm) 87 Package Width (mm) 355 Package Quantity 1 Package Weight (g) 1266 Packaging Description Metal Outdoor 802.11N Access Point - 300Mbps 5GHz Packaging Description India Metal Outdoor 802.11N Access Point - 300Mbps 5GHz Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 Wi-Fi 4 (802.11n, 600Mbps) Connector 1 (Quantity) 1 Connector 2 RJ-45 Connector 2 (Quantity) 2 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2013-12-23 Buying Center - AV & Collaboration No Buying Center - End User Compute No Buying Center - Networking & Edge No en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) CA,US Primary Technology None Product Development Specialist Ray Aoki Product Information Creation Specialist (PICS) Alex Garcia Product Manager Rob Fleck Product Photographer Alejandra Valencia Tech Lead Stefan Tirolese Technical Writer Andrew Richardson Technology Lifecycle None Vending Machine Not Compatible with Vending Machine
