R300WN22OP5G

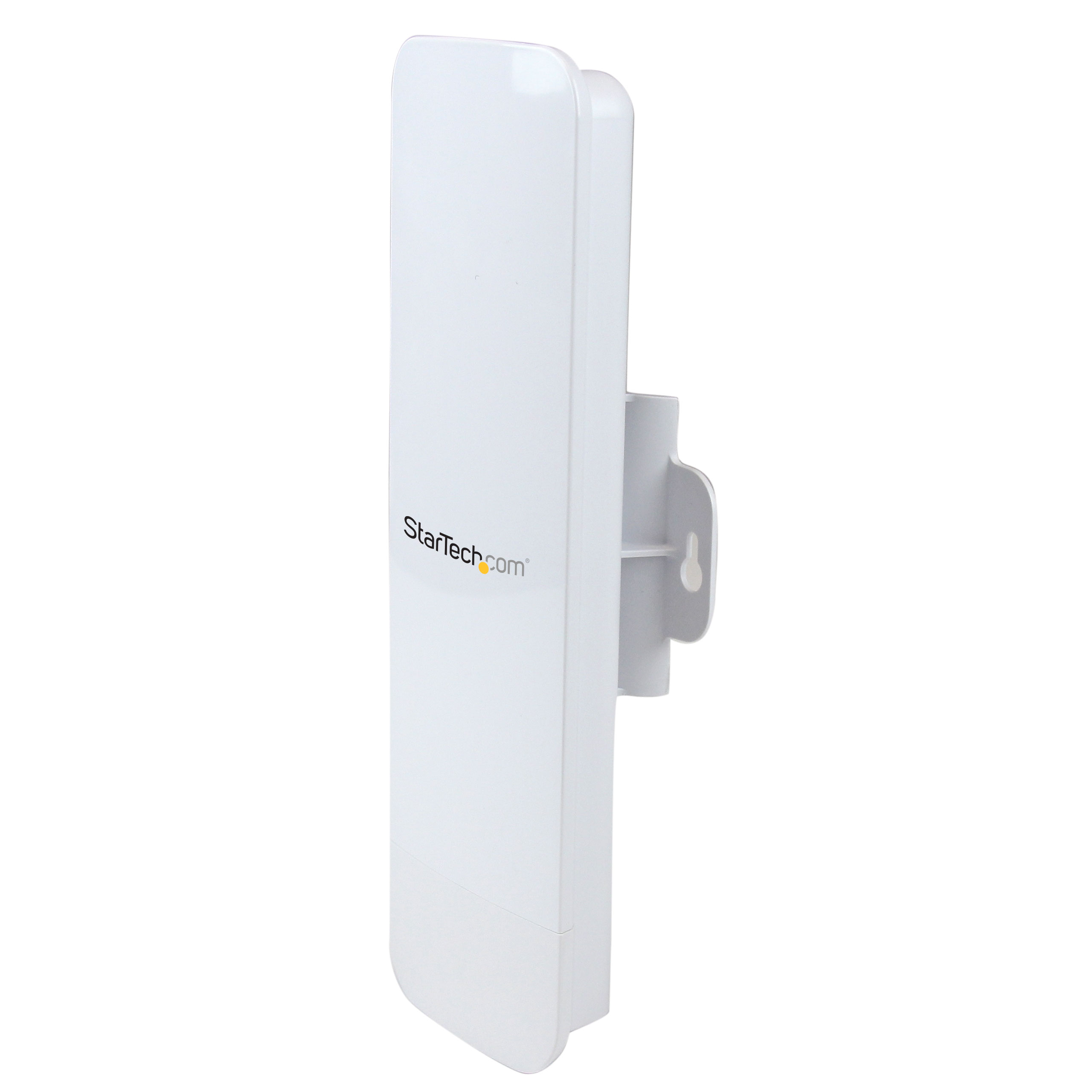

Long-Range 802.11a/n Outdoor WiFi Access Point
Create or extend the range of a Wireless-N (300Mbps) WiFi network to an outdoor location
Main Image
Product Images
Product Images
Product Images
BOM Image
Product Name Long-Range 802.11a/n Outdoor WiFi Access Point Product Number R300WN22OP5G UPC 065030857550 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX049X Product Title (Ultra-Short) Outdoor WiFi-N AP Product Title (Short) Outdoor 5GHz Wireless-N Access Point Product Title (Medium) Outdoor 300 Mbps 2T2R Wireless-N Access Point - 5GHz 802.11a/n PoE-Powered AP Product Title (Standard) Outdoor 300 Mbps 2T2R Wireless-N Access Point - 5GHz 802.11a/n PoE-Powered WiFi AP Product Title (Long) Outdoor 300 Mbps 2T2R Wireless-N Access Point - 5GHz 802.11a/n PoE-Powered WiFi AP Product Title (AMZ) Outdoor 300 Mbps 2T2R Wireless-N Access Point - 5GHz 802.11a/n WiFi AP - Pole / Wall-Mountable Long-Range PoE-Powered AP (R300WN22OP5G) Title Ingram (Part 1) Long-Range 802.11a/n Outdoor Title Ingram (Part 2) WiFi Access Point - PoE-Powered Website Product Headline Create or extend the range of a Wireless-N (300Mbps) WiFi network to an outdoor location Bullet 1 IEEE 802.11a/n (Wireless-N) compliant, with speeds up to 300 Mbps at 5GHz Bullet 2 Weather-resistant pole and wall-mountable housing Bullet 3 PoE-powered access point with included PoE injector and PoE pass-through Bullet 4 Switchable operating modes, enabling you to choose between WiFi Access Point (AP) and wireless network Repeater functions Bullet 5 Long-range internal 14dBi 2T2R dual polarization directional antenna Bullets (Consolidated) Create or extend the range of a Wireless-N (300Mbps) WiFi network to an outdoor location - Outdoor 300 Mbps 2T2R Wireless-N Access Point - 5GHz 802.11a/n WiFi AP - Pole/Wall-Mountable Long-Range PoE-Powered AP - Outdoor WiFi 5 GHz Access Point - Weather-Resistant AP - Includes PoE Injector - Secondary LAN Port with PoE Pass-through Marketing Copy Applications - Create an outdoor Wireless-N access point from an existing wired or wireless connection to eliminate network dead spots and allow wireless devices to connect across large open spaces
- Use WDS (Wireless Distribution System) to mesh multiple Access Points together
- Connect your 5GHz capable smartphone or tablet to a Wireless A/N network for a stronger and more reliable WiFi connection
- Perfect for broadcasting a less congested 5GHz, 300Mbps Wireless-N network across industrial or educational environments
- Use the secondary LAN port to deploy remote PoE-Powered devices such as switches or IP cameras
Website Search Keyword - wireless ap
- outdoor ap
- ap
- 5ghz ap
- 5ghz access point
- outdoor access point
- wireless access point
- 802.11a/n
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- CE - IR - Wireless - European Union - EU Radio Equipment Directive (RED) Short-Form DoC
- ISED - IR - Wireless - Canada - Industry Canada (IC) Wireless ID
System and Cable Requirements - Available indoor AC electrical outlet
- Cat 5 (or better) network cabling from PoE Injector to Wireless AP and PoE Injector to LAN Switch/router (no more than 100m total)
Accessory Products - C6PATCH7BL
- C6PATCH25BL
- C6PATCH50BL
- C6PATCH75BL
- C6PATCH100BL
Related Products - AP150WN1X1OD
- WFREPEAT300N
Equivalent Part Number in the EU R300WN22OP5E Input Current 1 A Input Voltage 100 - 240 AC Output Current 1 A Output Voltage (V) 24 DC Power Consumption (In Watts) 12 Power Source AC Adapter Included Plug Type M Center Tip Polarity Positive Color White Humidity 0~90% RH Material Plastic Operating Temperature -20°C to 70°C (-4°F to 158°F) Product Length (mm) 290 Product Width (mm) 92 Product Height (mm) 57 Product Weight (g) 324 Storage Temperature -30°C to 70°C (-22°F to 158°F) TAA Compliant Yes Bandwidth 20/40 MHz Full Duplex Support Yes Max Distance 10 km (6.2 mi) Maximum Data Transfer Rate 300 Mbps Security Features - WEP Data Encryption
- TKIP/AES
- WPA and WPA2-PSK Data Encryption
- WPA and WPA2 Enterprise Data Encryption
Supported Protocols CSMA/CA Antenna Configuration 2x2:2 (TxR:S) Chipset ID Atheros - AR9344 Industry Standards Interface/Bridge Wireless Ethernet LED Indicators - 1 - Power
- 1 - WAN Link/Activity
- 1 - LAN Link/Activity
- 1 - Wireless Signal Strength

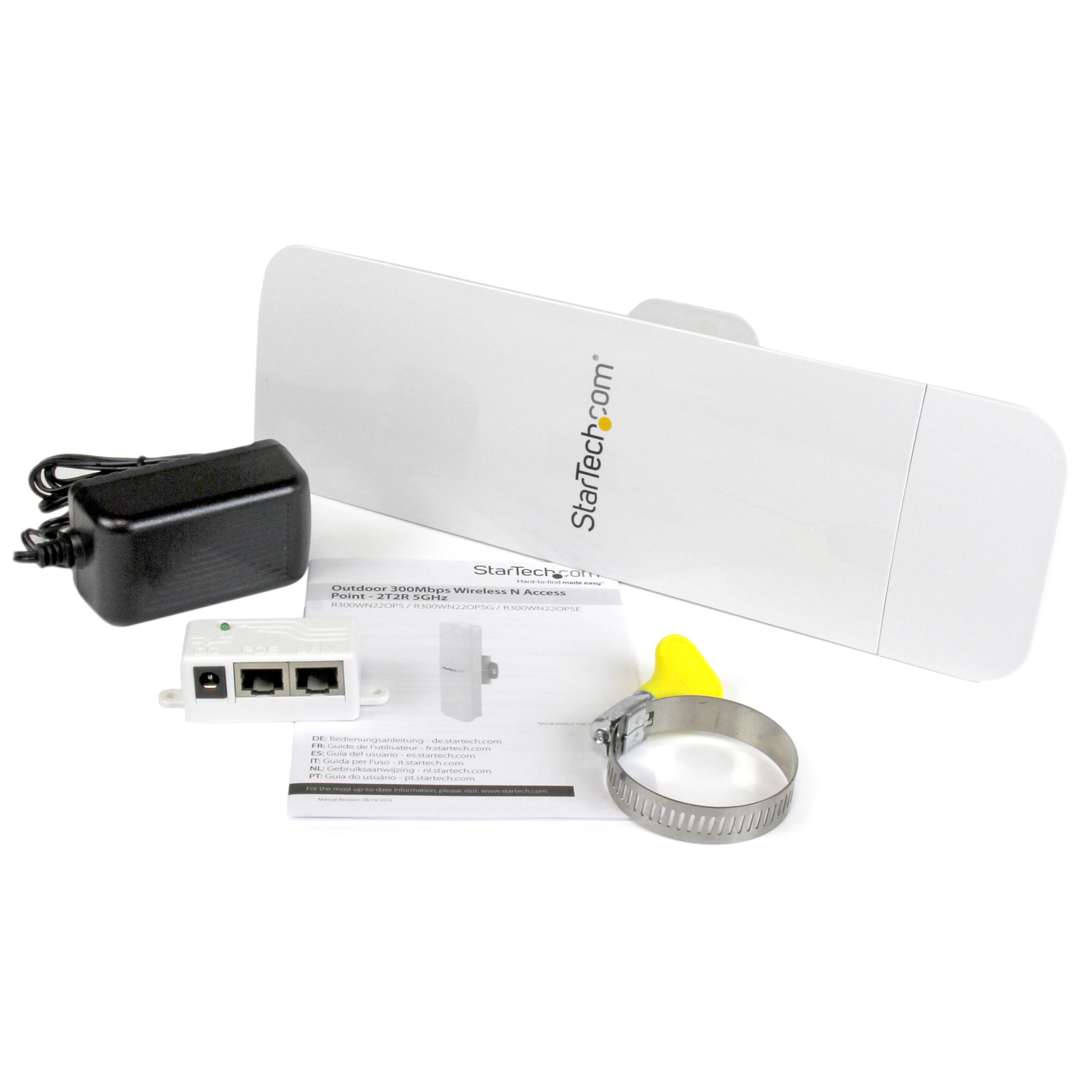

Carton Depth (mm) 480 Carton Height (mm) 355 Carton Quantity 20 Carton Weight Gross (g) 15179 Included in Package - 1 - Outdoor Access Point
- 1 - PoE Injector
- 1 - Metal Hose Clamp
- 1 - Power Adapter
- 1 - Instruction Manual
Package Depth (mm) 113 Package Height (mm) 90 Package Width (mm) 333 Package Quantity 1 Package Weight (g) 684 Packaging Description Outdoor Wireless N Access Point - 5GHz Packaging Description India Outdoor Wireless N Access Point - 5GHz Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 Wi-Fi 4 (802.11n, 600Mbps) Connector 1 (Quantity) 1 Connector 2 RJ-45 Connector 2 (Quantity) 2 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2014-04-23 en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) UK Primary Technology None Product Development Specialist Ray Aoki Product Information Creation Specialist (PICS) Alex Garcia Product Manager Rob Fleck Product Photographer Alejandra Valencia Tech Lead Stefan Tirolese Technical Writer Andrew Richardson Technology Lifecycle Legacy Vending Machine Not Compatible with Vending Machine
