R8AD122-KVM-SWITCH
8-port DP 4K60 Rackmount KVM Switch, USB 5Gbps Hub ports
Control up to eight USB and DisplayPort-enabled computers from a single keyboard, mouse, and 4K 60Hz DisplayPort monitor
Main Image
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Product Images
BOM Image
Product Name 8-port DP 4K60 Rackmount KVM Switch, USB 5Gbps Hub ports Product Number R8AD122-KVM-SWITCH UPC 065030907224 Lifecycle status Active Warranty 2 Years Weighted Opportunity 0 Taxonomy Product > KVMs, Switches & Splitters > Rackmount KVMs Category Level 1 KVM Switches Category Level 2 Enterprise KVMs Category Level 3 DVI Rack-Mount KVMs Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Product Title (Ultra-Short) 8-Port DP KVM Switch Product Title (Short) 8-Port DisplayPort KVM Switch, 4K 60Hz Product Title (Medium) 8-Port DisplayPort KVM Switch with 1U Rack Mount Kit, 4K 60Hz, TAA Compliant Product Title (Standard) 8-Port DisplayPort KVM Switch with 1U Rack Mount Kit, 4K 60Hz DP 1.2, Push-Button & Hotkey Switching, TAA Compliant Product Title (Long) 8-Port DisplayPort KVM Switch with 1U Rack Mount Kit, 4K 60Hz DP 1.2, Push-Button & Hotkey Switching, 4-Port USB Hub, OS Independent, TAA Compliant Product Title (AMZ) 8-Port DisplayPort KVM Switch w/1U Rack Mount Kit, 4K 60Hz DP 1.2, Push-Button/Hotkey Switching, TAA Compliant Title Ingram (Part 1) 8-Port Rack Mount KVM Switch - Title Ingram (Part 2) DisplayPort 1.2 KVM, 4K 60Hz Website Product Headline Control up to eight USB and DisplayPort-enabled computers from a single keyboard, mouse, and 4K 60Hz DisplayPort monitor Bullet 1 4K 60HZ KVM SWITCH: Switch between eight DisplayPort-enabled computers to share a keyboard, mouse, 3.5mm audio, USB 2.0 hub (2x front/2x rear), and a 4K 60Hz DisplayPort 1.2 monitor for effortless multi-system management & improved workspace efficiency Bullet 2 NO DRIVERS OR SOFTWARE: TAA-Compliant 8-Port KVM Switch enables BIOS level control and works with any operating system including Windows, macOS, ChromeOS, & Linux; Compatible with all hardware platforms such as Intel, AMD, SnapDragon/ARM, & Apple Silicon Bullet 3 MULTIPLE SWITCHING OPTIONS: Ensures efficient and user-friendly operation for multi-server administration with switching via push-buttons or hotkeys, an audible buzzer for confirmation, and LEDs for quick visual port selection status Bullet 4 RACK MOUNTABLE: KVM switch includes rackmount brackets in the box for installation in 1U of rack space on network racks and is compatible with ANSI/EIA RS-310-D standard 19-inch server racks that have a mounting depth of 6.5inches (165mm) or more Bullet 5 OUR ADVANTAGE: Included connectivity tools for IT Pro's and IT help-desk support teams with USB Event Monitoring for logging USB device connections with timestamps, and Windows Layout to restore windows locations upon switching hosts Bullets (Compact) TAA-Compliant KVM switches between eight DisplayPort-enabled computers to share a keyboard, mouse, audio, 4-port usb 2.0 hub, and 4K 60Hz DisplayPort monitor; Works with any OS including Windows/macOS/Linux; Includes 1U rackmount brackets Bullets (Consolidated) - Switch between 8x DisplayPort computers to share a keyboard/mouse/4-port usb 2.0 hub/audio/4K 60Hz DP 1.2 monitor - TAA-Compliant KVM Switch gives BIOS level control with any OS including Windows/macOS/Linux - Works with all hardware platforms such as Intel/AMD/SnapDragon/ARM/Apple Silicon - Push-button/hotkey switching with audible buzzer; LEDs for visual port selection status - Includes rackmount brackets to install in 1U of rack space; Requires a mounting depth of 6.5in (165mm) or more Marketing Copy Marketing Copy (No HTML) Applications - Manage multiple servers in data centers from a single console, improving space efficiency and control
- Monitor and troubleshoot hardware across multiple systems in testing environments
- Streamline access to different computers, facilitating faster incident response and system monitoring
Website Search Keyword - kvm switch
- kvm
- rack mount kvm switch
- rackmount kvm switch
- 4k kvm switch
Required Regulatory Compliance Marks - REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- UKCA - EMC/EMI - United Kingdom - UK Electromagnetic Compatibility Regulations 2016
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- Triman/Info-Tri - Packaging - Waste - European Union - Paper Box + foam tray/divider
- Triman/Info-Tri - Manual - Waste - European Union - Print Paper
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories
- EU RIC + Italian Sorting - Packaging - Waste - European Union - Corrugated Fiberboard
- Recycling - Waste - Japan - Paper Recycling Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
Accessory Products - DISPLPORT3L
- USB2HAB6
- MU3MMS
- DISPLPORT6L
- DISPLPORT1L
- MU6MMS
Related Products - R8AH202-KVM-SWITCH
- SV831DUSBUK
- SV1631DUSBUK
- SV831DUSBU
- SV1631DUSBU
Input Current 1A Input Voltage 100 - 240 AC Output Current 3A Output Voltage (V) 12V DC Power Consumption (In Watts) 36W Power Source AC Adapter Included Plug Type M Center Tip Polarity Positive Color Black Humidity 0% ~ 90% RH (non-condensing) Material Nickel-plated Zinc Operating Temperature 0°C to 40°C (32°F to 104°F) Product Length (mm) 300.000 Product Width (mm) 164.000 Product Height (mm) 44.000 Product Weight (g) 1530.000 Storage Temperature -20°C to 60°C (-4°F to 140°F) TAA Compliant Yes Audio Specifications - Analog Stereo - 2 Channel Audio
- DisplayPort - 2 Channel Audio

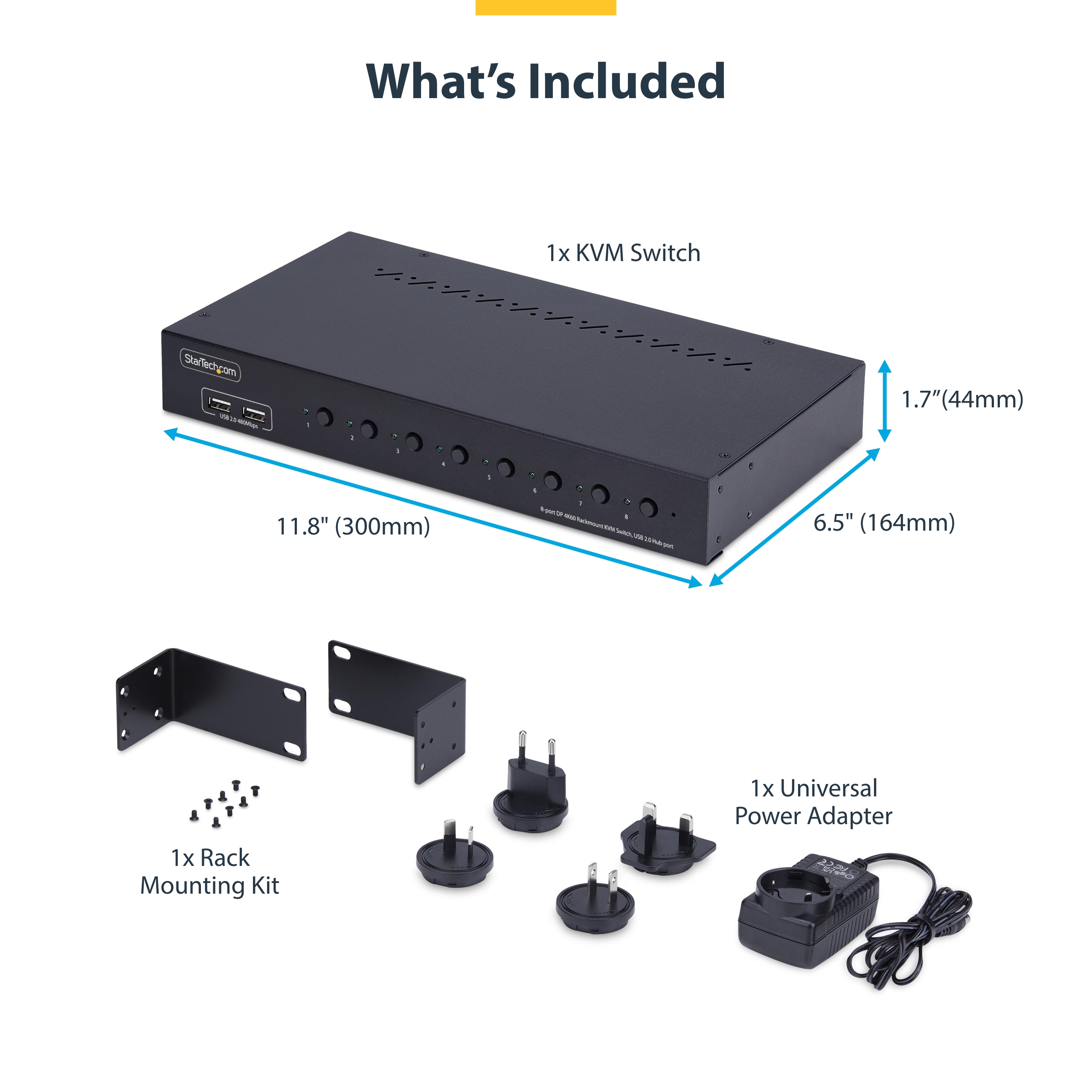

Auto Scan 10, 20, 30, 40, 50, 60, 70, 80, 90, and 100 seconds Hot-Key Selection Yes KVM IP Control No Maximum Data Transfer Rate USB 480Mbps Maximum Digital Resolutions 3840 x 2160 @ 60Hz MTBF (hours) 73,003 Hours On-Screen Display No OS Compatibility OS Independent Port Selection Support Push Button and Hotkeys Wide Screen Supported Yes Audio Yes Cables Included No CAC Support No Cascadable No Industry Standards DisplayPort 1.2 LED Indicators Number of KVM Ports 8 Number of Monitors Supported 1 PC Video Type DisplayPort Rack-Mountable Yes Supported Platforms USB U Height 1U Carton Depth (mm) 466 Carton Height (mm) 316 Carton Quantity 5 Carton Weight Gross (g) 12200 Included in Package - 1 - KVM Switch

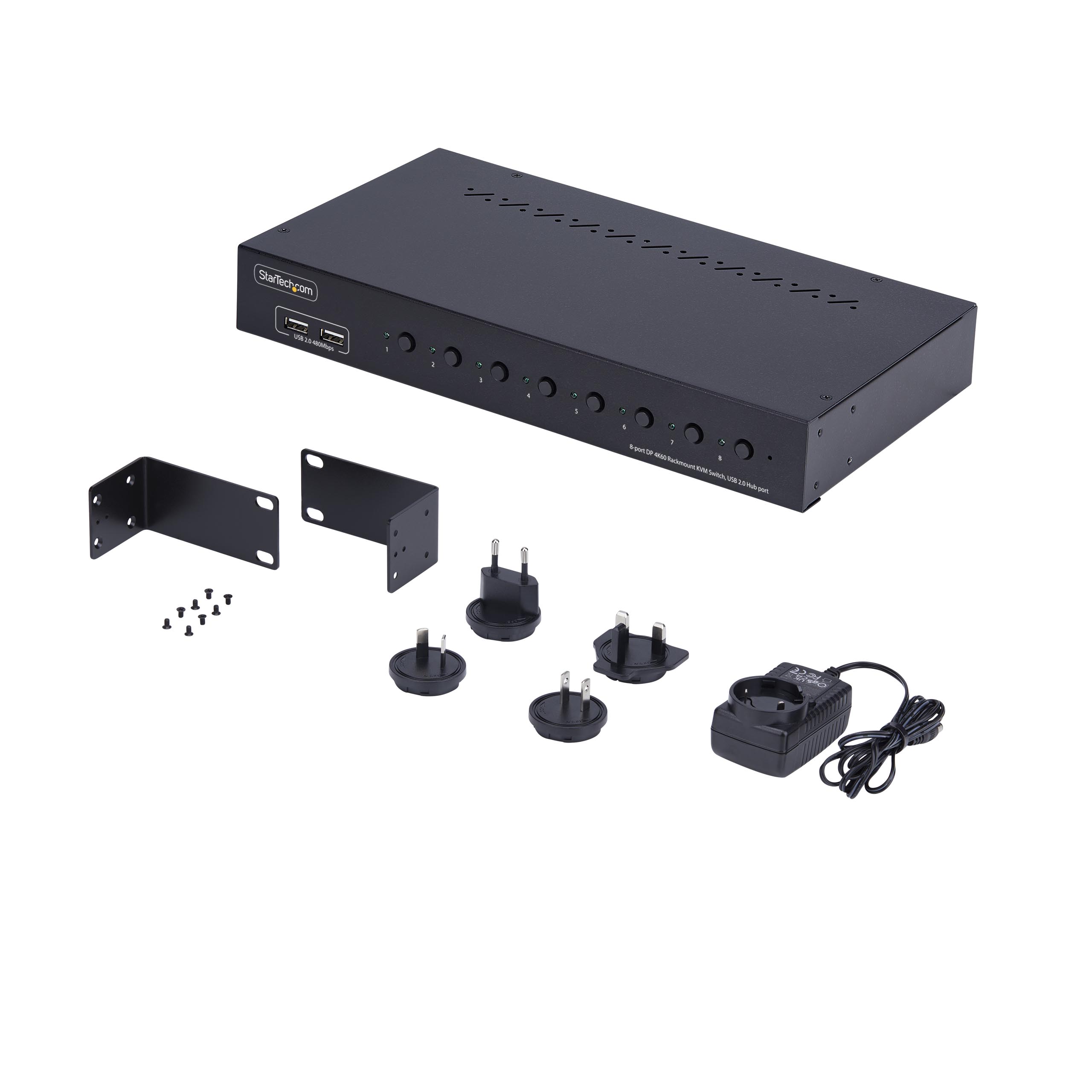

- 1 - Universal Power Adapter (NA/EU/UK/ANZ)
- 1 - Rack Mounting Kit
- 1 - Product Documentation

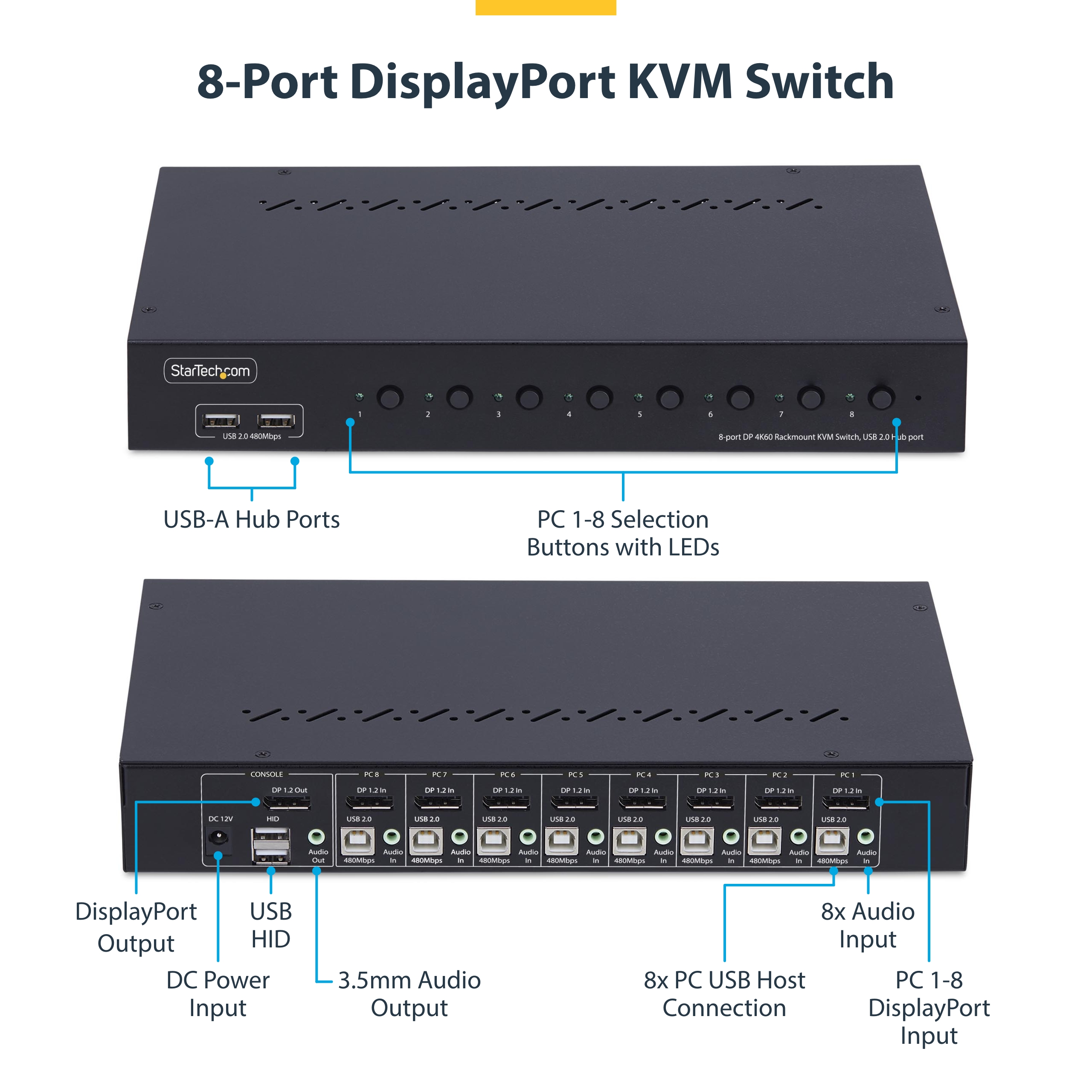

Package Depth (mm) 435 Package Height (mm) 70 Package Width (mm) 288 Package Weight (g) 2260 Packaging Description 8-Port Rackmount DisplayPort KVM Switch - 4K 60Hz Packaging Description India 8-Port Rackmount DisplayPort KVM Switch - 4K 60Hz Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 DisplayPort Connector 1 (Quantity) 1 Connector 2 USB-A (480Mbps, 2.5W) Connector 2 (Quantity) 4 Connector 3 3.5mm (4 Conductors, TRRS) Connector 3 (Quantity) 1 Connector 4 Barrel Power (M-Type, OD 5.5mm / ID 2.1mm) Connector 4 (Quantity) 1 Host Connector 1 DisplayPort Host Connector 1 (Quantity) 8 Host Connector 2 USB-B (480Mbps, 2.5W) Host Connector 2 (Quantity) 8 Host Connector 3 3.5mm (4 Conductors, TRRS) Host Connector 3 (Quantity) 8 A+ Not Required Actual Inbox Documents Created Compliance Insert Amazon Merchandising Manager Kathleen Marshall Application Photos Uploaded Artwork Due Date 2024-10-04 Buying Center - AV & Collaboration Yes Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge No Comparable SKU Comment Similar function but VGA Comparable SKU 2 Comment Similar function but DVI Digital Content Due Date 2025-02-03 Enhanced Gallery Required Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level - 2 Graphic Designer Shane Arnett Graphic Design SKU Logic Naming Convention RxAyx-KVM-SWITCH ID Label Silkscreened or a Label Sticker label - 50x25mm Launch Markets (concatenated) AT,AU,BE,CA,CH,DE,DK,ES,FI,FR,IE,IN,IT,JP,NL,NZ,PL,SE,SG,UK,US Primary Technology DisplayPort 1.2 / 4K 60Hz Priority New Product Medium Product Development Specialist Otto Gutierrez Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Target Development Completion Date 2024-10-04 Target Production Release 2024-10-31 Tech Lead Stefan Tirolese Technical Writer Dan Dagenais Technology Lifecycle None Vending Machine Not Compatible with Vending Machine Video Not Required
