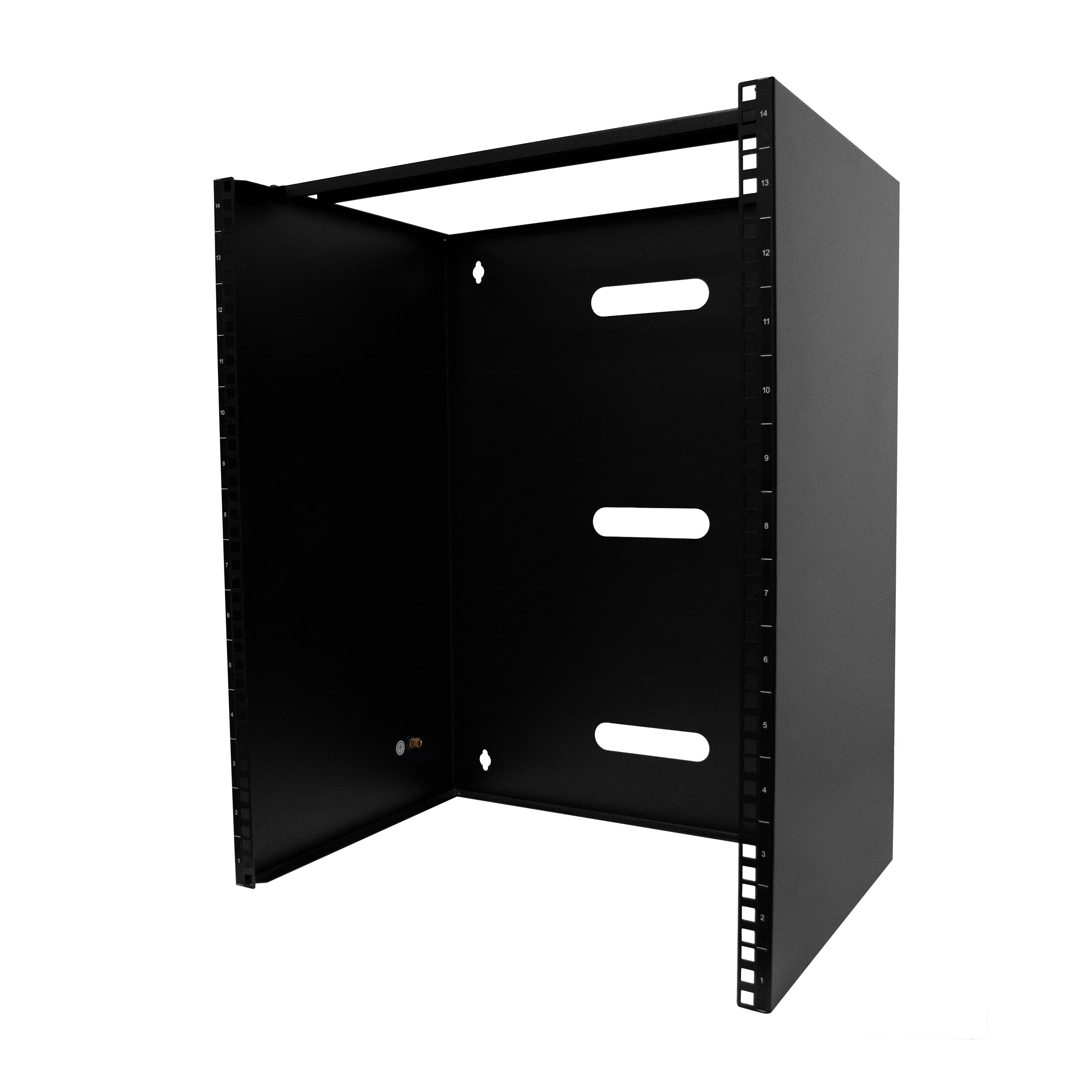

RACK-14U-14-BRACKET

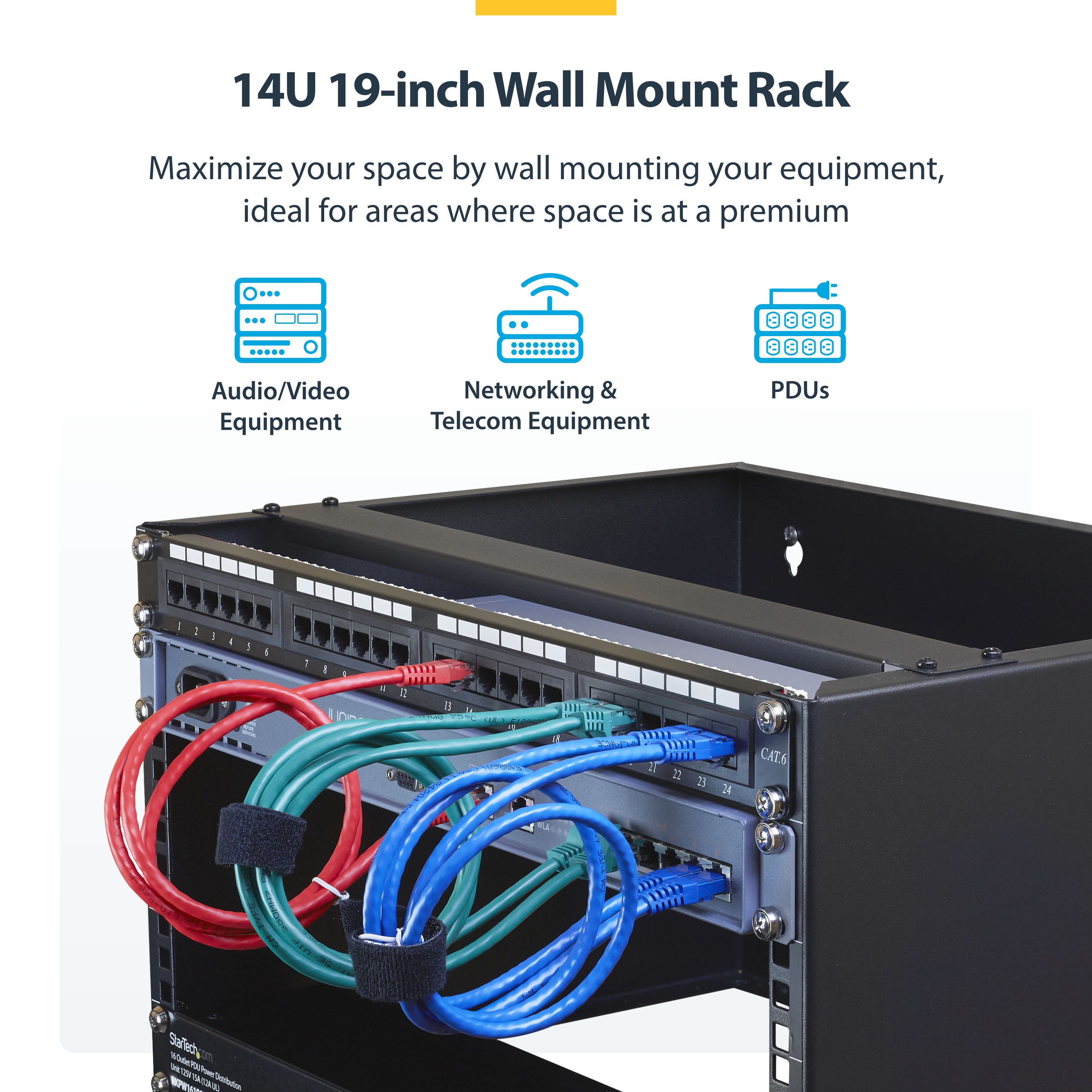

14U vertical wallmount
Mount your network equipment such as patch panels or switches to the wall
Main Image
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Product Images
Product Images
Product Images
Quick-Start Guide
Product Name 14U vertical wallmount Product Number RACK-14U-14-BRACKET UPC 065030893909 Lifecycle status Active Warranty Lifetime Taxonomy Product > Mechanical Products > Rack Enclosures Category Level 1 Racks and Enclosures Category Level 2 Wall-Mount Racks and Enclosures Category Level 3 Shallow Wall-Mount Brackets Family Wall-Mounting Bracket Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX095X Product Title (Ultra-Short) 14U Wall-Mount Rack Product Title (Short) 14U Wall Mount Rack (19in) - 14 in Deep Product Title (Medium) 14U Wall Mount Rack (19in) - 14in Deep Product Title (Standard) 14U Wall Mount Rack, 14in Deep, 19 inch Wall Mount Network Rack, Wall Mounting Patch Panel Bracket for Switch/IT Equipment Product Title (Long) 14U Wall Mount Network Rack - 14" (35.5cm) Deep (Low Profile) - 19" Patch Panel Bracket for Shallow Server, IT Equipment, Network Switches - 77lbs/35kg Weight Cap., Black Product Title (AMZ) 14U Wall Mount Network Rack, 14" (35.5cm) Deep (Low Profile), 19" Patch Panel Bracket for Shallow Server, IT Equipment, Network Switches, 77lbs/35kg Weight Capacity, Black (RACK-14U-14-BRACKET) Title Ingram (Part 1) 14U Wall Mount Rack 14" Deep Title Ingram (Part 2) for 19" Wide Patch Panel/Switch Website Product Headline Mount your network equipment such as patch panels or switches to the wall Bullet 1 14U WALL MOUNT RACK: This 19-inch wide low profile wall mounted rack has a maximum mounting depth of 14in (35.5cm), recommended for networking equipment up to 12in (30cm) deep, leaving 2in (5.5cm) for cable routing; Maximum weight capacity of 77lbs (35kg) Bullet 2 EASY TO INSTALL: 14U wall-mounting patch panel bracket ships fully assembled and comes with M6 screws and M6 square cage nuts for easier equipment installation; Includes wall mounting hardware; Predrilled wall mounting holes spaced 16" (40cm) apart Bullet 3 COLD-ROLLED STEEL CONSTRUCTION: The wall mounting rack features a 1/16in (1.5mm) thick solid steel design for ultimate durability and to ensure a safe and sturdy mounting solution Bullet 4 EASY CABLE MANAGEMENT: Built with efficiency in mind; Small wall mount patch panel bracket has rear cable opening slot for in-wall cable routing in your network closet, server room, wiring closet, classroom Bullet 5 THE IT PRO'S CHOICE: Designed and built for IT Professionals, this 14U wall mount rack is backed for life, including free 24/5 multi-lingual technical assistance Bullets (Compact) 14U Wall Mount rack for networking equipment - 19in wallmount patch panel bracket - Mount depth 14in - 77lb Capacity - Incl hardware for wall mounting (mount holes 16in apart) and equipment install - Durable cold rolled steel - Lifetime Warranty Bullets (Consolidated) 14U wall mount rack (19 inch wide) has a max. mounting depth of 14" [35.5 cm] and a max. weight capacity of 77lbs [35kg] - Wall mounted patch panel bracket for networking equipment has pre-drilled holes 16" apart for standard drywall framework - Incl. anchors/screws to install bracket to the wall | Incl. equipment mounting hardware - Durable wallmount rack made of cold rolled steel - Rear cable routing access to organize cables in network closet/server room - StarTech.com Lifetime Warranty Marketing Copy Marketing Copy (No HTML) Required Regulatory Compliance Marks - Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - Furniture and Non-EEE
- Temp - N/A - Global - Used to replace duplicates or identify for removal
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
Accessory Products - CABCAGENT62B
- CABCAGENTS62
- CABCAGENUT2B
- CABCAGENUT6B
- CABCAGENUTS
- CABCAGENUTS2
- CABCAGENUTS6
- CABCAGENUTSB
- CABSCREWM5
- CABSCREWM52
- CABSCREWM52B
- CABSCREWM5B
- CABSCREWM6
- CABSCREWM62
- CABSCREWM62B
- CABSCREWM6B
- CABSCREWS
- CABSCREWSB
- CABSCREWSM5
- CABSCREWSM5B
- CABSCREWSM6
- CABSCREWSM6B
- CABSCRWSM62B

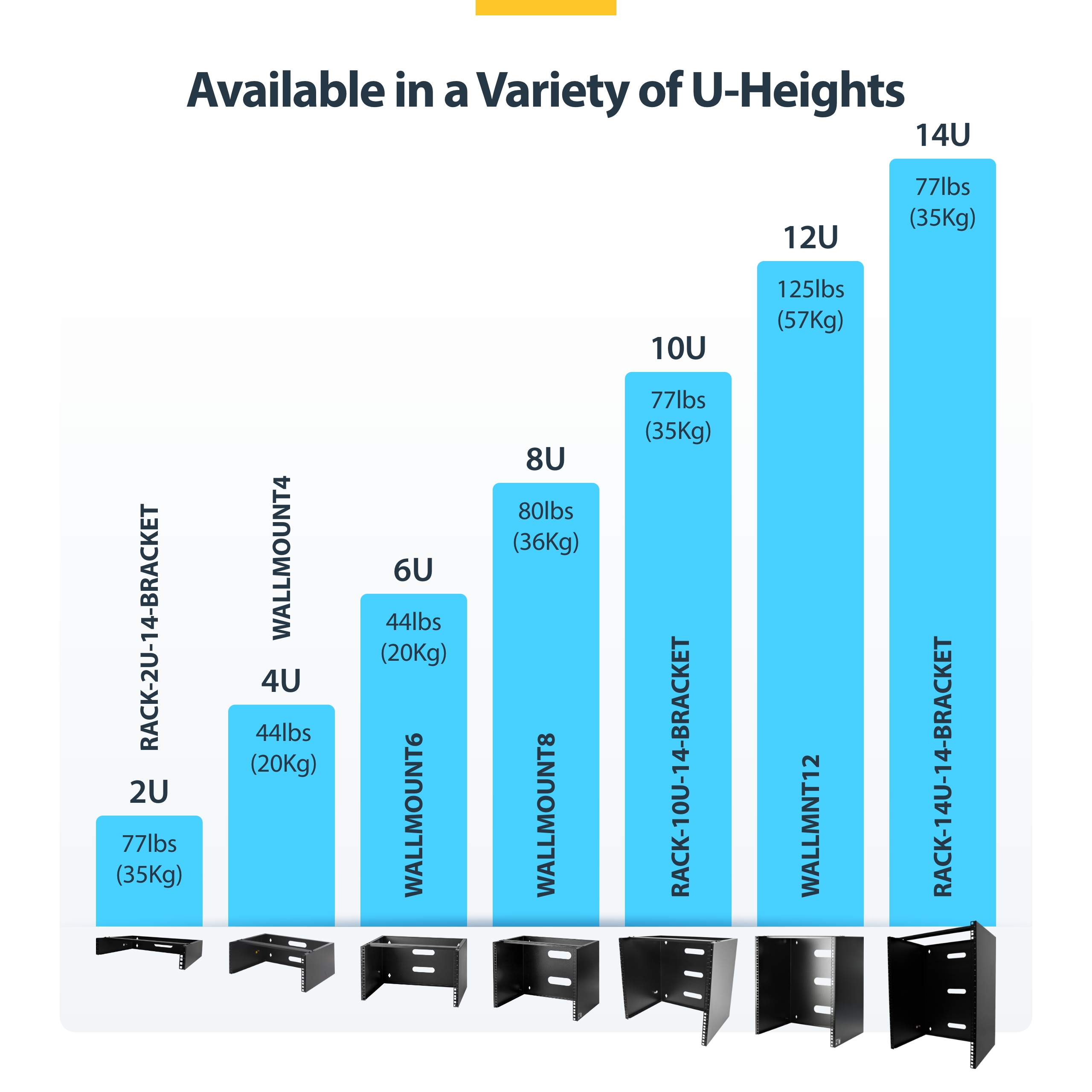

Related Products - WALLMNT12
- WALLMOUNT8
- WALLMOUNT4
- RACK-2U-14-BRACKET
- RACK-10U-14-BRACKET

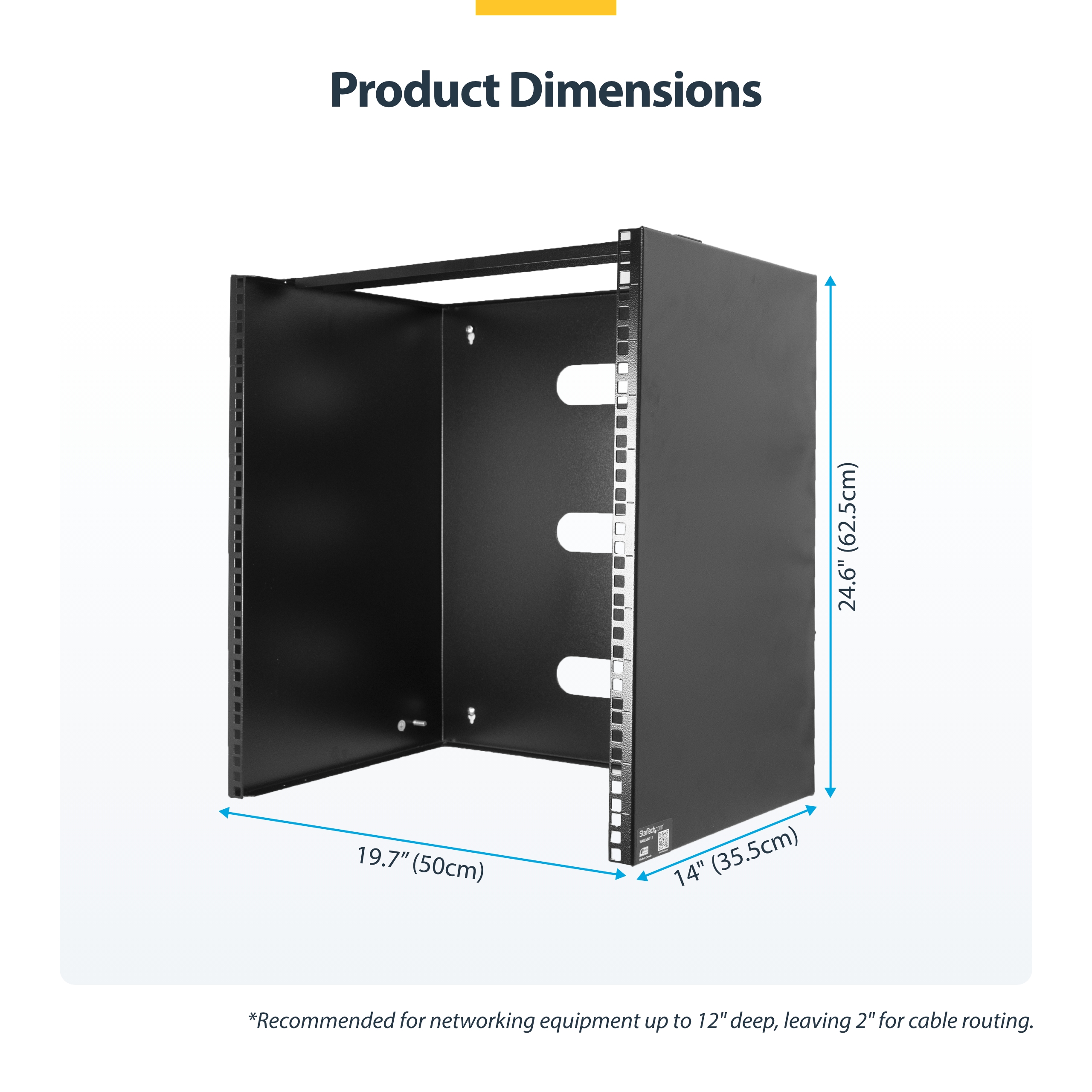

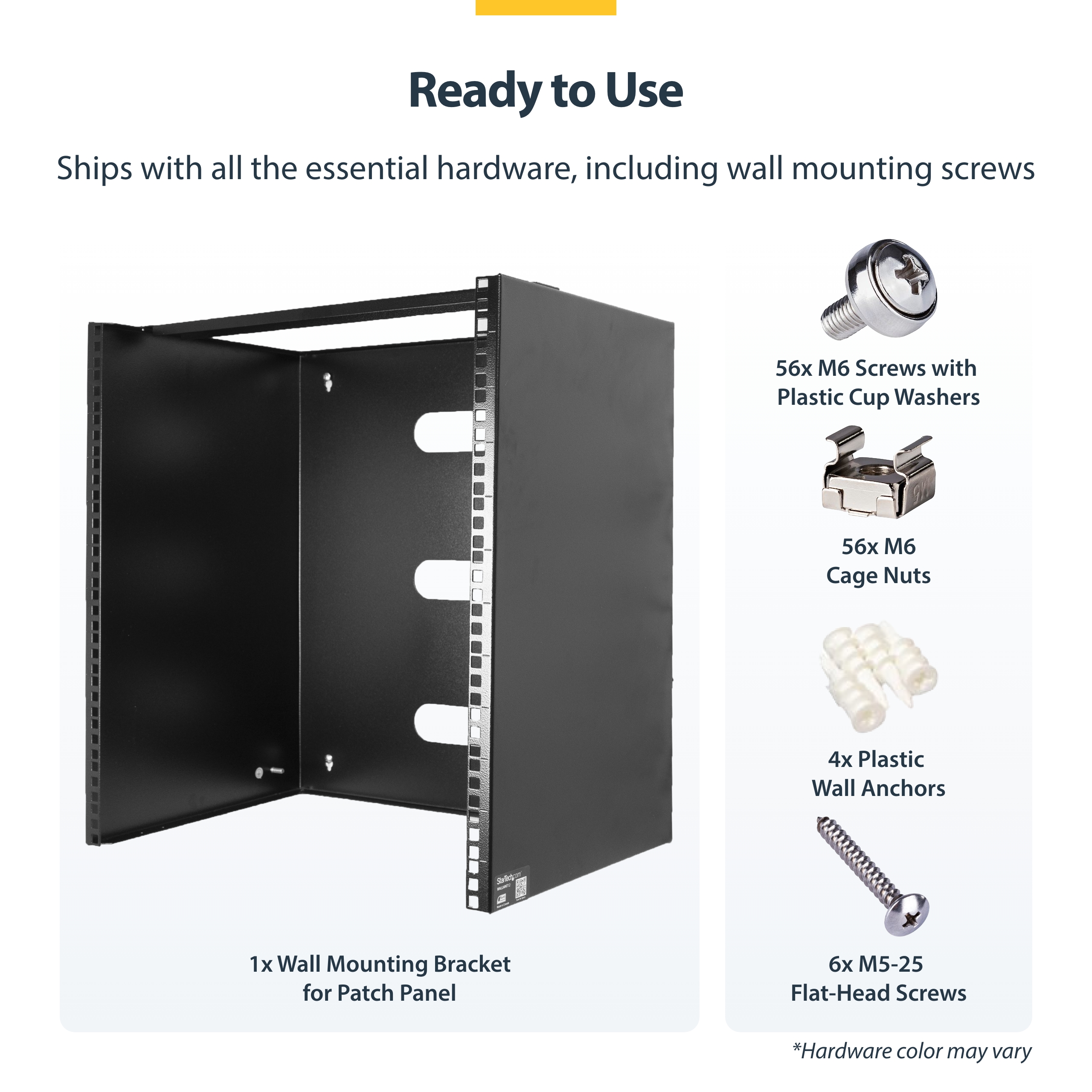

Color Black Construction Material Steel Depth Capacity (Filter) 12.1 - 24 in. (306 - 609mm) Material Steel Maximum Mounting Depth (mm) 300 Product Length (mm) 500.000 Product Width (mm) 355.000 Product Height (mm) 625.000 Product Weight (g) 9704.000 TAA Compliant No Weight Capacity for Racks with No Casters (g) 68000 Frame Type Open Frame Rack Type 2-Post Rack U Height Ranges 12-26U U Height 14U Wallmountable Yes Carton Depth (mm) 420 Carton Height (mm) 700 Carton Quantity 1 Carton Weight Gross (g) 12578 Included in Package - 4 - M5x25mm Mounting Screws
- 56 - M6 Cage Nuts
- 56 - M6 Cage Screws
- 4 - Plastic Wall Anchors
- 56 - Plastic Washers
- 1 - Quick-Start Guide
Package Depth (mm) 420 Package Height (mm) 700 Package Width (mm) 565 Package Quantity 1 Package Weight (g) 12578 Packaging Description 14U Wall-Mounting Bracket for Patch Panel - 14 in. Deep Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Actual Inbox Documents Created QSG in the box Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2021-06-03 Buying Center - AV & Collaboration Yes Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge Yes Digital Content Due Date 2022-04-29 Enhanced Gallery Uploaded Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett ID Label Silkscreened or a Label No ID label Launch Markets (concatenated) AT,BE,CA,CH,DE,DK,ES,FI,FR,IE,IN,IT,JP,NL,SE,UK,US Primary Technology None Product Development Specialist Anthony Slater Product Information Creation Specialist (PICS) Alex Garcia Product Manager Bhuvan Uppal Product Performance Specialist Aaron Bens Product Photographer Alejandra Valencia Target Development Completion Date 2021-05-19 Target Production Release 2021-05-20 Tech Lead Stefan Tirolese Technical Writer Alex Garcia Technology Lifecycle None Vending Machine Not Compatible with Vending Machine
