RACKCOND1701

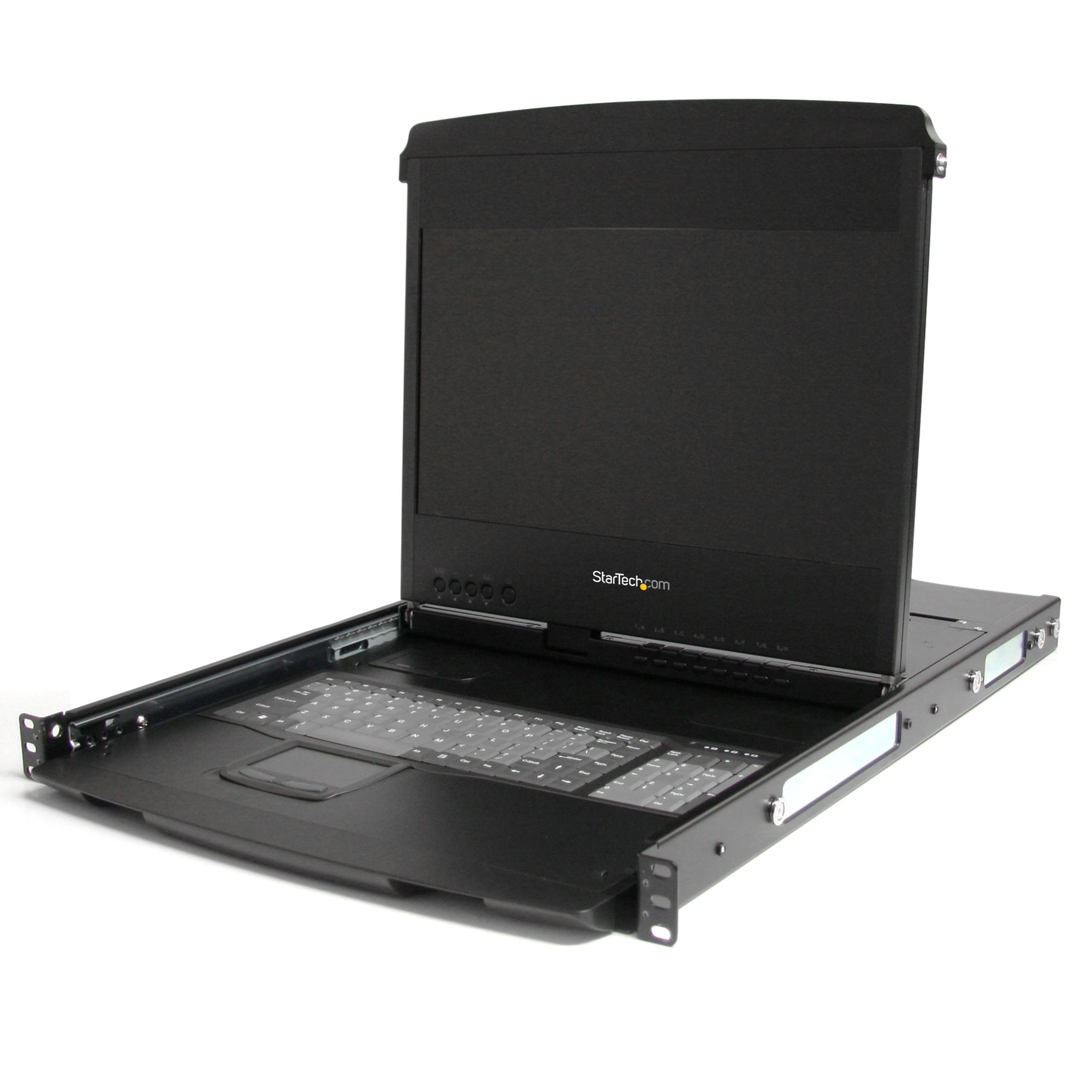

17 inch modular Dual Slide LCD Console Drawer
Monitor or control server equipment from a central, KVM-integrated console, with the convenience of a dual-rail console drawer design
Main Image
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
BOM Image
Product Name 17 inch modular Dual Slide LCD Console Drawer Product Number RACKCOND1701 UPC 065030832533 Lifecycle status End of Life Warranty 3 Years Taxonomy Product > Legacy Discontinued Category Level 1 KVM Switches Category Level 2 Enterprise KVMs Category Level 3 Single Port LCD Consoles Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX066X Product Title (Ultra-Short) .. Product Title (Short) LCD Console Rackmount Dual Rail 1080p HD Product Title (Standard) 1U 17” HD 1080p Dual Rail Rackmount Widescreen LCD Console Product Title (Long) 1U 17” HD 1080p Dual Rail Rackmount Widescreen LCD Console Product Title (AMZ) 1U 17” HD 1080p Dual Rail Rackmount WIDEscreen LCD Console - Rack mount LCD - Rackmount LCD - KVM Console (RACKCOND1701) Title Ingram (Part 1) 1U 17” HD 1080p Dual Rail Rackmo Title Ingram (Part 2) unt Widescreen LCD Console Website Product Headline Monitor or control server equipment from a central, KVM-integrated console, with the convenience of a dual-rail console drawer design Bullet 1 Supports HD resolutions up to 1920x1080 Bullet 2 Durable 1U rack mountable design Bullet 3 Security features include port locking and auto scan Bullet 4 Integrated 106-key US standard keyboard with touchpad Bullet 5 Dual-rail console design allows LCD display and keyboard/mouse to slide independently Bullets (Consolidated) Monitor or control server equipment from a central, KVM-integrated console, with the convenience of a dual-rail console drawer design - Compatible with the HP ProLiant DL Series Rack Server - Rack Console/Server LCD/KVM Console/Rackmount LCD/Rack Mount LCD - Dual-rail console design allows independent movement of the display and keyboard tray - Supports HD resolutions up to 1920x1080 - Provide compact, local access to a server or KVM switch in your data center or back-office server room Marketing Copy Applications - Centralized control of dozens of PCs and servers when used with the integrated KVM console (optional)
- Improving the internal space-efficiency of existing cabinets
- Manage cabinet-mounted servers and KVM switches

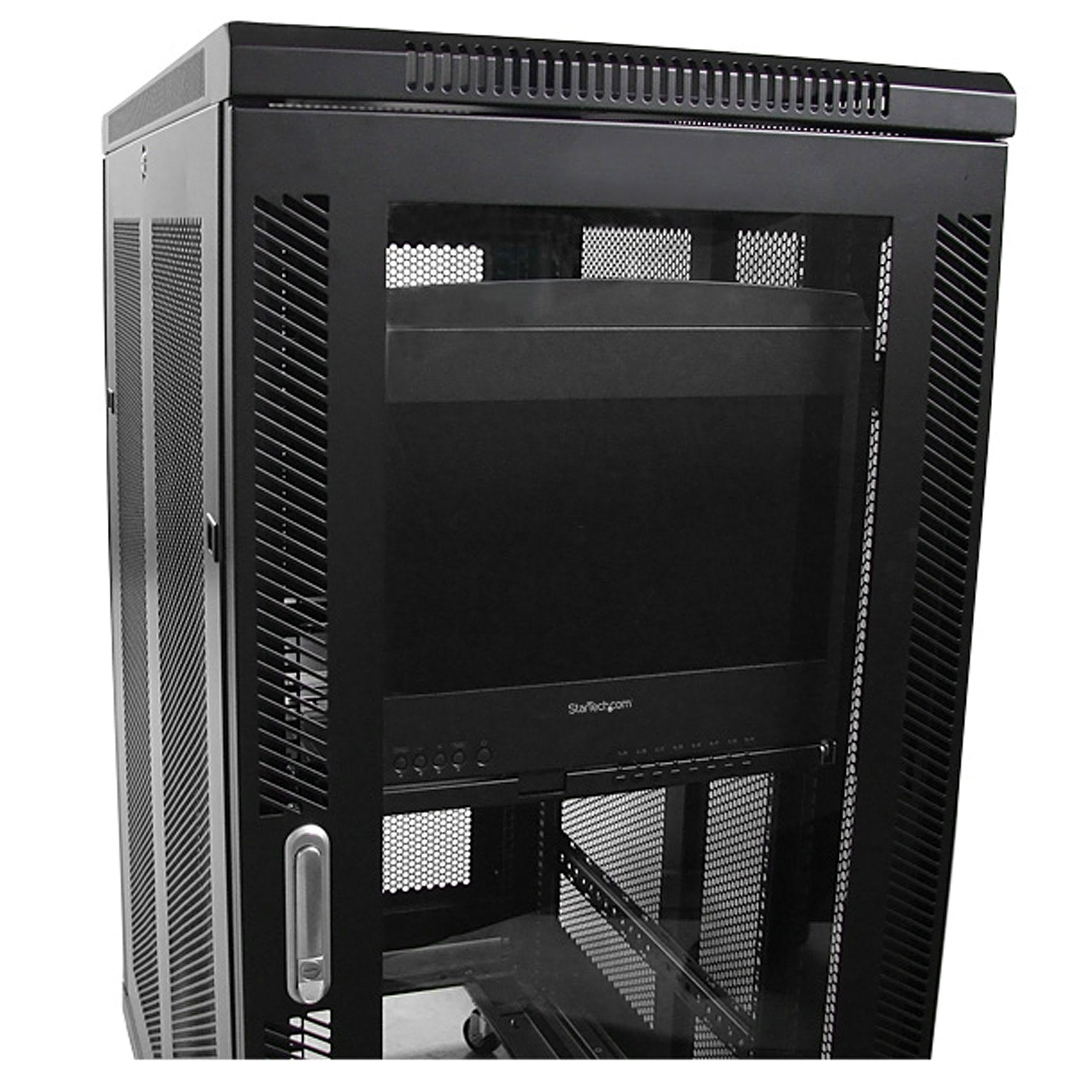

- Perfect for racks with acrylic or glass doors where you can close the rack and leave the display visible, for easy and secure monitoring
- Ideal for high resolution applications in the server room, where the previous standard 1024x768 17" screens are not sufficient
Website Search Keyword - 17 inch
- cabinet
- console drawer
- LCD console
- rack console
- dual-rail
- HD lcd
- high def lcd
- high definition lcd
- 1920 x 1080
- 1080p
- monitoring station
- folding screen
- folding console
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
Accessory Products - PS23N1THIN10
- PS23N1THIN15
- PS23N1THIN25
- PS23N1THIN6
- SV125
- CAB832DS
- CAB831HD
- CAB1631HD
- CAB1641HDI
- CAB1631D1U
- USB2HAB10
- USB2HAB15
- SV1631DUSBU
- SV1654DX4I
- SV3254DX4I
- SV3253DXI
- SV1653DXI
- SV831DUSBU
- SV1641HDIE
- SVA12M5NA
Related Products - 1UCABCONS17
- RACKCONS1501
- RACKCONS1701
- RACKCONV1701
- RACKCONV1901
- RACKCONS2001
- RACKCONS1708
- RACKCONS1716
- RACKCONS1916

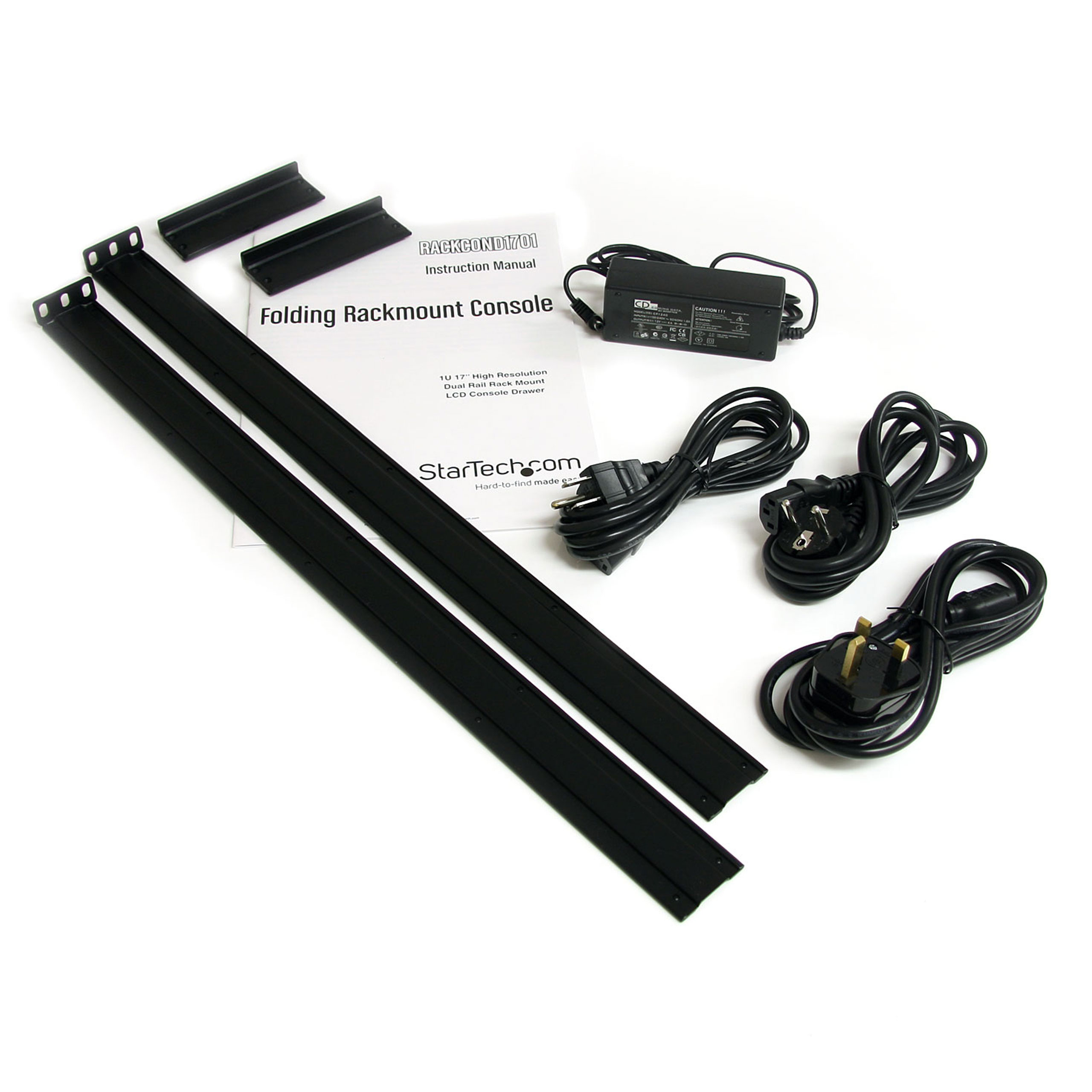

Input Current 1.8A Input Voltage 100 - 240 AC Output Current 4A Output Voltage (V) 12V DC Power Consumption (In Watts) 16 Power Source AC Adapter Included Plug Type M Center Tip Polarity Positive Color Black Humidity 0~80% RH Material Heavy Duty Steel Maximum Mounting Depth (mm) 1150 Minimum Mounting Depth (mm) 600 Operating Temperature 0°C to 40°C (32°F to 104°F) Product Length (mm) 480.800 Product Width (mm) 680.000 Product Height (mm) 43.800 Product Weight (g) 15600.000 Storage Temperature -20°C to 60°C (-4°F to 140°F) TAA Compliant Yes KVM IP Control No Maximum Analog Resolutions 1920x1080 @ 60/70/75Hz Maximum Number of Users 1 MTBF (hours) 50000 Hours On-Screen Display Yes OS Compatibility OS Independent Port Selection Support Push Button and OSD (On Screen Display) Aspect Ratio 16:9 Audio No Display Size 17" Front Door Key Lock No Number of KVM Ports 1 Number of Monitors Supported 1 PC Video Type VGA Rack-Mountable Yes Supported Platforms USB and PS/2 U Height 1U Carton Depth (mm) 543 Carton Height (mm) 203 Carton Quantity 1 Carton Weight Gross (g) 22900 Included in Package - 1 - 1U LCD Rack Console Drawer
- 1 - Screw kit
- 1 - Mounting Rails - Set
- 1 - Universal Power Adapter (US/UK/EU)
- 1 - User Manual
Package Depth (mm) 543 Package Height (mm) 203 Package Width (mm) 812 Package Quantity 1 Package Weight (g) 22900 Packaging Description 1U 17in Dual Rail Rack Mount LCD Console Packaging Description India 1U 17in Dual Rail Rack Mount LCD Console Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 VGA Connector 1 (Quantity) 1 Connector 2 PS/2 Connector 2 (Quantity) 2 Connector 3 USB-B (480Mbps, 2.5W) Connector 3 (Quantity) 1 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2014-06-18 Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) CA,EU,UK Primary Technology None Product Development Specialist Scott Dunlop Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Stefan Tirolese Technical Writer Andrew Richardson Technology Lifecycle None Vending Machine Not Compatible with Vending Machine
