RACKCOND17HD

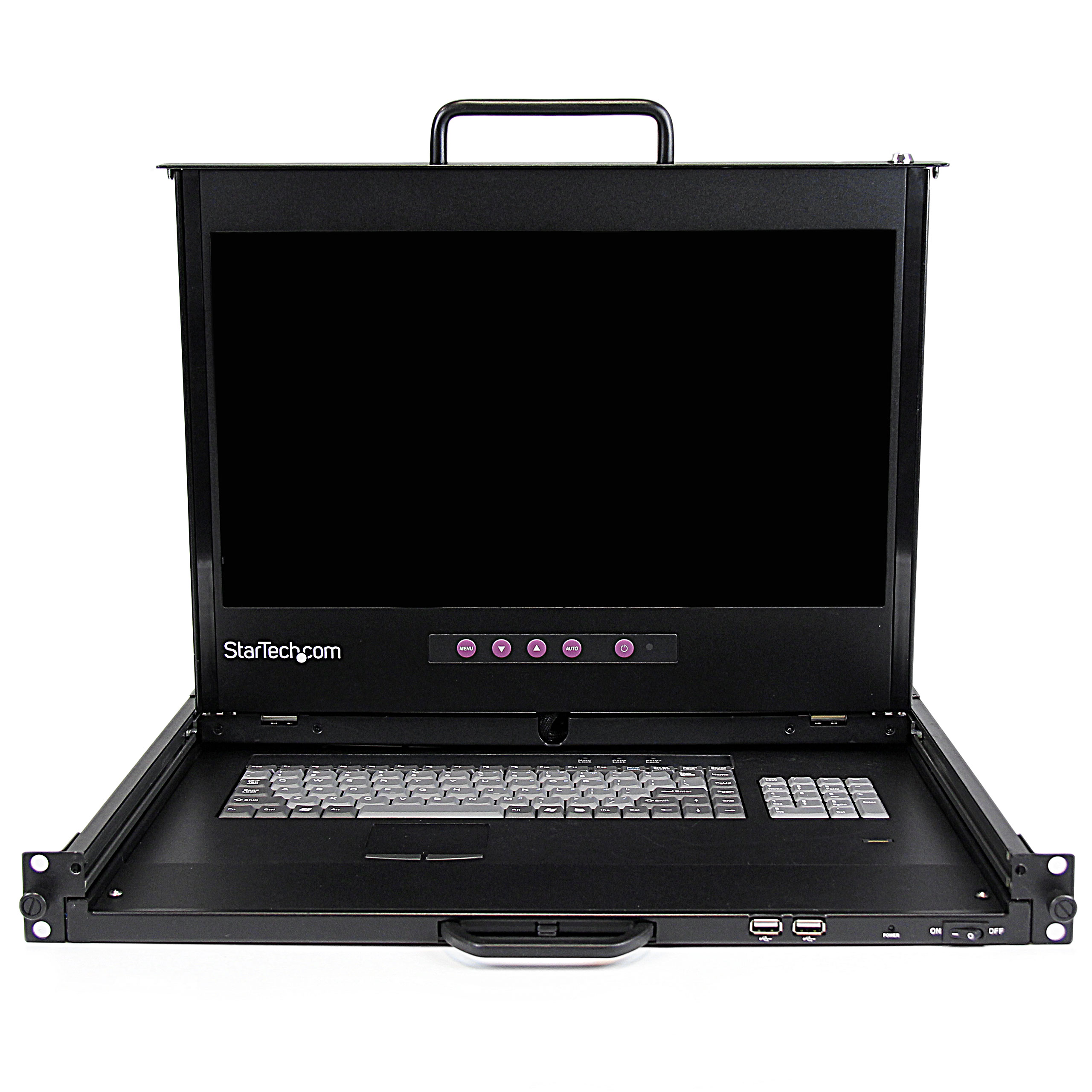

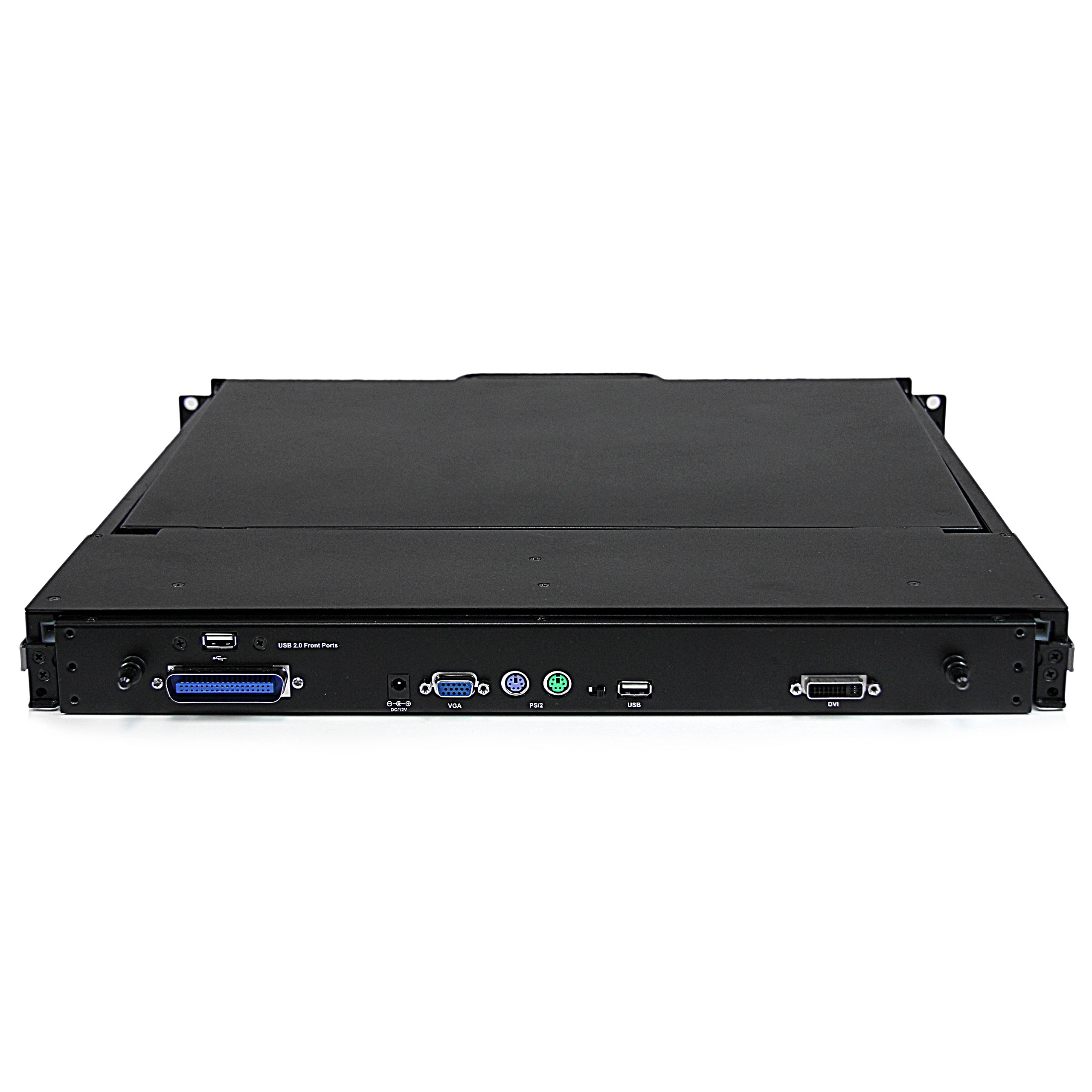

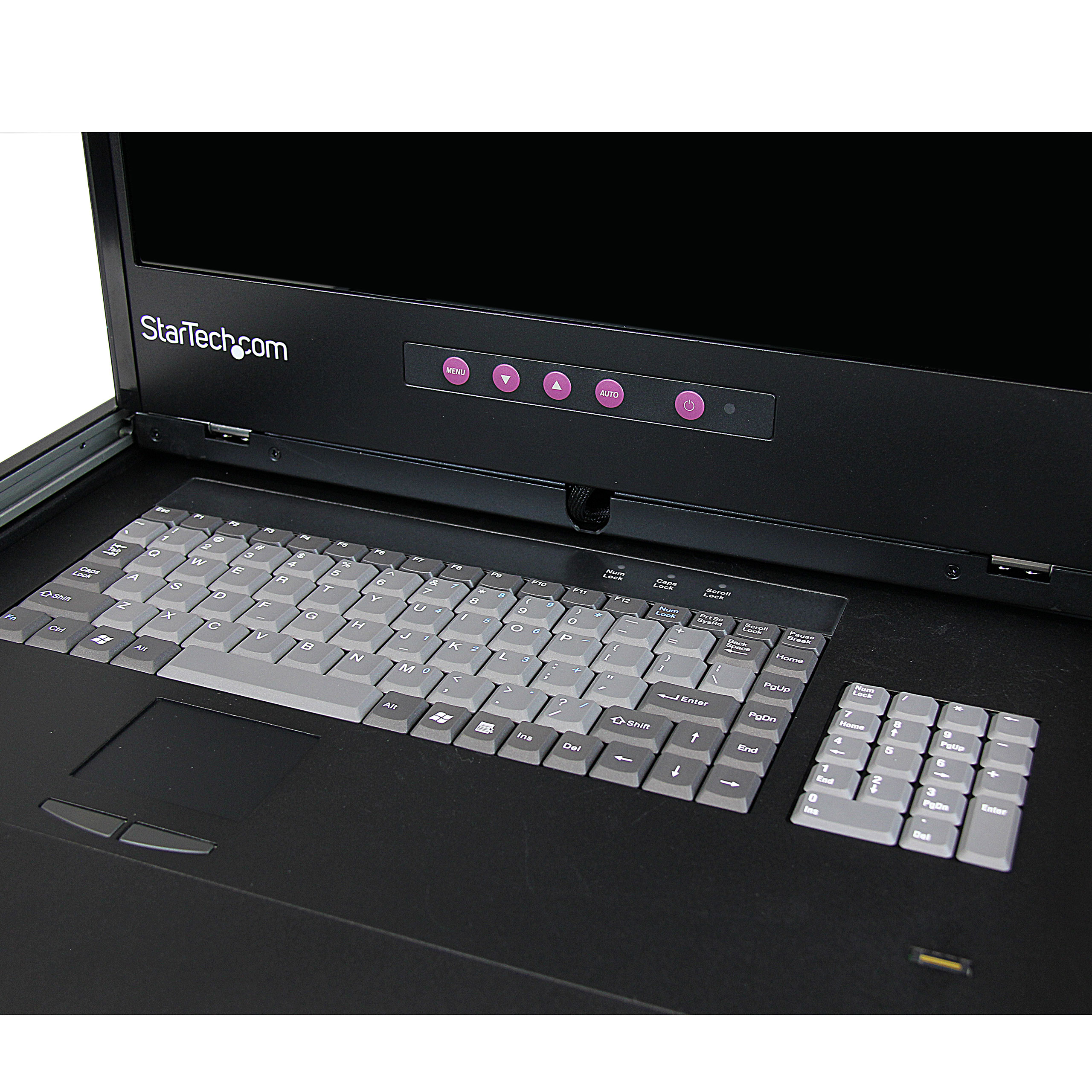

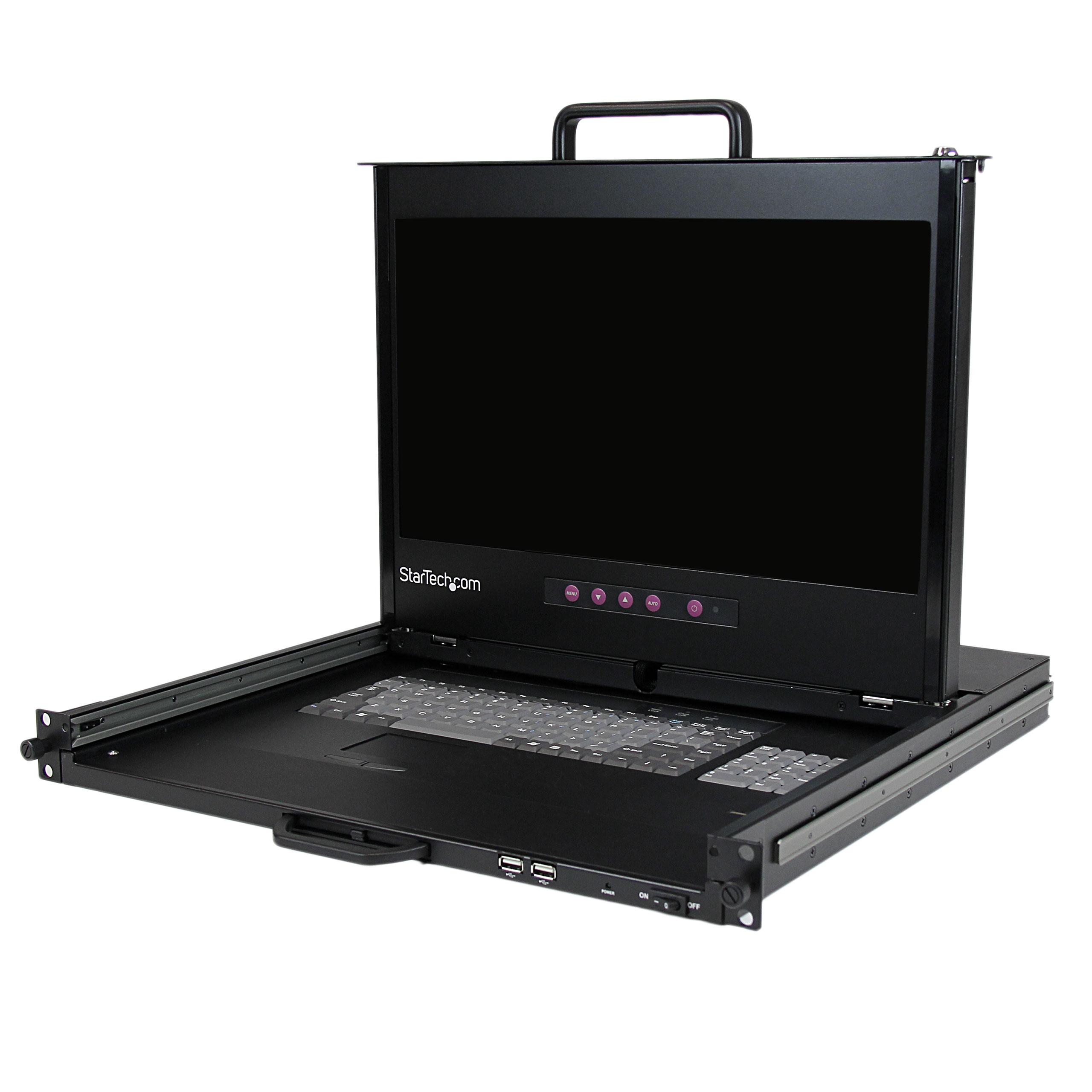

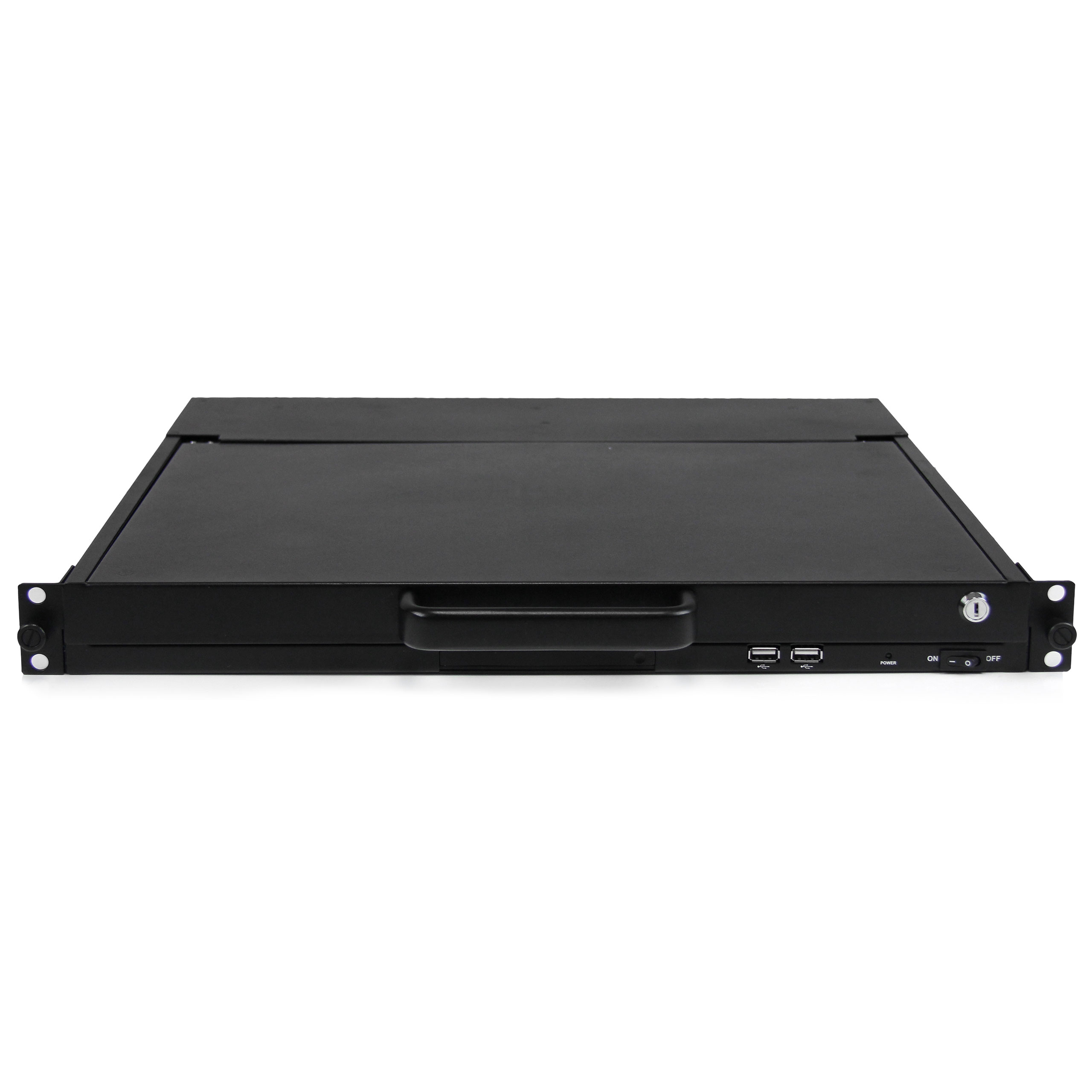

17in. Dual Rail LCD Rack Console 1080p DVI USB
Control server equipment from a Full HD KVM console, with a convenient dual-rail slide design
Main Image
Product Images
Product Images
Product Images
Product Images
BOM Image
Product Name 17in. Dual Rail LCD Rack Console 1080p DVI USB Product Number RACKCOND17HD UPC 065030852531 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 KVM Switches Category Level 2 Enterprise KVMs Category Level 3 Single Port LCD Consoles Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX009X Product Title (Ultra-Short) 17" HD Rack Console Product Title (Short) 1U 17" 1080p Dual Rail LCD Rack Console Product Title (Standard) 1U 17" HD 1080p Dual Rail Rackmount LCD Console w/ Fingerprint Reader and Front USB Hub Product Title (Long) 1U 17" HD 1080p Dual Rail Rackmount LCD Console w/ Fingerprint Reader and Front USB Hub Product Title (AMZ) 1U 17" 1080p Dual Rail Rackmount LCD Console w/ Fingerprint Reader and Front USB Hub - Rack mount LCD Console - 1080p Console (RACKCOND17HD) Title Ingram (Part 1) 1U 17in HD 1920x1080 Dual Rail Title Ingram (Part 2) LCD Rack Console Website Product Headline Control server equipment from a Full HD KVM console, with a convenient dual-rail slide design Bullet 1 Dual-rail console design allows LCD display and keyboard/mouse to slide independently Bullet 2 Supports HD resolutions up to 1920x1080 Bullet 3 Durable 1U rack mountable design Bullet 4 LED Backlight; reduced power consumption Bullet 5 On Screen Display (OSD) control and LED indicators for easy monitoring Bullets (Compact) Control server equipment from a Full HD KVM console, with a convenient dual-rail slide design - 1U 17" HD 1080p Dual Rail Rackmount LCD Console w/ Fingerprint Reader and Front USB Hub - LCD Rack Console - Widescreen HD KVM Console - Rack Mount LCD Bullets (Consolidated) Control your server from a full HD KVM console with a convenient dual-rail slide design - Compatible with VGA and USB or PS/2 computers and KVM consoles - Supports resolutions up to 1920x1080 - 1U 17" LCD console/Rack console/HD 1080p Dual Rail Rackmount LCD Console - Fingerprint Reader and Front USB Hub/LCD Rack Console/Widescreen HD KVM Console/Rack Mount LCD - Perfect for racks with acrylic or glass doors for easy and secure monitoring Marketing Copy Applications - Perfect for racks with acrylic or glass doors where you can close the rack and leave the display visible, for easy and secure monitoring
- Ideal for high resolution applications in the server room, where the previous standard 1024x768 17" screens are not sufficient
- Improving the internal space-efficiency of existing cabinets
- Manage cabinet-mounted servers and KVM switches
- Centralized control of a single system, or dozens of PCs when connected to a KVM switch
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
Accessory Products - SV1631DUSBU
- SV831DUSBU
- SV1641HDIE
- SV1653DXI
- SV3253DXI
- SV1654DX4I
- SV3254DX4I
- SVA12M5NA
- SV1631DUSBUK
- SV1631DUSB
- SV831DUSBUK
- SV831DVIU
- SV831DUSB
- SV841HDIE
- SV831DUSBAU
- SV441DUSBI
- SV431DUSBU
- SV431DUSB
Related Products - RACKCONS2001
- RACKCONS1701
- RACKCONV1701
- RACKCONS1708
- RACKCONS1716
- RACKCONS1916
- RACKCOND1701
- RACKCONS17HD
Equivalent Part Number in the UK RKCOND17HDGB Input Current 1.7 A Input Voltage 100 - 240 AC Output Current 4.17 A Output Voltage (V) 12V DC Power Consumption (In Watts) 10.2 Power Source AC Adapter Included Center Tip Polarity Positive Color Black Humidity 10~90% RH Material Heavy Duty Steel Maximum Mounting Depth (mm) 870 Minimum Mounting Depth (mm) 570 Operating Temperature 0°C to 50°C (32°F to 122°F) Product Length (mm) 465.000 Product Width (mm) 445.000 Product Height (mm) 44.000 Product Weight (g) 10150.000 Storage Temperature -20°C to 60°C (-4°F to 140°F) TAA Compliant Yes KVM IP Control No Maximum Analog Resolutions 1920 x 1080 Maximum Number of Users 1 MTBF (hours) 50, 000 Hrs On-Screen Display Yes OS Compatibility OS Independent Supported Resolutions Up to 1920 x 1080 Aspect Ratio 16:9 Audio No Cables Included Yes Cascadable Yes Display Size 17" Front Door Key Lock Yes Number of KVM Ports 1 Number of Monitors Supported 1 PC Video Type DVI+VGA Rack-Mountable Yes Supported Platforms USB and PS/2 U Height 1U Carton Depth (mm) 569 Carton Height (mm) 194 Carton Quantity 1 Carton Weight Gross (g) 16820 Included in Package - 1 - Dual Rail Rack Console
- 1 - Set, Mounting Rails
- 2 - Keys
- 1 - Instruction Manual / Software CD
- 2 - Blockers w/ screws
- 1 - NA Power Cord
- 1 - Power Adapter
- 2 - USB A to A Cables
- 1 - DVI-D Cable
- 1 - VGA PS/2 KVM Cable
- 6 - 6mm Flat Screws
Package Depth (mm) 569 Package Height (mm) 194 Package Width (mm) 773 Package Quantity 1 Package Weight (g) 16880 Packaging Description 1U 17in 1080p Dual Rail LCD Rack Console Packaging Description India 1U 17in 1080p Dual Rail LCD Rack Console Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 USB-A (480Mbps, 2.5W) Connector 1 (Quantity) 2 Connector 2 PS/2 Connector 2 (Quantity) 2 Connector 3 VGA Connector 3 (Quantity) 1 Connector 4 DVI-I Dual-Link (29-Pin) Connector 4 (Quantity) 1 Connector 5 USB-A (480Mbps, 2.5W) Connector 5 (Quantity) 2 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2013-07-03 Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) AU,CA,HK,NZ,US Primary Technology None Product Development Specialist Scott Dunlop Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Stefan Tirolese Technical Writer Andrew Richardson Technology Lifecycle Legacy Vending Machine Not Compatible with Vending Machine
