Main Image
RACKCONS1501

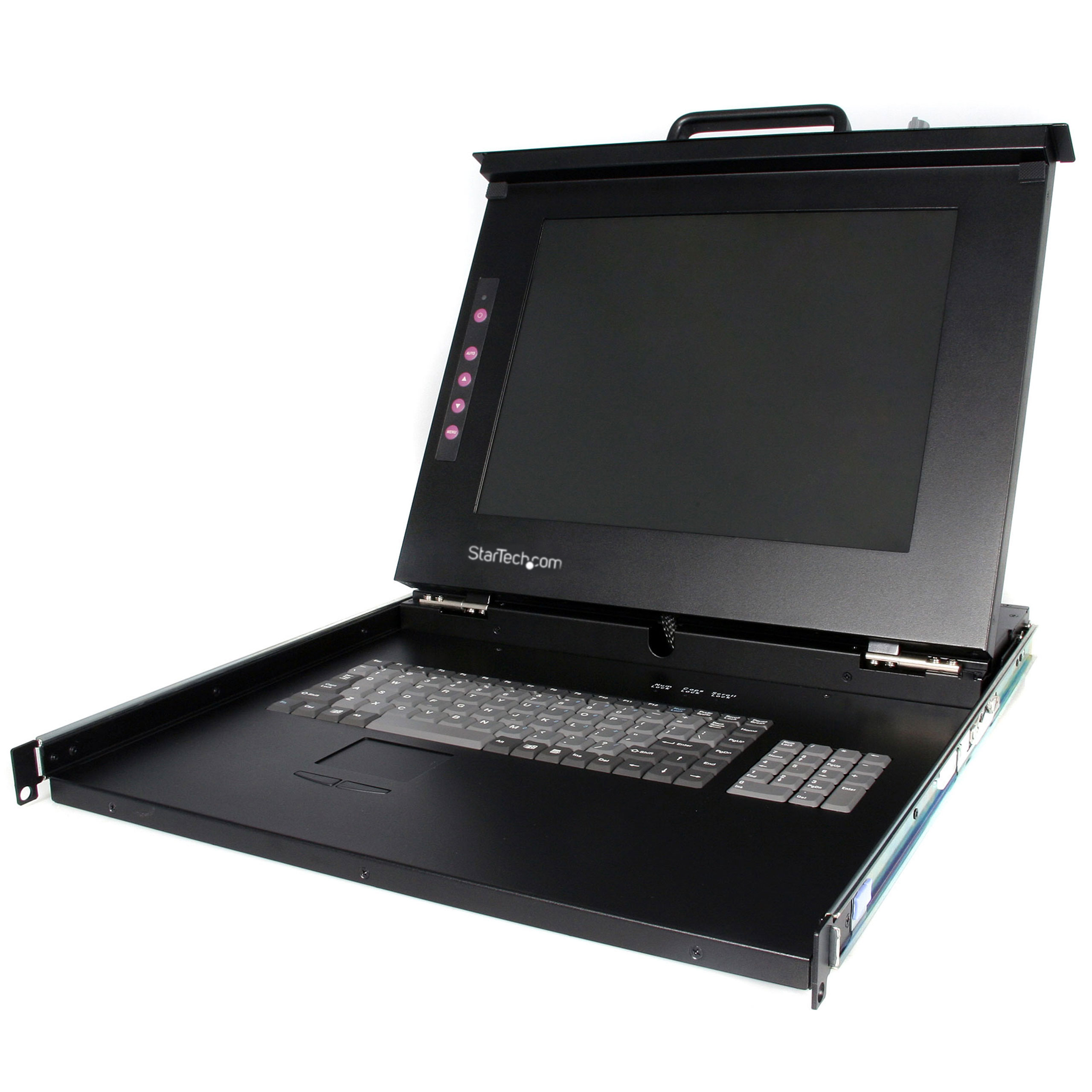

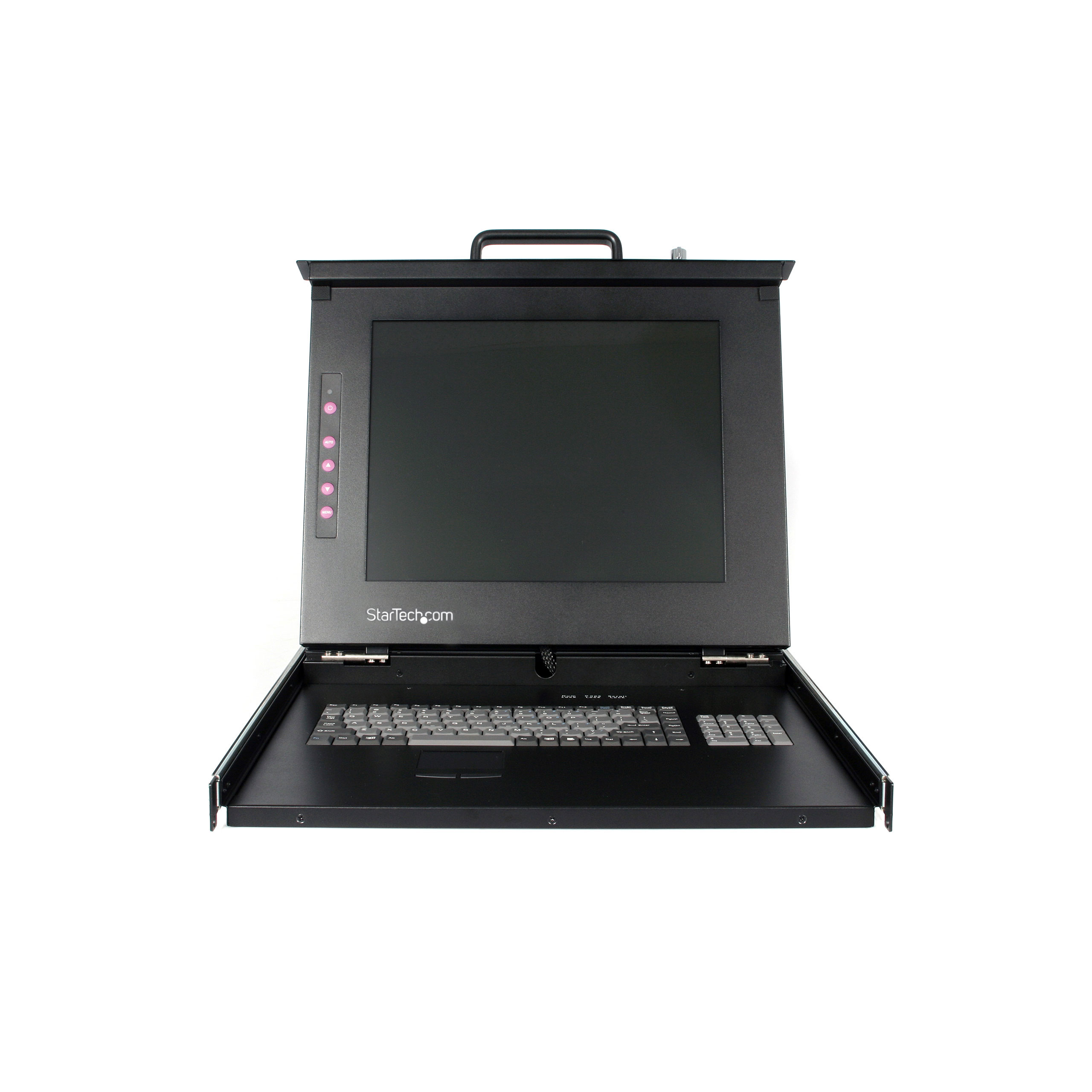

15 Inch Folding LCD Rack Console
Centralized control of a server or KVM switch with this 1U USB PS/2 rack-mountable LCD console
Main Image
Product Images
Product Images
Product Images
BOM Image
Product Name 15 Inch Folding LCD Rack Console Product Number RACKCONS1501 UPC 065030822183 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 KVM Switches Category Level 2 Enterprise KVMs Category Level 3 Single Port LCD Consoles Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX009X Product Title (Ultra-Short) 15" LCD Rack Console Product Title (Short) 1U 15" Rackmount LCD Console USB + PS/2 Product Title (Standard) 1U 15" Rackmount LCD Console - USB + PS/2 Product Title (Long) 1U 15" Rackmount LCD Console - USB + PS/2 Product Title (AMZ) 1U 15in Rackmount LCD Console - USB + PS/2 - KVM console - 15" - rack-mountable - 1024 x 768 - 400:1 - 16 ms - 1U - RACKCONS1501 Title Ingram (Part 1) 1U 15" Rackmount LCD Console - U Title Ingram (Part 2) SB + PS/2 Website Product Headline Centralized control of a server or KVM switch with this 1U USB PS/2 rack-mountable LCD console Bullet 1 OSD (On Screen Display) controls for LCD display Bullet 2 Key-lock to avoid unauthorized access Bullet 3 15" Active matrix TFT LCD display Bullet 4 Compatible with USB or PS/2 PCs and KVMs Bullet 5 Durable 1U rack-mountable design Bullets (Consolidated) Centralized control of a server or KVM switch with this 1U USB PS/2 rack-mountable LCD console - Compatible with Lenovo ThinkServer RD 340/440/540/640 Series Rack Servers - Rack Console/Server LCD/KVM Console/Rackmount LCD/Rack Mount LCD - 15" LCD display - Key-lock to avoid unauthorized access - Supports VGA resolutions up to 1280x1024 - Compatible with USB or PS/2 - Provide compact, local access to a server or KVM switch in your data center or back-office server room Marketing Copy Applications - Centralized control of a single system, or dozens of PCs when connected to a KVM switch
- Improving the internal space-efficiency of existing cabinets
- Manage cabinet-mounted servers and KVM switches
Website Search Keyword - LCD
- rack
- cabinet
- 15 inch
- drawer
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- UL - Safety - Electrical - Canada / United States - Enhanced UL Mark
Accessory Products - PS23N1THIN6
- PS23N1THIN10
- PS23N1THIN15
- PS23N1THIN25
- SV125
- USBEXTAA10
- USBEXTAA_6
- SV1631DUSBU
- SV1653DXI
- SV3253DXI
- SV3254DX4I
- SV1654DX4I
- SV1631HD
- MXT101MMHQ
- MXT101MMHQ10
- MXT105MMHQ
Related Products - RACKCONS1701
- RACKCONS1901

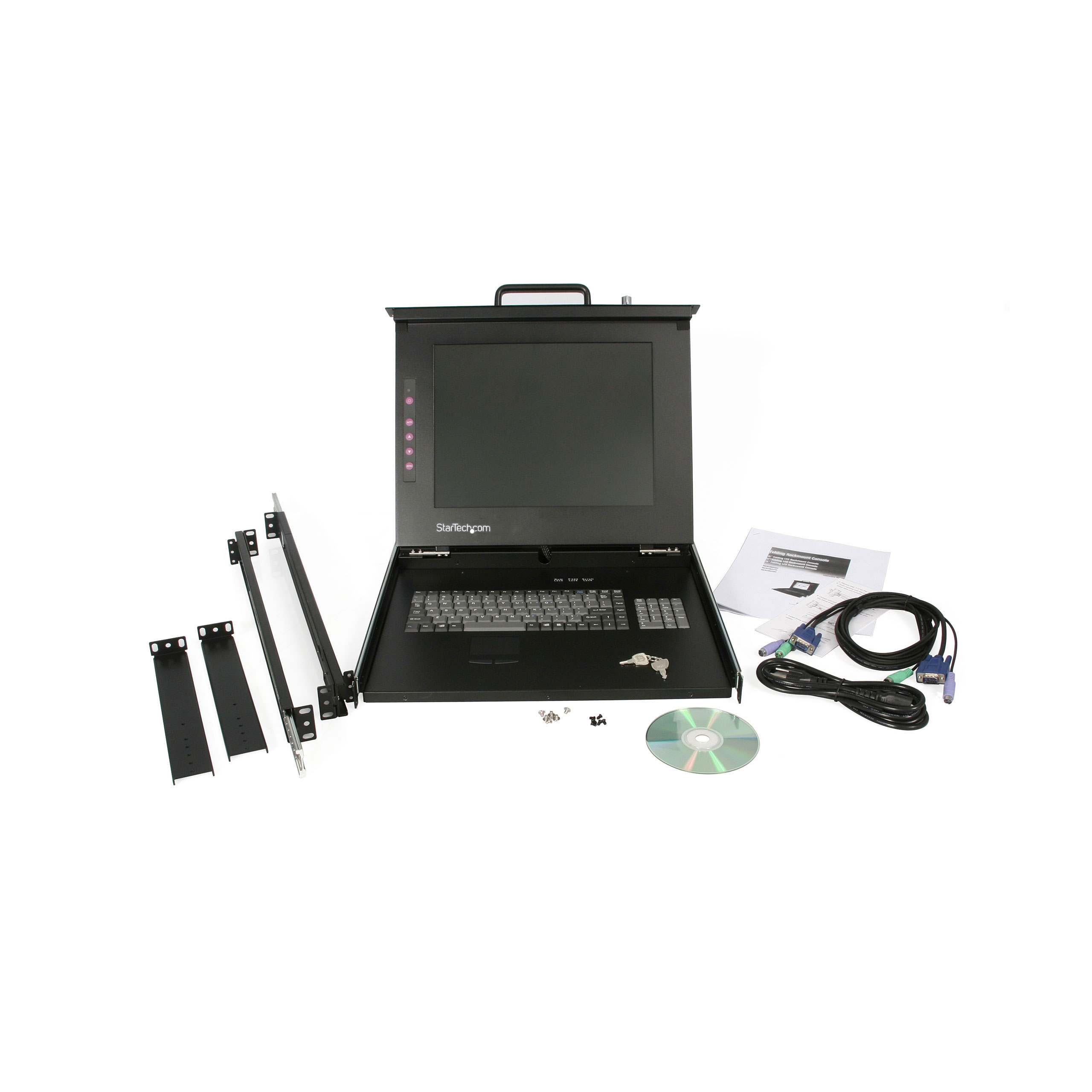

Equivalent Part Number in the UK RKCONS1501GB Input Voltage 110V-240V AC Power Consumption (In Watts) 16 Power Source Standard 120V Power Cords Color Black Material Heavy Duty Steel Maximum Mounting Depth (mm) 800 Minimum Mounting Depth (mm) 550 Operating Temperature 0°C to 50°C (32°F to 122°F) Product Length (mm) 530.000 Product Width (mm) 480.800 Product Height (mm) 45.000 Product Weight (g) 11000.000 Storage Temperature -20°C to 60°C (-4°F to 140°F) TAA Compliant Yes KVM IP Control No Maximum Analog Resolutions 1280x1024 @ 85Hz Maximum Number of Users 1 MTBF (hours) 60,000 Hours On-Screen Display Yes OS Compatibility OS Independent Port Selection Support Hotkeys and OSD (On Screen Display) Aspect Ratio 4:3 Audio No Cascadable Yes Display Size 15" Front Door Key Lock Yes Number of KVM Ports 1 Number of Monitors Supported 1 PC Video Type VGA Rack-Mountable Yes Supported Platforms USB and PS/2 Carton Depth (mm) 665 Carton Height (mm) 210 Carton Quantity 1 Carton Weight Gross (g) 17810 Included in Package - 1 - 1U LCD Rack Console Drawer (1)
- 1 - Console Cable Kit (1)
- 1 - Mounting Rails - Set (1)
- 1 - Power Adapter (1)
Package Depth (mm) 665 Package Height (mm) 210 Package Width (mm) 568 Package Quantity 1 Package Weight (g) 16610 Packaging Description 1U 15" Rack Mount LCD Console - USB + PS/2 Packaging Description India 1U 15" Rack Mount LCD Console - USB + PS/2 Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 VGA Connector 1 (Quantity) 1 Connector 2 USB-A (480Mbps, 2.5W) Connector 2 (Quantity) 1 Connector 3 PS/2 Connector 3 (Quantity) 2 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2014-06-18 Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) CA,US Primary Technology None Product Development Specialist Scott Dunlop Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Stefan Tirolese Technical Writer Andrew Richardson Technology Lifecycle Legacy Vending Machine Not Compatible with Vending Machine
