Main Image
RACKCONS1716
17in Rackmount LCD Console w 16 Port KVM
Control up to 16 servers or KVM switches with this 1U rack-mountable LCD console
Main Image
Product Images
Product Images
BOM Image
Product Name 17in Rackmount LCD Console w 16 Port KVM Product Number RACKCONS1716 UPC 065030830508 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 KVM Switches Category Level 2 Enterprise KVMs Category Level 3 Multiport LCD Consoles Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Product Title (Ultra-Short) 17" KVM Rack Console Product Title (Short) 17" Rackmount LCD Console w/16 Port KVM Product Title (Standard) 1U 17" Rackmount LCD Console w/16 Port KVM Switch Product Title (Long) 1U 17" Rackmount LCD Console with Integrated 16 Port KVM Switch Product Title (AMZ) 1U 17" Rackmount LCD Console with Integrated 16 Port KVM Switch (RACKCONS1716) Title Ingram (Part 1) 1U 17" Rackmount LCD Console wit Title Ingram (Part 2) h 16 Port KVM Switch Website Product Headline Control up to 16 servers or KVM switches with this 1U rack-mountable LCD console Bullet 1 On Screen Display (OSD) Bullet 2 Durable design Bullet 3 Compatible with PC, Mac and Sun servers and systems Bullet 4 Cascadable design adds up to 136 computers by cascading 8 additional KVM switches Bullet 5 Supports Hot-plugging when adding new systems Bullets (Compact) Control up to 16 servers or KVM switches with this 1U rack-mountable LCD console - Server LCD - KVM Console - Rackmount lcd - Rack mount LCD Bullets (Consolidated) Control up to 16 servers or KVM switches with this 1U rack-mountable LCD console - Server LCD - KVM Console - Rackmount LCD - 1U 17" Rack Mount LCD - Integrated 16 Port KVM Switch Marketing Copy Applications - Centralized control of up to 136 servers when cascaded with additional KVM switches
- Improving the internal space efficiency of existing cabinets
- Managing cabinet mounted servers in large server farms or co-location facilities
Website Search Keyword - 17 inch LCD console
- LCD
- console
- 16 port
- KVM
- multi-platform
- rackmount console
- rackcons
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
Accessory Products - CAB832DS
- CAB831HD
- CAB1641HDI
- CABCONSPAGB
- CABCONSPAEU
- CABCONSPA
- SV1631DUSB
- SV1631HD
- SV1654DX4I
- SV1653DXI
- SV3254DX4I
- SV3253DXI
- MXT101MMHQ
- MXT101MMHQ10
- MXT105MMHQ
- SVECON25
- SVA12M5NA
Related Products - RACKCONS1701
- RACKCONS1708
Equivalent Part Number in the UK RKCONS1716GB Output Current 4A Output Voltage (V) 12V DC Power Consumption (In Watts) 48 Power Source AC Adapter Included Color Black Humidity 10~90% RH Material Heavy Duty Steel Maximum Mounting Depth (mm) 1000 Minimum Mounting Depth (mm) 504 Operating Temperature 0°C to 50°C (32°F to 122°F) Product Length (mm) 470.000 Product Width (mm) 440.000 Product Height (mm) 44.000 Product Weight (g) 11000.000 Storage Temperature -20°C to 60°C (-4°F to 140°F) TAA Compliant Yes KVM IP Control No Maximum Analog Resolutions 1280X1024 (SXGA) Maximum Number of Users 1 MTBF (hours) 60,000 Hours On-Screen Display Yes OS Compatibility OS Independent Port Selection Support Hotkeys and OSD (On Screen Display) Aspect Ratio 4:3 Audio No Cascadable Yes Display Size 17" Front Door Key Lock Yes Number of KVM Ports 16 Number of Monitors Supported 1 PC Video Type VGA Rack-Mountable Yes Supported Platforms USB and PS/2 U Height 1U Carton Depth (mm) 780 Carton Height (mm) 211 Carton Quantity 1 Carton Weight Gross (g) 20800 Included in Package - 1 - 1U LCD Rack Console Drawer

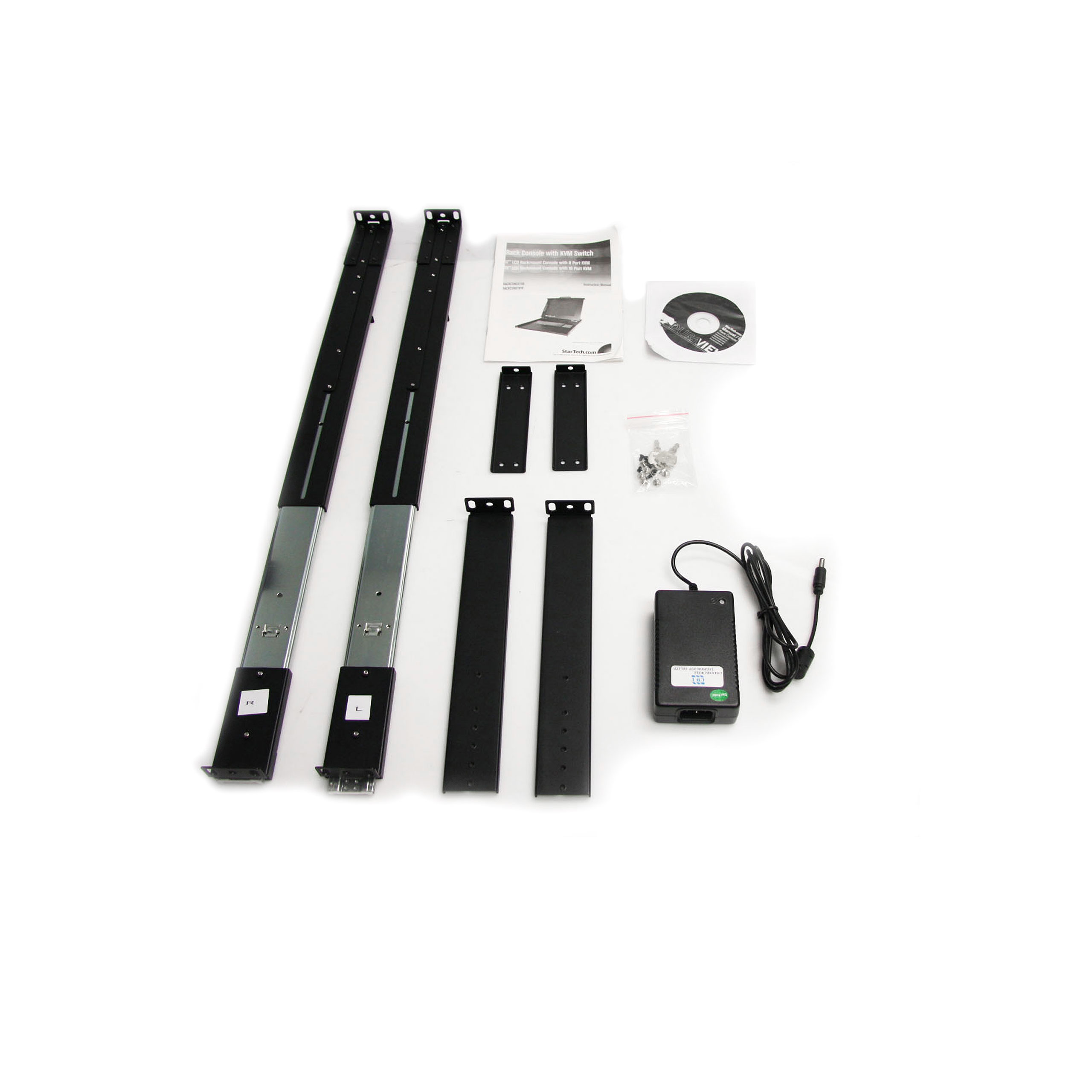

- 1 - 1U 16 Port Multi-Platform KVM Switch
- 1 - Mounting Rails (Set)
- 1 - Power Adapter
Package Depth (mm) 780 Package Height (mm) 200 Package Width (mm) 570 Package Quantity 1 Package Weight (g) 19600 Packaging Description 1U 17in Rackmount LCD Console - 16 Port KVM Packaging Description India 1U 17in Rackmount LCD Console - 16 Port KVM Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 VGA Connector 1 (Quantity) 1 Connector 2 PS/2 Connector 2 (Quantity) 2 Host Connector 1 VGA Host Connector 1 (Quantity) 16 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2014-06-18 Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) CA,US Primary Technology None Product Development Specialist Scott Dunlop Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Stefan Tirolese Technical Writer Andrew Richardson Technology Lifecycle Legacy Vending Machine Not Compatible with Vending Machine
