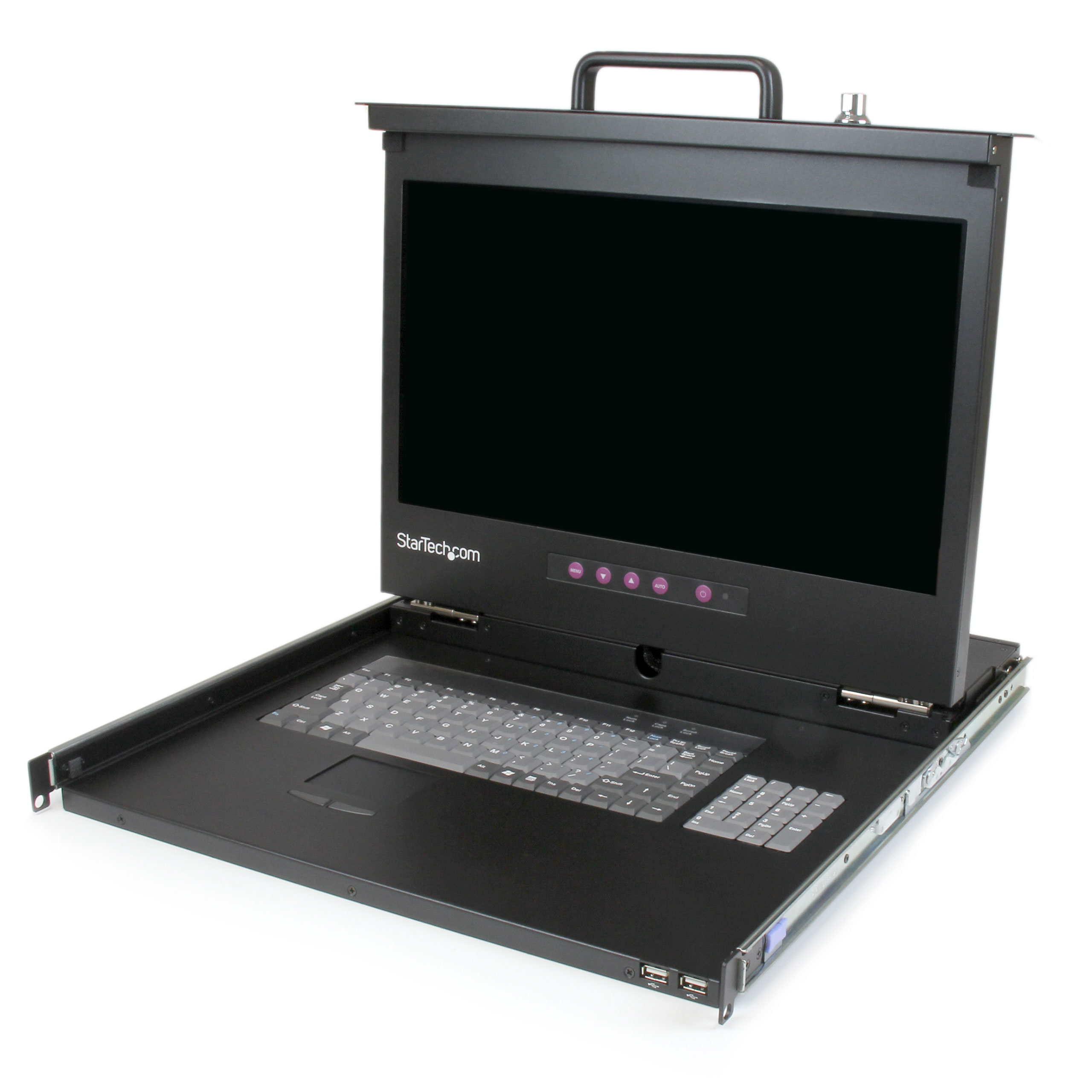

RACKCONS17HD
Rackmount LCD Console 1920x1080 DVI USB
Control server equipment from a centralized, Full HD KVM console
Main Image
Product Images
Product Images
BOM Image
Product Name Rackmount LCD Console 1920x1080 DVI USB Product Number RACKCONS17HD UPC 065030854528 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 KVM Switches Category Level 2 Enterprise KVMs Category Level 3 Single Port LCD Consoles Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX009X Product Title (Ultra-Short) 17" HD Rack Console Product Title (Short) 1U 17" 1080p LCD Rack Console w/ USB Hub Product Title (Medium) 1U 17" HD 1080p Rackmount LCD Console with Front USB Hub Product Title (Standard) 1U 17" HD 1080p Rackmount LCD Console with Front USB Hub Product Title (Long) 1U 17" HD 1080p Rackmount LCD Console with Front USB Hub Product Title (AMZ) 1U 17" HD 1080p Rackmount LCD Console with Front USB Hub - LCD Rack Console - Rack mount LCD Console - 1080p KVM Console (RACKCONS17HD) Title Ingram (Part 1) 1U 17in 1920x1080 Widescreeen Title Ingram (Part 2) HD LCD Rack Console w/ USB Hub Website Product Headline Control server equipment from a centralized, Full HD KVM console Bullet 1 Supports HD resolutions up to 1920x1080 Bullet 2 Durable 1U rack-mountable design Bullet 3 LED Backlight; reduced power consumption Bullet 4 2 front USB Hub ports Bullet 5 On Screen Display (OSD) control and LED indicators for easy monitoring Bullets (Consolidated) Control server equipment from a centralized, Full HD KVM console - 1U 17" HD 1080p Rackmount LCD Console with Front USB Hub - LCD Rack Console - Rack mount LCD Console - 1080p KVM Console - Widescreen HD KVM Console Marketing Copy Applications - Ideal for high resolution applications in the server room, where the previous standard 1024x768 17" screens are not sufficient
- Centralized control of a single system, or dozens of PCs when connected to a KVM switch
- Improving the internal space-efficiency of existing cabinets
- Manage cabinet-mounted servers and KVM switches
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
Special Notes This rack mount console supports DVI-D (digital) signaling only. Using DVI-D cabling across all connections is recommended for best results. Please contact technical support if you require and further assistance identifying the proper cables. Accessory Products - MXT101MMHQ1
- MXT101MMHQ3
- MXT101MMHQ
- MXT101MMHQ10
- KXT102
- DVIDDMM1
- DVIDDMM3
- DVIDDMM6
- DVIDDMM10
- DVIDDMM15
- USB3SAA6BK
- USB3SAA6
- USB3SAA3MBK
- SVA12M5NA
Related Products - RACKCOND17HD
- RACKCONV1701
- RACKCONS1501
- RACKCONS1701
- RACKCONS1901
- RACKCONS1708
- RACKCONS1908
- RACKCONS1716
- CABCONS1716I
- RACKCONS1916

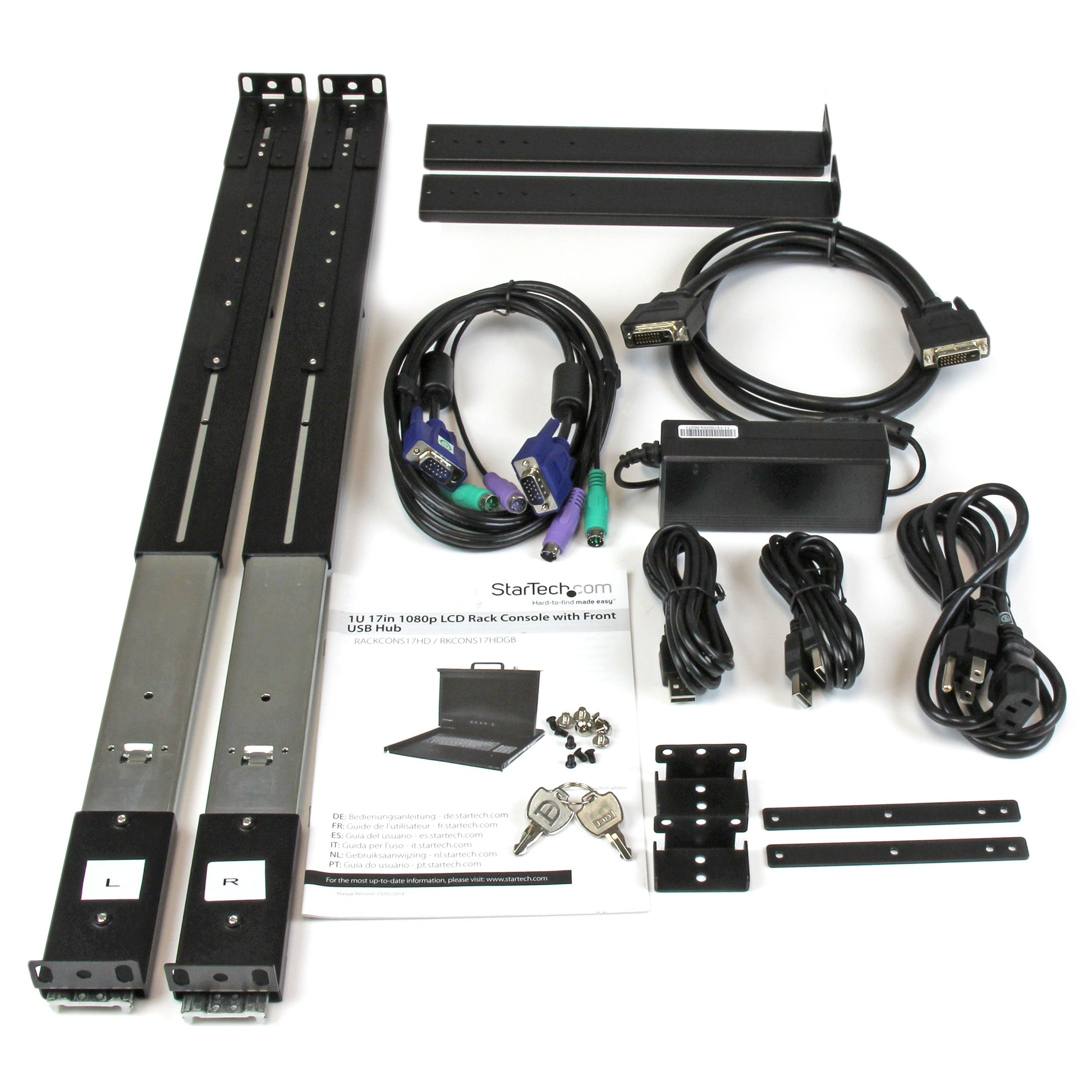

Equivalent Part Number in the EU RKCONS17HDEU Equivalent Part Number in the UK RKCONS17HDGB Input Current 1.7 A Input Voltage 100 - 240 AC Output Current 4.17 A Output Voltage (V) 12V DC Power Consumption (In Watts) 23.35 Power Source AC Adapter Included Plug Type M Center Tip Polarity Positive Color Black Humidity 10~90% RH Material Heavy Duty Steel Maximum Mounting Depth (mm) 1000 Minimum Mounting Depth (mm) 504 Operating Temperature 0°C to 50°C (32°F to 122°F) Product Length (mm) 470.000 Product Width (mm) 440.000 Product Height (mm) 43.000 Product Weight (g) 9280.000 Storage Temperature -20°C to 60°C (-4°F to 140°F) TAA Compliant Yes KVM IP Control No Maximum Number of Users 1 MTBF (hours) 50, 000 Hrs On-Screen Display Yes OS Compatibility OS Independent Supported Resolutions Up to 1920 x 1080 Aspect Ratio 16:9 Audio No Cables Included Yes Cascadable Yes Display Size 17" Front Door Key Lock Yes Number of KVM Ports 1 Number of Monitors Supported 1 PC Video Type DVI+VGA Rack-Mountable Yes Supported Platforms USB and PS/2 U Height 1U Carton Depth (mm) 562 Carton Height (mm) 198 Carton Quantity 1 Carton Weight Gross (g) 17080 Included in Package - 1 - 1U Rack Console
- 1 - Set, Mounting Rails
- 2 - Extended Brackets
- 2 - Short Bracket Attachments
- 1 - 6ft (1.8m) PS/2 VGA KVM Cable
- 2 - 6ft (1.8m) USB A-A Cable
- 1 - Power Adapter
- 2 - Keys
- 6 - #6-32x6 Flat Screws
- 1 - NA Power Cord
- 6 - M4x5 Screws
- 1 - Instruction Manual
- 2 - Short Brackets

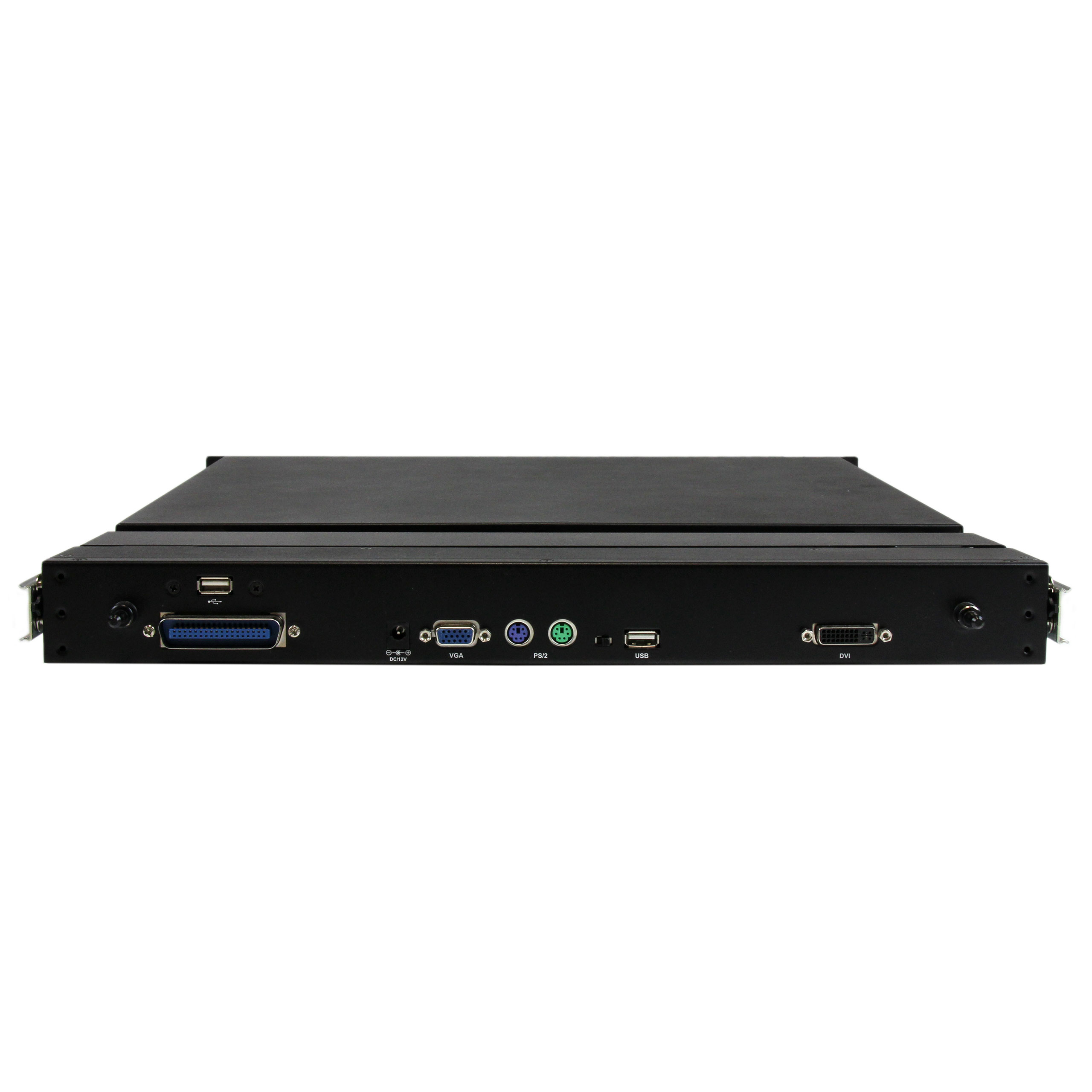

Package Depth (mm) 562 Package Height (mm) 198 Package Width (mm) 780 Package Quantity 1 Package Weight (g) 17100 Packaging Description 1U 17in 1080p LCD Rack Console w/ Front USB Hub Packaging Description India 1U 17in 1080p LCD Rack Console w/ Front USB Hub Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 USB-A (480Mbps, 2.5W) Connector 1 (Quantity) 2 Connector 2 PS/2 Connector 2 (Quantity) 2 Connector 3 VGA Connector 3 (Quantity) 1 Connector 4 DVI-I Dual-Link (29-Pin) Connector 4 (Quantity) 1 Connector 5 USB-A (480Mbps, 2.5W) Connector 5 (Quantity) 2 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2013-10-07 Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) CA,JP,US Primary Technology None Product Development Specialist Scott Dunlop Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Stefan Tirolese Technical Writer Andrew Richardson Technology Lifecycle Legacy Vending Machine Not Compatible with Vending Machine
