RACKCONS1901

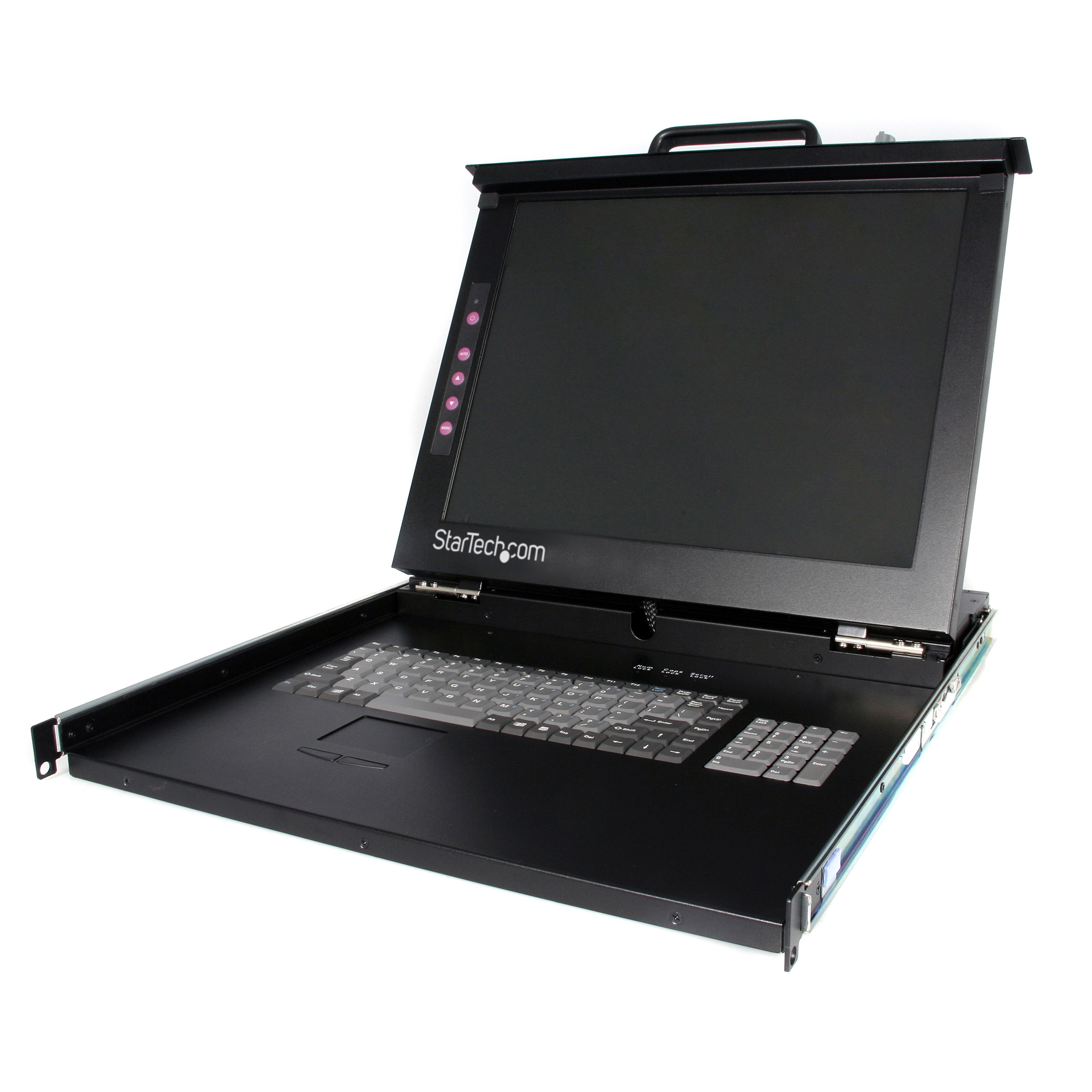

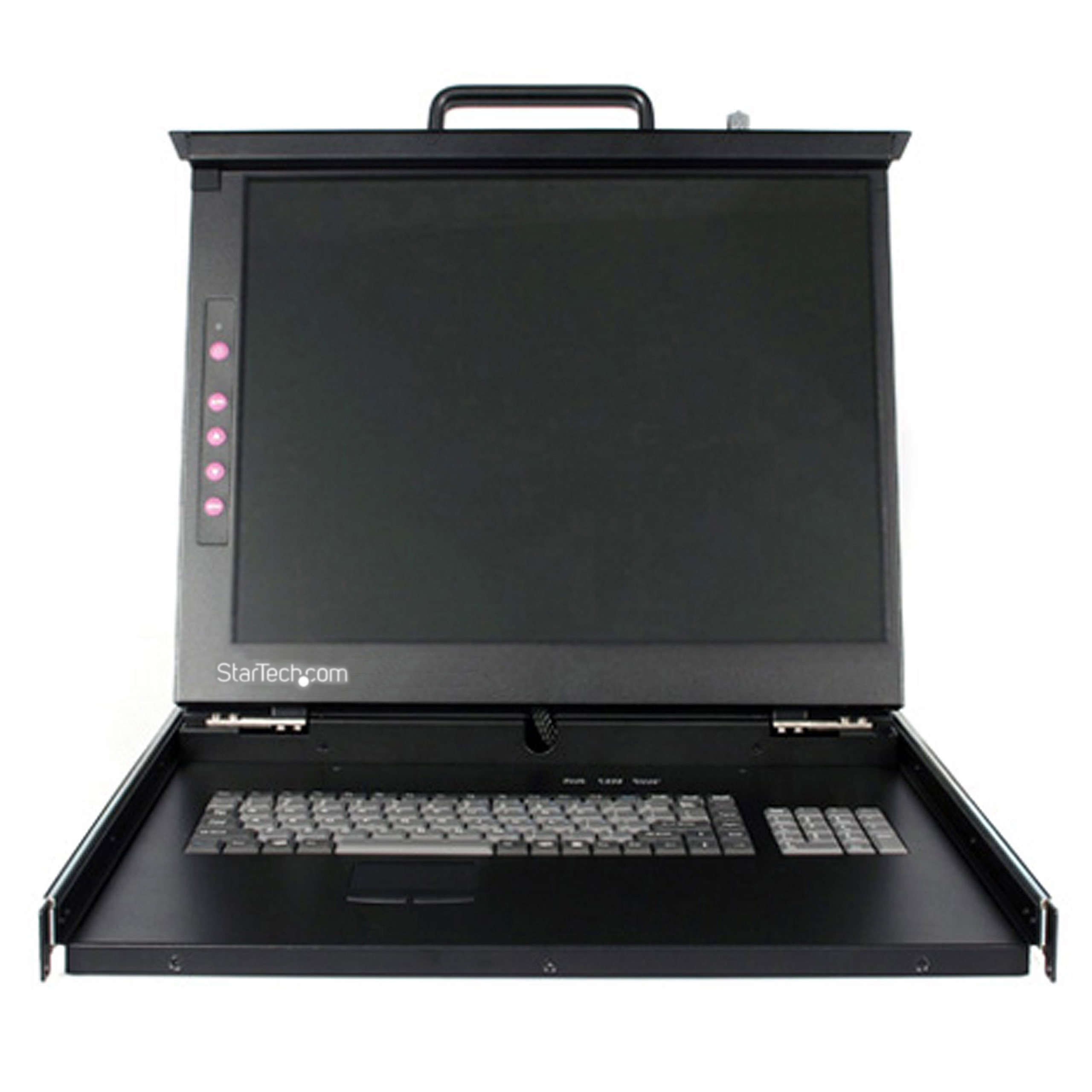

19 Inch Folding LCD Rack Console
Centralized control of a server or KVM switch with this 1U USB PS/2 rack-mountable LCD console
Main Image
Product Images
Product Images
Product Images
BOM Image
Product Name 19 Inch Folding LCD Rack Console Product Number RACKCONS1901 UPC 065030822800 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 KVM Switches Category Level 2 Enterprise KVMs Category Level 3 Single Port LCD Consoles Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX009X Product Title (Ultra-Short) 19" LCD Rack Console Product Title (Short) 1U 19" Rackmount LCD Console USB + PS/2 Product Title (Standard) 1U 19" Rackmount LCD Console - USB + PS/2 Product Title (Long) 1U 19" Rackmount LCD Console - USB + PS/2 Product Title (AMZ) 19" Rackmount LCD Console - USB + PS/2 - 1U (RACKCONS1901) Title Ingram (Part 1) 1U 19" Rackmount LCD Console - U Title Ingram (Part 2) SB + PS/2 Website Product Headline Centralized control of a server or KVM switch with this 1U USB PS/2 rack-mountable LCD console Bullet 1 Bright 19" Active Matrix TFT Display Bullet 2 Durable 1U rack-mountable design Bullet 3 OSD function (On Screen Display) for LCD display Bullet 4 Security features, including port locking and auto scan Bullet 5 VGA video input support Bullets (Consolidated) Centralized control of a server or KVM switch with this 1U USB PS/2 rack-mountable LCD console - Compatible with Dell PowerEdge R Series Rack Servers - Rack Console/Server LCD/KVM Console/Rackmount LCD/Rack Mount LCD - 19" LCD display - Key-lock to avoid unauthorized access - Supports VGA resolutions up to 1280x1024 - Compatible with USB or PS/2 - Provide compact, local access to a server or KVM switch in your data center or back-office server room Marketing Copy Applications - Centralized control of dozens of PCs and servers if used with optional KVM
- Improving the internal space efficiency of existing cabinets
- Managing cabinet mounted servers
Website Search Keyword - 19 inch
- cabinet
- drawer
- LCD
- rack
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- CE - Safety - Electrical - European Union - Low Voltage Directive (LVD) 2014/35/EU
- UL - Safety - Electrical - Canada / United States - Enhanced UL Mark
Accessory Products - MXT101MMHQ1
- MXT101MMHQ3
- MXT101MMHQ
- MXT101MMHQ10
- KXT102
- USB3SAA6BK
- USB3SAA6
- USB3SAA3MBK
- SVA12M5NA
Related Products - RACKCONS1501
- RACKCONS1701
- RACKCONV1701
- RACKCOND17HD
- RACKCONS17HD
- RACKCONS1708
- RACKCONS1908
- RACKCONS1716
- CABCONS1716I
- RACKCONS1916

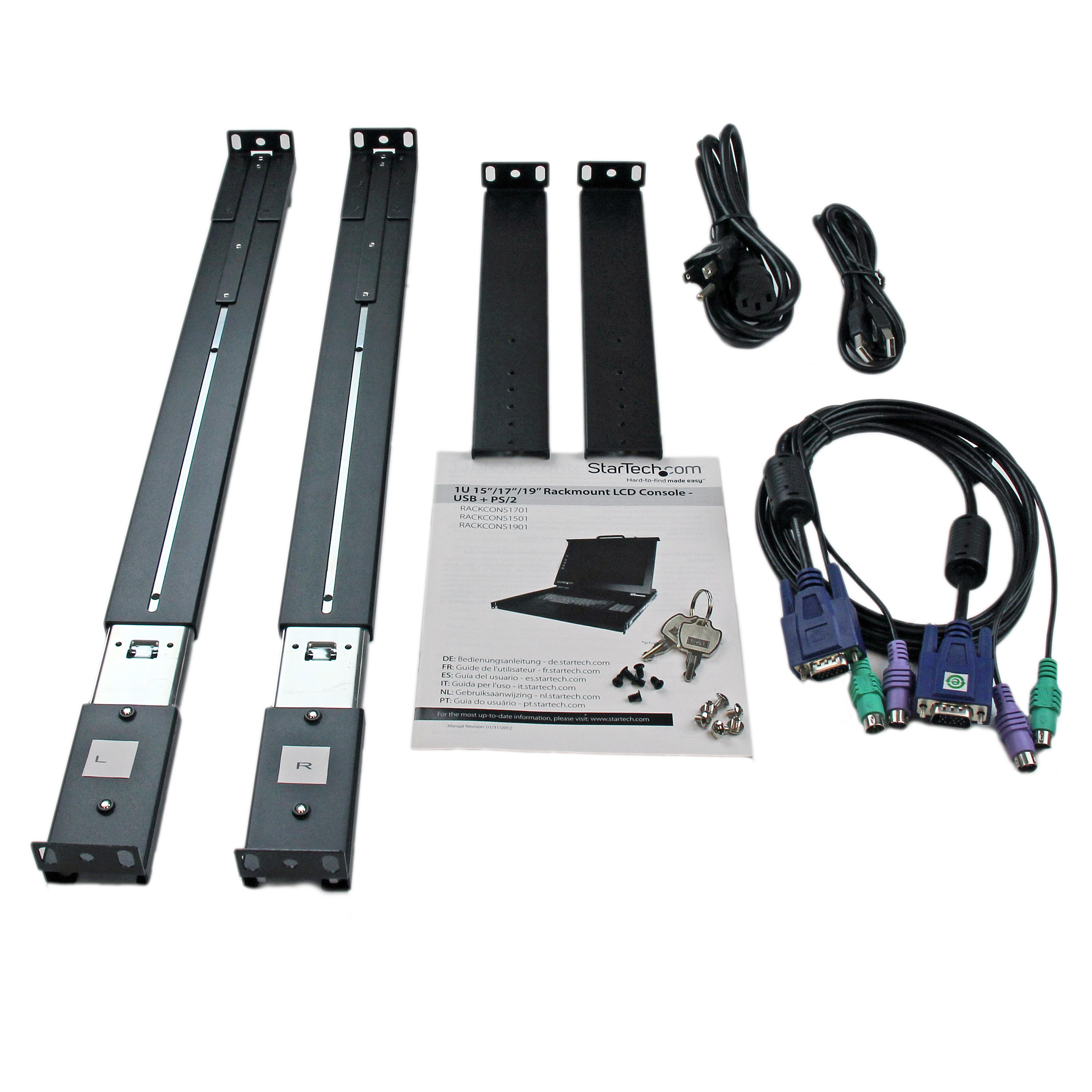

Equivalent Part Number in the EU RKCONS1901EU Equivalent Part Number in the UK RKCONS1901GB Input Voltage 100 - 240 AC Output Current 3.3 A Output Voltage (V) 12V DC Power Consumption (In Watts) 39.6 Power Source Standard 120V Power Cords Color Black Material Heavy Duty Steel Maximum Mounting Depth (mm) 800 Minimum Mounting Depth (mm) 555 Operating Temperature 0°C to 50°C (32°F to 122°F) Product Length (mm) 575 Product Width (mm) 480.8 Product Height (mm) 45 Product Weight (g) 13710 Storage Temperature -20°C to 60°C (-4°F to 140°F) TAA Compliant Yes KVM IP Control No Maximum Analog Resolutions 1280x1024(SXGA)@60Hz Maximum Number of Users 1 MTBF (hours) 60,000 Hours On-Screen Display Yes OS Compatibility OS Independent Port Selection Support Hotkeys and OSD (On Screen Display) Aspect Ratio 4:3 Audio No Display Size 19" Front Door Key Lock Yes Number of KVM Ports 1 Number of Monitors Supported 1 PC Video Type VGA Rack-Mountable Yes Supported Platforms USB and PS/2 Carton Depth (mm) 665 Carton Height (mm) 210 Carton Quantity 1 Carton Weight Gross (g) 20140 Included in Package - 1 - 1U LCD Rack Console Drawer
- 1 - Console Cable Kit
- 1 - Mounting Rails - Set
- 1 - Power Cord
- 1 - Set of Keys
- 1 - Set of Mounting Screws
- 1 - User Manual
- 1 - Manual on CD
Package Depth (mm) 714 Package Height (mm) 210 Package Width (mm) 568 Package Quantity 1 Package Weight (g) 18940 Packaging Description 1U 19" Rack Mount LCD Console - USB + PS/2 Packaging Description India 1U 19" Rack Mount LCD Console - USB + PS/2 Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Host Connector 1 VGA Host Connector 1 (Quantity) 1 Host Connector 2 PS/2 Host Connector 2 (Quantity) 2 Host Connector 3 USB-A (480Mbps, 2.5W) Host Connector 3 (Quantity) 1 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2014-06-18 Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) CA,US Primary Technology None Product Development Specialist Scott Dunlop Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Stefan Tirolese Technical Writer Andrew Richardson Technology Lifecycle Legacy Vending Machine Not Compatible with Vending Machine
