RACKCONU1708

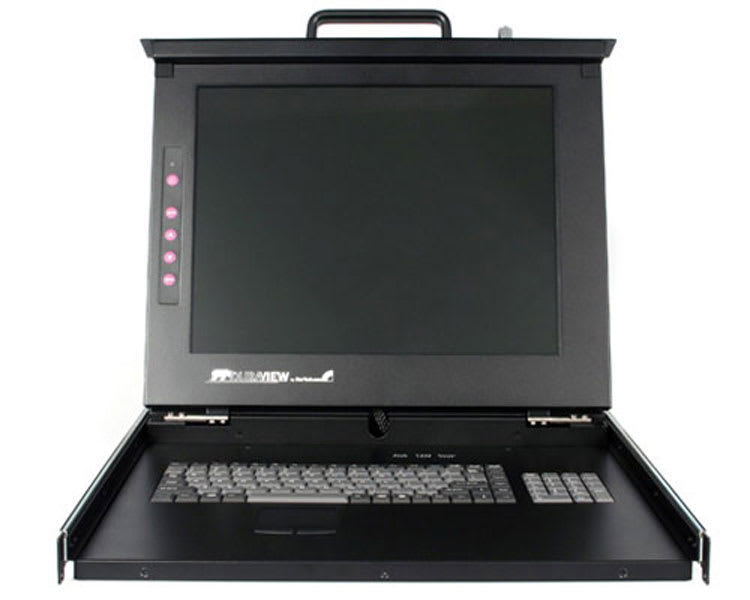

1U 17in Rackmount LCD KVM Console with 8 Port KVM Switch
Save space with a 17inch LCD Console with integrated 8 port KVM
Main Image
Product Images
Product Name 1U 17in Rackmount LCD KVM Console with 8 Port KVM Switch Product Number RACKCONU1708 UPC 065030837330 Warranty 2 Years Taxonomy Product > Legacy Discontinued Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) 1 Country of Origin History (2) Taiwan Product Title (Short) 17in LCD KVM Console - 8 Port KVM Product Title (Standard) StarTech.com 1U 17in Rackmount LCD KVM Console with 8 Port KVM Switch - KVM console - 8 ports - rack-mountable - TFT - 17" - 1280 x 1024 - 250 cd/m2 - 450:1 - 16 ms - 0.264 mm - 1U Product Title (Long) 1U 17in Rackmount LCD KVM Console with 8 Port KVM Switch Title Ingram (Part 1) 1U 17in Rackmount LCD KVM Consol Title Ingram (Part 2) e w/ 8 Port KVM Switch Website Product Headline Save space with a 17inch LCD Console with integrated 8 port KVM Bullet 1 Auto Scan Mode lets you switch between computers for easy monitoring Bullet 2 Cascadable design Bullet 3 Compatible with PC, Mac and Sun servers and systems Bullet 4 Durable chassis Bullet 5 Hot-pluggable Marketing Copy Applications - Centralized control of up to 64 Servers
- Improving the internal space efficiency of existing cabinets
- Managing cabinet mounted servers
Website Search Keyword - 17 inch LCD console
- 8 port console
- rack console
- KVM console
- LCD console
- rackcons
- rackmount console
- USB KVM
- 17" rack console
- lcd drawer
Accessory Products - CAB832DS
- SVECONUS10
- SVECONUS15
- SVECONUS6
- SV565UTPU
- SV1107IPEXT
- SV1115IPEXT
- SV441DUSBI
- CABCONSPAGB
- CABCONSPAEU
- CABCONSPA
Related Products - CABCONU1716I
- RACKCONS1501
- RACKCONS1701
- RACKCONS1901
- RACKCONU1716
- RACKCONU1908
- RACKCONU1916
- RACKCONV1701
Input Voltage 110V-240V AC Output Current 4A Output Voltage (V) 12V DC Power Source AC Adapter Included Plug Type M Center Tip Polarity Positive Color Black Humidity 10~90% RH Material Heavy Duty Steel Minimum Mounting Depth (mm) 762 Operating Temperature 0°C to 50 °C (32°F to 122°F) Product Length (mm) 530 Product Width (mm) 440 Product Height (mm) 44 Product Weight (g) 13380 Storage Temperature -20°C to 60°C (-4°F to 140°F) TAA Compliant No KVM IP Control No Maximum Analog Resolutions 1280x1024 @60Hz Maximum Number of Users 1 Local Port Selection Support Hotkeys and OSD (On Screen Display) Audio No Cascadable Yes Display Size 17" Number of KVM Ports 8 Number of Monitors Supported 1 PC Video Type VGA Rack-Mountable Yes Supported Platforms USB U Height 1U Included in Package - 1 - 1U 8 Port USB KVM Switch
- 1 - 1U LCD Rack Console Drawer
- 1 - Assembly screws
- 1 - Mounting Rails (Set)
- 1 - Power Adapter
Connector 1 VGA Connector 1 (Quantity) 1 Connector 2 USB-A (480Mbps, 2.5W) Connector 2 (Quantity) 2 Host Connector 1 VGA Host Connector 1 (Quantity) 8 Amazon Merchandising Manager Umer Khalid en-US Content Approved No Graphic Designer Shane Arnett Primary Technology None Product Development Specialist Greg Product Photographer Alejandra Valencia
