RACKCONU1716

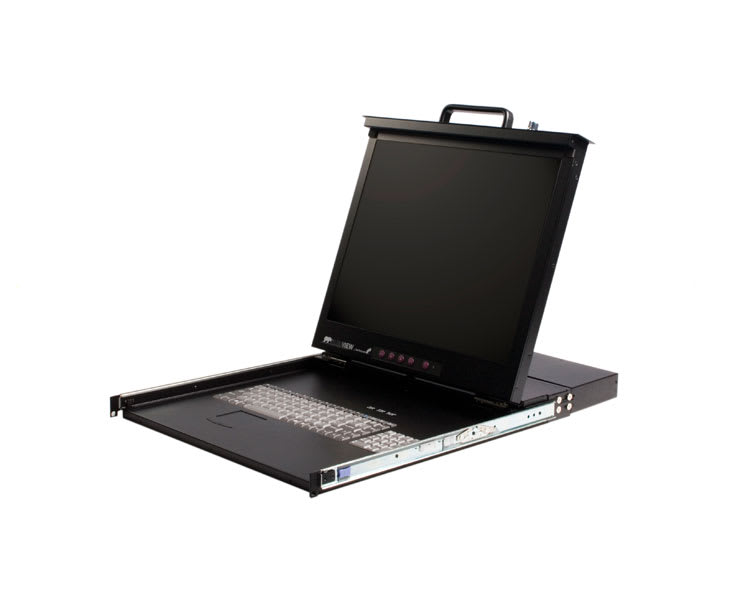

1U 17in Rackmount LCD KVM Console with Integrated 16 Port KVM Switch
Save space with a 17inch LCD Console with integrated 16 port KVM
Main Image
Product Images
Product Images
Product Name 1U 17in Rackmount LCD KVM Console with Integrated 16 Port KVM Switch Product Number RACKCONU1716 UPC 065030837347 Warranty 2 Years Taxonomy Product > Legacy Discontinued Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) 1 Country of Origin History (2) Taiwan Product Title (Short) 17in Rackmount LCD KVM Console Product Title (Standard) StarTech.com 1U 17in Rackmount LCD KVM Console with Integrated 16 Port KVM Switch - KVM console - 16 ports - rack-mountable - TFT - 17" - 1280 x 1024 - 250 cd/m2 - 500:1 - 12 ms - 0.098 mm - VGA - black - 1U Product Title (Long) 1U 17in Rackmount LCD KVM Console with Integrated 16 Port KVM Switch Title Ingram (Part 1) 1U 17in Rackmount LCD KVM Consol Title Ingram (Part 2) e w/ 16 Port KVM Switch Website Product Headline Save space with a 17inch LCD Console with integrated 16 port KVM Bullet 1 Auto Scan Mode lets you switch between computers for easy monitoring Bullet 2 Cascadable design Bullet 3 Compatible with PC, Mac and Sun servers and systems Bullet 4 Durable chassis Bullet 5 Hot-pluggable Marketing Copy Applications - Centralized control of up to 136 Servers
- Improving the internal space efficiency of existing cabinets
- Managing cabinet mounted servers
Website Search Keyword - 17 inch LCD console
- 16 port console
- rack console
- KVM console
- LCD console
- rackcons
- rackmount console
- USB KVM
- 19" rack console
- lcd drawer
Accessory Products - CAB832DS
- SVECONUS10
- SVECONUS15
- SVECONUS6
- SV565UTPU
- SV1107IPEXT
- SV1115IPEXT
- SV441DUSBI
- CABCONSPA
- CABCONSPAEU
- CABCONSPAGB
Related Products - RACKCONS1501
- RACKCONS1701
- RACKCONS1901
- RACKCONU1708
- RACKCONU1908
- RACKCONU1916
- CABCONU1716I
- RACKCONV1701
Input Voltage 110V-240V AC Output Current 4A Output Voltage (V) 12V DC Power Source AC Adapter Included Plug Type M Center Tip Polarity Positive Color Black Humidity 10~90% RH Material Heavy Duty Steel Minimum Mounting Depth (mm) 762 Operating Temperature 0°C to 50 °C (32°F to 122°F) Product Length (mm) 530 Product Width (mm) 440 Product Height (mm) 44 Product Weight (g) 13580 Storage Temperature -20°C to 60°C (-4°F to 140°F) TAA Compliant No KVM IP Control No Maximum Analog Resolutions 1280x1024 @60Hz Maximum Number of Users 1 Local Port Selection Support Hotkeys and OSD (On Screen Display) Audio No Cascadable Yes Display Size 17" Number of KVM Ports 16 Number of Monitors Supported 1 PC Video Type VGA Rack-Mountable Yes Supported Platforms USB U Height 1U Included in Package - 1 - 1U 16 Port USB KVM Switch
- 1 - 1U LCD Rack Console Drawer
- 1 - Mounting Rails (Set)
- 1 - Power Adapter
- 1 - Assembly screws
Connector 1 VGA Connector 1 (Quantity) 1 Connector 2 USB-A (480Mbps, 2.5W) Connector 2 (Quantity) 2 Host Connector 1 VGA Host Connector 1 (Quantity) 16 Amazon Merchandising Manager Umer Khalid en-US Content Approved No Graphic Designer Shane Arnett Primary Technology None Product Development Specialist Greg Product Photographer Alejandra Valencia
